Description

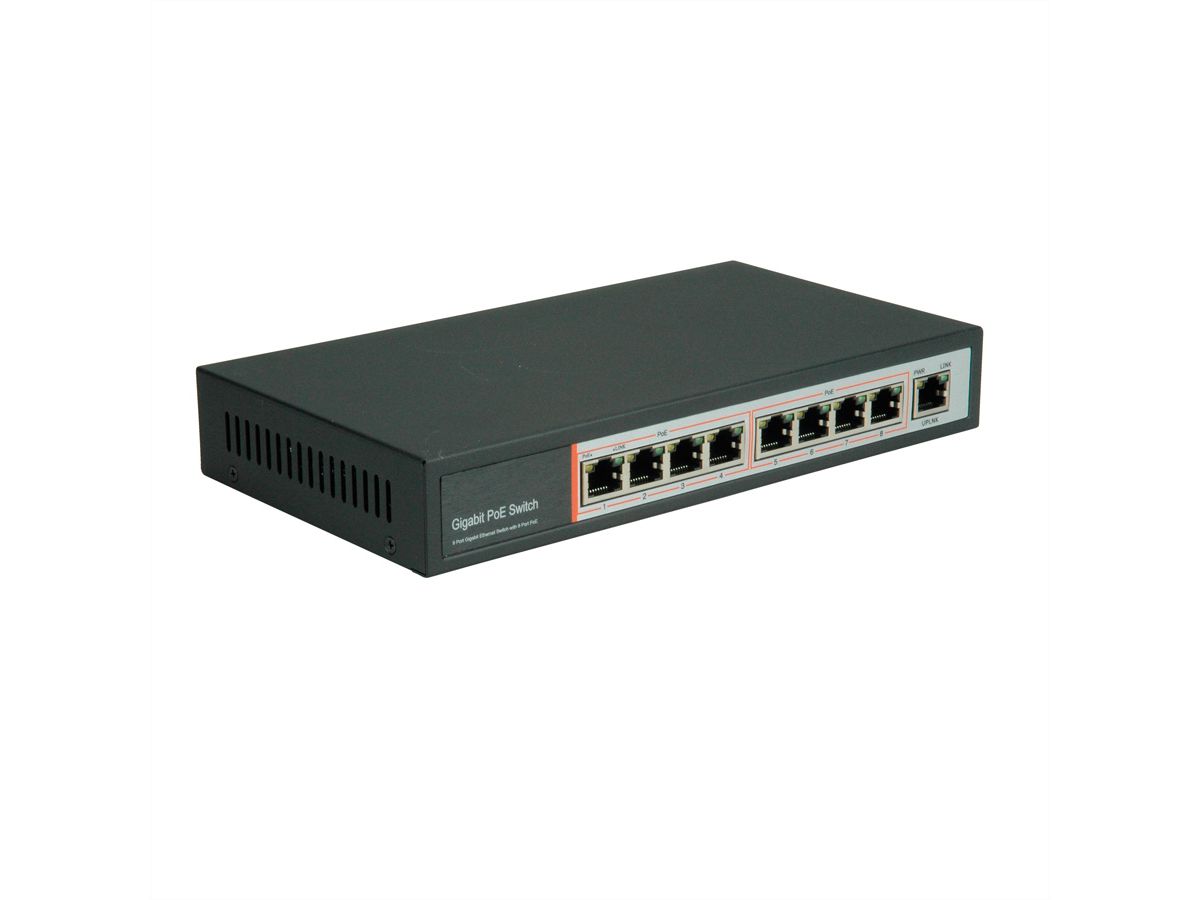

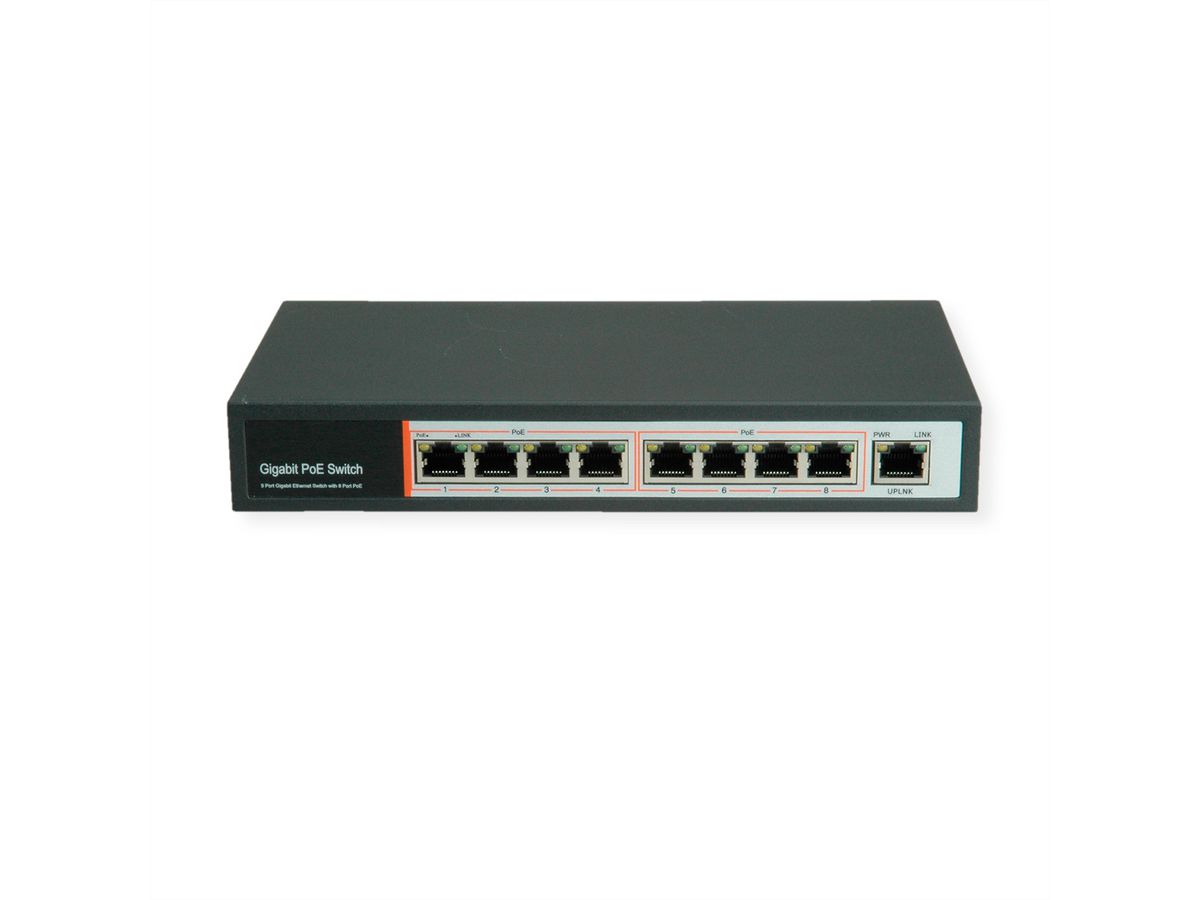

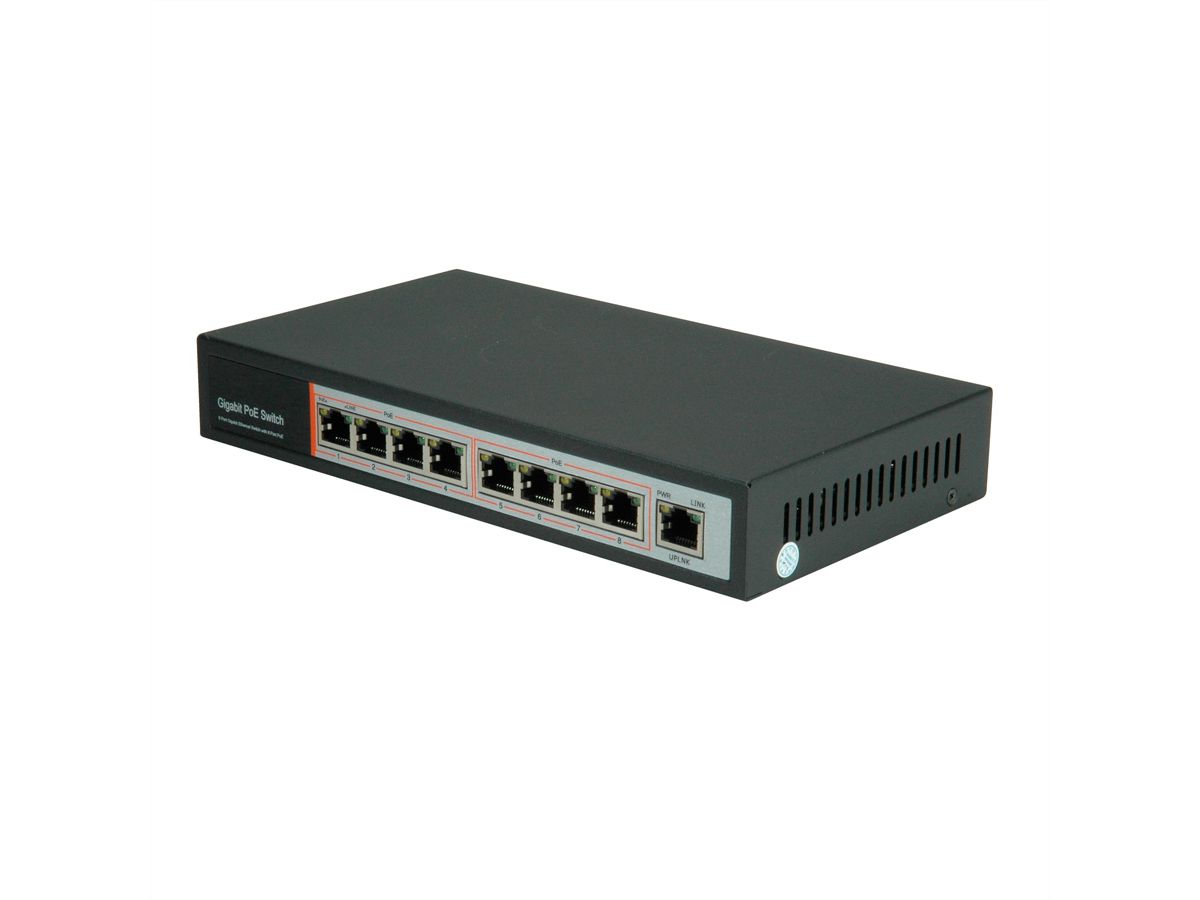

Gigabit Ethernet PoE switch with 8+1 ports for small or medium-sized network environments.

This Gigabit Ethernet PoE switch is designed for small or medium network environments to strengthen its network connection. It converts standard 100~240V/AC power into low-voltage DC that runs over an existing LAN cable to power up Power over Ethernet (PoE) compliant network accessories like e.g. workgroup switches, network cameras, access points, IP-phones.

• 8x 10/100/1000 Mbit/s Auto-Negotiation PoE ports with 1 Gigabit Uplink Port
• Compliant with IEEE802.3af/at standard (IEEE802.3, 802.3u, 802.3af, 802.3x)
• IEEE802.3x flow control for Full-Duplex Mode and back-pressure for Half-Duplex Mode
• Bandwidth 18Gbit/s
• Detects your PoE devices according to PoE standard
• Supports automatic detect functionality to protect the system when the system power is overloaded or there is non-POE device
• LED indicators for monitoring power, link,activity and speed
• Switching method: Store-and-forward
• Metal casing
• Contents: Switch, power cord, manual

Specifications

Manufacturer	VALUE
Product group	Network Switches
Product type	PoE Gigabit Switch
Colour	black
Network standard	Gigabit Ethernet
LAN (Mbps)	10/100/1000
Quantity of ports	9
Gigabit Ethernet Ports RJ-45	9
Power over Ethernet (PoE)	PoE+
Quantity of PoE ports	8
Max. PoE output power per port	30 W
Max. PoE output power (total)	90 W
Power supply unit (internal/external)	External
Height	35 mm
Width	225 mm
Depth	121 mm
Weight	673.3 g

Downloads

Product data sheet - English (46.7 KB)

Download
