Description

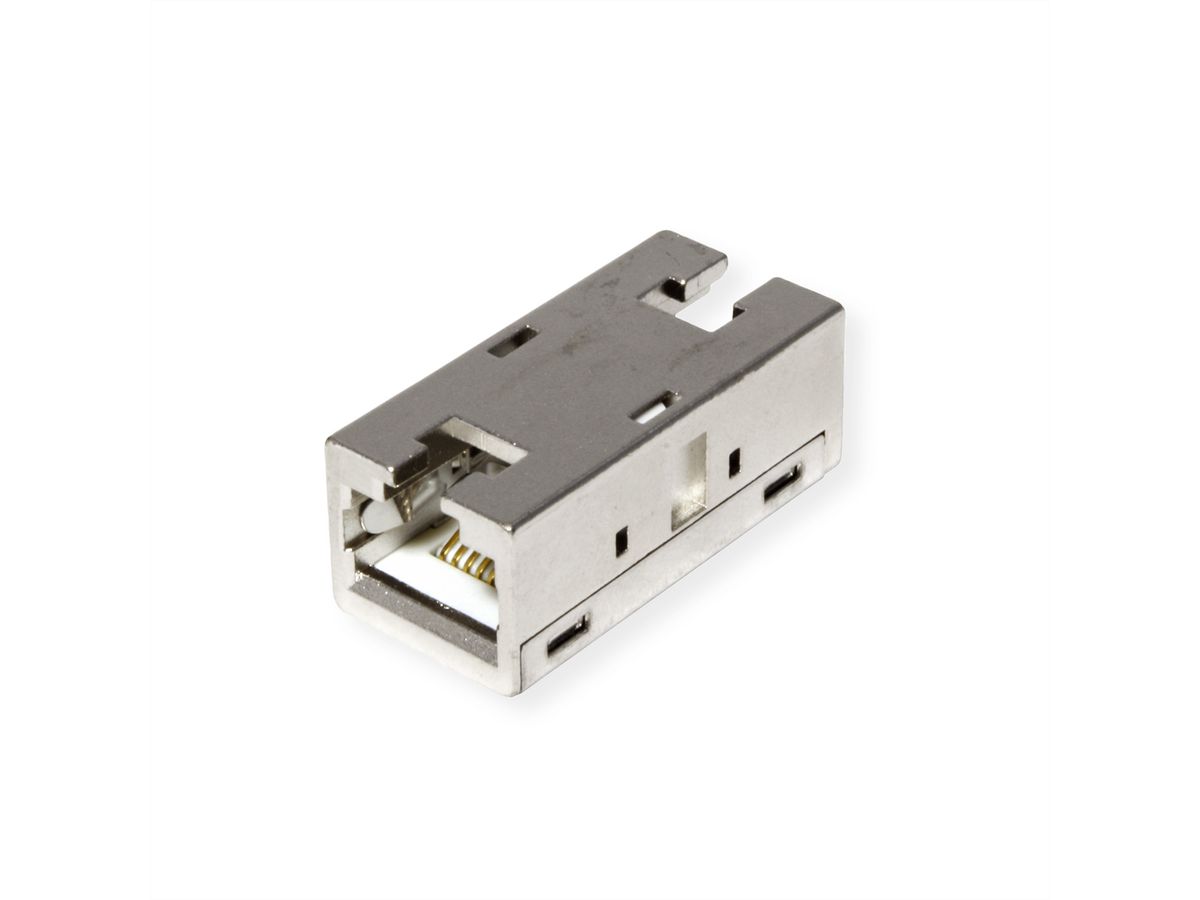

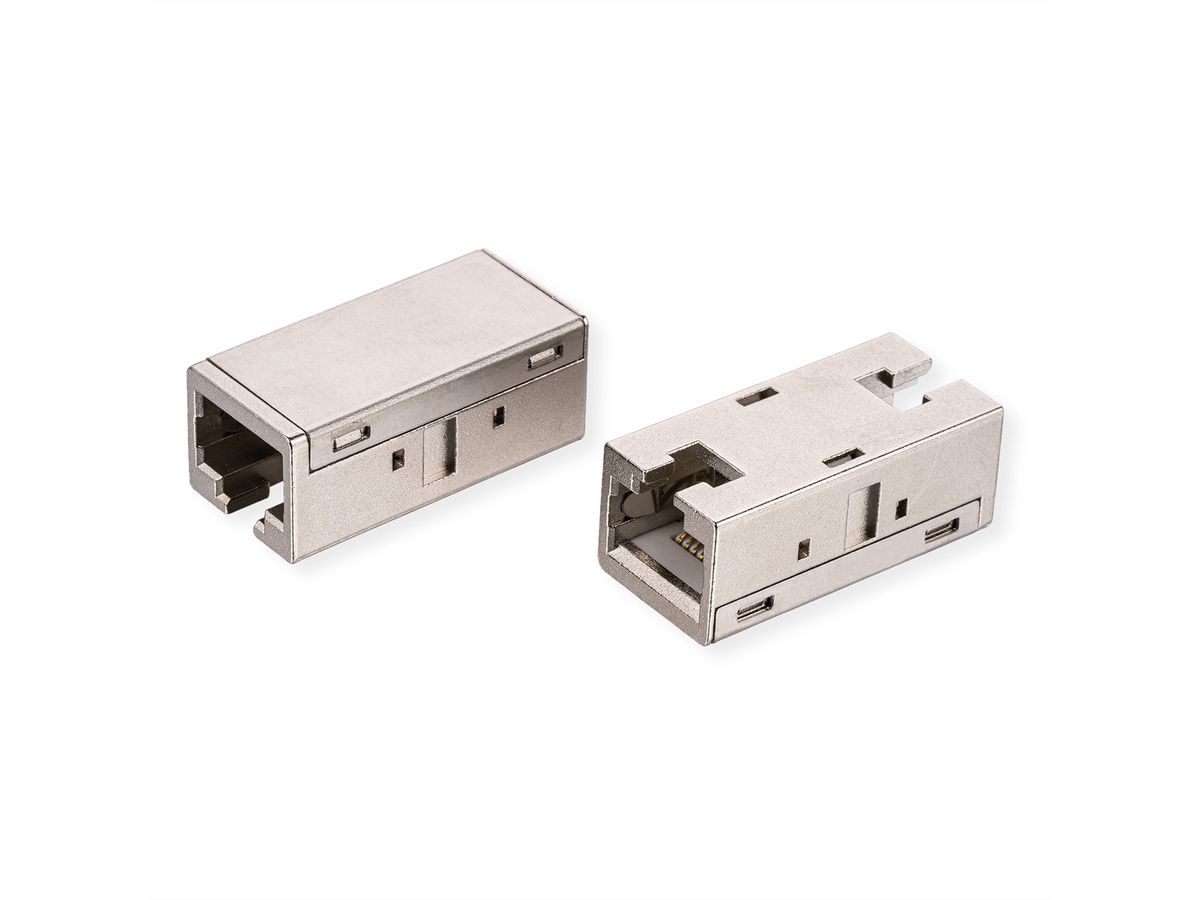

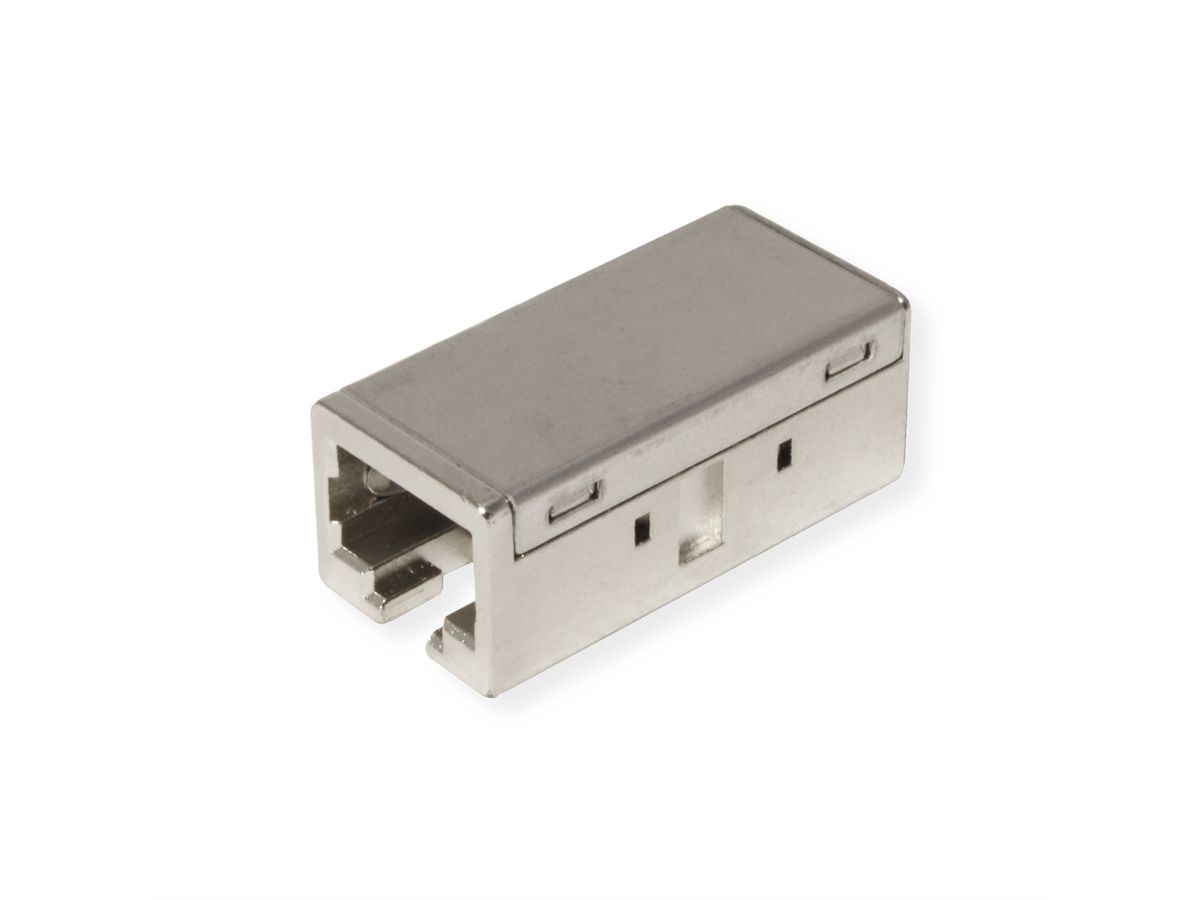

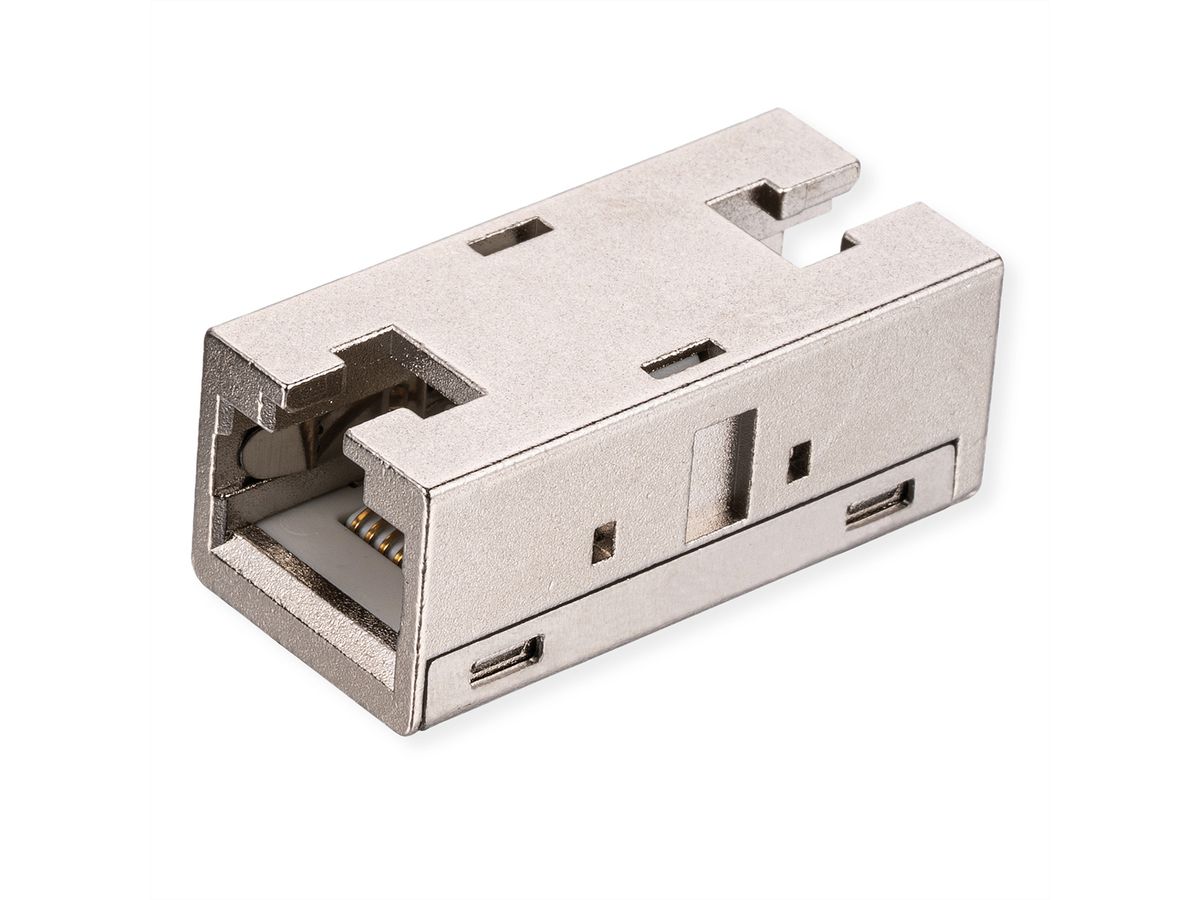

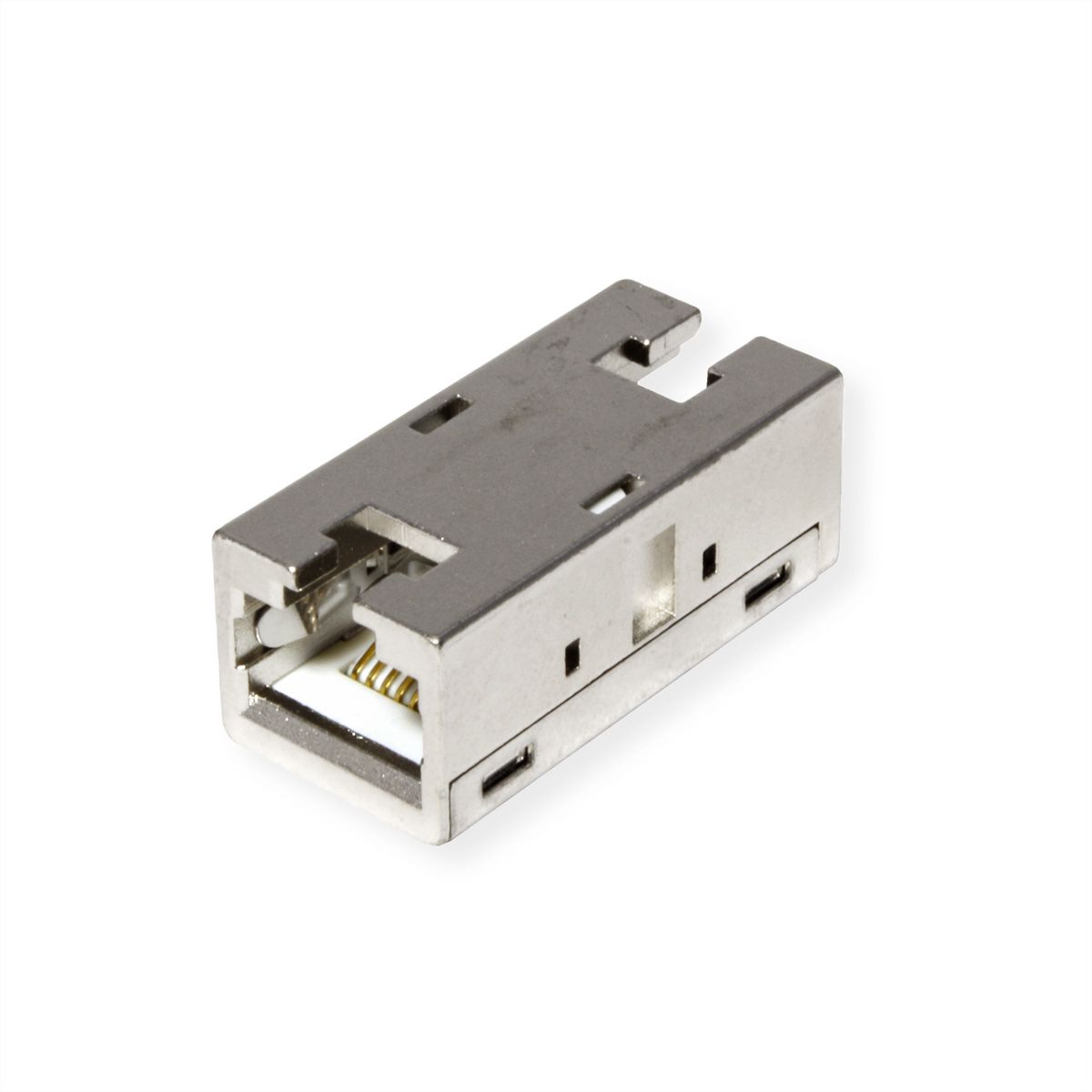

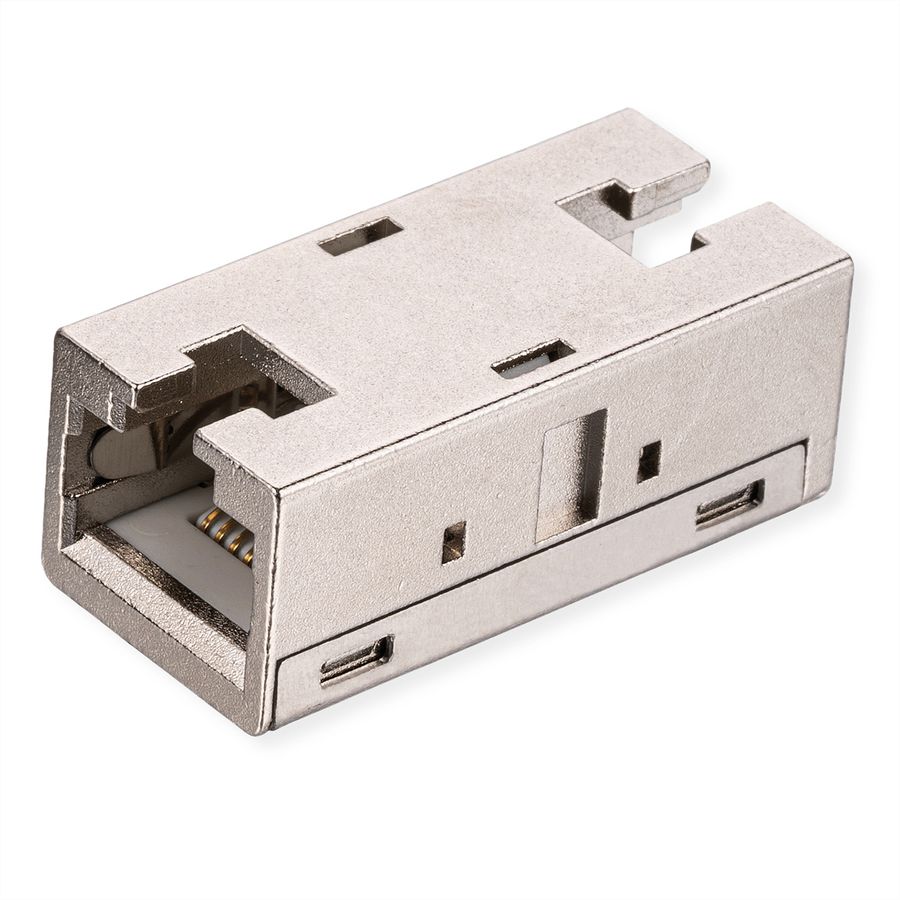

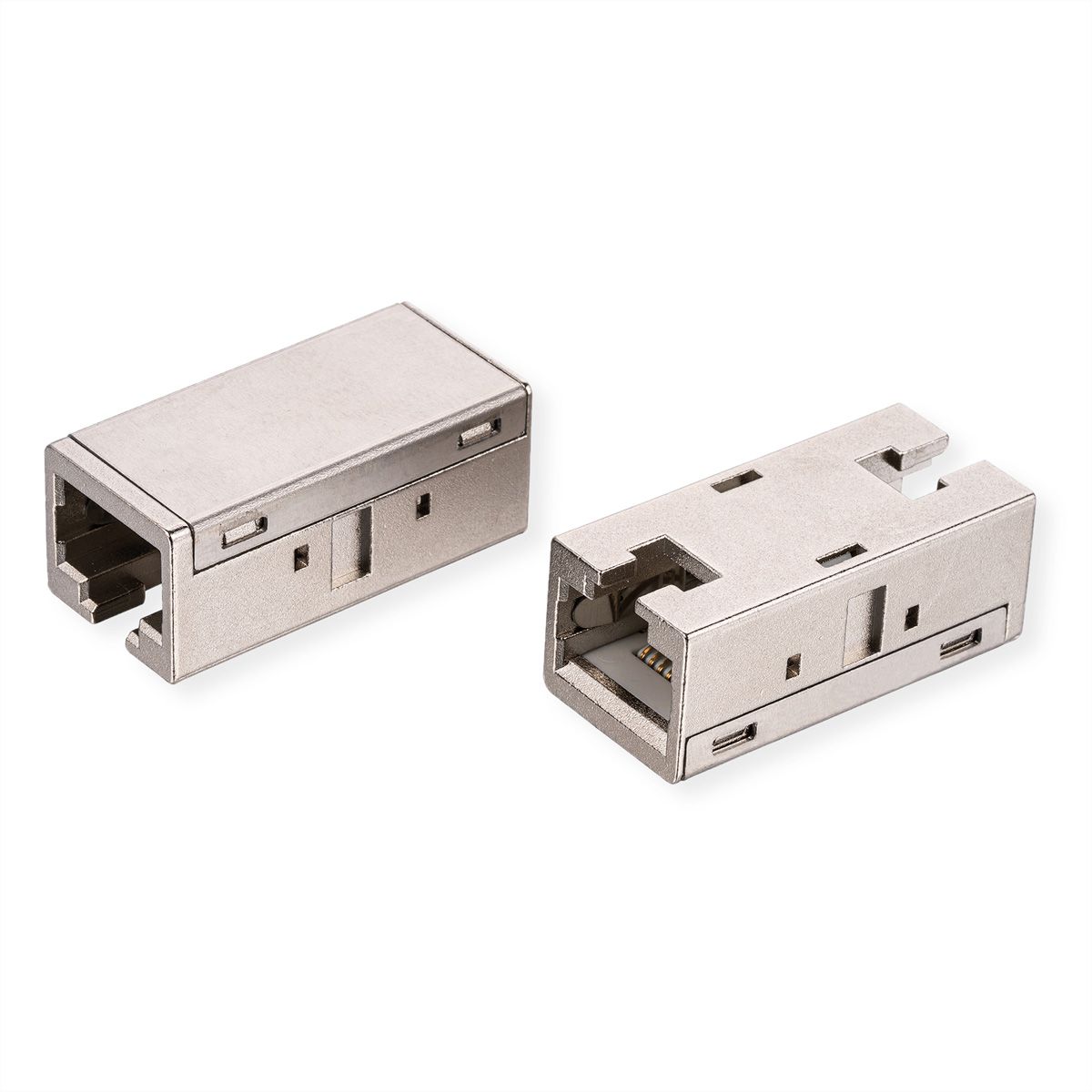

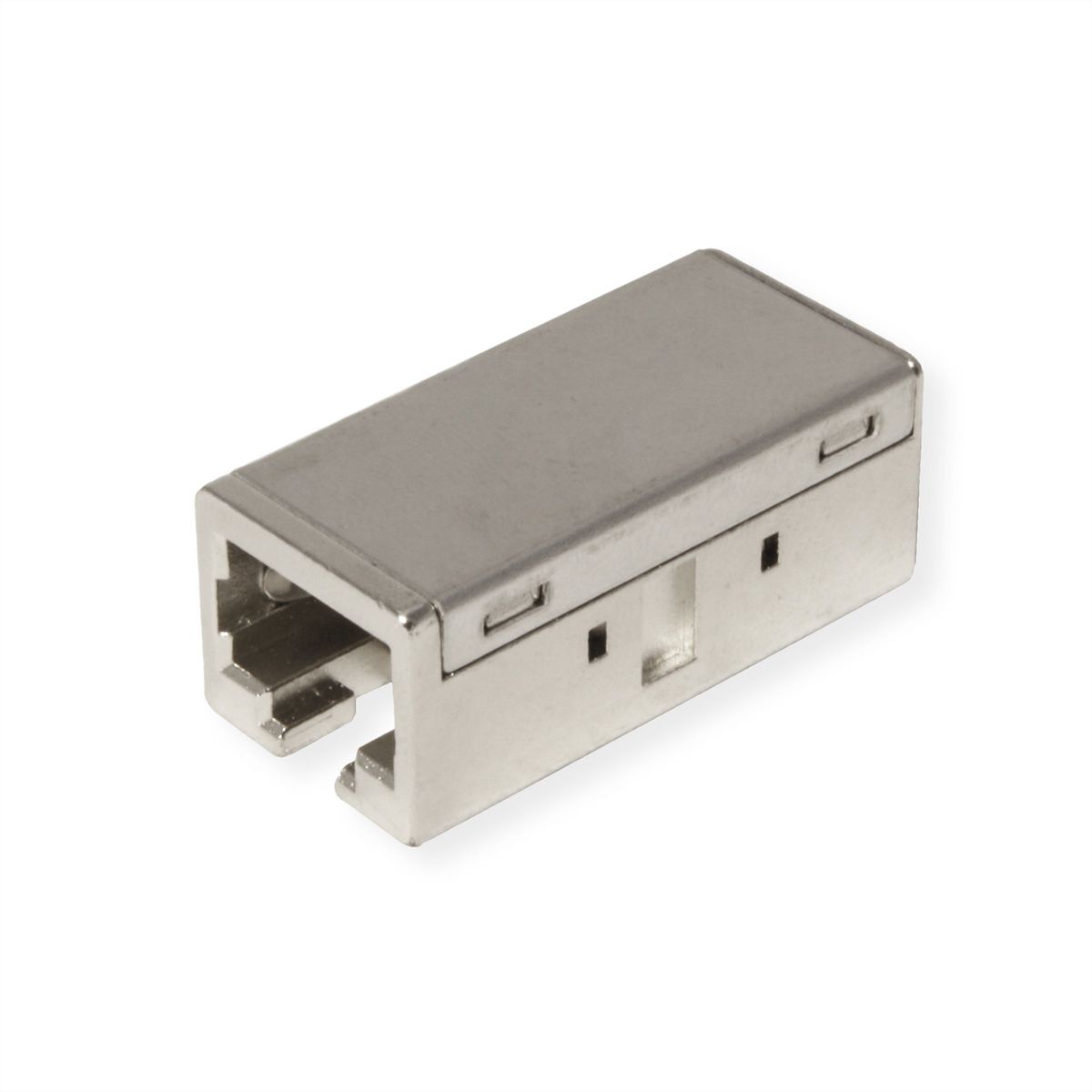

ROLINE Cat. 6A Modular Coupler with shielded metal housing for the connection or extention of RJ-45 network cables.

• Shielded metal housing to protect the signals against electrical and magnetic interference
• The coupler is able to extend Cat. 6A cables
• 8 contacts, 1:1 connected

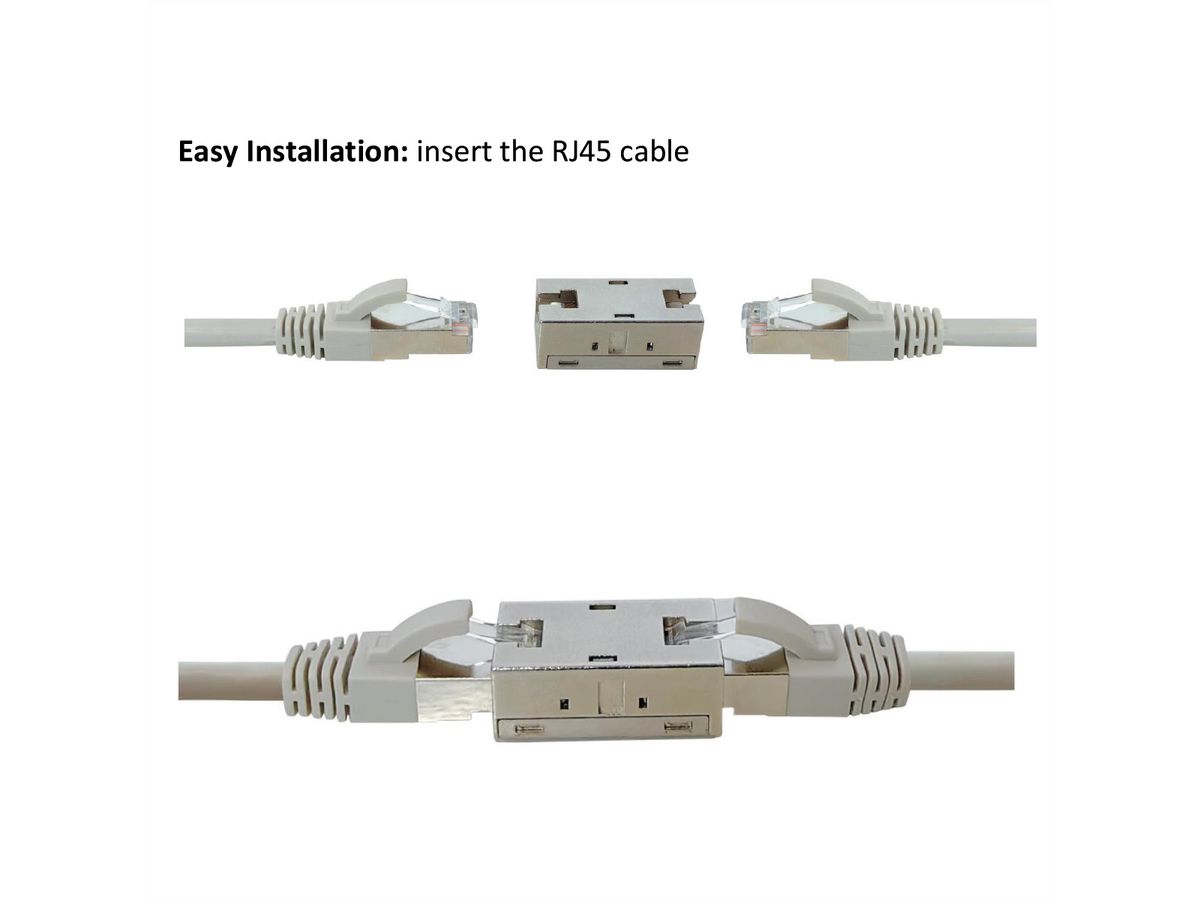

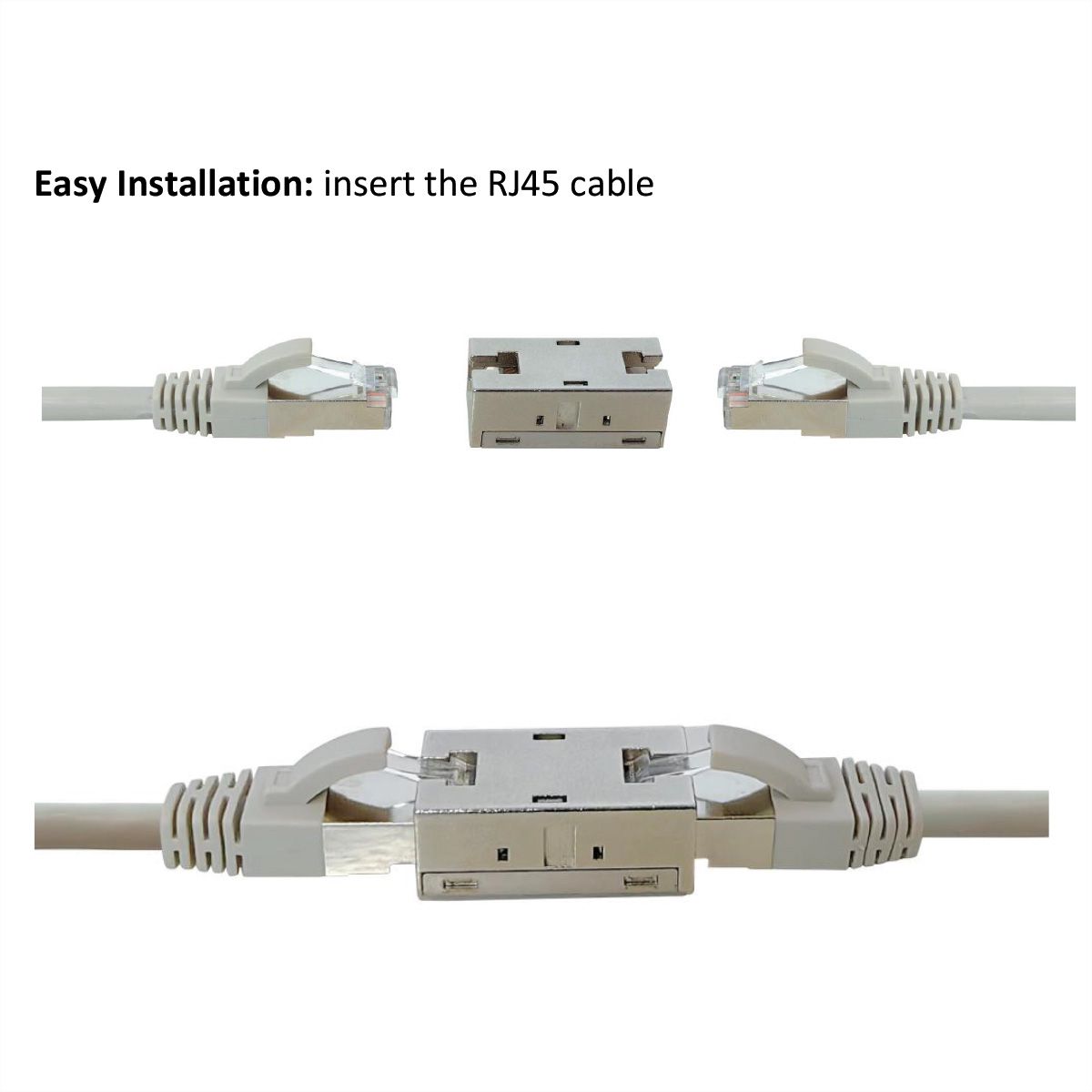

• Easy installation
• Colour: silver

Remark: Picture similar

Specifications

Manufacturer	ROLINE
Product group	Connection technology TP
Product type	RJ-45 Implementing clutch
Colour	silver
Shield type	Screened
Transfer quality	Cat6A / Class EA
Quantity of ports	1
Assignment	EIA/TIA 568A
Material (casing)	metal
Shield contacts	yes
separate strain relief	no
Connection direction	Straight
Technical particularity	1 : 1 connected
Operating temperature min.	0 °C
Operating temperature max.	70 °C
Storage temperature min.	-40 °C
Storage temperature max.	85 °C

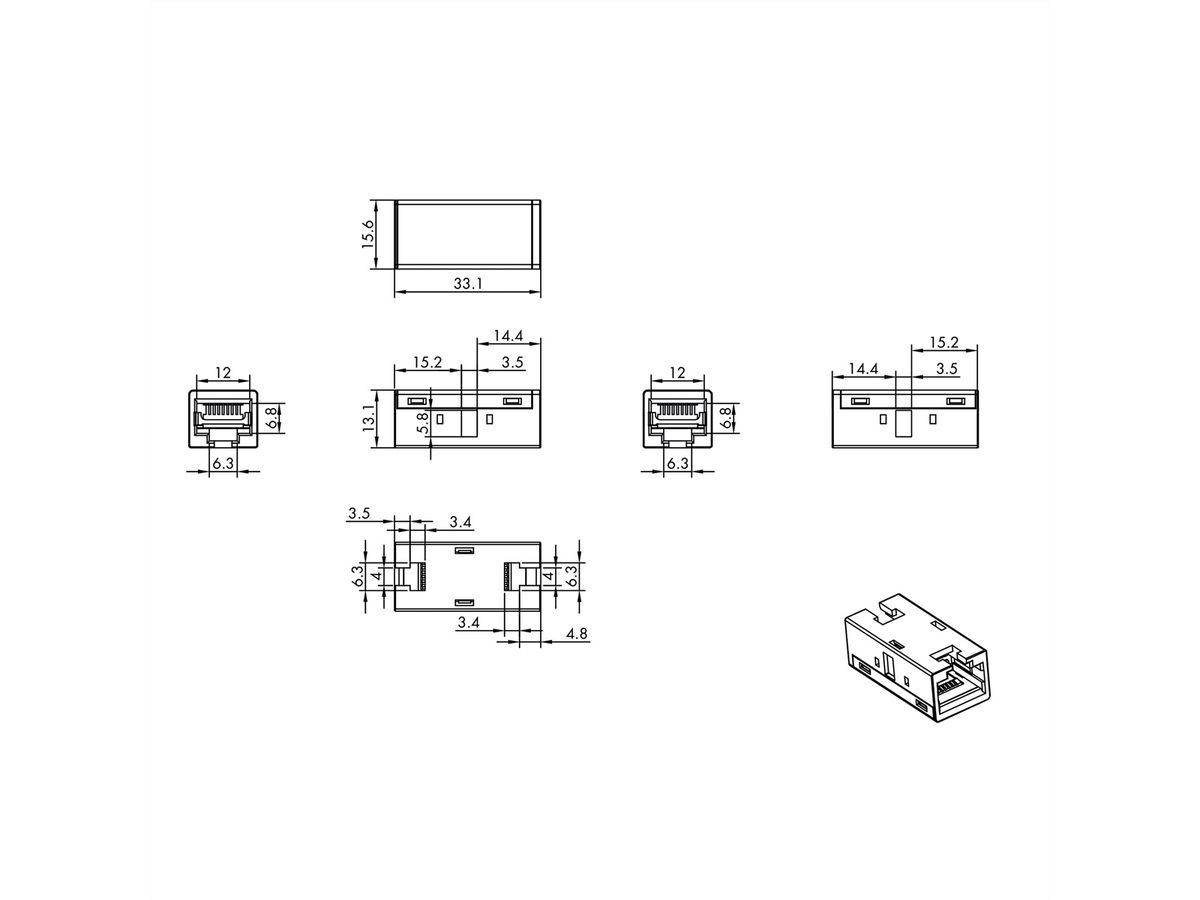

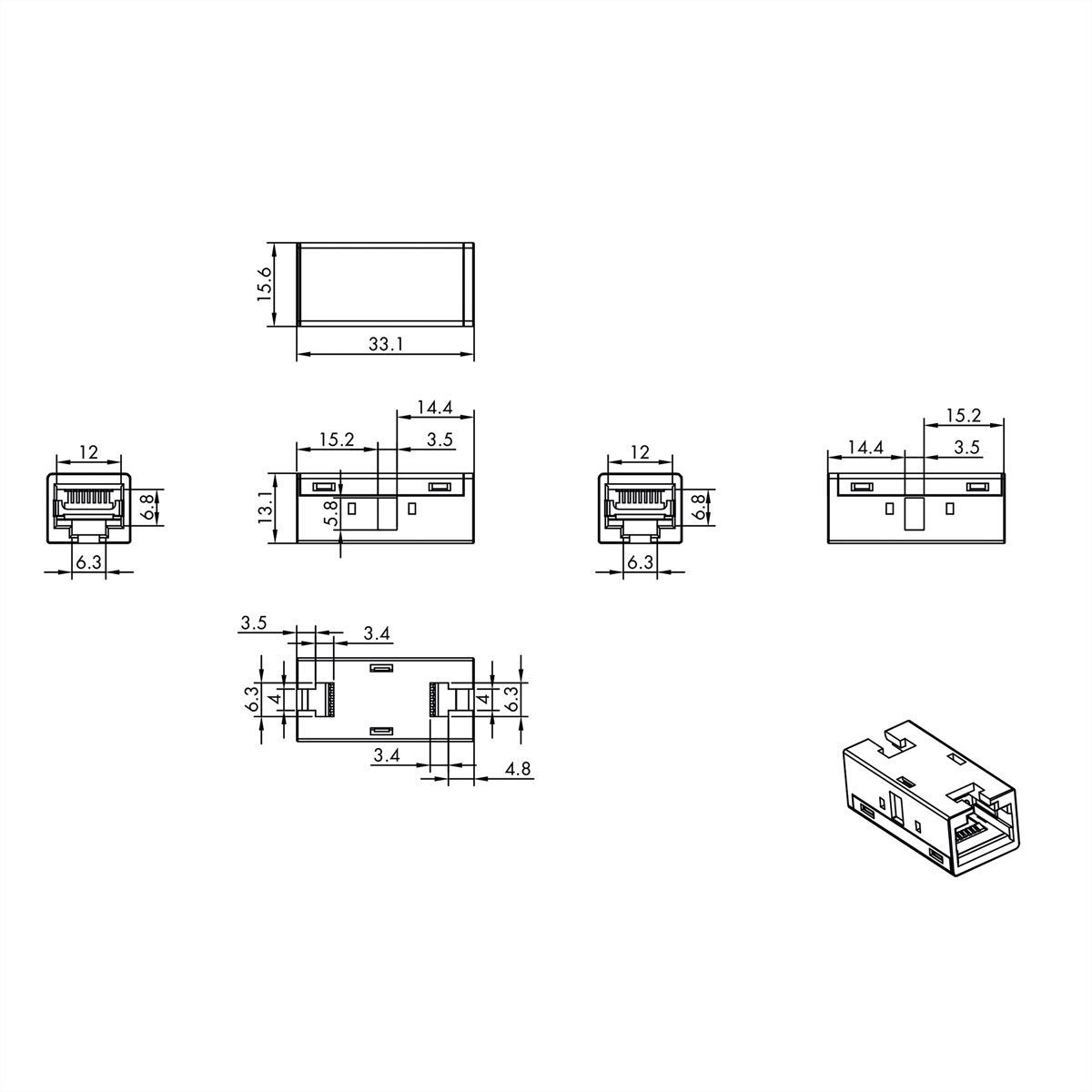

Height	13.1 mm
Width	15.6 mm
Depth	33.1 mm
Weight	16.4 g
Height of packaging (single piece)	60 mm
Width of packaging (single piece)	100 mm
Depth of packaging (single piece)	180 mm
Package weight (single piece)	0.32 kg
