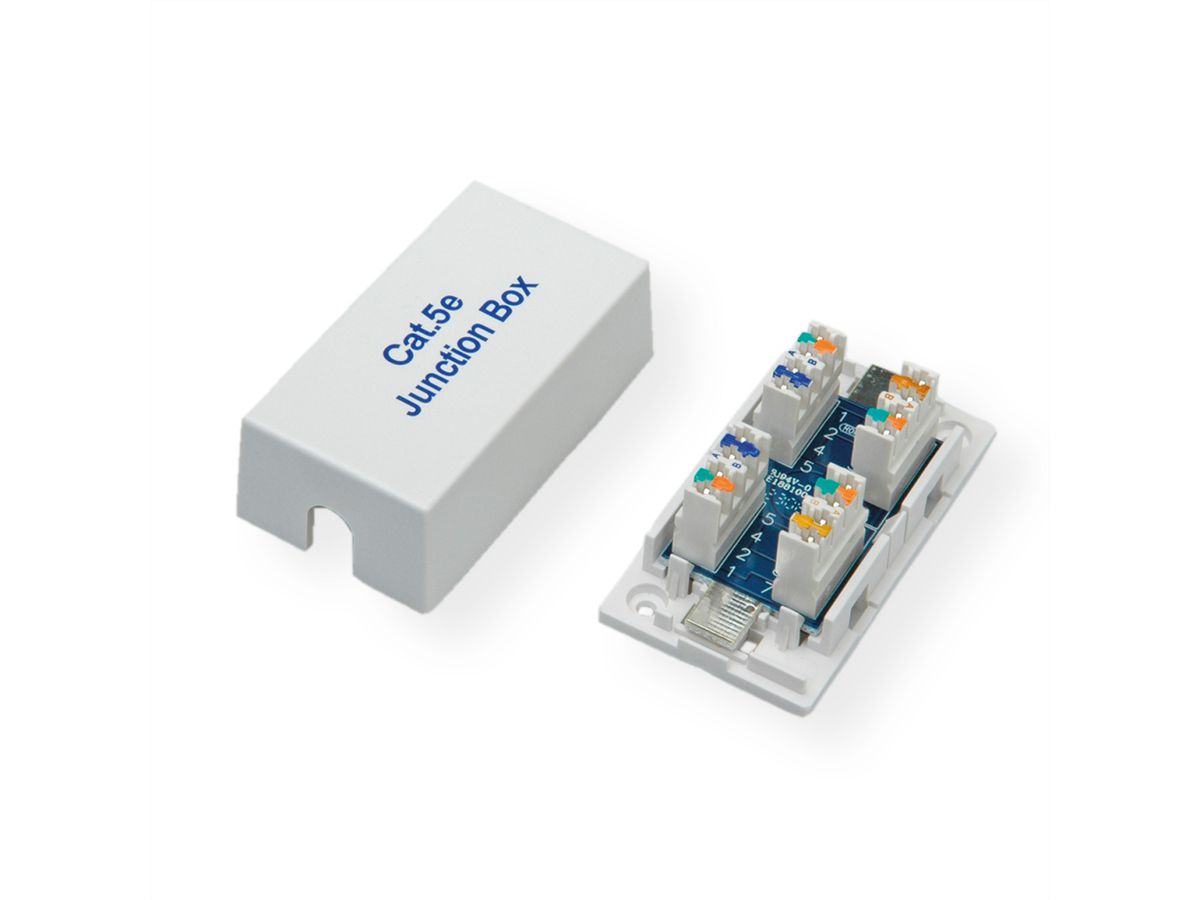

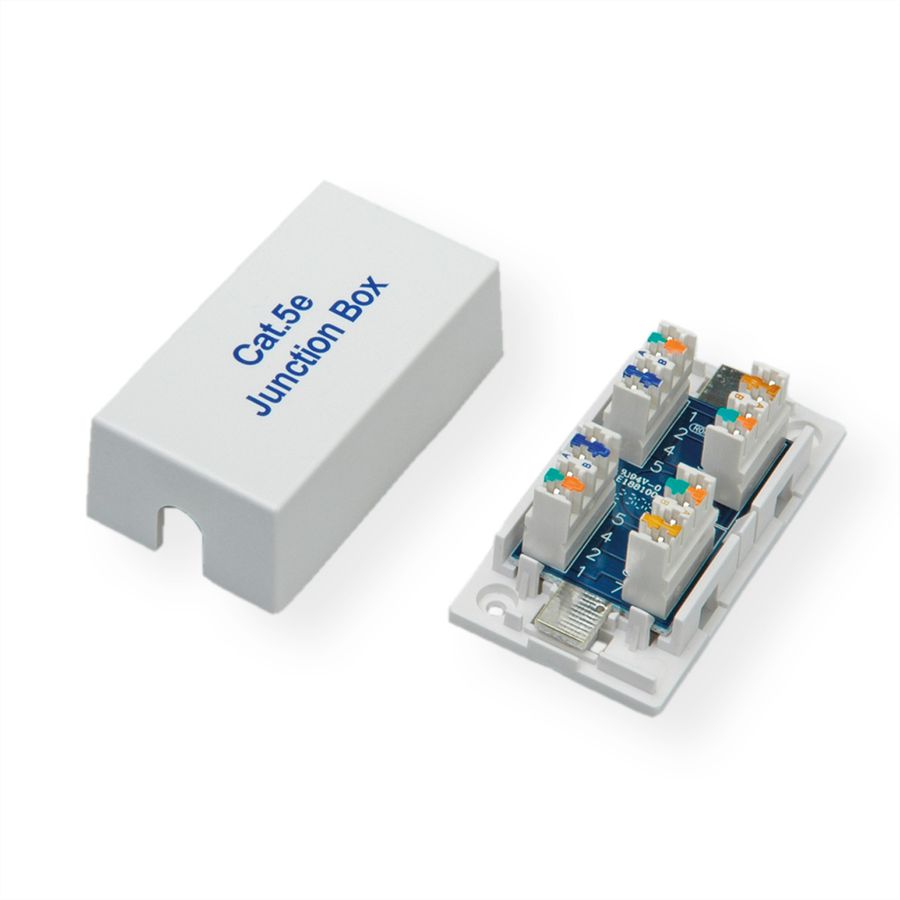

ROLINE Junction Box Cat.5e (Class D), UTP

ROLINE Junction Box Cat.5e (Class D), UTP

Please log in to be able to use the shopping cart and then complete orders.

Log in
Available
Ordered until 3 pm - usually dispatched on the same day
Item no. 21.17.3036-200
Brand / Manufacturer ROLINE
Manuf. no. 21.17.3036
EAN 7611990929979
Package weight 0.038 kg

Description

  • The ROLINE Junction box is used to repair unshielded Cat. 5e cables
  • With this box all 4 or 8 wired installation cables with AWG24 and with a cover from 4mm can be installed
  • Equipped with the modern LSA connection technology, all cables in accordance with EIA/ TIA or 568B can be easily installed

Specifications

Manufacturer ROLINE
Product group Connection technology TP
Product type Network junction box
Colour white
Shield type Not screened
Transfer quality Cat5e / Class D
Assembly cable connection Krone LSAplus
Assignment EIA/TIA 568B
Shield contacts No
separate strain relief no
Connection direction Straight
Operating temperature min. -40 °C
Operating temperature max. 80 °C
Height 23.45 mm
Width 33.65 mm
Depth 61.6 mm
Weight 31.5 g
Height of packaging (single piece) 30 mm
Width of packaging (single piece) 50 mm
Depth of packaging (single piece) 80 mm
Package weight (single piece) 0.038 kg

Downloads

Product data sheet - English (29.4 KB)

Download

Manufacturer data sheet - English (589.0 KB)

Download

The products of our own brand ROLINE are designed for professional continuous operation.

With a 2-year functional guarantee, we stand by our performance promise.

ROLINE – Quality makes the difference.
