Description

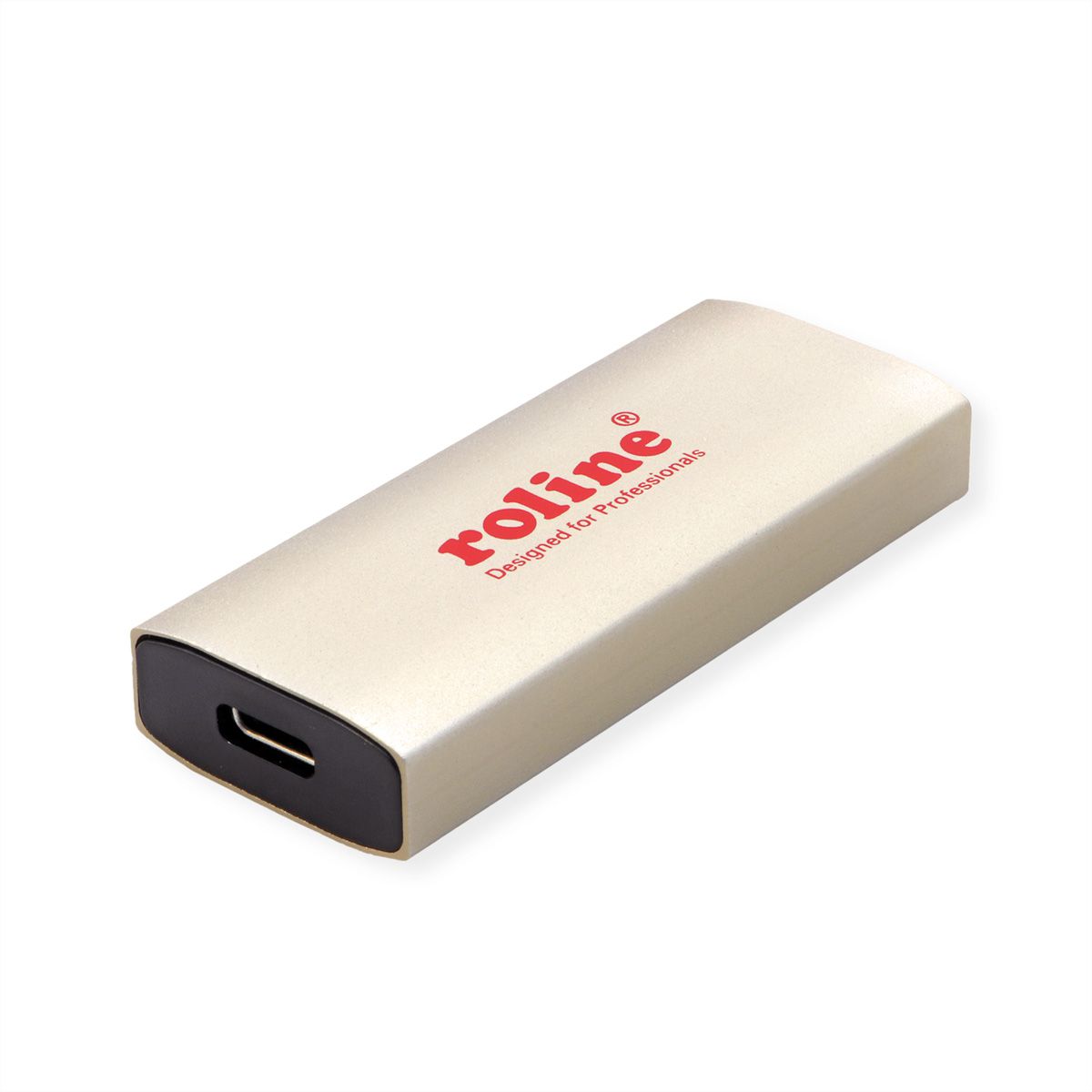

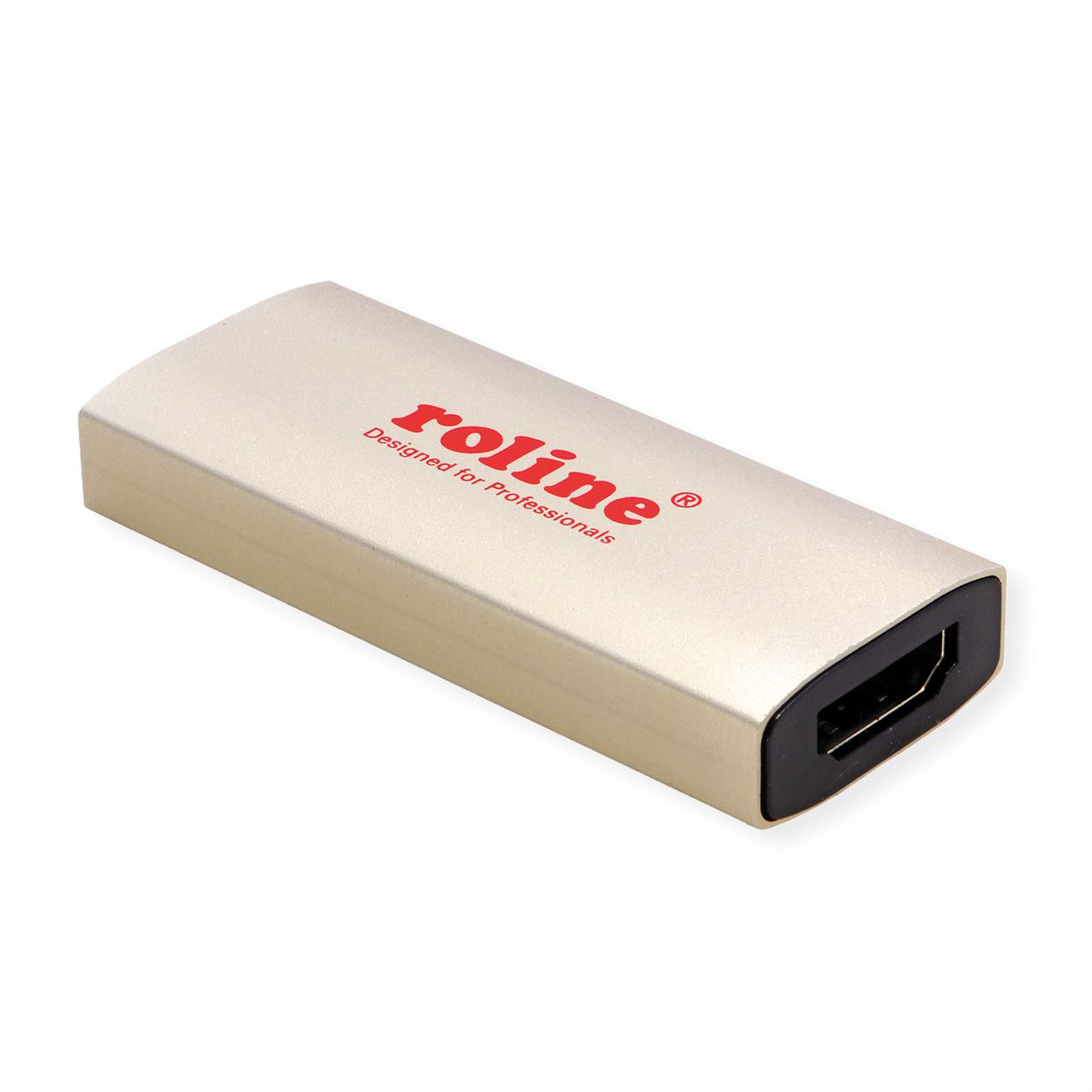

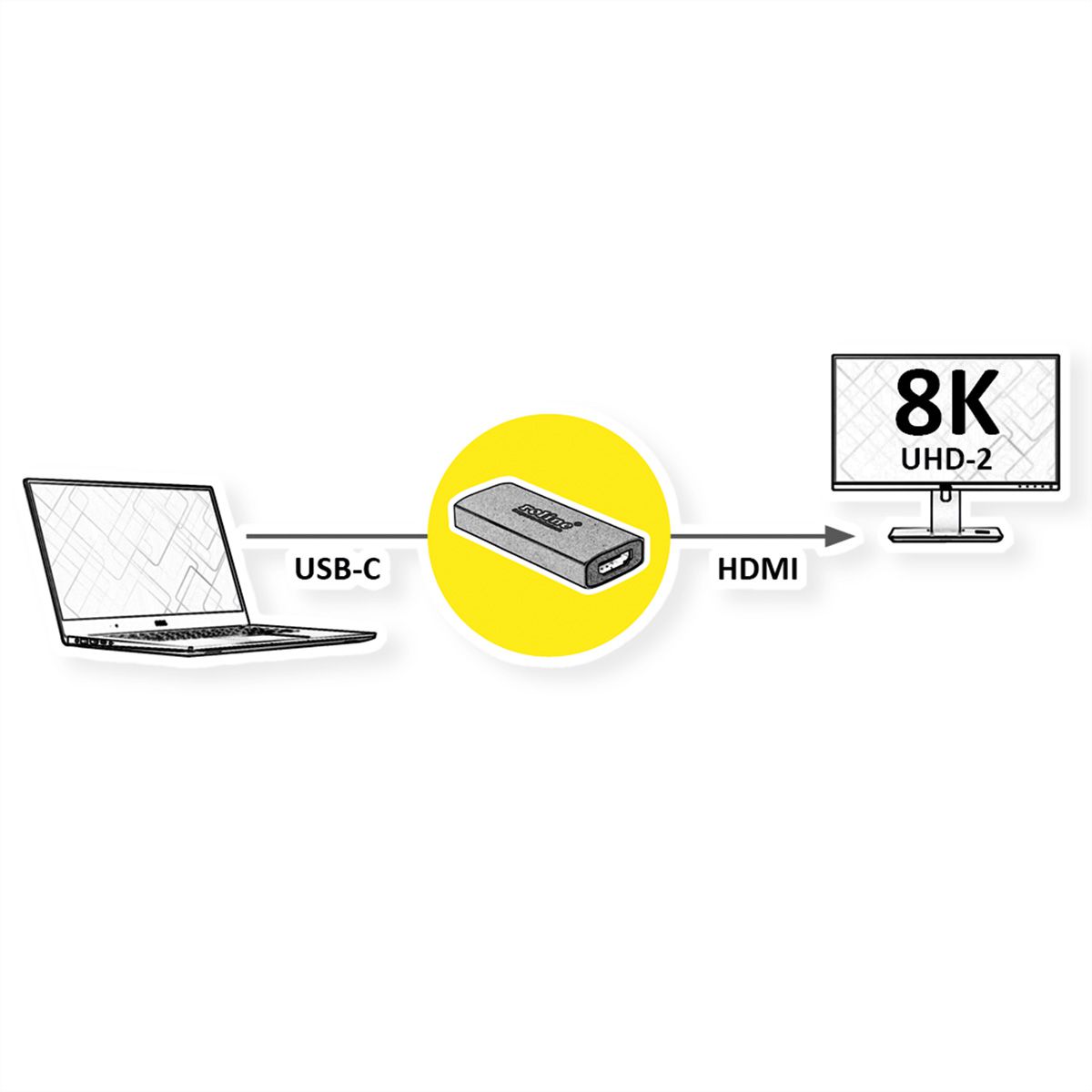

This USB Type C to HDMI 8K@60Hz adapter offers plug and play functionality to provide an active digital conversion without software or drivers.

• USB Type C to HDMI adapter
• Connectors: Type C Female and HDMI Female
• Maximum resolution: 7680x4320 @60Hz
• Golden aluminium housing

Remark: Support of "Alternate Mode (DP Alt Mode)" required

Specifications

Manufacturer	ROLINE
Product group	Adapters, Terminators, Converters
Product type	USB-HDMI Adapter
Colour	black / gold
Scope of delivery	Adapter
Max. resolution	7680 x 4320 @60Hz (8K, UHD-2)
Side 1 connection (PC)	Typ C Female
Side 2 connection (Peripherals)	HDMI Female
Side 1 Connector Type	USB Type C (USB-C)
Side 1 Connector Gender	Female
Side 2 Connector Type	HDMI Type A
Side 2 Connector Gender	Female
Area of application	External
Dimensions (HxWxD)	10 x 23 x 61 mm
Material	Aluminum + ABS (plastic)
Operating temperature min.	0 °C
Operating temperature max.	60 °C
Storage temperature min.	-10 °C
Storage temperature max.	85 °C
Height	11 mm
Width	23 mm
Depth	61 mm
Weight	20 g
Height of packaging (single piece)	10 mm
Width of packaging (single piece)	60 mm
Depth of packaging (single piece)	30 mm
Package weight (single piece)	0.004 kg
