Description

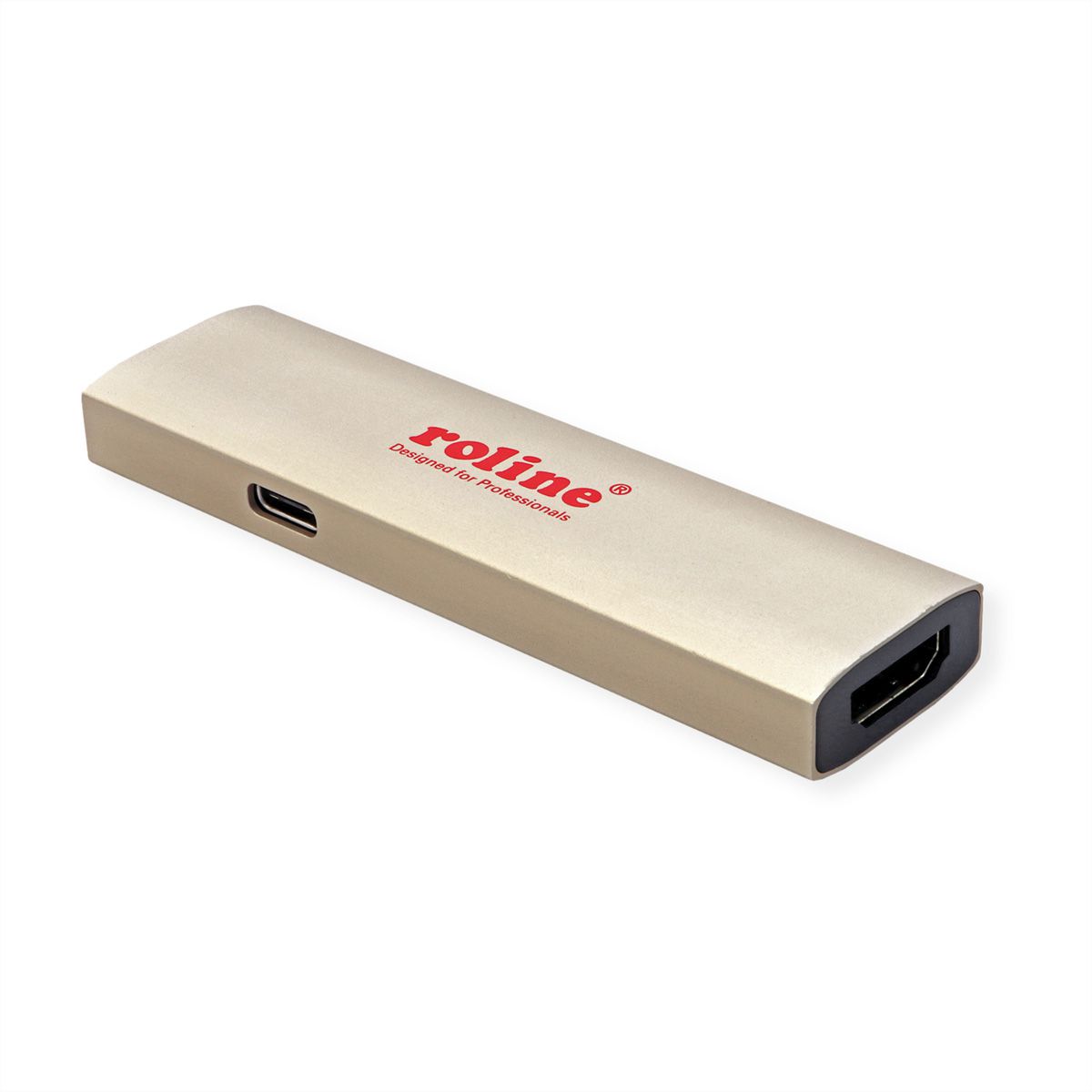

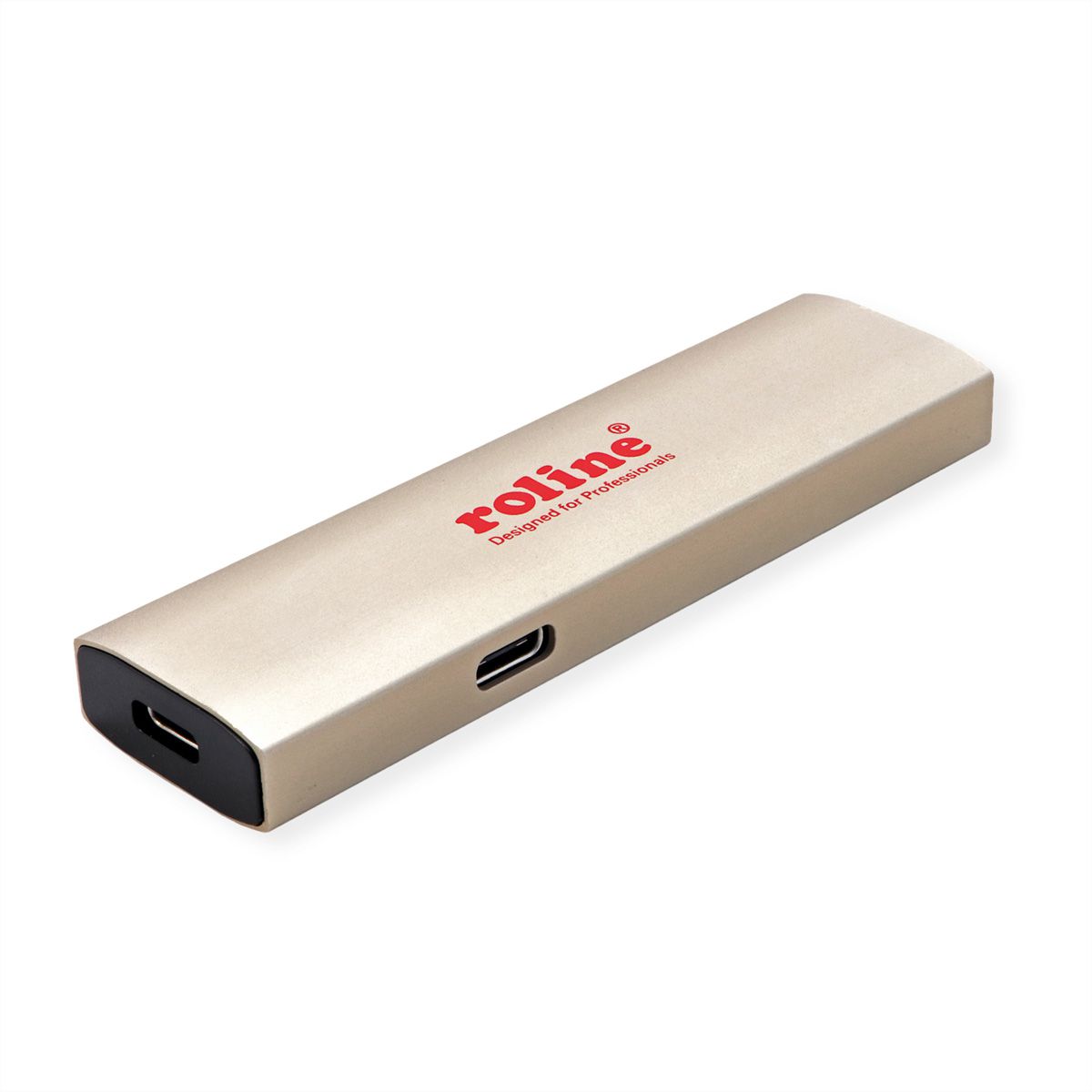

This USB Type C to HDMI 8K@60Hz adapter offers plug and play functionality to provide an active digital conversion without software or drivers.

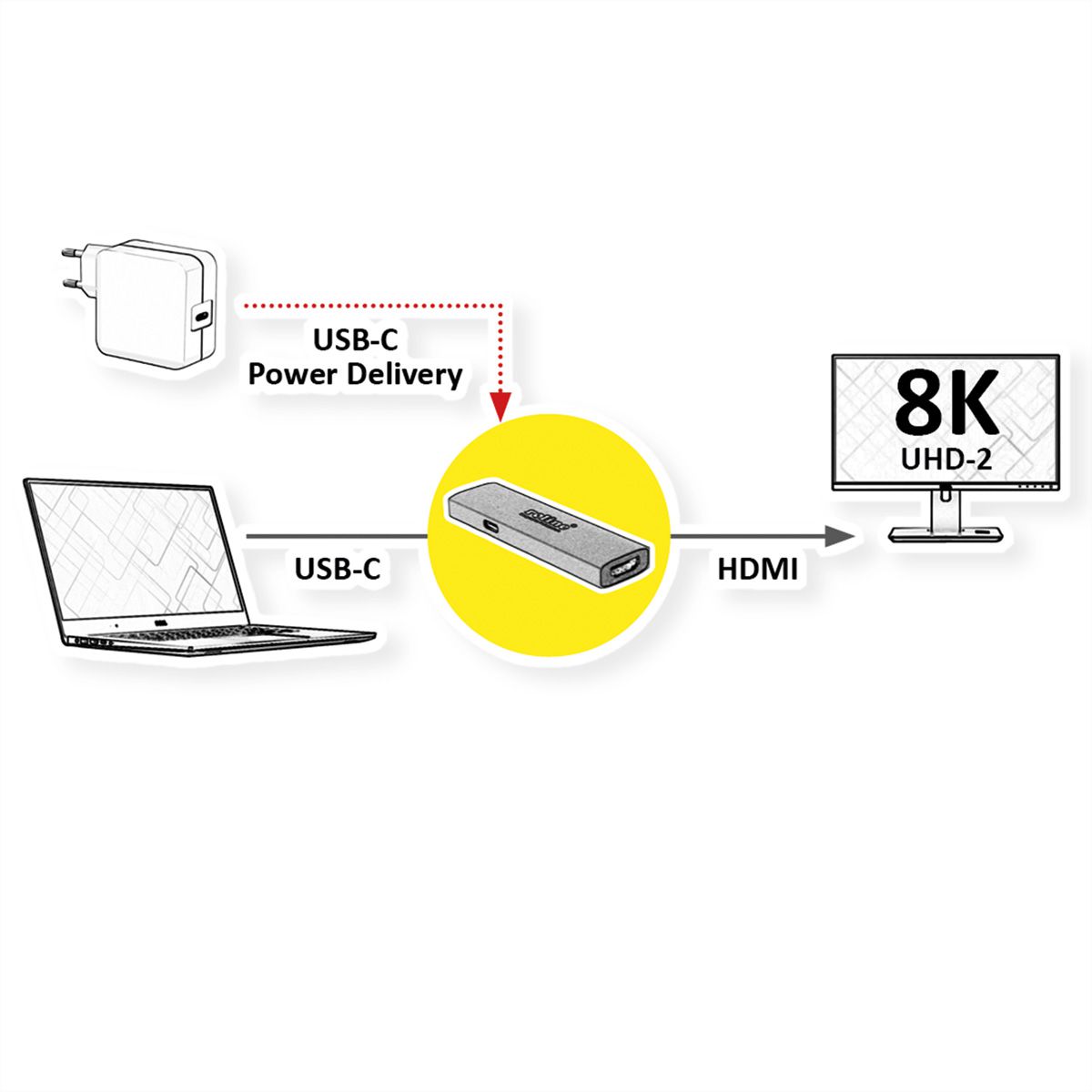

• USB Type C to HDMI adapter with Power Delivery
• Connectors: Type C Female and HDMI Female
• Maximum resolution: 7680x4320 @60Hz
• Golden aluminium housing
• Supports USB Power Delivery up to 60W

Remark: Support of "Alternate Mode (DP Alt Mode)" required

Specifications

Manufacturer	ROLINE
Product group	Adapters, Terminators, Converters
Product type	USB-HDMI Adapter
Colour	black / gold
Scope of delivery	Adapter
Max. resolution	7680 x 4320 @60Hz (8K, UHD-2)
Side 1 connection (PC)	Typ C Female
Side 2 connection (Peripherals)	HDMI Female
Side 1 Connector Type	USB Type C (USB-C)
Side 1 Connector Gender	Female
Side 2 Connector Type	HDMI Type A
Side 2 Connector Gender	Female
Area of application	External
Dimensions (HxWxD)	10 x 23 x 61 mm
Material	Aluminum + ABS (plastic)
Operating temperature min.	0 °C
Operating temperature max.	60 °C
Storage temperature min.	-10 °C
Storage temperature max.	85 °C
Height	11 mm
Width	23 mm
Depth	61 mm
Weight	20 g
Height of packaging (single piece)	10 mm
Width of packaging (single piece)	30 mm
Depth of packaging (single piece)	100 mm
Package weight (single piece)	0.01 kg

Downloads

Product data sheet - English (43.3 KB)

Download
