Description

The solution for Cat.6A cabling for data rates up to 10Gbit/s!.

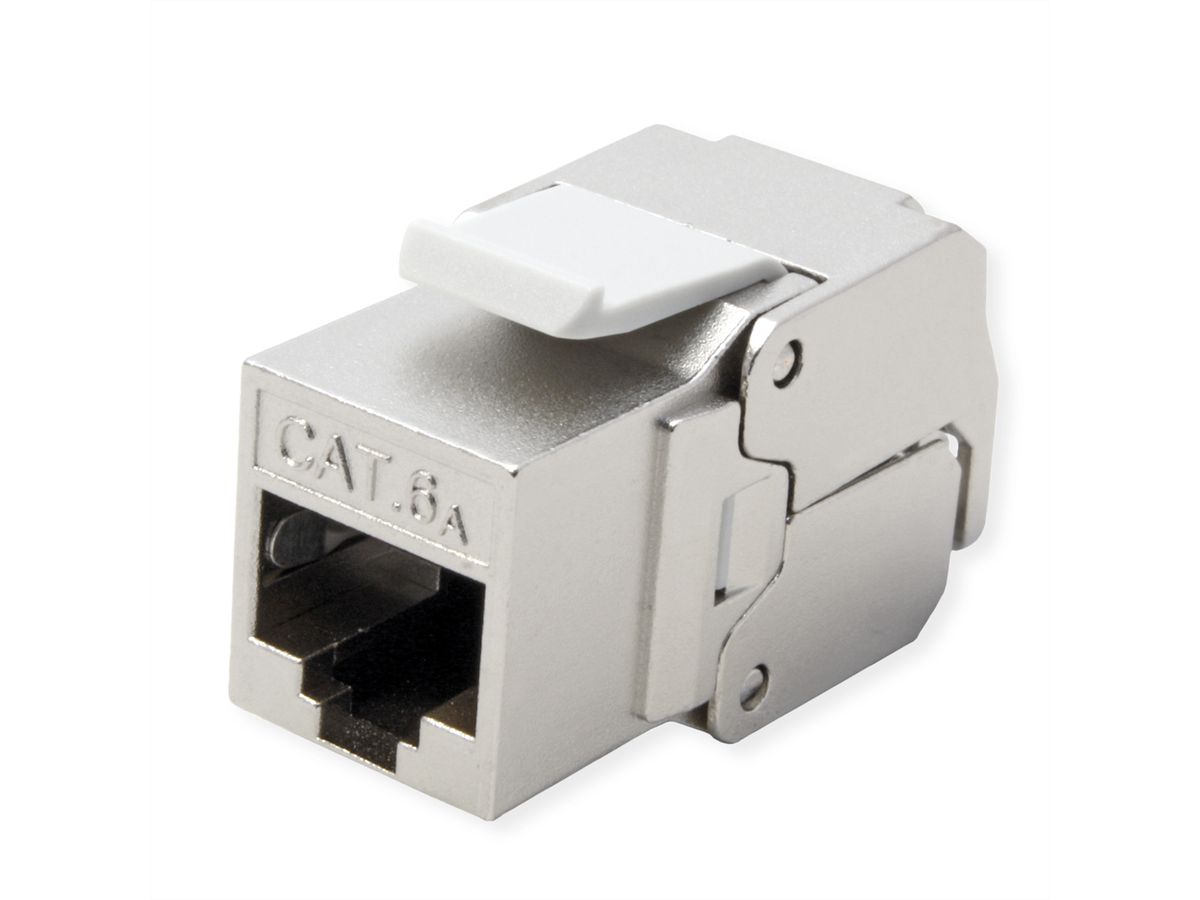

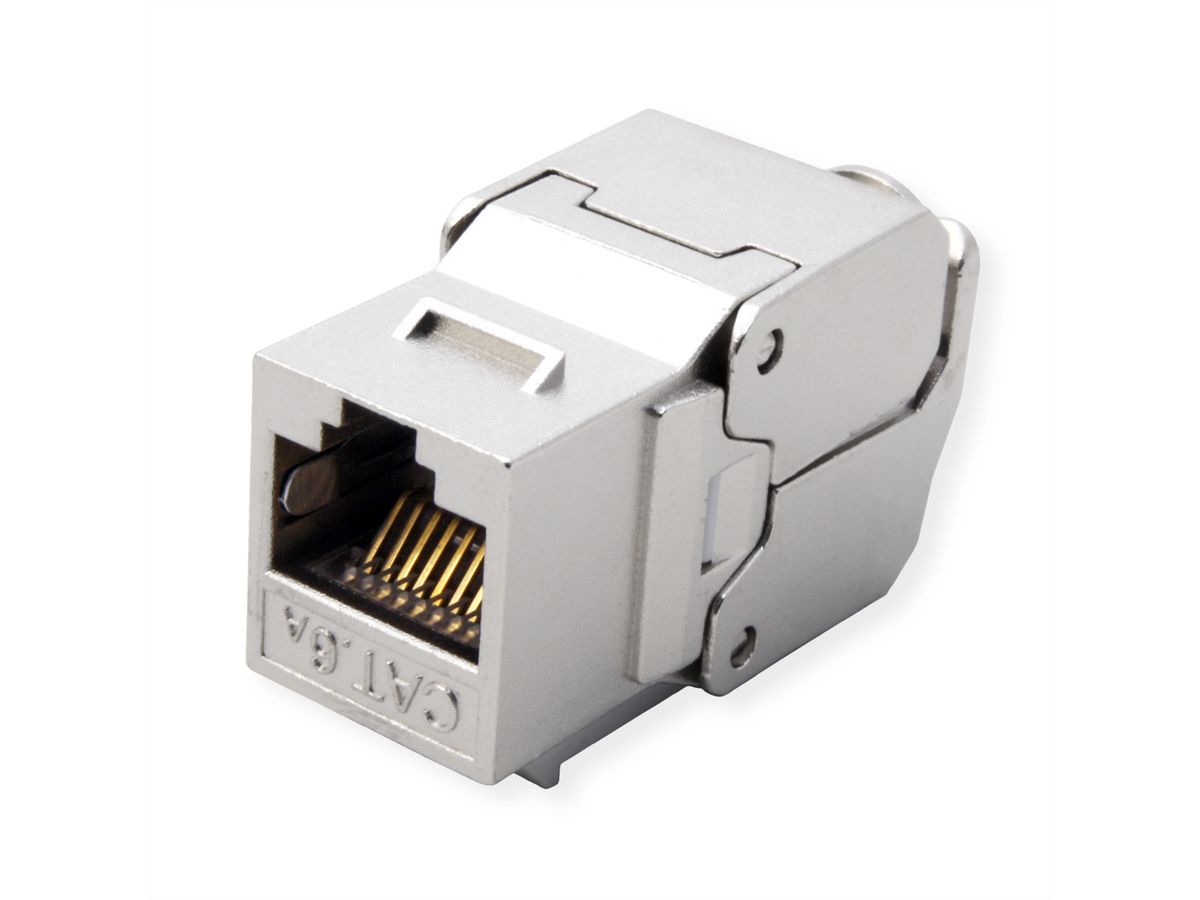

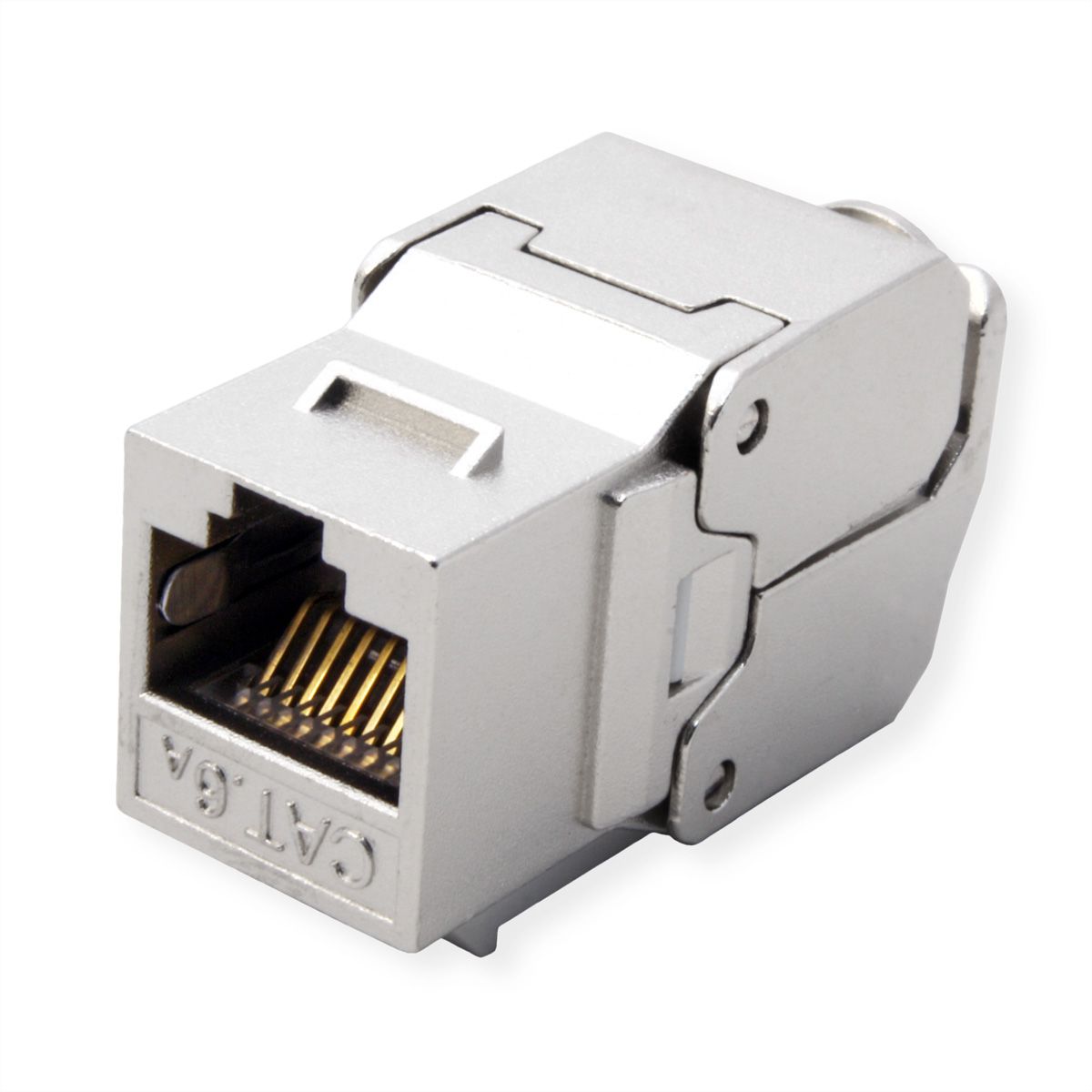

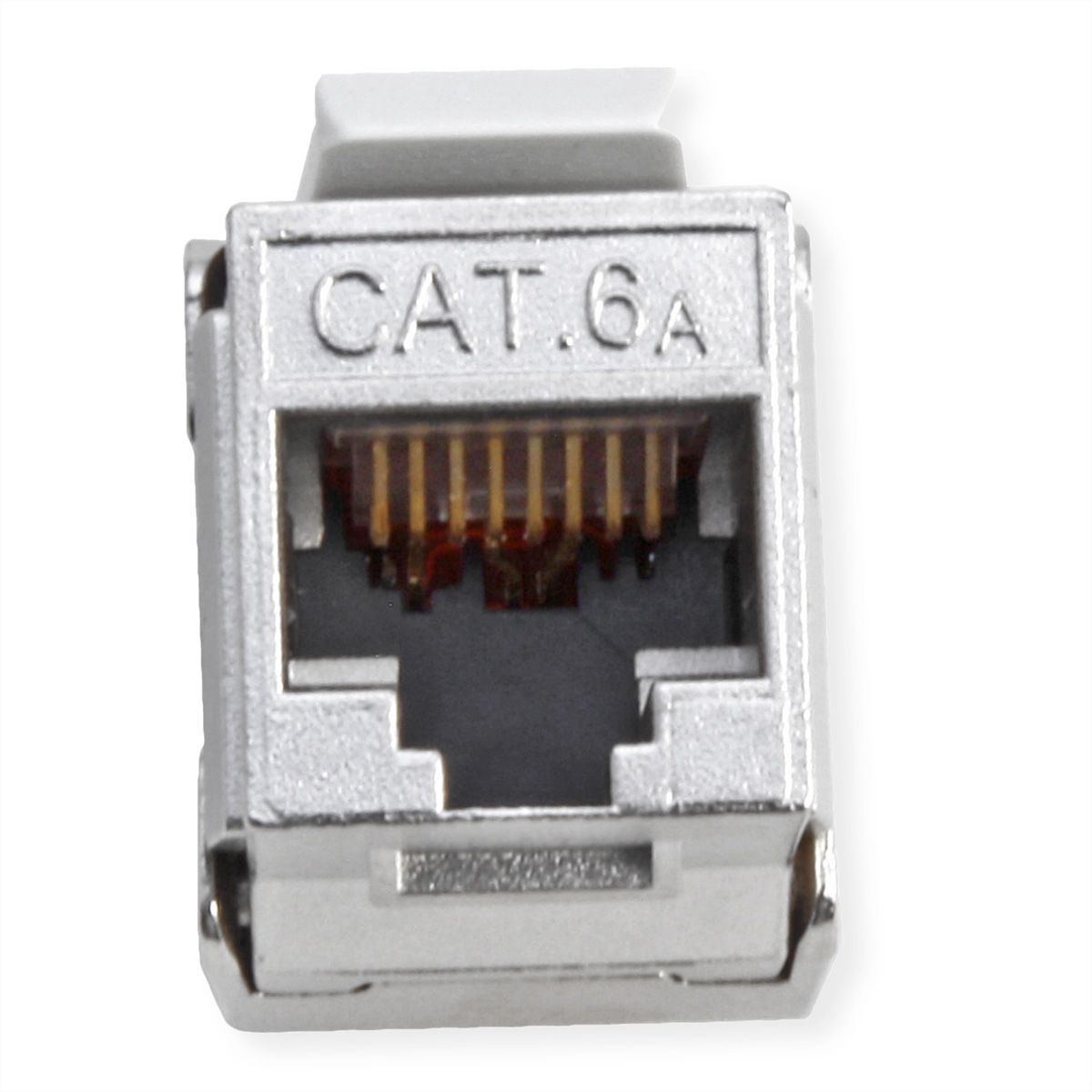

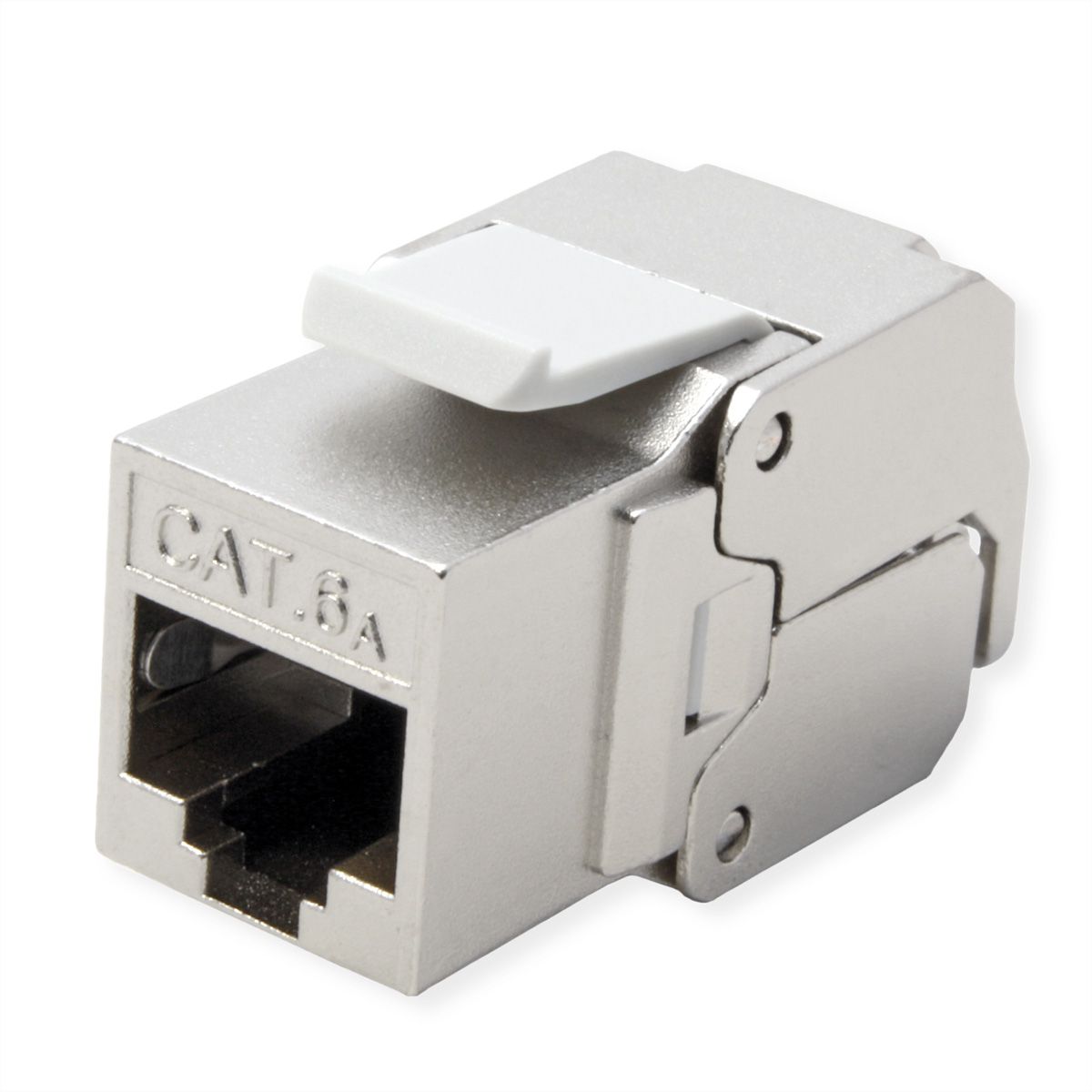

Cat.6A/Class EA Keystone jack for installation in a Keystone blank 19" patch panel module frame.

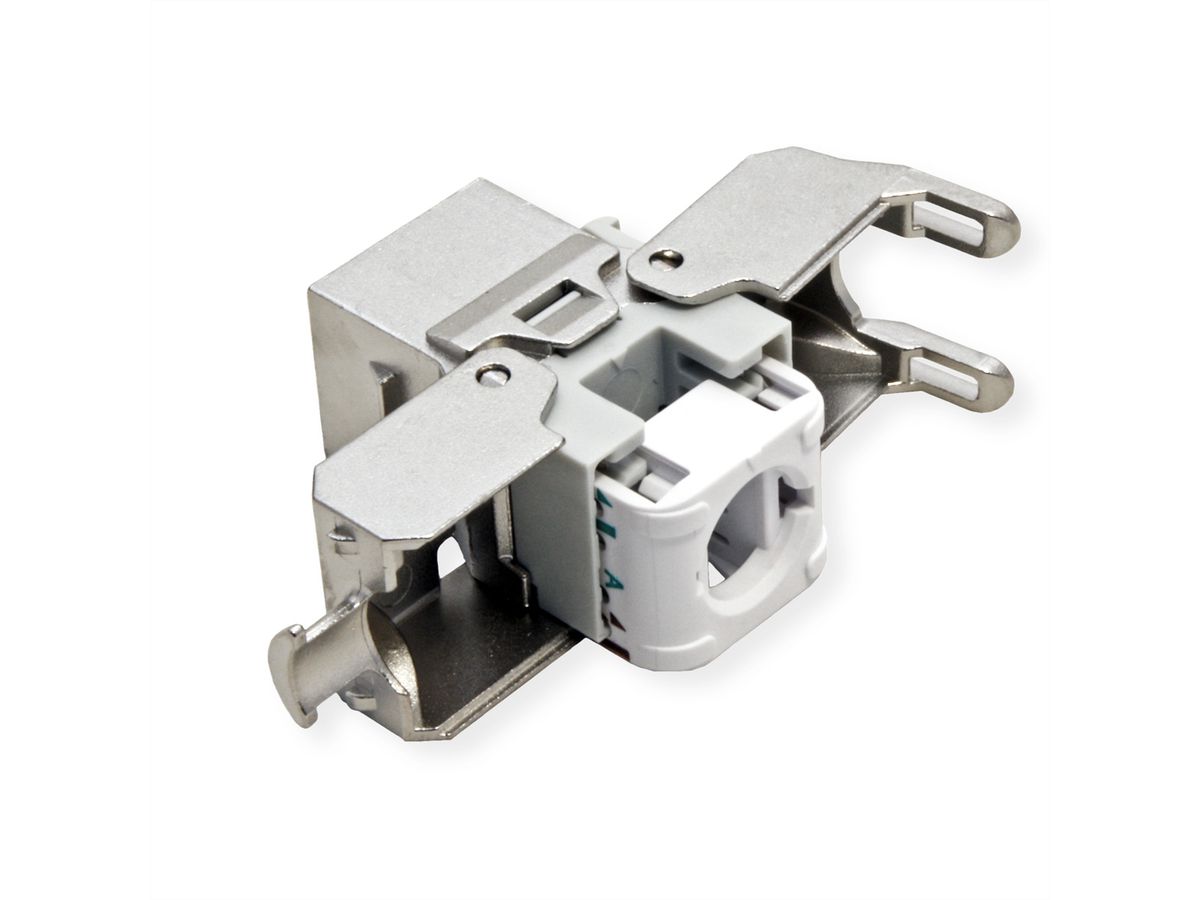

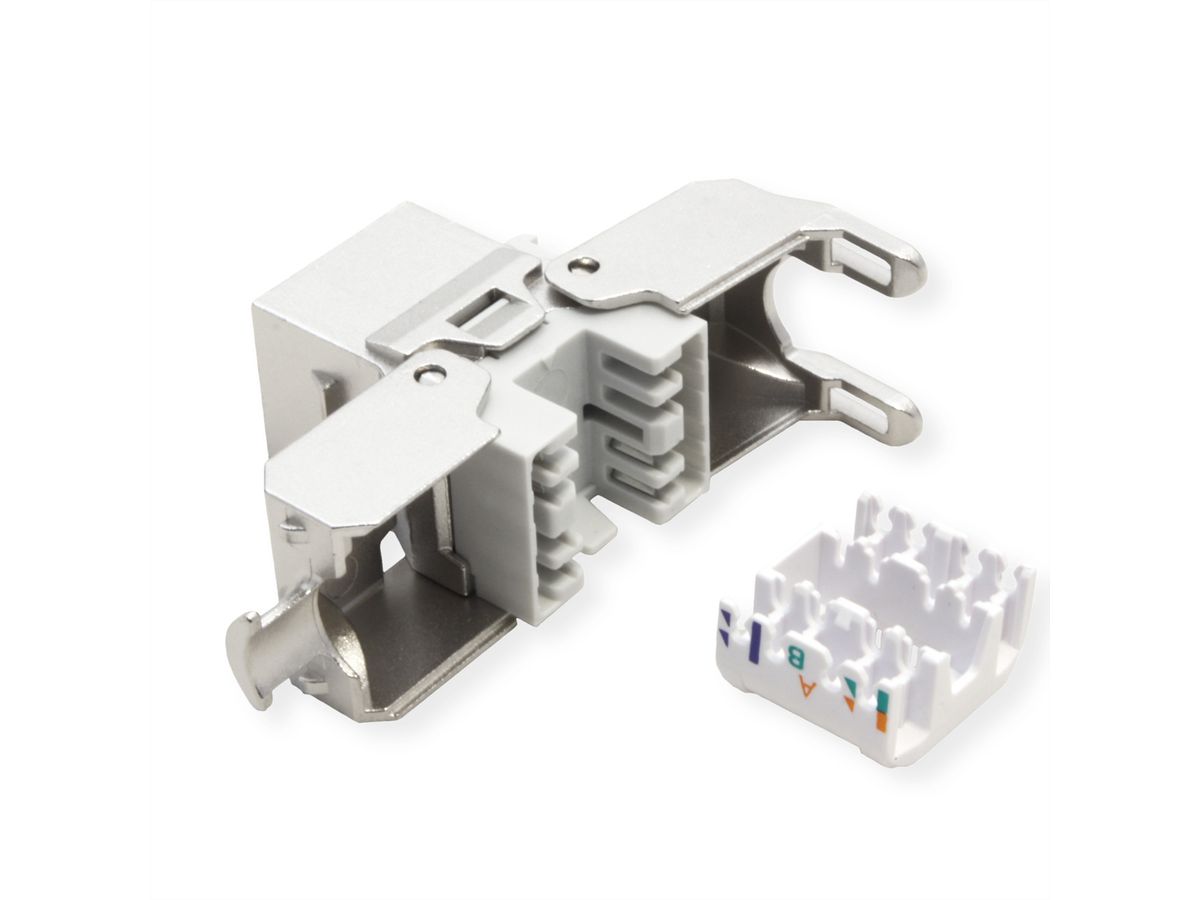

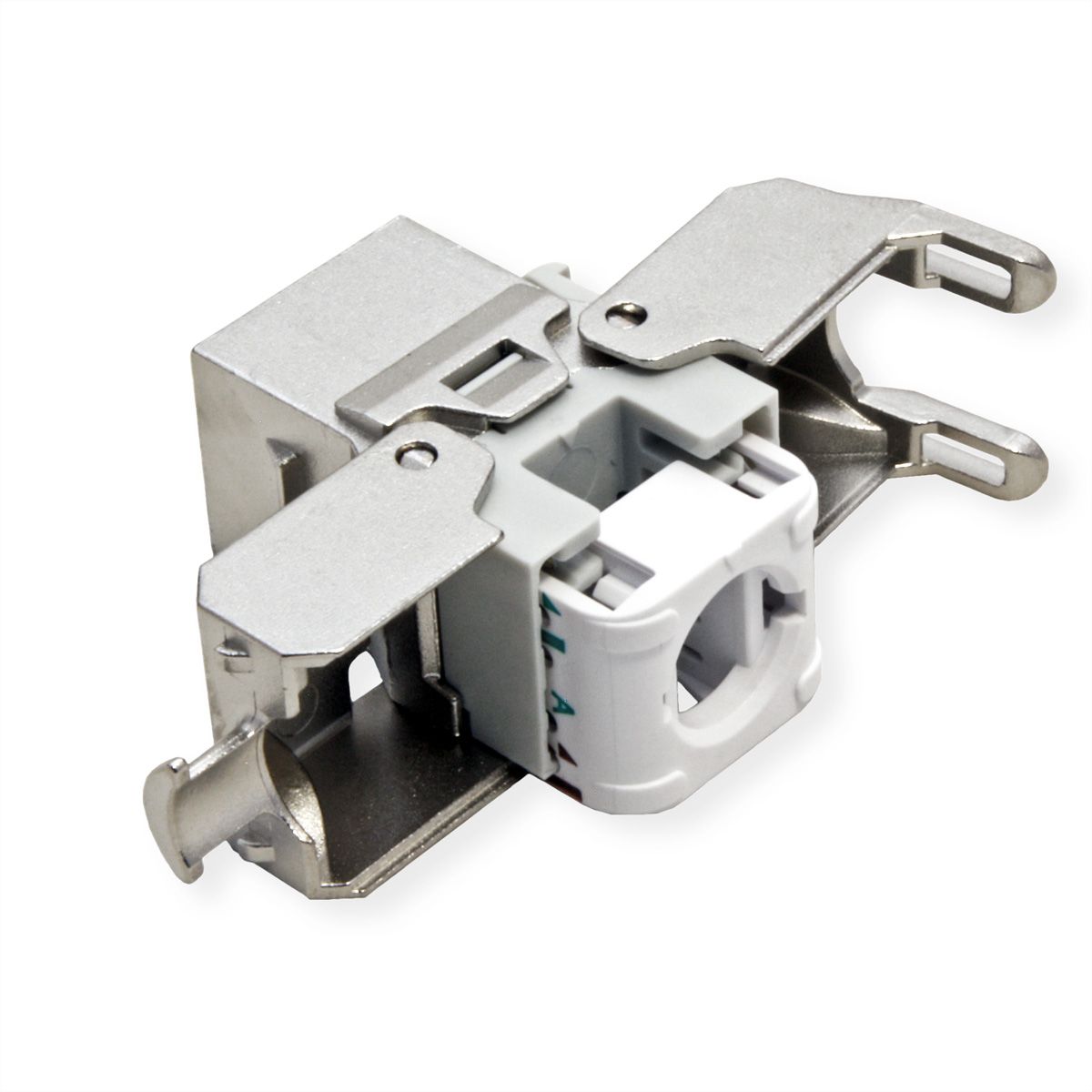

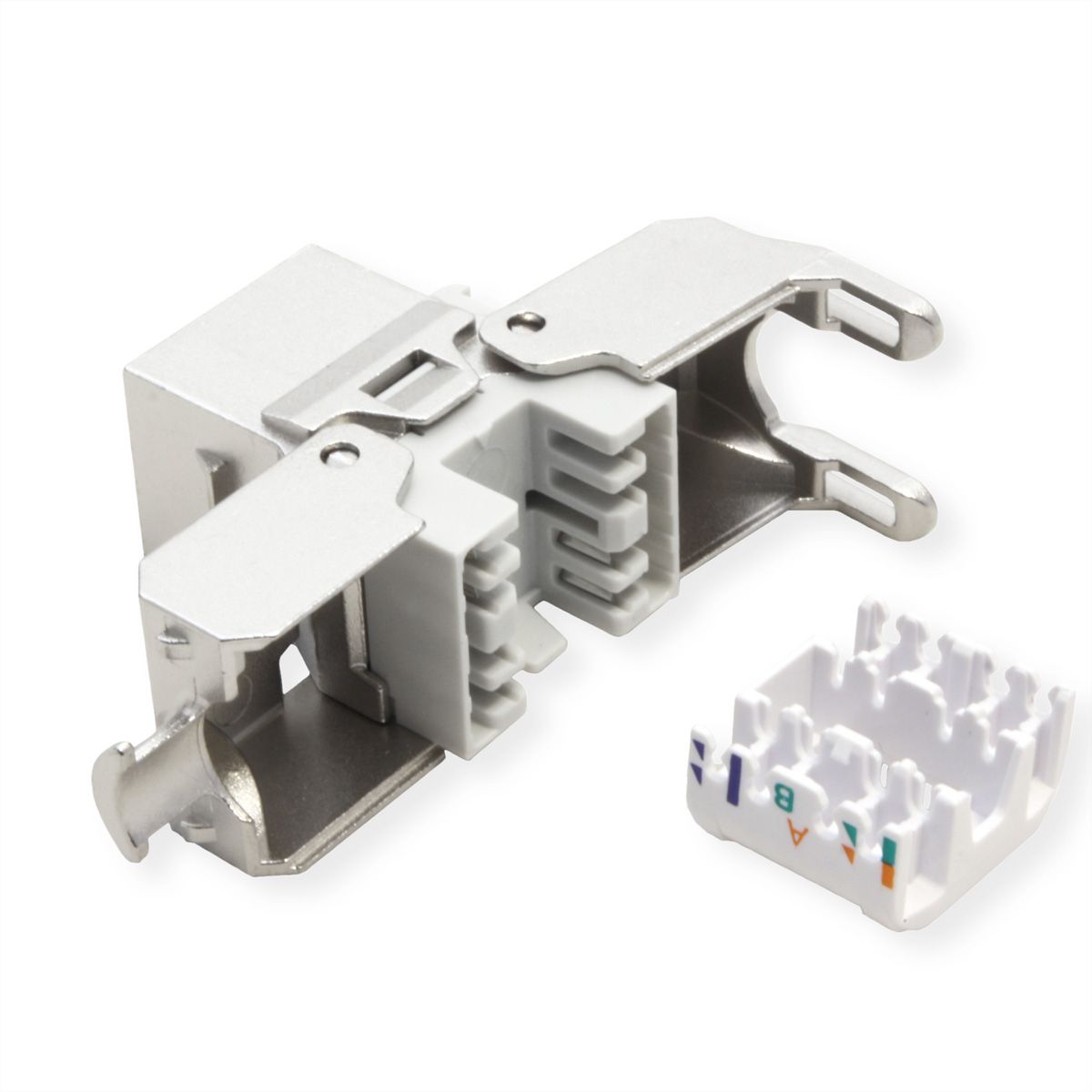

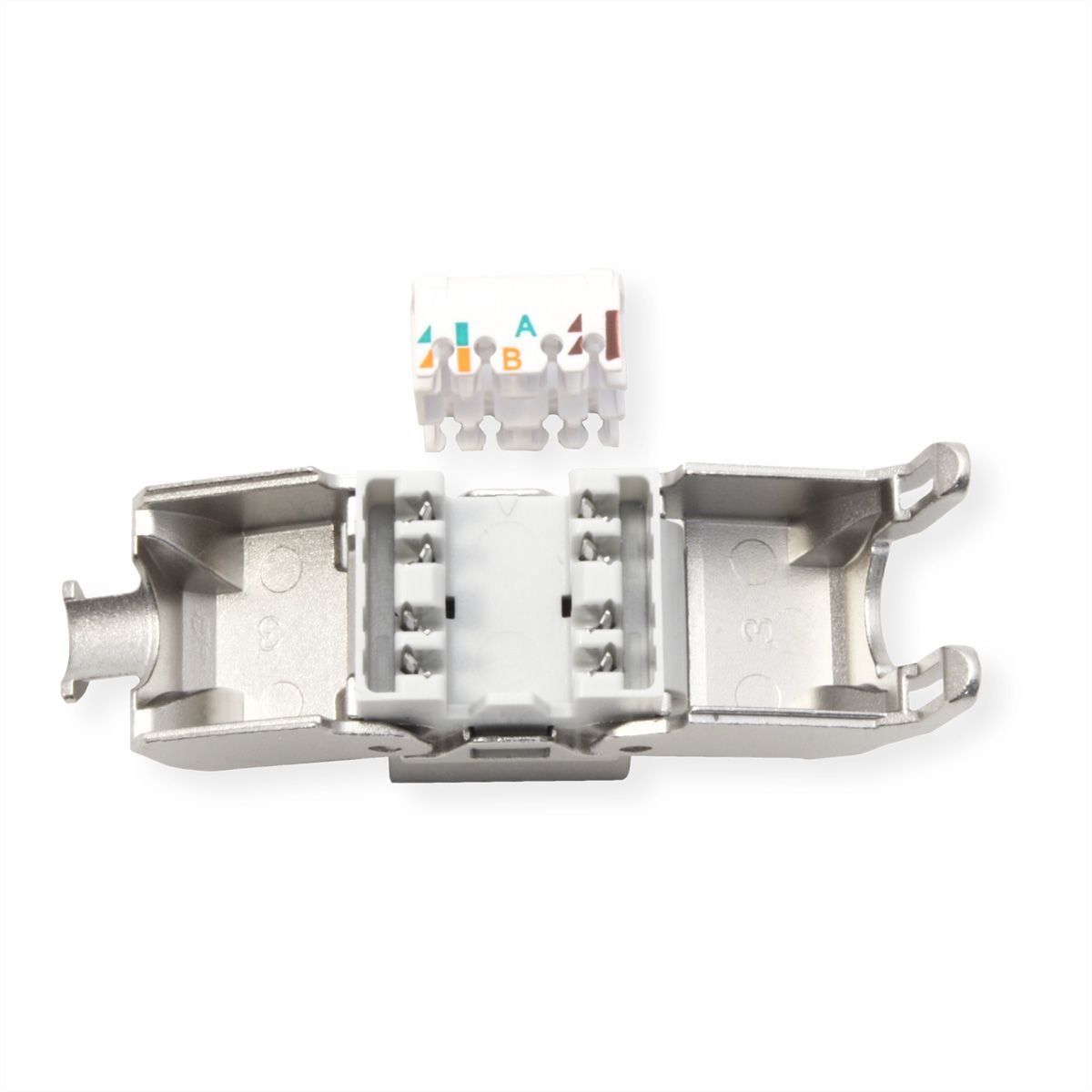

• Toolless mounting - without using a LSA tool: cable wires are simply placed into the guides of Keystone module, the module is closed and compressed - the connection is ready for use

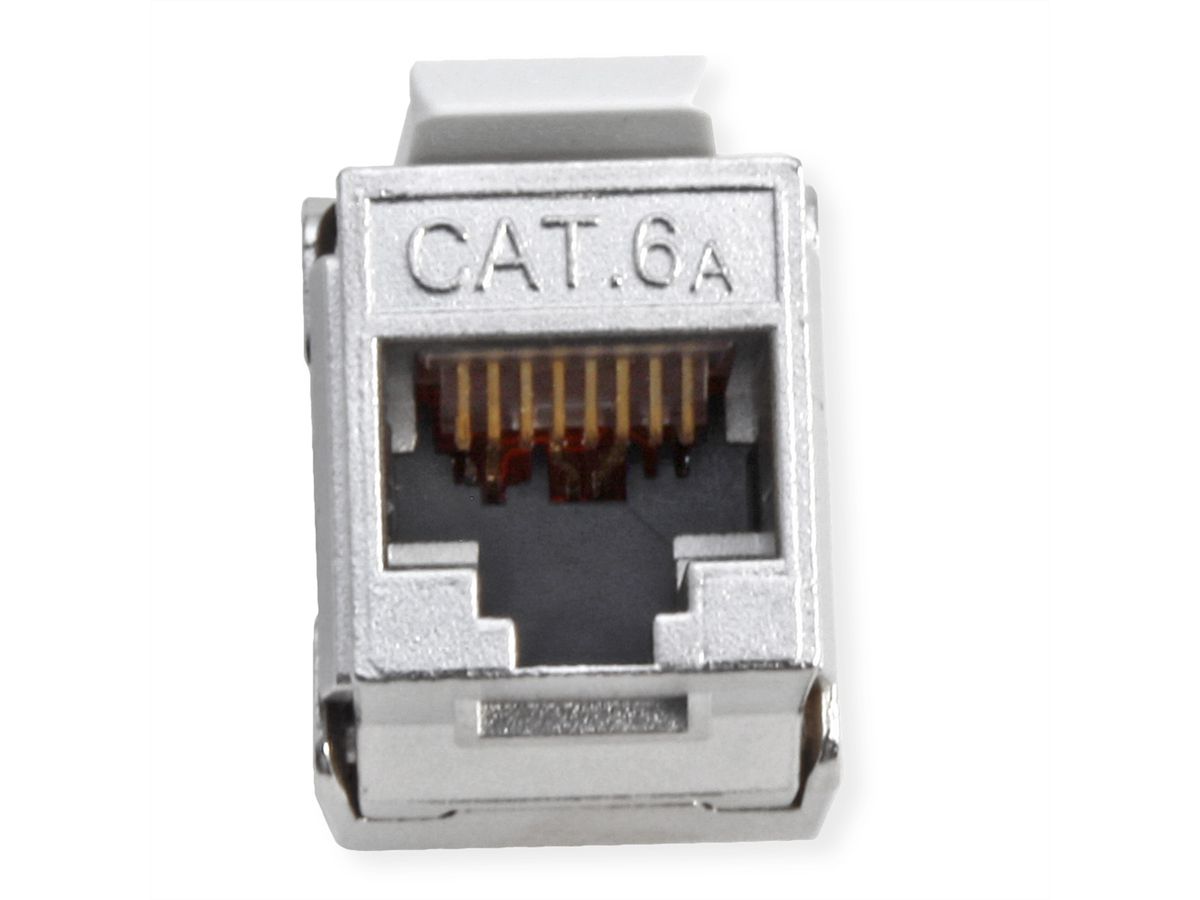

• Cat.6A Keystone Jack (Module) STP
• Fully shielded Housing (zinc alloy)
• 360 degree fully shielded
• Slim type
• With internal plastic shutter
• 180 degree cable entry
• For cables with AWG 23-26
• For cables with OD: 5.0-8.5mm

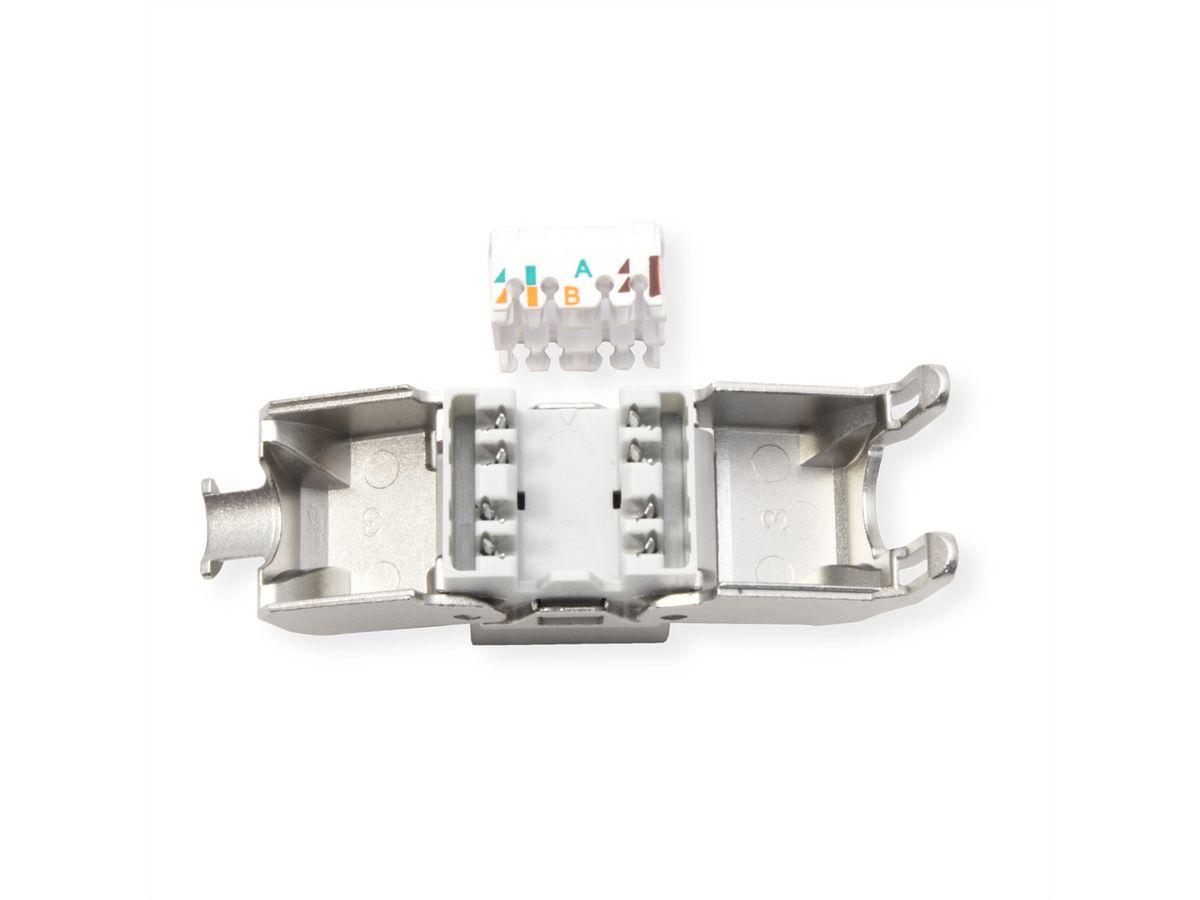

• Colour code on the Keystone jacks based on the standard EIA/TIA 568 A & B
• Dimensions (L x W x H): 38×17×20mm

Specifications

Manufacturer	ROLINE
Product group	Connection technology TP
Product type	RJ45 Keystone Jack
Colour	silver
Shield type	Screened
Transfer quality	Cat6A / Class EA
Quantity of ports	1
Assignment	EIA/TIA 568A & 568B
Material (casing)	Zinc die-casting
Connection direction	Straight
Operating temperature min.	-10 °C
Operating temperature max.	60 °C
Height	20 mm
Width	17 mm
Depth	38 mm
Weight	22 g
Height of packaging (single piece)	20 mm
Width of packaging (single piece)	20 mm
Depth of packaging (single piece)	20 mm
Package weight (single piece)	0.005 kg
