Description

1-port USB charger, 1x Type A with maximum 12W for powering a smartphone/tablet, external SSD/HDD or other devices

• For charging or as a power supply from a device via its USB input
• Perfect supplement for your Wireless Charger, as the scope of delivery often does not include plug-in power supplies
• Suitable, for example, for smartphone/tablet, external SSD/HDD enclosures and other devices

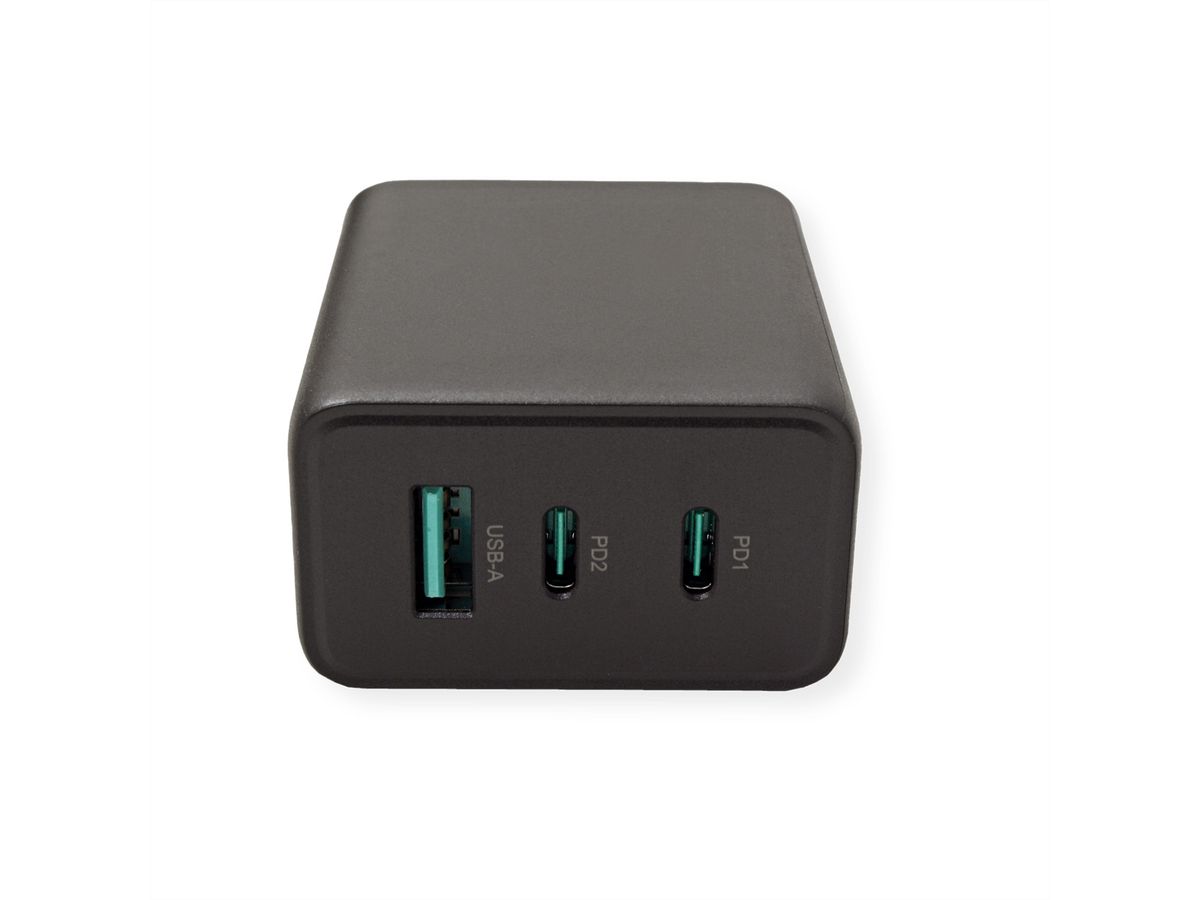

• Charger with one USB Type A socket

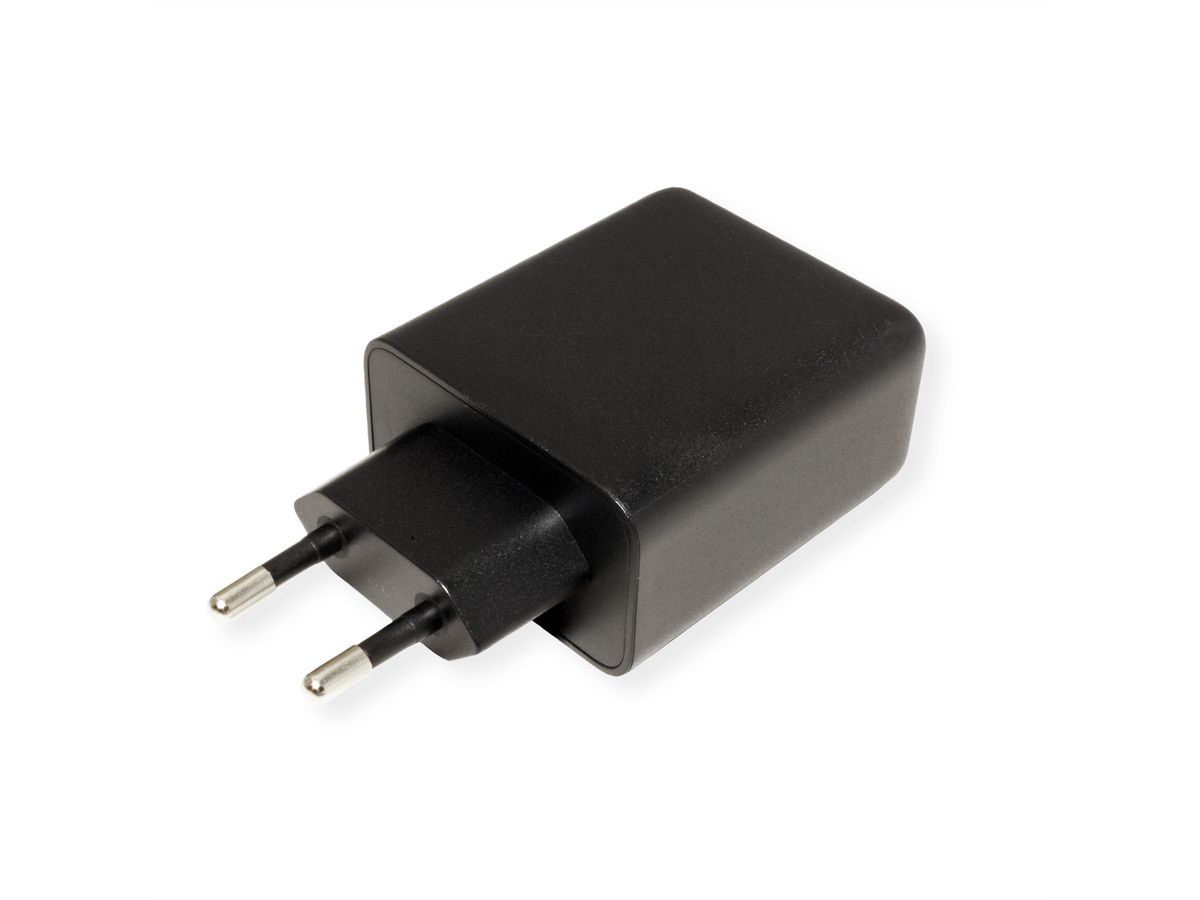

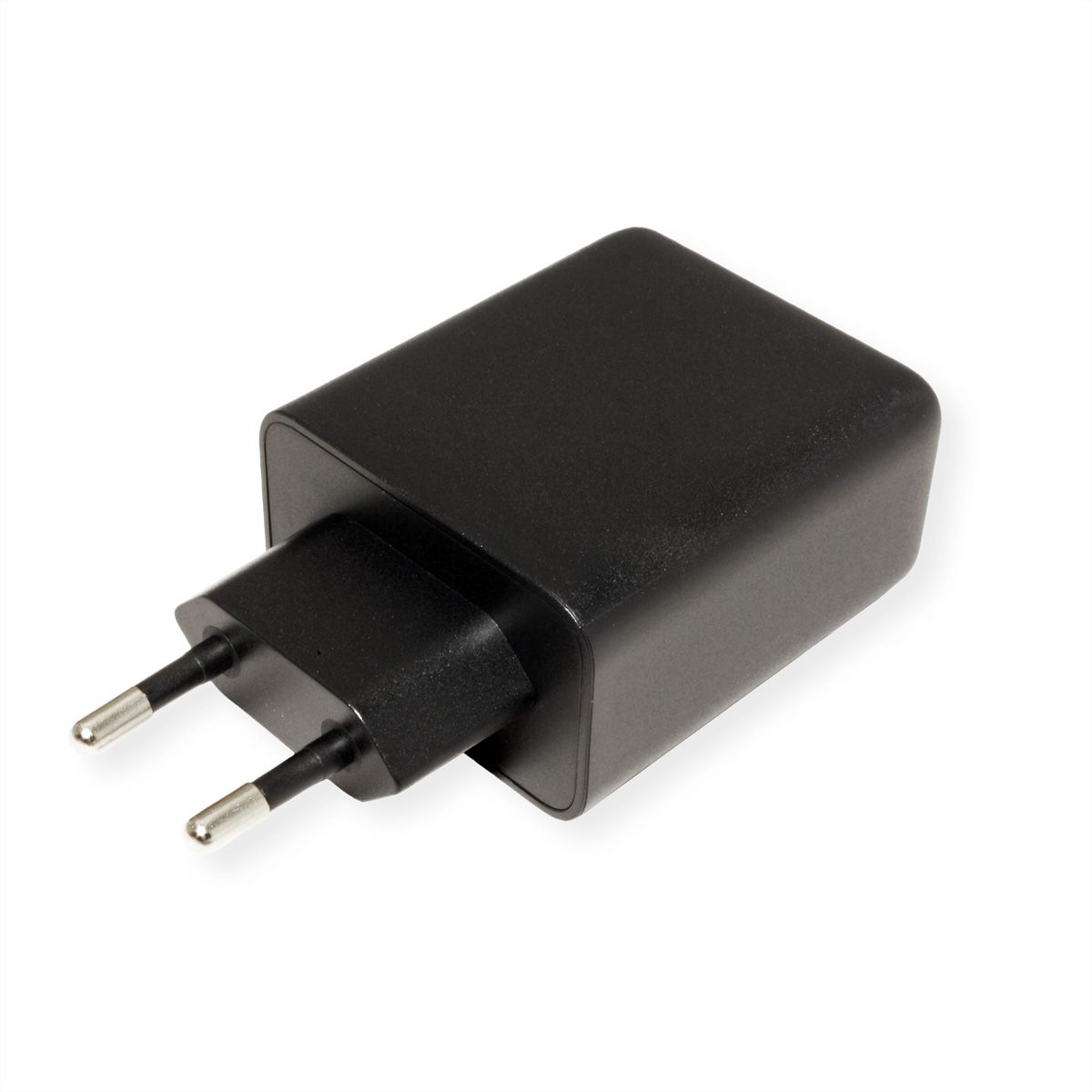

• Matt black PVC housing and Euro flat plug

Technical data

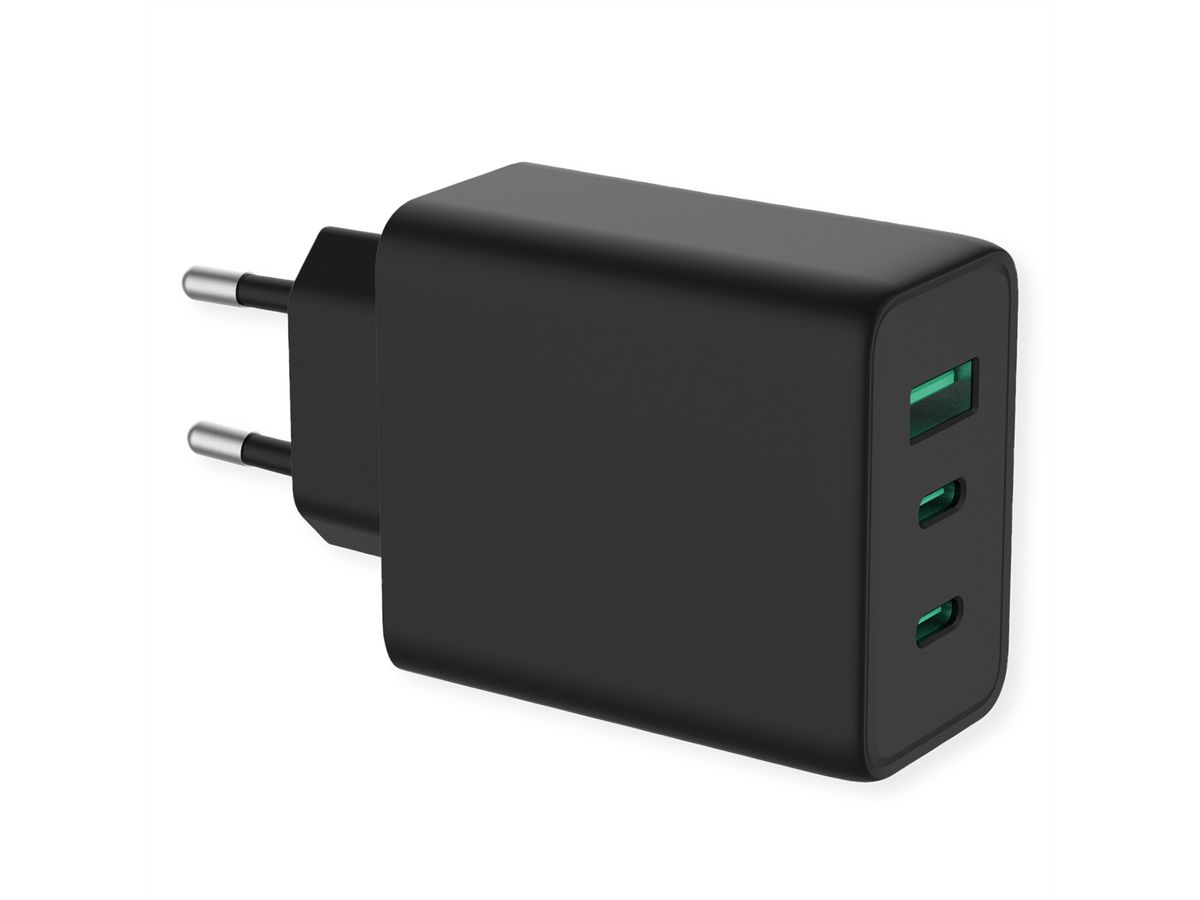

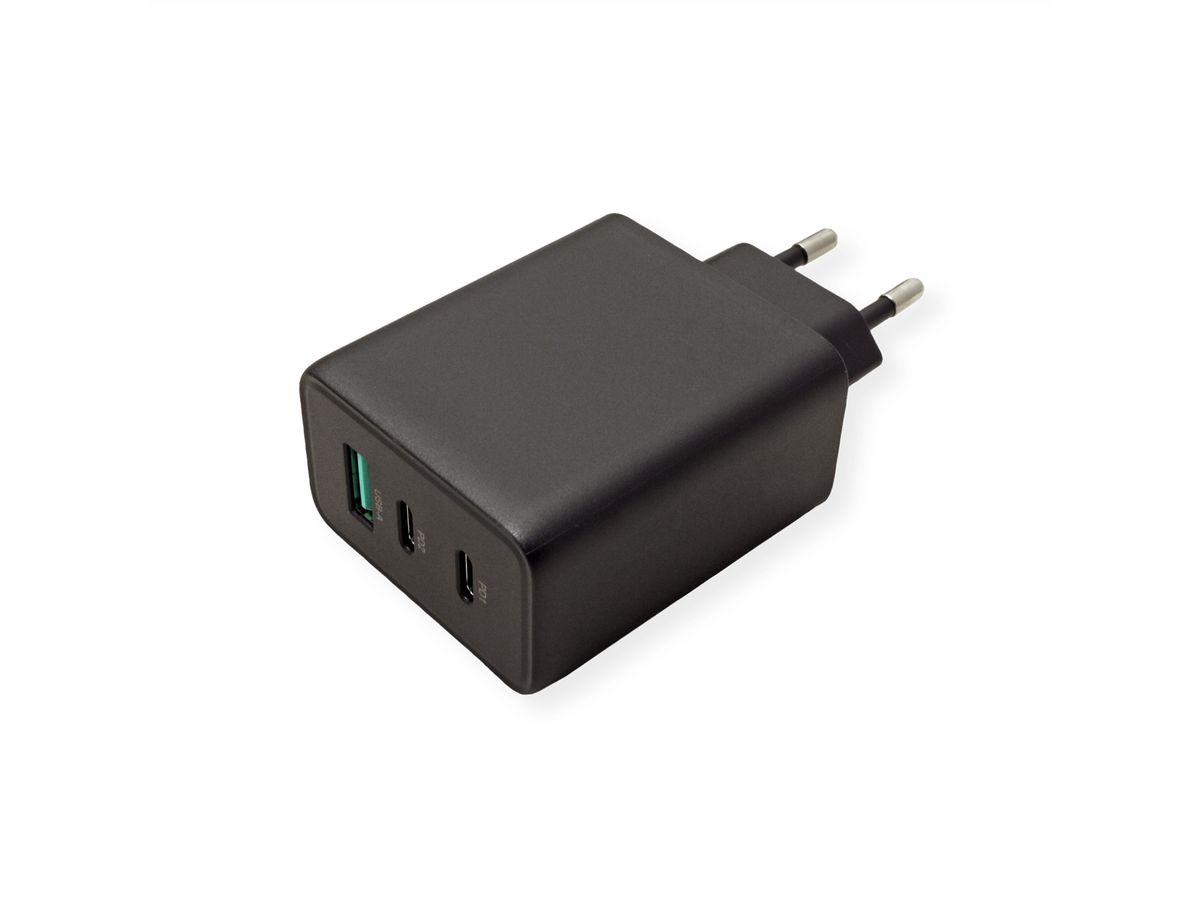

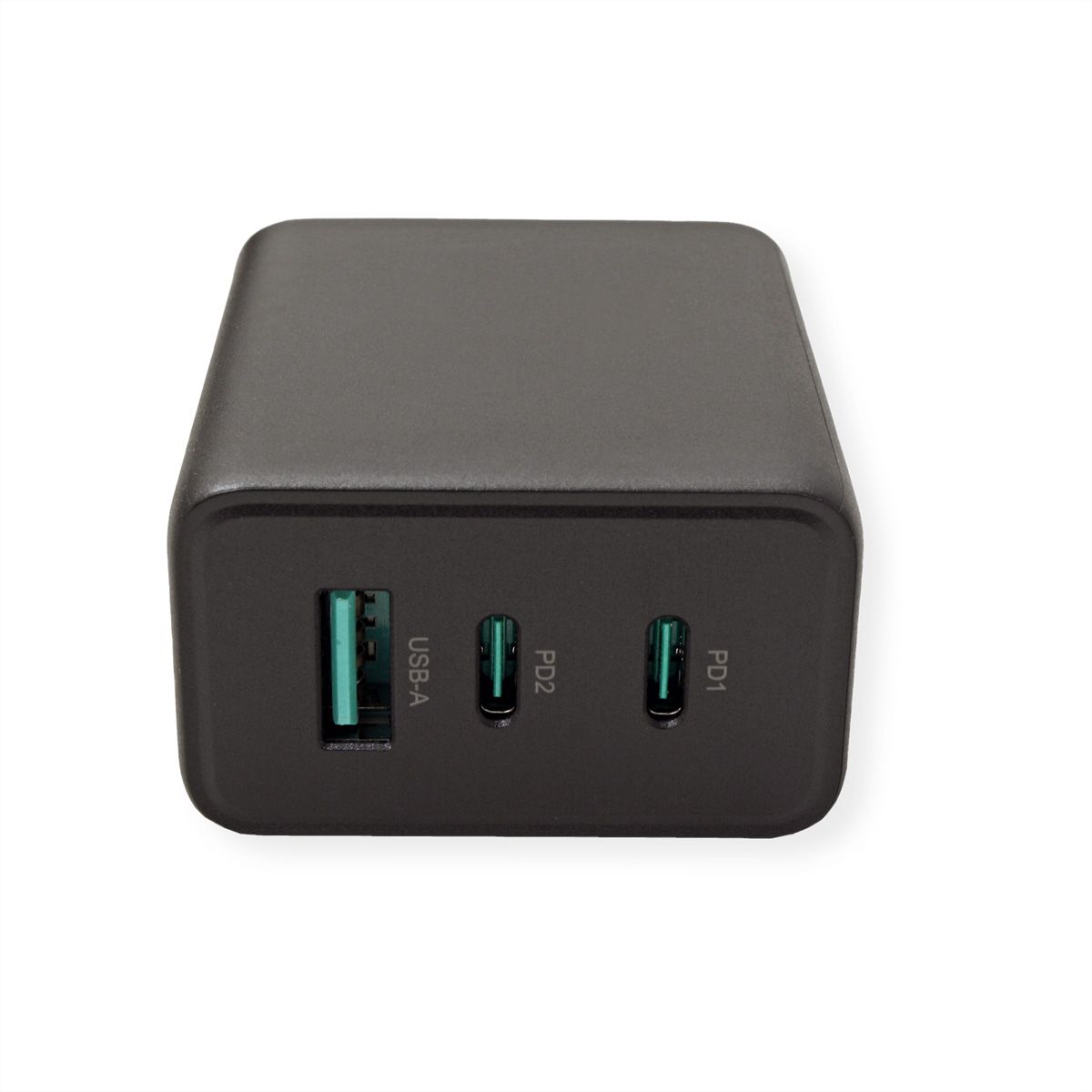

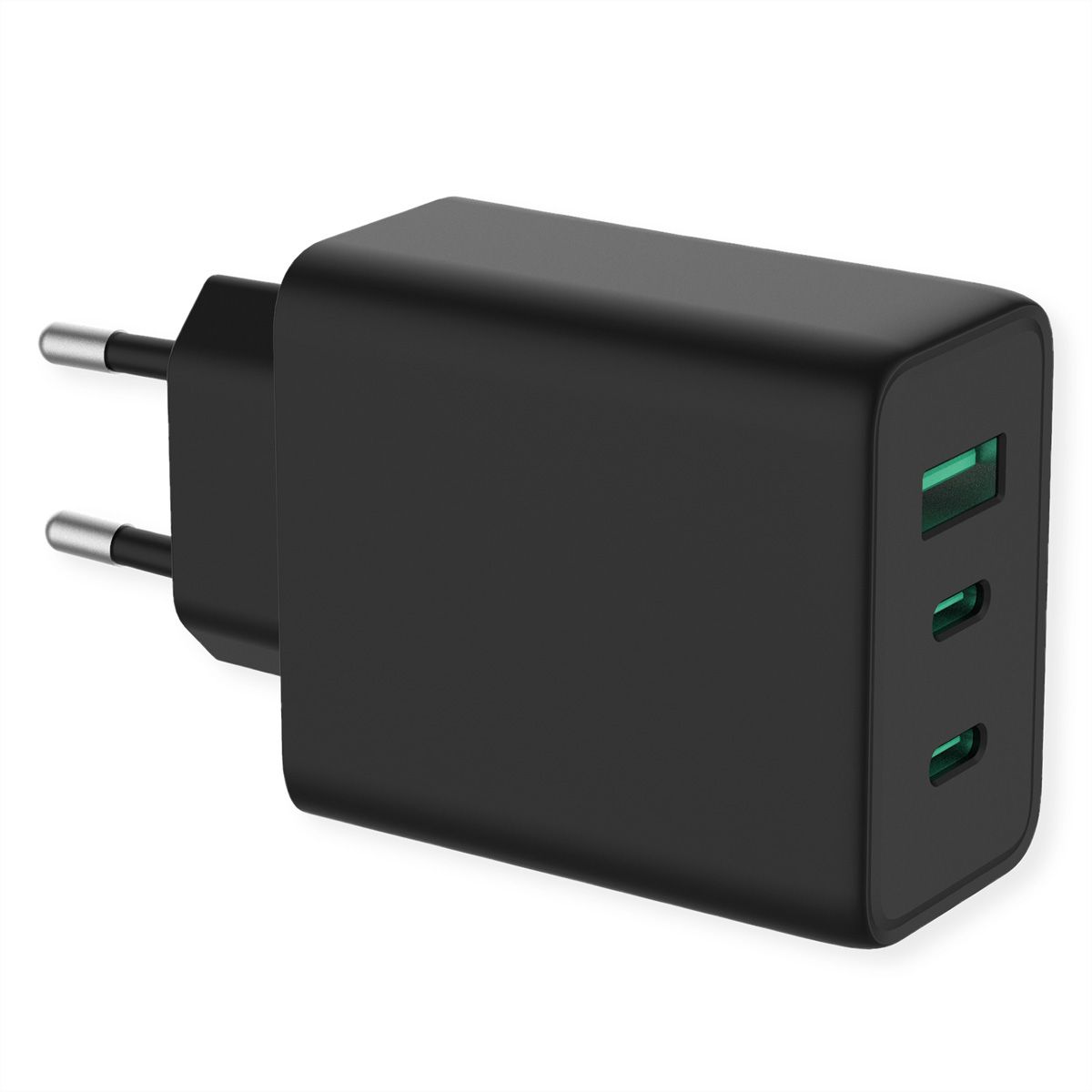

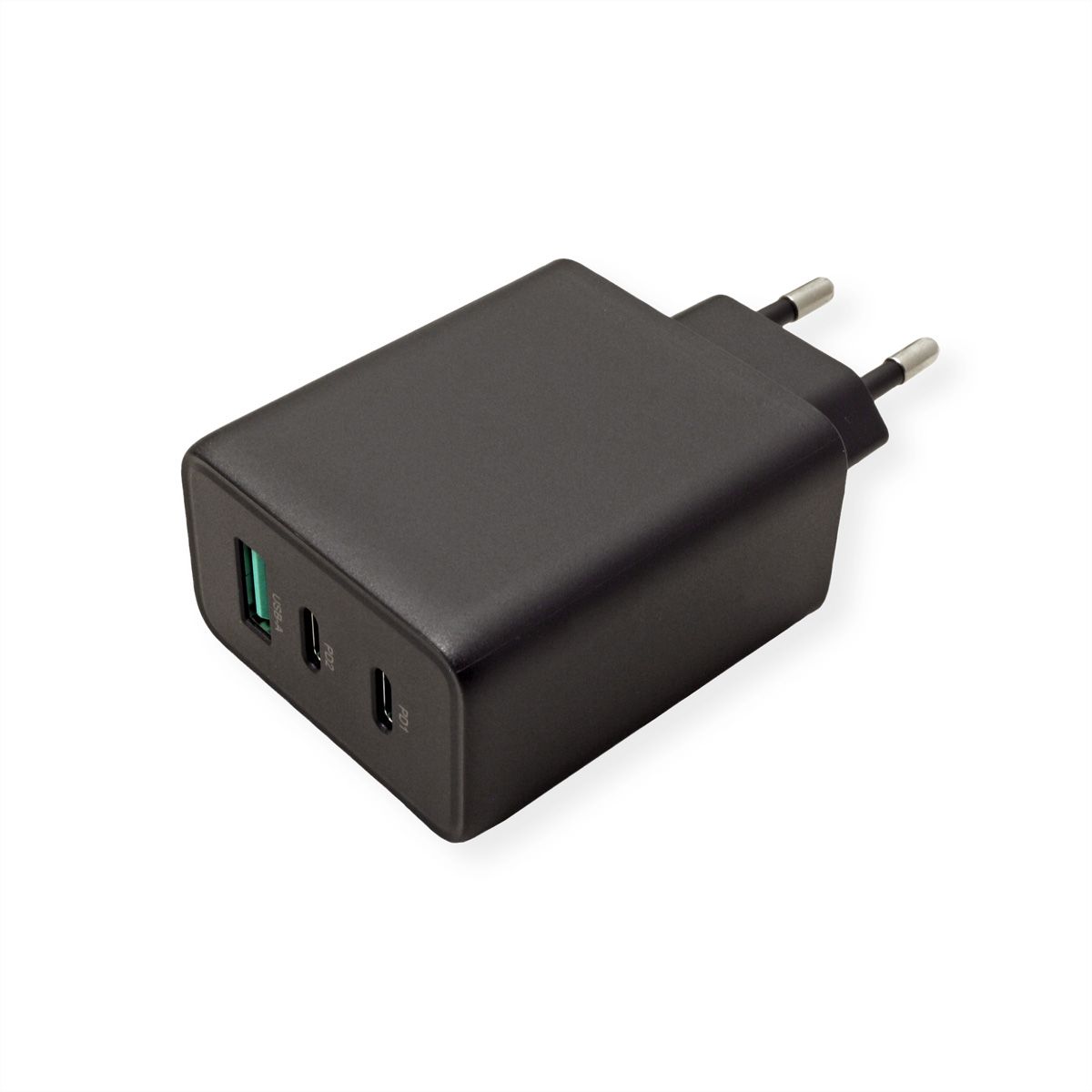

• Plug-in power supply with 3x USB output, type (2x C+ 1x A) socket
• Input voltage: 100 - 240V AC, 50 - 60Hz
• Output voltage:

USB-C 1: PD65W (5V 3A / 9V 3A / 12V 3A / 15V 3A / 20V 3.25A)
USB-C 2: PD65W (5V 3A / 9V 3A / 12V 3A / 15V 3A / 20V 3.25A)
Output A: 30W (4.5V 5A / 5V 4.5A / 9V 3A / 12V 2.5A / 20V 1.5A)
USB: C1+C2+A: PD45W(C1) + 5V 3.6A(C2+A)

• Output power: 65W
• Dimensions:50 x 30 x 93 mm

Advantages of GaN technology

• GaN or gallium nitride - crystalline material with more advantageous properties compared to silicon
• Powerful, efficient power supply
• Enables more compact charger design
• Low heat generation
• Allows a higher density of electronic components

Specifications

Manufacturer	VALUE
Product group	Voltage converter
Product type	USB charger
Colour	black
Input	100-240 VAC
Output	USB-C 1: PD65W (5V 3A / 9V 3A / 12V 3A / 15V 3A / 20V 3.25A)
Output	65W
Dimensions (HxWxD)	50 x 30 x 93 mm
Output connector	2x USB Type C F, 1x Type A
Supported charging technology	GaN
Height	50 mm
Width	30 mm
Depth	93 mm
Weight	119 g
Height of packaging (single piece)	20 mm
Width of packaging (single piece)	40 mm
Depth of packaging (single piece)	40 mm
Package weight (single piece)	0.125 kg

Downloads

Product data sheet - English (43.5 KB)

Download

The own brand VALUE stands for attractive prices and tested quality.

With the VALUE products you get the best possible price in terms of quality and product features.

More about VALUE
