Description

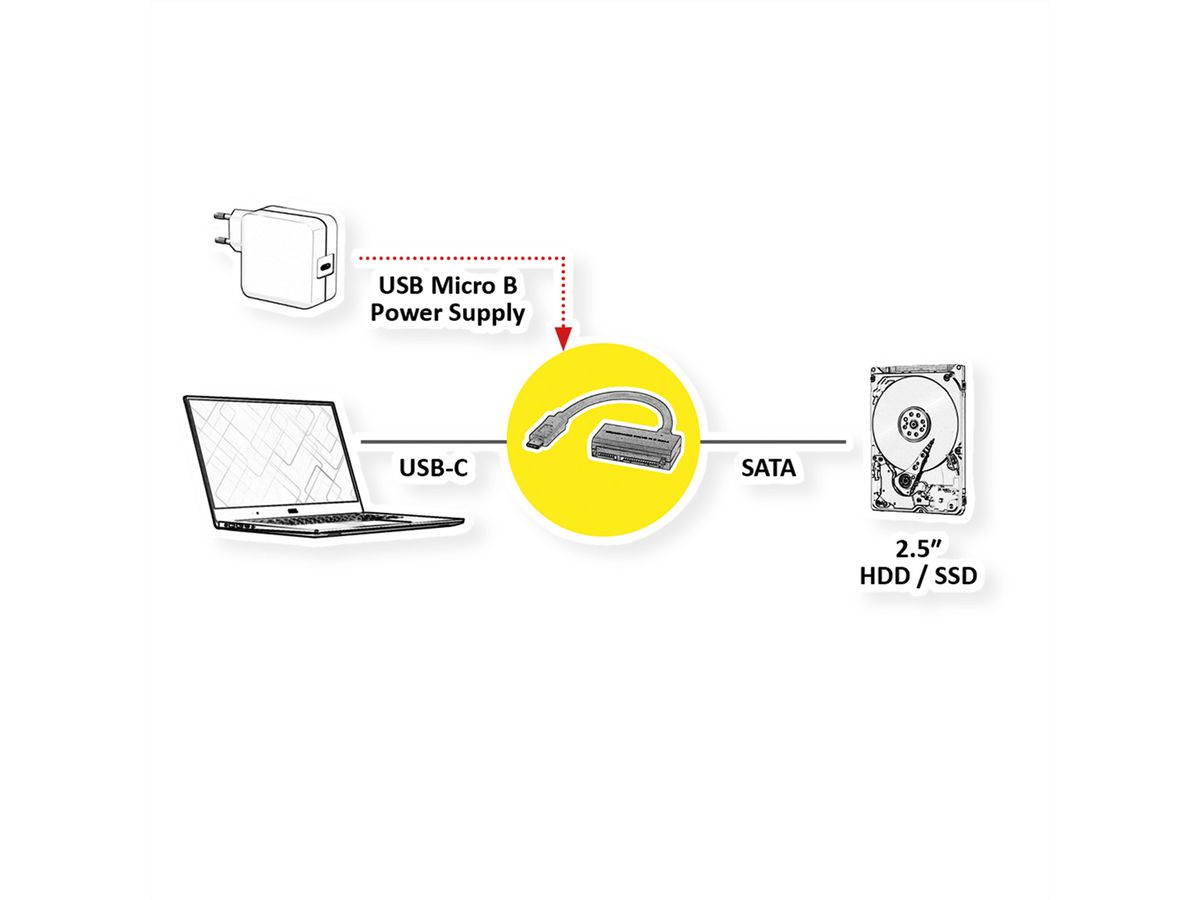

The simple way to connect a SATA III 6.0 Gbit/s hard drive to a computer or notebook via USB 3.1 / USB 3.2 Gen 2 Type C.

• Easy way to connect a SATA 6.0 Gbit/s hard drive to a computer or notebook via a USB 3.1 / USB 3.2 Gen 2 port.
• Suitable for type 2.5 Serial ATA HDD/SSD
• Compatible with SATA 6.0 Gbit/s
• Supports transfer rates up to 5.0 Gbps
• Connection to Computer: USB Type C
• Connection to hard disk: 15-pin SATA power + 7-pin SATA data

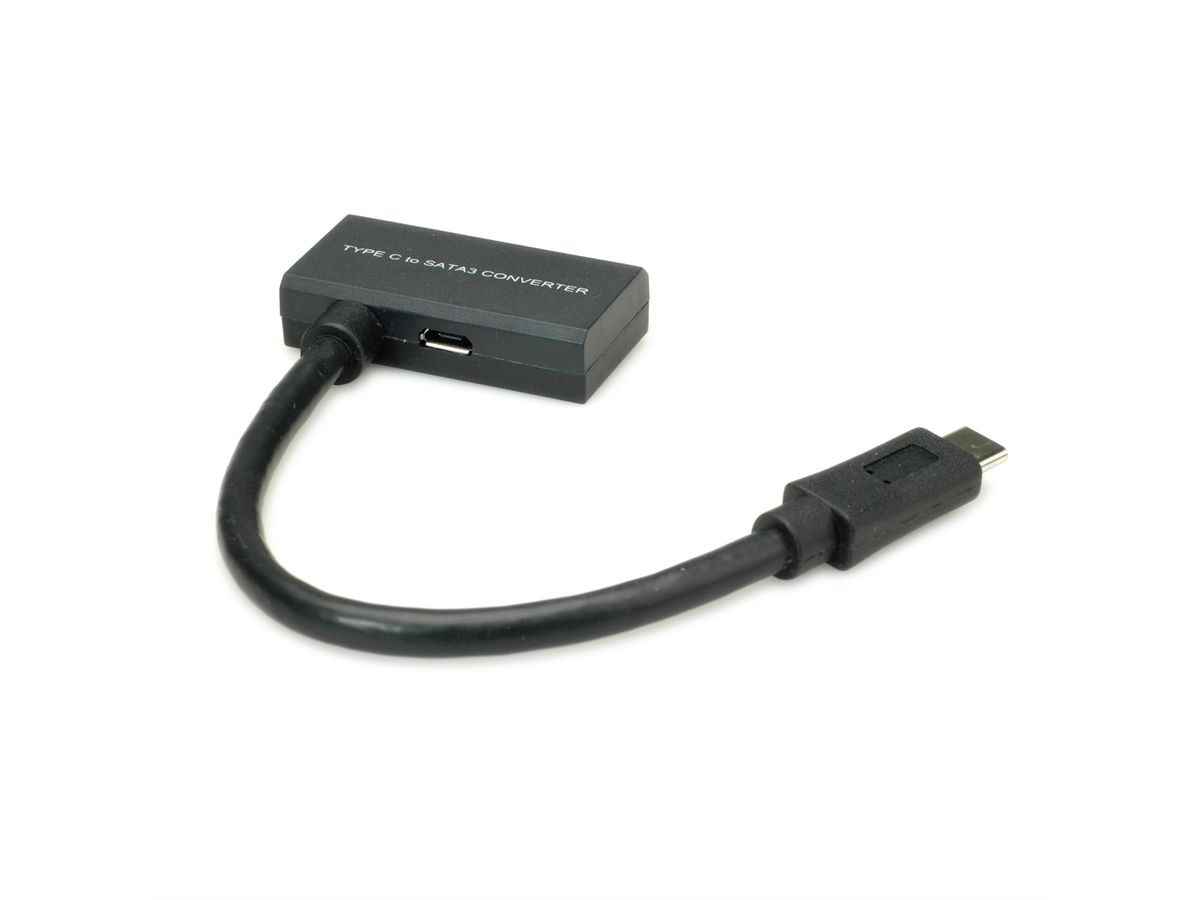

• USB Micro B connector for optional power supply
• Hot-swap capable, Plug & Play
• Length USB cable: 0.15 m

Note: According to the current specifications of USB.org we have adapted the technical data of our USB 3 products. The new designation for the already known USB specifications has been changed to USB 3.2 Gen 1 (formerly USB 3.0 / USB 3.1 Gen 1) and USB 3.2 Gen 2 (formerly USB 3.1 / USB 3.1 Gen 2).

Specifications

Manufacturer	VALUE
Product group	Adapters, Terminators, Converters
Product type	HDD docking cable
Colour	black
Scope of delivery	Adapter, manual
Side 1 connection (PC)	USB Type C Connector
Side 2 connection (Peripherals)	SATA
Side 1 Connector Type	USB Type C (USB-C)
Side 1 Connector Gender	Male
Side 2 Connector Type	SATA 22-pin (Data+Power)
Side 2 Connector Gender	Female
Area of application	Internal/External
Technical particularity	SATA 6Gbit/s
Weight	19.1 g
Height of packaging (single piece)	10 mm
Width of packaging (single piece)	50 mm
Depth of packaging (single piece)	50 mm
Package weight (single piece)	0.12 kg

Downloads

Product data sheet - English (45.6 KB)

Download

Manufacturer data sheet - English (84.4 KB)

Download
