Description

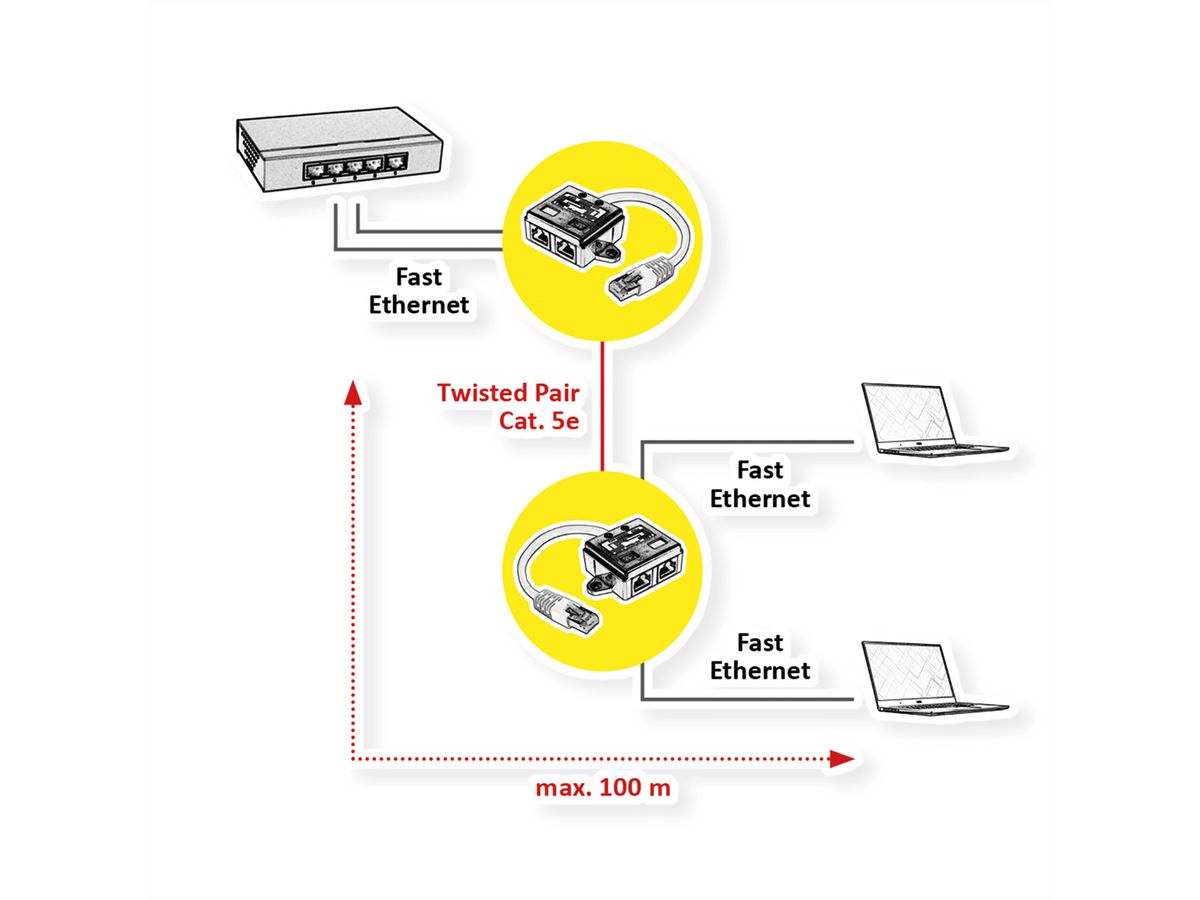

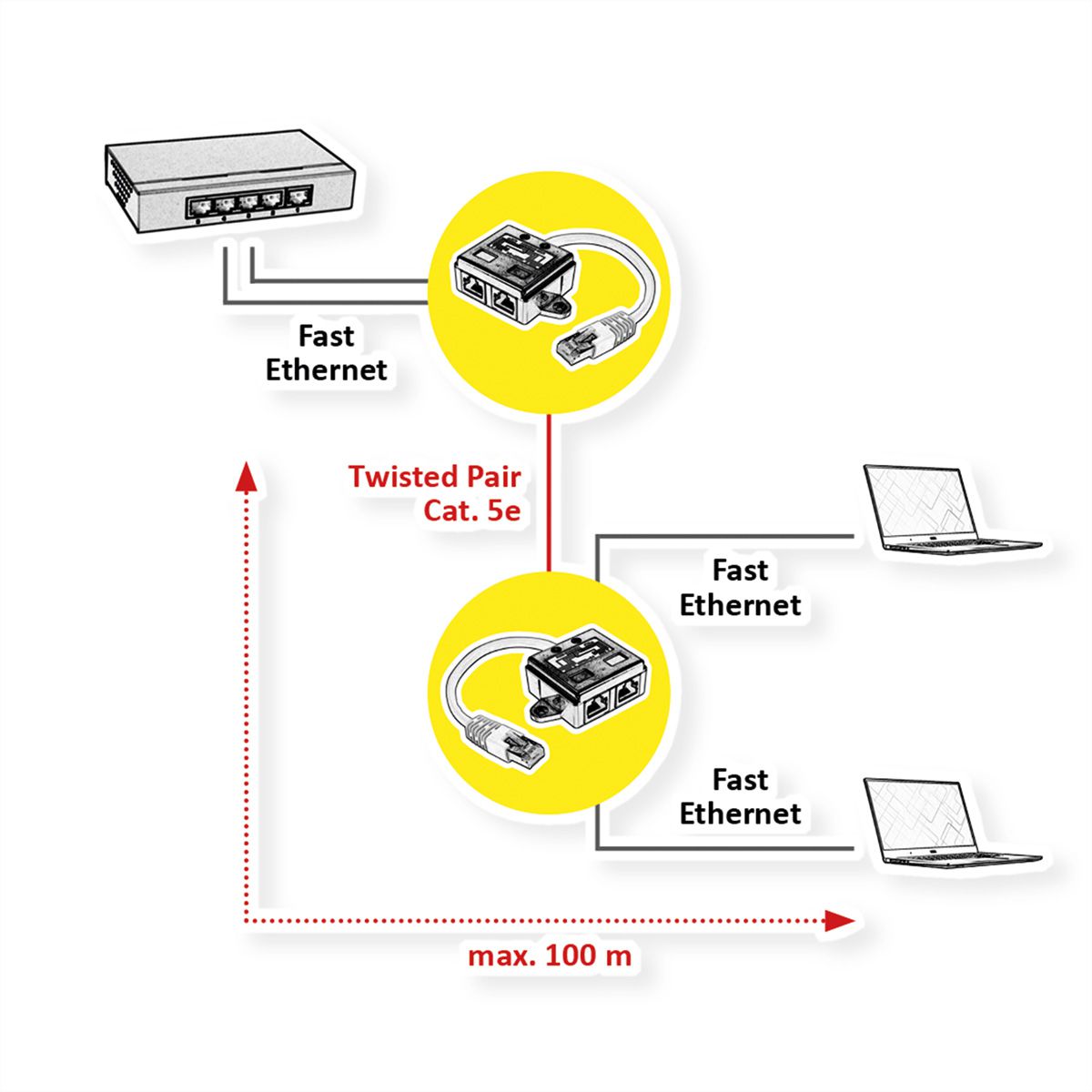

• For the use with two 10/100 LAN connections over one (full wired) 8-wire cable

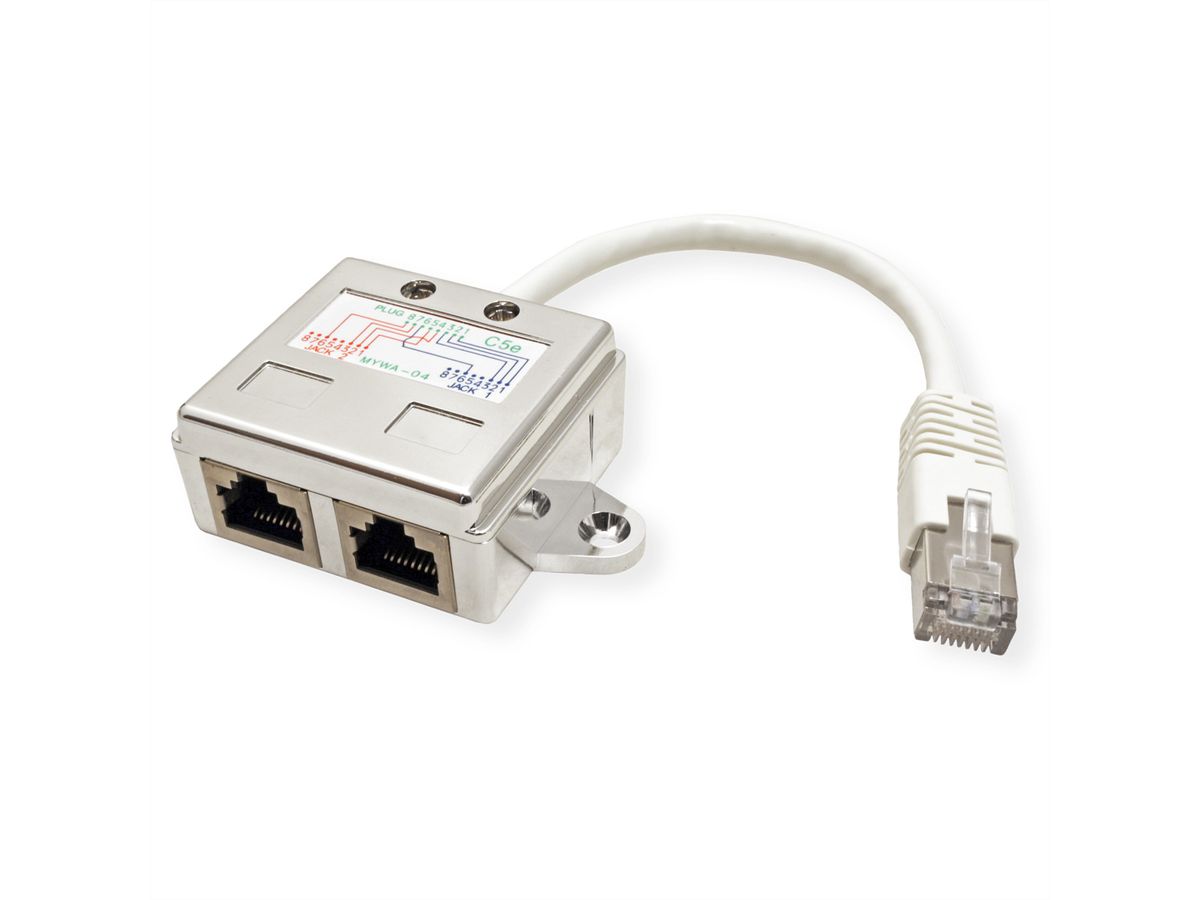

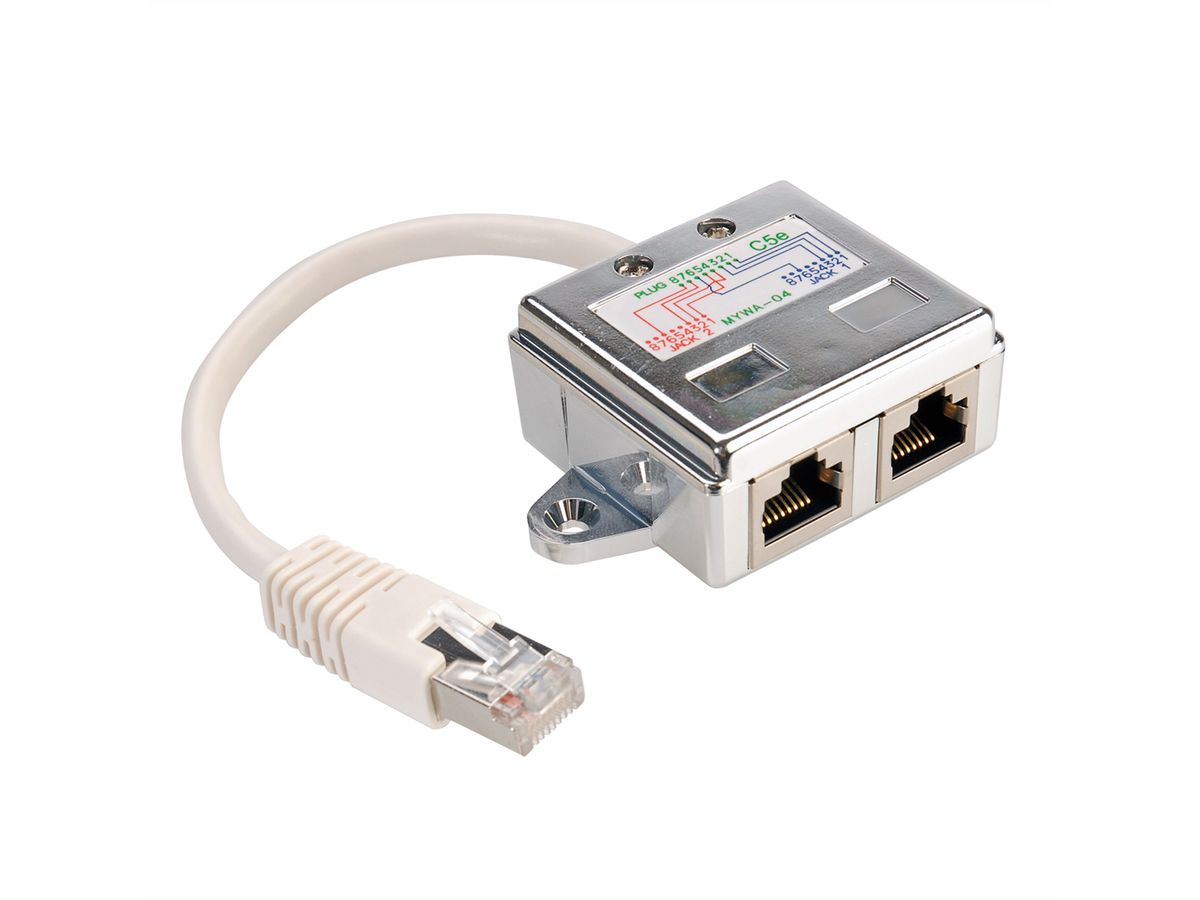

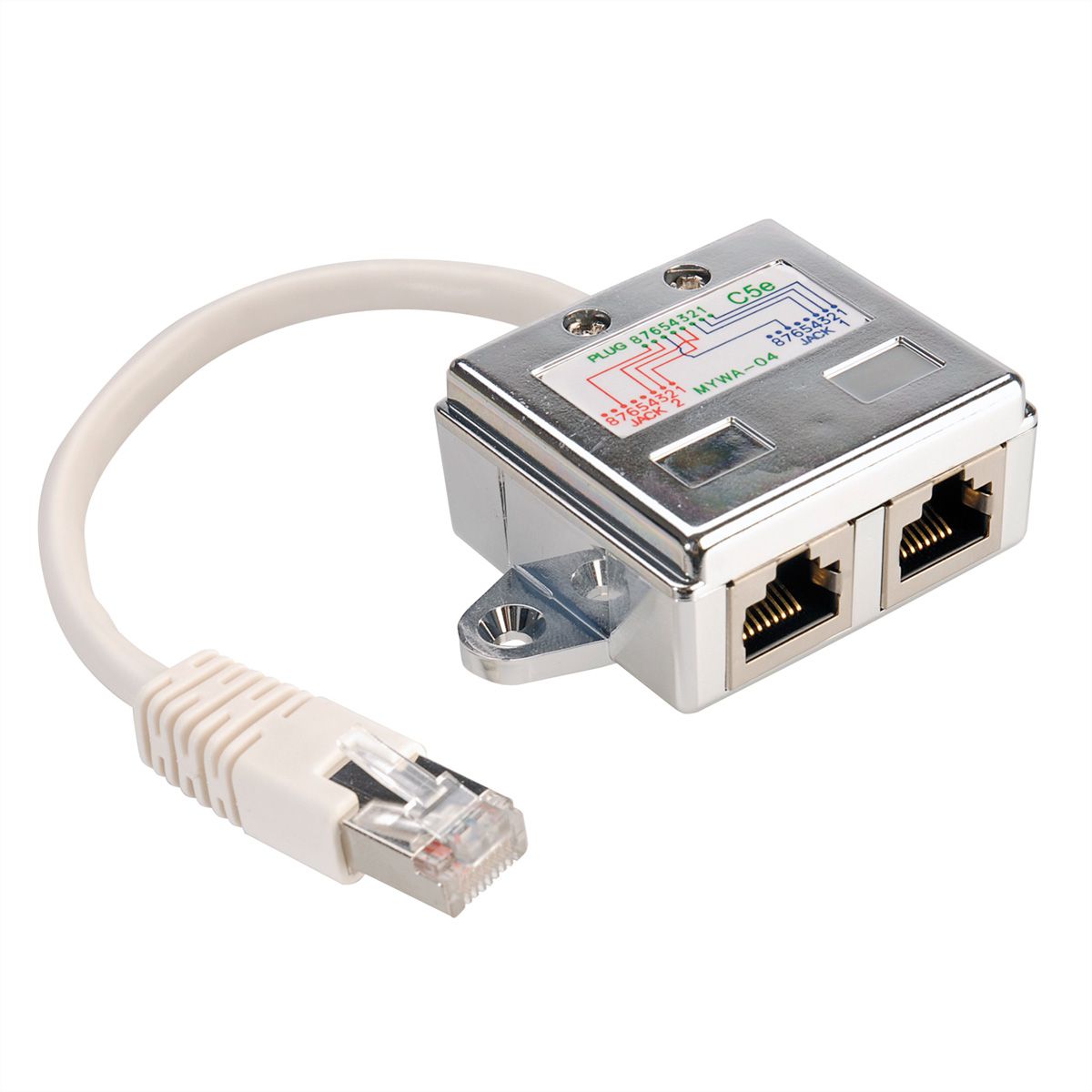

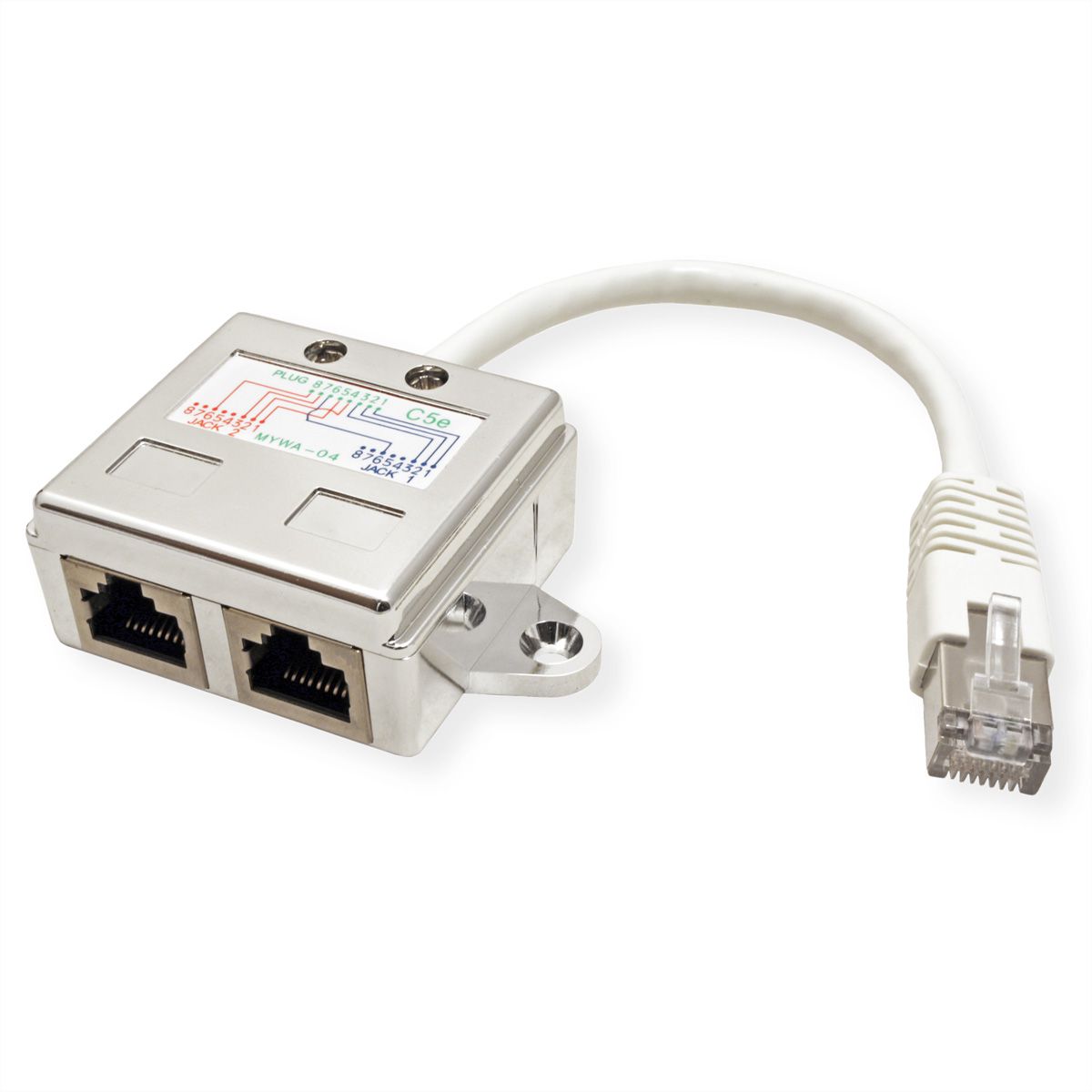

• Connection cable (17 cm) with RJ-45 plug; adapter with two RJ-45 jacks
• Pin assignment of connectors: pairs 1, 2 and 3, 6

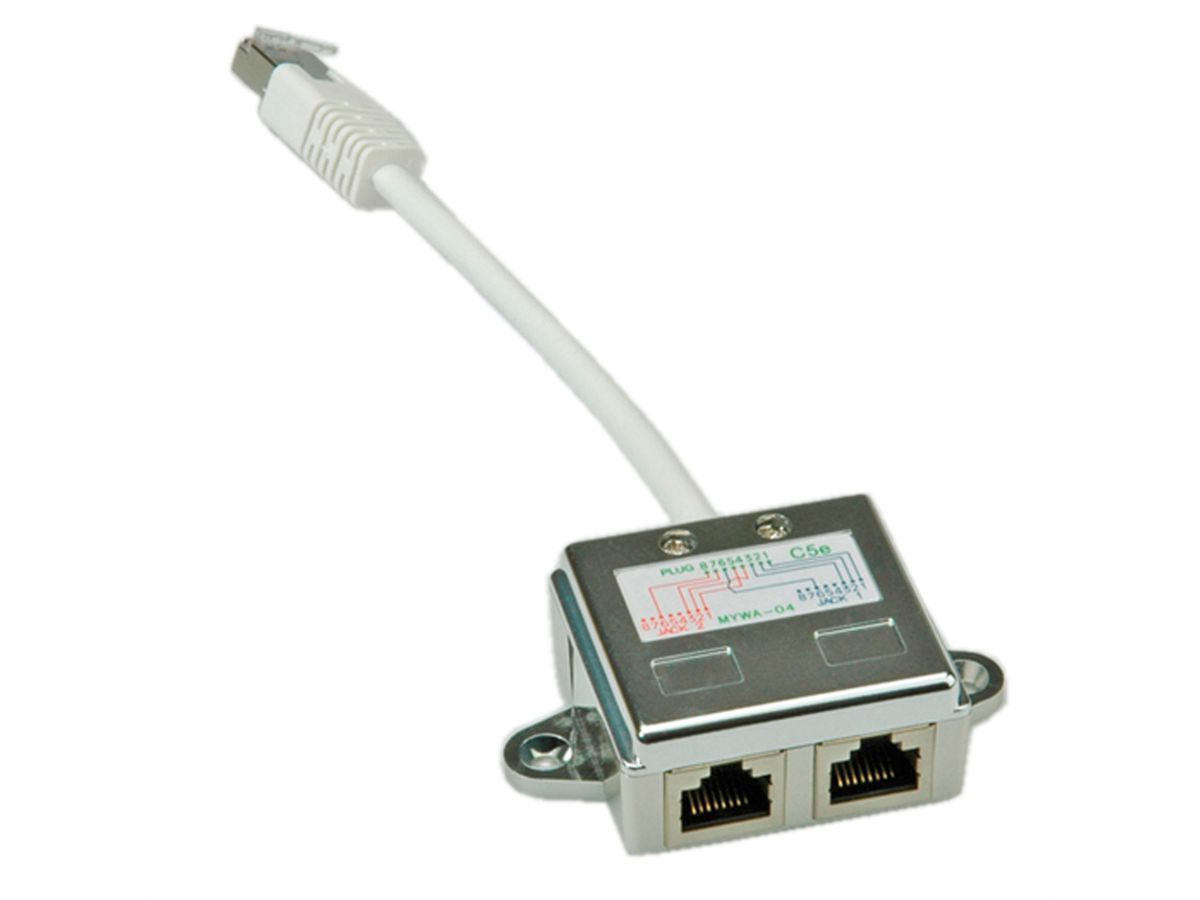

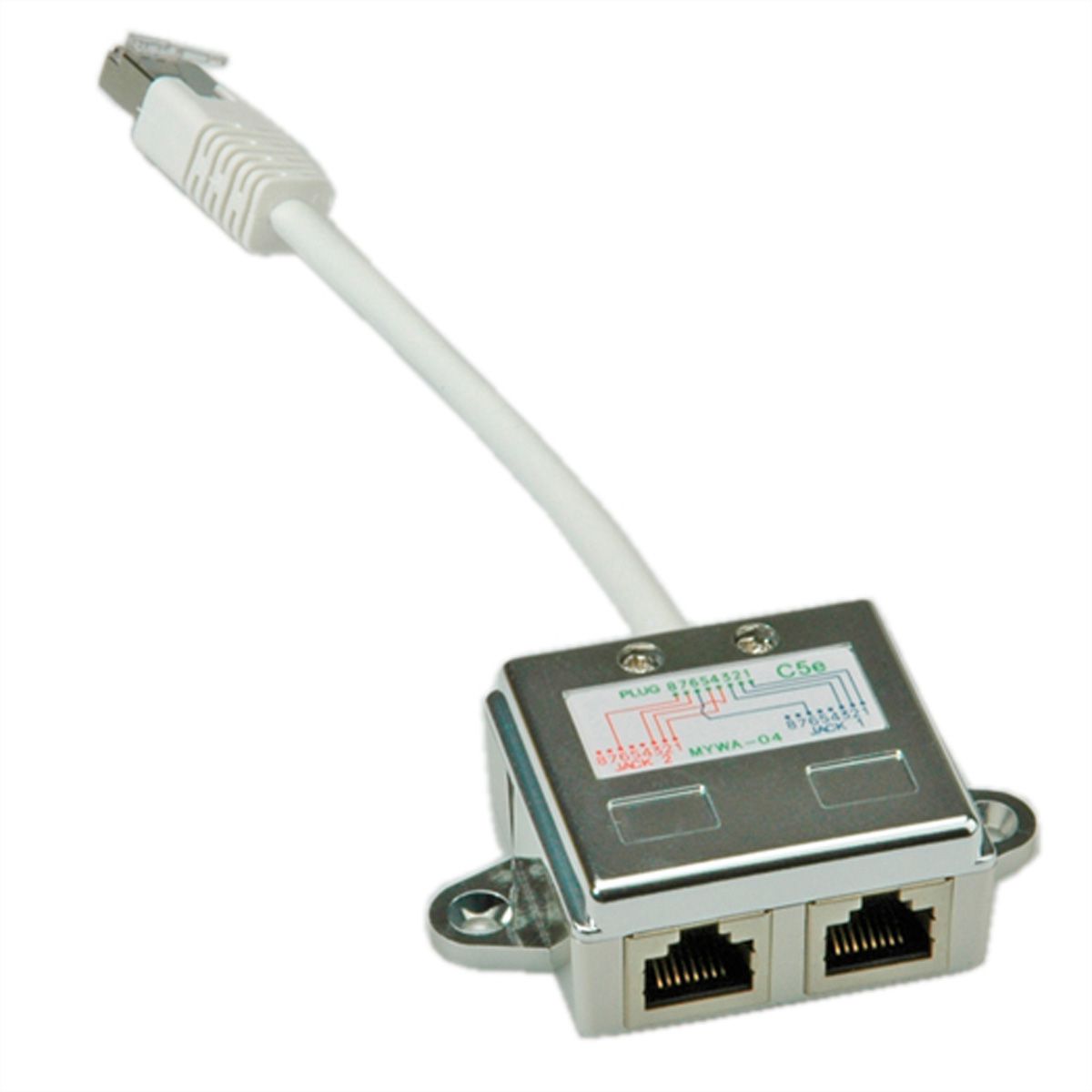

• Wiring scheme on the adapter
• For Cat. 5e installations
• Note: The adapters can be used only pairwise

Specifications

Manufacturer	VALUE
Product group	Connection technology TP
Product type	Network adapter
Colour	white
Length	0.15 m
Shield type	Screened
Transfer quality	Cat5e / Class D
Material (casing)	Plastic
Shield contacts	No
separate strain relief	no
Connection direction	Straight
Operating temperature min.	-10 °C
Operating temperature max.	60 °C
Height	22.5 mm
Width	58 mm
Depth	42 mm
Weight	46.3 g
Height of packaging (single piece)	20 mm
Width of packaging (single piece)	80 mm
Depth of packaging (single piece)	220 mm
Package weight (single piece)	0.05 kg

Downloads

Product data sheet - English (52.9 KB)

Download

Manufacturer data sheet - English (143.2 KB)

Download
