The own brand VALUE stands for attractive prices and tested quality.
With the VALUE products you get the best possible price in terms of quality and product features.
:strip_icc():strip_exif()/bilder/s21/21991803_2024_m_0_hi.jpg "VALUE S/FTP Patch Cord Cat.8 (Class I), stranded, LSOH, grey, 1 m")
:strip_icc():strip_exif()/graphic/patchkabel_webgrafik_en.png "VALUE S/FTP Patch Cord Cat.8 (Class I), stranded, LSOH, grey, 1 m")
:strip_icc():strip_exif()/bilder/s21/21991803_2000_p_0_lo.jpg "VALUE S/FTP Patch Cord Cat.8 (Class I), stranded, LSOH, grey, 1 m")

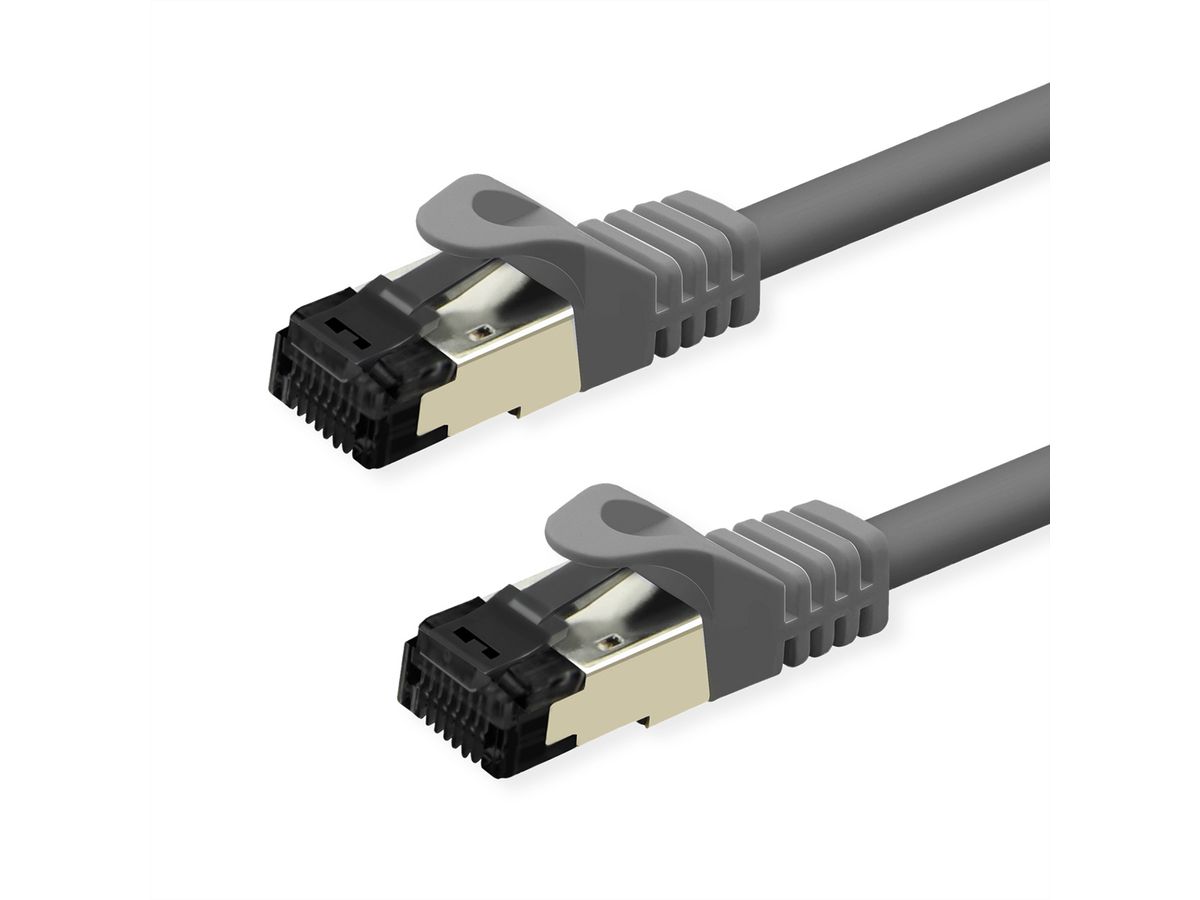

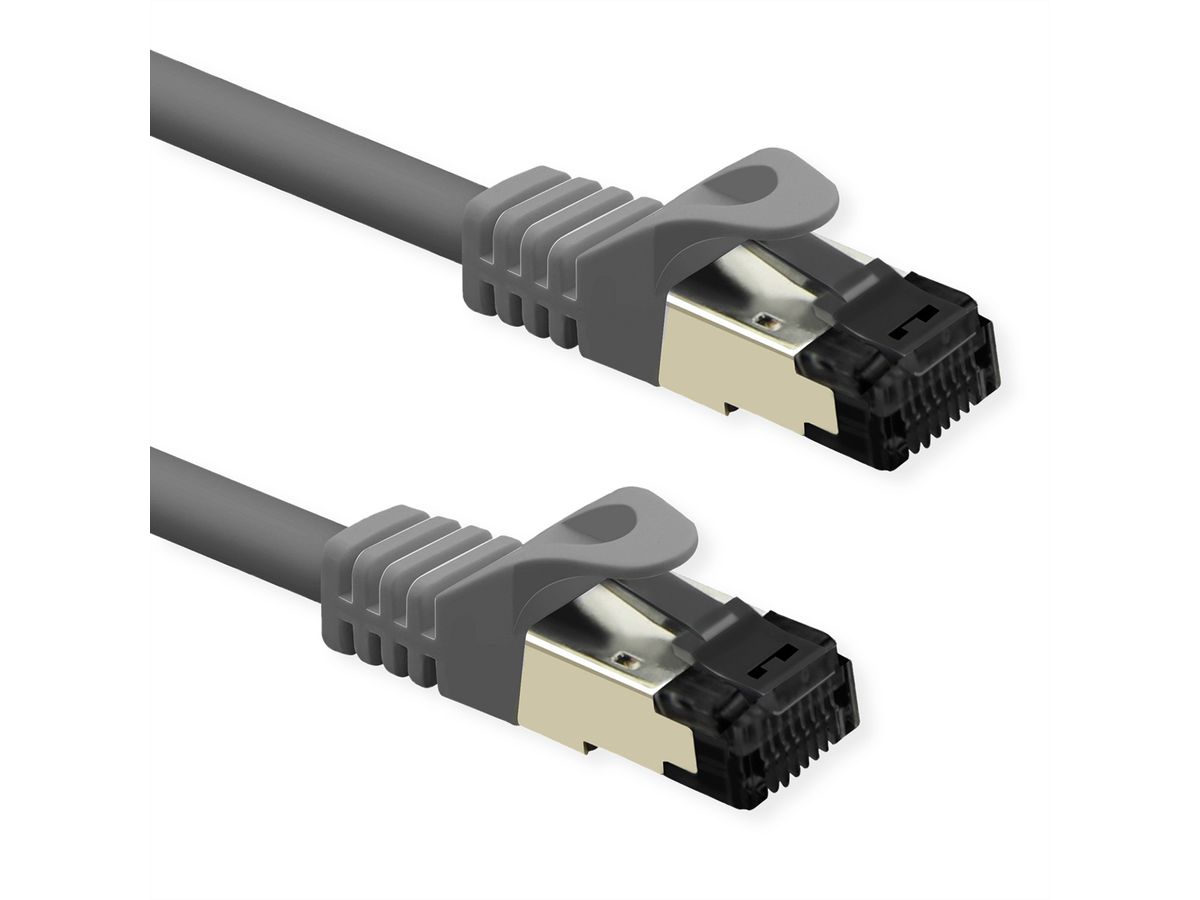

VALUE S/FTP Patch Cord Cat.8 (Class I), stranded, LSOH, grey, 1 m
Please log in to be able to use the shopping cart and then complete orders.
Log in| Item no. | 21.99.1801-100 |
|---|---|
| Brand / Manufacturer | VALUE |
| Manuf. no. | 21.99.1801 |
| EAN | 7630049687523 |
| Package weight | 0.05 kg |
:strip_icc():strip_exif()/bilder/icons/icon_rj45_cat8.png){kind=icon}
:strip_icc():strip_exif()/bilder/icons/icon_rj45_sftp.png){kind=icon}
:strip_icc():strip_exif()/bilder/icons/icon_lsoh.png){kind=icon}
|
|
| Colour | |
| Length | |
:strip_icc():strip_exif()/logos/value.png "VALUE")
Description
Category 8, the standard for next-generation twisted-pair cabling, enables up to four times faster data transfer on the same cabling type and supports 25GBASE-T and 40GBASE-T short distance applications. Our Cat. 8 cables are halogen-free and flame-retardant (LSOH).
- Prepared double shielded Twisted Pair cable with screened RJ45 connector on both ends
- Suitable for PoE applications and multimedia applications were the extension is working over TP
- Suitable for 10 GBit to IEEE 802.3an and for Power over Ethernet
- Suitable for 25/40 GBit to IEEE 802.3bq applications (4-pair balanced twisted-pair cabling with 2 connectors over distances up to 30m)
- High quality plugs with gold plated contacts
- Contact settings 1:1, in accordance with the EIA/TIA 568 standard
- Construction: 4-pair stranded copper wire, complete braid shielding, pairs shielded with aluminium clad polyester foil
For a Cat.8 channel link S/FTP Cabling we recommend to use the following components:
21.99.1800 VALUE S/FTP Cable, Cat.8, Solid Wire, AWG22
21.99.1807 VALUE Cat.8 RJ45 Keystone, Jack, toolless
21.99.1804 VALUE Cat.8 Shielded Field Connector RJ45 plug
21.99.1801 to 21.99.1803 VALUE S/FTP Patch Cable Stranded Cat.8, grey (1m to 3m)
Specifications
| Manufacturer | VALUE |
|---|---|
| Product group | Twisted Pair Cable |
| Product type | S/FTP Patchcord |
| Colour | grey |
| Length | 1 m |
| Shield type | PiMF |
| Transfer quality | Cat8.1 / Class I |
| Impedance | 100 Ohm |
| Quantity of wires | 8 |
| Conductor cross section (AWG) | AWG 26 |
| Conductor type | Stranded |
| Crossed | no |
| Locking lever | yes |
| Anti-kink sleeve | Moulded-on |
| External cable diameter | 6.2mm +/- 0.2mm |
| Cable LSOH | yes |
| Material (external cable mantle) | TPE-LSOH |
| Side 1 Connector Type | RJ-45 |
| Side 1 Connector Gender | Male |
| Side 2 Connector Type | RJ-45 |
| Side 2 Connector Gender | Male |
| Connector Type RJ45 | Standard |
| Weight | 74 g |
| Height of packaging (single piece) | 20 mm |
| Width of packaging (single piece) | 100 mm |
| Depth of packaging (single piece) | 100 mm |
| Package weight (single piece) | 0.05 kg |
