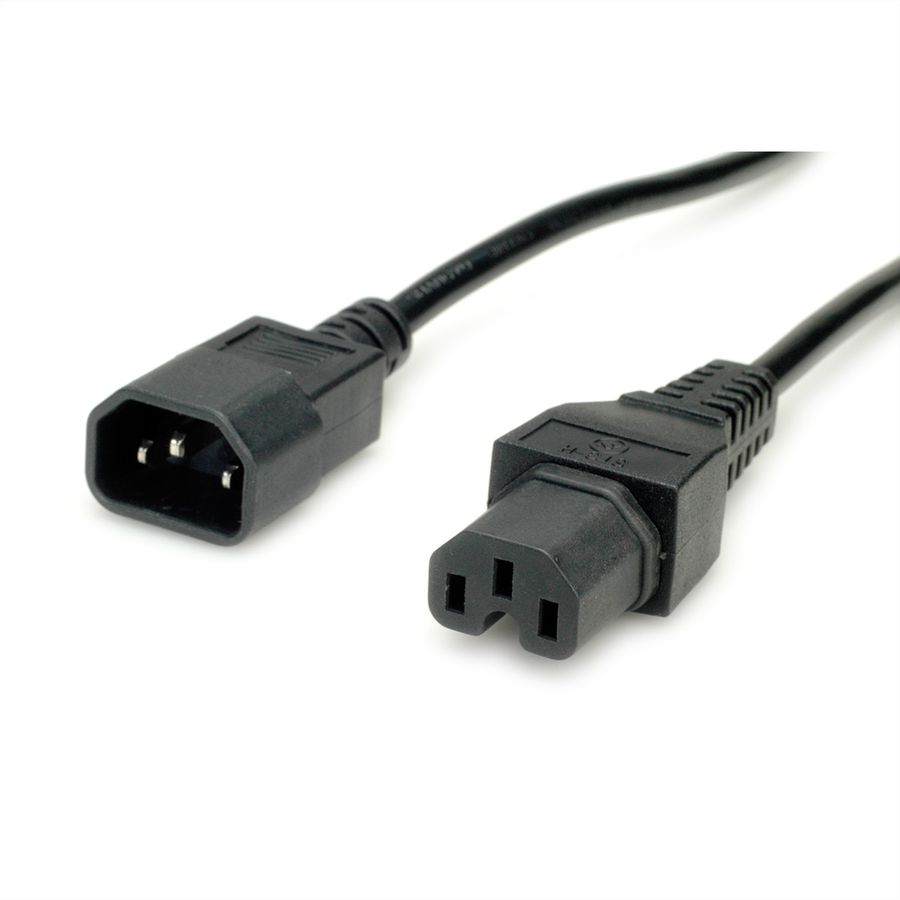

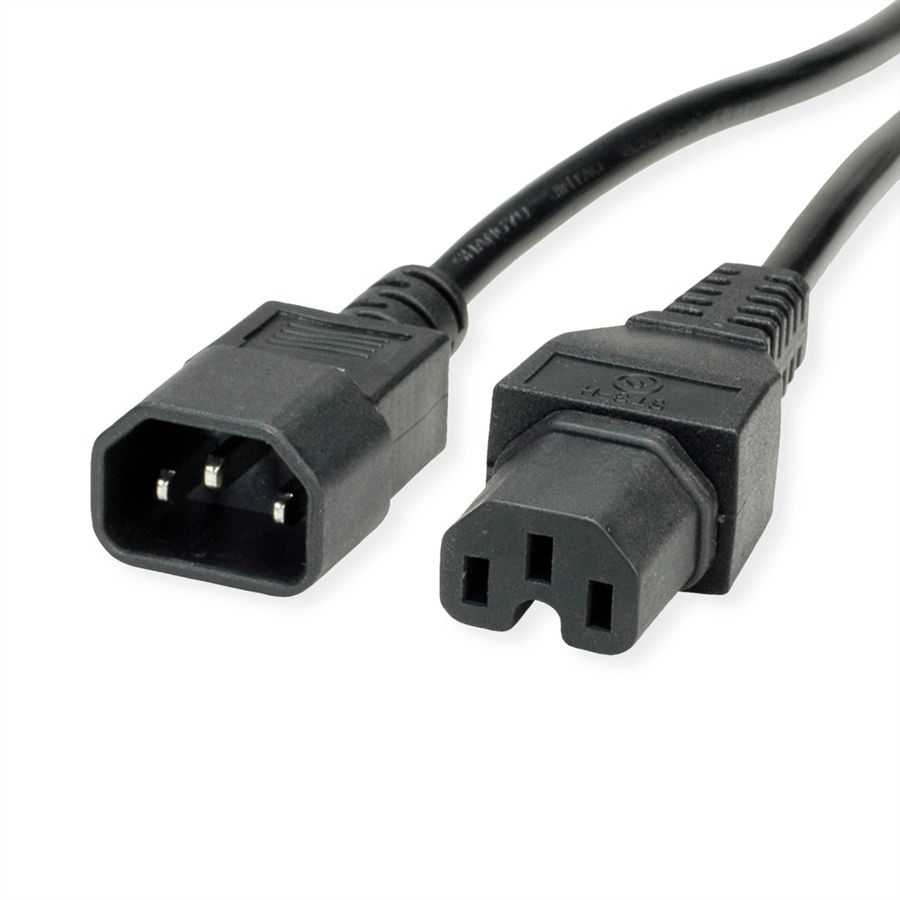

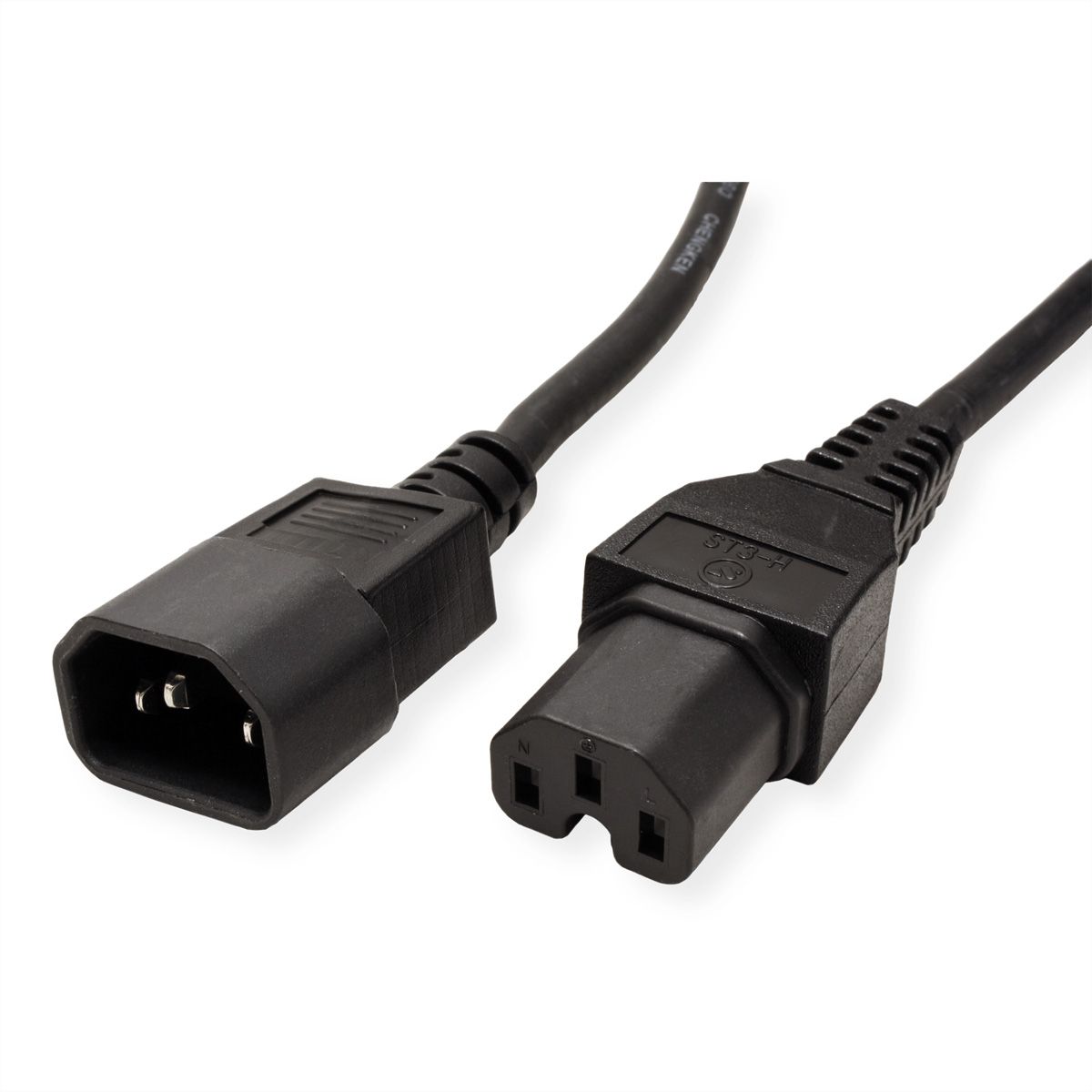

Description

This type of connector (C15) is specifically designed for higher temperature devices.

• Voltage 250 V AC
• Current: 10 A
• Connector type:

- Male Plug IEC60320 C14
- Female Plug IEC60320 C15

• Cable construction: 3 wires
• Conductors / Wires: Gauge 1.0mm²
• Material: H05RN-F rubber
• Color: Black

Specifications

Manufacturer	VALUE
Product group	Power Cables
Product type	Connection cable
Colour	black
Length	1.8 m
Connection ports	IEC320 C14, 10A Male / IEC320 C15, 10A Female
Max. current	10 A
Max. voltage	250V
Cable material	H05RN-F
Conductor cross section (mm²)	1 mm²
Quantity of wires	3
Side 1 description	Kaltgeräte
Side 1 Connection type	IEC320 C14
Side 2 Connection type	IEC320 C15
Side 1 Connector Type	IEC320 C14, 10A
Side 1 Connector Gender	Male
Side 2 Connector Type	IEC320 C15, 10A
Side 2 Connector Gender	Female
Regional use	Without restriction
Weight	217.8 g
Height of packaging (single piece)	50 mm
Width of packaging (single piece)	50 mm
Depth of packaging (single piece)	180 mm
Package weight (single piece)	0.22 kg

Downloads

Product data sheet - English (48.6 KB)

Download

The own brand VALUE stands for attractive prices and tested quality.

With the VALUE products you get the best possible price in terms of quality and product features.

More about VALUE
