VALUE PCIe 5G Multi Speed - Gigabit Network Adapter

Please log in to be able to use the shopping cart and then complete orders.

Available

Ordered until 3 pm - usually dispatched on the same day

Description

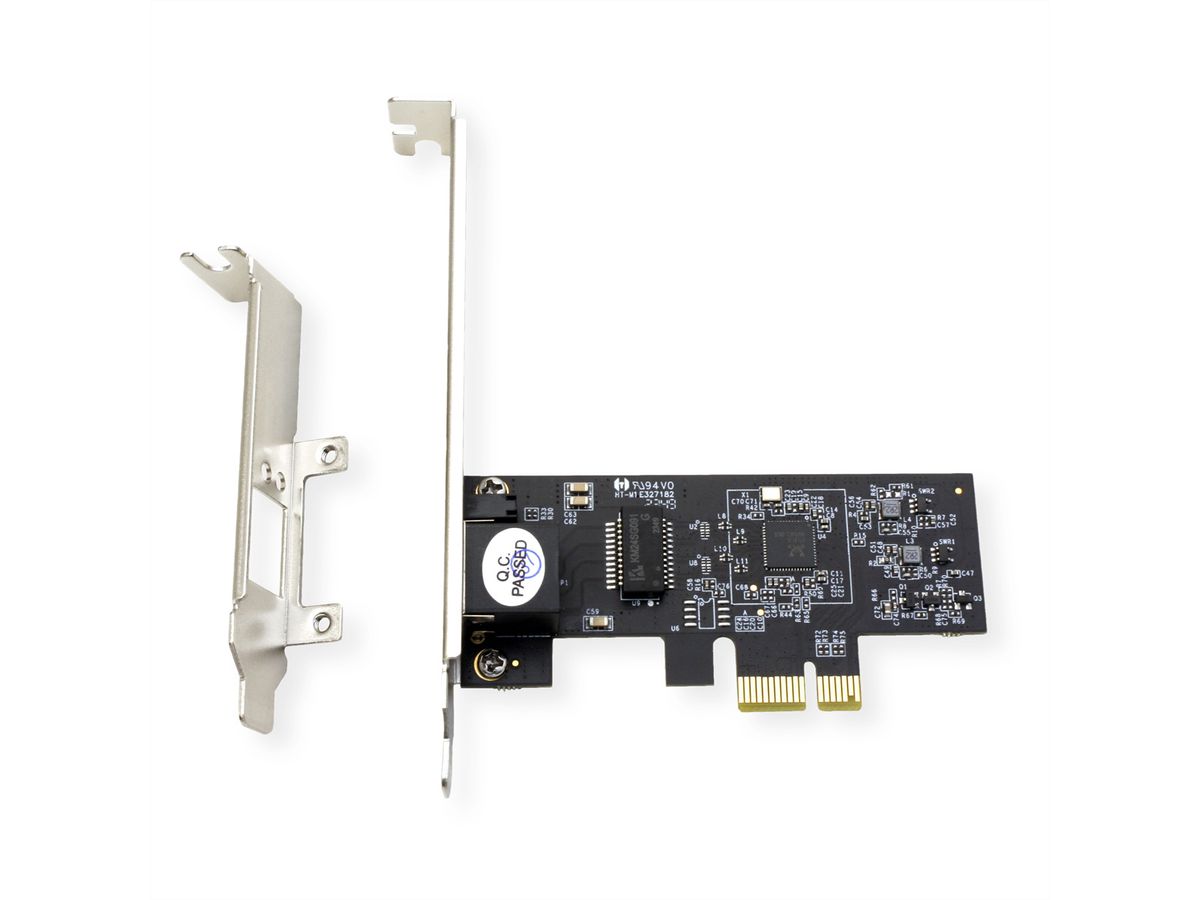

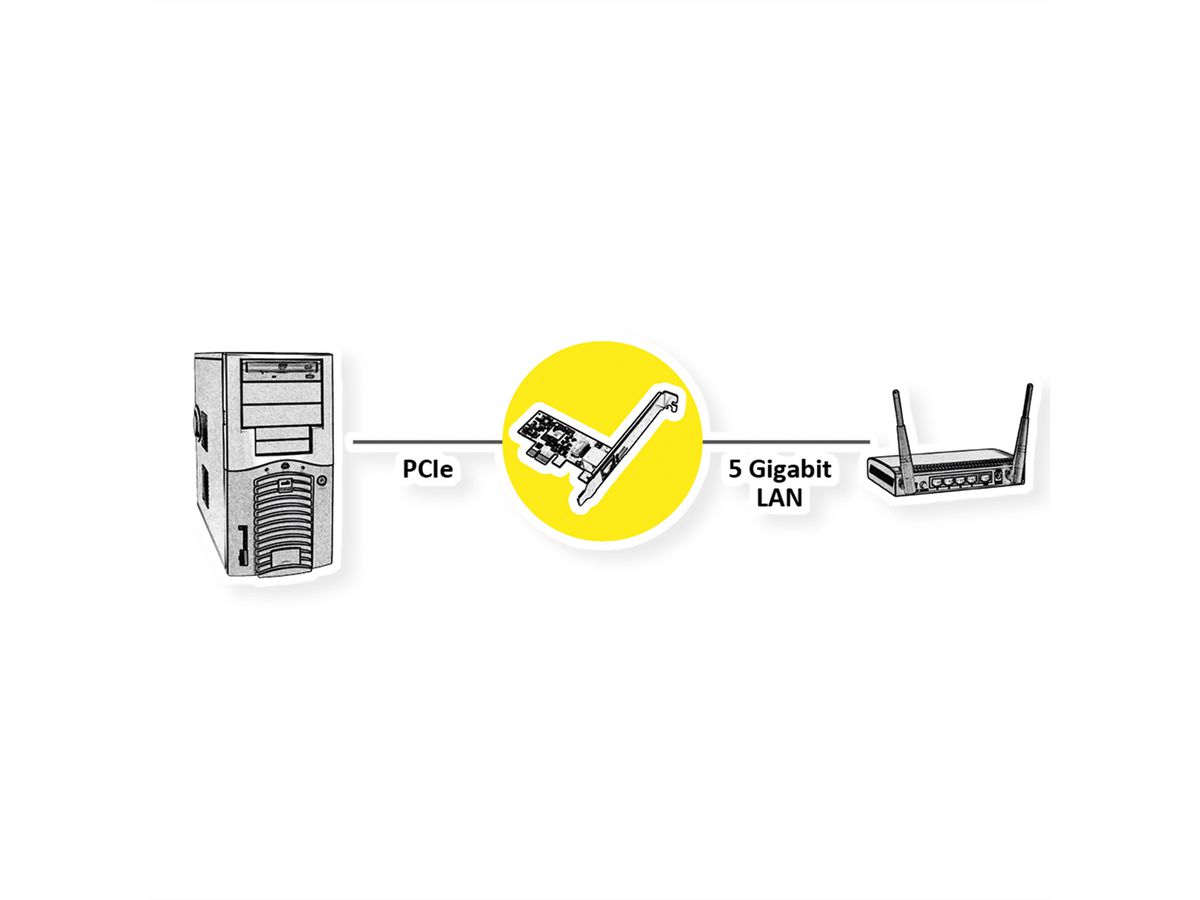

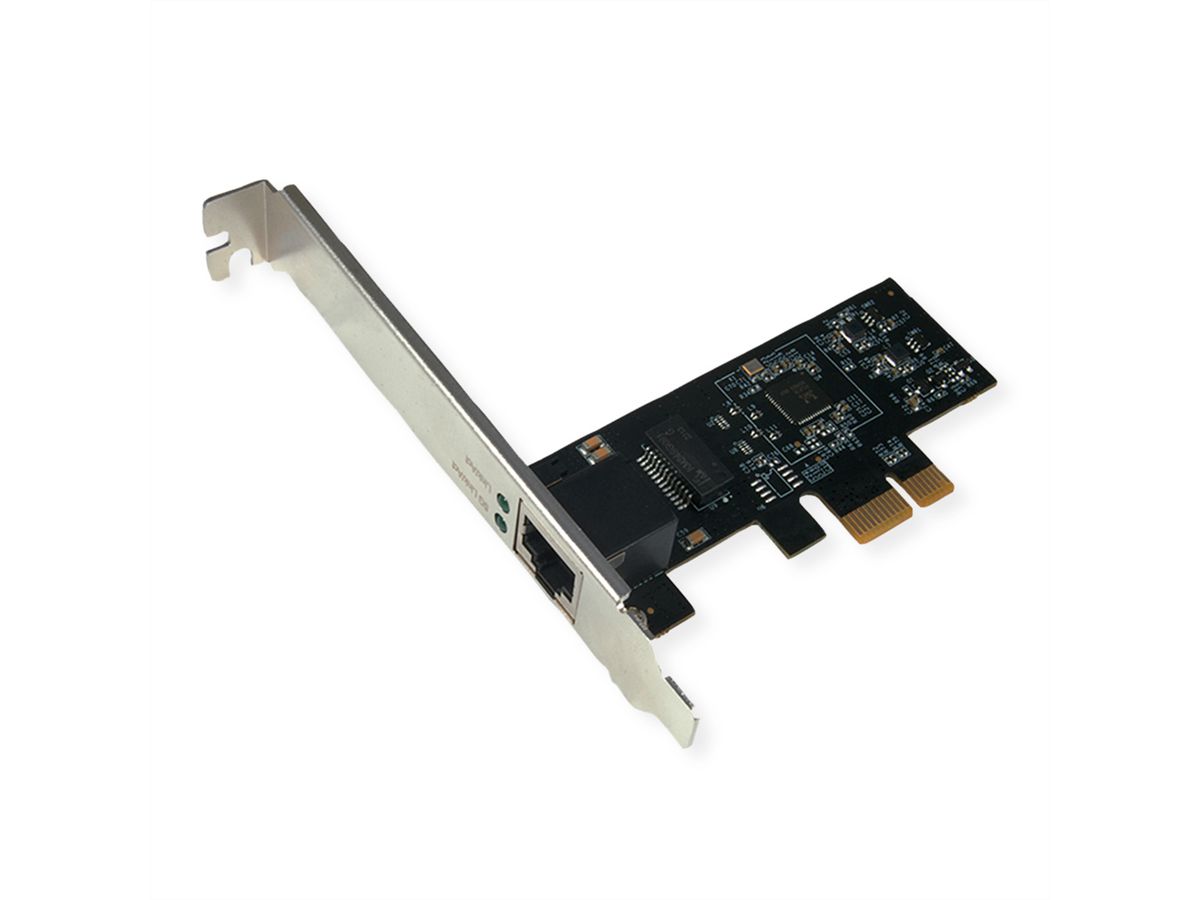

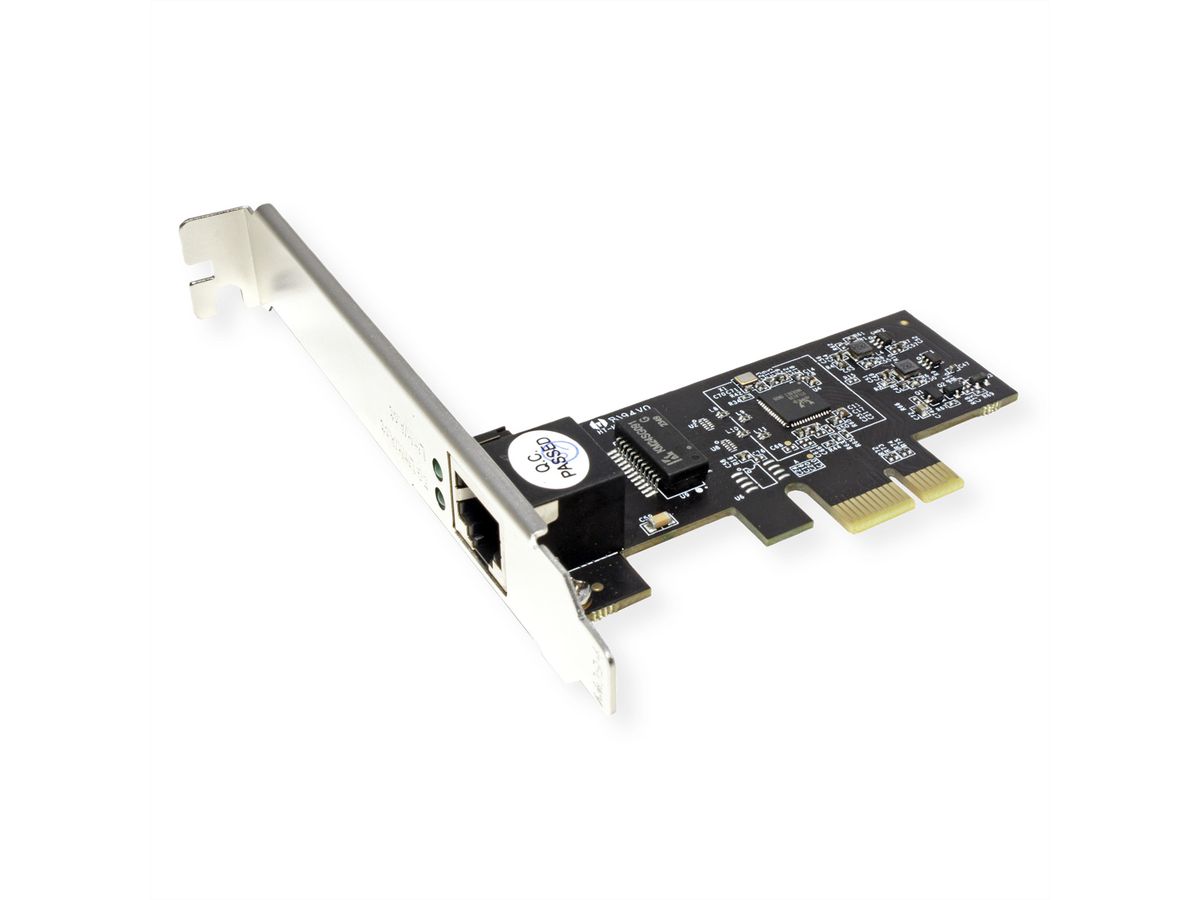

High performance PCIe Ethernet adapter which provides a single RJ-45 port for network connection of data rate up to 5Gbit/s
The PCIe Gen 3x1 interface enables running at maximum full duplex throughput
Backward compatible with Gen1/2 PCIe slots
PCIe Gen3 x1 form factor
Supports standard and low profile systems
Supports 5-speeds: 5G/2.5G/1G/100M/10Mbps auto negotiation
Runs 5Gbps on a Cat. 6 cable up to 100m
Supports Wake-On-LAN (WoL)
Up to 16KB jumbo frames
Checksum and TSO offloadPage 4
Network ARP and NS offload
Supports PXE boot
Systems Requirements: Windows 11/10 (32/64 Bit)
32 and 64 bit operating systems are supported
Contents: PCI Adapter, manual

Manufacturer	VALUE
Product group	I/O Card
Product type	PCI-Express Adapter
Scope of delivery	Adapter, manual
BUS system	PCI Express
Interface	1x RJ45, < 5 GbE Adapter
Chipset	RTL8126
Operating System	Windows 10/11
Connection ports	1x RJ45
Mounting height	Full profile
Full duplex	yes
Installation Guide / Manual	yes
Operating temperature min.	0 °C
Operating temperature max.	60 °C
Weight	47.9 g
Height of packaging (single piece)	30 mm
Width of packaging (single piece)	150 mm
Depth of packaging (single piece)	200 mm
Package weight (single piece)	0.12 kg

Product data sheet - English (41.3 KB)

User manual - Deutsch (156.8 KB)

User manual - English (154.1 KB)

User manual - Français (151.5 KB)
