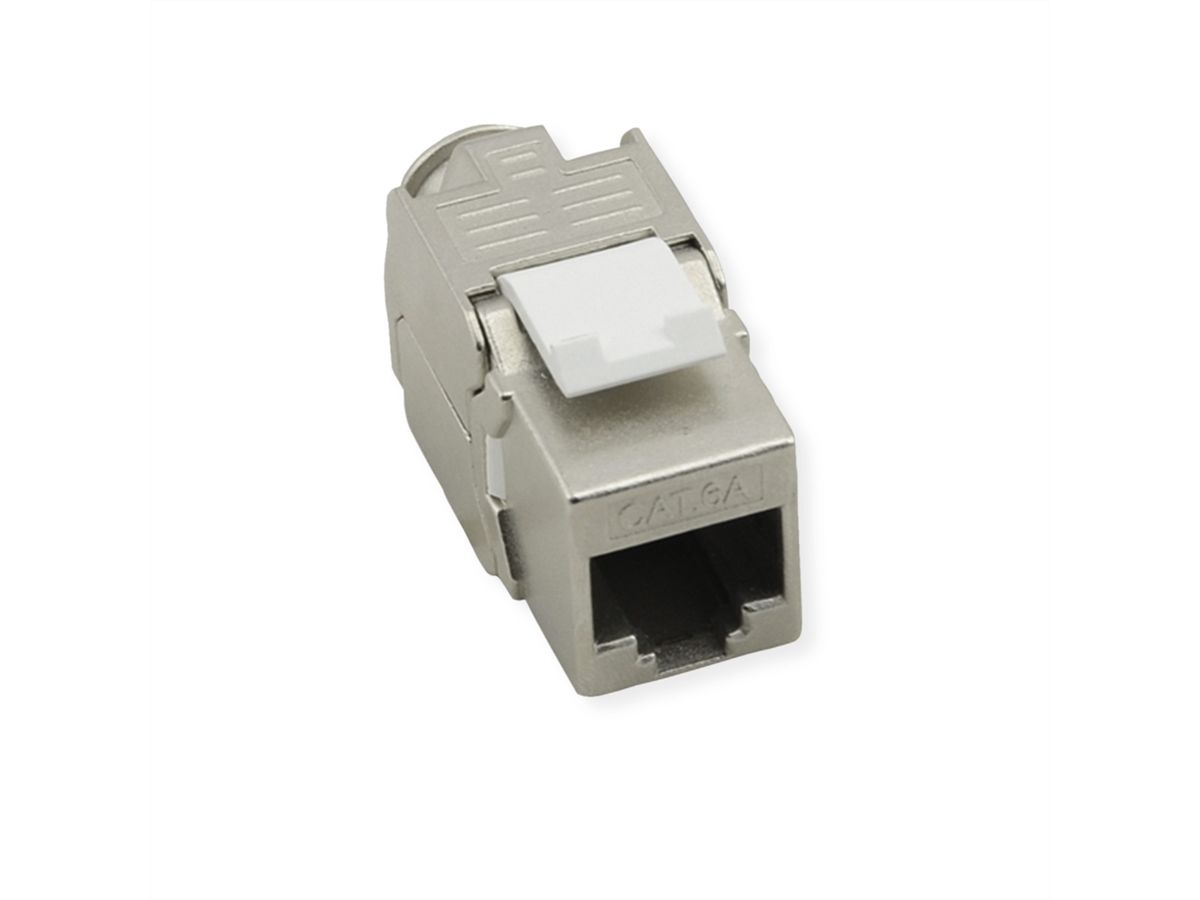

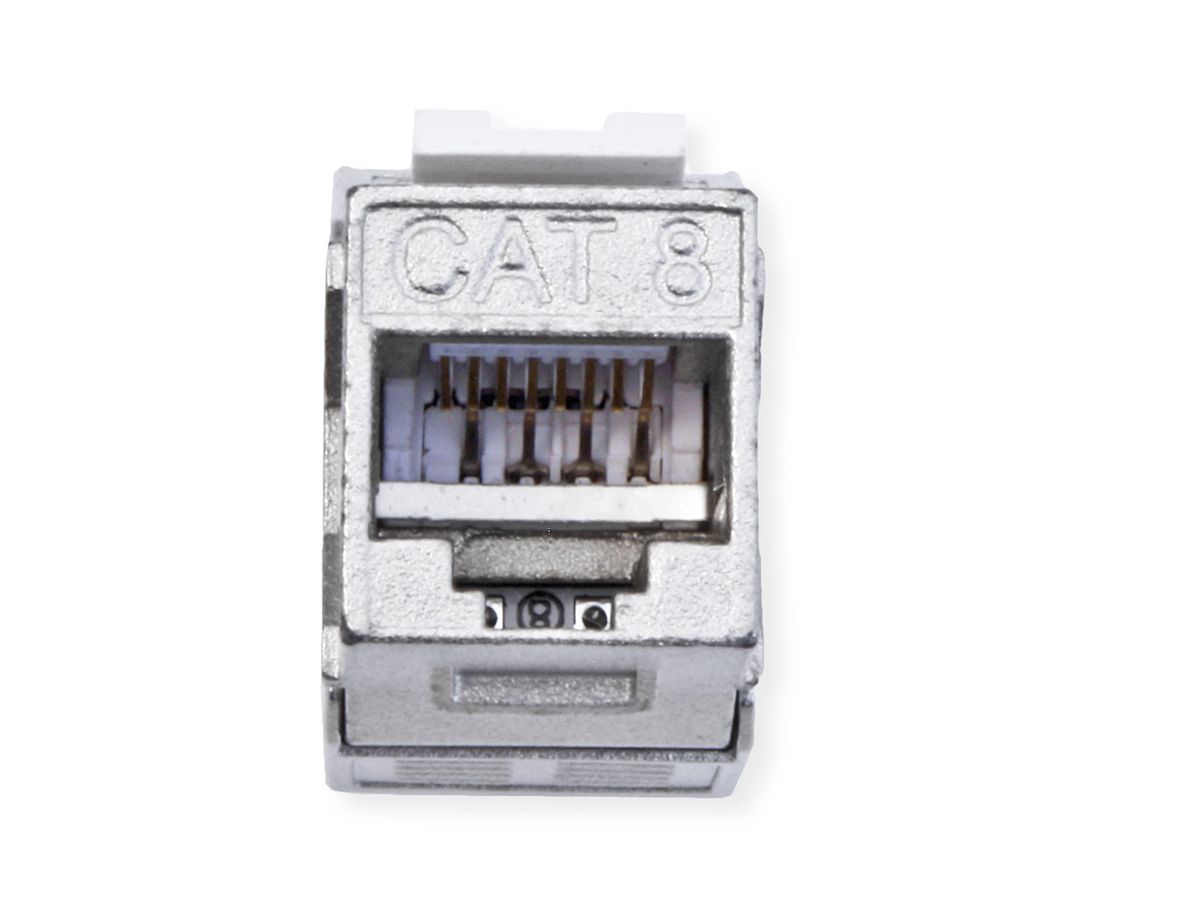

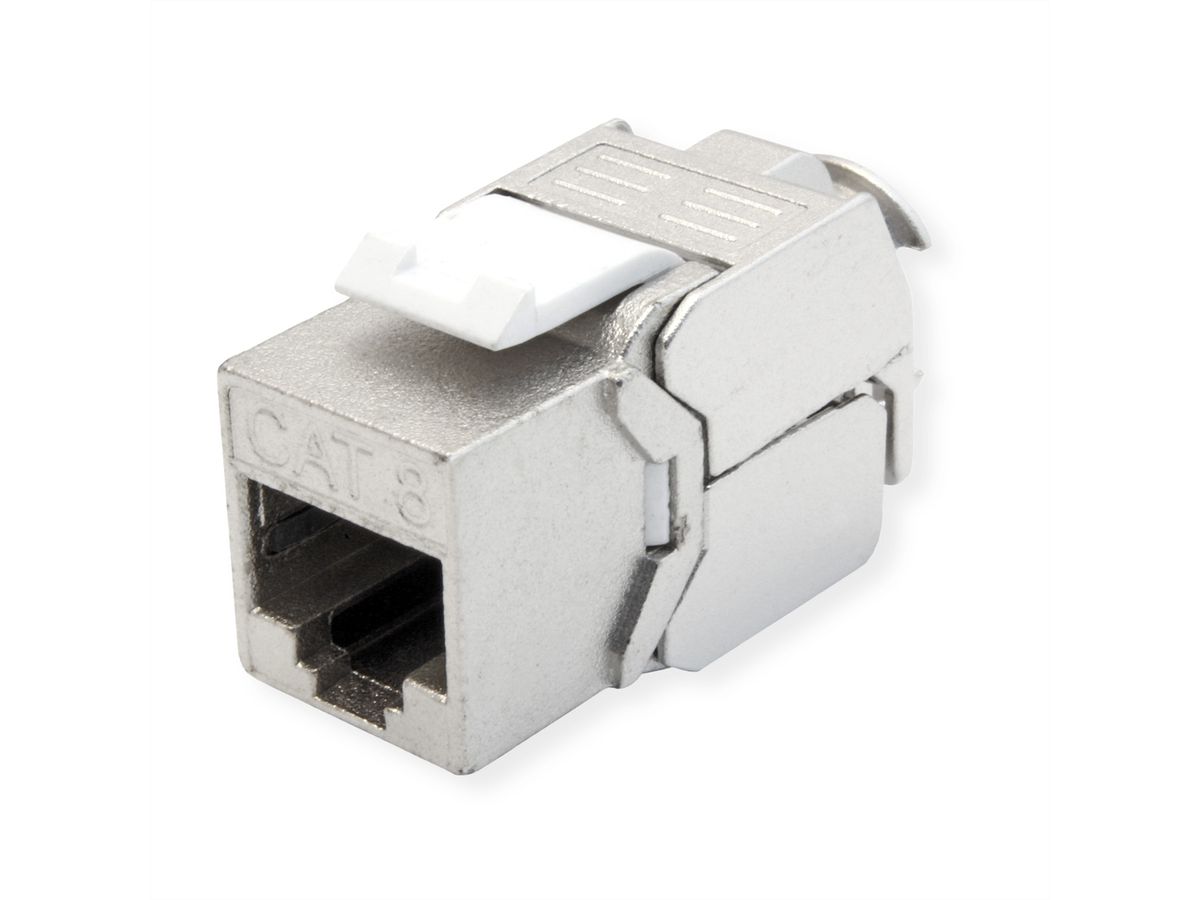

VALUE Keystone Jack, Cat.8 (Class I), RJ-45, STP, Tool-Free, silver
Please log in to be able to use the shopping cart and then complete orders.
Log in| Item no. | 21.99.1807-50 |
|---|---|
| Brand / Manufacturer | VALUE |
| Manuf. no. | 21.99.1807 |
| EAN | 7630049687578 |
| Package weight | 0.021 kg |
:strip_icc():strip_exif()/logos/value.png "VALUE")
Description
Cat.8 Keystones are ideal for use in 40 Gigabit Ethernet networks.
- Cat.8 Keystones are ideal for use in Gigabit Ethernet networks
- Supports data transfer rates up to 10/25/40 Gbit/s with a bandwidth of 2000 MHz

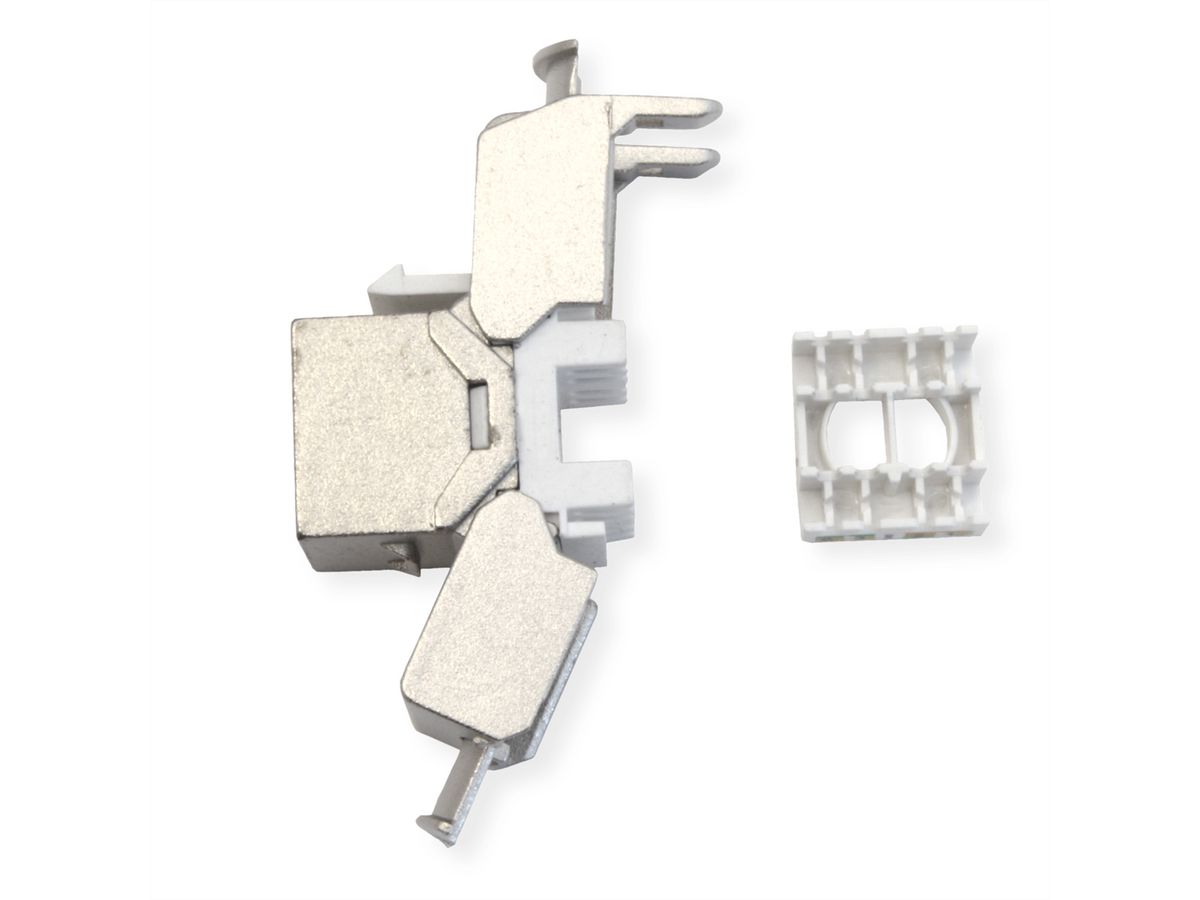

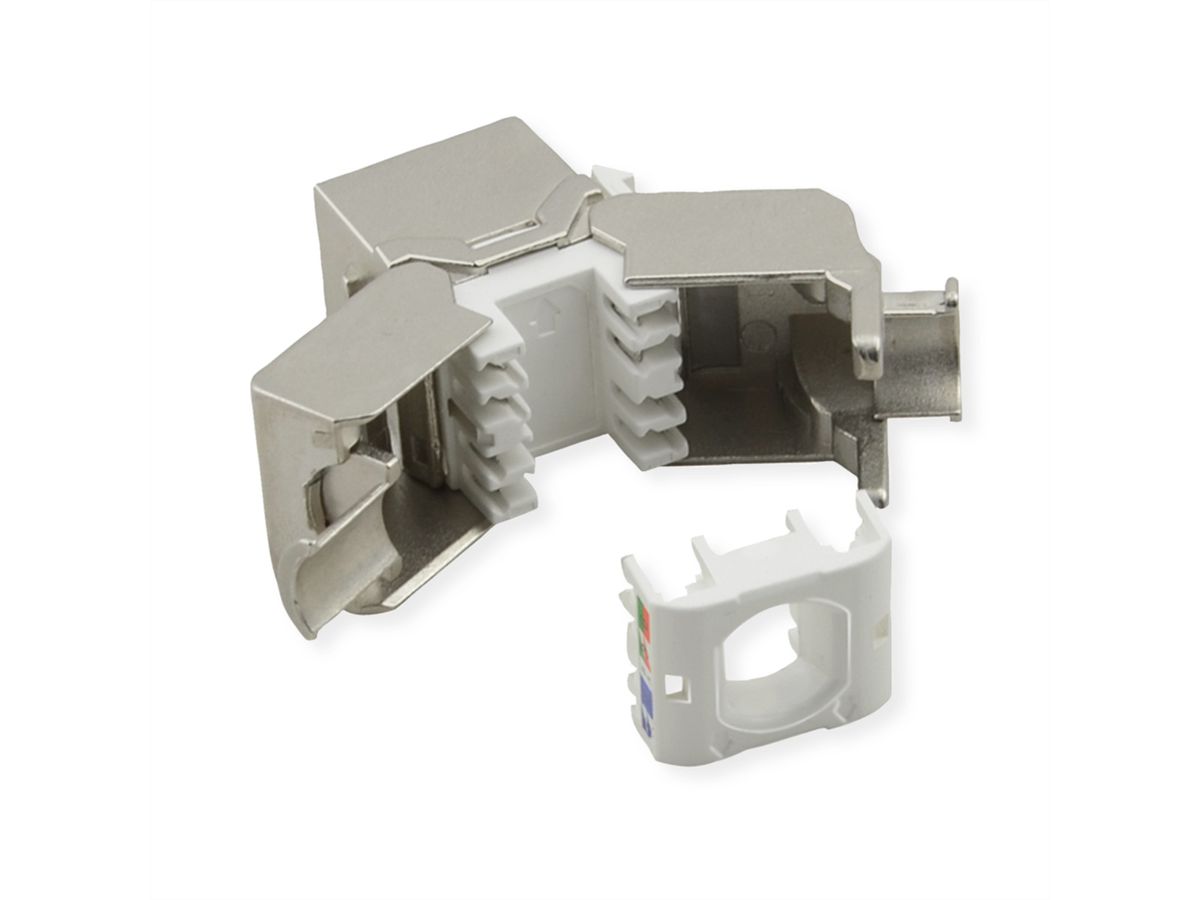

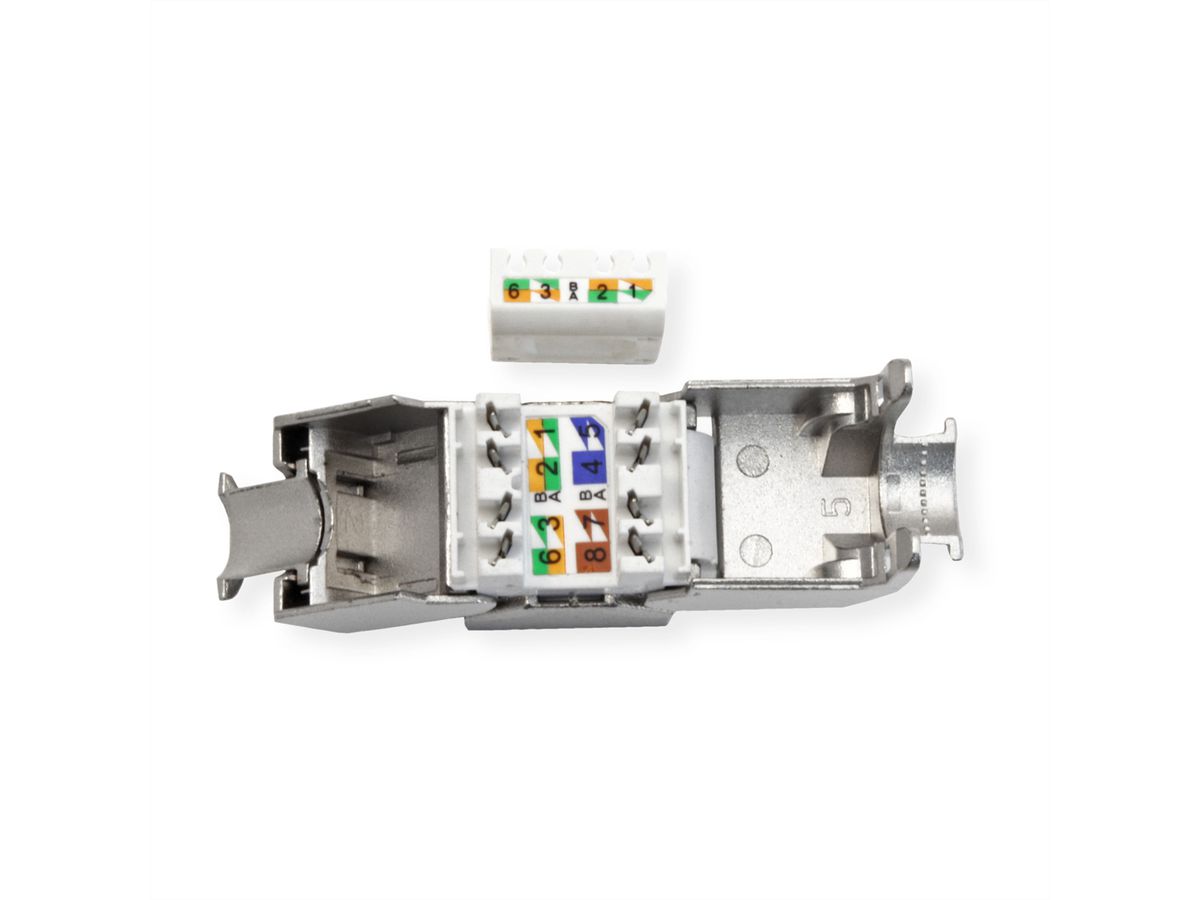

- Connect the cable to the Keystones via LSA connections without special tools - place the cable ends simply into the guides (with color coding), close and compress the module - the connection is ready for use
- Cable entrance outer diameter range: 6.0 - 8.5 mm
- Solid cable:1/22AWG(0.65MM)-1/26AWG(0.4MM)
- Stranded cable:22/7-26/7AWG
- Wire coded scheme: EIA/TIA 568
- Full shielded with zinc alloy housing
For a Cat.8 channel link S/FTP Cabling we recommend to use the following components:
21.99.1800 VALUE S/FTP Cable, Cat.8, Solid Wire, AWG22
21.99.1807 VALUE Cat.8 RJ45 Keystone, Jack, toolless
21.99.1804 VALUE Cat.8 Shielded Field Connector RJ45 plug
21.99.1801 to 21.99.1803 VALUE S/FTP Patch Cable Stranded Cat.8, grey (1m to 3m)
Specifications
| Manufacturer | VALUE |
|---|---|
| Product group | Connection technology TP |
| Product type | RJ45 Keystone Jack |
| Colour | silver |
| Shield type | Screened |
| Transfer quality | Cat8.1 / Class I |
| Quantity of ports | 1 |
| Assignment | EIA/TIA 568A & 568B |
| Connection direction | Straight |
| Operating temperature min. | 0 °C |
| Operating temperature max. | 70 °C |

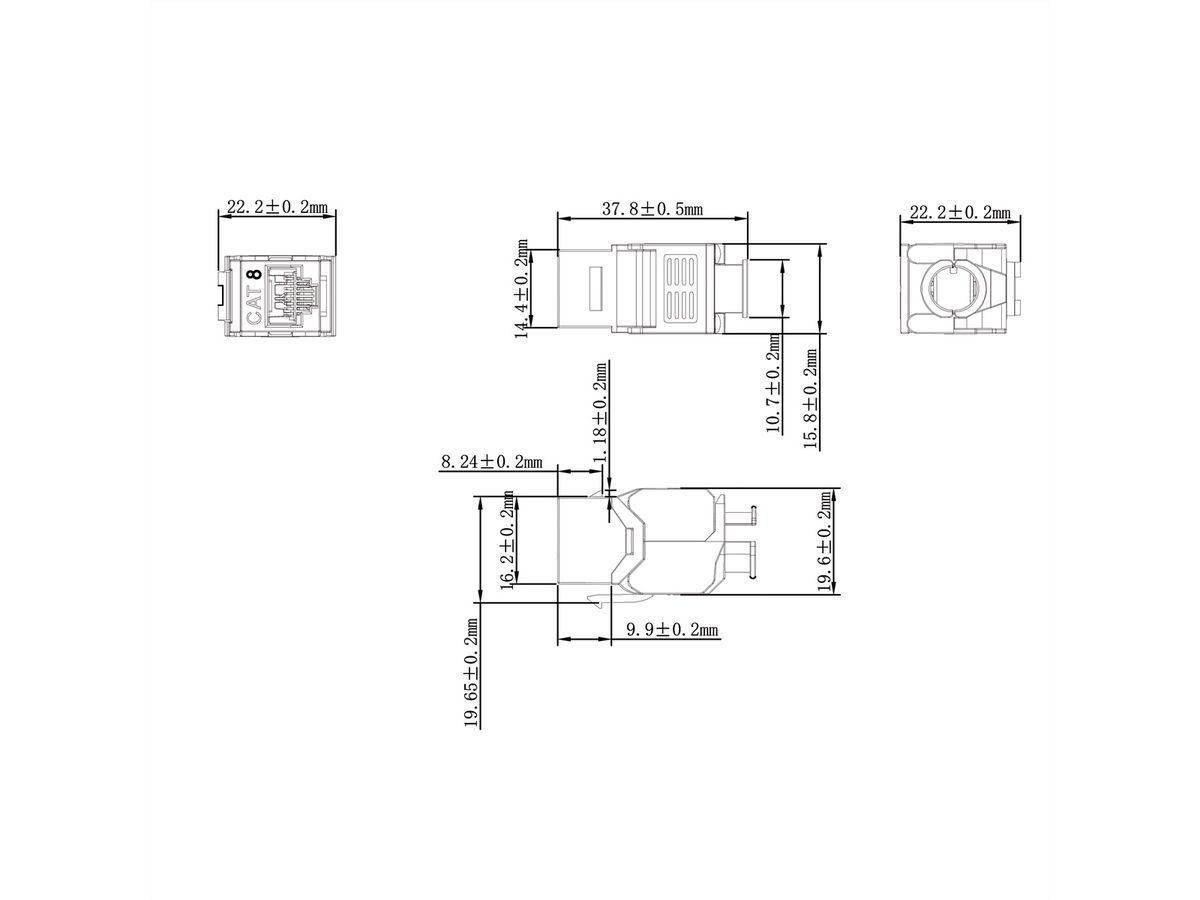

| Height | 22 mm |
| Width | 14 mm |
| Depth | 38 mm |
| Weight | 29 g |
| Height of packaging (single piece) | 10 mm |
| Width of packaging (single piece) | 30 mm |
| Depth of packaging (single piece) | 30 mm |
| Package weight (single piece) | 0.021 kg |
