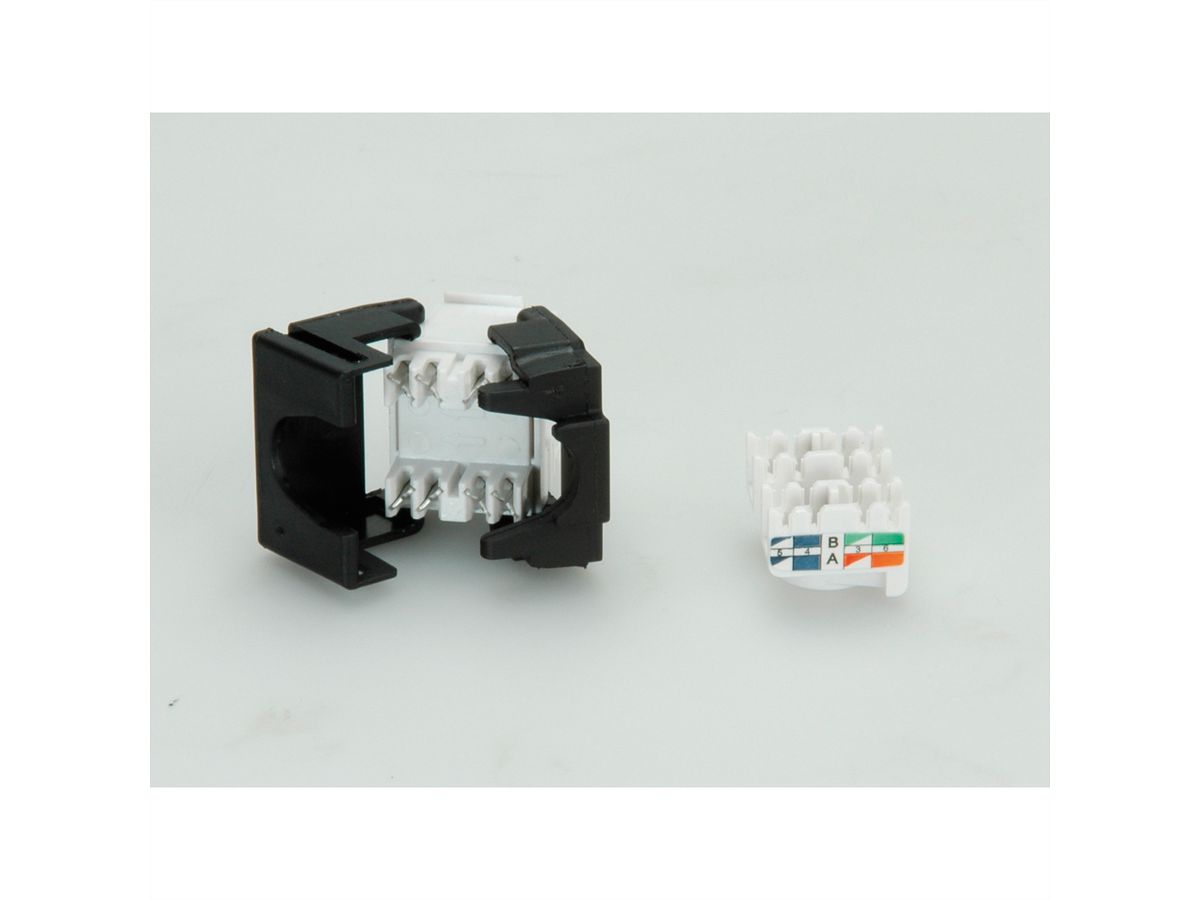

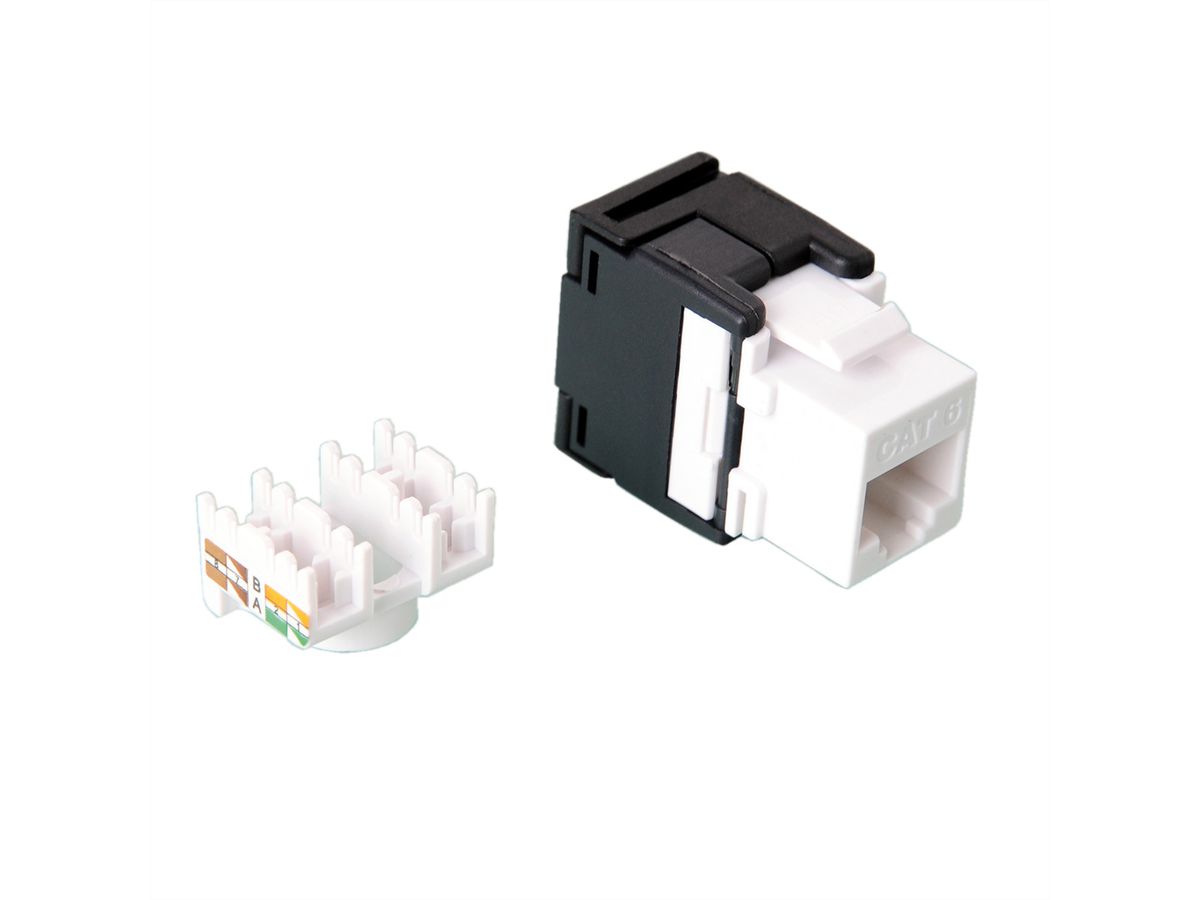

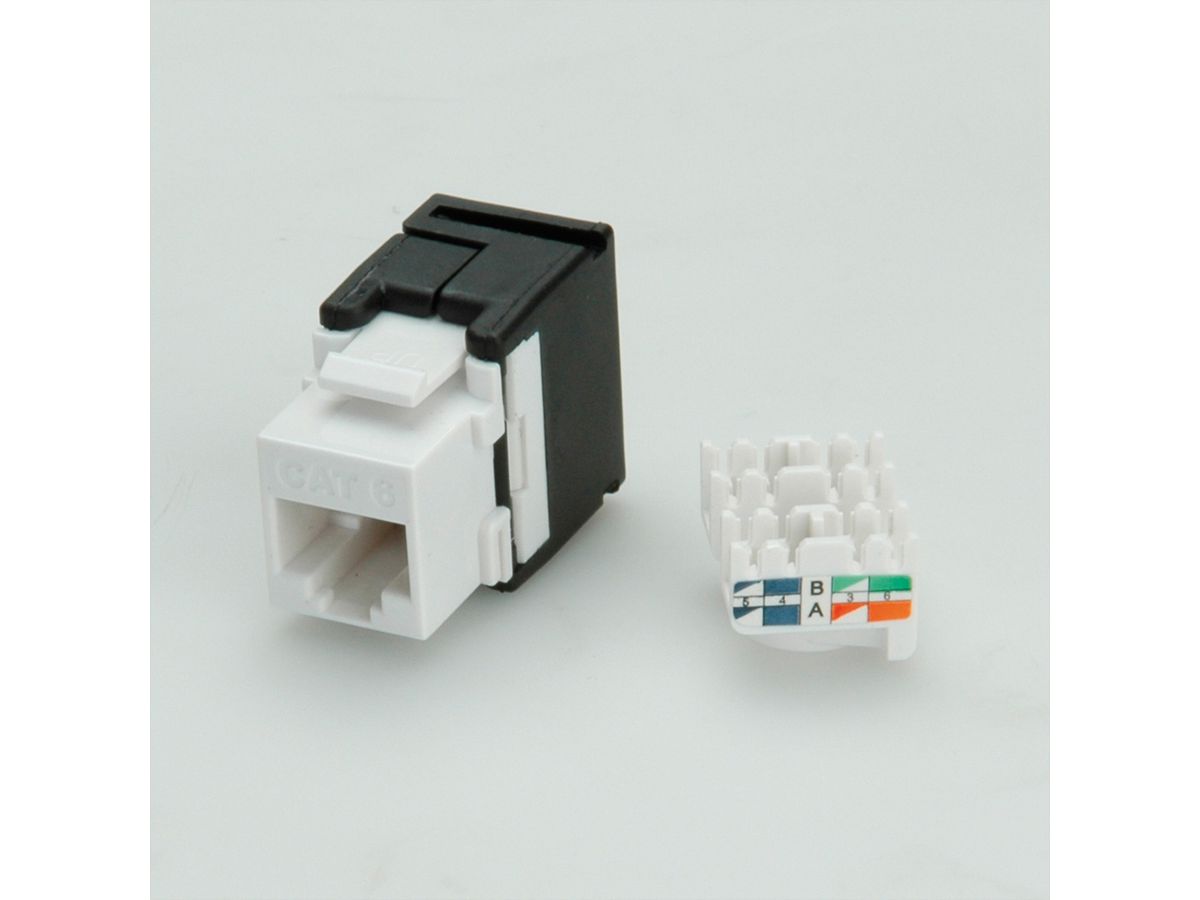

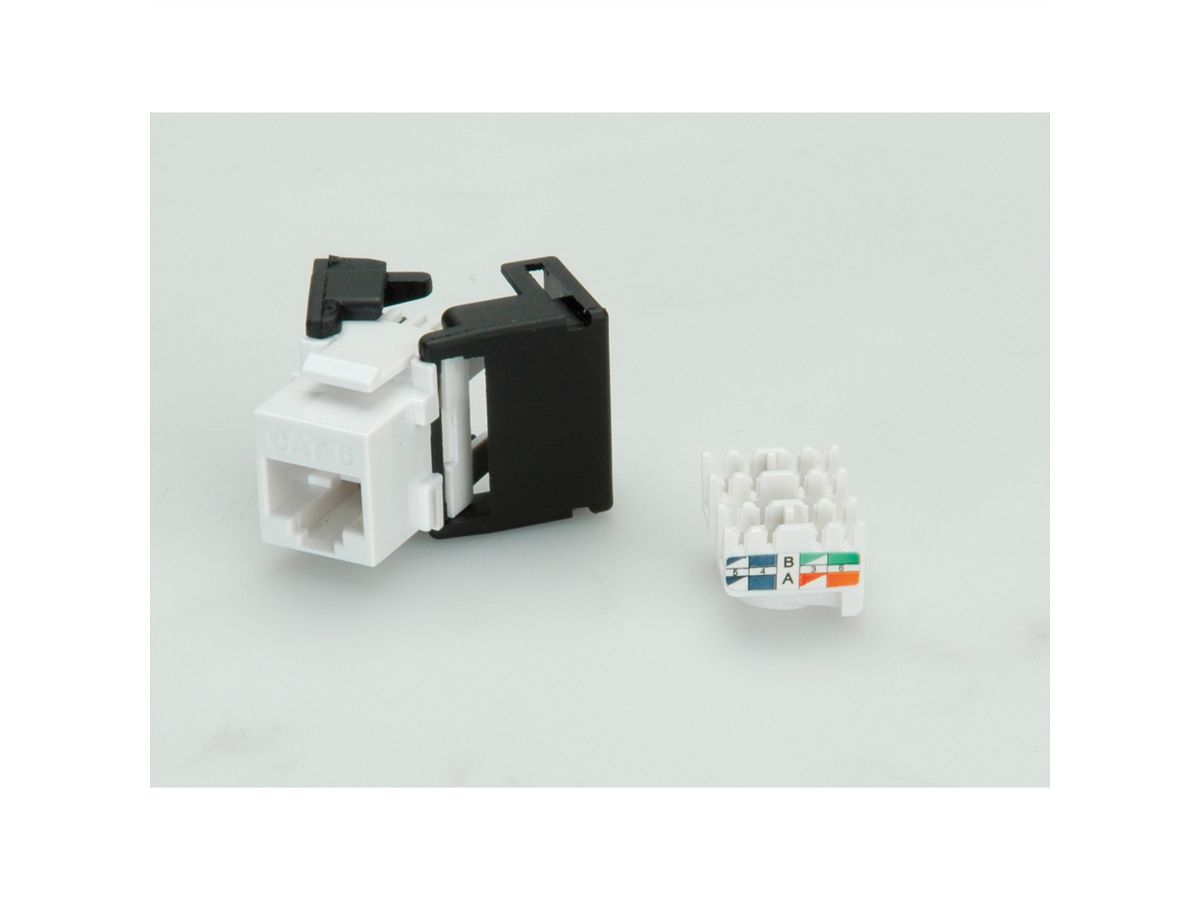

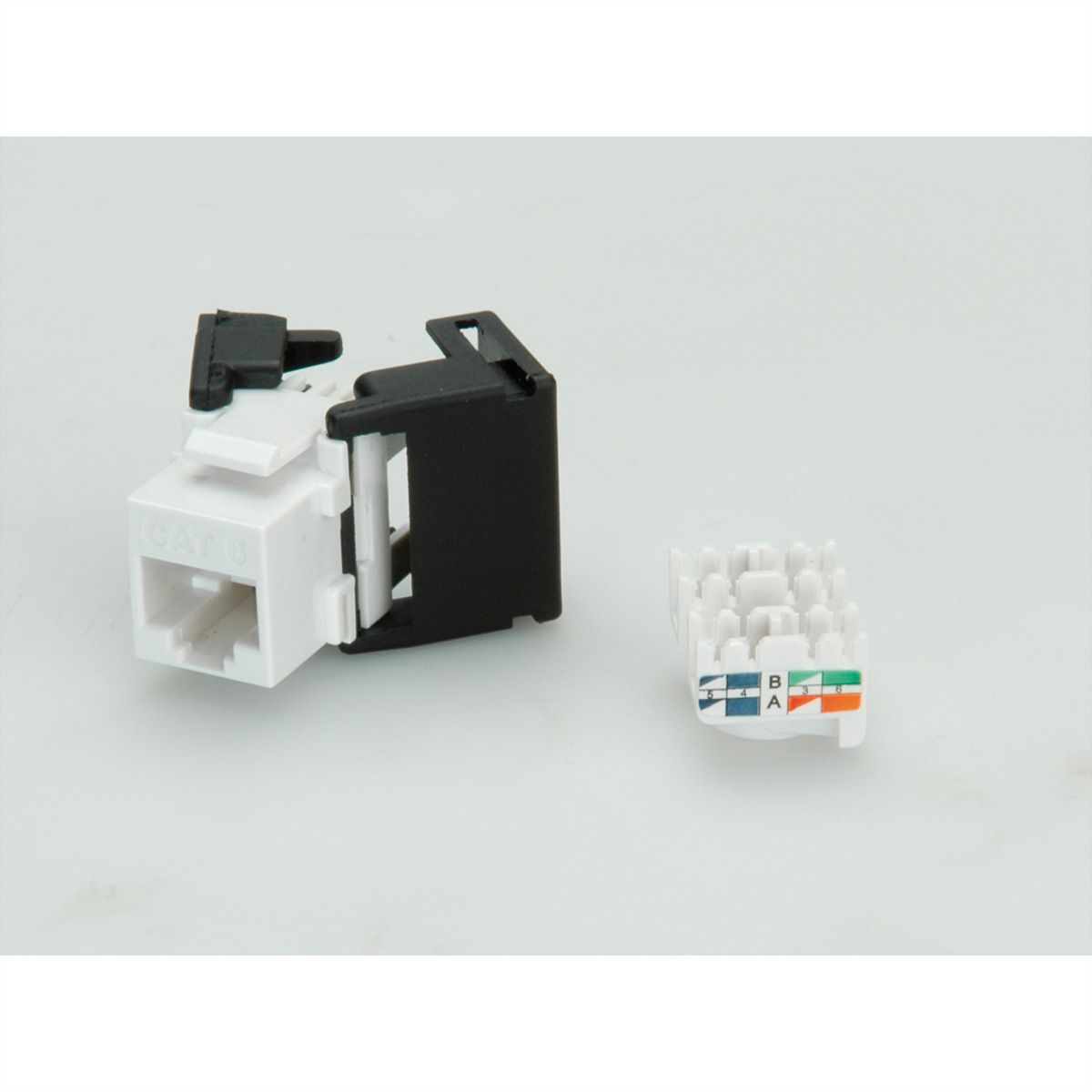

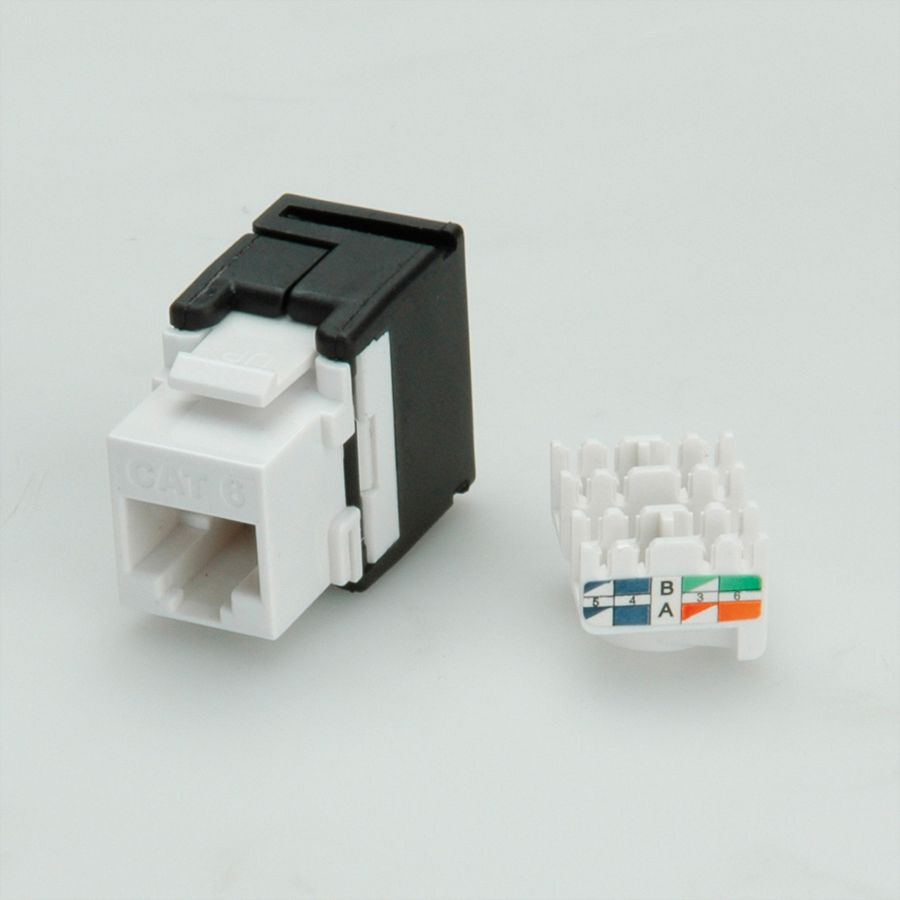

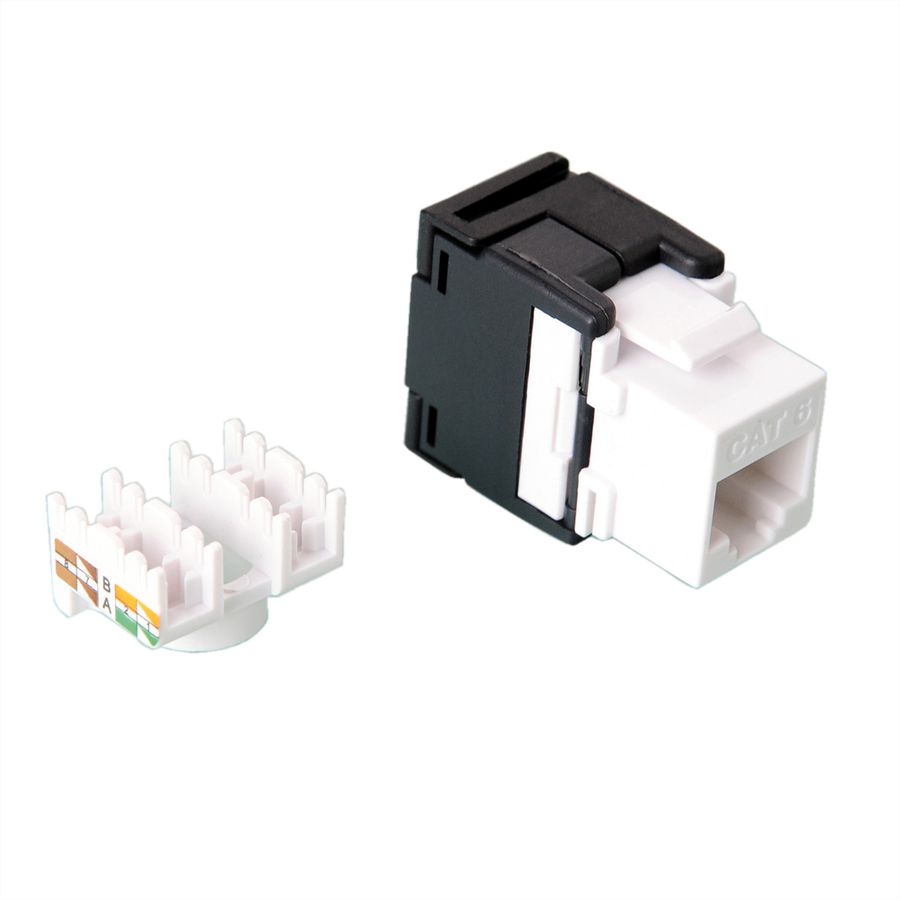

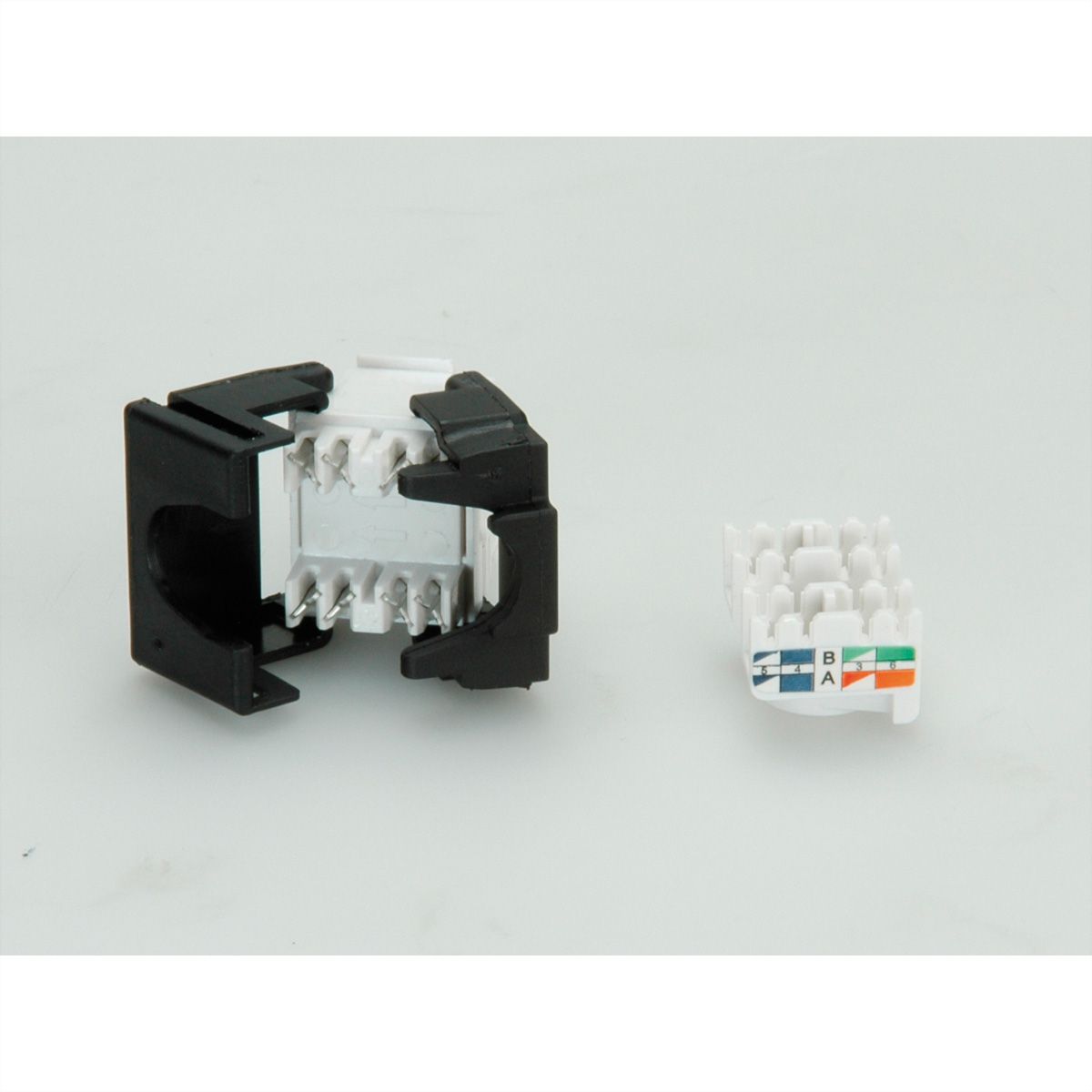

VALUE Keystone Jack, Cat.6 (Class E), RJ-45, UTP, 180°, tool-free, white
Please log in to be able to use the shopping cart and then complete orders.
Log inDescription
Cat.6/Class E Keystone jack for installation in a Keystone blank 19" patch panel module frame.- Unshielded construction
- Colour code on the keystone jacks is based on the standard EIA/TIA 568 A and 568 B
- Toolless installation
- Colour: white
Specifications
Manufacturer | VALUE |
---|---|
Product group | Connection technology TP |
Product type | RJ45 Keystone Jack |
Colour | white |
Shield type | Not screened |
Transfer quality | Cat6 / Class E |
Quantity of ports | 1 |
Assembly cable connection | Krone LSAplus |
Assignment | EIA/TIA 568A & 568B |
Modular assembly | yes |
Connection direction | Straight |
Operating temperature min. | -10 °C |
Operating temperature max. | 60 °C |
Height | 14.6 mm |
Width | 25.3 mm |
Depth | 35.2 mm |
Weight | 10.2 g |
Height of packaging (single piece) | 20 mm |
Width of packaging (single piece) | 100 mm |
Depth of packaging (single piece) | 130 mm |
Package weight (single piece) | 0.017 kg |
