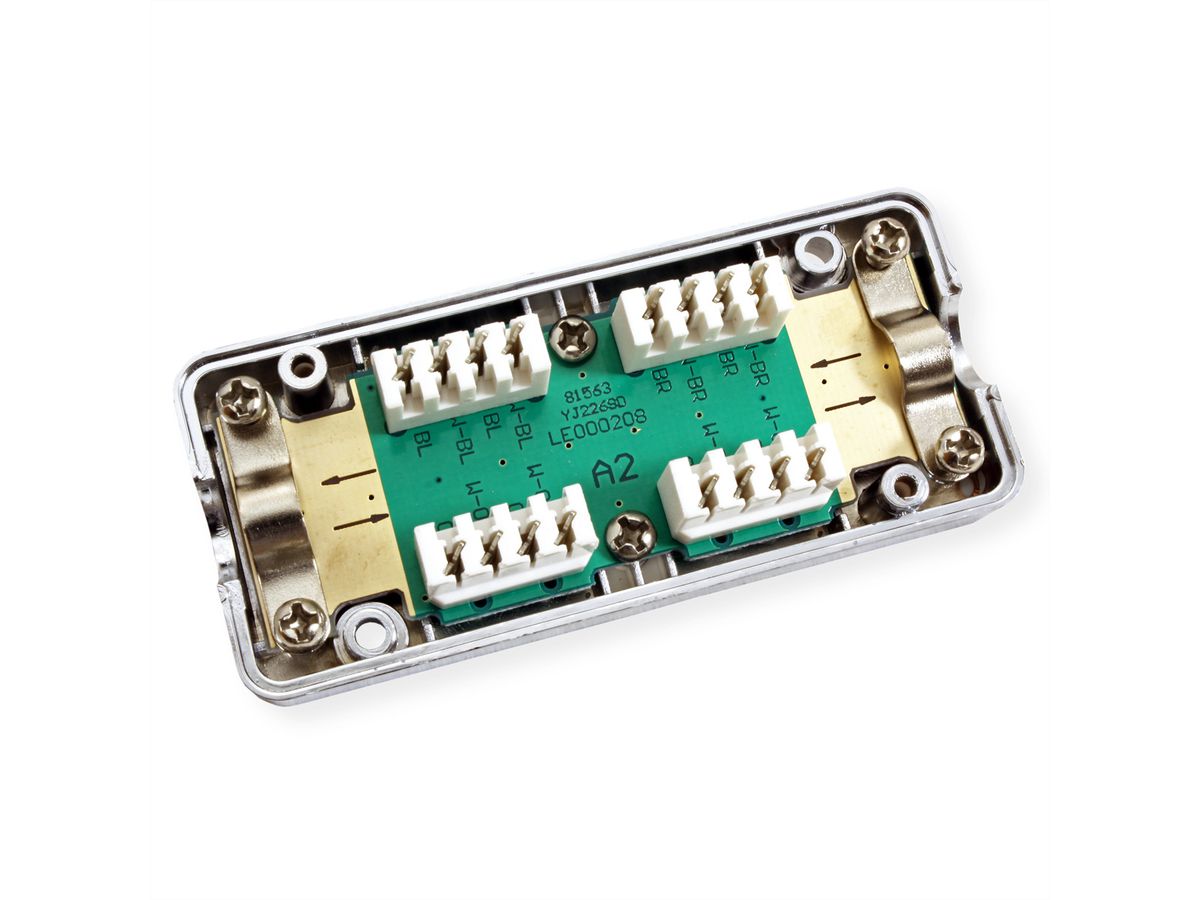

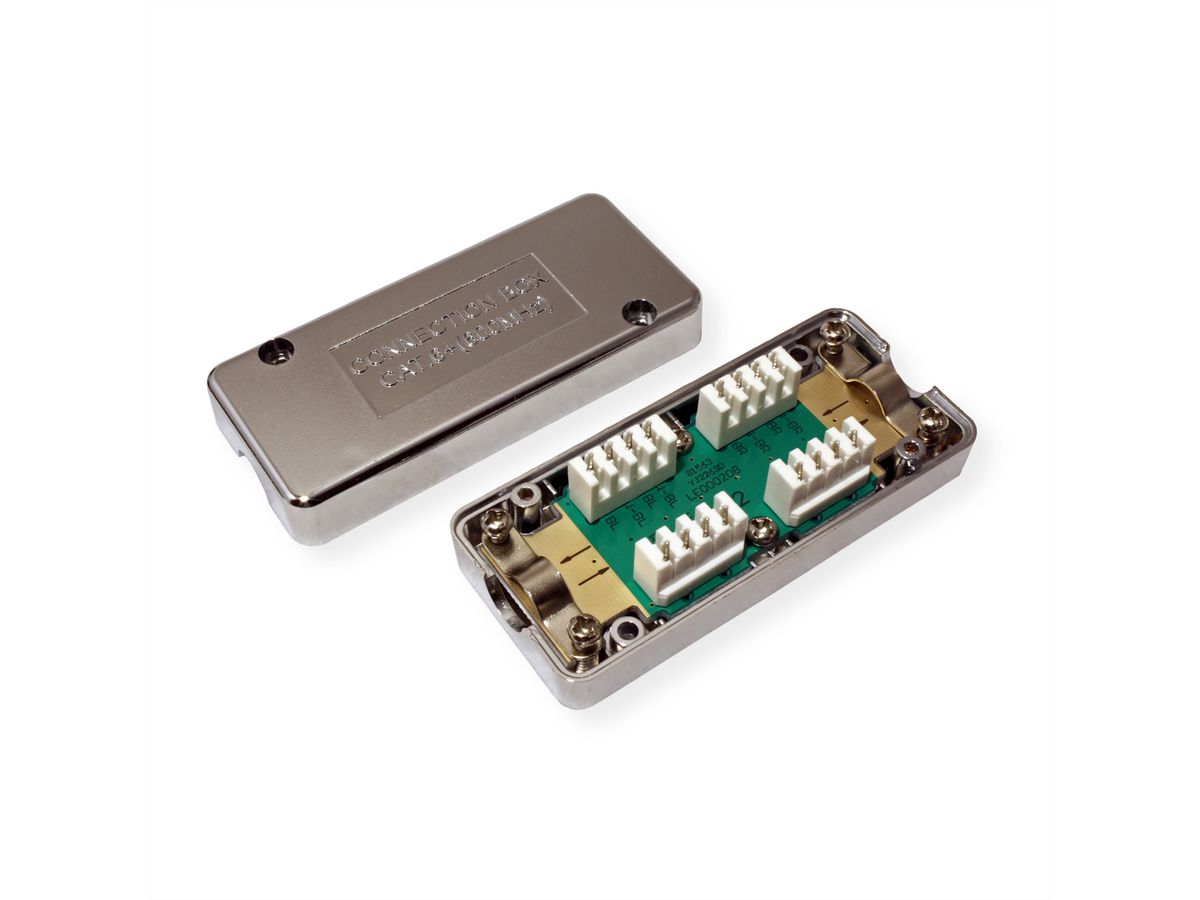

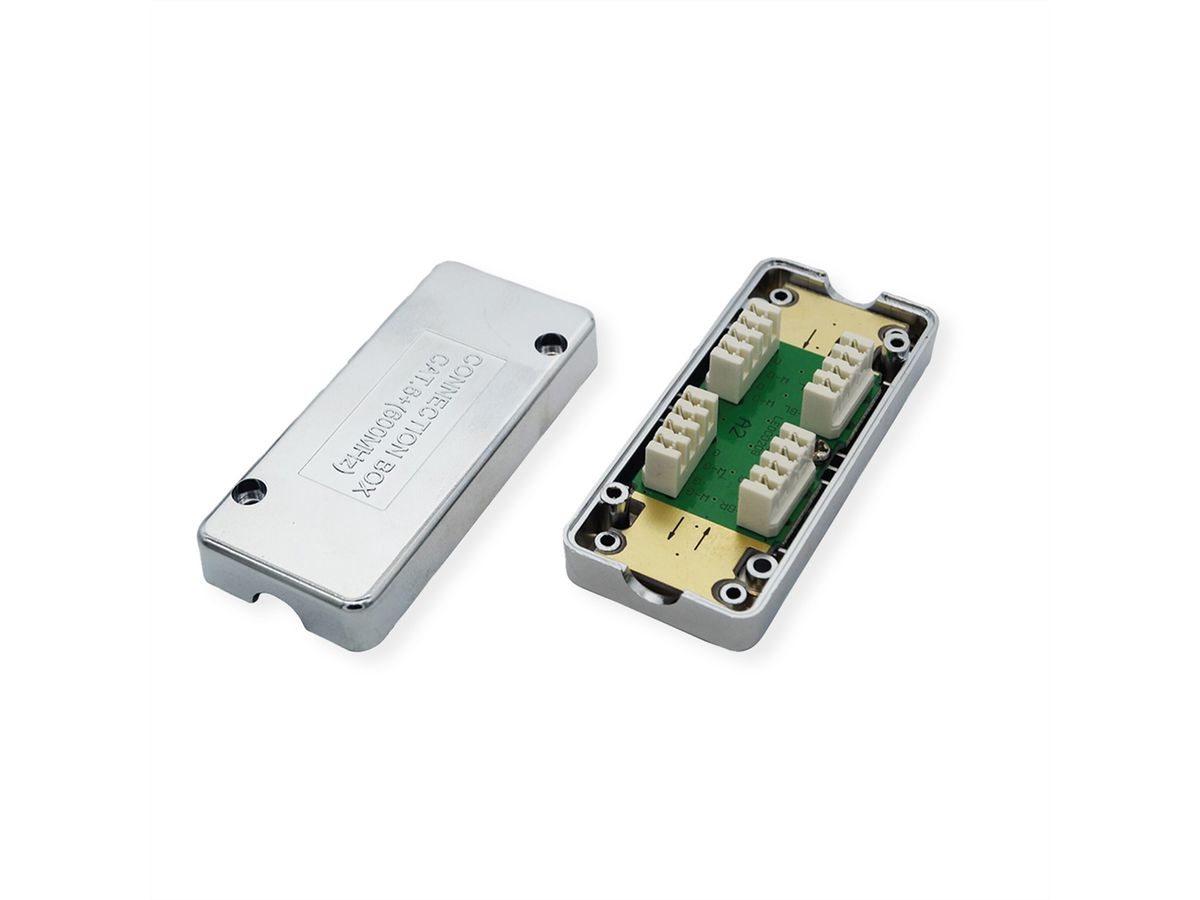

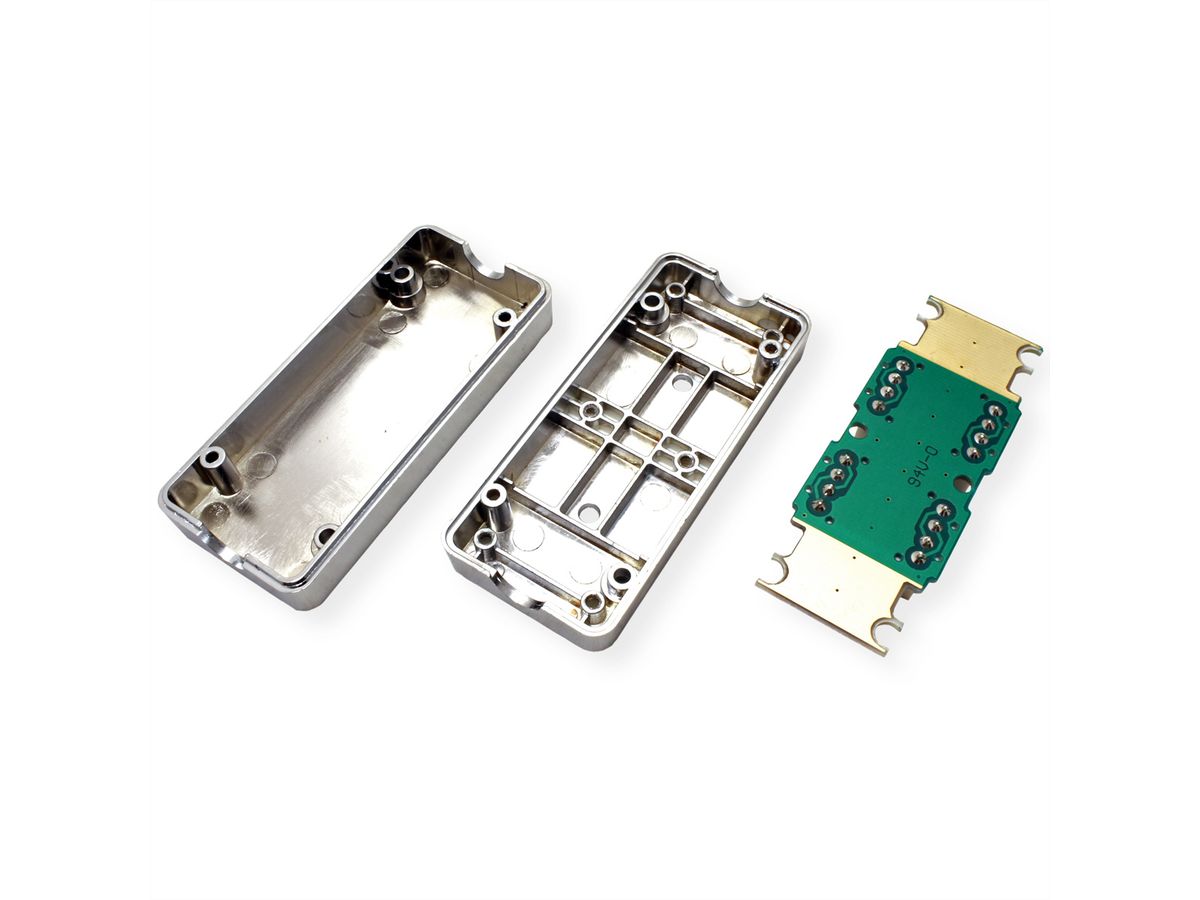

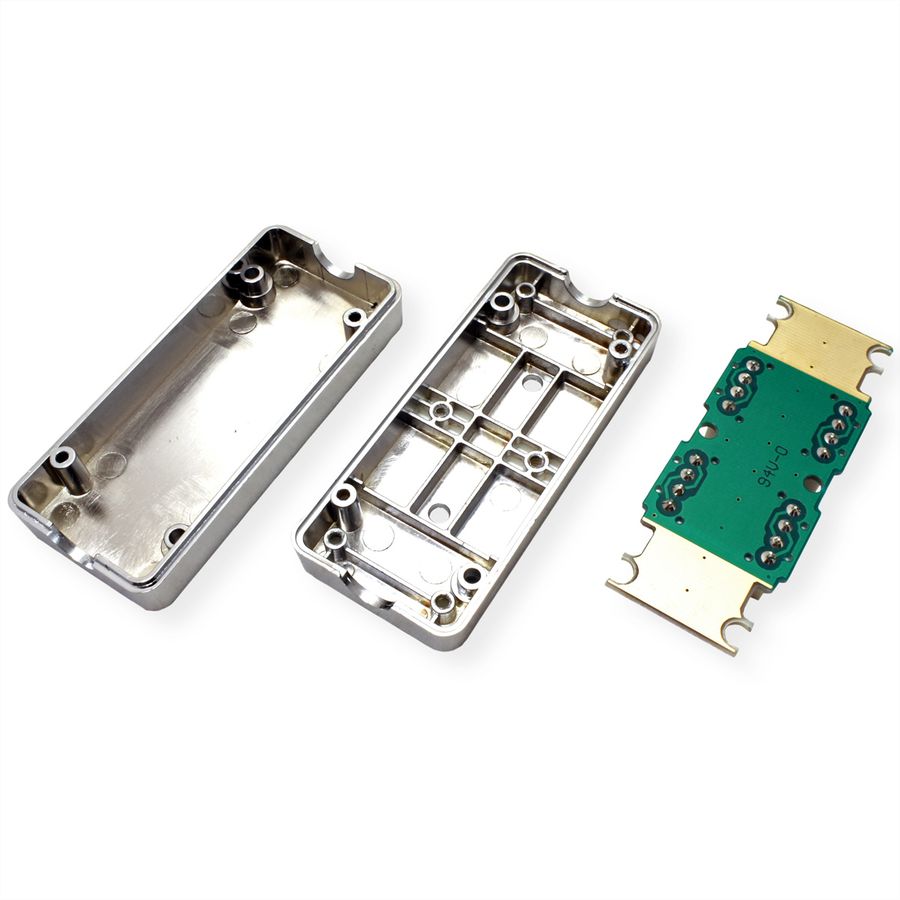

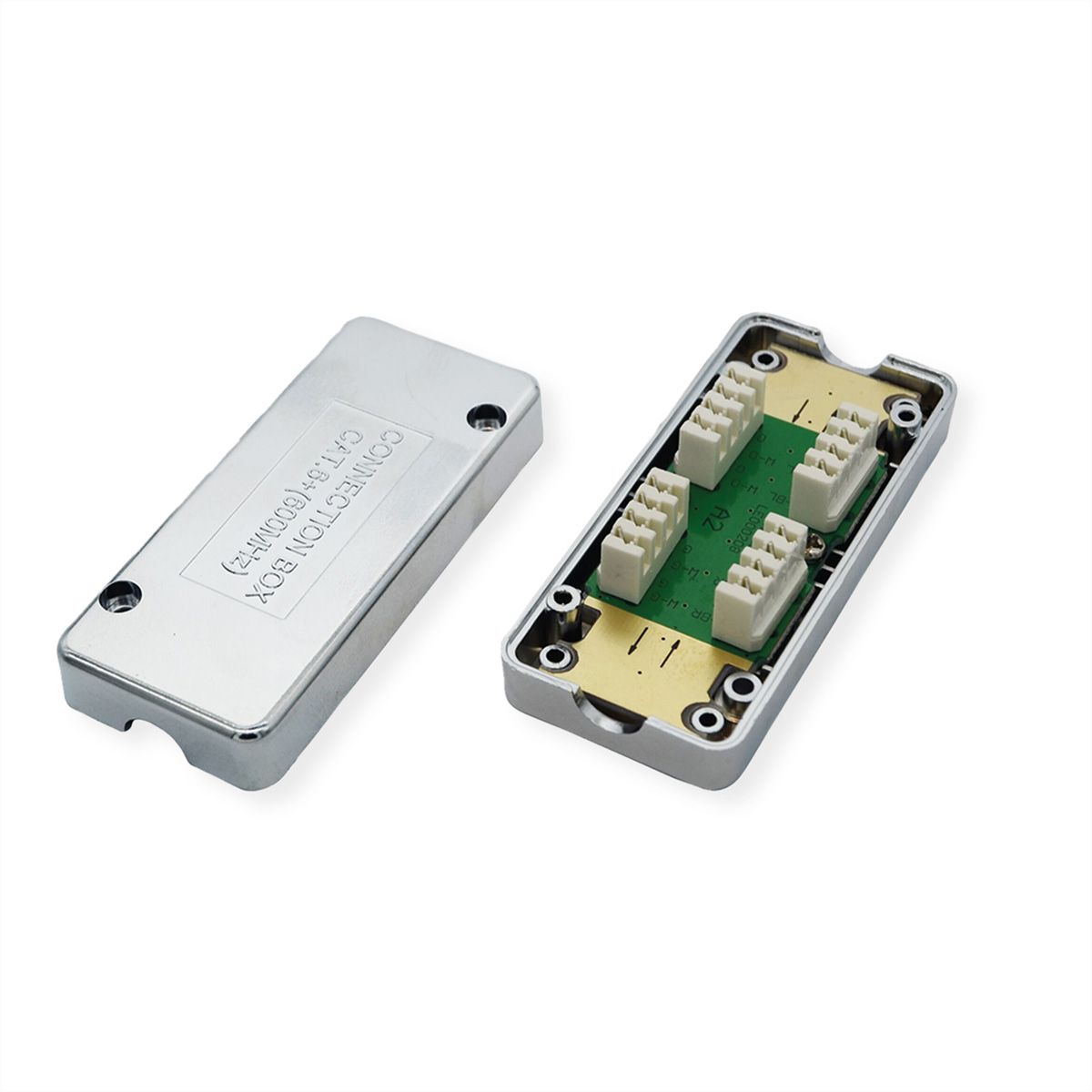

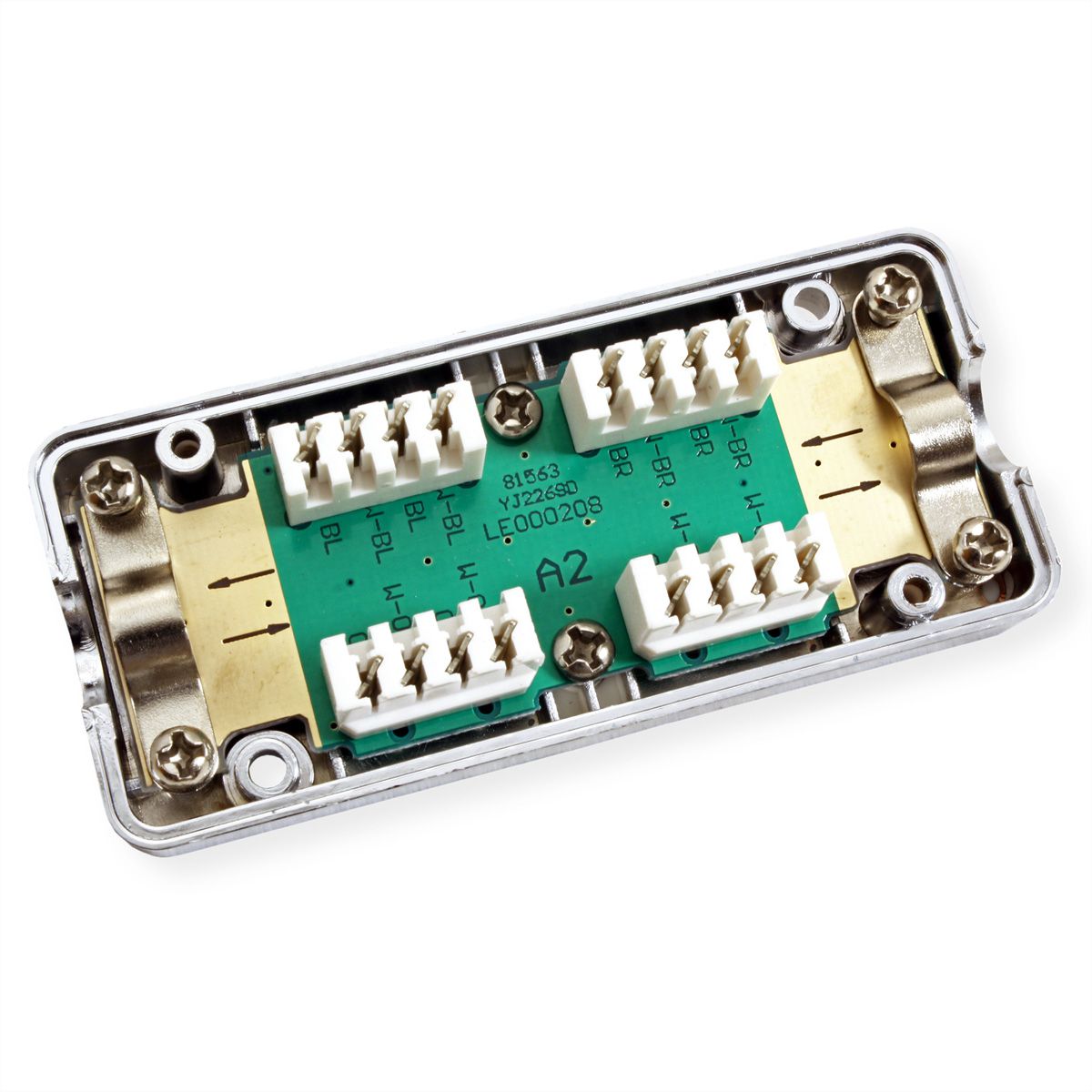

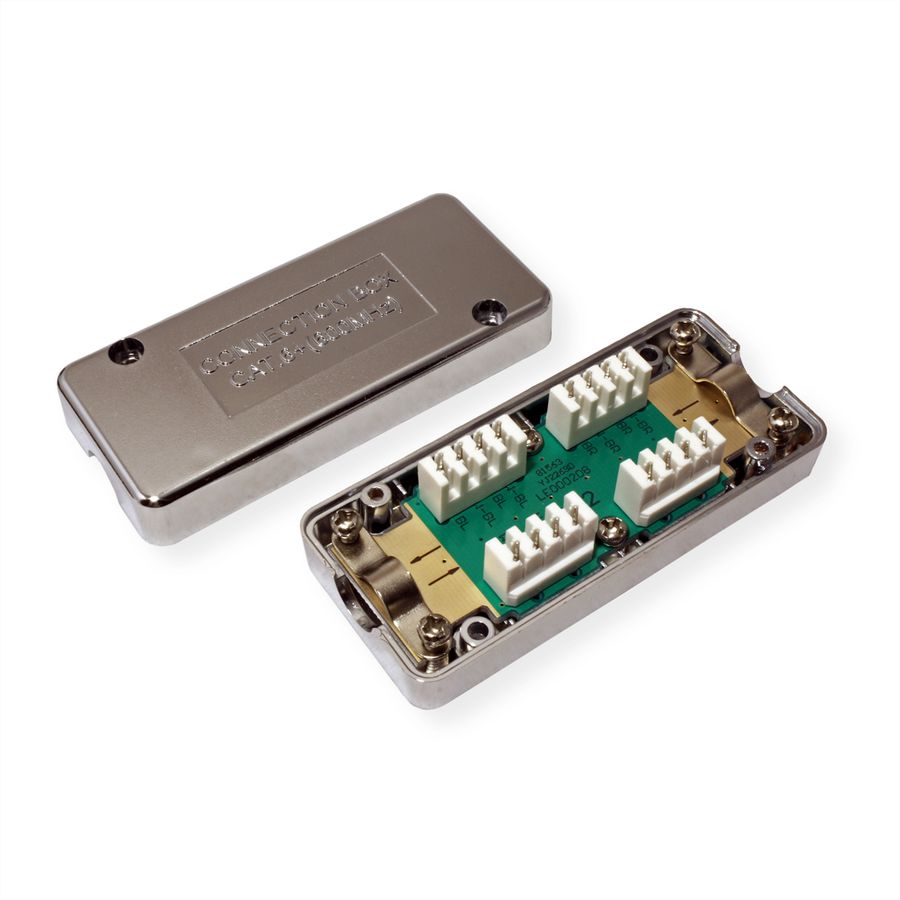

VALUE Junction Box Cat.6A (Class EA), STP

VALUE Junction Box Cat.6A (Class EA), STP

Please log in to be able to use the shopping cart and then complete orders.

Log in
Deliverable approx. 08/05/2024
Item no. 21.99.3049-25
Brand / Manufacturer VALUE
Manuf. no. 21.99.3049
EAN 7611990944385
Package weight 0.01 kg

Description

  • The VALUE Junction box is used to repair or extend shielded Cat. 6a cables
  • With this box all 4 or 8 wired installation cables with AWG24 and with an outside diameter from 6.2mm can be installed
  • Equipped with the modern LSA connection technology, all cables in accordance with EIA/TIA 568A or 568B can be easily installed
  • With the use of the STP type junction box, it's safe against electrical and magnetical interferences

Specifications

Manufacturer VALUE
Product group Connection technology TP
Product type Network junction box
Colour silver
Shield type Screened
Transfer quality Cat6A / Class EA
Assembly cable connection Krone LSAplus
Assignment EIA/TIA 568B
Shield contacts yes
separate strain relief no
Connection direction Straight
Dimensions (HxWxD) 23 x 37 x 84 mm
Height 23 mm
Width 37 mm
Depth 84 mm
Weight 49.4 g
Height of packaging (single piece) 30 mm
Width of packaging (single piece) 40 mm
Depth of packaging (single piece) 90 mm
Package weight (single piece) 0.01 kg

Downloads

Product data sheet - English (53.0 KB)

Download

Manufacturer data sheet - English (847.1 KB)

Download

User manual - Deutsch (208.7 KB)

Download

User manual - English (205.9 KB)

Download
