VALUE HDMI Matrix, 4x2, 4K60Hz, with Remote Control

VALUE HDMI Matrix, 4x2, 4K60Hz, with Remote Control

Please log in to be able to use the shopping cart and then complete orders.

Log in
Deliverable approx. 01/30/2025
Item no. 14.99.3591-5
Brand / Manufacturer VALUE
Manuf. no. 14.99.3591
EAN 7630049673342

Description

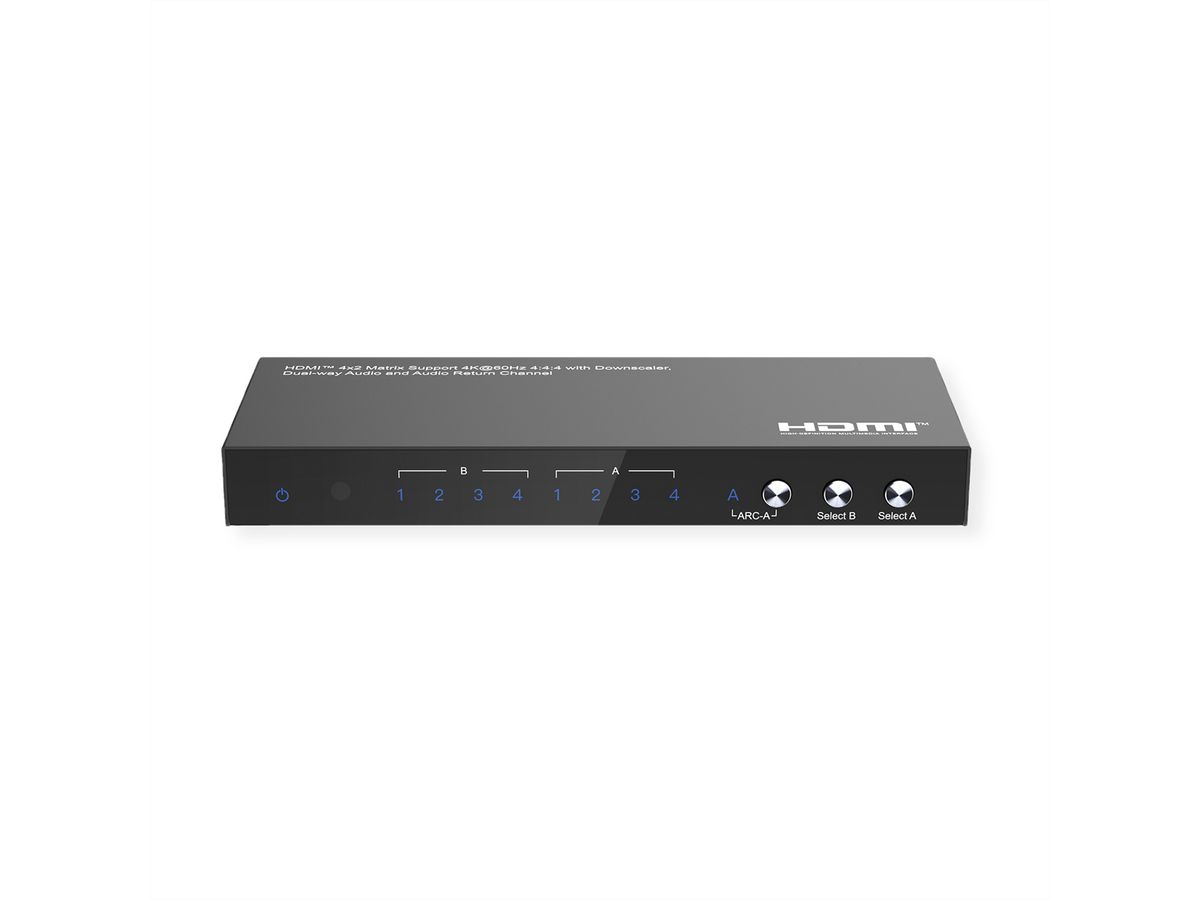

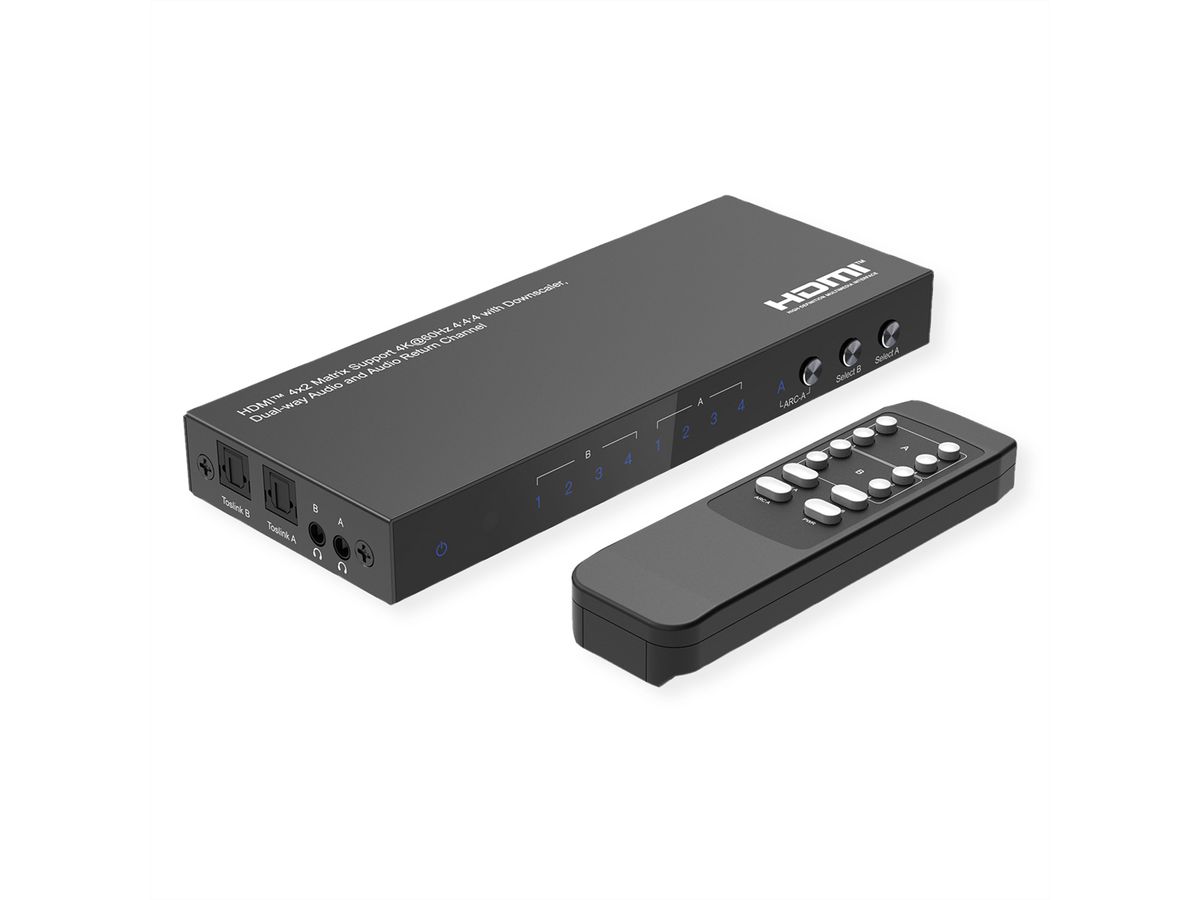

This VALUE Matrix lets you use up to 4 different HDMI inputs (PC, notebook, etc.) on 2 different displays (monitors, projectors, etc.) with a resolution of up to 4K60Hz. The matrix has an LED light on the front for easy status monitoring and wireless IR control for convenient control from a distance. Ideal for connecting and switching multiple sources in data centers, help desks, video broadcast facilities as well as for digital signage applications in retail environments.

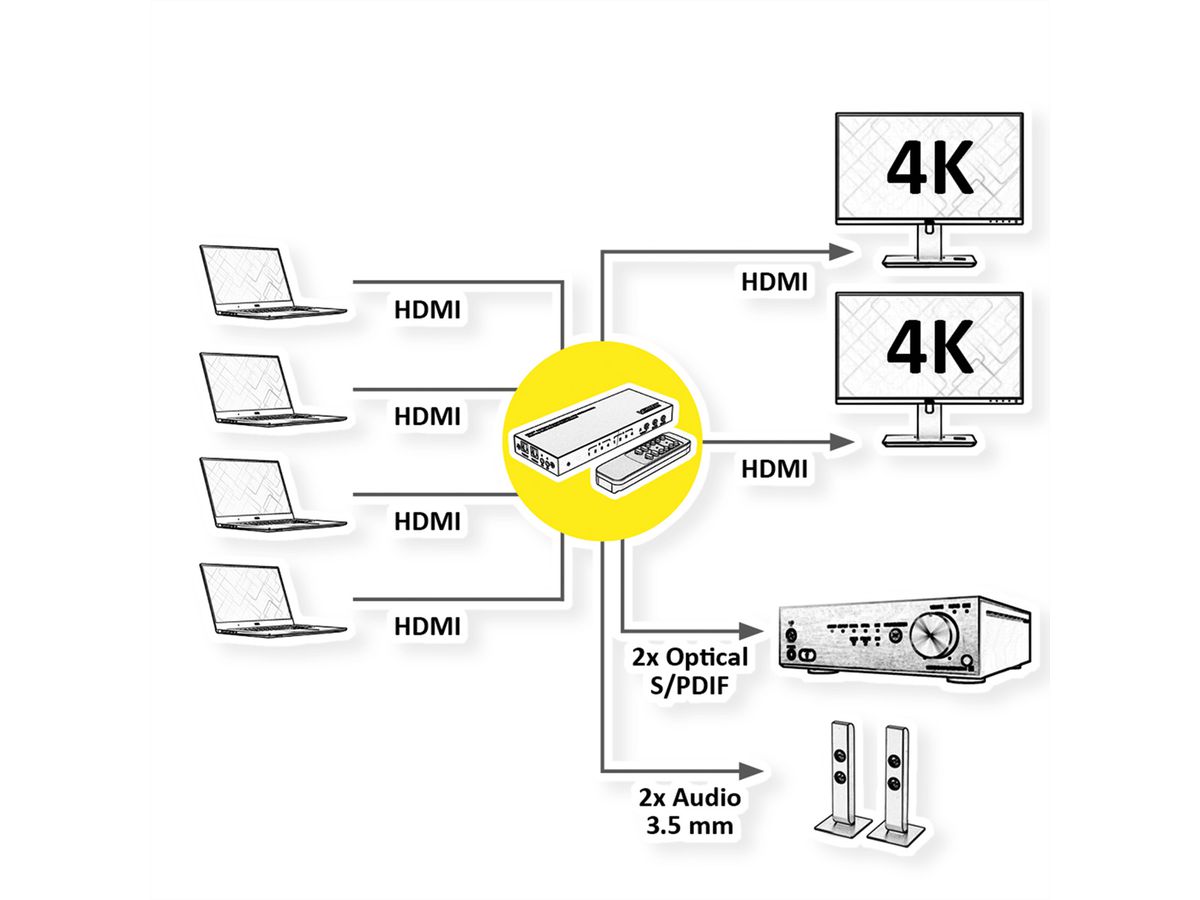

  • Four HDMI input signals can be switched to two HDMI output devices
  • Audio outputs: 2x Toslink/SPDIF, 2x Stereo
  • Max. resolution of 4K@60Hz
  • HDCP 2.2 and HDCP 1.4
  • EDID control (management) function
  • Compressed audio such as DTS, Dolby Digital (including DTS-HD Master Audio and Dolby TrueHD)
  • Input devices can be switched by IR remote control or by push buttons on the switch
  • Dual-way audio extraction for both output A and output B
  • Audio Return Channel (ARC) for output A
  • Downscale function: means the matrix can downscale the input 4K resolution to 1080p for FHD (1080p) displays and 4K resolution for 4K displays in the 1x4 splitter mode simultaneously.

  • Contents: HDMI Matrix, USB A Power Adapter, USB Power Cable A - C, Remote Control, User Manual

Specifications

Manufacturer VALUE
Product group Splitters and selectors
Product type HDMI-Matrix-Switch 4K
Colour black
Scope of delivery HDMI Matrix, USB A Power Adapter, USB Power Cable A - C, Remote Control, User Manual
Interface HDMI
Inputs 4
Outputs 2
Video input 4x HDMI Female
Video output 2x HDMI Female
Audio output 2x Toslink/SPDIF, 2x Stereo
Video band width 600 MHz
Max. resolution (nom.) 3840x2160@30Hz (4K2K)
Max. resolution 3840 x 2160 @60Hz (4K, UHD-1)
Dimensions (HxWxD) 20 x 171 x 61 mm
Power supply output 5V DC, 2A
Technical particularity Switching by push button or by IR remote control
Operating temperature min. 0 °C
Operating temperature max. 70 °C
Height 20 mm
Width 171 mm
Depth 61 mm
Weight 245 g
Height of packaging (single piece) 0 mm
Width of packaging (single piece) 0 mm
Depth of packaging (single piece) 0 mm
Package weight (single piece) 0 kg

Downloads

Product data sheet - English (72.2 KB)

Download

User manual - Deutsch (957.4 KB)

Download

User manual - English (952.7 KB)

Download

User manual - Français (957.1 KB)

Download

The own brand VALUE stands for attractive prices and tested quality.

With the VALUE products you get the best possible price in terms of quality and product features.
