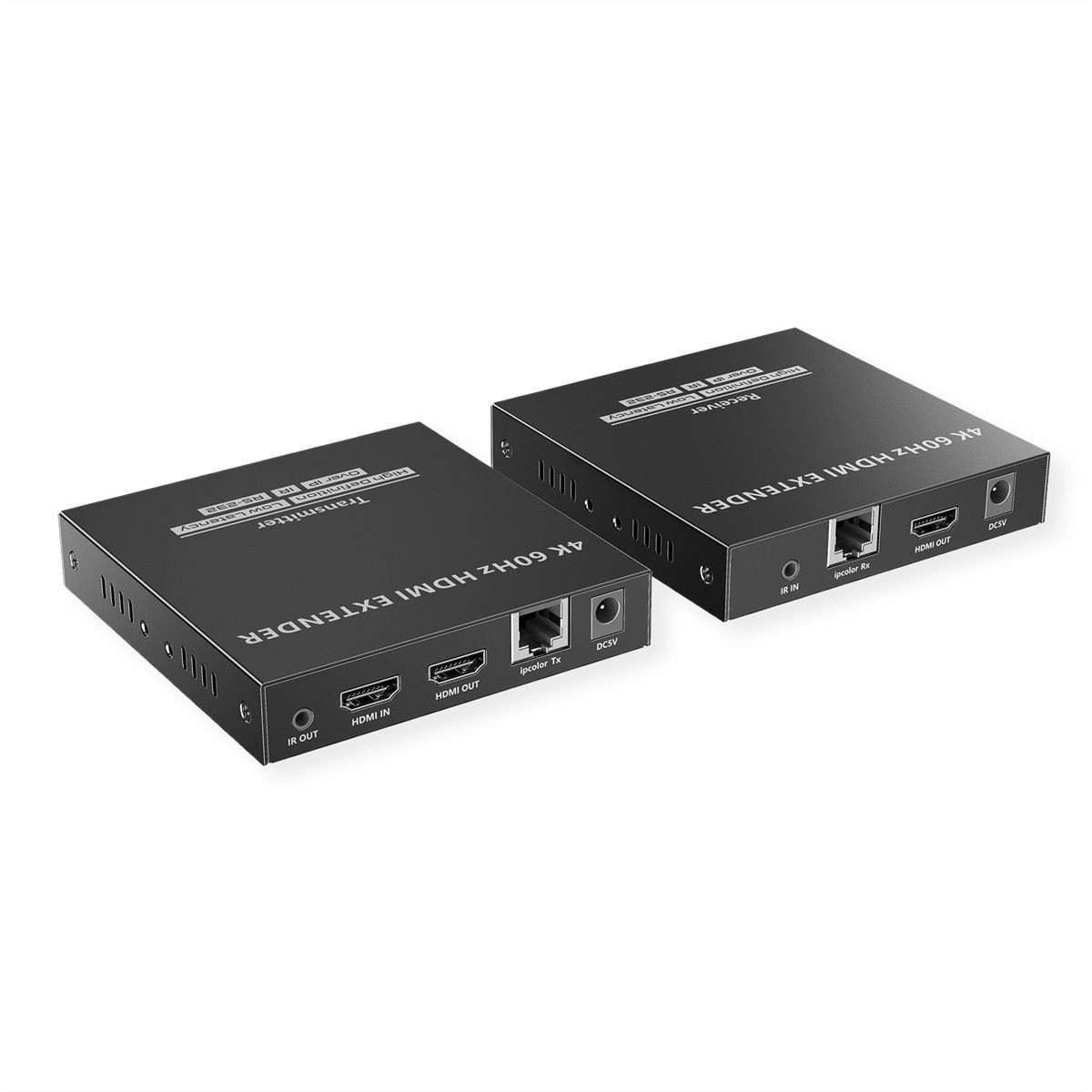

VALUE HDMI Extender, IPCOLOR over IP, 4K60Hz, 120 m

VALUE HDMI Extender, IPCOLOR over IP, 4K60Hz, 120 m

Please log in to be able to use the shopping cart and then complete orders.

Log in
Deliverable approx. 11/18/2024
Item no. 14.99.3568-1
Brand / Manufacturer VALUE
Manuf. no. 14.99.3568
EAN 7630049633377

Description

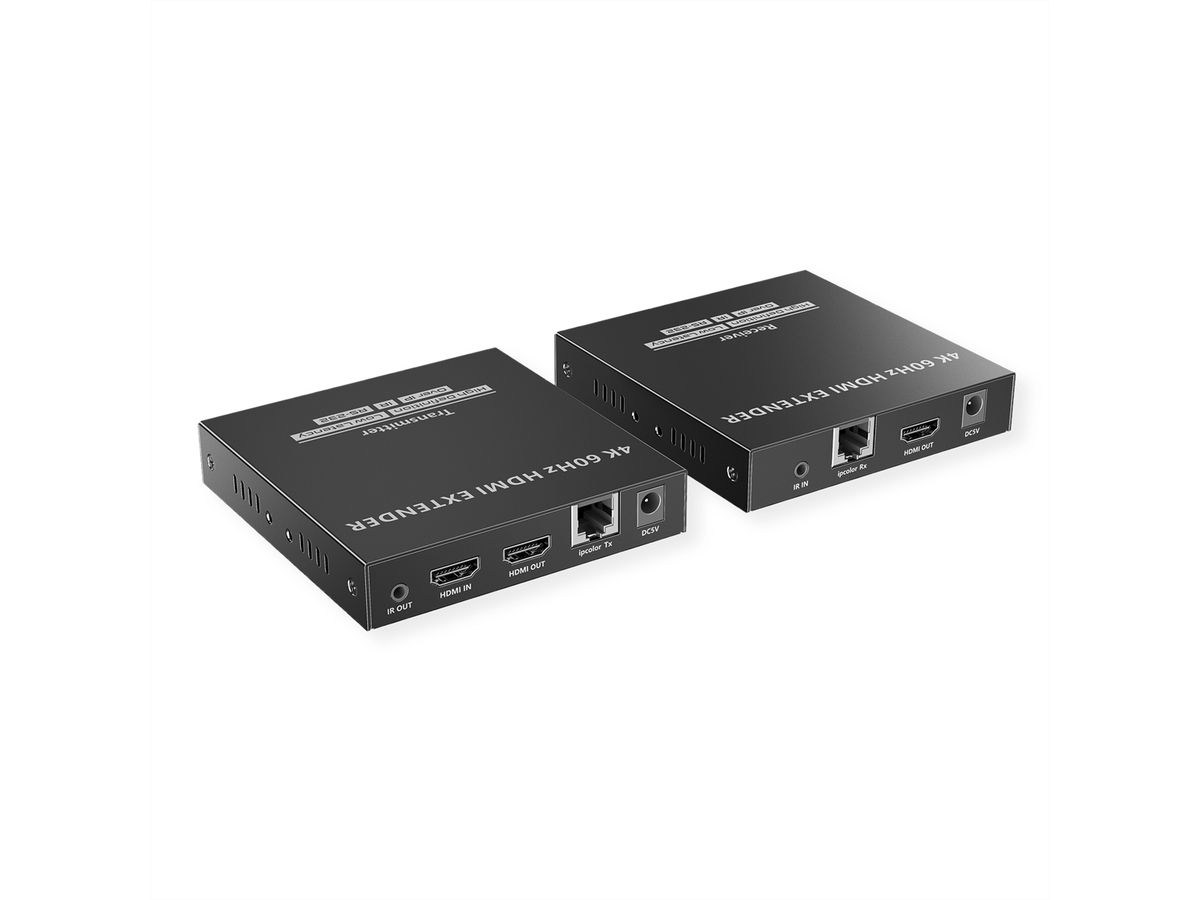

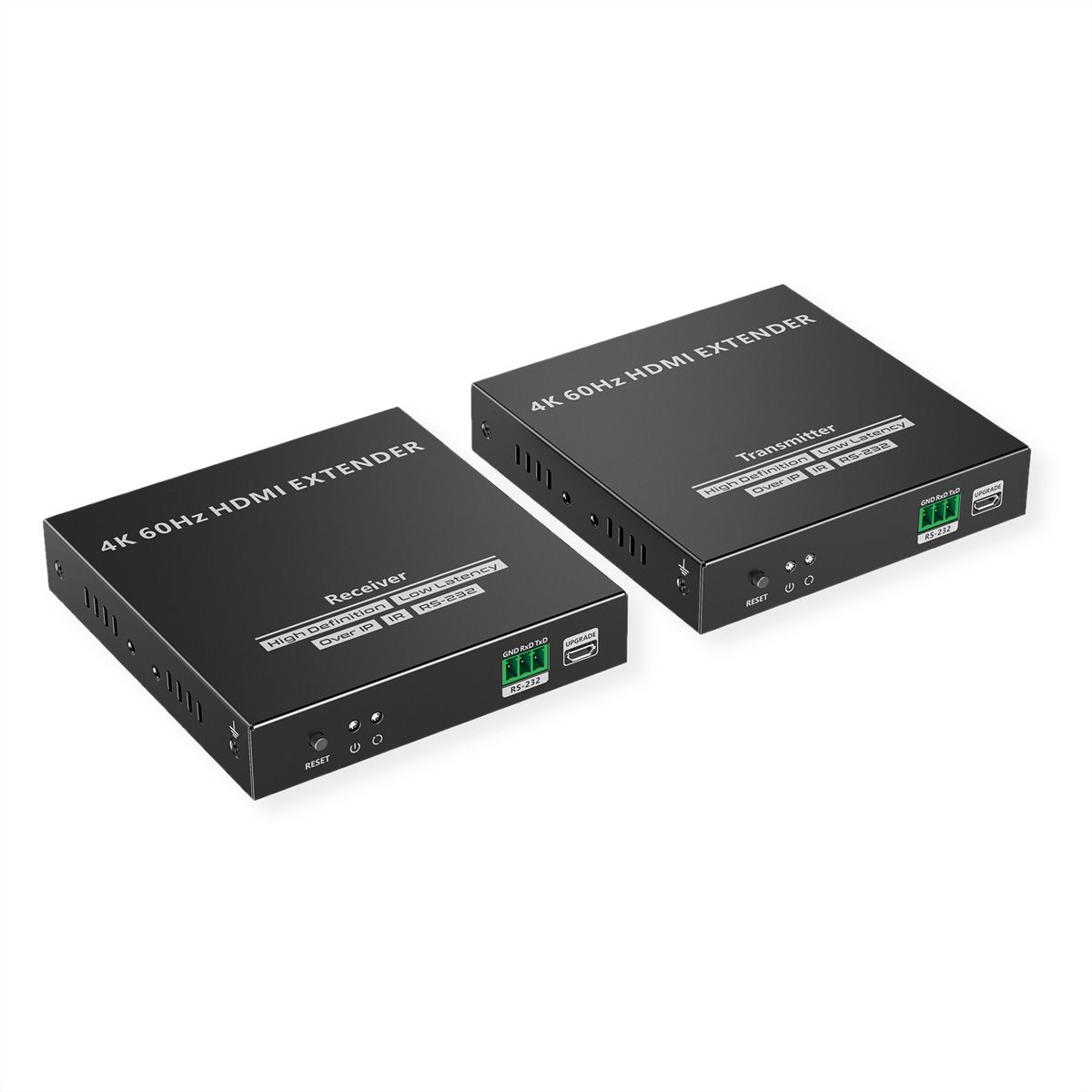

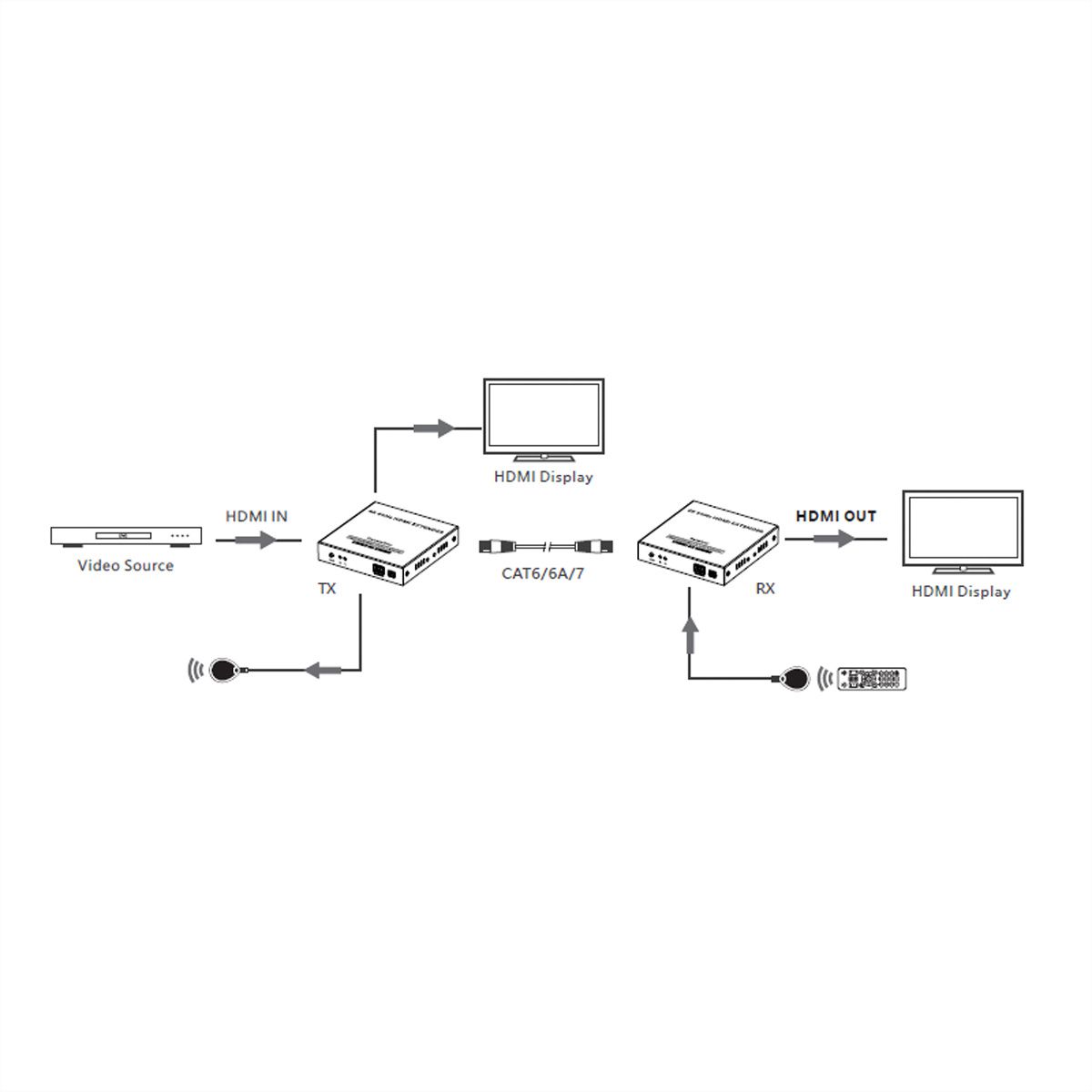

This is a 4K@60Hz HDMI extender kit, consisting of a transmitter and a receiver, using ipcolor STREAM technology for high resolution, low latency transmission. The 4K@60Hz HDMI signal can be extended up to 120m via Category 6 or higher network cables. One-to-one connections, one-to-many connections via gigabit switches or one-to-many connections via gigabit switch cascades are supported. Also HDMI loop-out, IR passback and RS-232 pass-through functions are supported. This extender kit is perfect for meetings, home entertainment, educational presentations and many other areas.

  • Supports up to 3840 x 2160@60Hz resolution, backwards compatible
  • Compatible with Cat5/5e/6 or above network cables

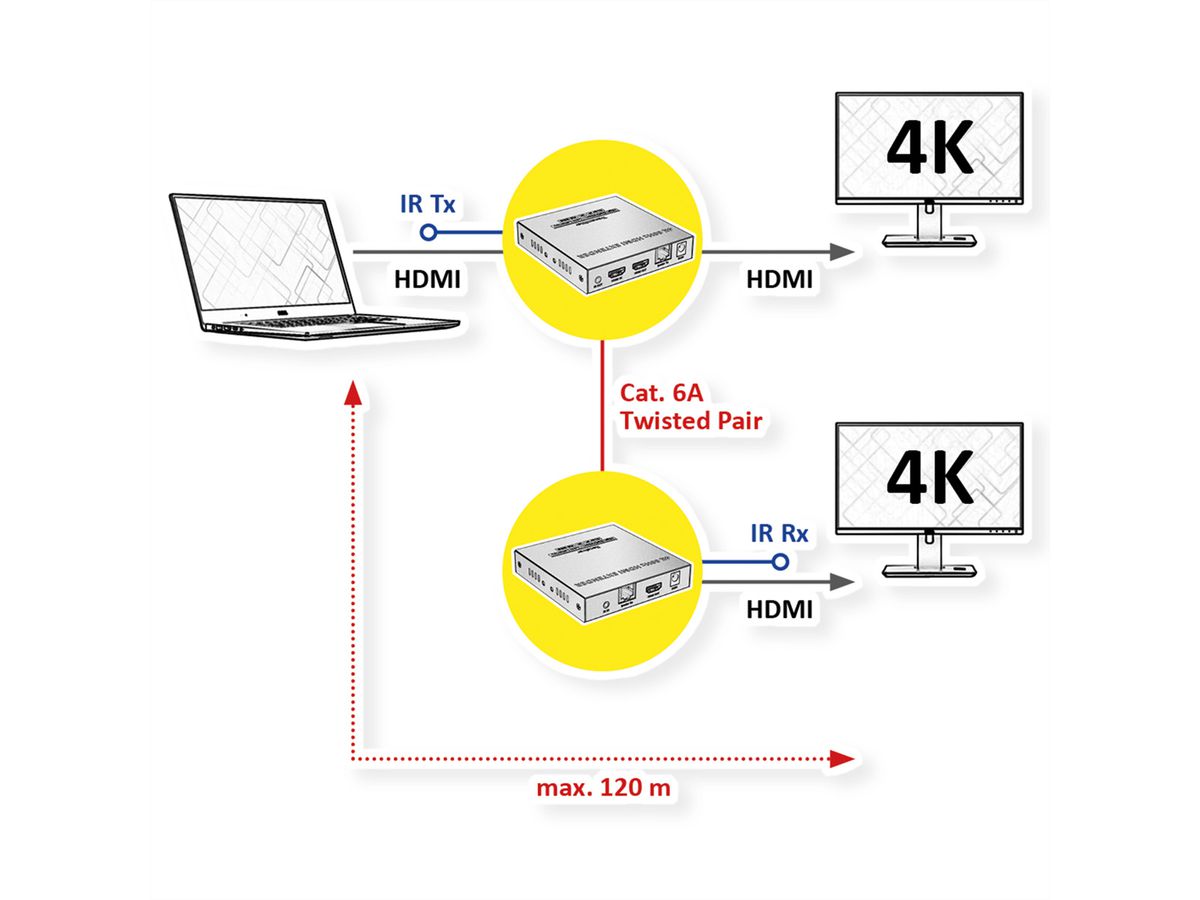

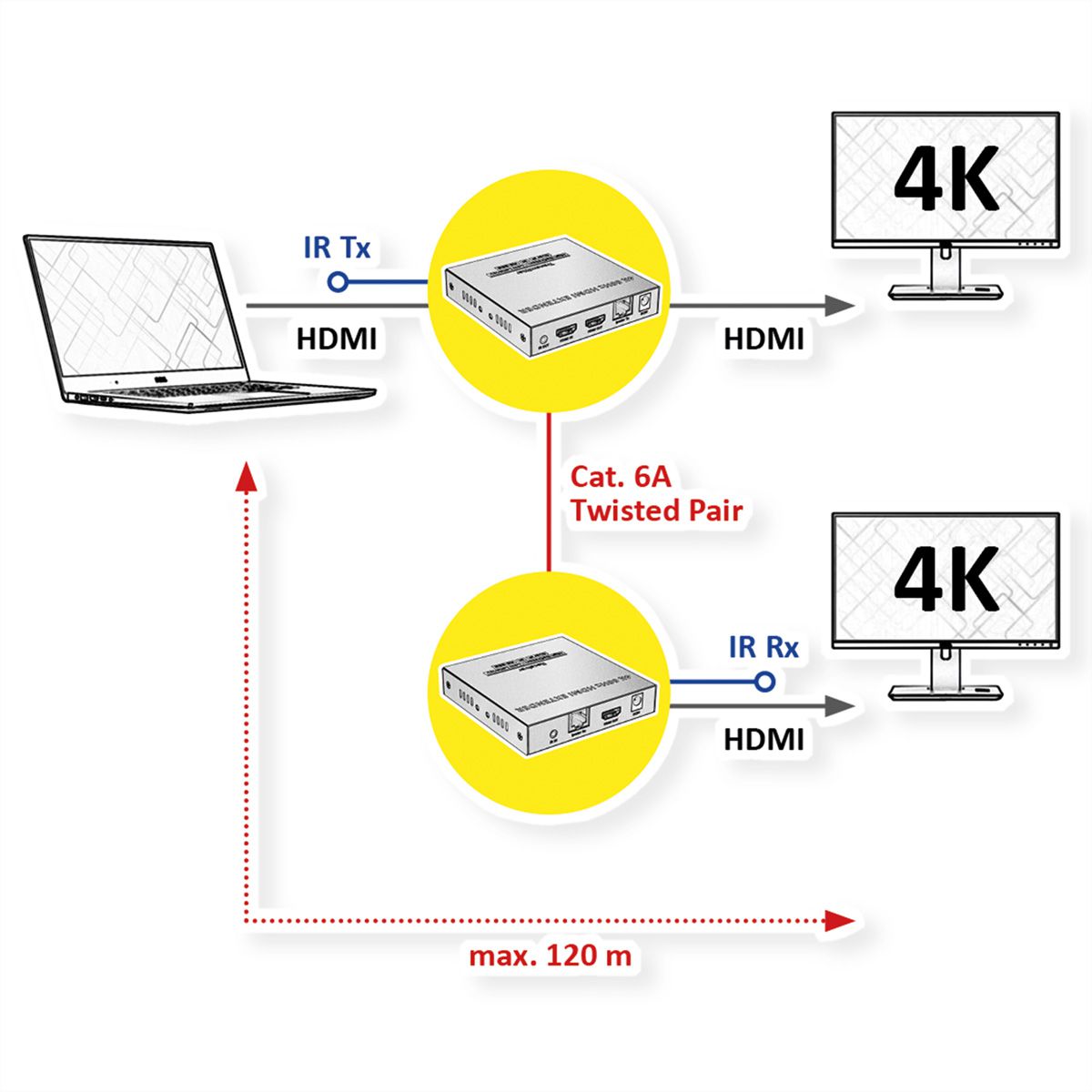

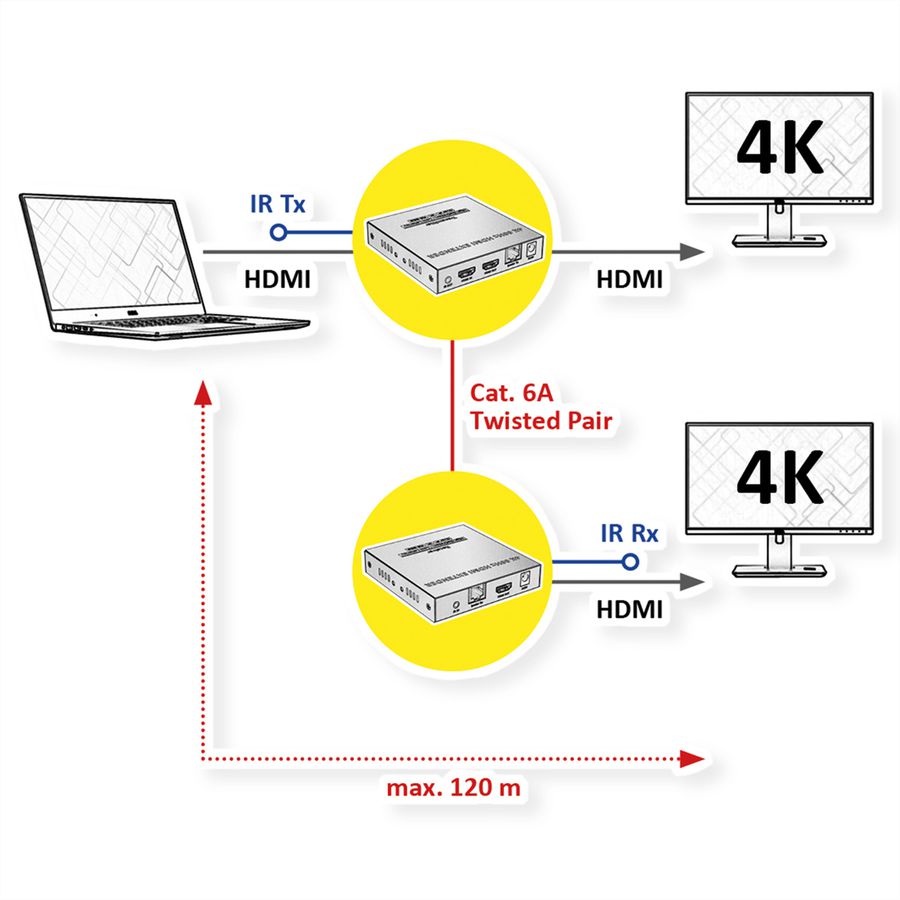

  • Max. transmission distance with Cat.6 or higher network cable is 120 m
  • ipcolor STREAM technology (high-definition and low-latency transmission)

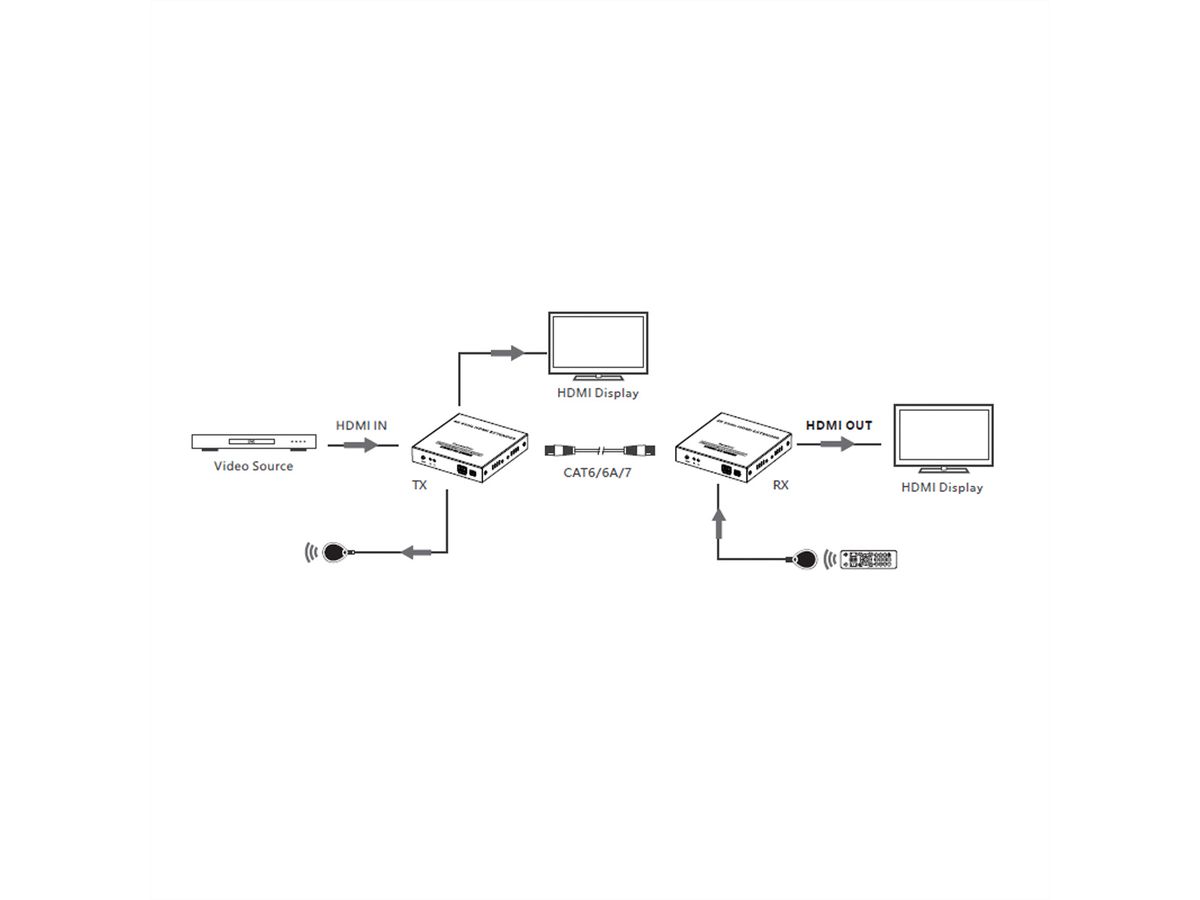

  • Supports one-to-one conenctions and one-to-many connections through gigabit switches

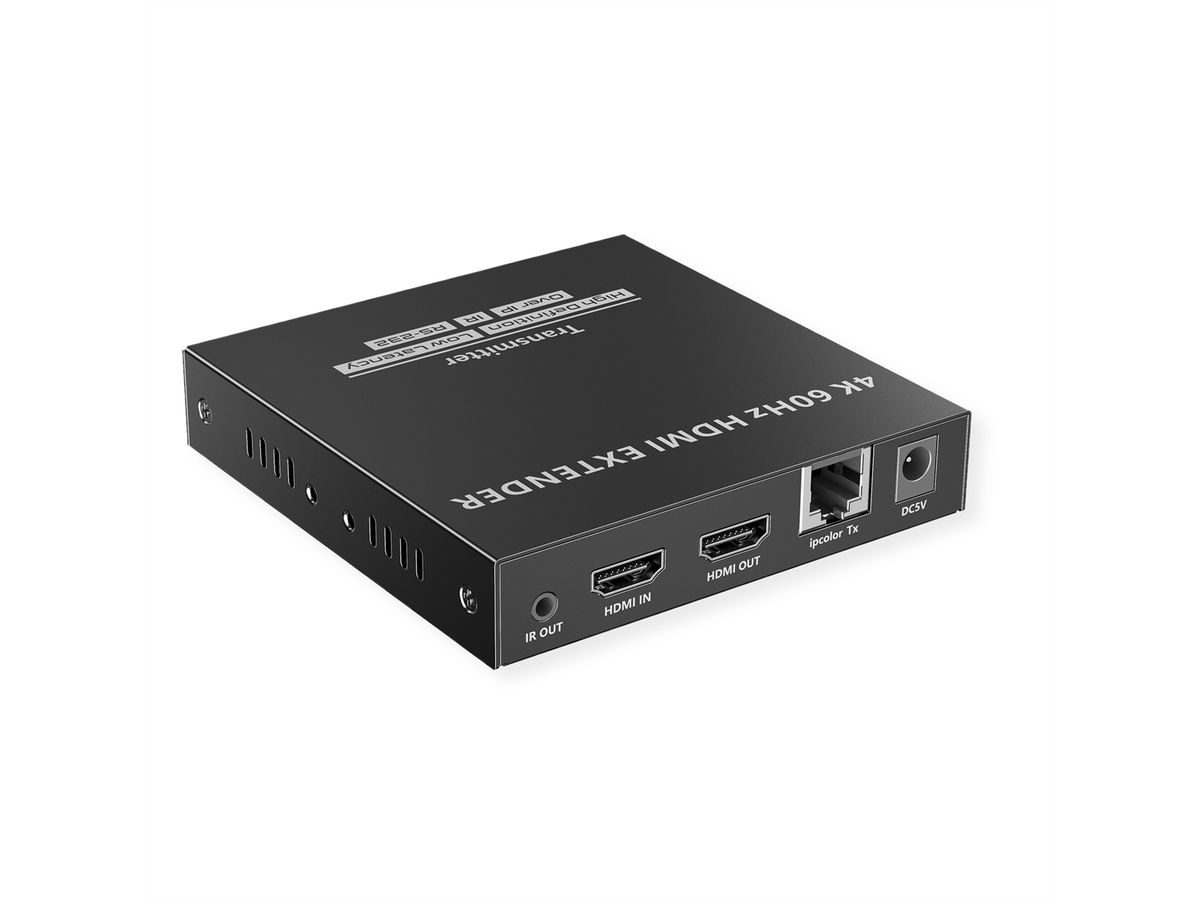

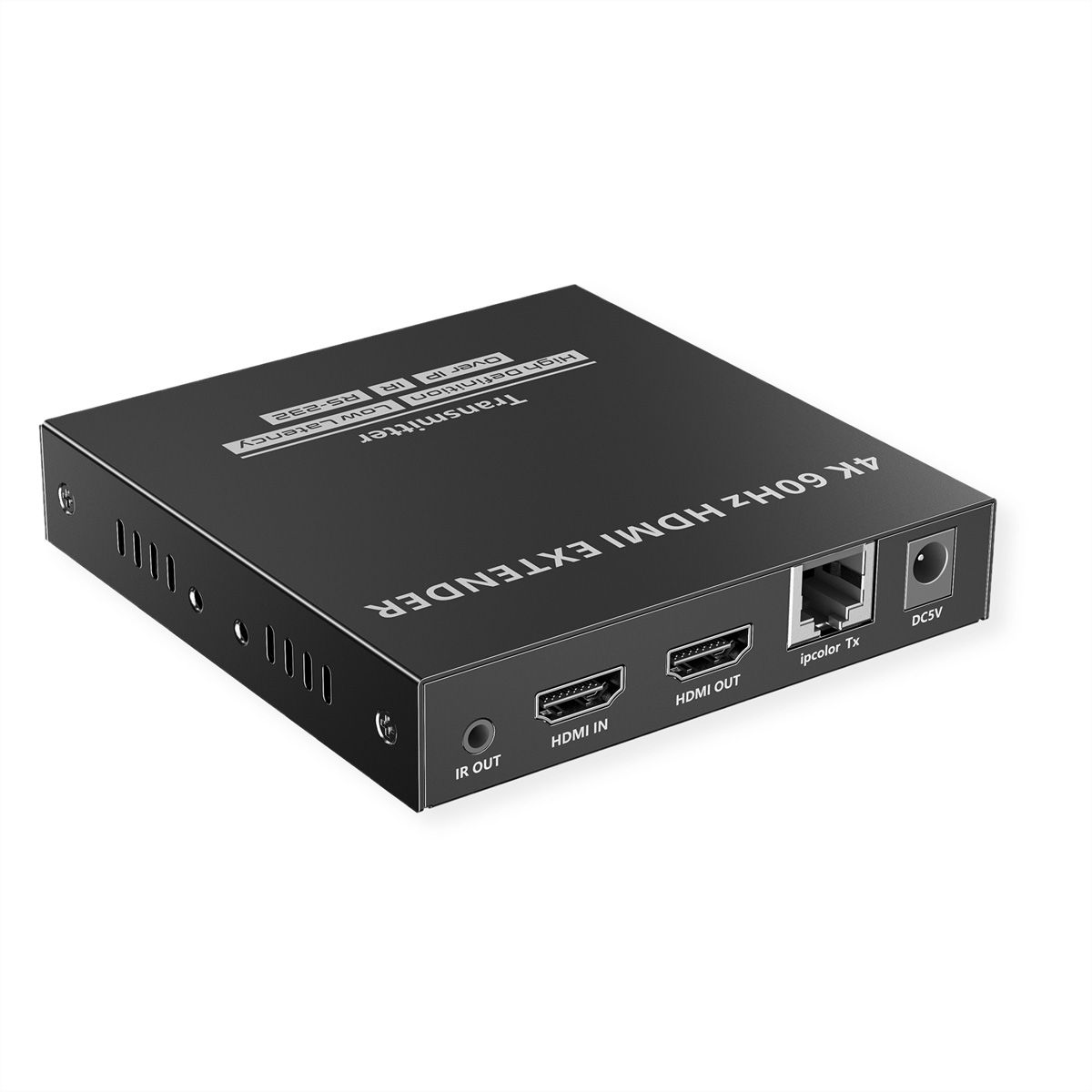

  • The transmitter supports HDMI loop out

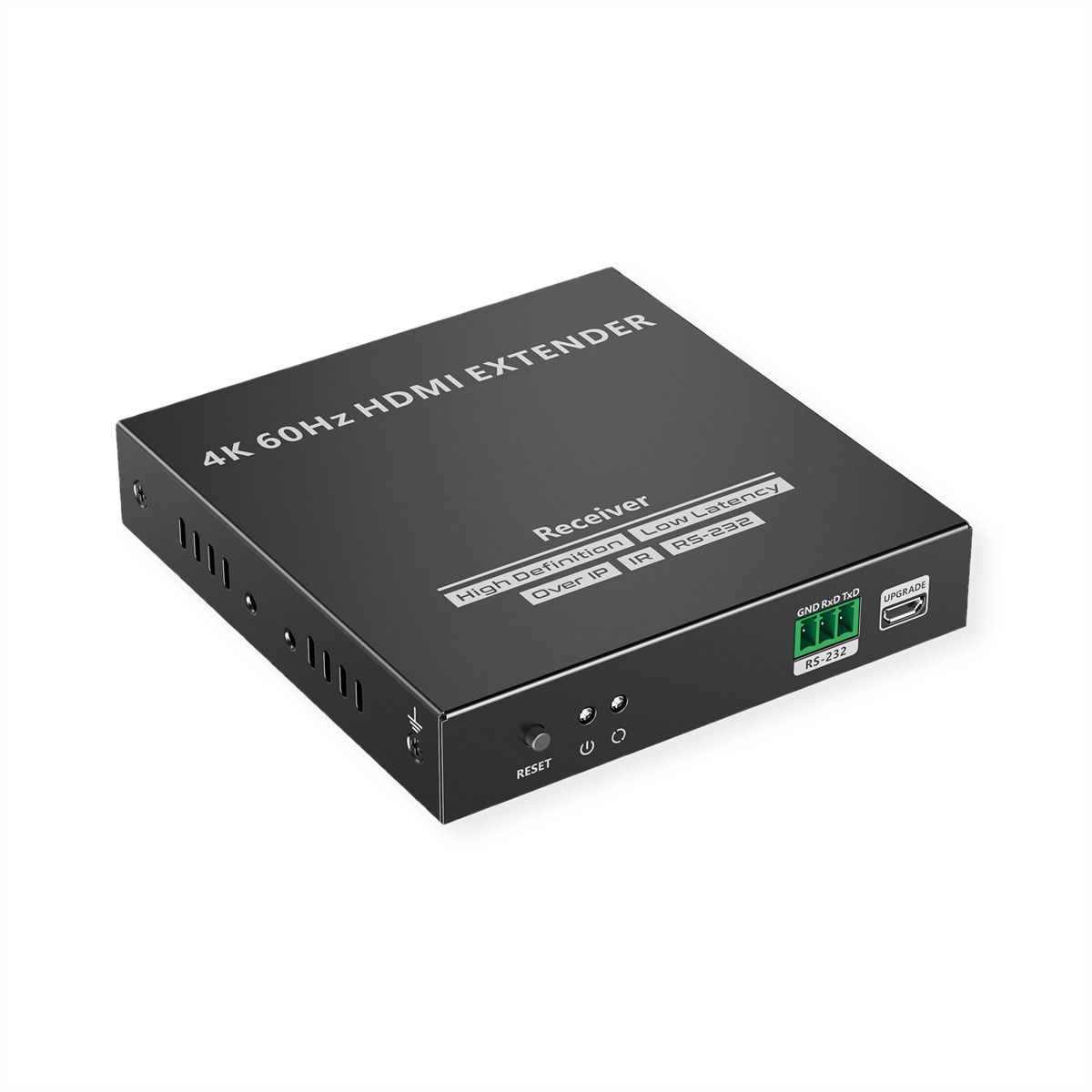

  • Supports IR passback (20 – 60kHz) and RS-232 passthrough.
  • Compliant with HDCP 1.4 and HDCP 2.2
  • Dimensions (TX, RX each): 21 x 106 x 103 mm
  • Weight TX: 254 g, RX: 242 g

Specifications

Manufacturer VALUE
Product group Video Extender
Product type HDMI Extender
Colour black
Scope of delivery 1x Transmitter, 1x Receiver, 2x Power Adapter, 1x IR Receiver Extension Cable, 1x IR Blaster Extension Cable, 4x Mounting Ears, 2x Terminal Blocks (RS-232), User Manual
Interface HDMI
Inputs 1
Outputs 2
Max. distance 120 m

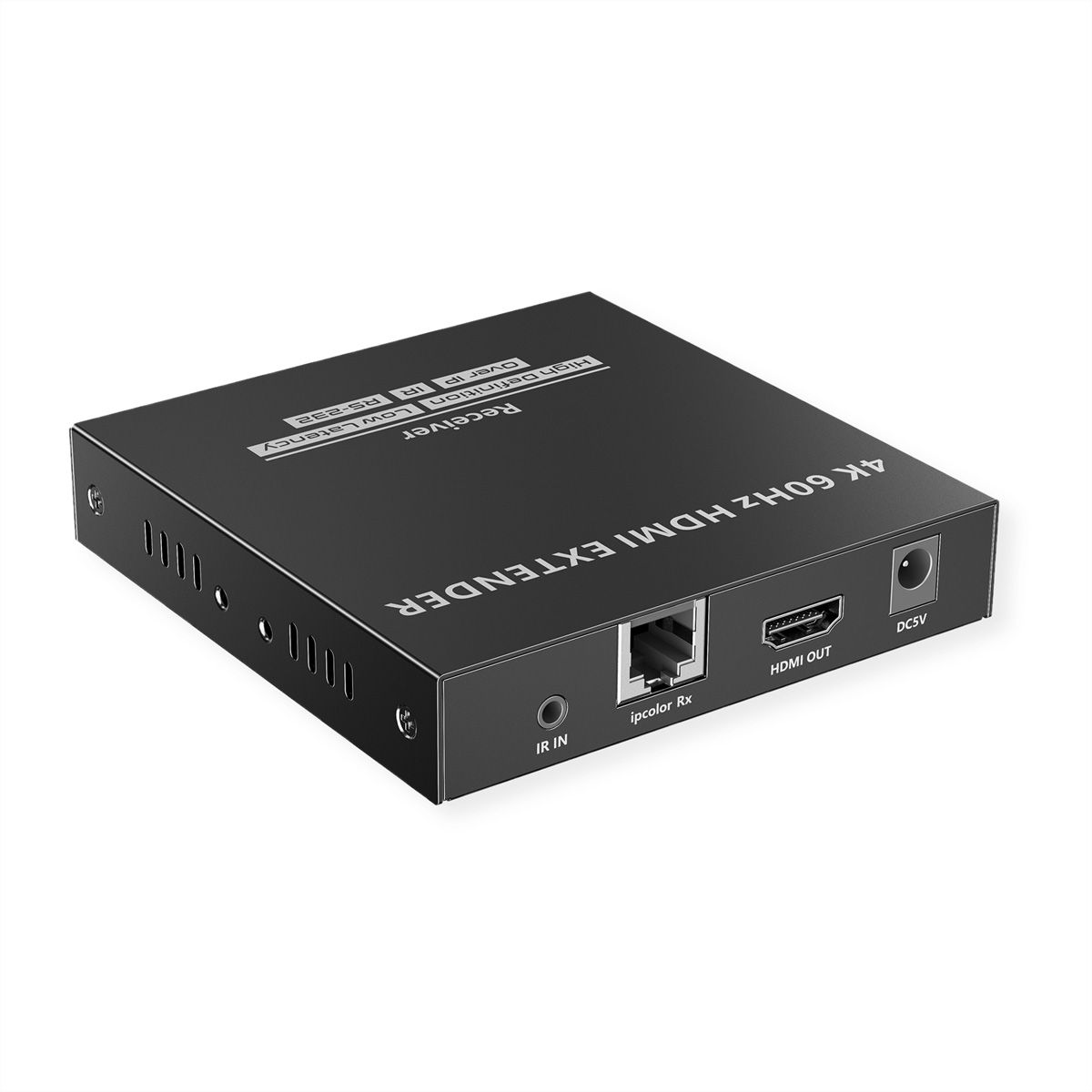

Video input TX: 1x HDMI, RX: 1x RJ-45
Video output TX: 1x HDMI Loop-Out, 1x RJ-45, RX: 1x HDMI
Video band width 18 Gbps
Max. resolution (nom.) 3840 x 2160@60Hz
Max. resolution 3840 x 2160 @60Hz (4K, UHD-1)
Dimensions (HxWxD) 21 x 106 x 103 mm
Power supply unit 2x
Power supply output 5 V DC, 1A
Operating temperature min. -20 °C
Operating temperature max. 60 °C
Storage temperature min. -30 °C
Storage temperature max. 70 °C
Height 21 mm
Width 106 mm
Depth 103 mm
Weight 496 g
Height of packaging (single piece) 0 mm
Width of packaging (single piece) 0 mm
Depth of packaging (single piece) 0 mm
Package weight (single piece) 0 kg
