The own brand VALUE stands for attractive prices and tested quality.
With the VALUE products you get the best possible price in terms of quality and product features.
:strip_icc():strip_exif()/bilder/s21/21998831_2019_m_0_hi.jpg "VALUE FO Jumper Cable 50/125µm OM4, LC/LC, Low-Loss-Connector, violet, 5 m")
:strip_icc():strip_exif()/bilder/s21/21998830_2019_m_0_hi.jpg "VALUE FO Jumper Cable 50/125µm OM4, LC/LC, Low-Loss-Connector, violet, 5 m")

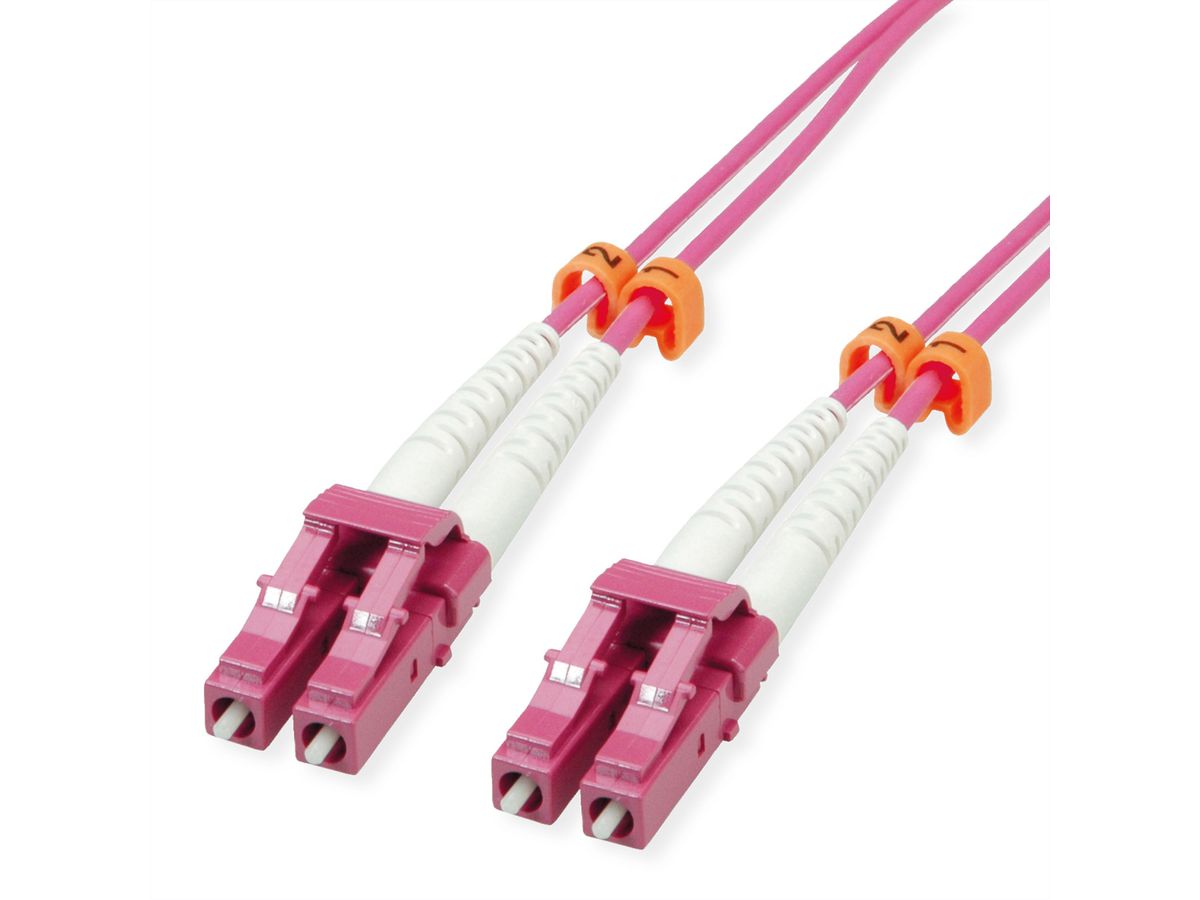

VALUE FO Jumper Cable 50/125µm OM4, LC/LC, Low-Loss-Connector, violet, 5 m
Please log in to be able to use the shopping cart and then complete orders.
Log in| Item no. | 21.99.8834-5 |
|---|---|
| Brand / Manufacturer | VALUE |
| Manuf. no. | 21.99.8834 |
| EAN | 7630049696891 |
| Package weight | 0.15 kg |
:strip_icc():strip_exif()/bilder/icons/icon_datacenterproduct.png){kind=icon}
:strip_icc():strip_exif()/bilder/icons/icon_lsoh.png){kind=icon}
|
|
| Colour | |
| Length | |
:strip_icc():strip_exif()/logos/value.png "VALUE")
Description
VALUE F.O. Patchcable in OM4-Quality for a high performance connection.
- Security for the future! The OM4 fiber and connector quality with very low insertion ensure an excellent quality at very high bandwidths.
- It supports 10 Gb/s Ethernet, Fibre Channel, and OIF applications to 550 meters, extends the system cost benefits to ultra long building backbones and medium length campus backbones.
- The cable assembled with "low-loss" connectors achieve very good values for insertion loss and reflection. In comparison:
- Typical attenuation of a low-loss LC connector: 0.15 dB
- Modal Bandwidth: 4700 MHz-km (this bandwidth is based on application-specific implementation of the EMBC requirements)
- Duplex cables with fiber type Multi-mode 50/125µm, OM4
Specifications
| Manufacturer | VALUE |
|---|---|
| Product group | Fibre optic cable |
| Product type | Fibre Optic Jumper Cables OM4 |
| Colour | violet |
| Length | 5 m |
| Quantity of fibre | 2 |
| Conductor composition | Compact conductor |
| Cable type | Duplex Cable |
| External cable | no |
| Fibre section | Multi mode 50/125µm OM4 |
| Connection ports | LC / LC |
| Side 1 Connector Type | LC |
| side 1 connector ferrules | low loss |
| Side 2 Connector Type | LC |
| side 2 connector ferrules | low loss |
| Min. Bending radius, static | 20 mm |
| Min. Bending radius, dynamic | 40 mm |
| Aramid strain relief | yes |
| External cable diameter | 2 x 4 mm |
| Mantle of external cable | LS0H |
| Flame retardant according to IEC 60332-1-2 | yes |
| Low smoke according to IEC 61034-2 | yes |
| Cable LSOH | yes |
| Halogen free according to IEC 60754-2 | yes |
| Max. insertion loss | 0.15 dB |
| Min. return loss | 30 dB |
| Weight | 40.7 g |
| Height of packaging (single piece) | 220 mm |
| Width of packaging (single piece) | 110 mm |
| Depth of packaging (single piece) | 230 mm |
| Package weight (single piece) | 0.15 kg |
