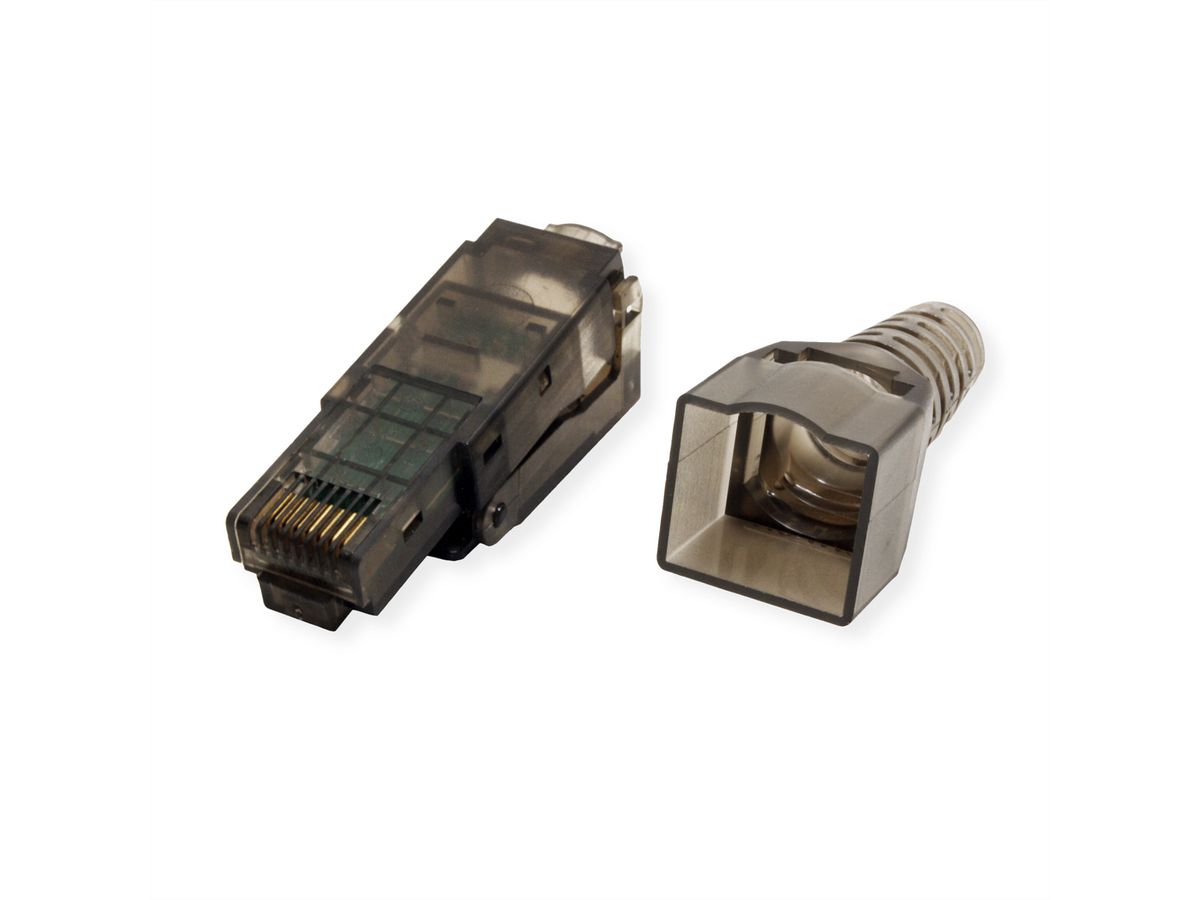

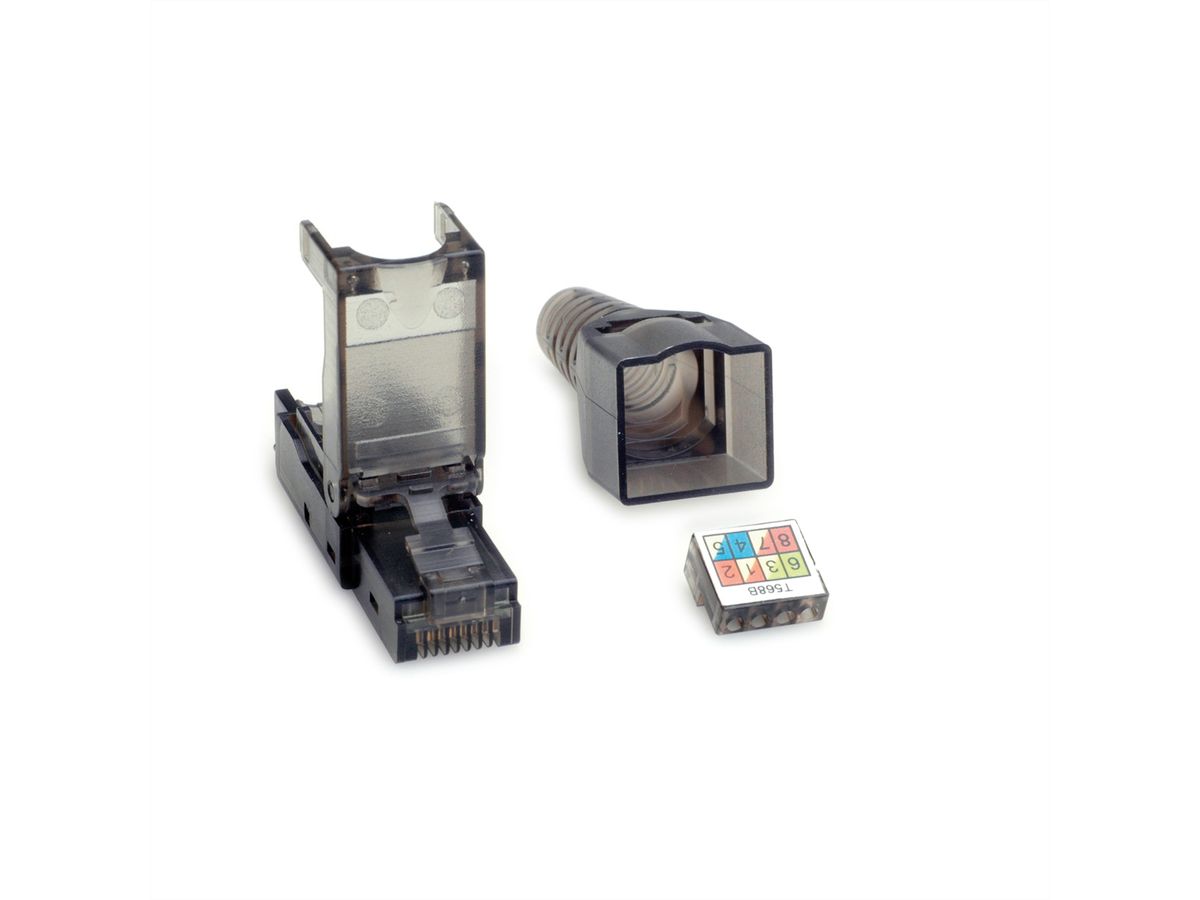

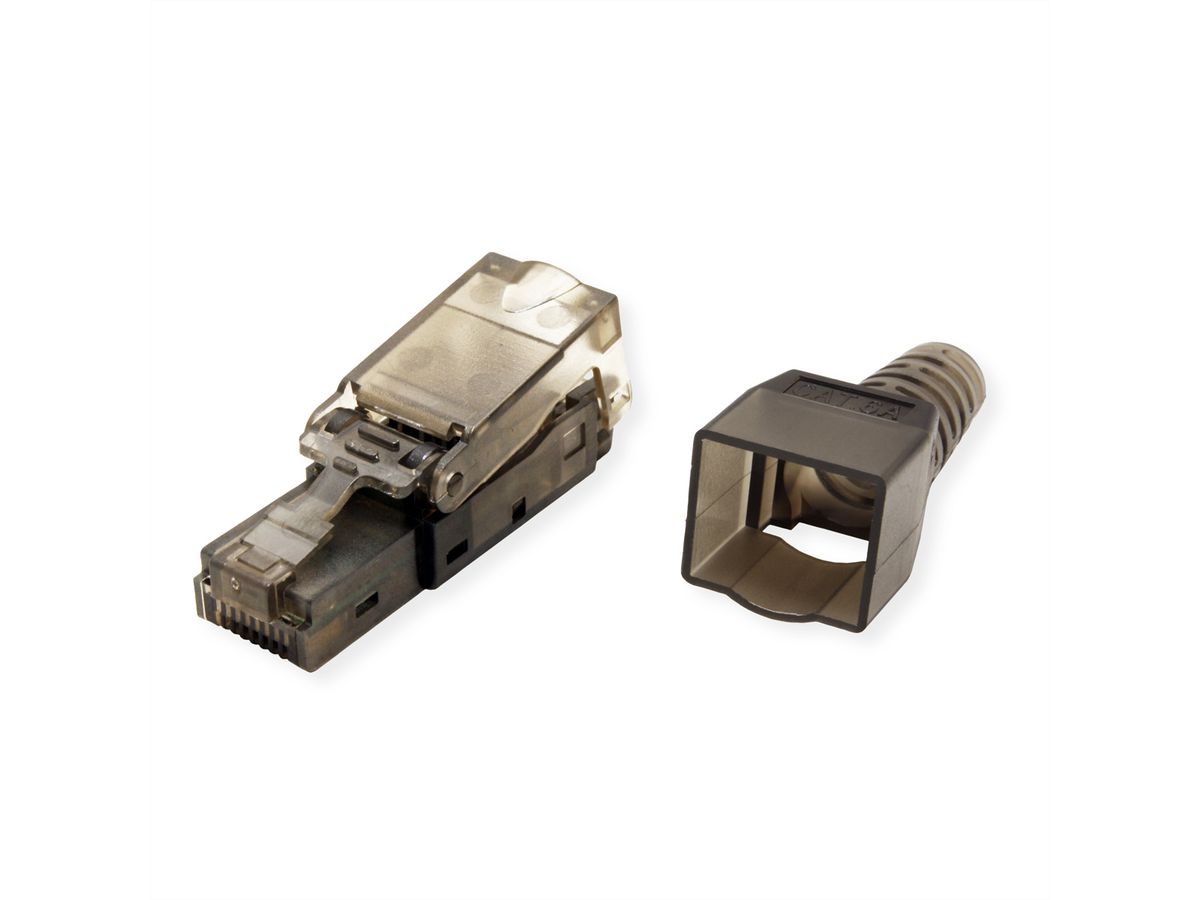

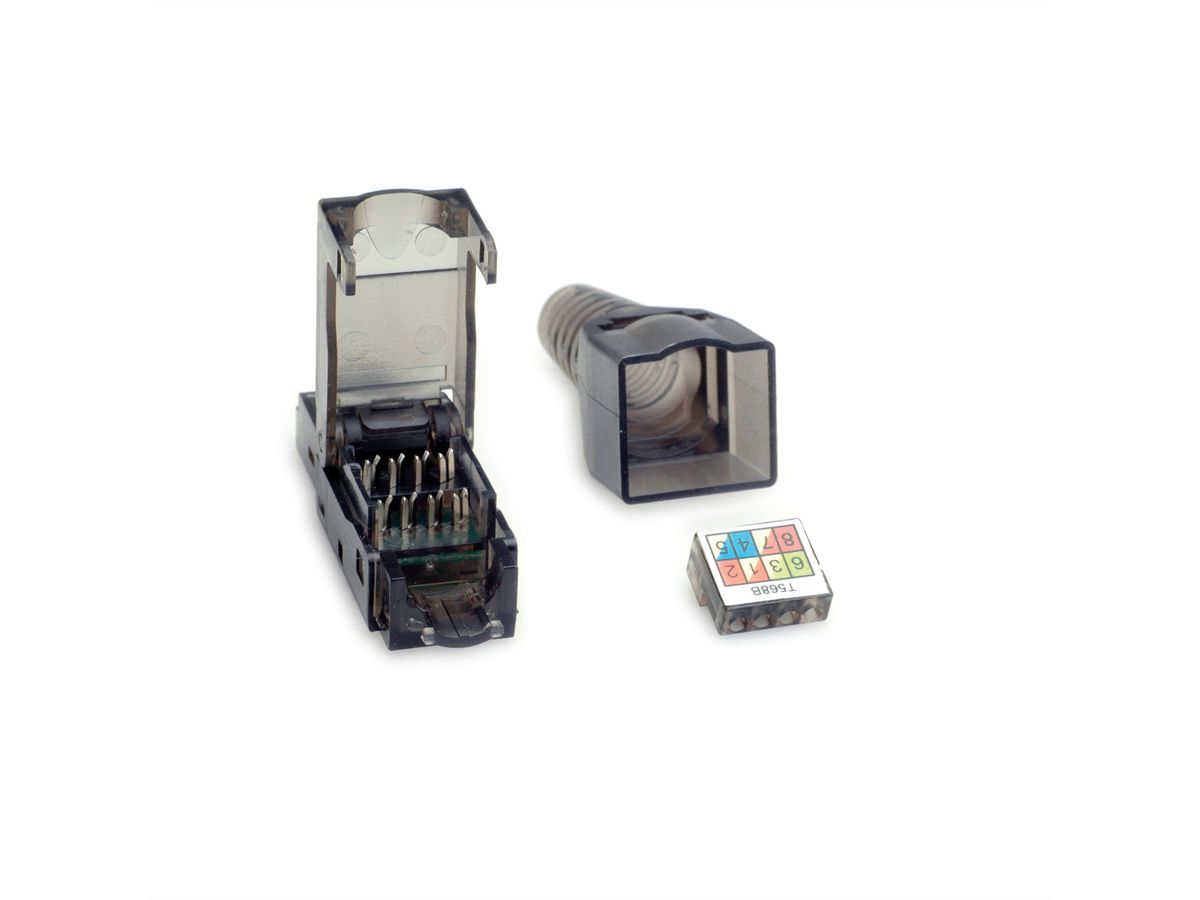

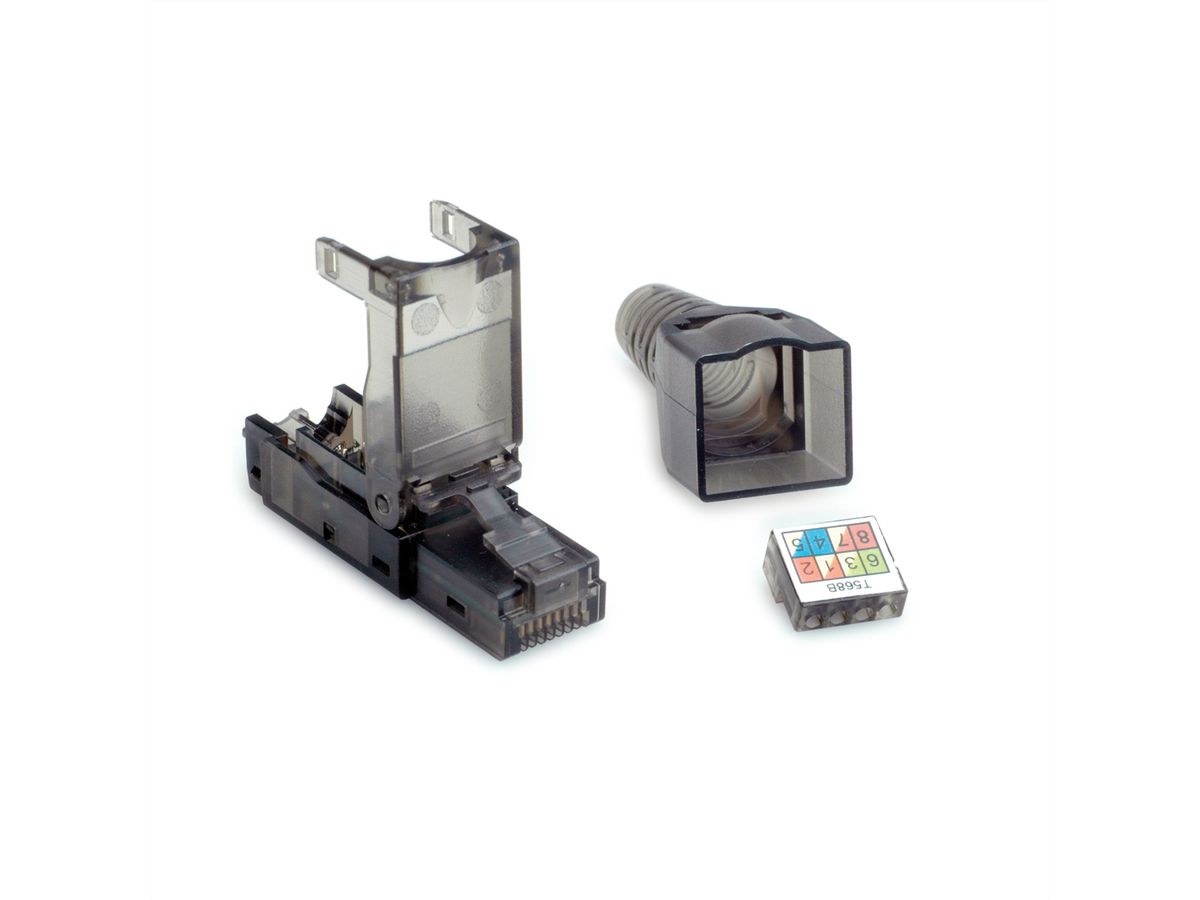

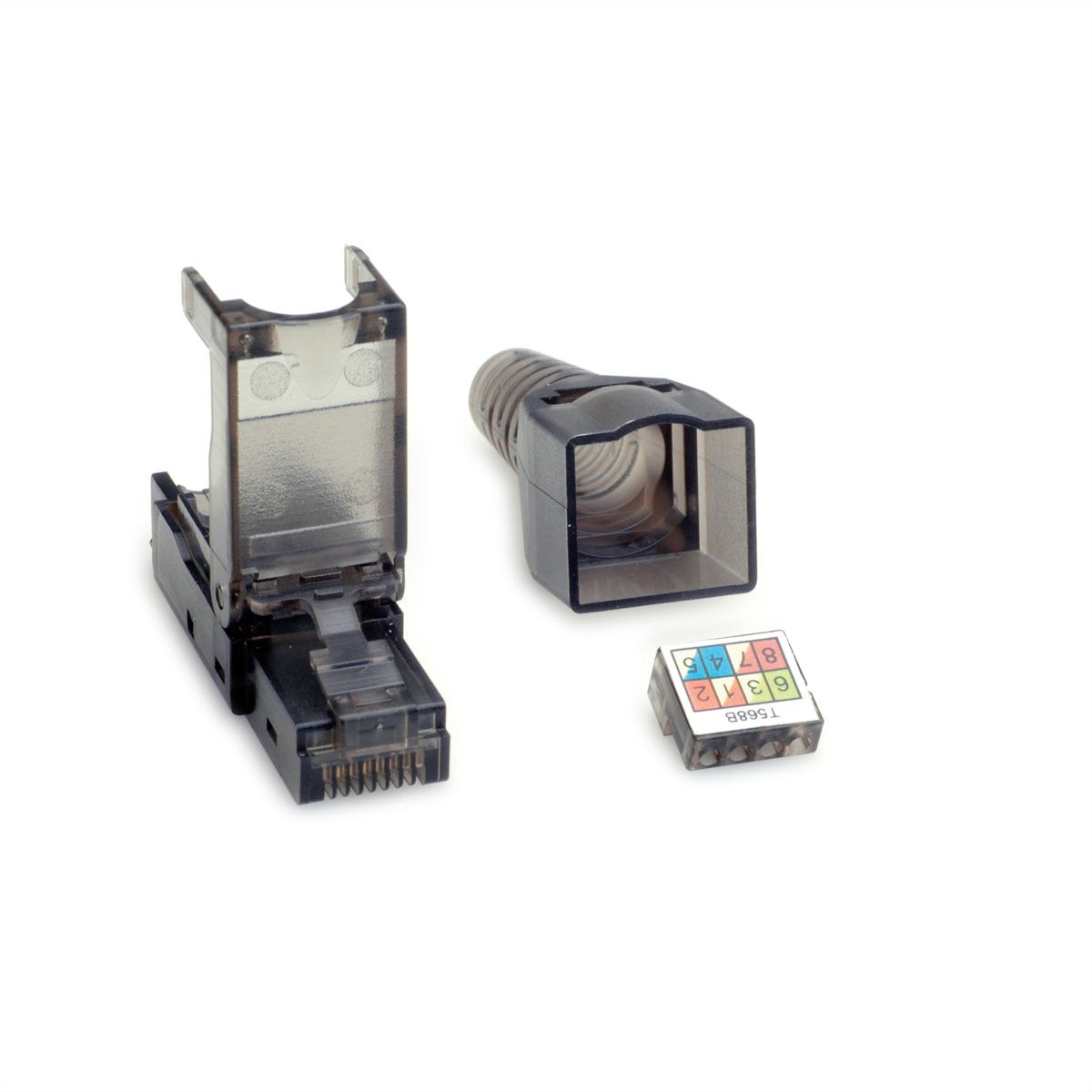

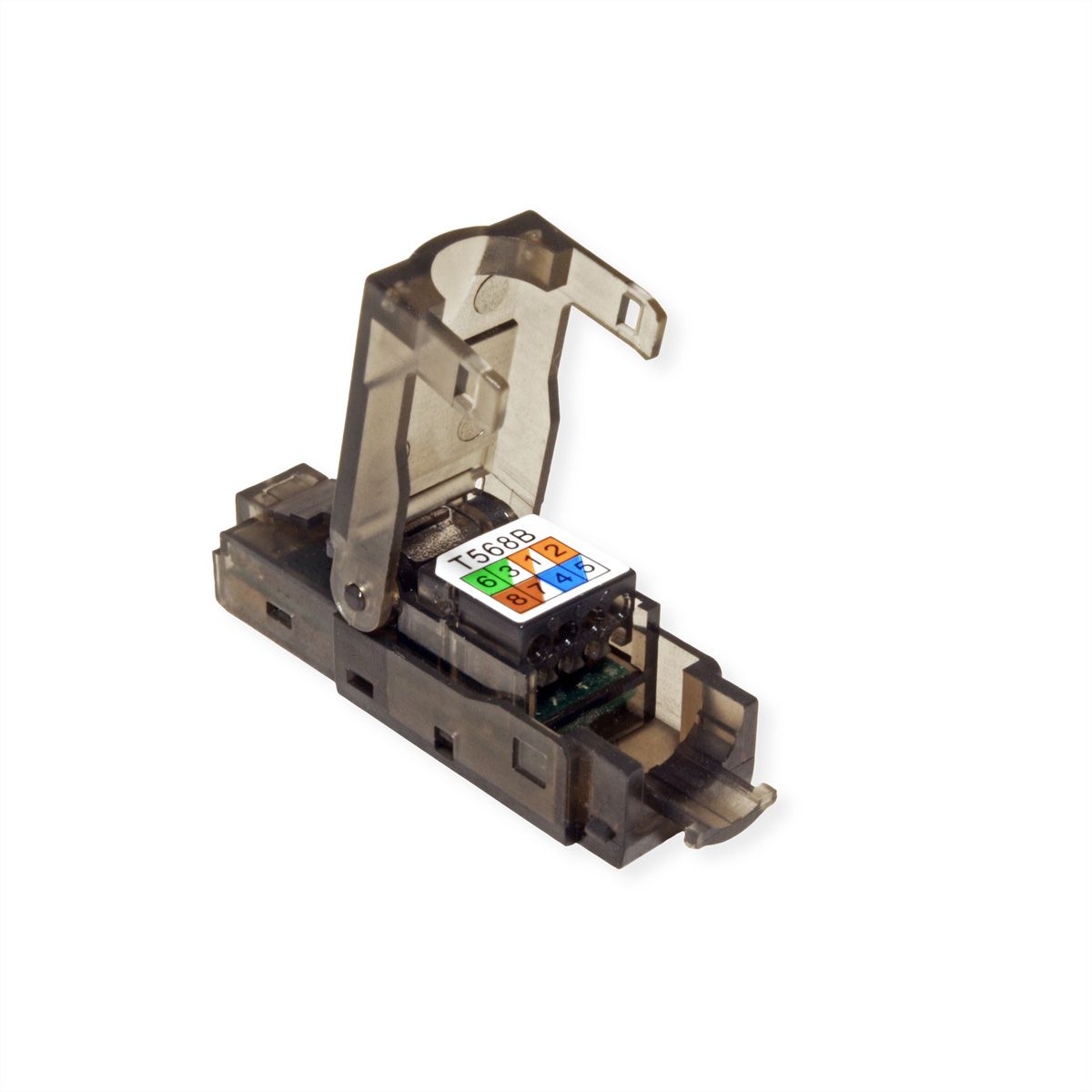

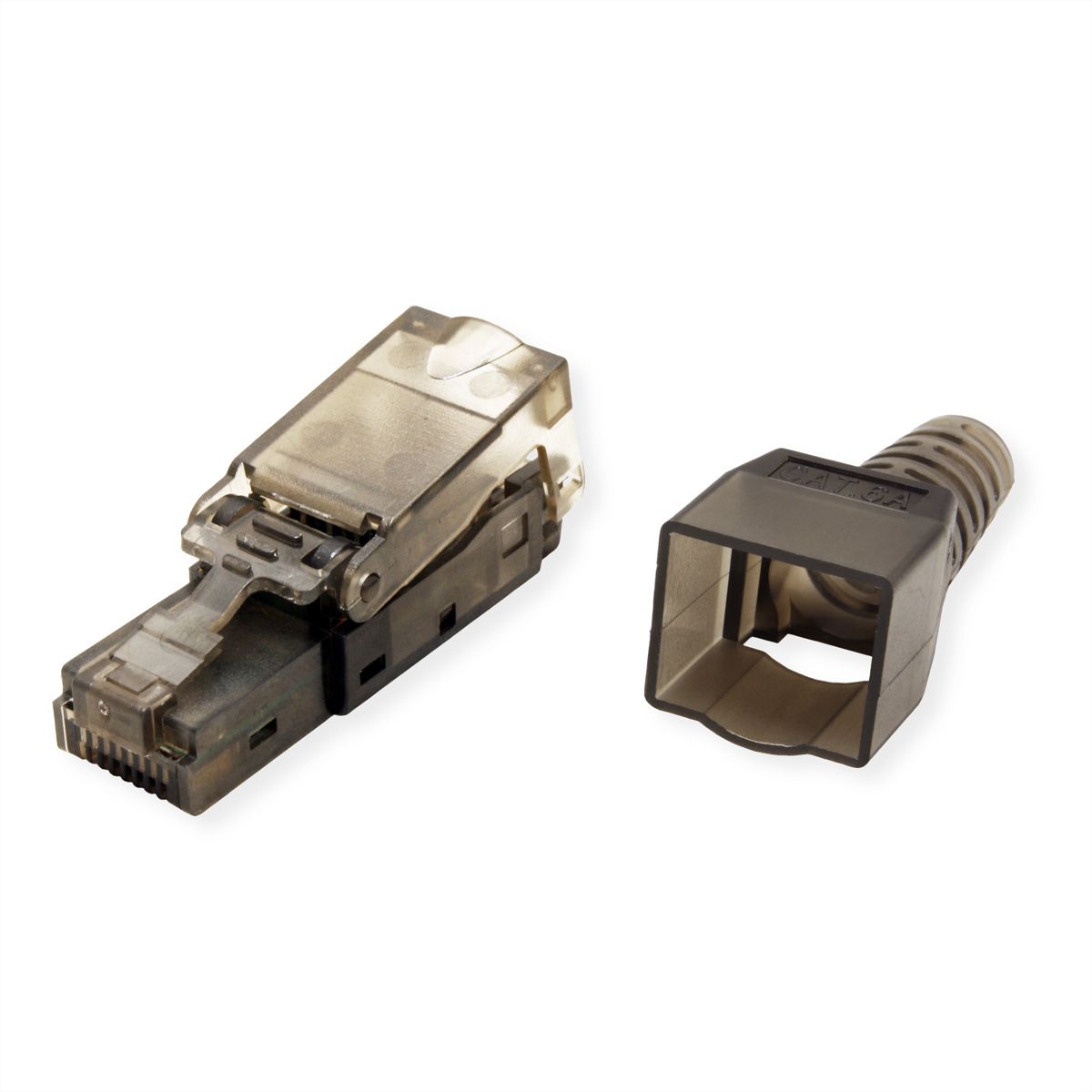

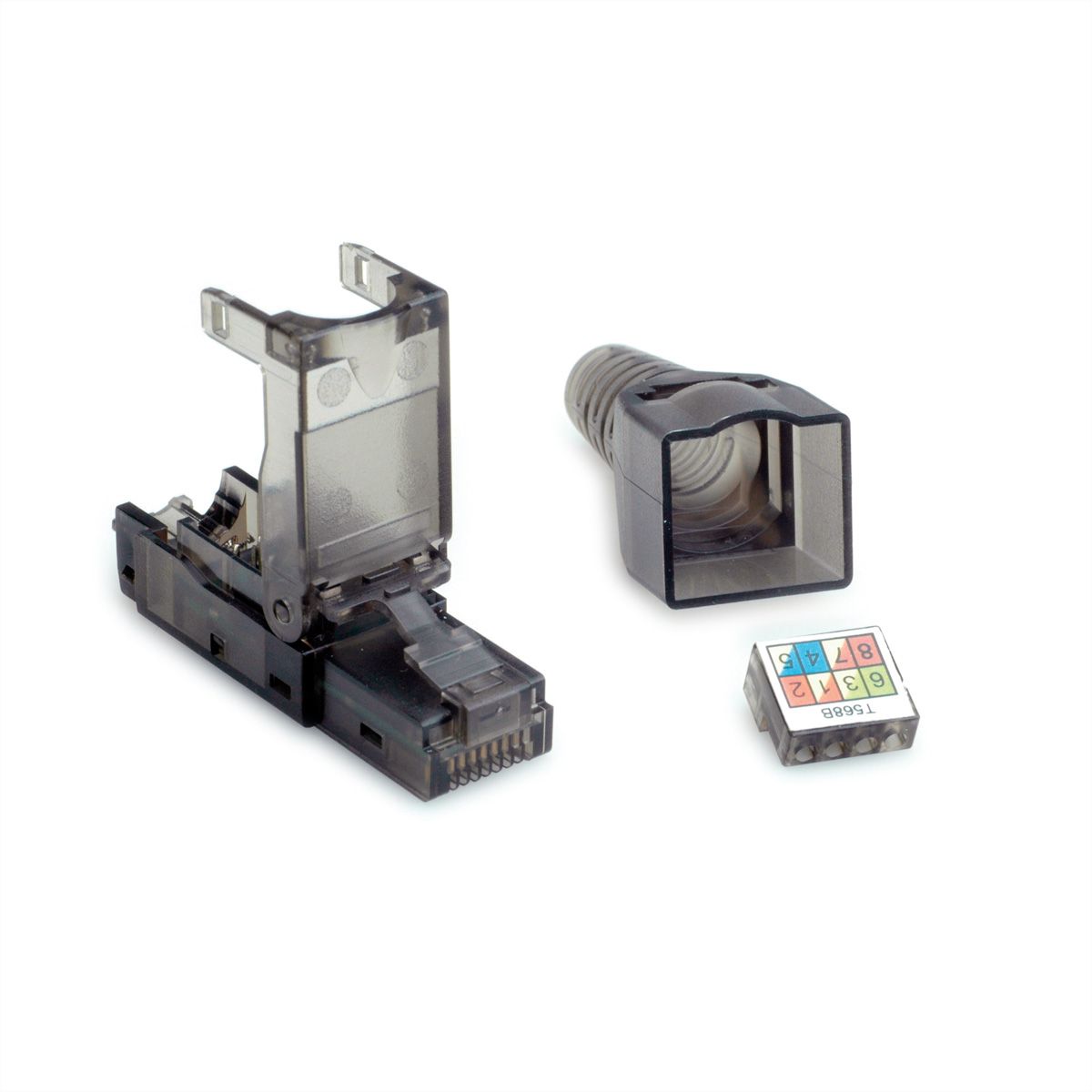

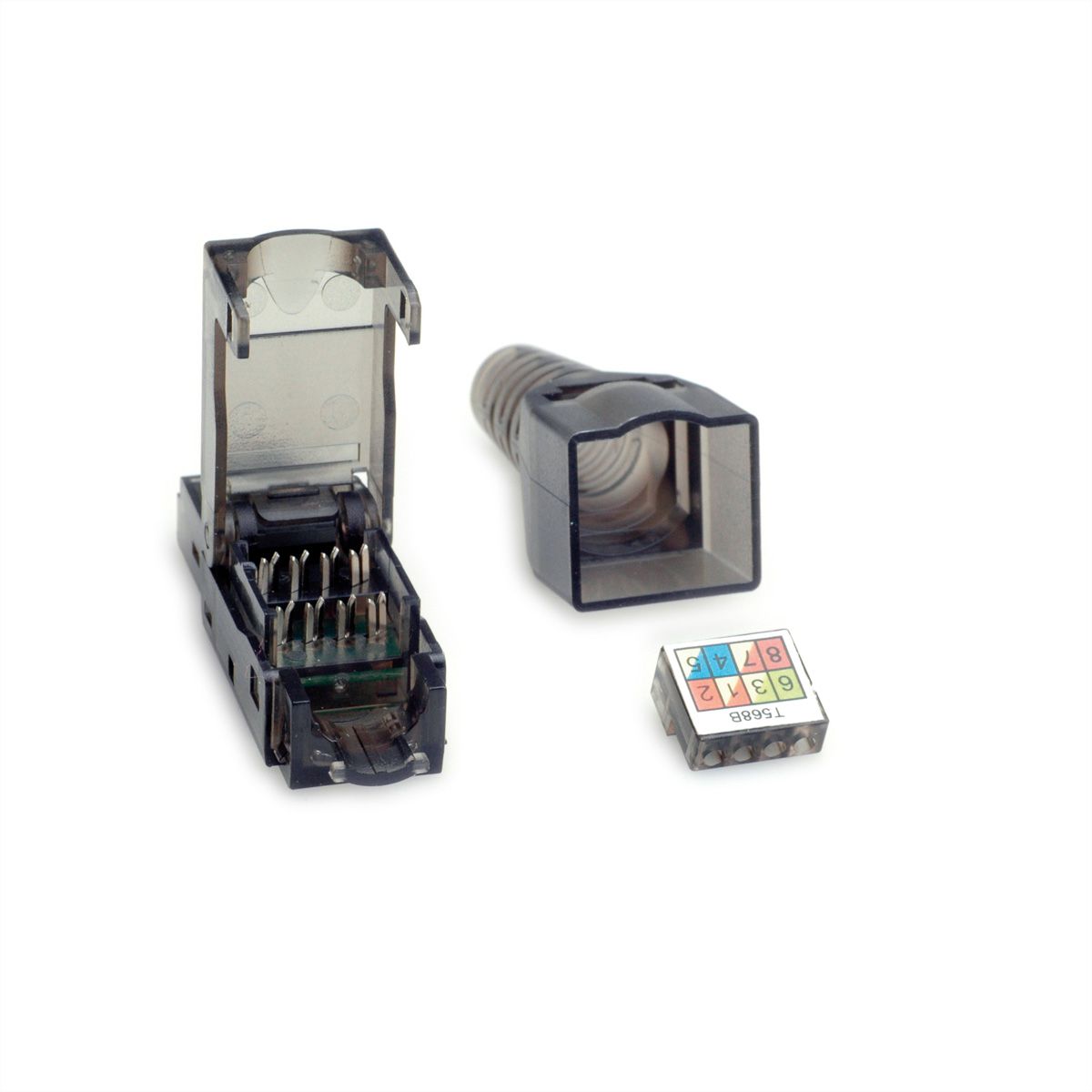

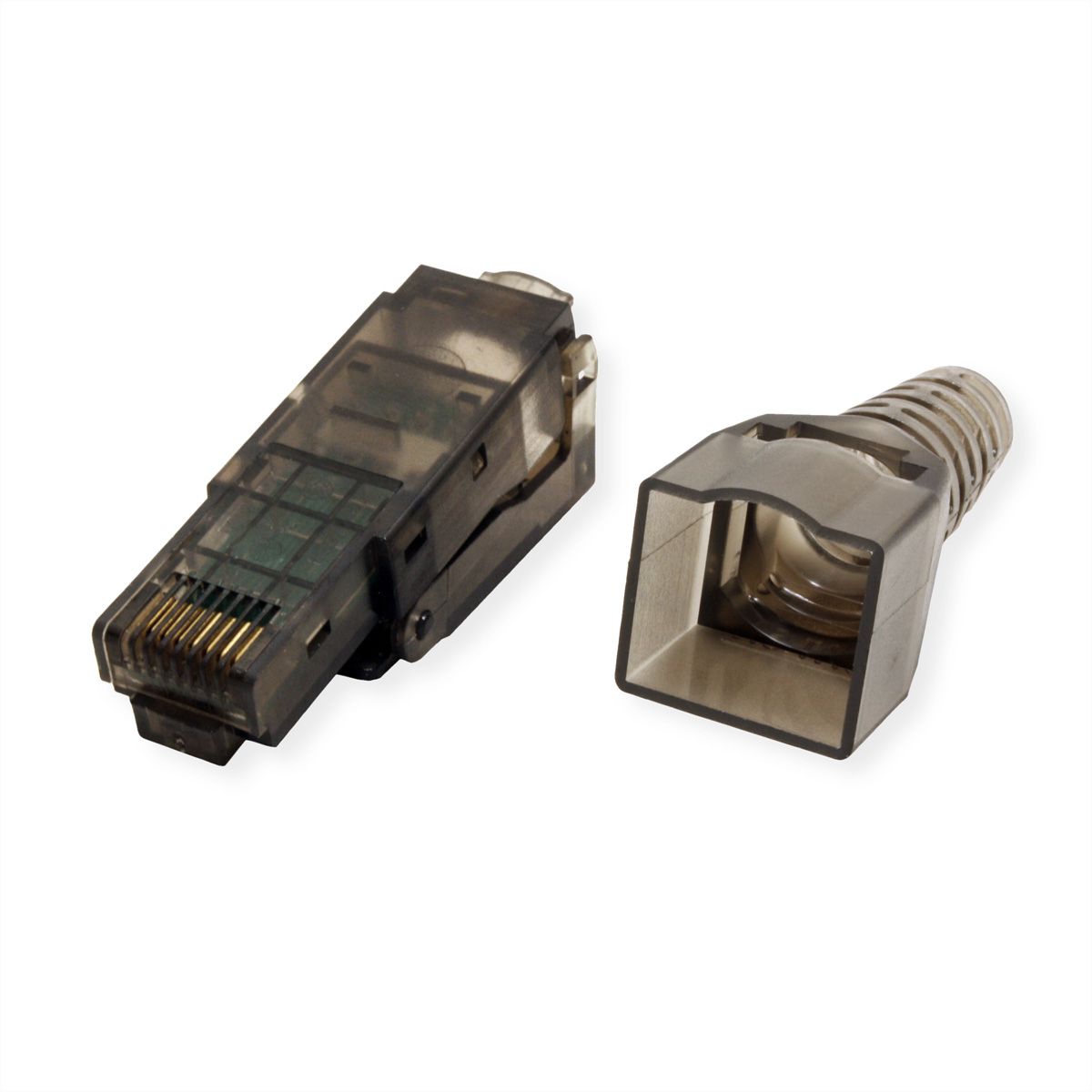

VALUE Field Plug Cat.6A (Class EA), UTP
Please log in to be able to use the shopping cart and then complete orders.
Log in| Item no. | 26.99.0372-50 |
|---|---|
| Brand / Manufacturer | VALUE |
| Manuf. no. | 26.99.0372 |
| EAN | 7630049690080 |
| Package weight | 0.02 kg |
:strip_icc():strip_exif()/logos/value.png "VALUE")
Description
- Fast and easy tool-free installable unshielded RJ45 connector
- Cat.6A / Class EA performance according to ISO/IEC11801 and IEC60603-7
- Compact cable manager for round Solid cable AWG 23-26(1/0.41-1/0.575mm) and stranded cable AWG 24-26(7/0.16-7/0.20mm)
- For cable with outer diameter OD: 6.0 - 9.0mm

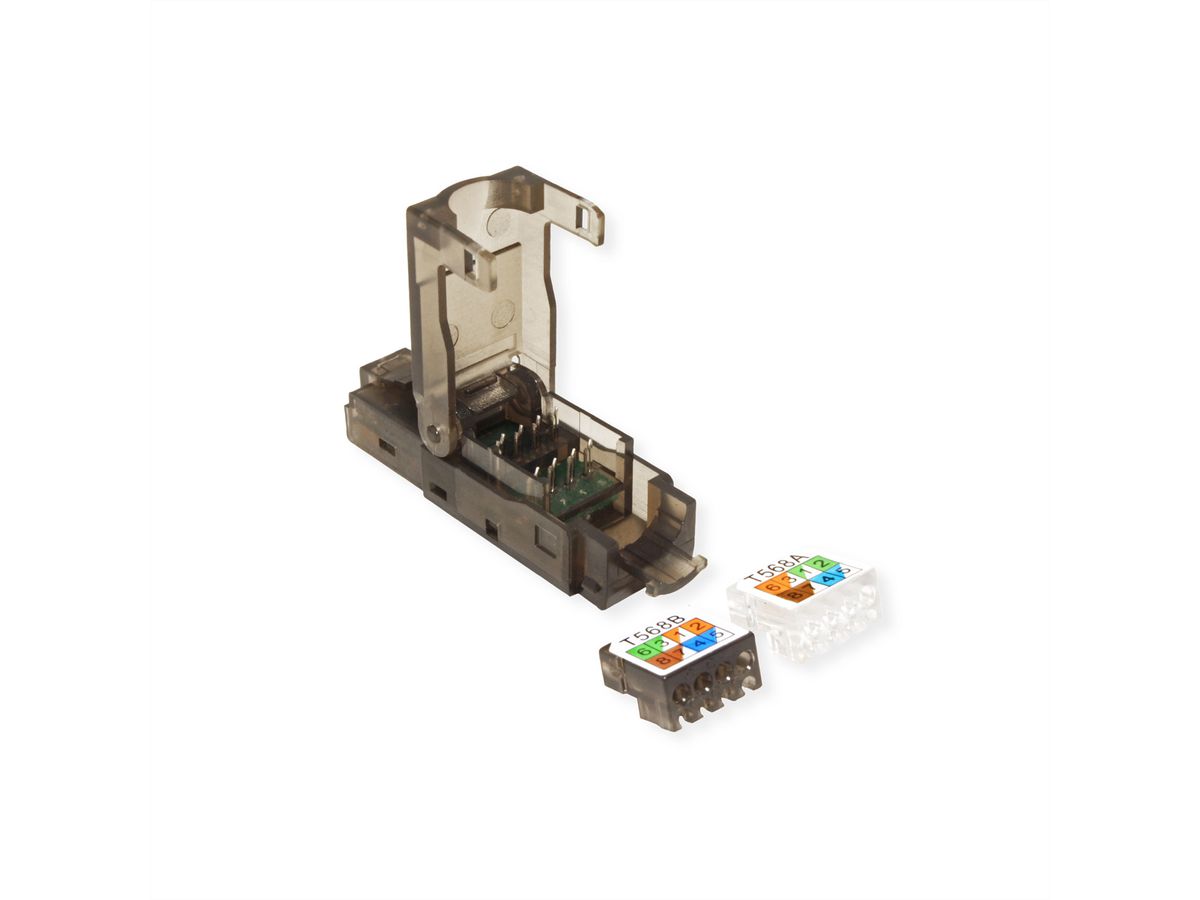

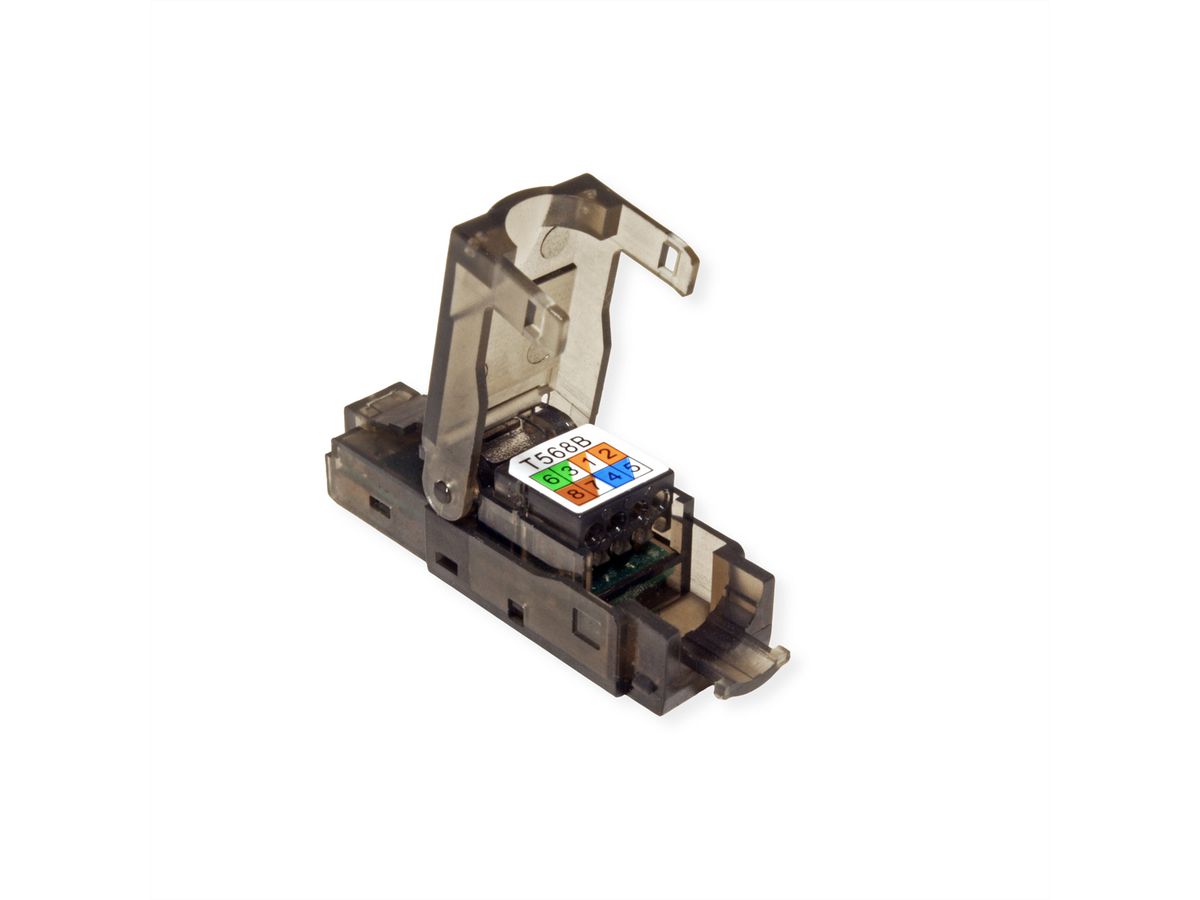

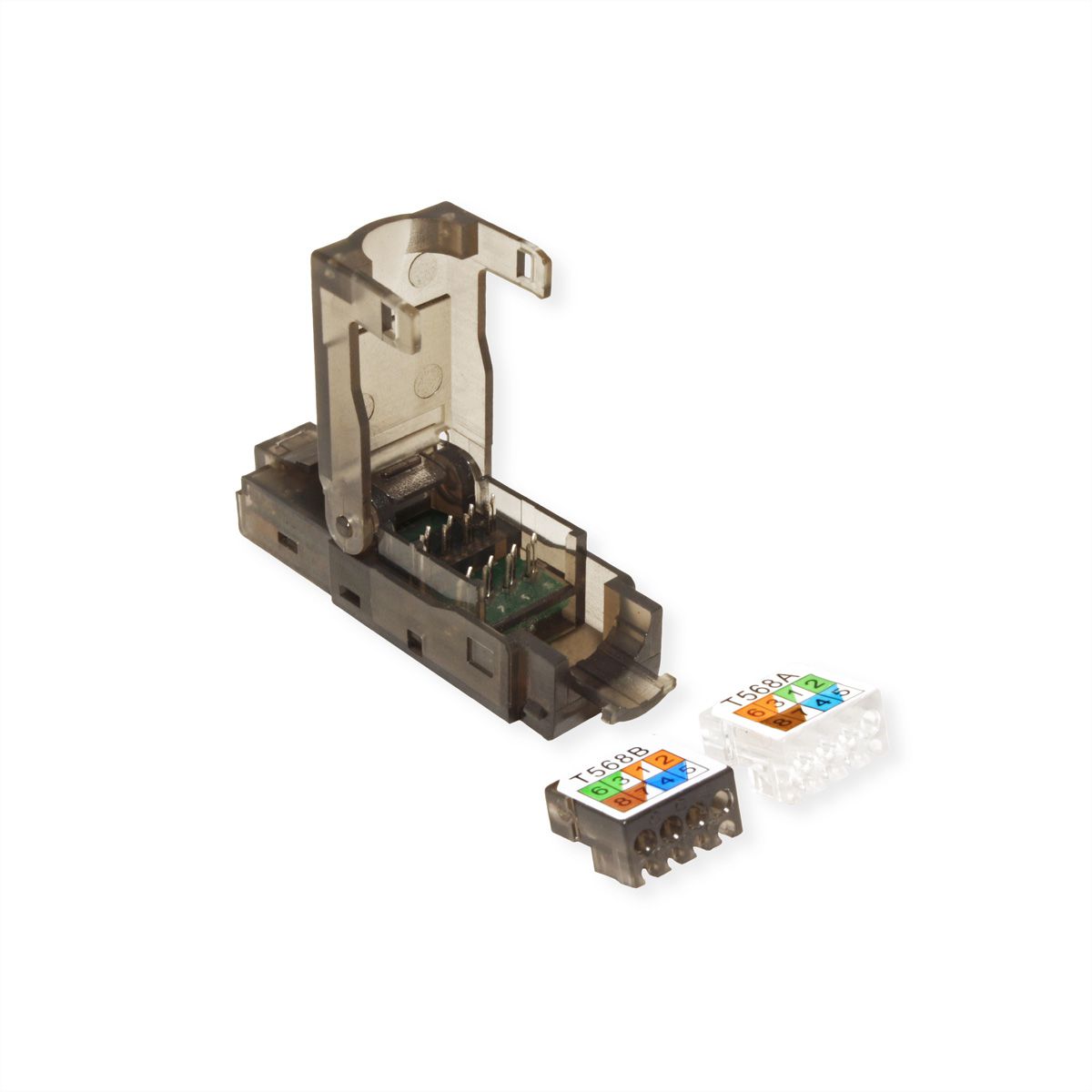

- Pair management according to TIA 568B and TIA 568A colour codes
- Strain relief with cable tie and black transparent dust cup and boot
- Color: Transparent black
Specifications
| Manufacturer | VALUE |
|---|---|
| Product group | Connection technology TP |
| Product type | Connectors RJ-45 |
| Colour | transparent |
| Shield type | Not screened |
| Transfer quality | Cat6A / Class EA |
| Shield contacts | ja |
| separate strain relief | yes |
| Height | 15.3 mm |
| Width | 13.9 mm |
| Depth | 69.7 mm |
| Weight | 9.9 g |
| Height of packaging (single piece) | 20 mm |
| Width of packaging (single piece) | 20 mm |
| Depth of packaging (single piece) | 20 mm |
| Package weight (single piece) | 0.02 kg |
