Description

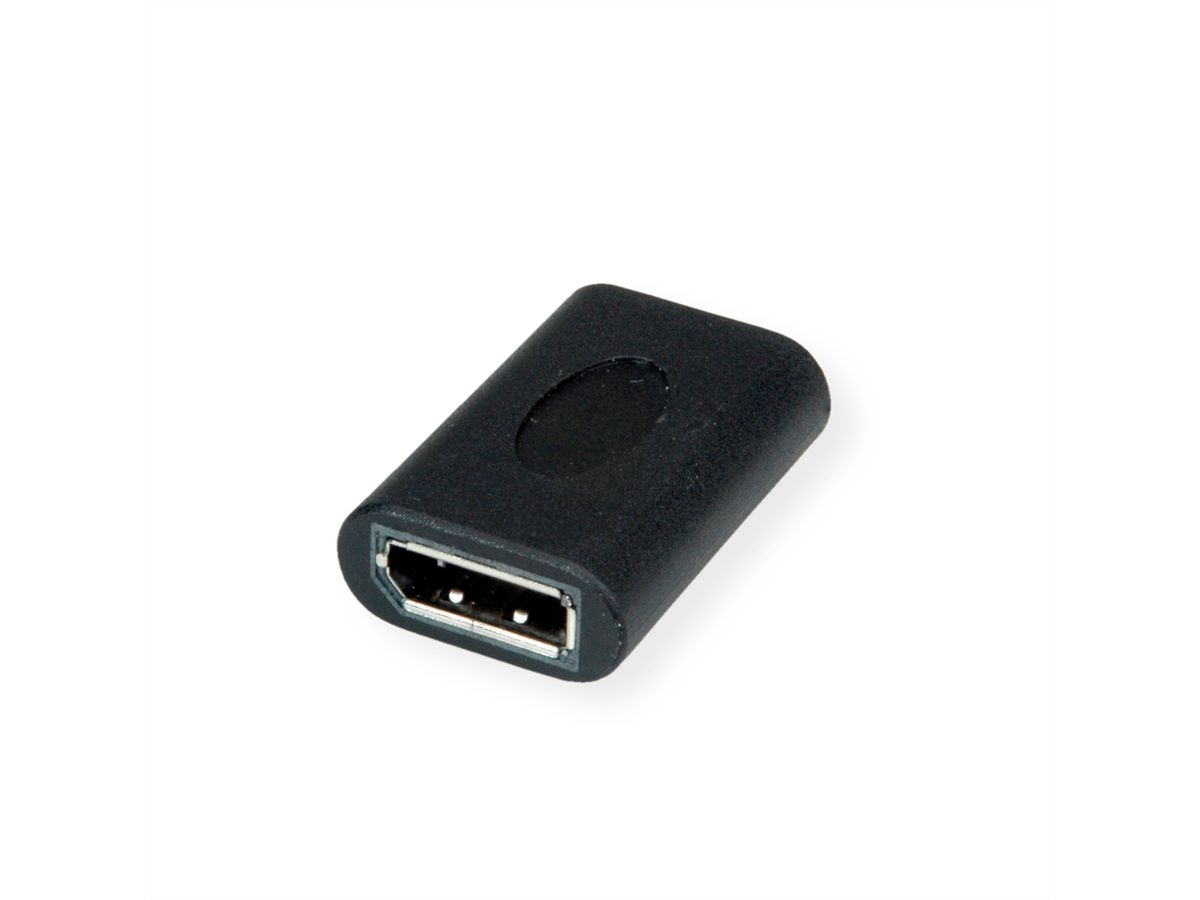

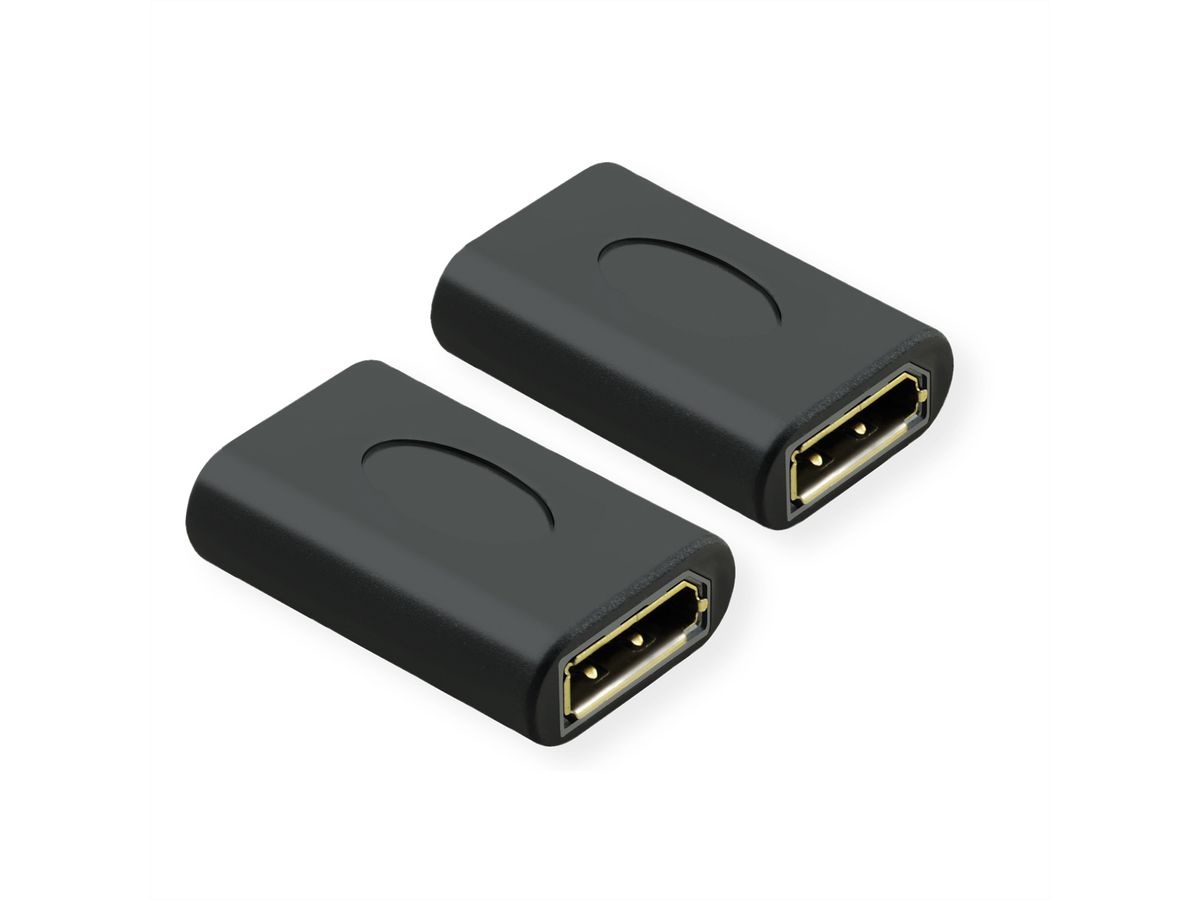

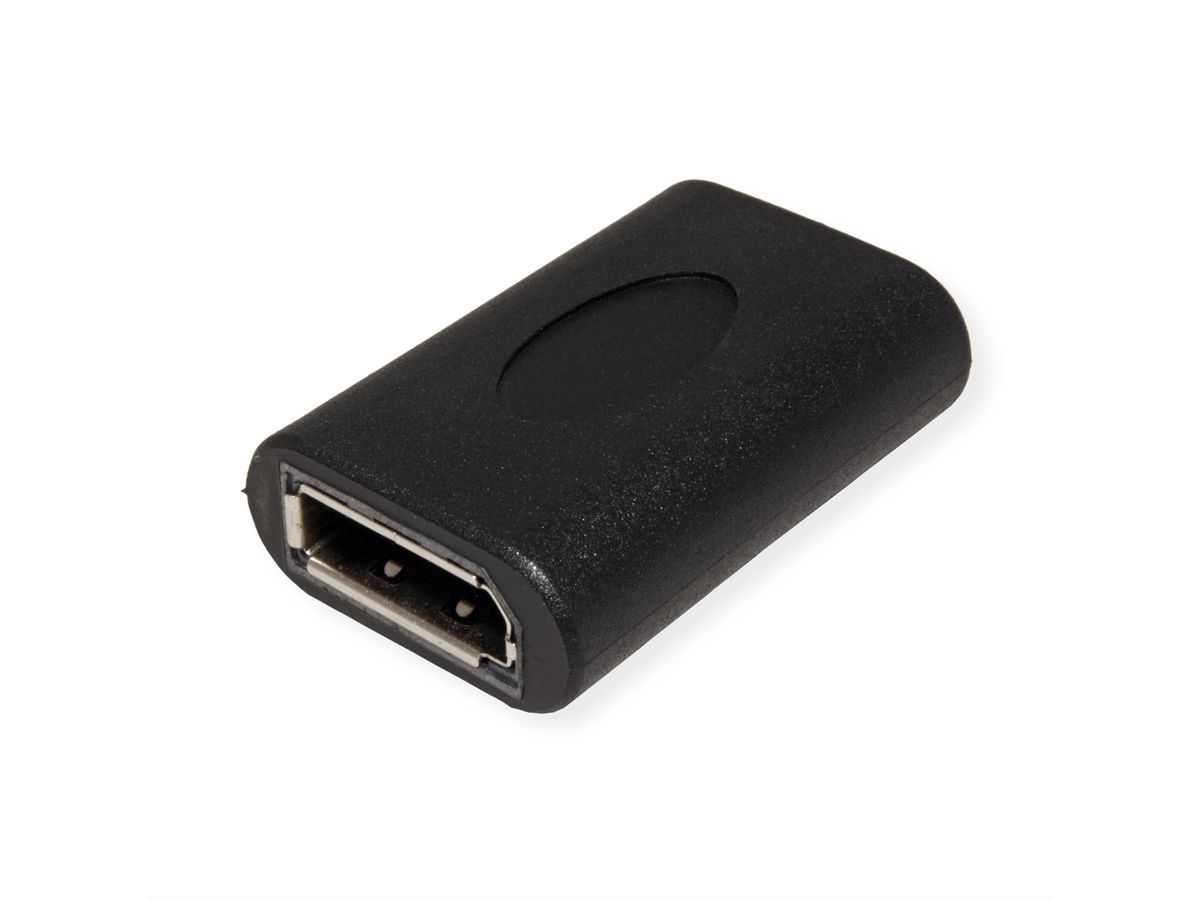

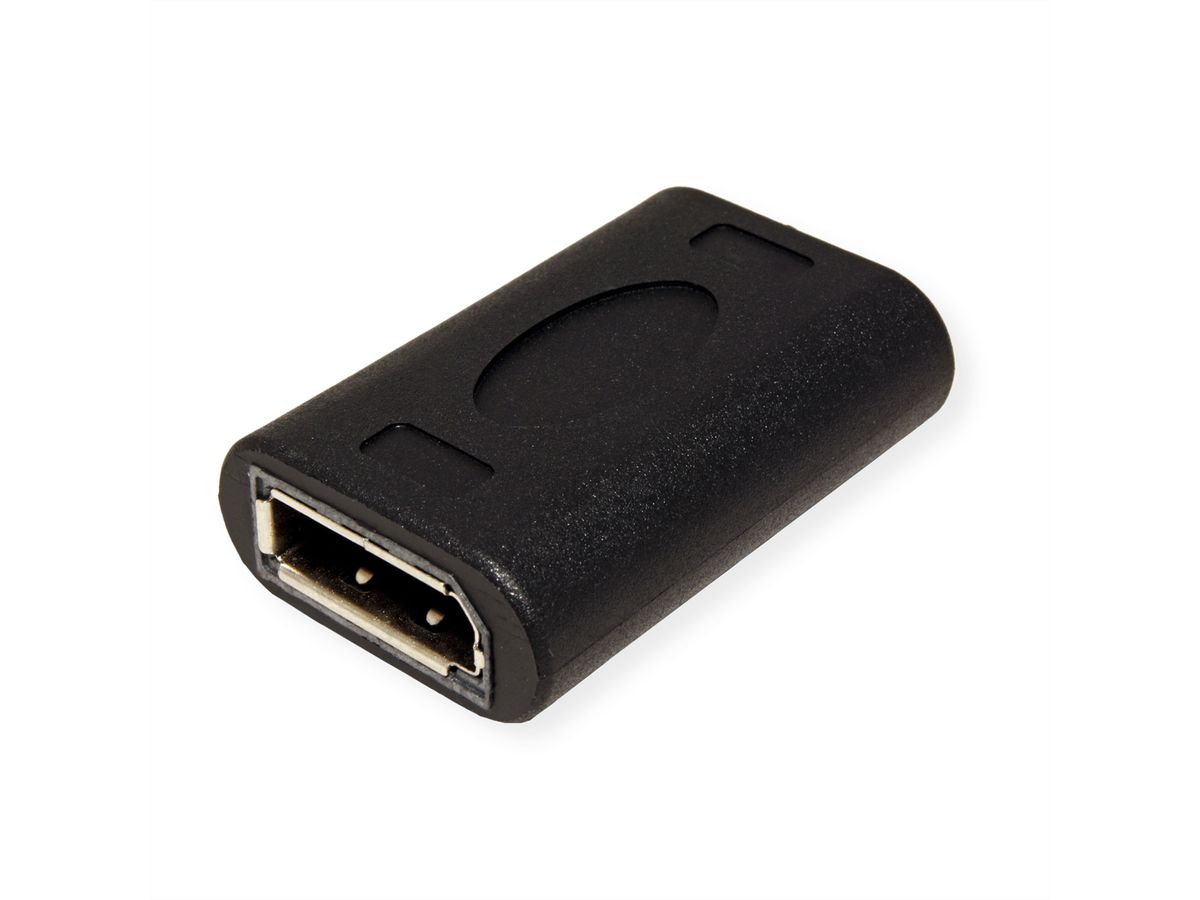

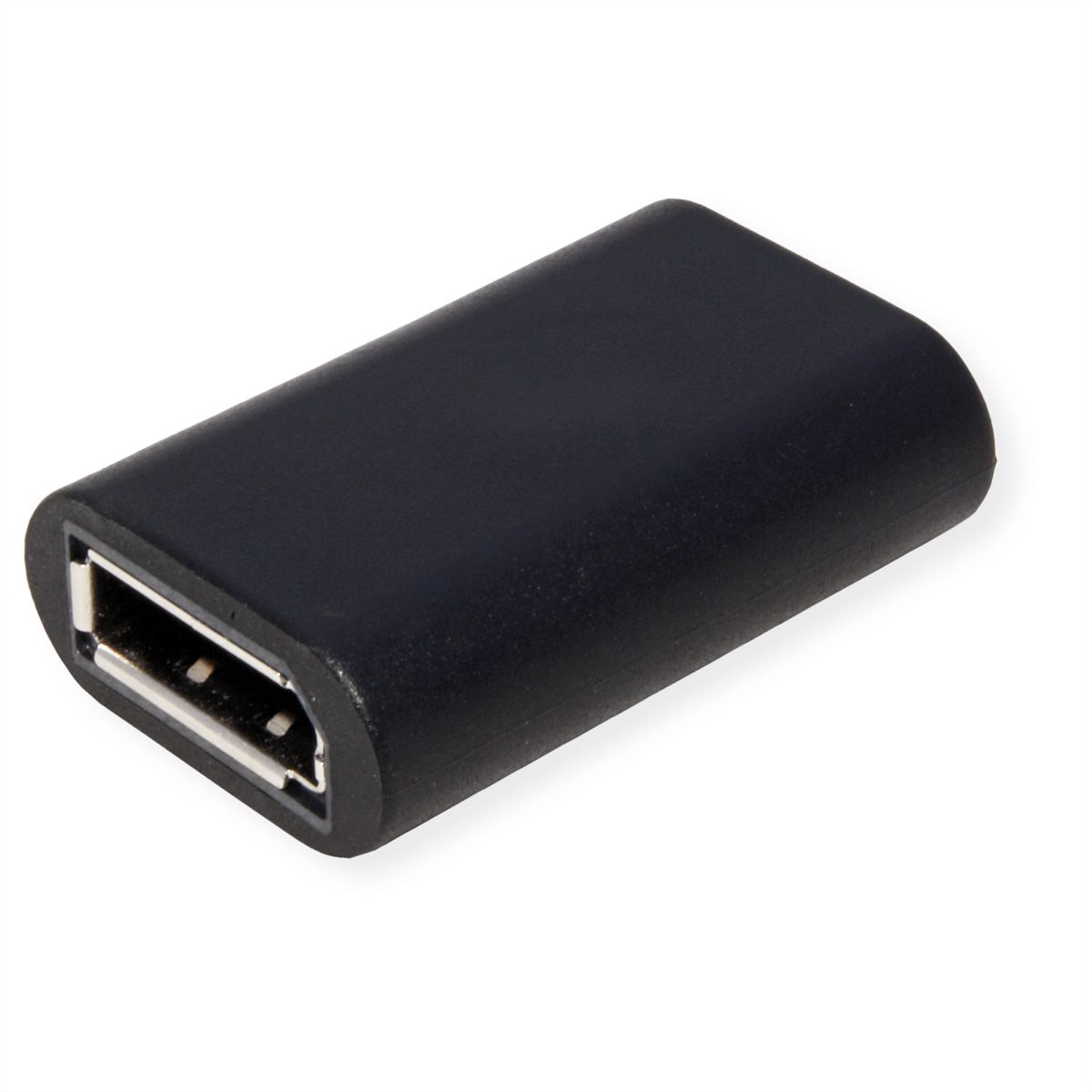

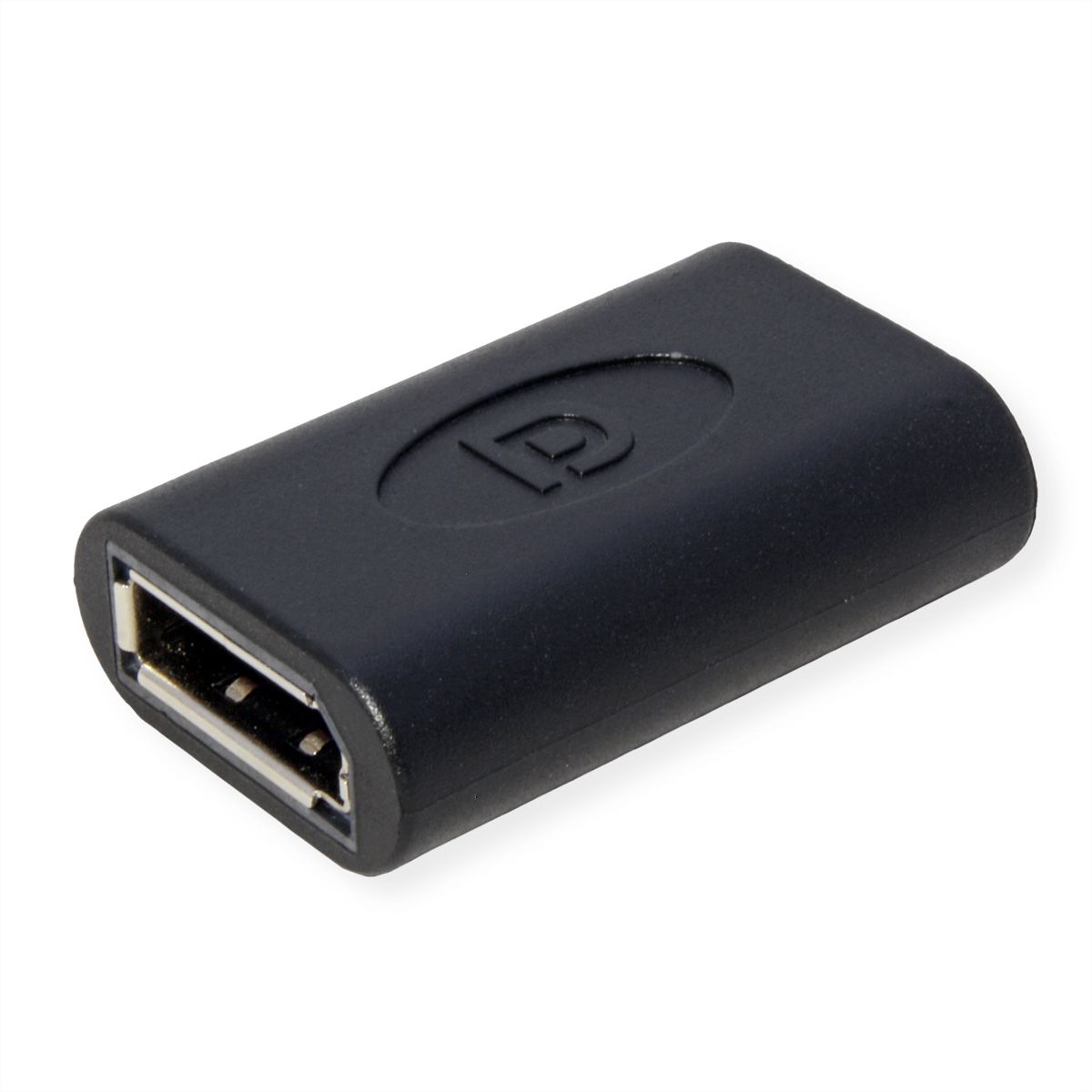

DisplayPort connector with sockets on both sides - to connect two DisplayPort cables, with a maximum resolution of 3840x2160 @60Hz!

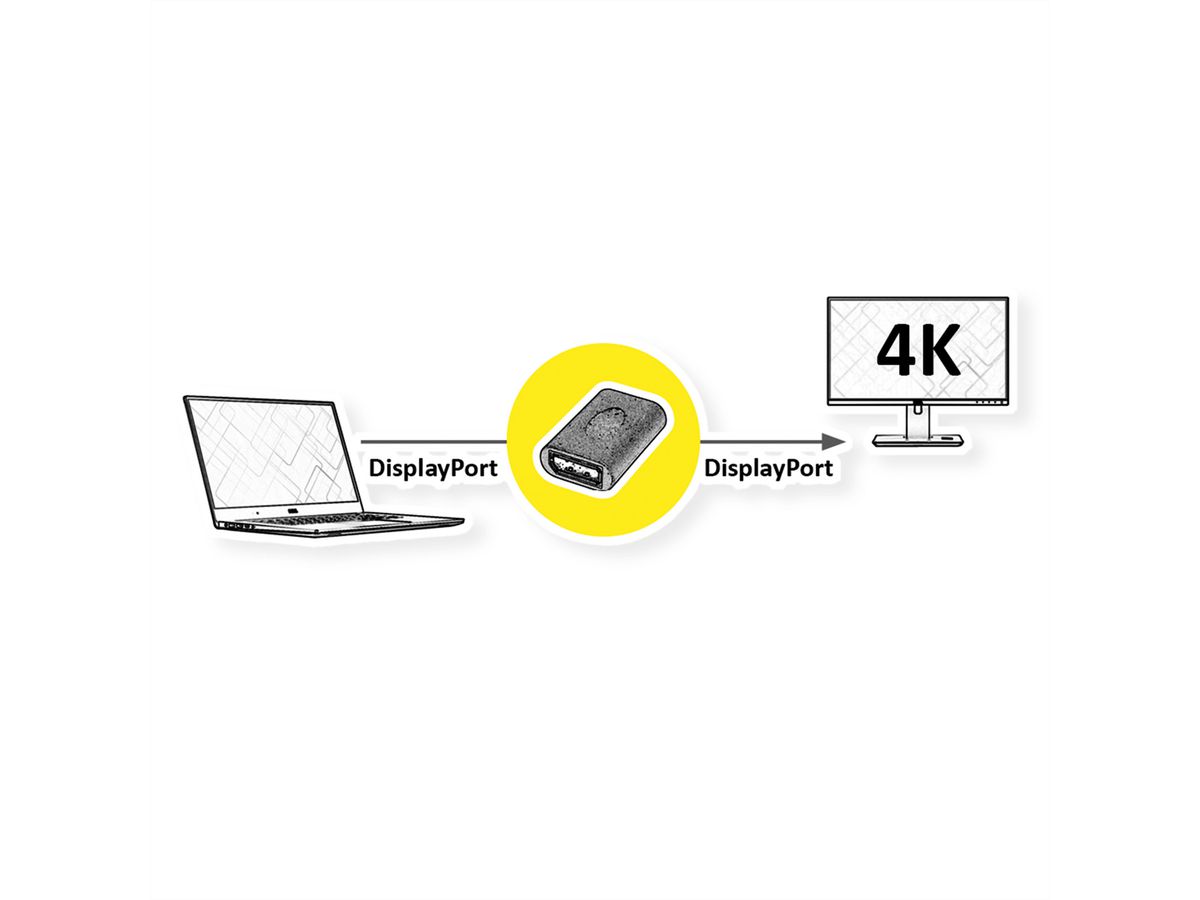

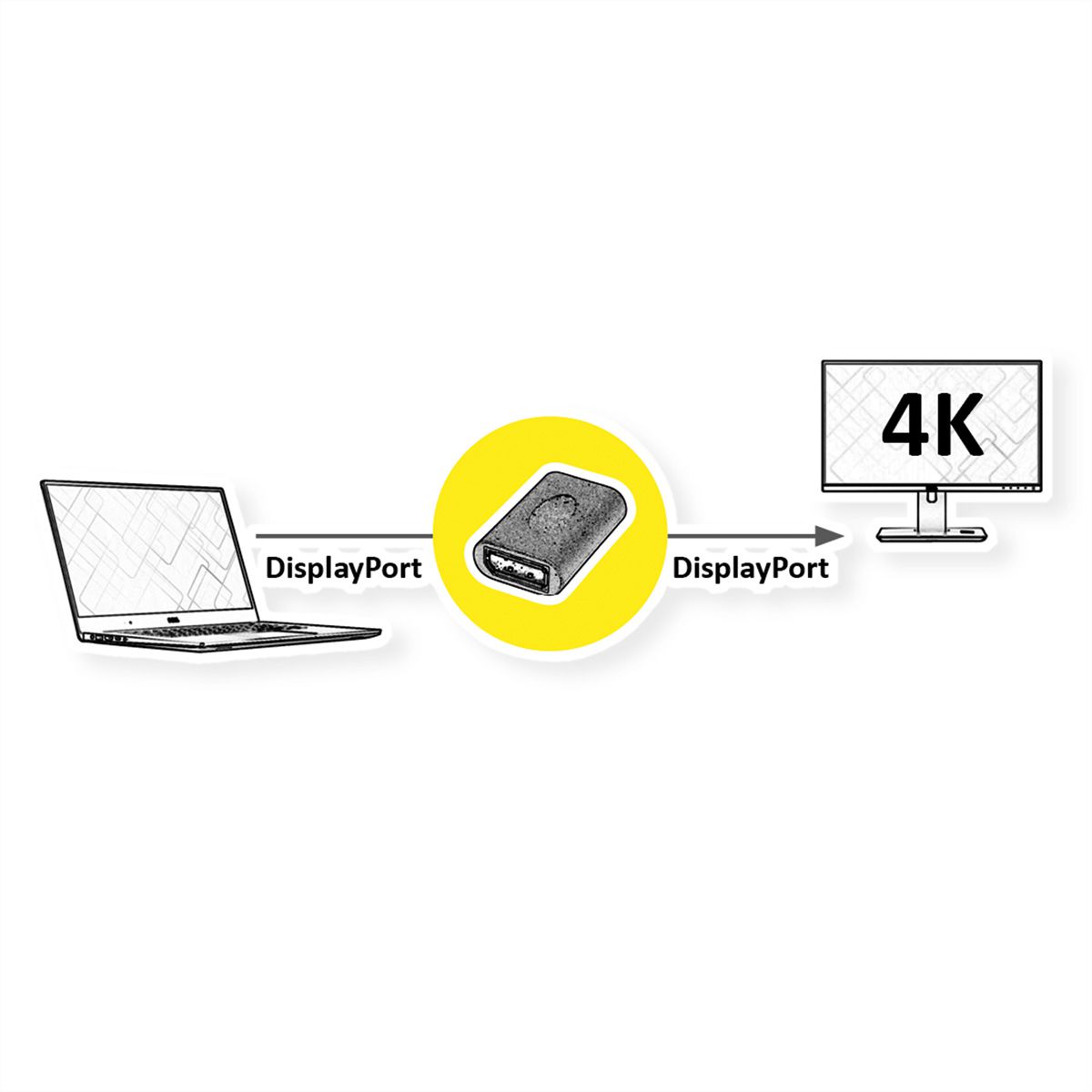

• The adapter allows you to connect two DisplayPort cables to each other
• Cables that are difficult to access can be easily connected with this adapter
• Gold plated connectors
• Sturdy housing made of black plastic
• Provides reliable signal transmission for all DisplayPort v1.2 functions
• Maximum resolution: 3840x2160 @60Hz
• Connections: DisplayPort socket/socket

• Note: Coupled cable lengths exceeding a total of 3m on both sides may degrade signal performance.

• Compliant DP v1.2 (max. 4096 x 2560 @60Hz)

Specifications

Manufacturer	VALUE
Product group	Adapters, Terminators, Converters
Product type	DisplayPort-DisplayPort Adapter
Colour	black
Max. resolution	4096 x 2560 @60Hz (4K)
Side 1 connection (PC)	DisplayPort F
Side 2 connection (Peripherals)	DP female
Side 1 Connector Type	DisplayPort
Side 1 Connector Gender	Female
Side 2 Connector Type	DisplayPort
Side 2 Connector Gender	Female
Active / Passive	Passive
Area of application	External
Weight	15.6 g
Height of packaging (single piece)	20 mm
Width of packaging (single piece)	20 mm
Depth of packaging (single piece)	50 mm
Package weight (single piece)	0.02 kg
