VALUE Display Port Splitter (Hub), 2 Ports
Please log in to be able to use the shopping cart and then complete orders.
Log inDescription
- Offers solutions for digital entertainment center, conference room presentation, school and corporate training environments...

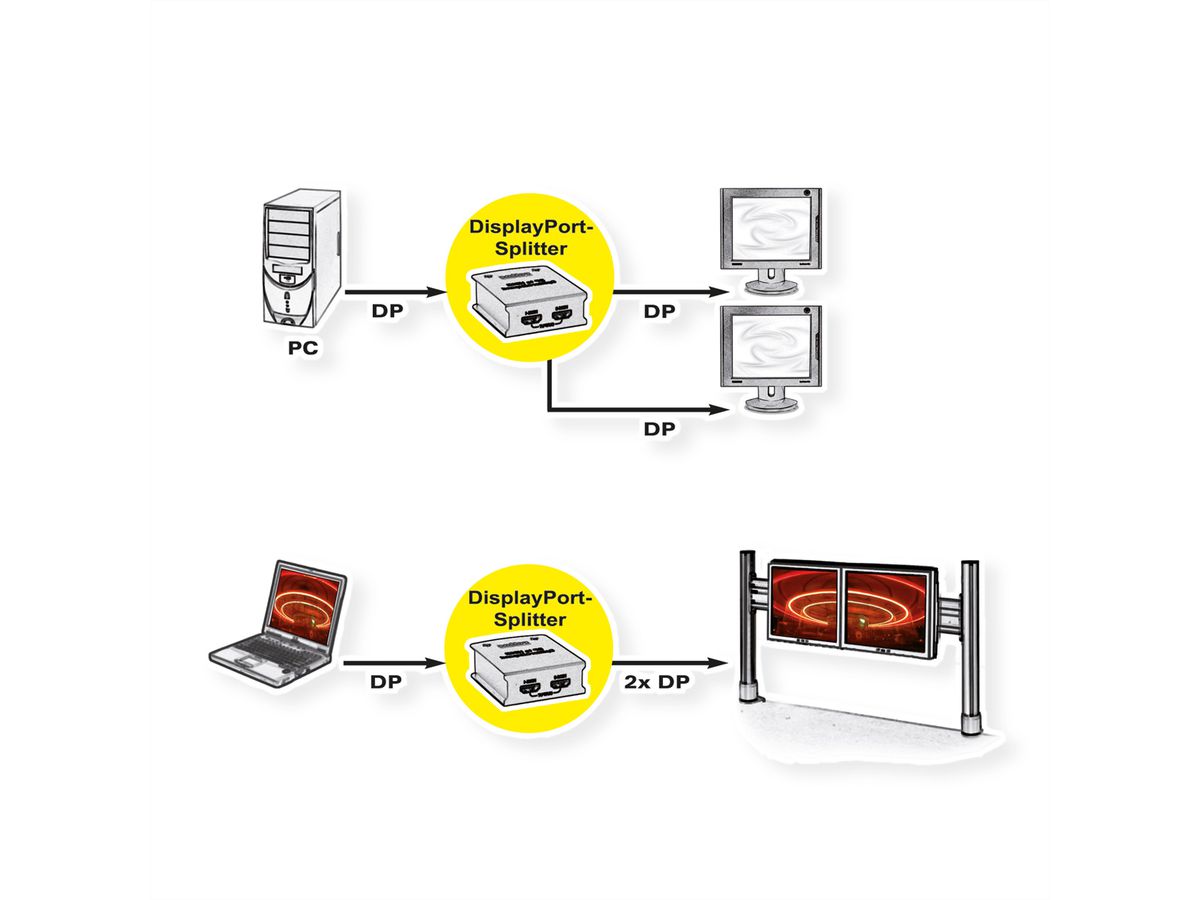

- This is a two ports DisplayPort hub, designed for transmitting signals from one DisplayPort source device to two DisplayPort displays
- This hub owns both SST and MST functions - which allow you to enjoy one picture with dual monitors or independent pictures on each monitor respectively
- Connected to earlier revisions of DisplayPort, the hub can act as a video splitter
- Support DisplayPort 1.2
- Max. resolution up to 4K2K@30Hz (3840x2160)
- HDCP 1.3 compliant
- EDID 1.4 compliant
- Power supply included in delivery (5 VDC, 2A)
Specifications
Manufacturer | VALUE |
---|---|
Product group | Splitters and selectors |
Product type | DisplayPort-Splitter |
Colour | black |
Scope of delivery | splitter, manual, power supply |
Interface | DP |
Inputs | 1 |
Outputs | 2 |
Video input | 1x DP Female |
Video output | 2x DP Female |
Max. resolution (nom.) | 3840 x 2160 |
Dimensions (HxWxD) | 20 x 60 x 70 mm |
Power supply output | 5V DC, 2A |
Height | 20 mm |
Width | 60 mm |
Depth | 70 mm |
Weight | 132.9 g |
Height of packaging (single piece) | 60 mm |
Width of packaging (single piece) | 120 mm |
Depth of packaging (single piece) | 180 mm |
Package weight (single piece) | 0.37 kg |
