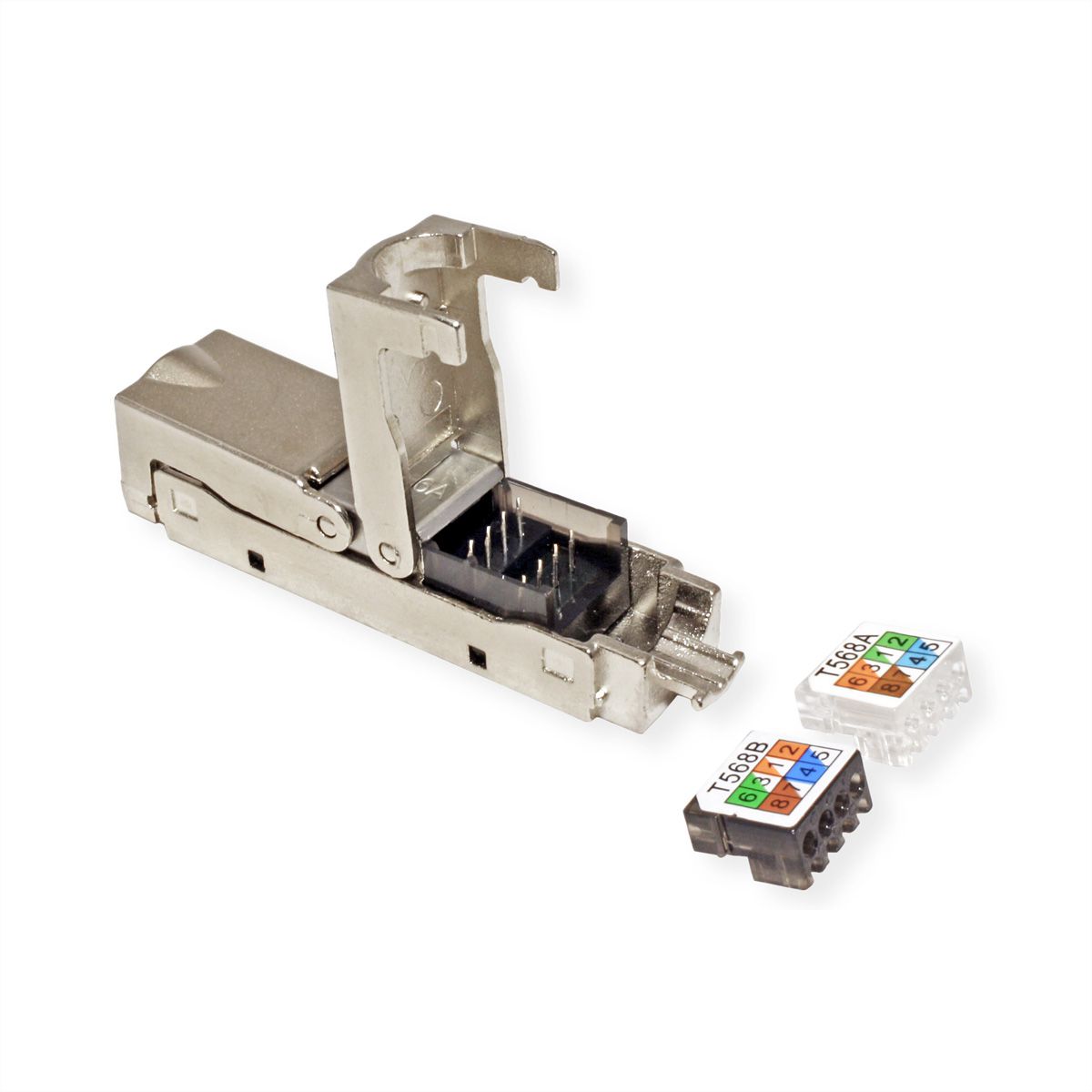

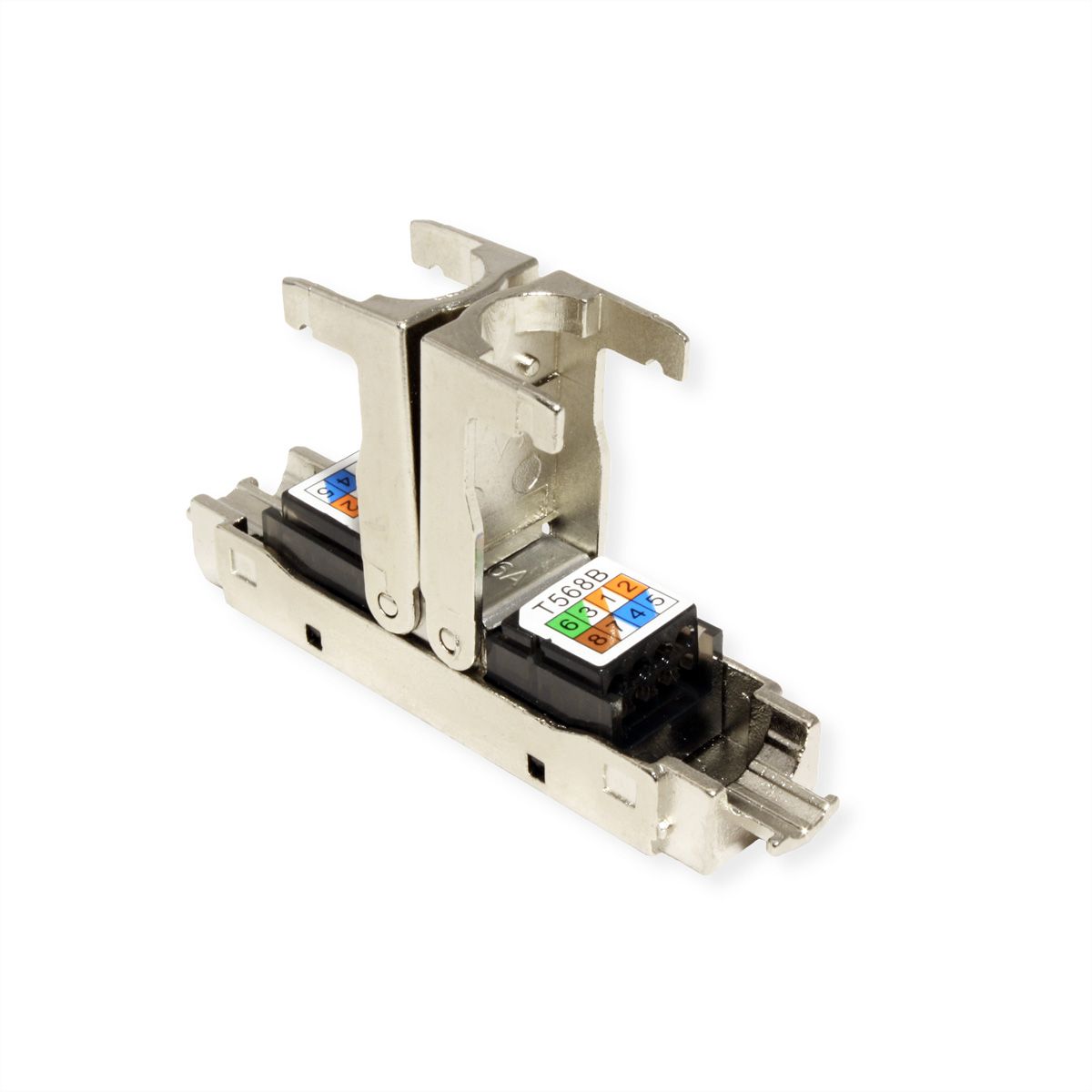

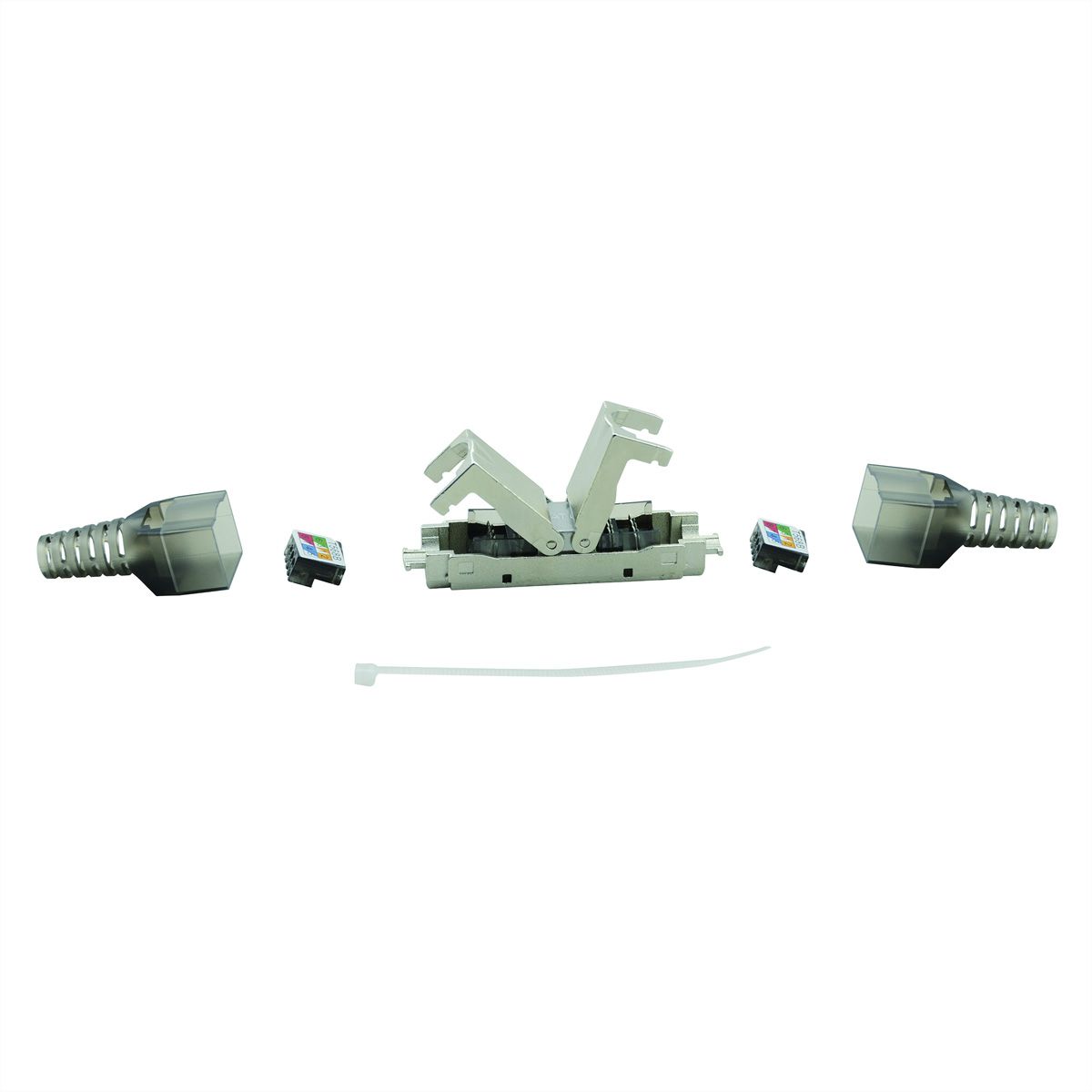

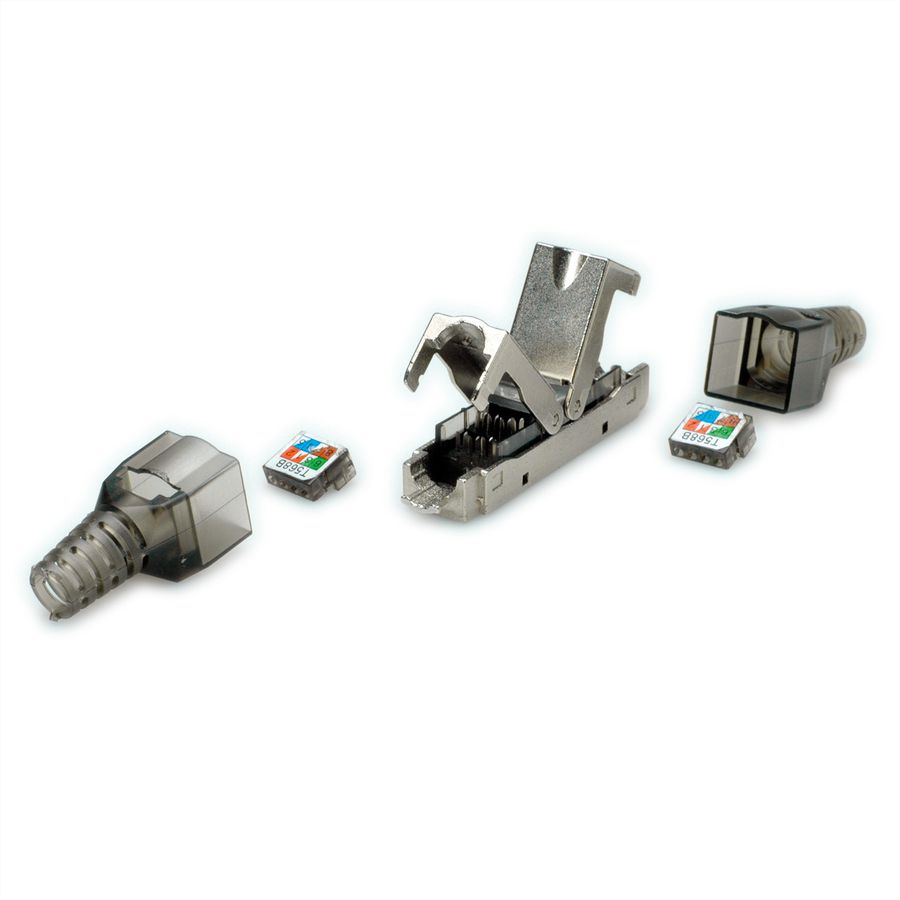

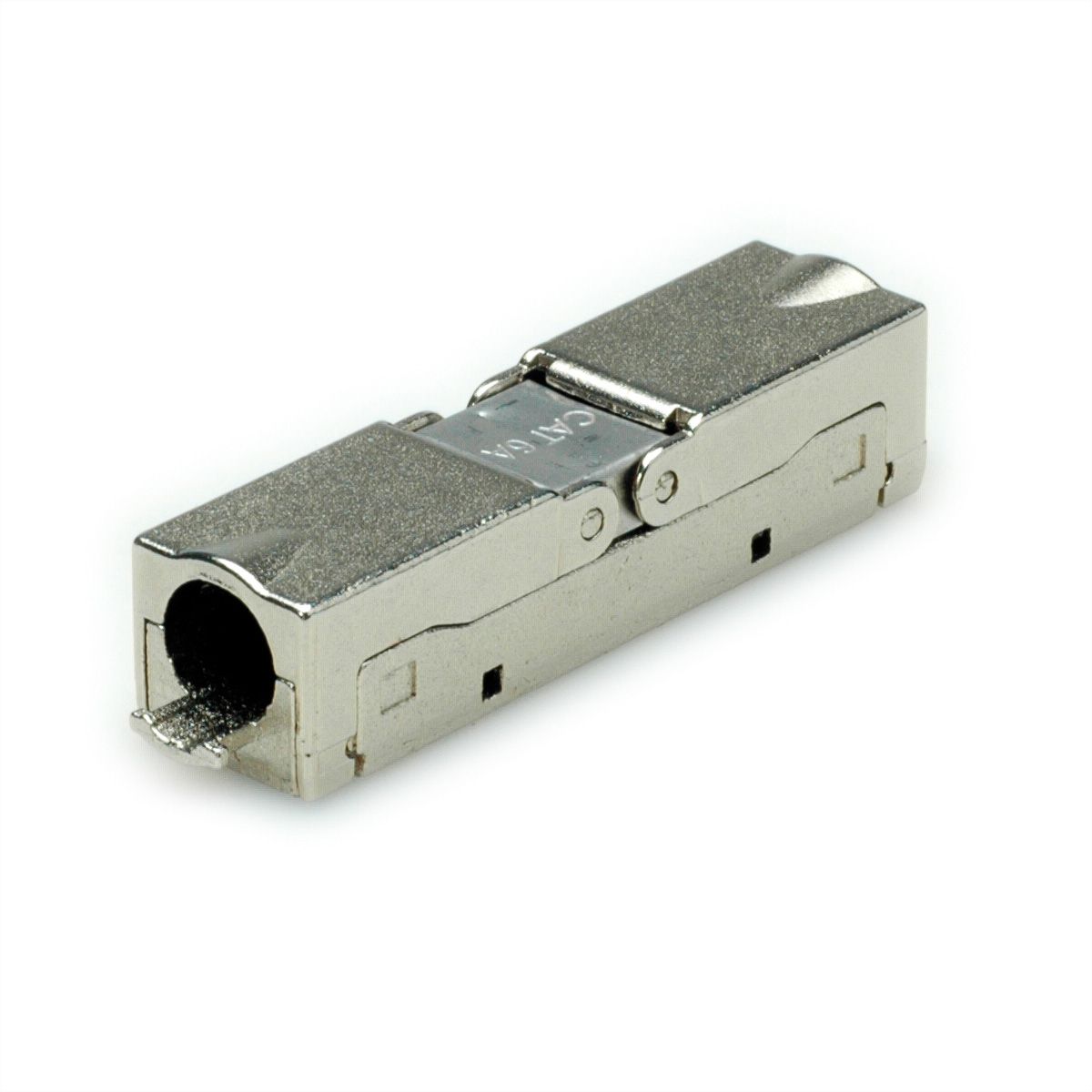

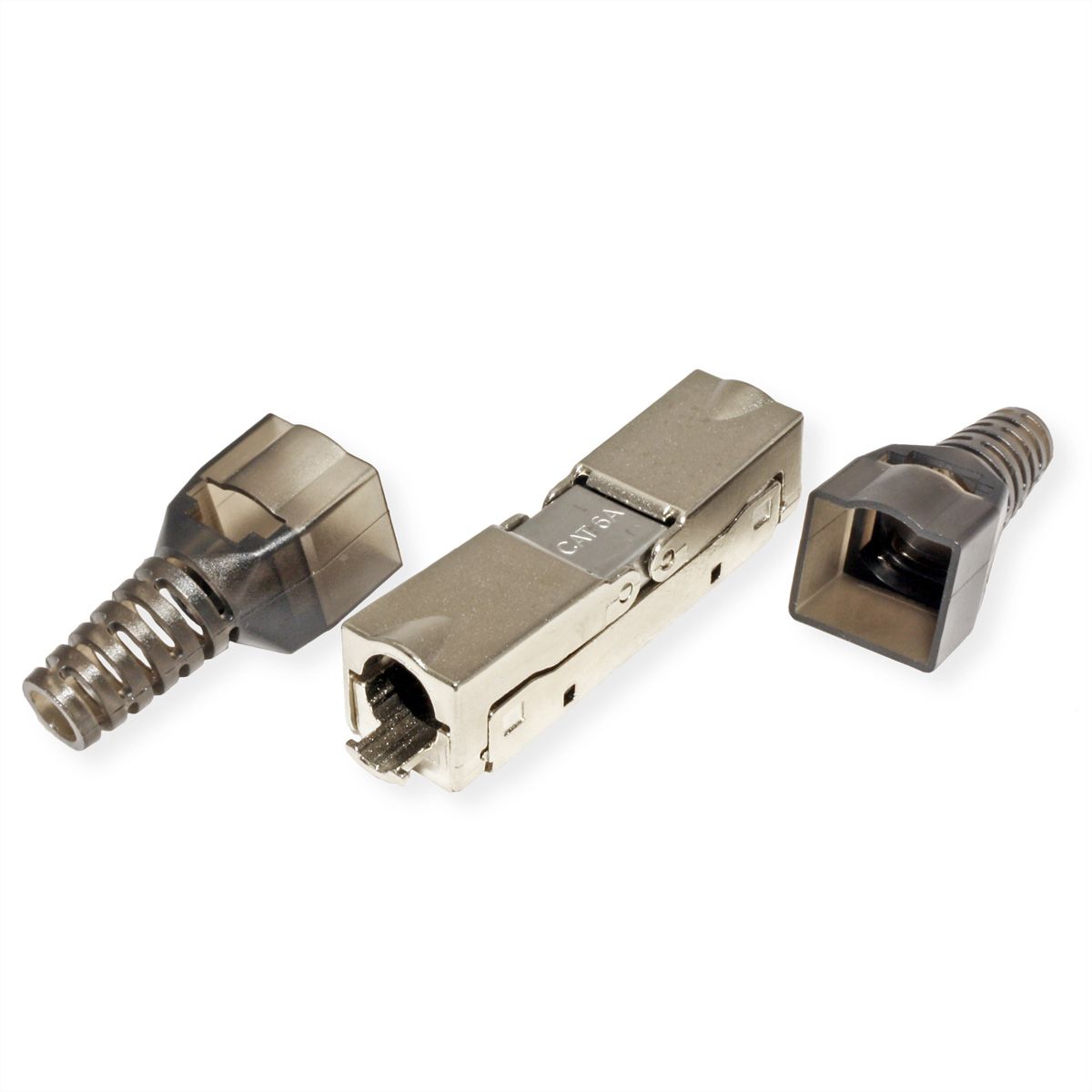

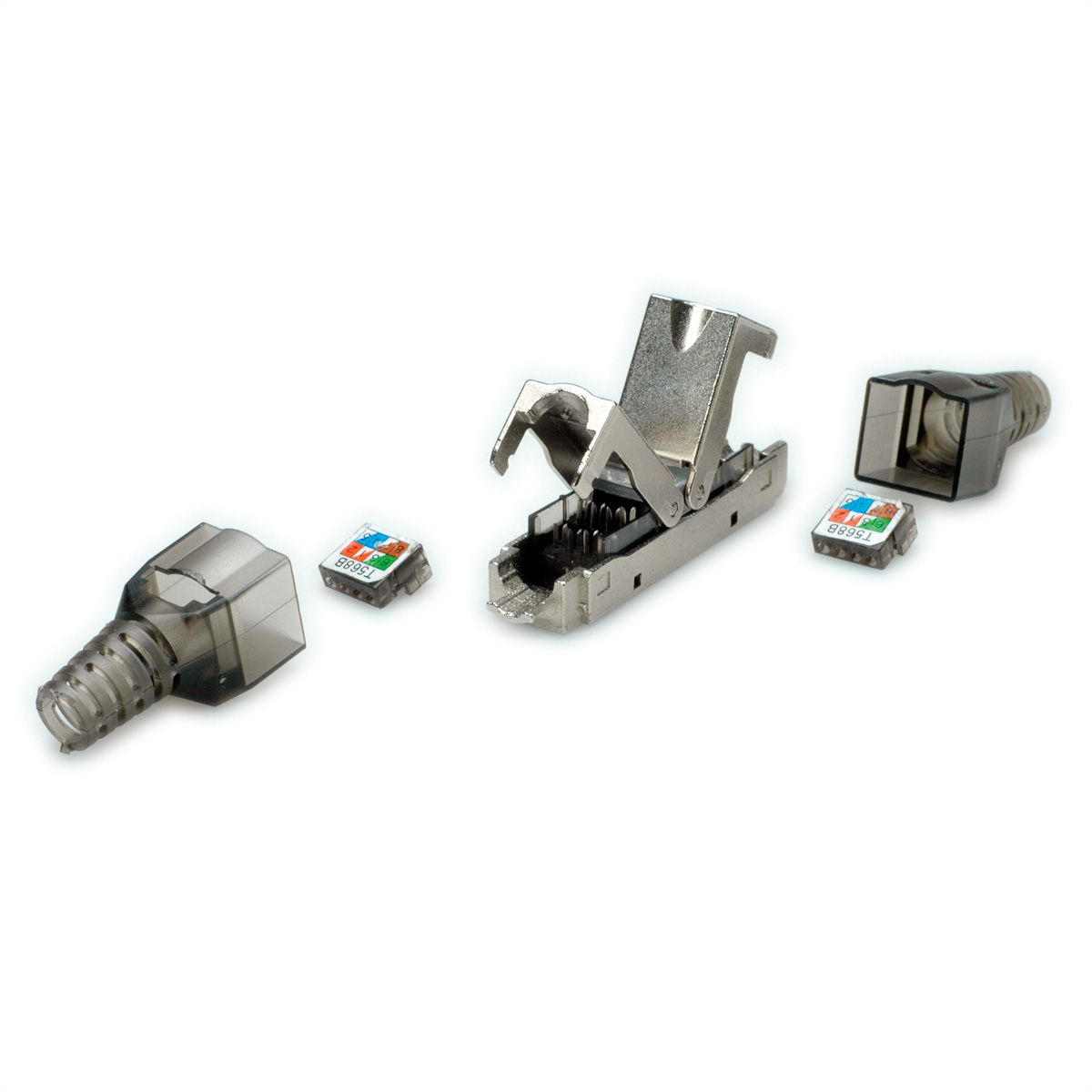

VALUE Connection Module Cat.6A (Class EA), STP
Please log in to be able to use the shopping cart and then complete orders.
Log in| Item no. | 26.99.0380-50 |
|---|---|
| Brand / Manufacturer | VALUE |
| Manuf. no. | 26.99.0380 |
| EAN | 7630049690783 |
| Package weight | 0.035 kg |
:strip_icc():strip_exif()/logos/value.png "VALUE")
Description
CAT. 6a STP connection module for route extension using two network / installation cables
- The VALUE Junction module is used to repair or extend shielded Cat. 6A cables
- With this module all 4 or 8 wired installation cables with AWG24 and with an outside diameter from 6.2mm can be installed
- Equipped with the modern LSA connection technology, all cables in accordance with EIA/TIA 568A or 568B can be easily installed
- With the use of the STP type junction box, it's safe against electrical and magnetical interferences
- For Solid wire only
Specifications
| Manufacturer | VALUE |
|---|---|
| Product group | Connection technology TP |
| Product type | Network junction box |
| Colour | silver |
| Shield type | Screened |
| Transfer quality | Cat6A / Class EA |
| Quantity of ports | 1 |
| Assignment | EIA/TIA 568B |
| Shield contacts | yes |
| Connection direction | Straight |
| Dimensions (HxWxD) | 26 x 32 x 60 mm |
| Height | 26 mm |
| Width | 32 mm |
| Depth | 60 mm |
| Weight | 33 g |
| Height of packaging (single piece) | 20 mm |
| Width of packaging (single piece) | 20 mm |
| Depth of packaging (single piece) | 20 mm |
| Package weight (single piece) | 0.035 kg |
