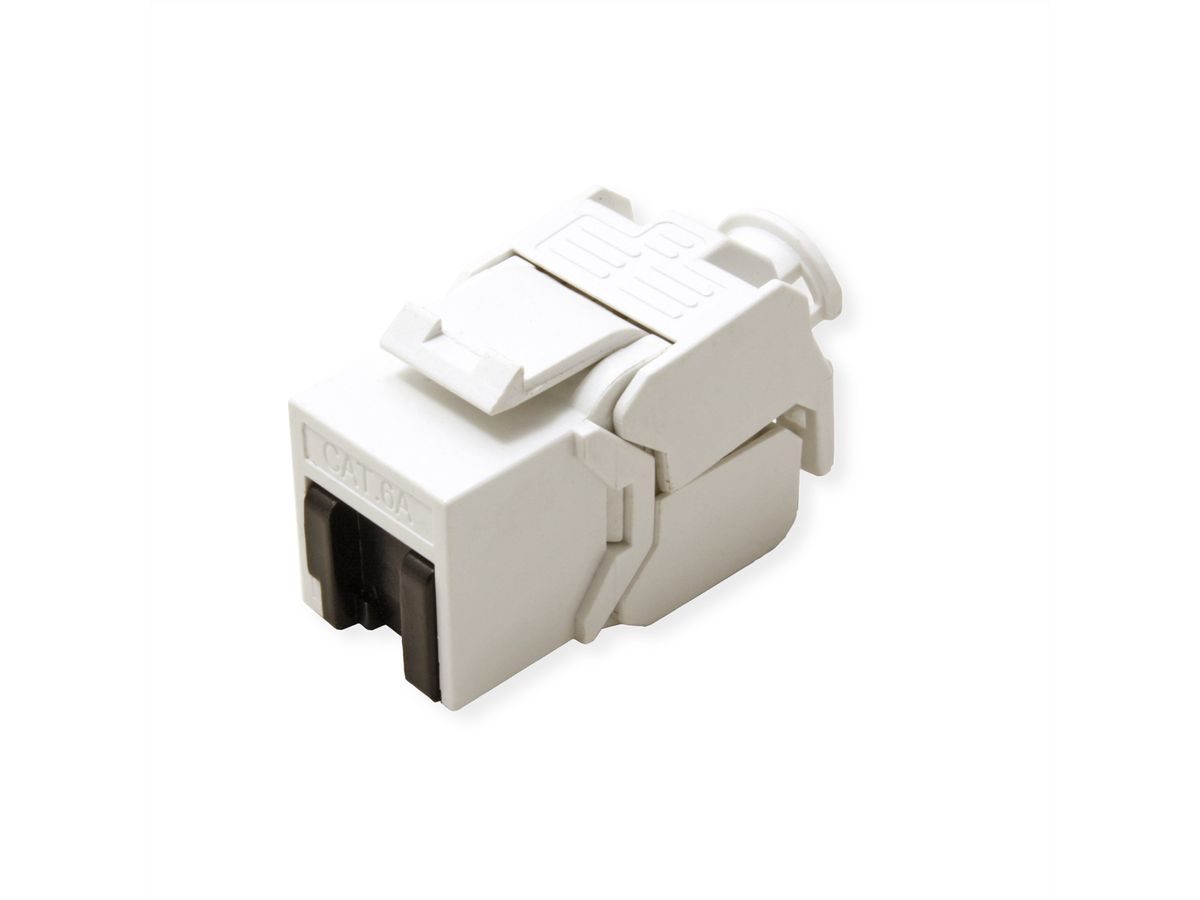

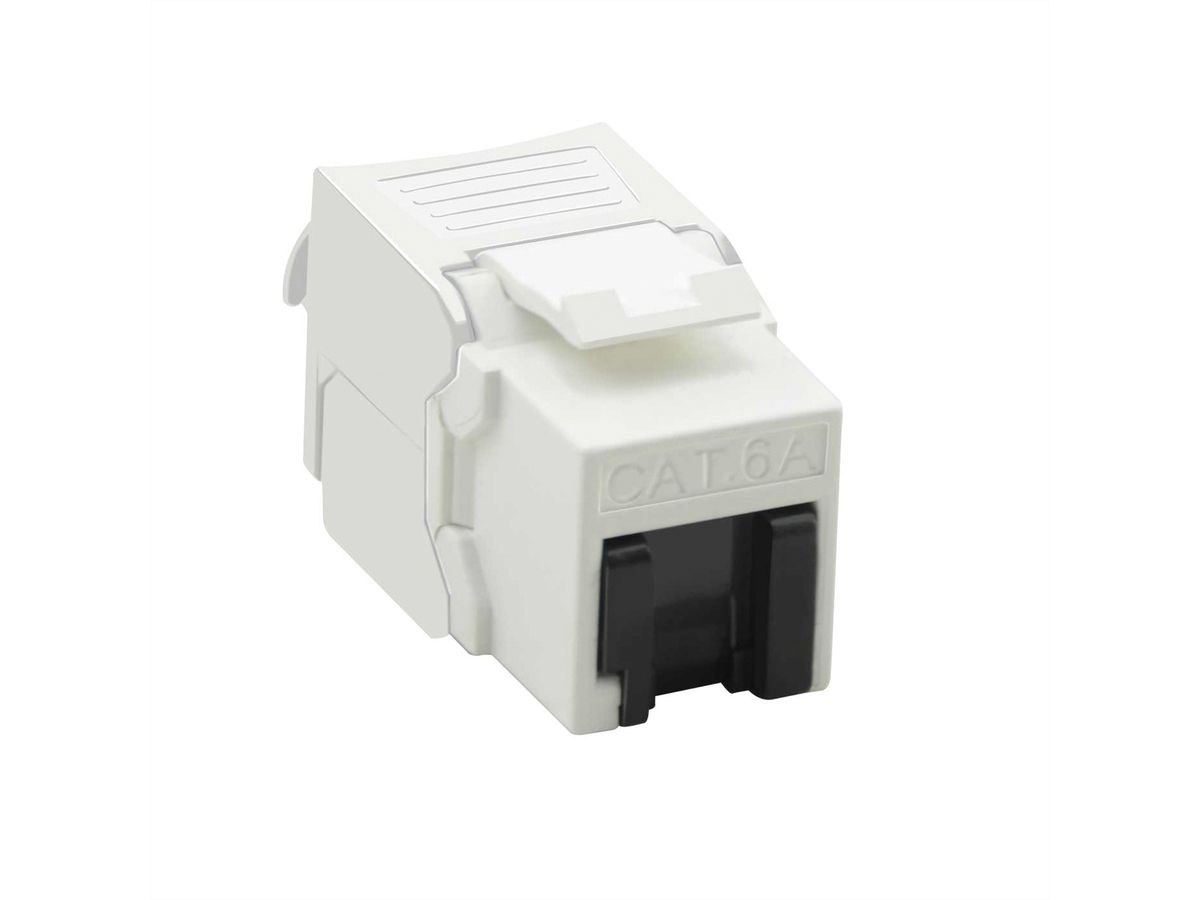

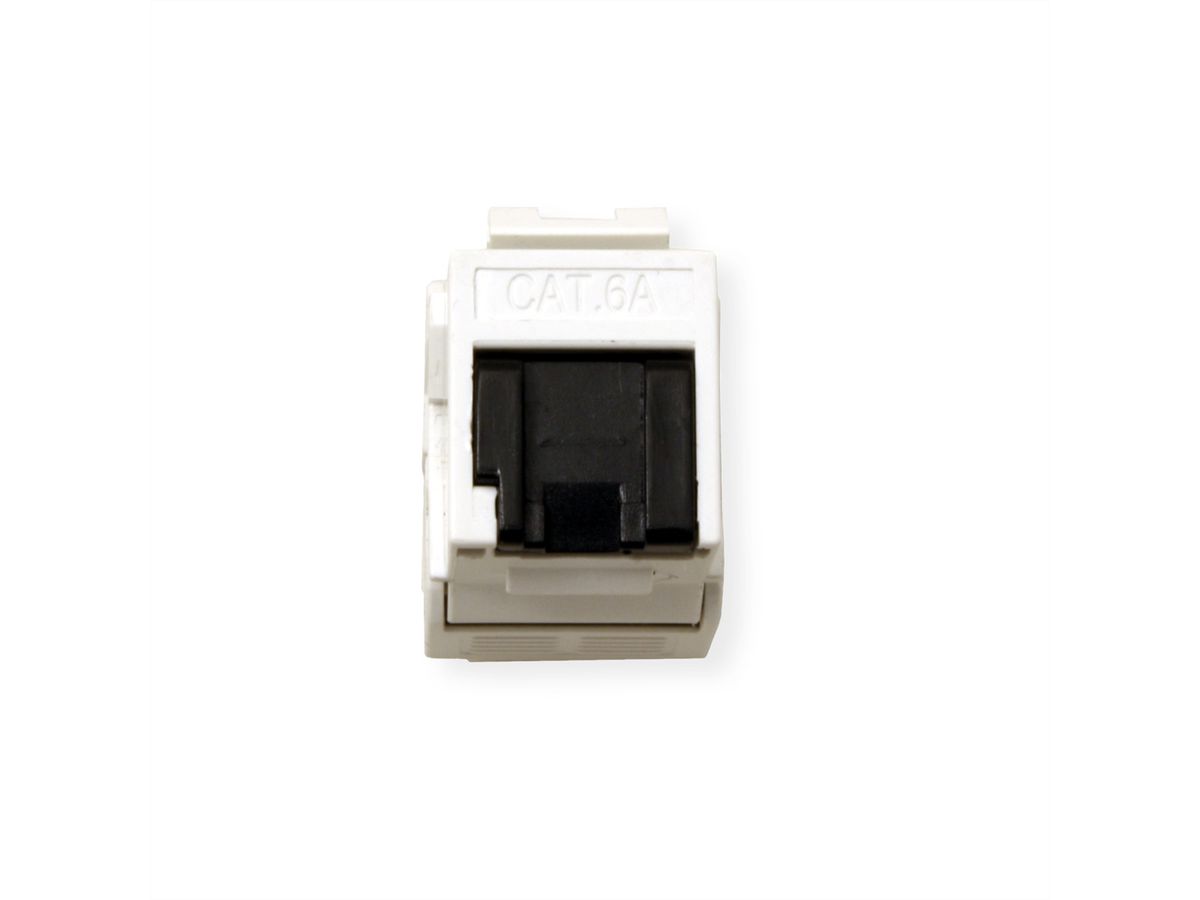

VALUE Cat.6A (Class EA) Keystone, RJ-45, UTP, tool-free, silver, white
Please log in to be able to use the shopping cart and then complete orders.
Log inDescription
The low-cost solution for Cat.6A cabling for data rates up to 10Gbit/s!
Cat.6A/Class EA Keystone jack for installation in a Keystone blank 19" patch panel module frame.

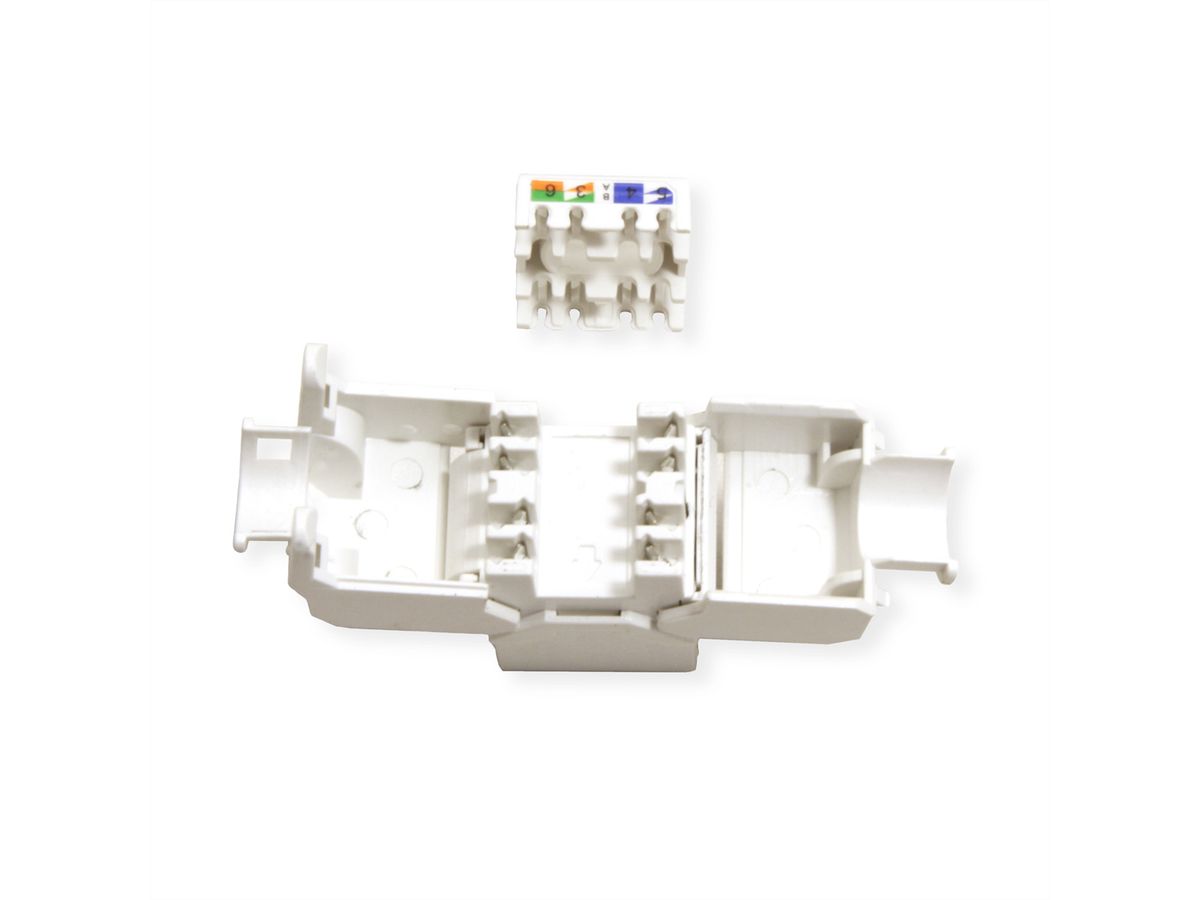

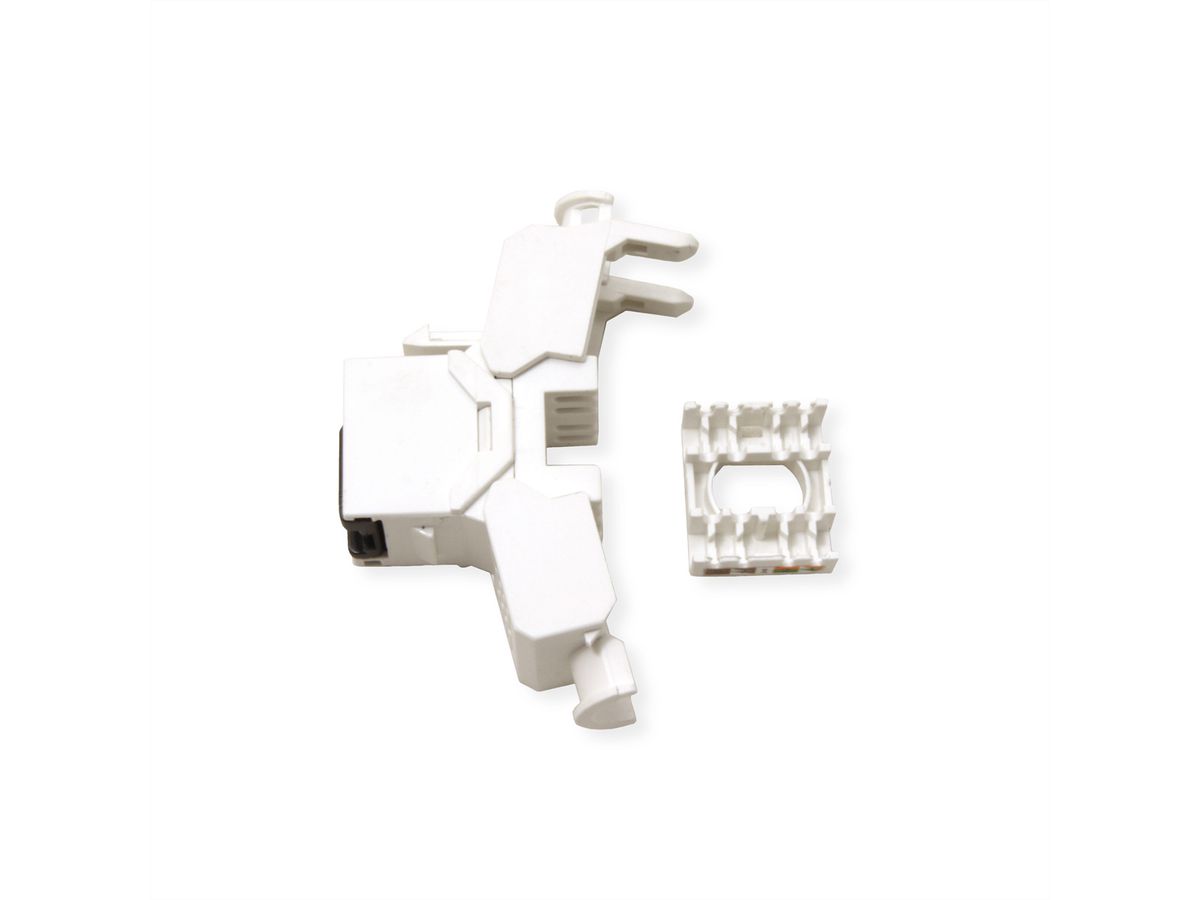

- Toolless mounting - without using a LSA tool: cable wires are simply placed into the guides of Keystone module, the module is closed and compressed - the connection is ready for use
- Cat.6A Keystone Jack (Module) UTP
- Unshielded housing
- Contacts gold plated
- Slim type
- With plastic internal shutter black
- 180 degree cable entry
- Support PoE per IEEE 802.3af, PoE+ per IEEE 802.3at
- For cable AWG 22-24(0.45-0.65mm)
- For cable OD: 5.0-8.5mm
- Color code on the Keystone jacks based on the standard EIA/TIA 568 A & B
- Dimensions (L x W x H): 37.9× 15.8 × 22.2mm
Specifications
Manufacturer | VALUE |
---|---|
Product group | Connection technology TP |
Product type | RJ45 Keystone Jack |
Colour | white |
Shield type | Not screened |
Transfer quality | Cat6A / Class EA |
Quantity of ports | 1 |
Assignment | EIA/TIA 568A & 568B |
Connection direction | Straight |
Height | 22.2 mm |
Width | 15.8 mm |
Depth | 37.9 mm |
Weight | 6.9 g |
Height of packaging (single piece) | 20 mm |
Width of packaging (single piece) | 20 mm |
Depth of packaging (single piece) | 20 mm |
Package weight (single piece) | 0.02 kg |
