Description

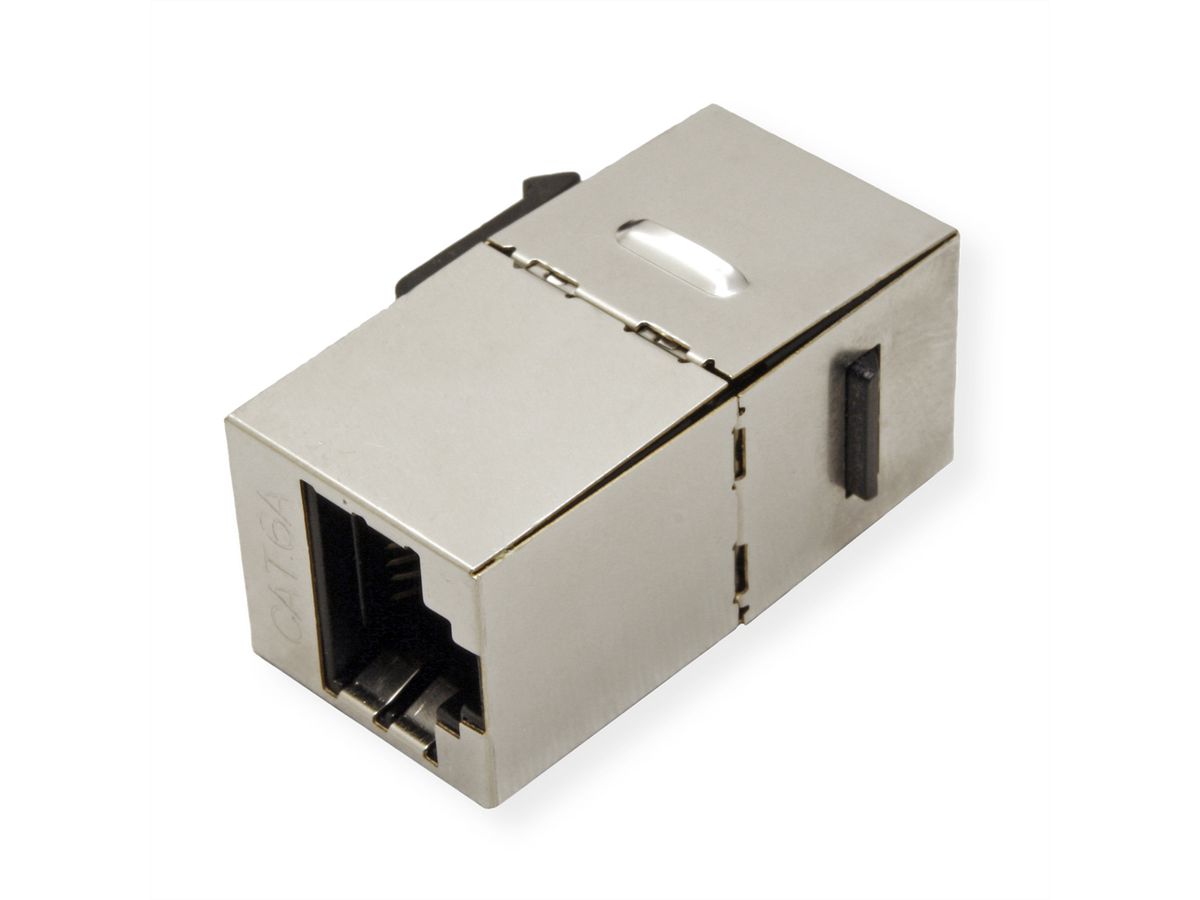

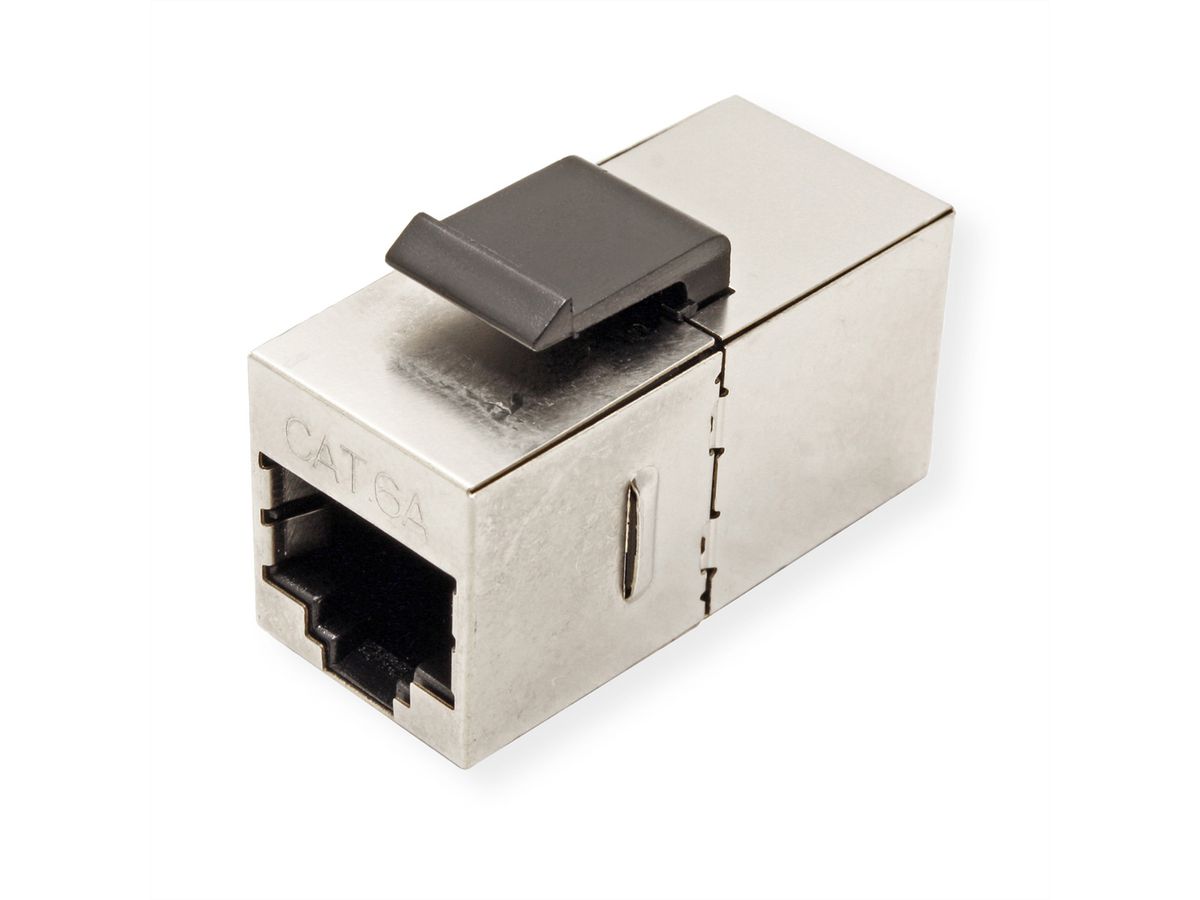

Shielded Keystone connector in CAT. 6a for connection or extension of RJ-45 network cables

• Shielded RJ-45 connector for extending twisted pair cables
• Suitable for Keystone panels and junction boxes
• Suitable for Cat.6A cabling up to 500 MHz
• Entire metal housing for signal protection against electromagnetic interference
• 8 contacts, 1:1 connected
• Narrow form factor for space-constrained environments

Specifications

Manufacturer	VALUE
Product group	Connection technology TP
Product type	RJ-45 coupling
Colour	silver
Shield type	Screened
Transfer quality	Cat6A / Class EA
Quantity of ports	2 x RJ-45
Assignment	EIA/TIA 568A
Material (casing)	metal
Shield contacts	yes
separate strain relief	no
Connection direction	Straight
Technical particularity	1 : 1 connected
Operating temperature min.	-10 °C
Operating temperature max.	60 °C
Height	16 mm
Width	14.6 mm
Depth	30 mm
Weight	7.8 g
Height of packaging (single piece)	10 mm
Width of packaging (single piece)	20 mm
Depth of packaging (single piece)	20 mm
Package weight (single piece)	0.02 kg
