Description

• The VALUE Cat.6a wall jacks fulfil the Cat.6/Class EA Permanent Link Standard and are ideal for gigabit ethernet networks
• Fully screened box in a metal housing, provides security against EMI (shielded version)

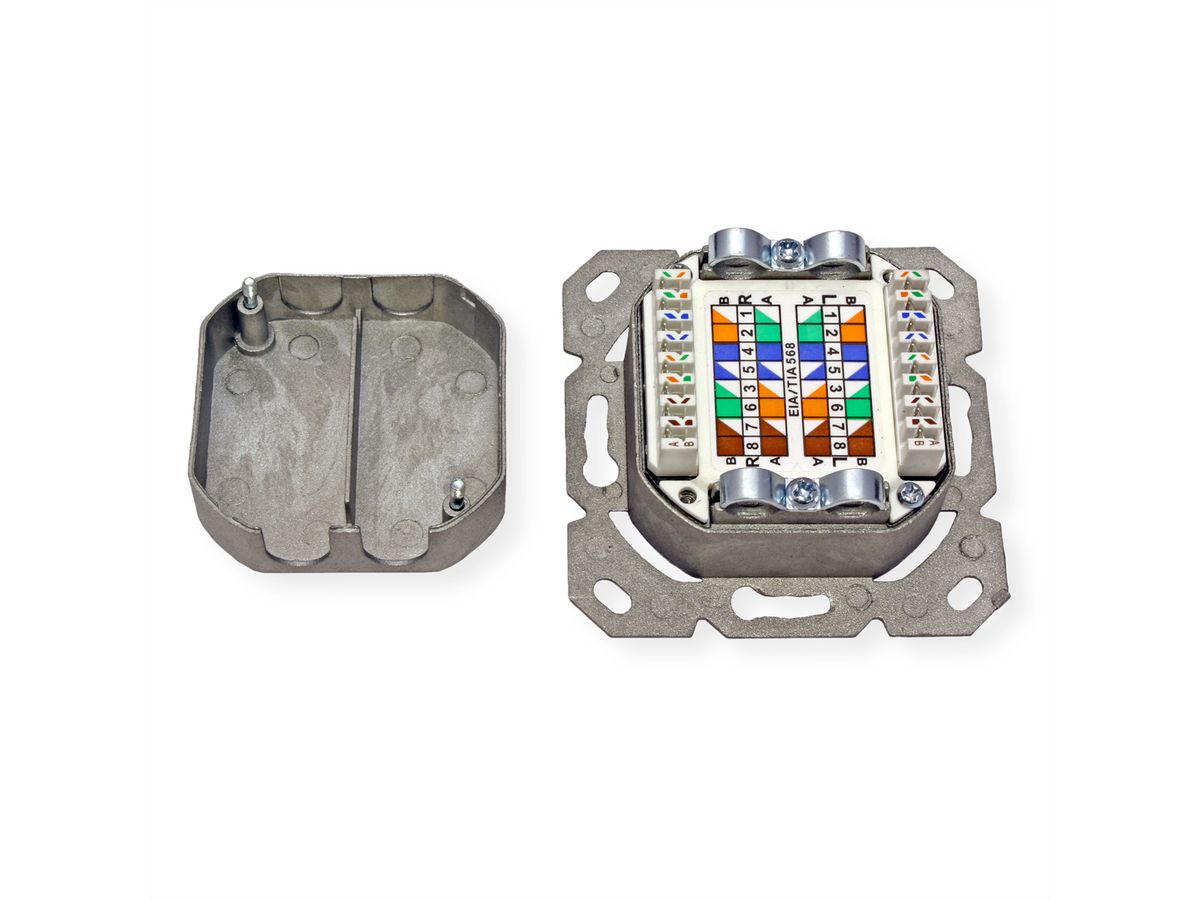

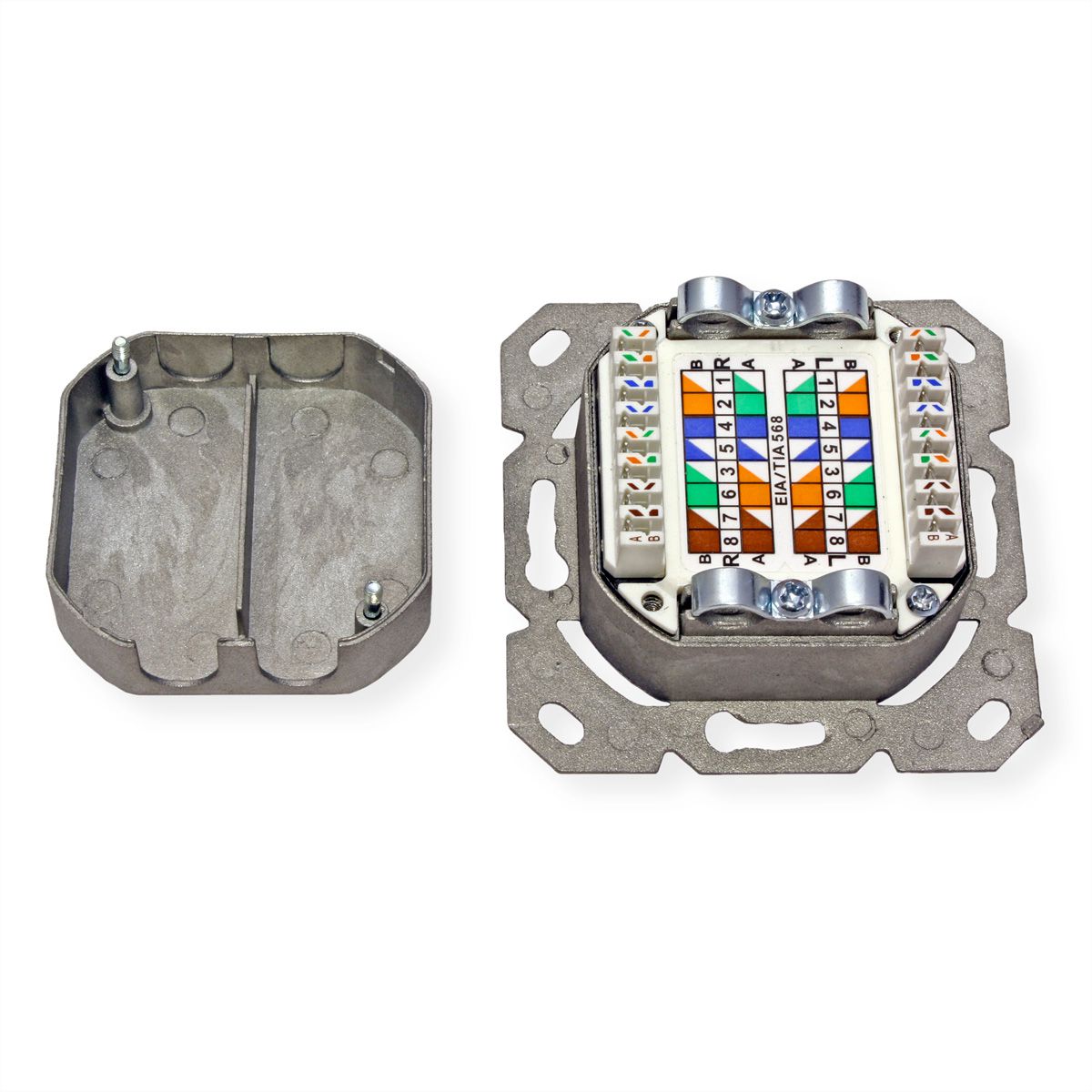

• Cable assembly takes place using LSAplus piercing terminals with colour coding on the top in accordance with EIA/TIA 568

Specifications

Manufacturer	VALUE
Product group	Connection technology TP
Product type	Connection box Cat.6A
Colour	white
Shield type	Screened
Transfer quality	Cat6A / Class EA
Wall fixening	Flush mount
Quantity of ports	2
Assembly cable connection	Krone LSAplus
Modular assembly	no
Material (casing)	metal
Shield contacts	Yes
Connection direction	45°-inclination
Operating temperature min.	0 °C
Operating temperature max.	70 °C
Height	80 mm
Width	80 mm
Depth	39 mm
Weight	181.4 g
Height of packaging (single piece)	85 mm
Width of packaging (single piece)	60 mm
Depth of packaging (single piece)	85 mm
Package weight (single piece)	0.2 kg

Downloads

Product data sheet - English (52.1 KB)

Download

Manufacturer data sheet - English (1.2 MB)

Download
