Description

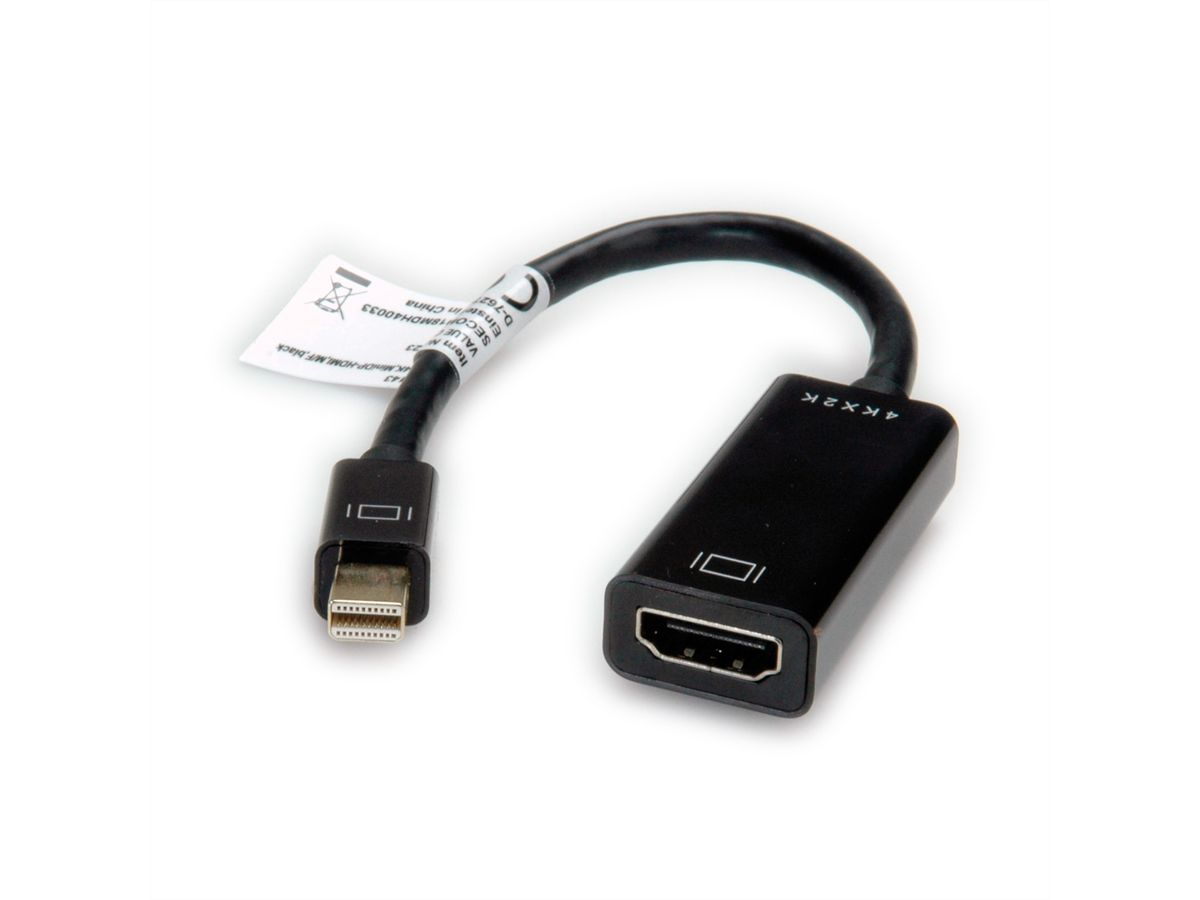

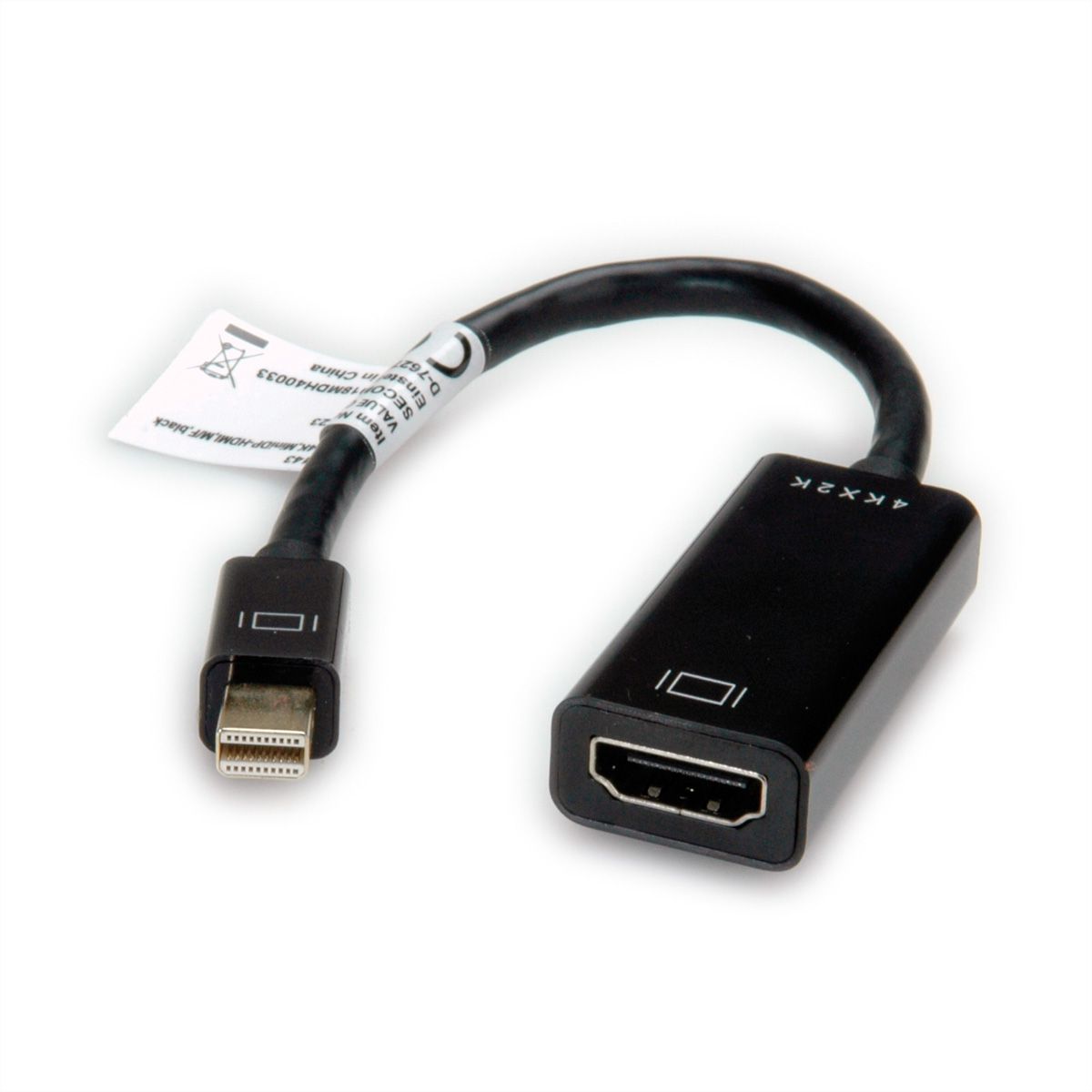

Mini DisplayPort to HDMI cable adapter for connecting a graphics card with Mini DP to a monitor with HDMI connection - with a resolution of up to 3840x2160 @30Hz!

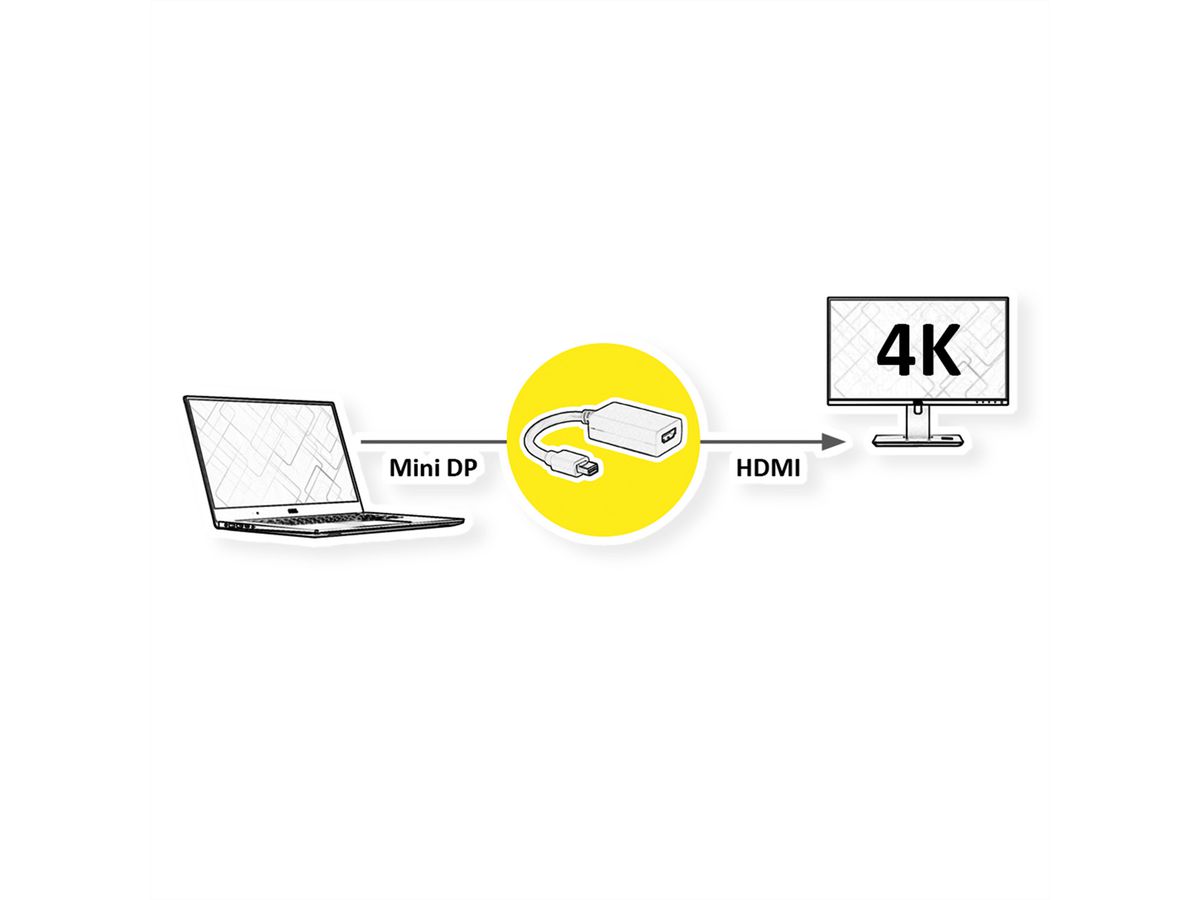

• For connecting a graphic card with Mini DisplayPort connector to a HDMI monitor by using a HDMI M-M cable
• Connectors: Mini DisplayPort Male, HMDI Female
• Length: ca. 10 cm
• DisplayPort Version 1.2 allows increased resolutions, higher refresh rates, and greater color depth
• Remark: The DisplayPort-HDMI adapter is only working in one direction: the DisplayPort plug has to be connected to the source device (e.g. graphic card)

• Compliant DP v1.2 (max. 4096 x 2560 @60Hz)

Specifications

Manufacturer	VALUE
Product group	Adapters, Terminators, Converters
Product type	Mini DisplayPort-HDMI Adapter
Colour	black
Length	0.15 m
Max. resolution	3840 x 2160 @30Hz (4K, Full HD)
Side 1 connection (PC)	Mini DisplayPort Male
Side 2 connection (Peripherals)	HDMI Female
Side 1 Connector Type	Mini DisplayPort
Side 1 Connector Gender	Male
Side 2 Connector Type	HDMI Type A
Side 2 Connector Gender	Female
Active / Passive	Passive
Area of application	External
Dimensions (HxWxD)	14 x 44 x 44 mm
Technical particularity	DisplayPort Version 1.2
Height	14 mm
Width	44 mm
Depth	44 mm
Weight	17.2 g
Height of packaging (single piece)	30 mm
Width of packaging (single piece)	130 mm
Depth of packaging (single piece)	140 mm
Package weight (single piece)	0.018 kg

Downloads

Product data sheet - English (52.7 KB)

Download

Manufacturer data sheet - English (135.2 KB)

Download
