Description

Mini DisplayPort to HDMI cable adapter for connecting a graphics card with Mini DP to a monitor with HDMI connection - with a resolution of up to 1920x1080 / 1920x1200 @60Hz!

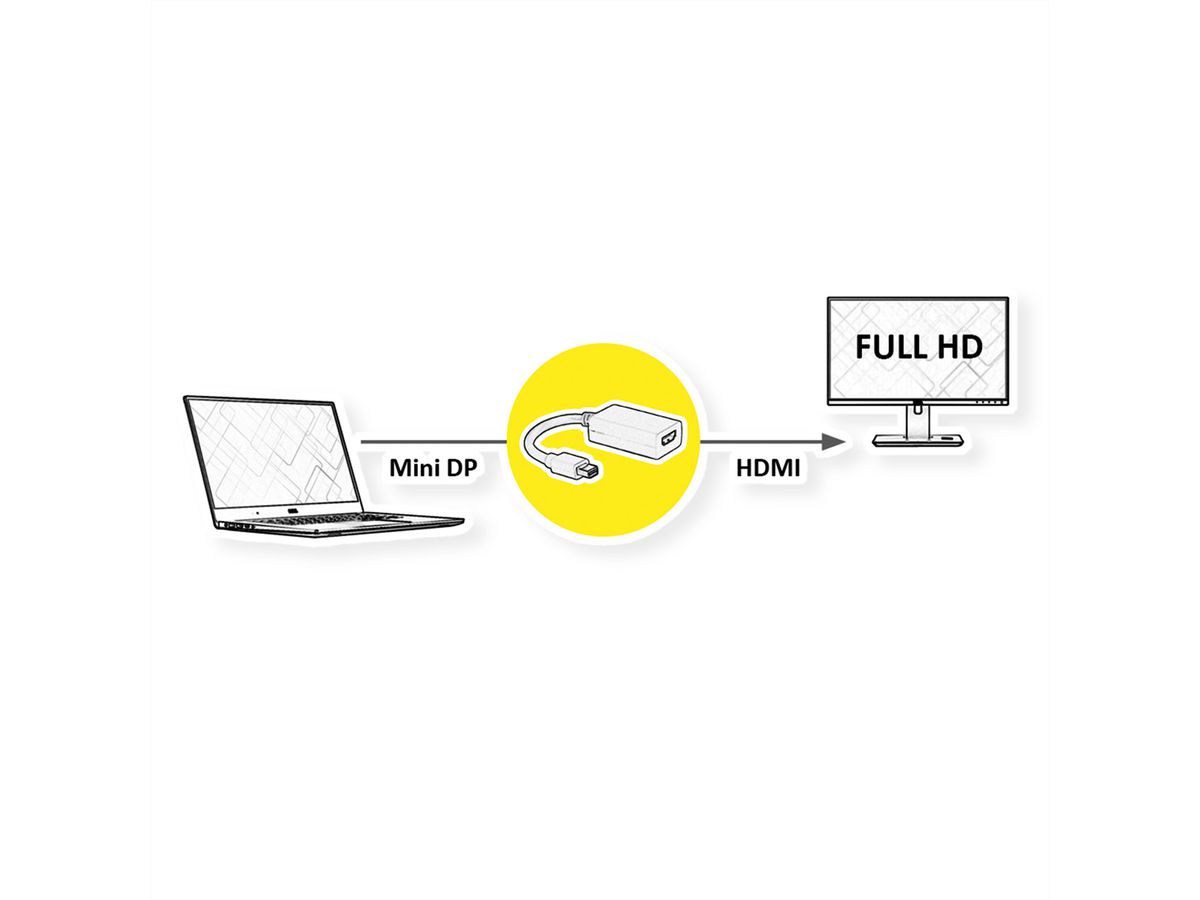

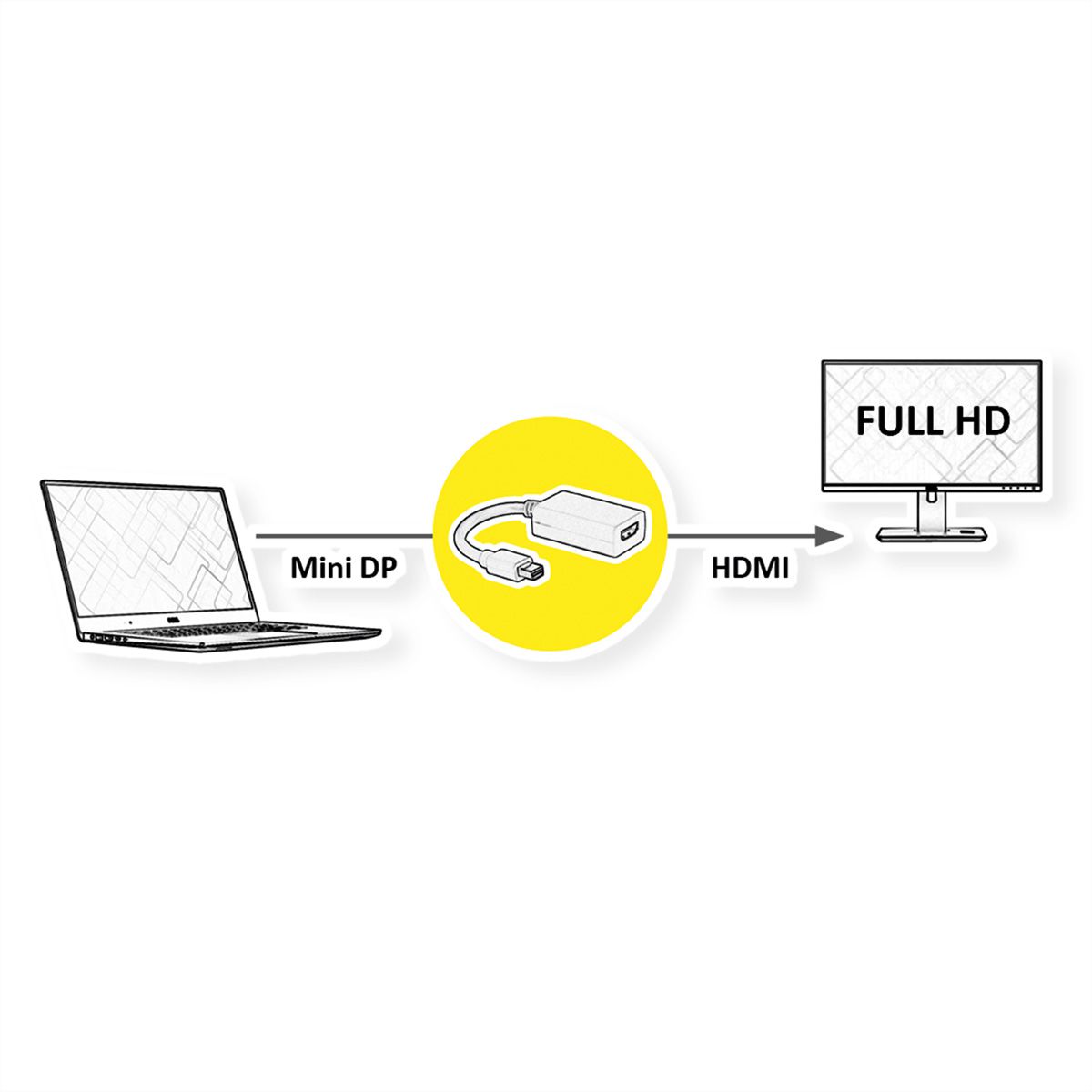

• For connecting a graphic card with Mini DisplayPort connector to a HDMI monitor by using a HDMI M-M cable
• Connectors: Mini DisplayPort Male, HMDI Female
• Length: ca. 10 cm
• Remark: The DisplayPort-HDMI adapter is only working in one direction: the DisplayPort plug has to be connected to the source device (e.g. graphic card)

Specifications

Manufacturer	VALUE
Product group	Adapters, Terminators, Converters
Product type	Mini DisplayPort-HDMI Adapter
Colour	black
Length	0.15 m
Max. resolution	1920 x 1080 / 1920 x 1200 @60Hz (2K, Full HD)
Side 1 connection (PC)	Mini DisplayPort Male
Side 2 connection (Peripherals)	HDMI Female
Side 1 Connector Type	Mini DisplayPort
Side 1 Connector Gender	Male
Side 2 Connector Type	HDMI Type A
Side 2 Connector Gender	Female
Active / Passive	Passive
Area of application	External
Dimensions (HxWxD)	14 x 44 x 44 mm
Height	14 mm
Width	44 mm
Depth	44 mm
Weight	27.9 g
Height of packaging (single piece)	100 mm
Width of packaging (single piece)	10 mm
Depth of packaging (single piece)	200 mm
Package weight (single piece)	0.04 kg

Downloads

Product data sheet - English (51.0 KB)

Download

Manufacturer data sheet - English (1.5 MB)

Download
