Description

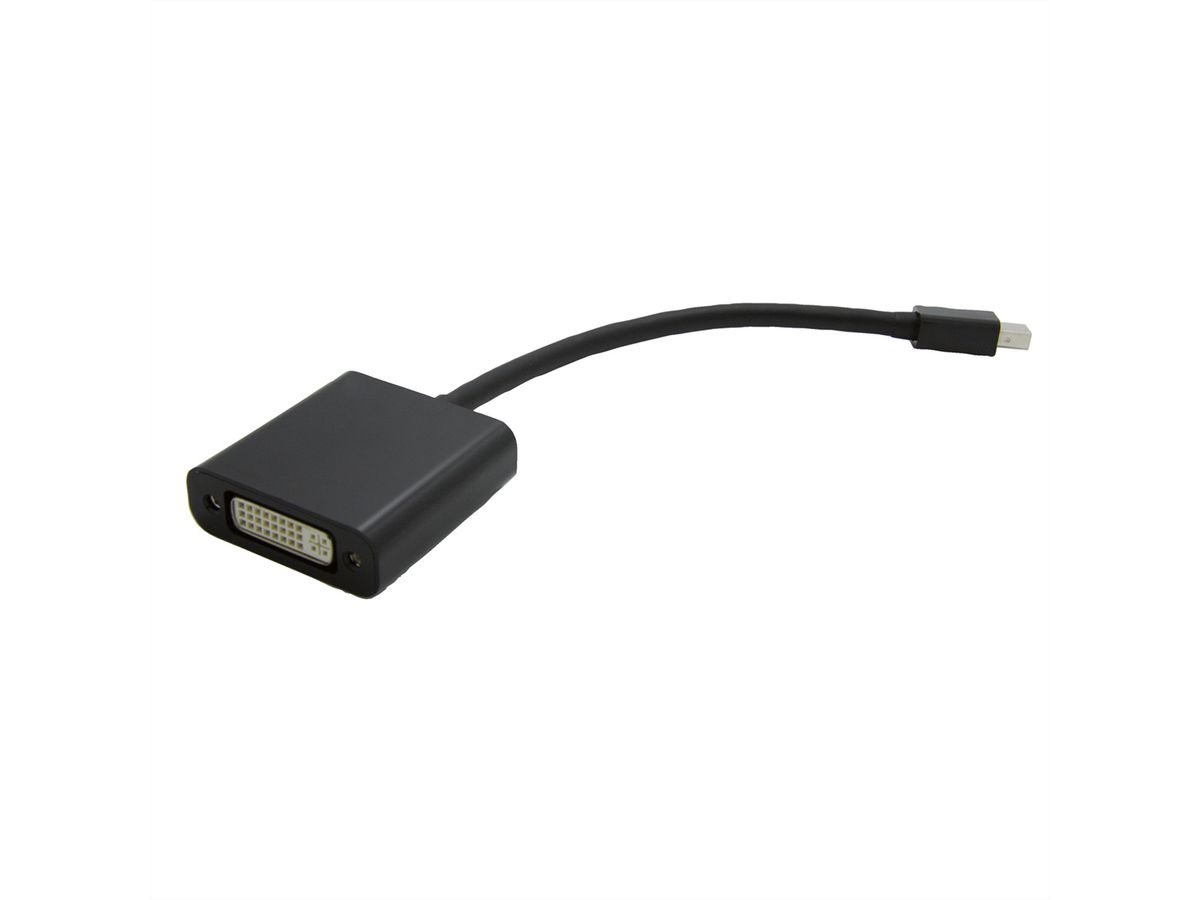

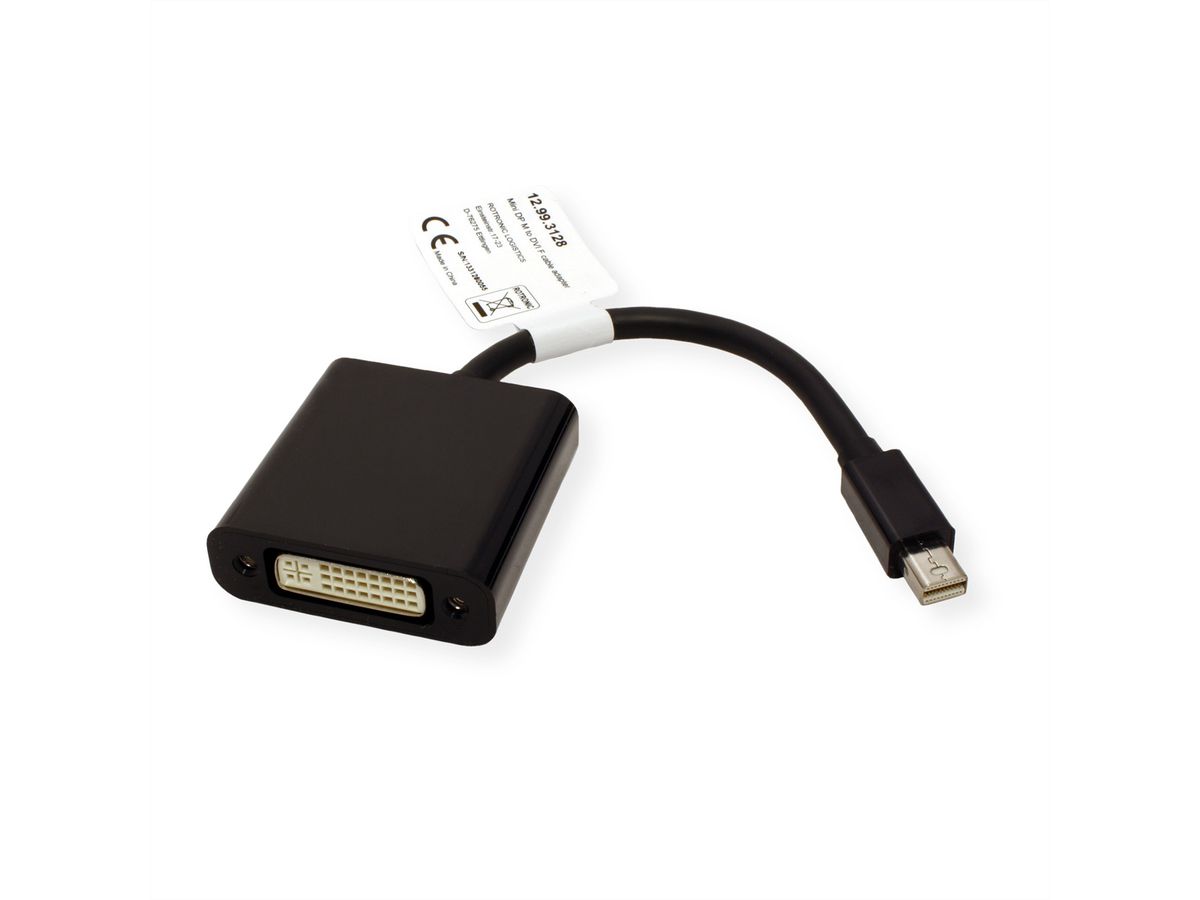

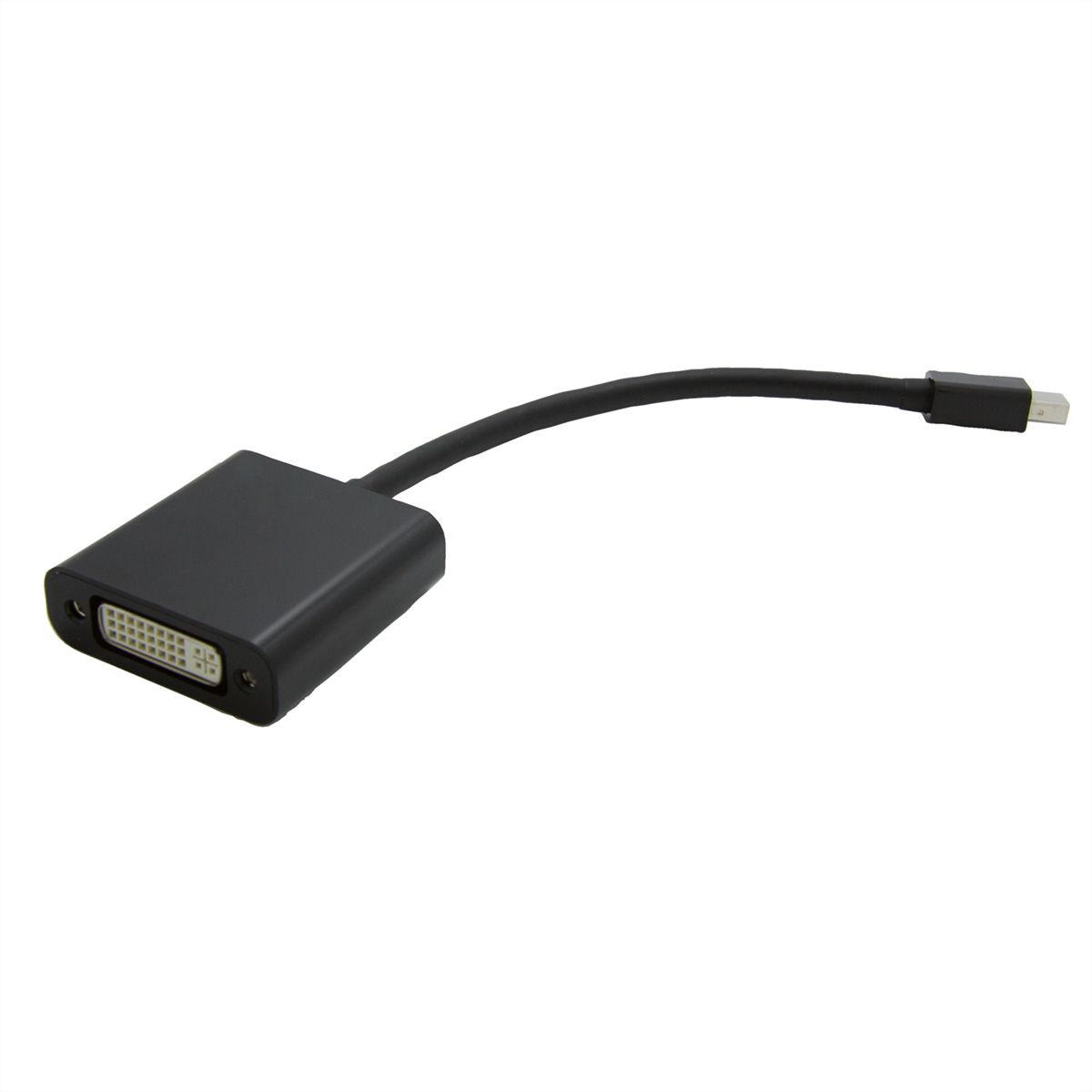

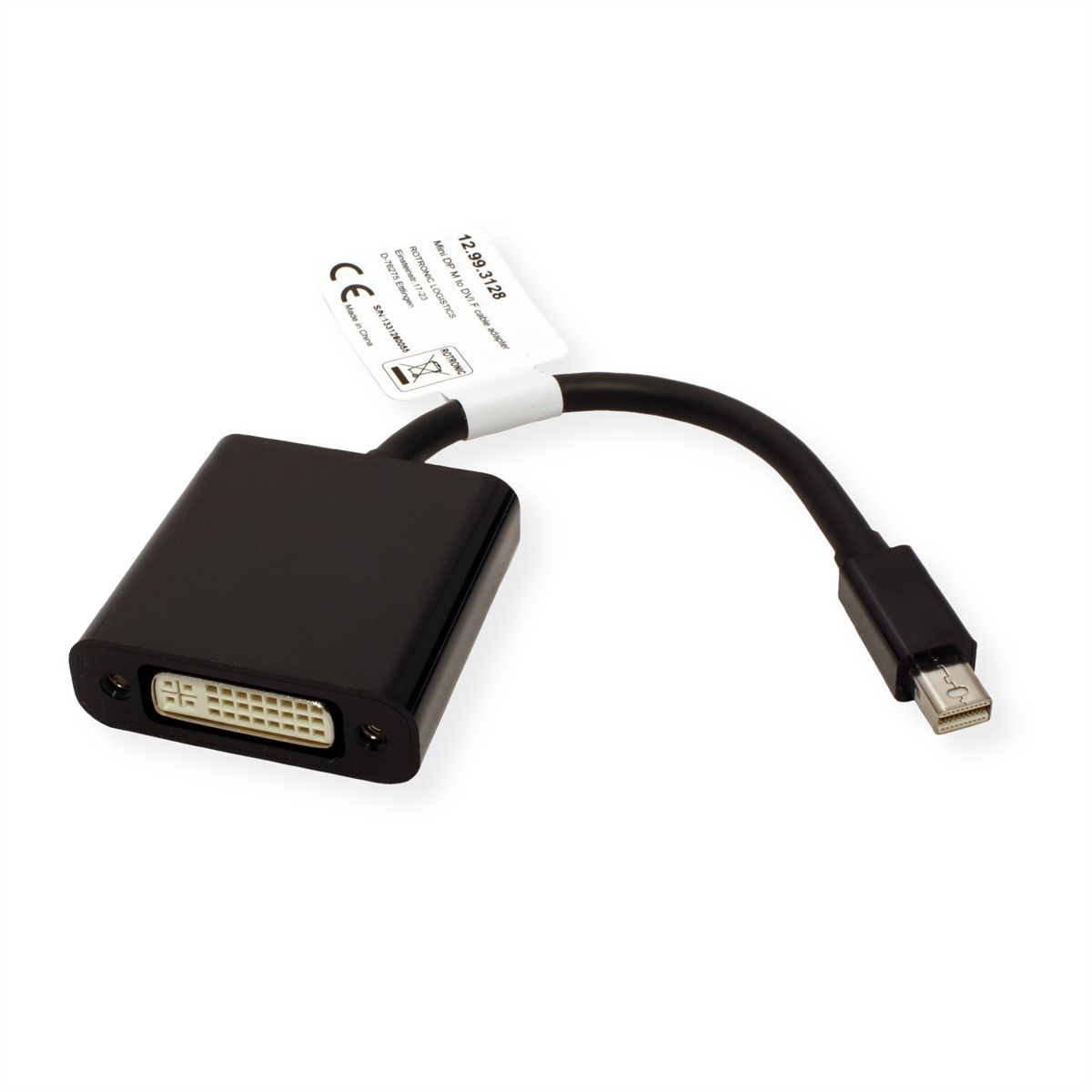

Mini DisplayPort to DVI cable adapter for connecting a graphics card with Mini DP to a monitor with DVI connection - with a resolution of up to 1920x1080 / 1920x1200 @60Hz!

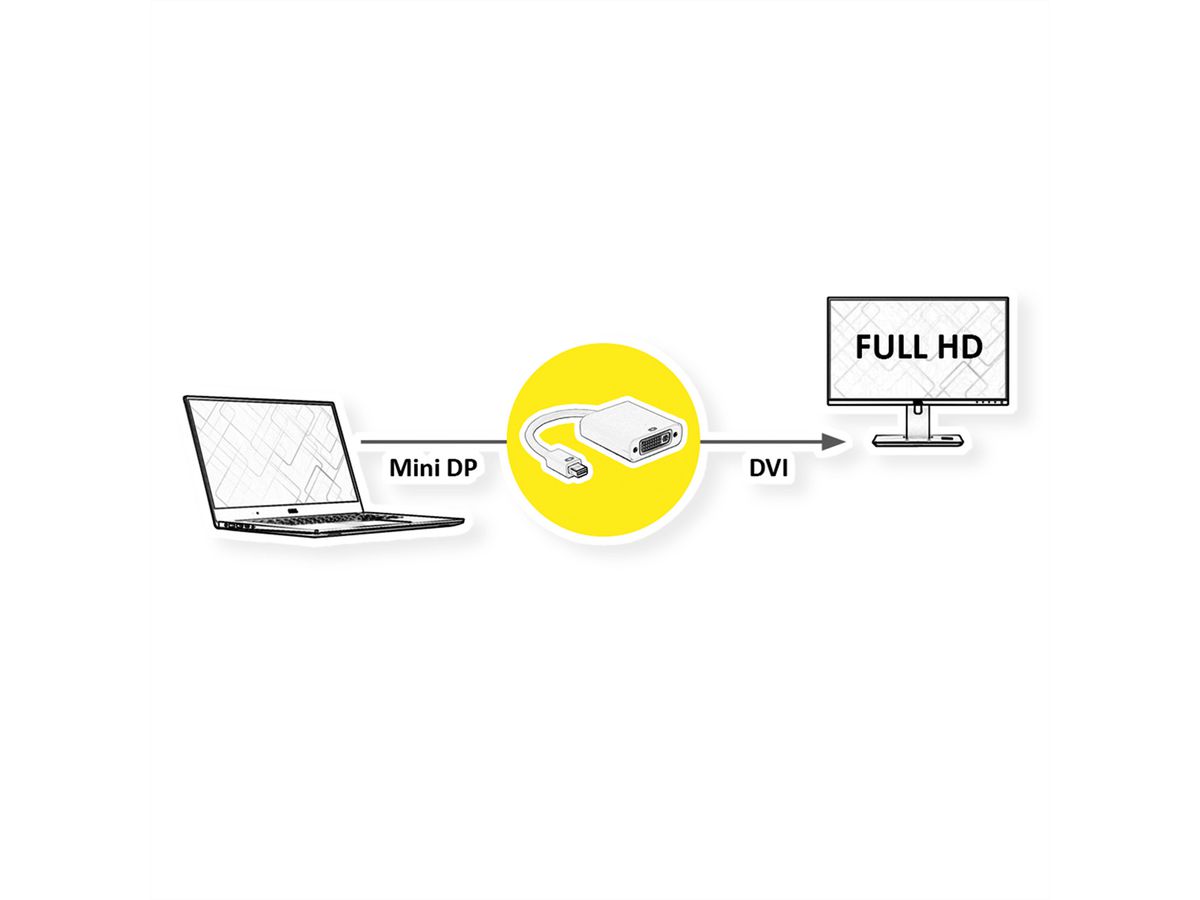

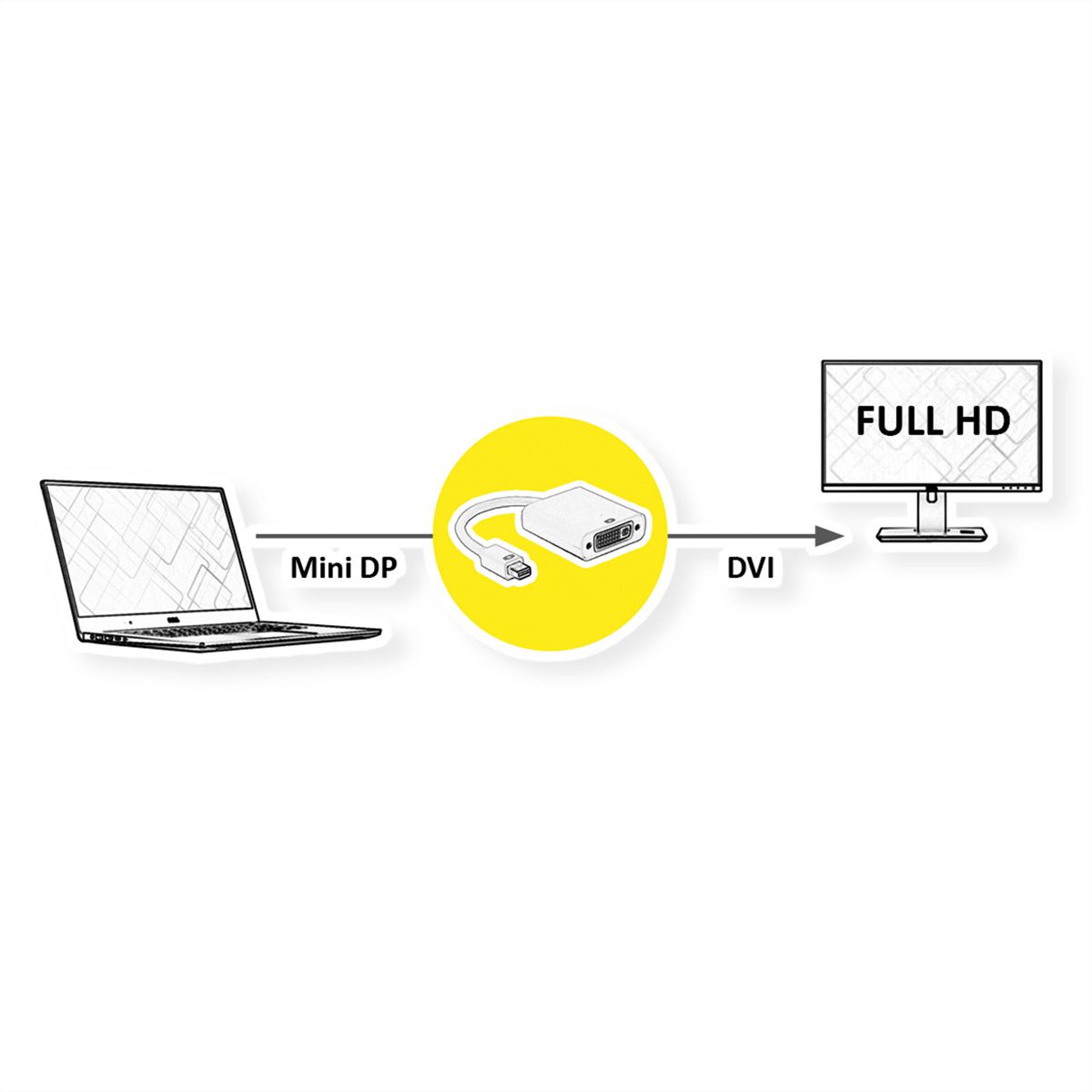

• For connecting a graphic card with Mini DisplayPort connector to a DVI monitor by using a DVI M-M cable
• Connectors: Mini DisplayPort Male and DVI Female, cable length ca. 20 cm
• Length: ca. 20 cm
• Remark: The DisplayPort-DVI adapter is only working in one direction: the DisplayPort plug has to be connected to the source device (e.g. graphic card)

Specifications

Manufacturer	VALUE
Product group	Adapters, Terminators, Converters
Product type	Mini DisplayPort-DVI Adapter
Colour	black
Length	0.15 m
Max. resolution	1920 x 1080 / 1920 x 1200 @60Hz (2K, Full HD)
Side 1 connection (PC)	Mini DisplayPort Male
Side 2 connection (Peripherals)	DVI Female
Side 1 Connector Type	Mini DisplayPort
Side 1 Connector Gender	Male
Side 2 Connector Type	DVI-D 24+1, Dual-Link
Side 2 Connector Gender	Female
Active / Passive	Passive
Area of application	External
Dimensions (HxWxD)	14 x 44 x 44 mm
Height	14 mm
Width	44 mm
Depth	44 mm
Weight	32.7 g
Height of packaging (single piece)	10 mm
Width of packaging (single piece)	170 mm
Depth of packaging (single piece)	50 mm
Package weight (single piece)	0.04 kg

Downloads

Product data sheet - English (51.2 KB)

Download

Manufacturer data sheet - English (872.7 KB)

Download
