Description

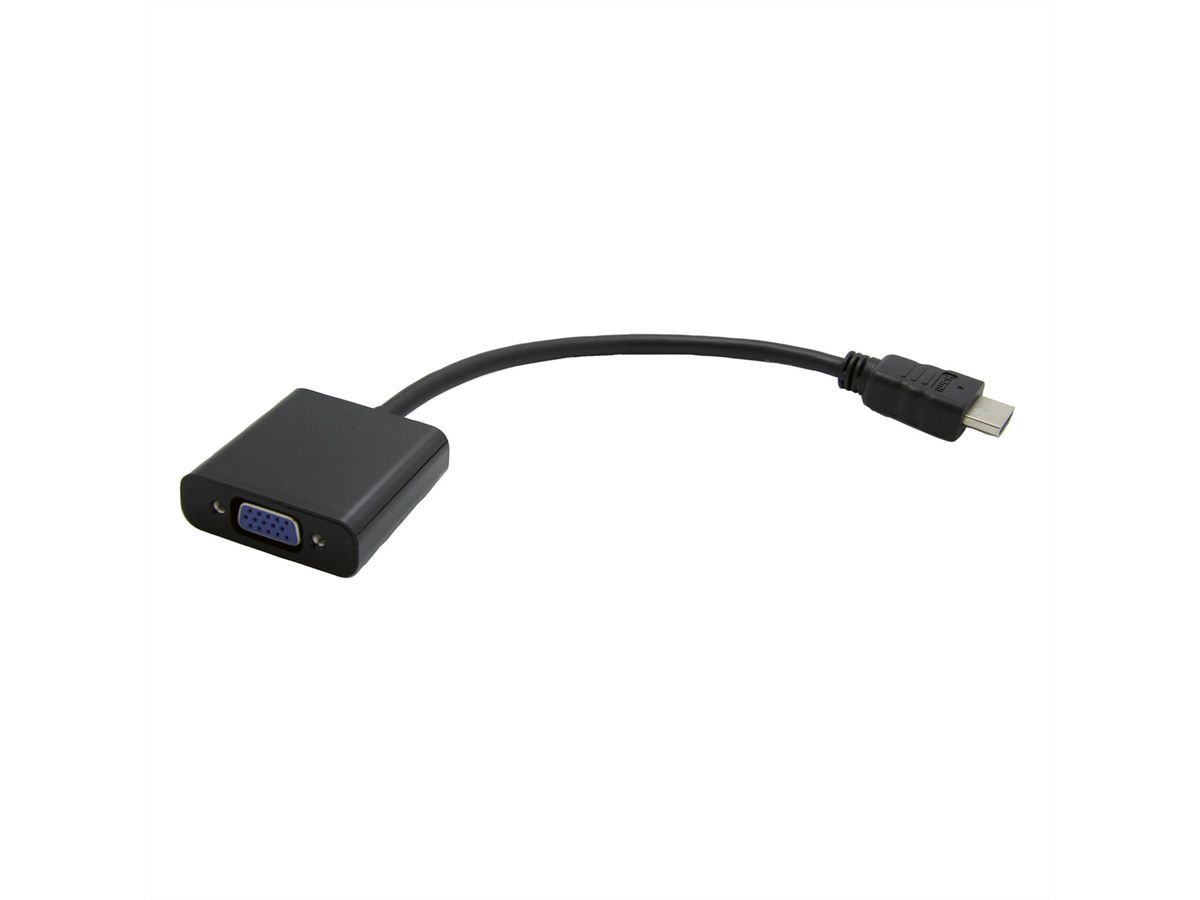

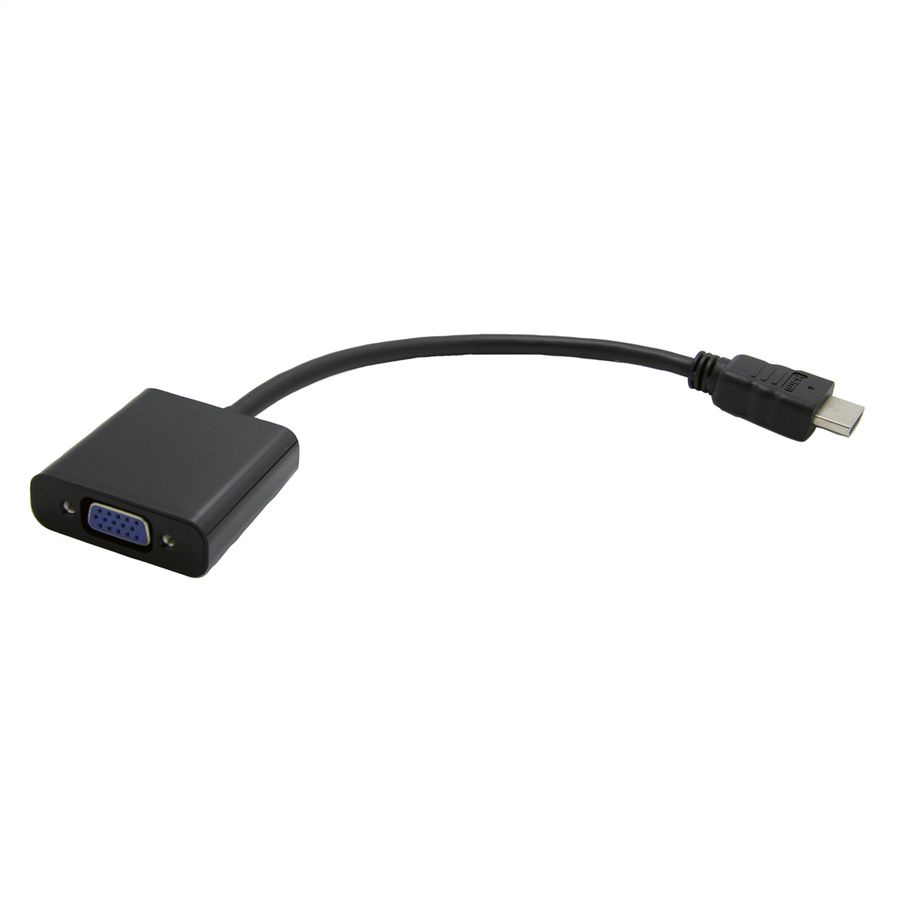

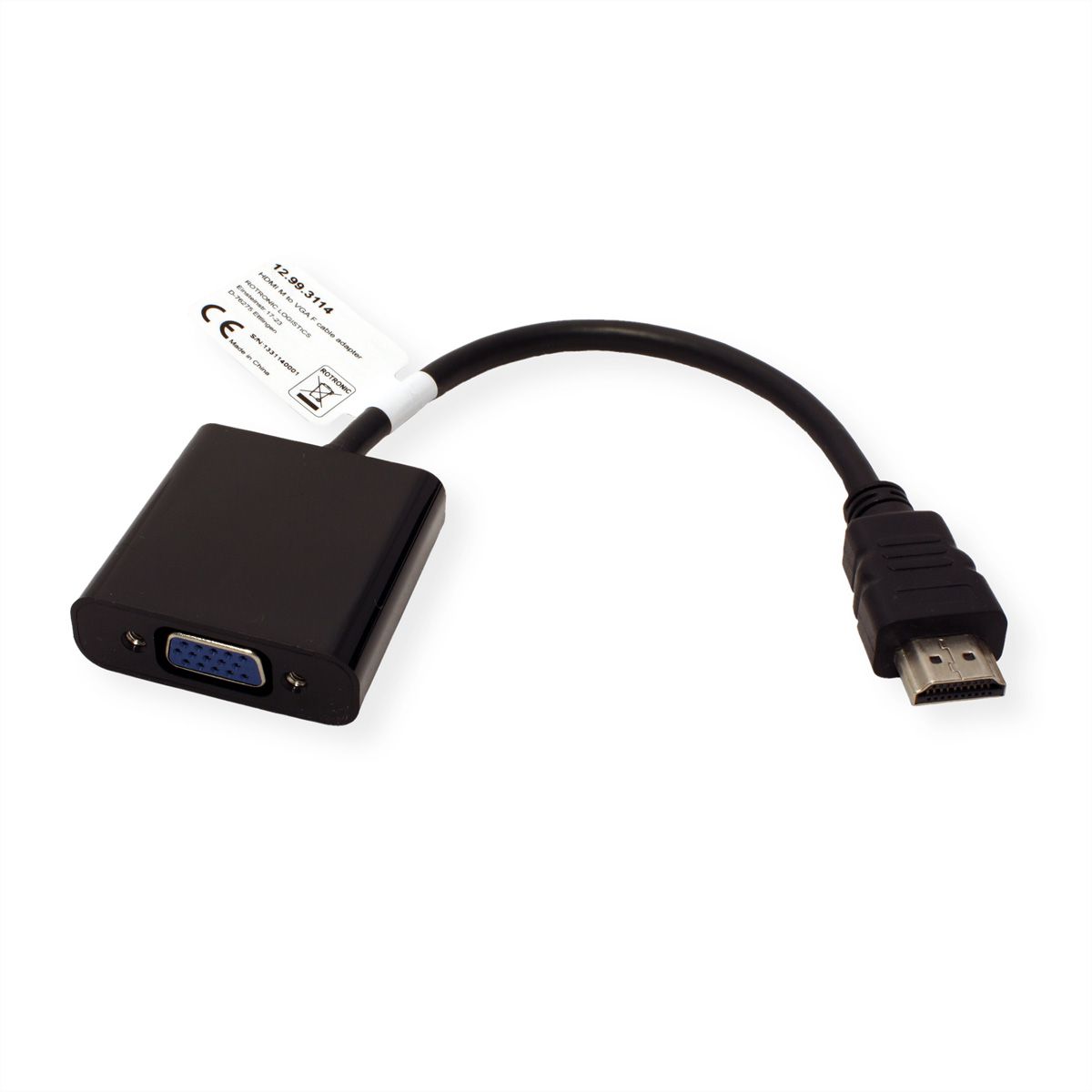

• HDMI to VGA Cableadapter provides you the interoperability of notebooks/laptops systems (with a HDMI out interface) with analog projectors/ displays (with VGA connector).

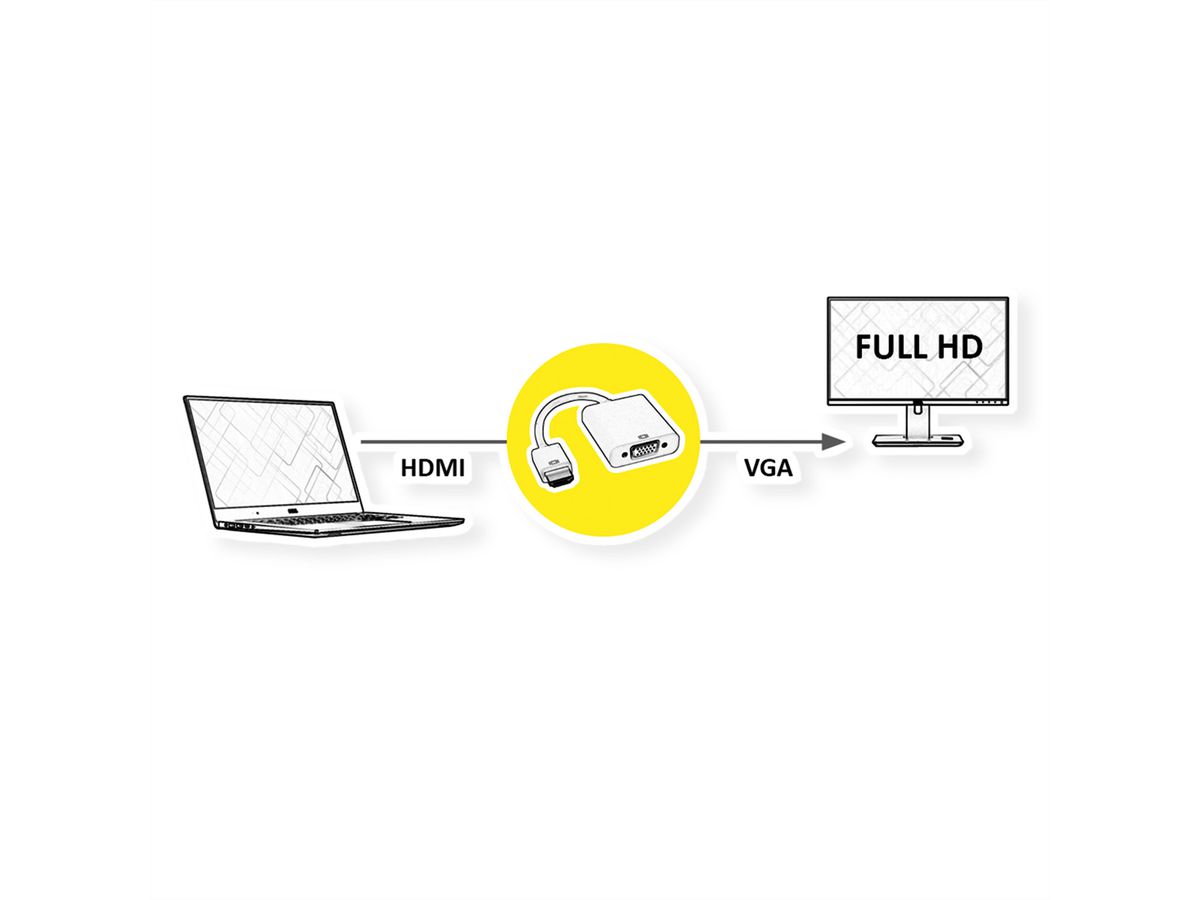

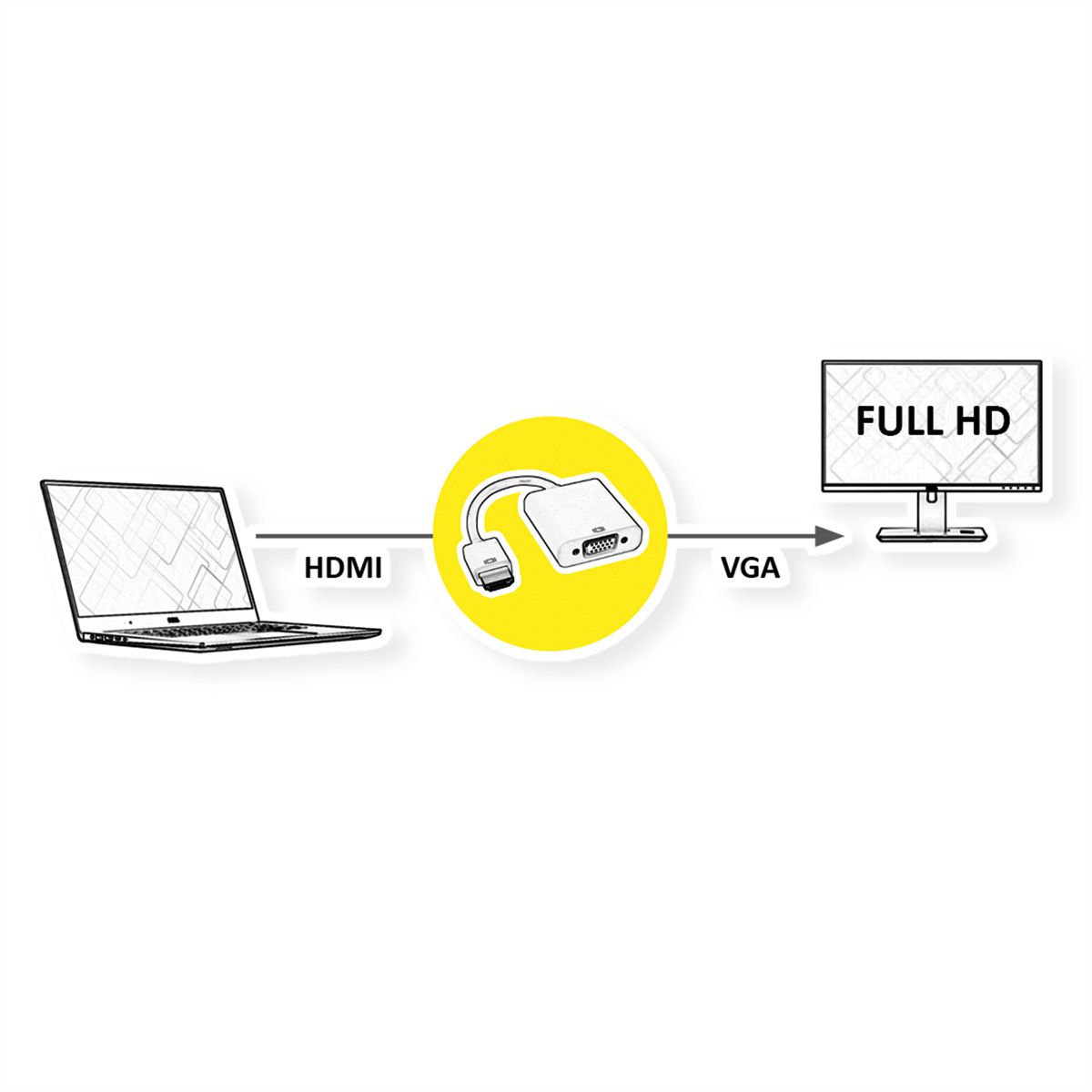

• Connect the laptop to an extended display (with VGA connector) or in mirrored mode with VGA projectors.
• Maximum resolution: 1920 x 1080
• Length: 0.15m
• Color: black

What are the benefits of using Active adapters and converters?

Active products can have a huge advantage when working with long cable runs and video conversion applications. In terms of video converters, active units generally have hardware inside to improve your image.

Specifications

Manufacturer	VALUE
Product group	Adapters, Terminators, Converters
Product type	HDMI-VGA Adapter
Colour	black
Length	0.15 m
Max. resolution	1920 x 1080 / 1920 x 1200 @60Hz (2K, Full HD)
Side 1 connection (PC)	HDMI Male
Side 2 connection (Peripherals)	VGA Female
Side 1 Connector Type	HDMI Type A
Side 1 Connector Gender	Male
Side 2 Connector Type	HD D-Sub 15-pin (HD-15), VGA
Side 2 Connector Gender	Female
Active / Passive	Active
Conversion direction	HDMI-VGA
Area of application	External
Dimensions (HxWxD)	14 x 44 x 44 mm
Height	14 mm
Width	44 mm
Depth	44 mm
Weight	36.9 g
Height of packaging (single piece)	10 mm
Width of packaging (single piece)	150 mm
Depth of packaging (single piece)	100 mm
Package weight (single piece)	0.06 kg

Downloads

Product data sheet - English (49.4 KB)

Download

Manufacturer data sheet - English (677.8 KB)

Download

The own brand VALUE stands for attractive prices and tested quality.

With the VALUE products you get the best possible price in terms of quality and product features.

More about VALUE

Product security

Information in accordance with the EU Product Safety Regulation, (GPSR):

SECOMP Electronic Components GmbH
Einsteinstrasse 17-23, 76275 Ettlingen, Germany
safety@secomp.eu
