Description

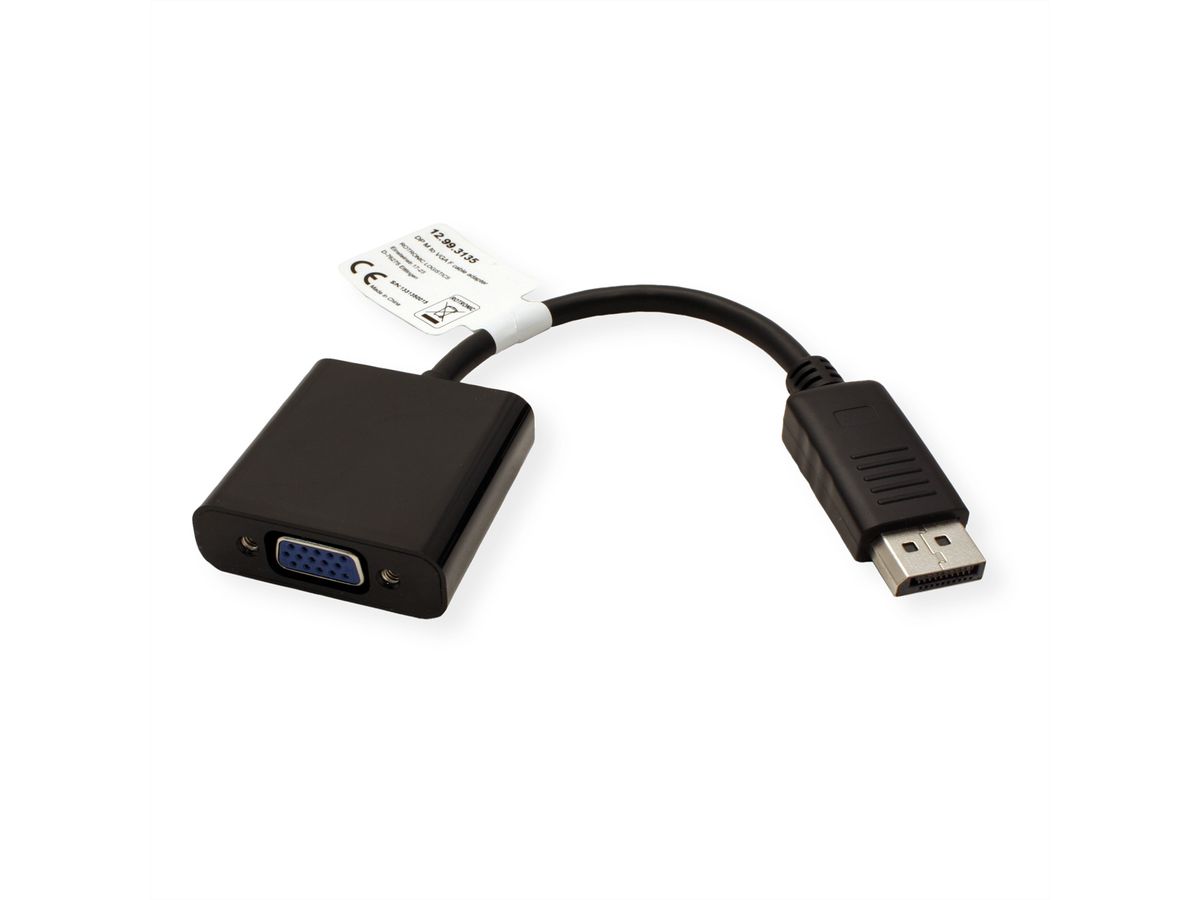

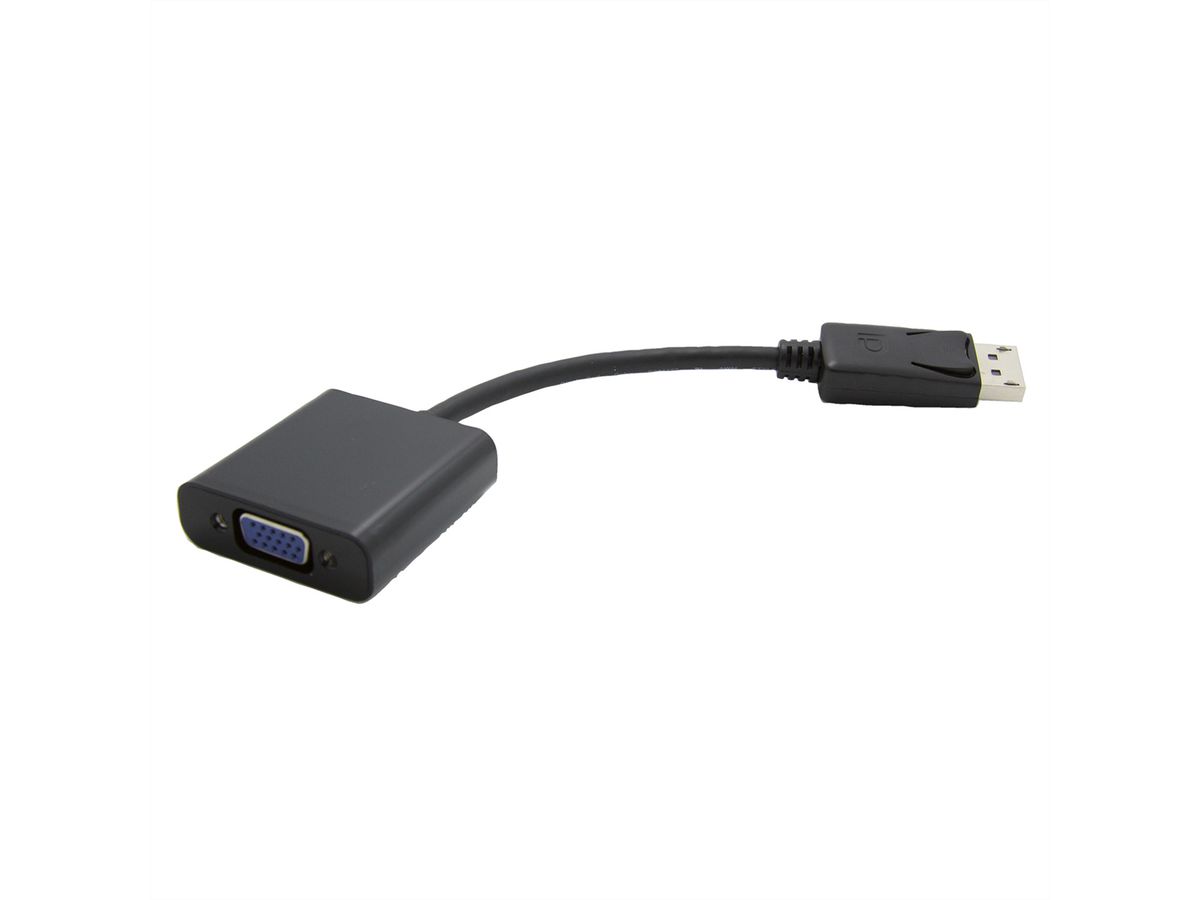

DisplayPort to VGA cable adapter for connecting a graphics card with DP to a monitor with VGA connector - with a resolution of up to 1920x1080 / 1920x1200 @60Hz!

• For connecting a graphic card with DisplayPort connector to a VGA monitor by using a VGA M-M cable
• Connectors: DisplayPort Male and VGA Female
• Cable length: ca. 20 cm
• Remark: The DisplayPort-VGA adapter is only working in one direction: the DisplayPort plug has to be connected to the source device (e.g. graphic card)

What are the benefits of using Active adapters and converters?

Active products can have a huge advantage when working with long cable runs and video conversion applications. In terms of video converters, active units generally have hardware inside to improve your image.

Specifications

Manufacturer	VALUE
Product group	Adapters, Terminators, Converters
Product type	DisplayPort-VGA Adapter
Colour	black
Length	0.15 m
Max. resolution	1920 x 1080 / 1920 x 1200 @60Hz (2K, Full HD)
Side 1 connection (PC)	DisplayPort Male
Side 2 connection (Peripherals)	VGA Female
Side 1 Connector Type	DisplayPort
Side 1 Connector Gender	Male
Side 2 Connector Type	HD D-Sub 15-pin (HD-15), VGA
Side 2 Connector Gender	Female
Active / Passive	Active
Area of application	External
Dimensions (HxWxD)	14 x 44 x 44 mm
Height	14 mm
Width	44 mm
Depth	44 mm
Weight	38.2 g
Height of packaging (single piece)	20 mm
Width of packaging (single piece)	120 mm
Depth of packaging (single piece)	180 mm
Package weight (single piece)	0.04 kg
