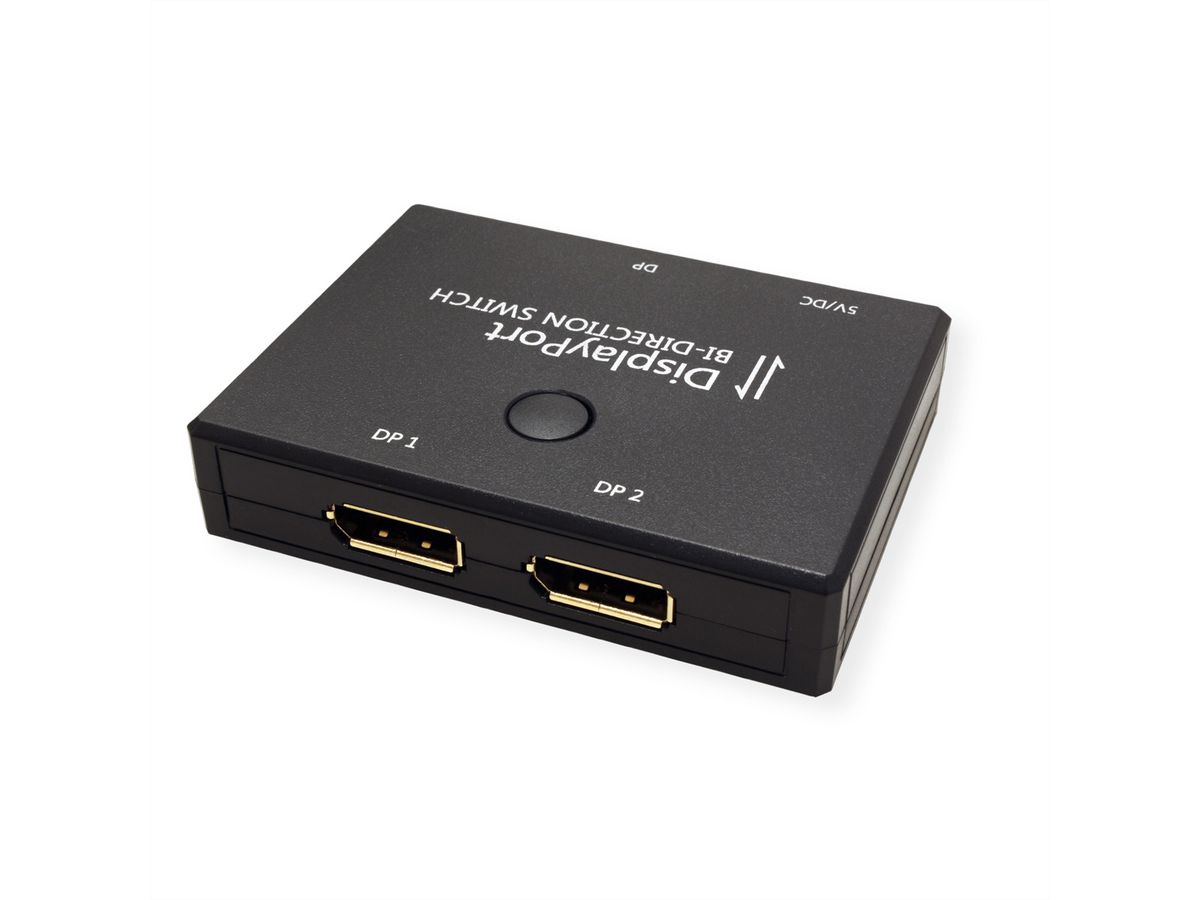

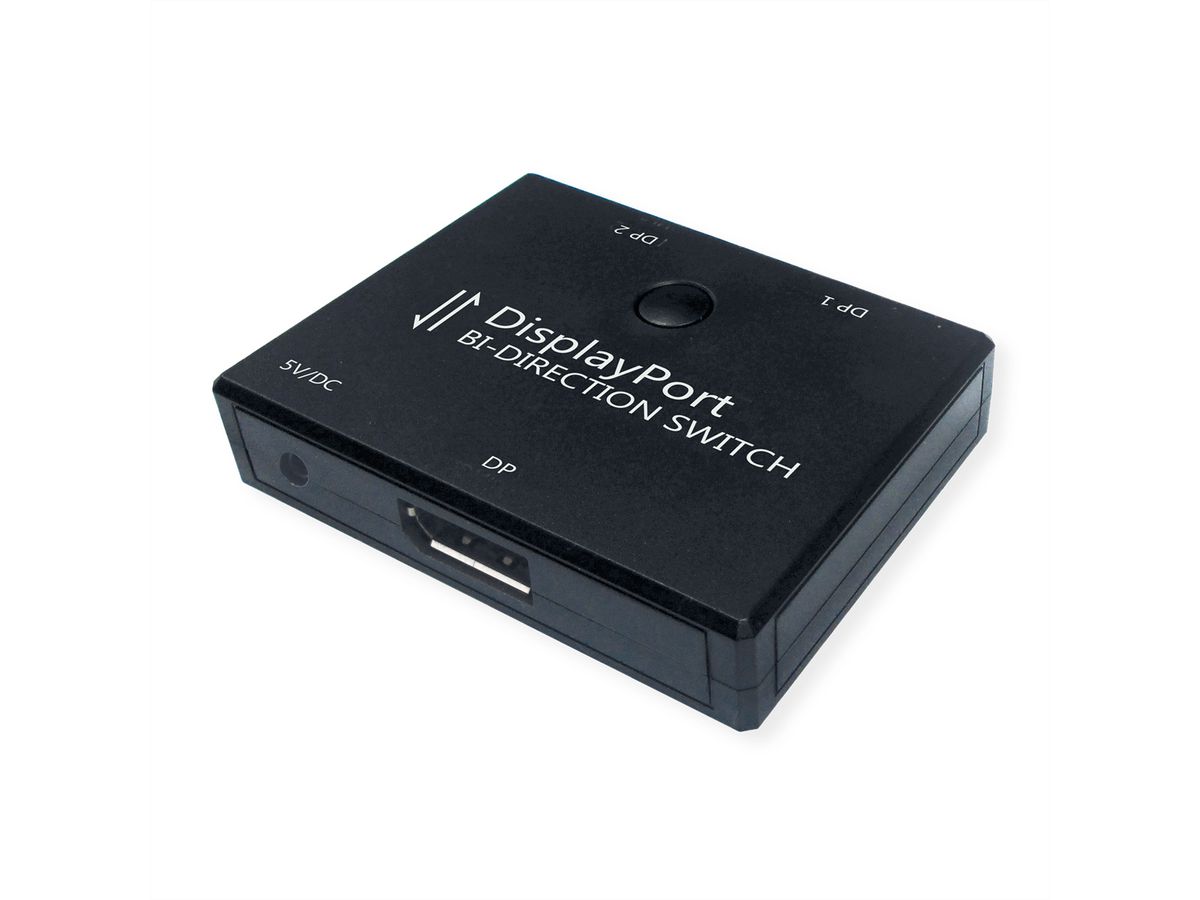

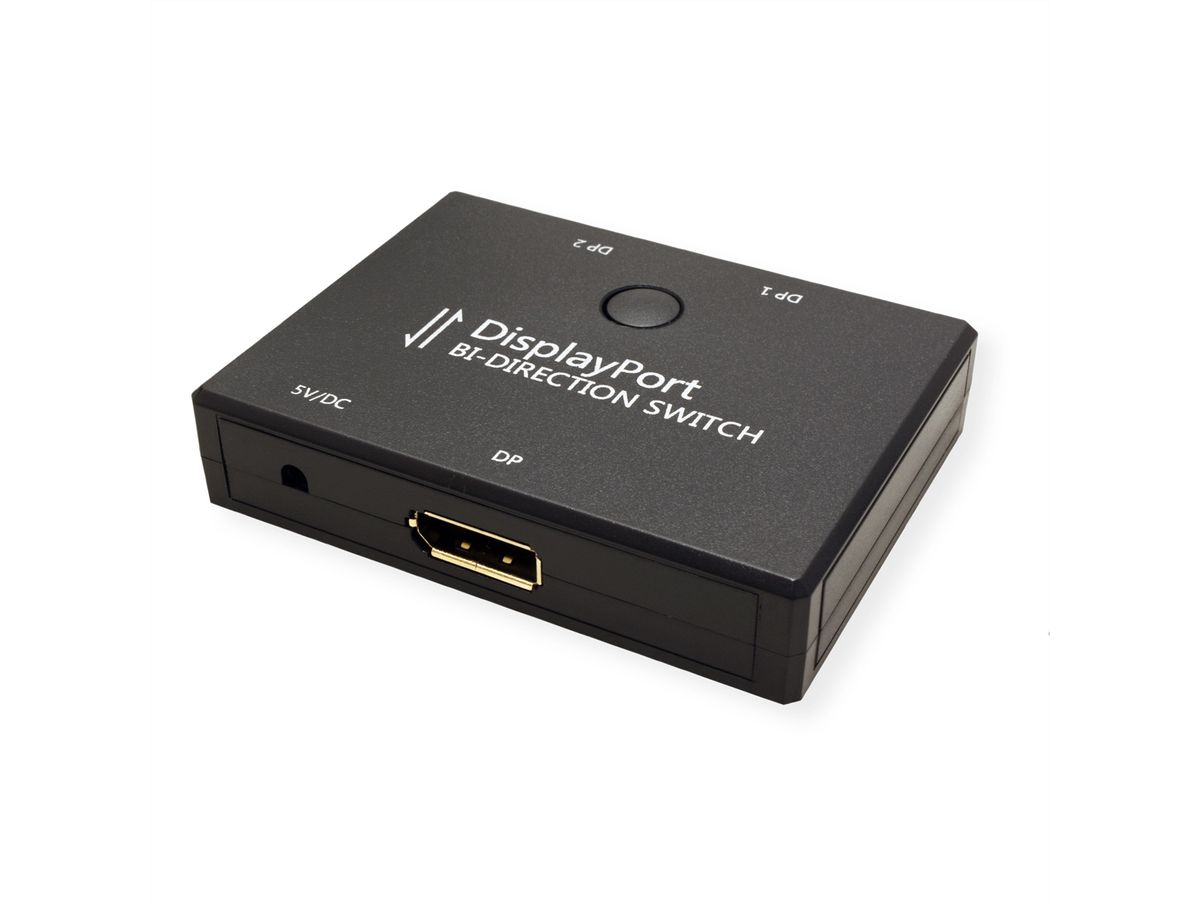

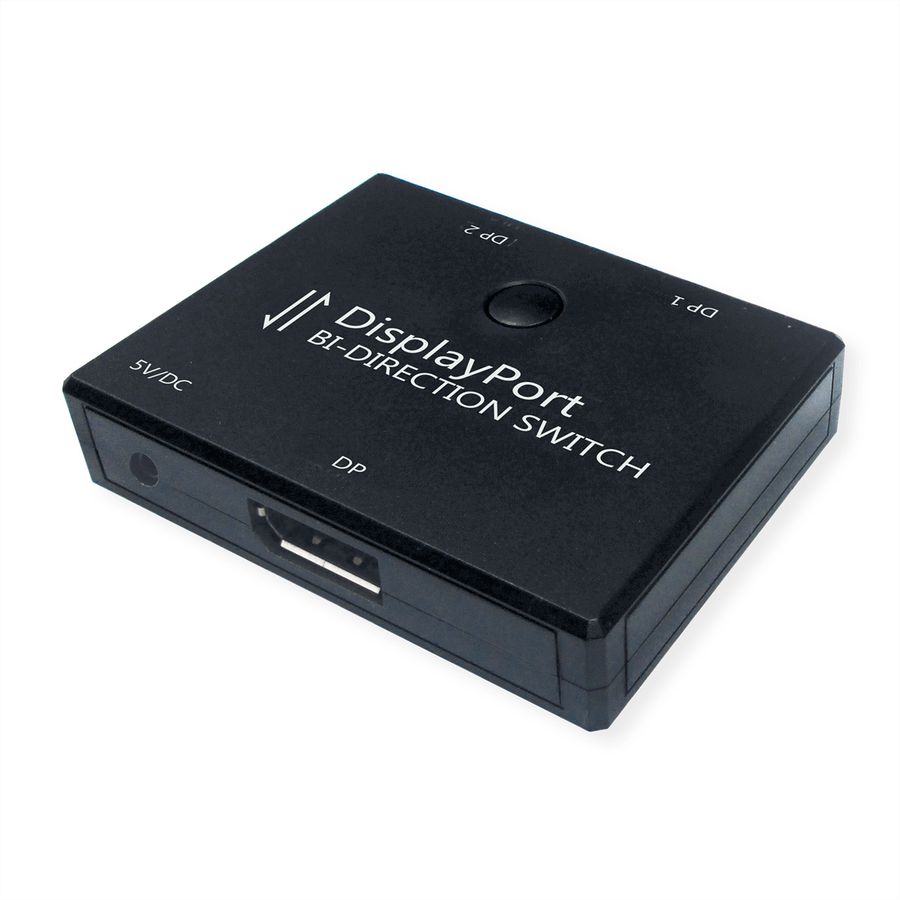

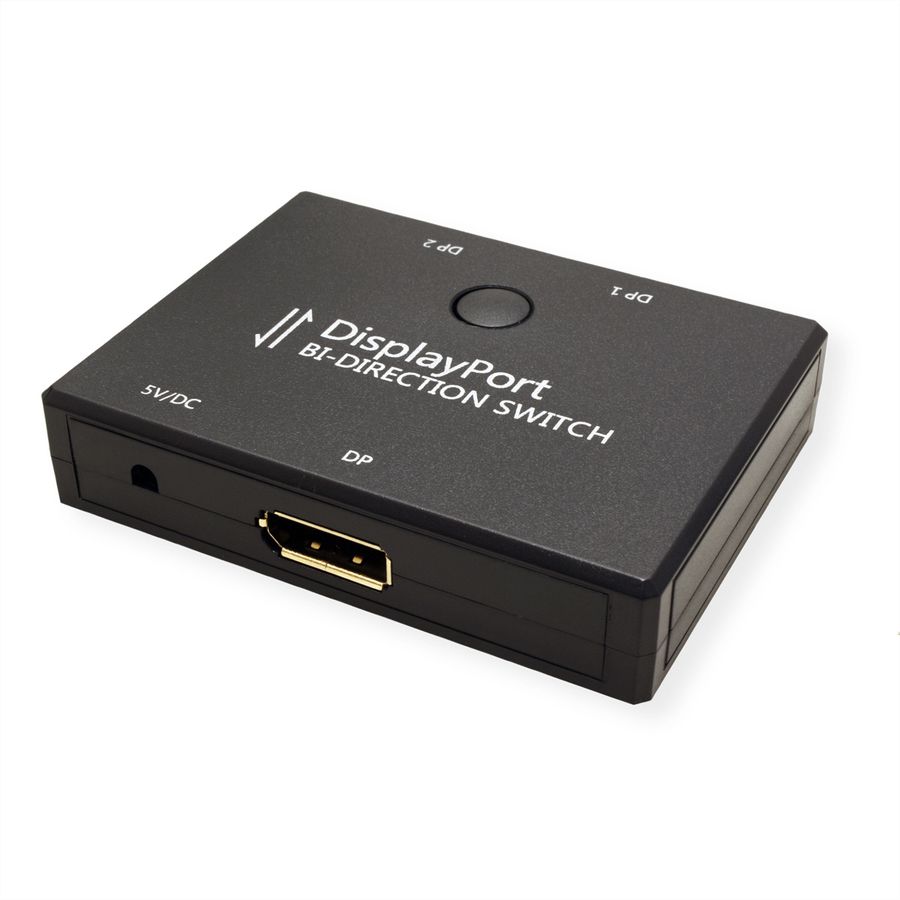

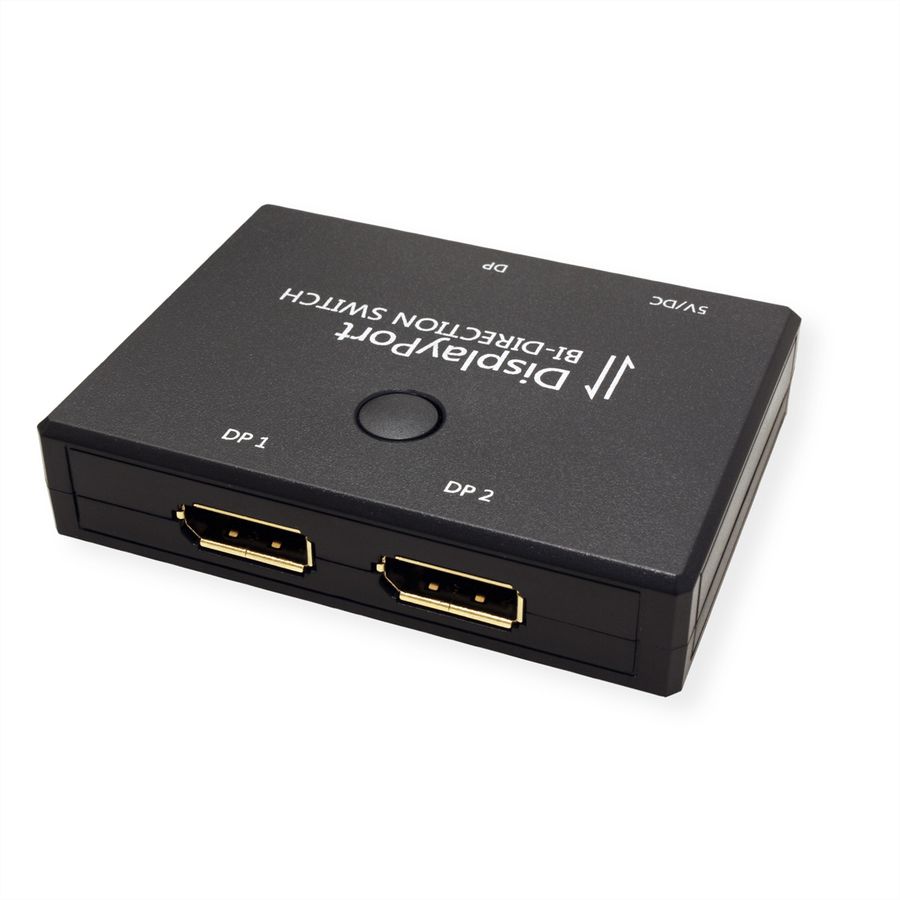

Description

Display the video output from two DP sources alternately on a 4K monitor, TV, or projector. Or display the video output from one DP source alternately on two different devices.

• Manual bidirectional DP switch for connecting different devices (e.g. DVD, Blu-ray player) with DP port.
• Manual select push button to alternate between application modes

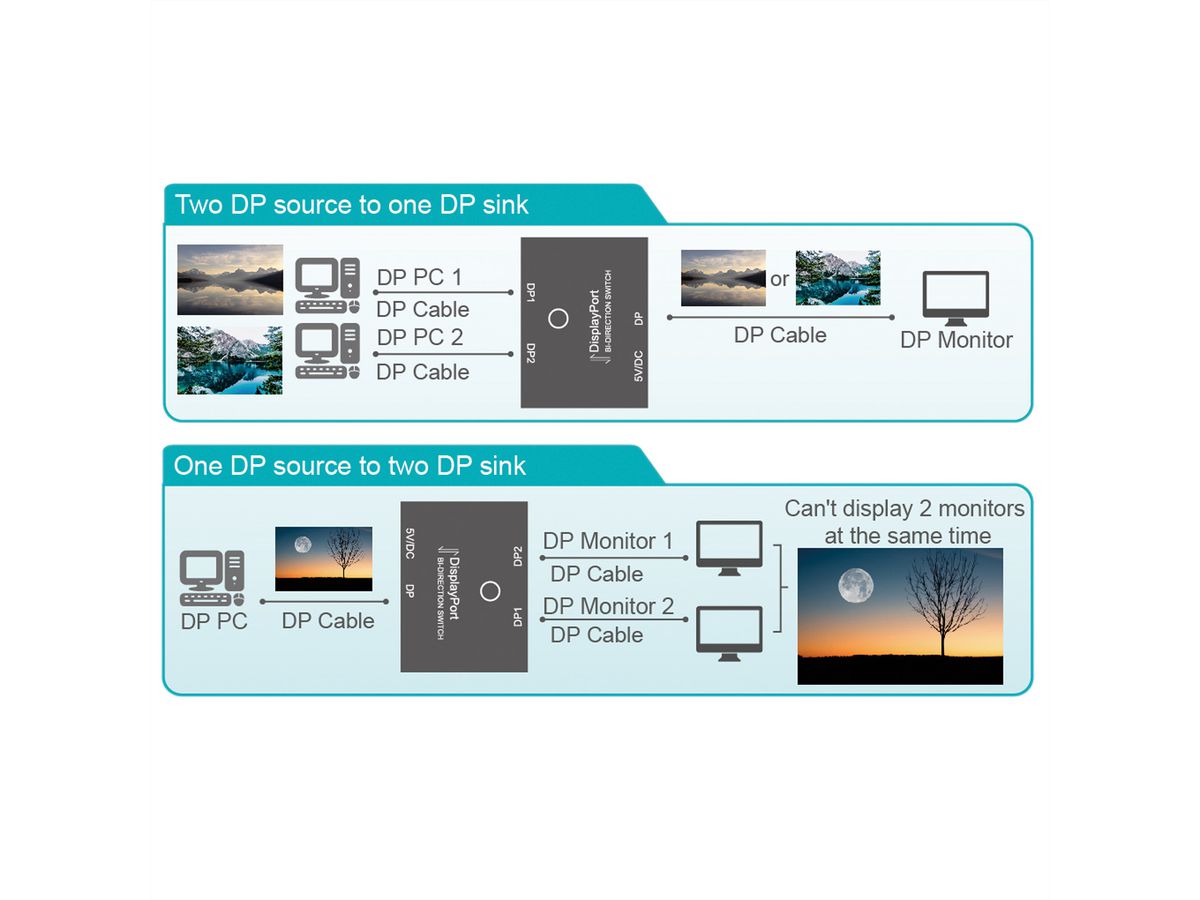

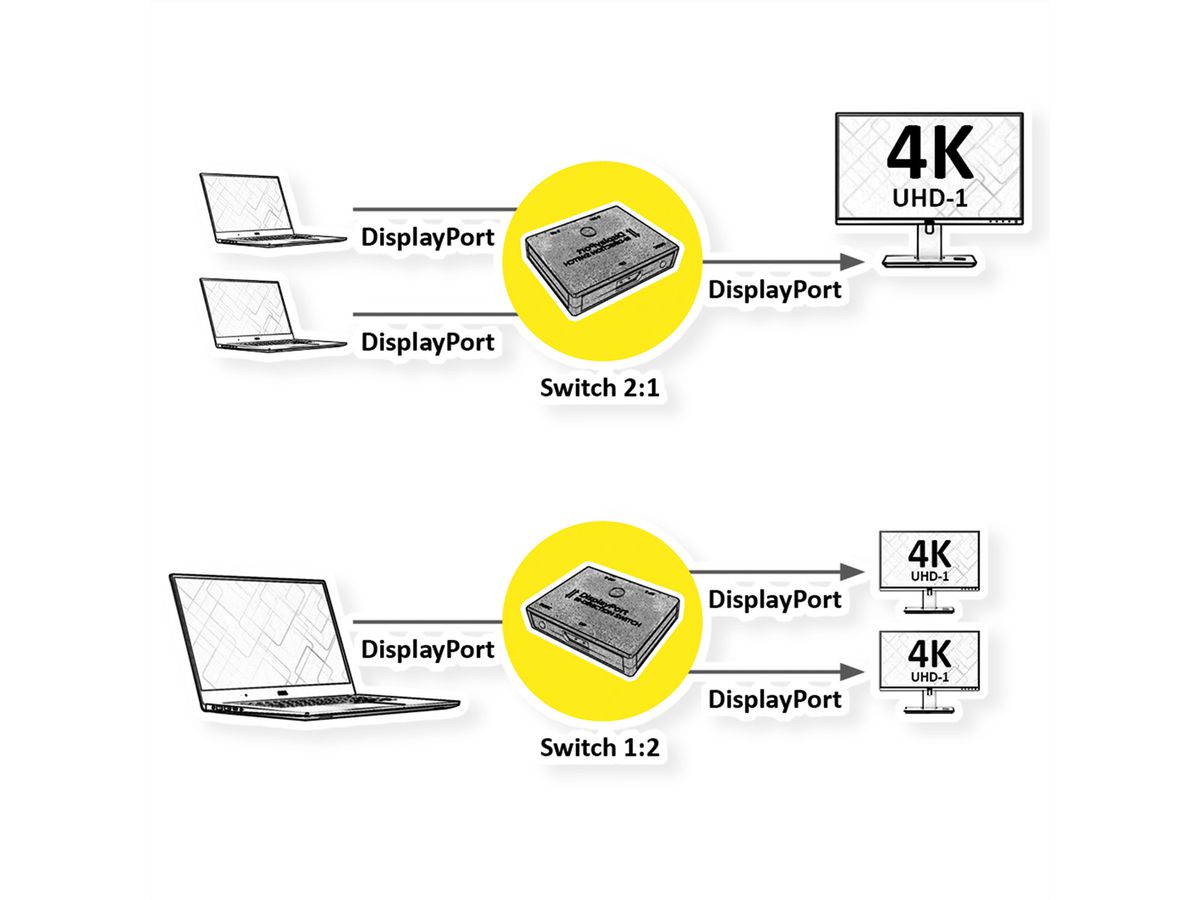

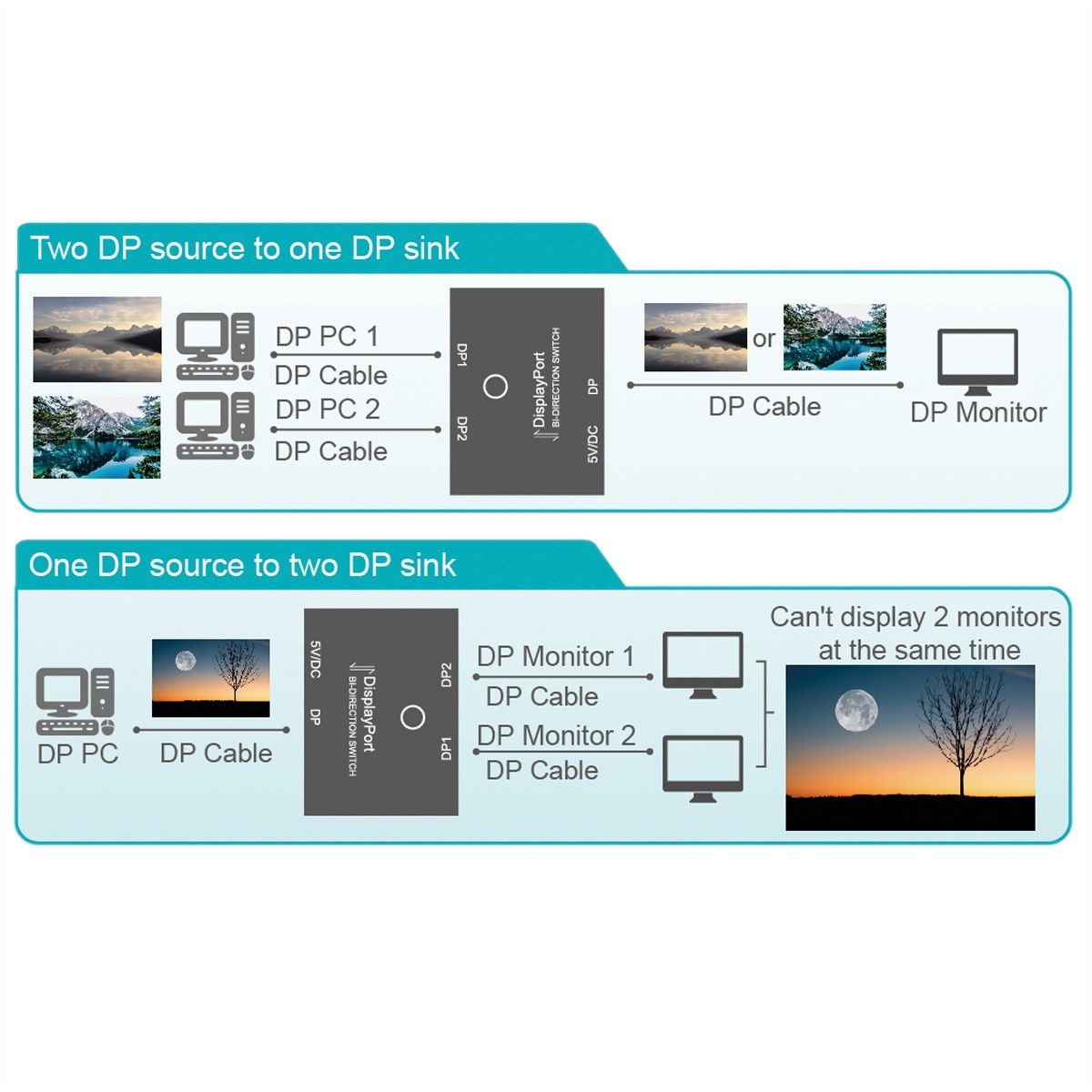

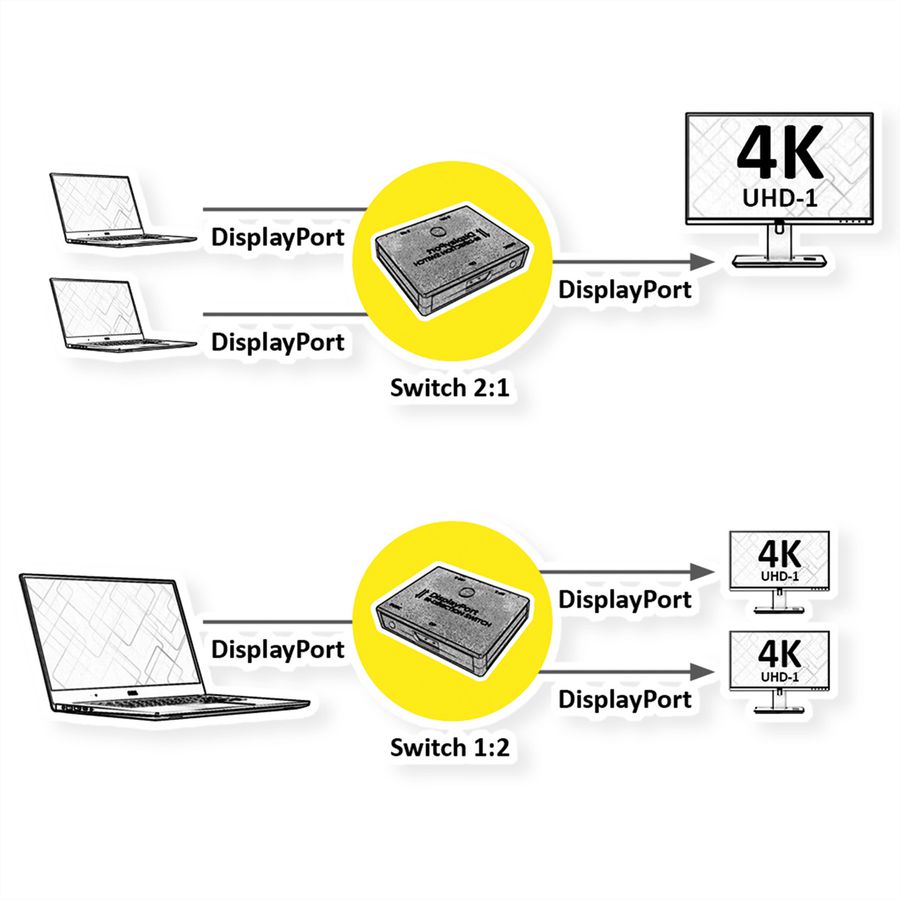

• Possible applications:

- Two inputs to one output (2 to 1): Up to 2 different DP devices can be connected to a monitor, TV or projector, by pushing the button.
- One input to two outputs (1 to 2): One DP device can be connected to up to 2 screens.

• A simultaneous output to multiple screens is not possible.

• Connectors:

Application 1
Input: 2 x DP
Output: 1 x DP

Application 2
Input: 1 x DP
Output: 2 x DP

• Supports HDR
• DP port selection by button
• Resolution up to 3840 x 2160 (4K) 60 Hz (depending on the system and the connected hardware)
• No external power supply needed
• Plastic housing
• Colour: black
• Dual LEDs to display status
• Dimensions (LxWxH): 82 x 62 x 17 mm

Specifications

Manufacturer	VALUE
Product group	Splitters and selectors
Product type	DP Video Switch
Colour	black
Scope of delivery	DP Switch, Manual
Interface	DP
Inputs	2
Outputs	1
Video input	2x DP F
Video output	1x DP F
Max. resolution (nom.)	3840x2160@60Hz (4K2K)
Max. resolution	3840 x 2160 @60Hz (4K, UHD-1)
Weight	73.9 g
Height of packaging (single piece)	30 mm
Width of packaging (single piece)	100 mm
Depth of packaging (single piece)	90 mm
Package weight (single piece)	0.078 kg
