Description

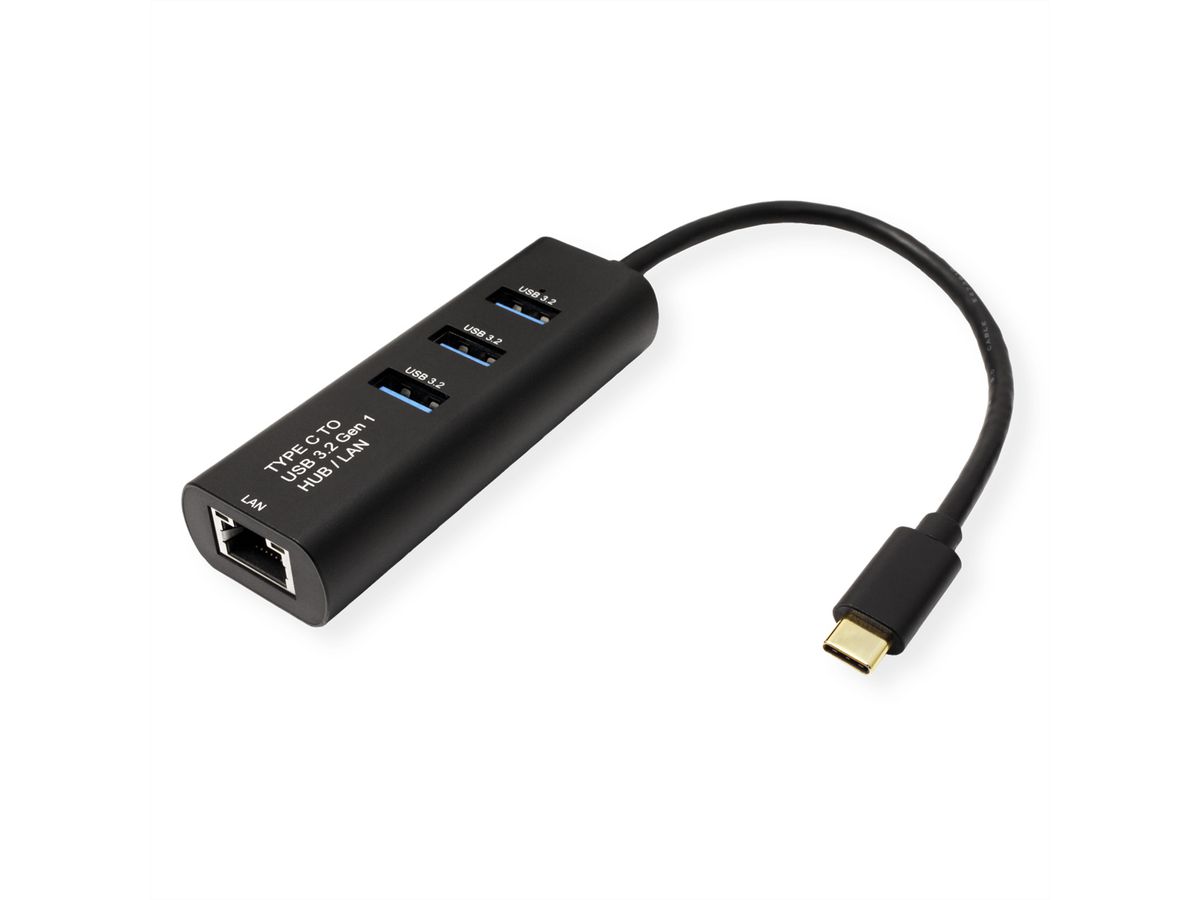

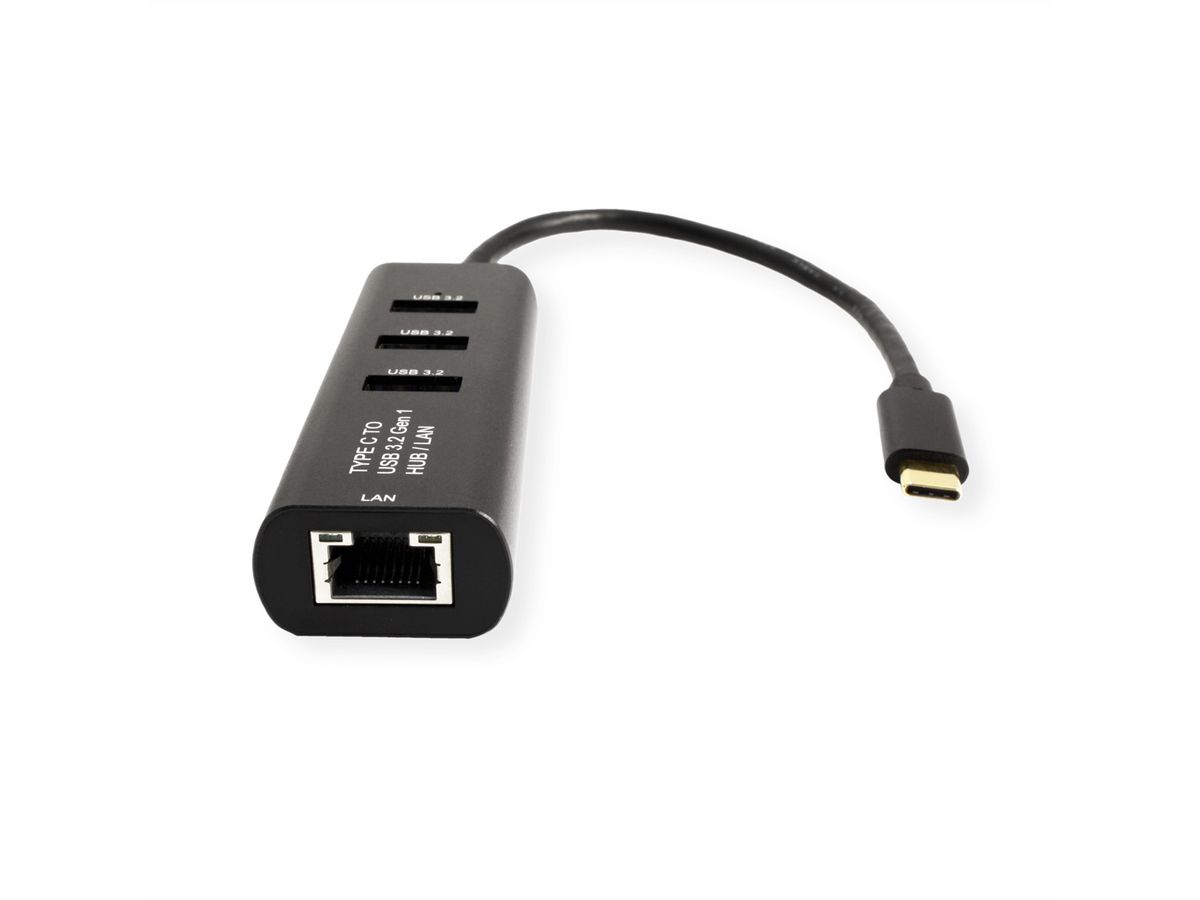

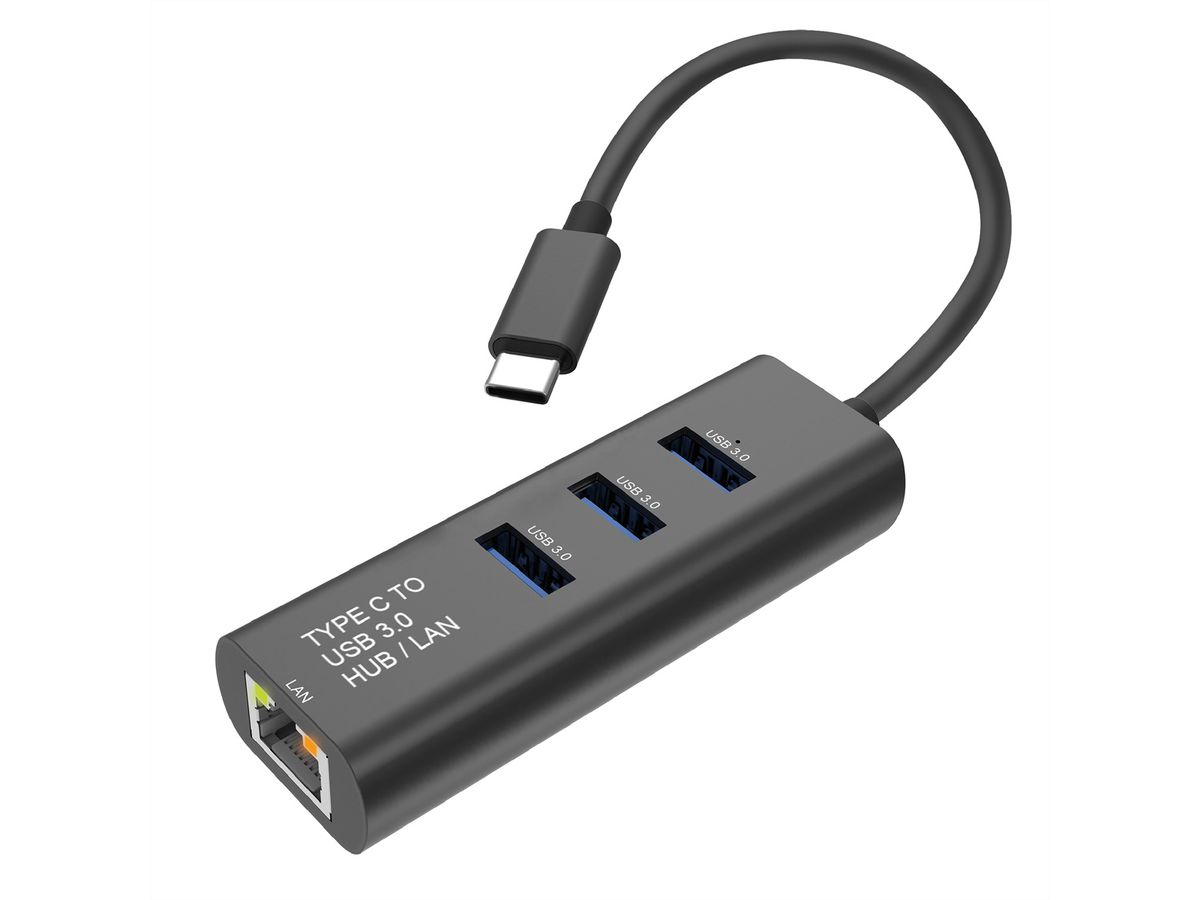

With this converter you can connect your MacBook, Ultrabook, Laptop/Notebook or PC with USB Type C interface to a Gigabit Ethernet network and up to three USB 3.0 / USB 3.2 Gen 1 Type A devices.

• Supports USB 3.0 / USB 3.2 Gen 1, compatible with USB 2.0 and 1.1
• Easy installation - just plug the converter into the USB port, connect the LAN cable - ready
• Supports Gigabit Ethernet with auto-negotiation, auto-MDI/-MDIX and half/full duplex
• LED indicators for link and speed
• Additional USB hub function with 3x USB 3.0 / USB 3.2 Gen 1 ports
• Power supply via USB interface

Note: According to the current specifications of USB.org we have adapted the technical data of our USB 3 products. The new designation for the already known USB specifications has been changed to USB 3.2 Gen 1 (formerly USB 3.0 / USB 3.1 Gen 1) and USB 3.2 Gen 2 (formerly USB 3.1 / USB 3.1 Gen 2).

Specifications

Manufacturer	SECOMP
Product group	Network adapters
Product type	Gigabit Ethernet Converter
Colour	Aluminium
Length	0.1 m
Scope of delivery	Converter
BUS system	USB
LAN (Mbps)	10/100/1000
Quantity of ports	1
Connection ports	1x RJ-45 F, 1x USB Type C M, 1x USB 3.0 Type A F
Side 1 Connector Type	USB Type C (USB-C)
Side 1 Connector Gender	Male
Side 2 Connector Type	RJ-45
Side 2 Connector Gender	Female
Full duplex	yes
Wake on LAN	no
Network topology	Ethernet
Operating System	Windows XP / 7 / 8 / 10, Mac OS 10
Technical particularity	LED for Link and Gigabit Mode
Dimensions (HxWxD)	45 x 13 x 95 mm
Height	18 mm
Width	29 mm
Depth	87 mm
Weight	45.2 g

Downloads

Manufacturer data sheet (407.7 KB)

Download
