Description

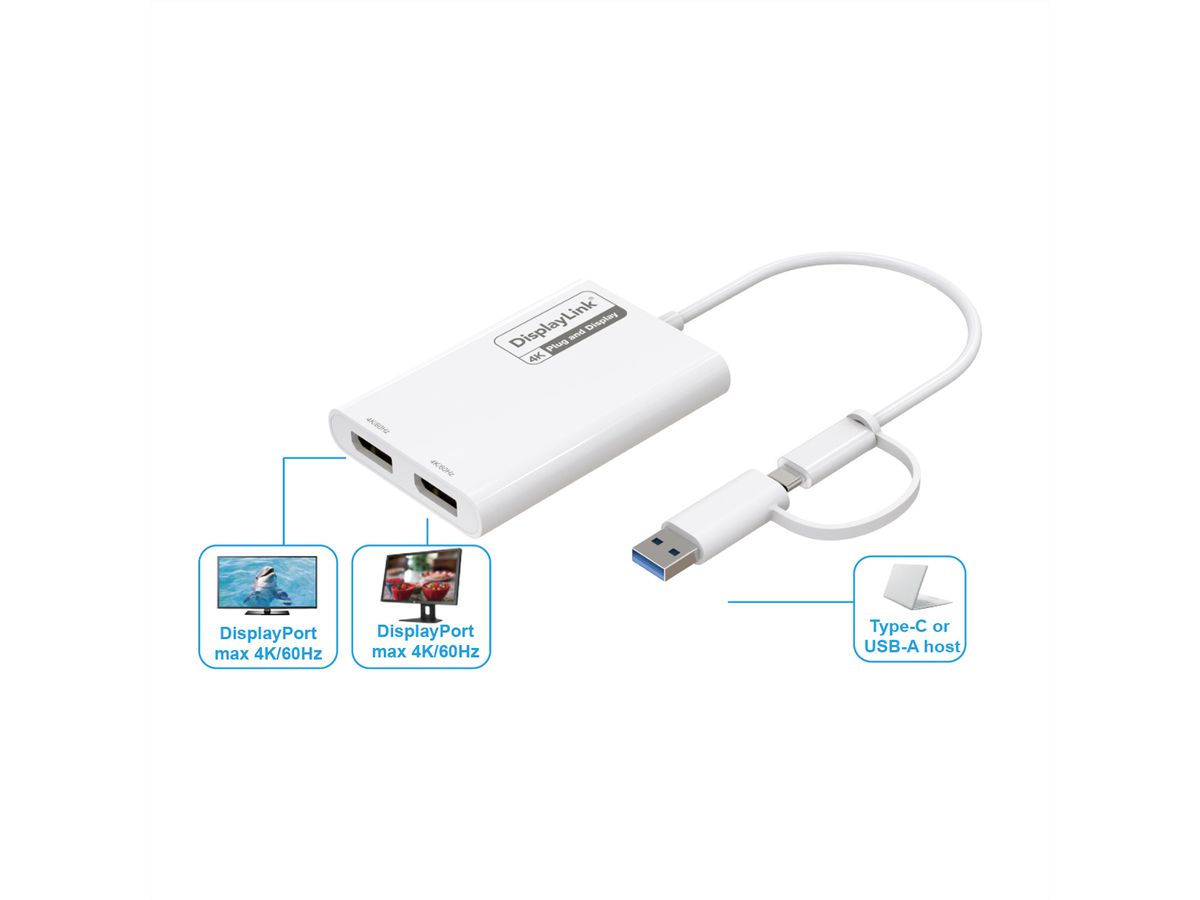

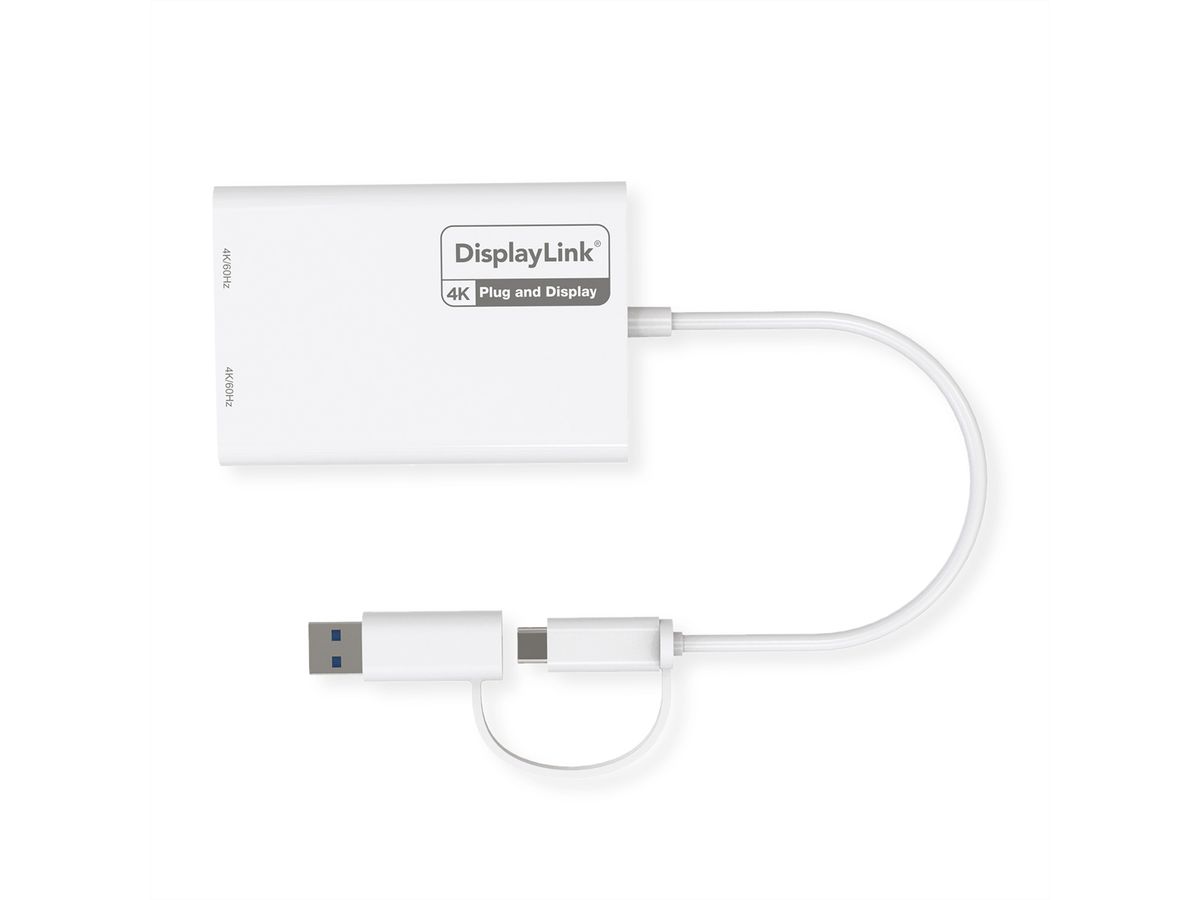

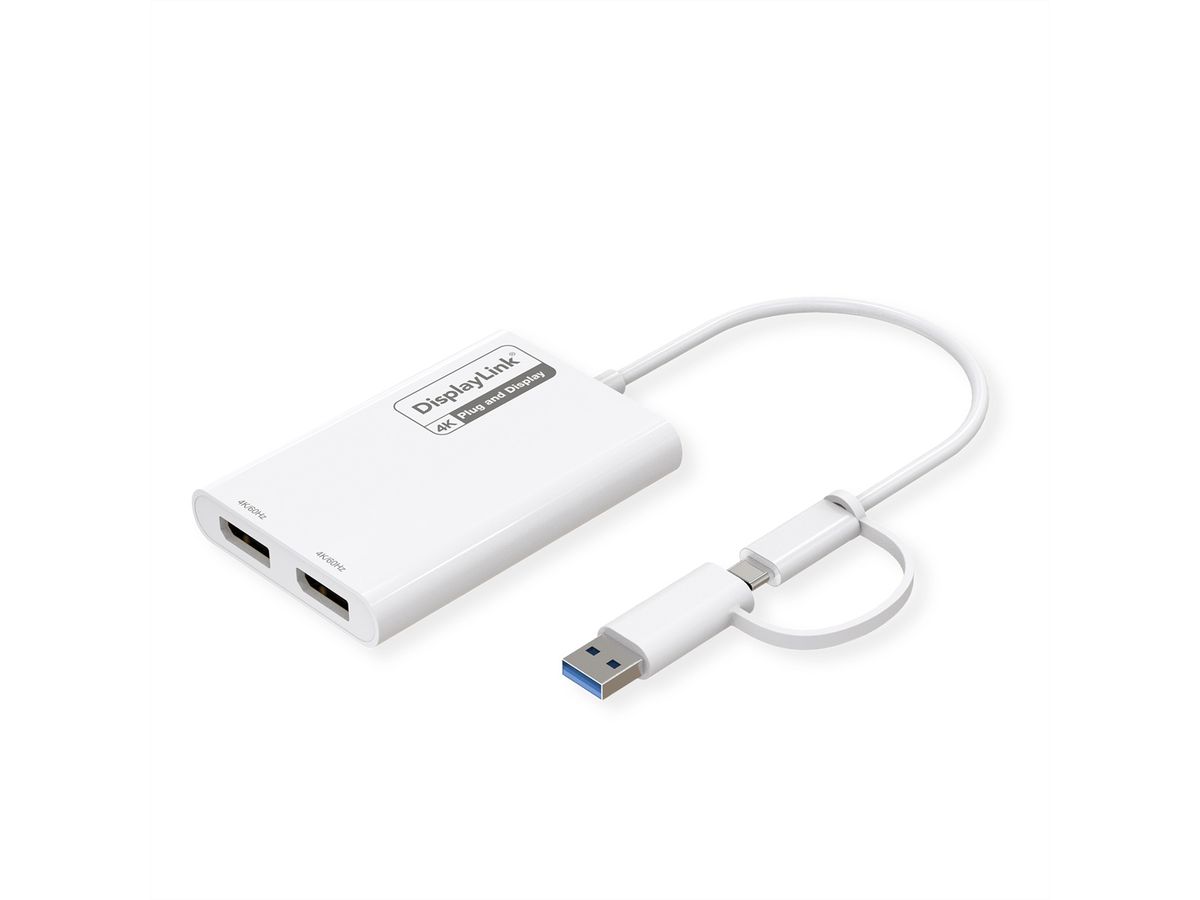

Mirror or extend the display of your USB Type-A/C device to up to two DP displays - with a maximum resolution of 3840x2160 @60Hz!

• USB Type A/C to DP DisplayLink Adapter for Macbooks, Ultrabooks, Notebooks/Laptops or PCs
• Supports up to 2 DP monitors/TV with 4K Ultra HD (3840 x2160) @60Hz each
• Connectors: 1x USB Type A/C male and 2x DP female
• Portable design
• No power adapter required
• Cable length: ca. 18 cm

Remark: Support of "Alternate Mode (DP Alt Mode)" required

Specifications

Manufacturer	ROLINE
Product group	Adapters, Terminators, Converters
Product type	USB-DisplayPort Adapter
Colour	white
Length	0.18 m
Scope of delivery	Adapter
Max. resolution	3840 x 2160 @60Hz (4K, UHD-1)
Side 1 connection (PC)	Typ C Male
Side 2 connection (Peripherals)	2x DP Female
Side 1 Connector Type	USB Type C (USB-C)
Side 1 Connector Gender	Male
Side 2 Connector Type	DisplayPort
Side 2 Connector Gender	Female
Area of application	External
Operating temperature min.	0 °C
Operating temperature max.	45 °C
Storage temperature min.	-10 °C
Storage temperature max.	70 °C
Height	14 mm
Width	61 mm
Depth	90 mm
Weight	95 g
Height of packaging (single piece)	20 mm
Width of packaging (single piece)	70 mm
Depth of packaging (single piece)	100 mm
Package weight (single piece)	0.07 kg

Downloads

Product data sheet - English (41.8 KB)

Download
