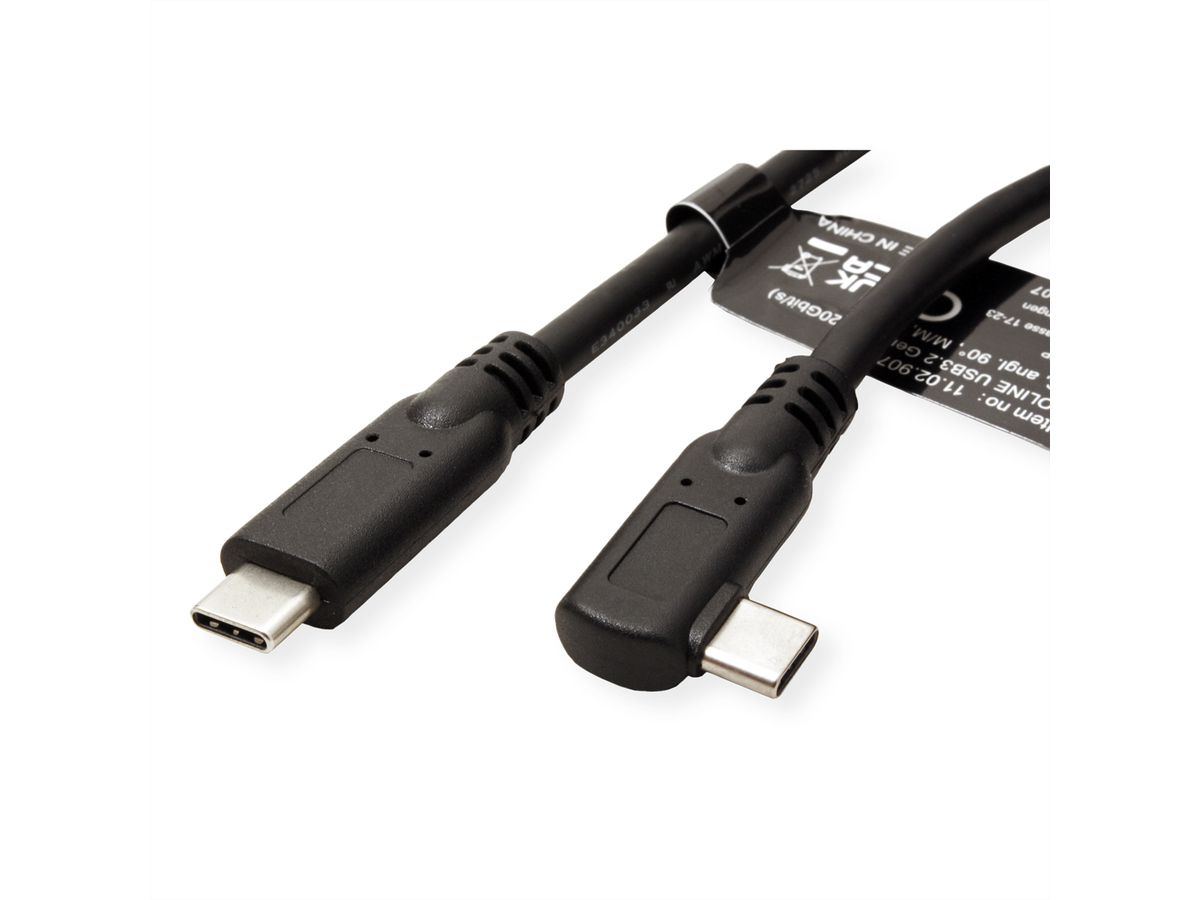

ROLINE USB 3.2 Gen 2x2 Cable, PD (Power Delivery) 20V5A, with Emark, C-C, M/M, 1x 90° angled, 20 Gbit/s, black, 1 m

ROLINE USB 3.2 Gen 2x2 Cable, PD (Power Delivery) 20V5A, with Emark, C-C, M/M, 1x 90° angled, 20 Gbit/s, black, 1 m

Please log in to be able to use the shopping cart and then complete orders.

Log in
Available
Ordered until 3 pm - usually dispatched on the same day
Item no. 11.02.9075-10
Brand / Manufacturer ROLINE
Manuf. no. 11.02.9075
EAN 7630049681385
Package weight 0.02 kg

Description

USB 3.2 Gen 2x2 cable with up to 20 Gbit/s speed mode that uses a more efficient data encoding and will deliver more than twice the effective data through-put performance of existing, fully backward compatible USB connectors and cables.

  • High quality USB 3.1 / USB 3.2 Gen 2x2 cable with improved shielding
  • With the reversible Type C connectors at both ends

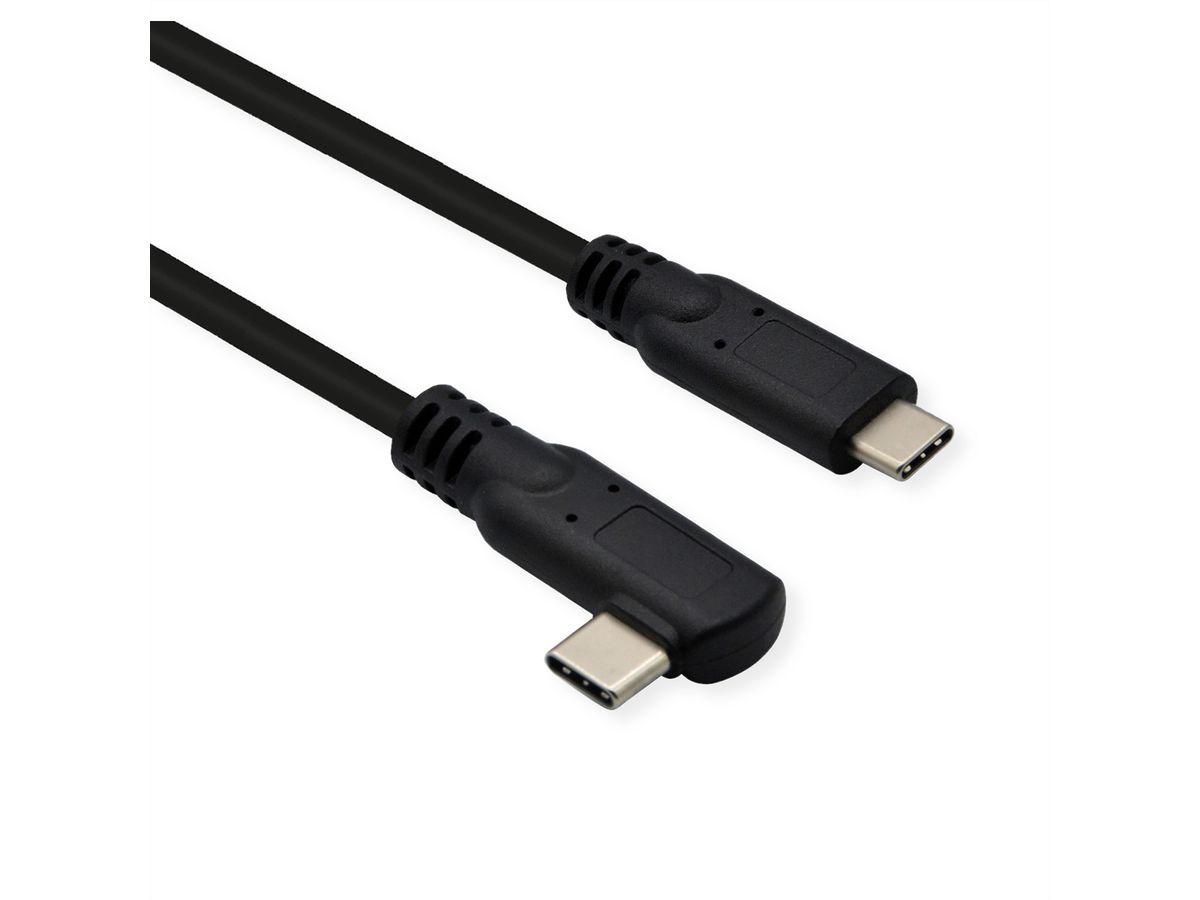

  • 1x Type C male connector (L-Shape, 90° angled)
  • Gold-plated contacts for low wear at high plugging cycles

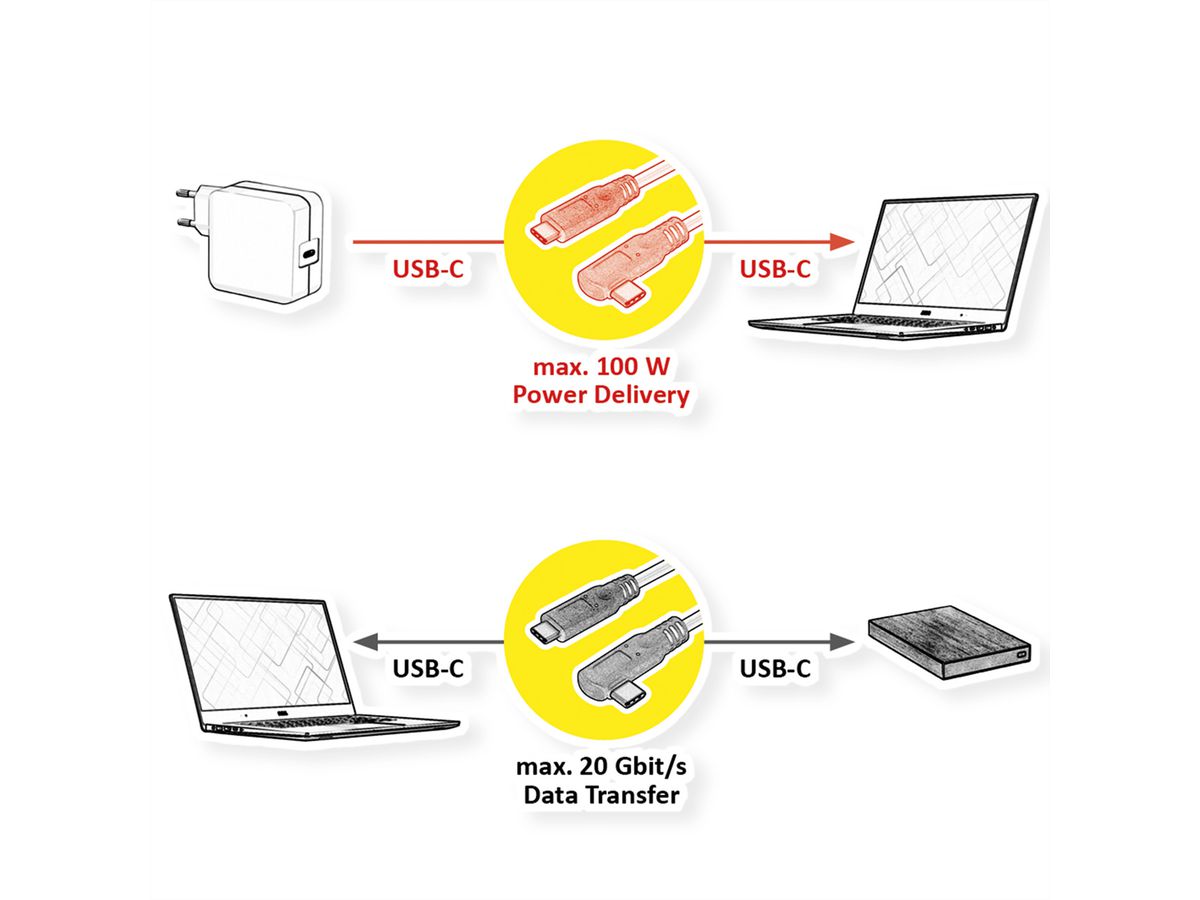

  • Suitable for data transfer rates of up to 20 Gbit/s
  • Supports USB Power Delivery to 20V / 5A

Note: According to the current specifications of USB.org we have adapted the technical data of our USB 3 products. The new designation for the already known USB specifications has been changed to USB 3.2 Gen 1 (formerly USB 3.0 / USB 3.1 Gen 1) and USB 3.2 Gen 2 (formerly USB 3.1 / USB 3.1 Gen 2).

Specifications

Manufacturer ROLINE
Product group Cable
Product type USB 3.2 Cable
Colour black
Length 1 m
Transfer quality USB 3.2 Gen 2x2 SuperSpeed 20 Gbit/s
Connection ports USB Type C (USB-C) Male / USB Type C (USB-C) Male
Side 1 Connector Type USB Type C (USB-C)
Side 1 Connector Gender Male
Side 2 Connector Type USB Type C (USB-C)
Side 2 Connector Gender Male
Maximum data transfer rate 20 Gbit/s
Area of application External
Supported charging technology USB-PD - USB Power Delivery
Power (max.) 100 W
Cable shielding Screened
Hand locking screws no
Weight 38.5 g
Height of packaging (single piece) 20 mm
Width of packaging (single piece) 50 mm
Depth of packaging (single piece) 50 mm
Package weight (single piece) 0.02 kg
