Description

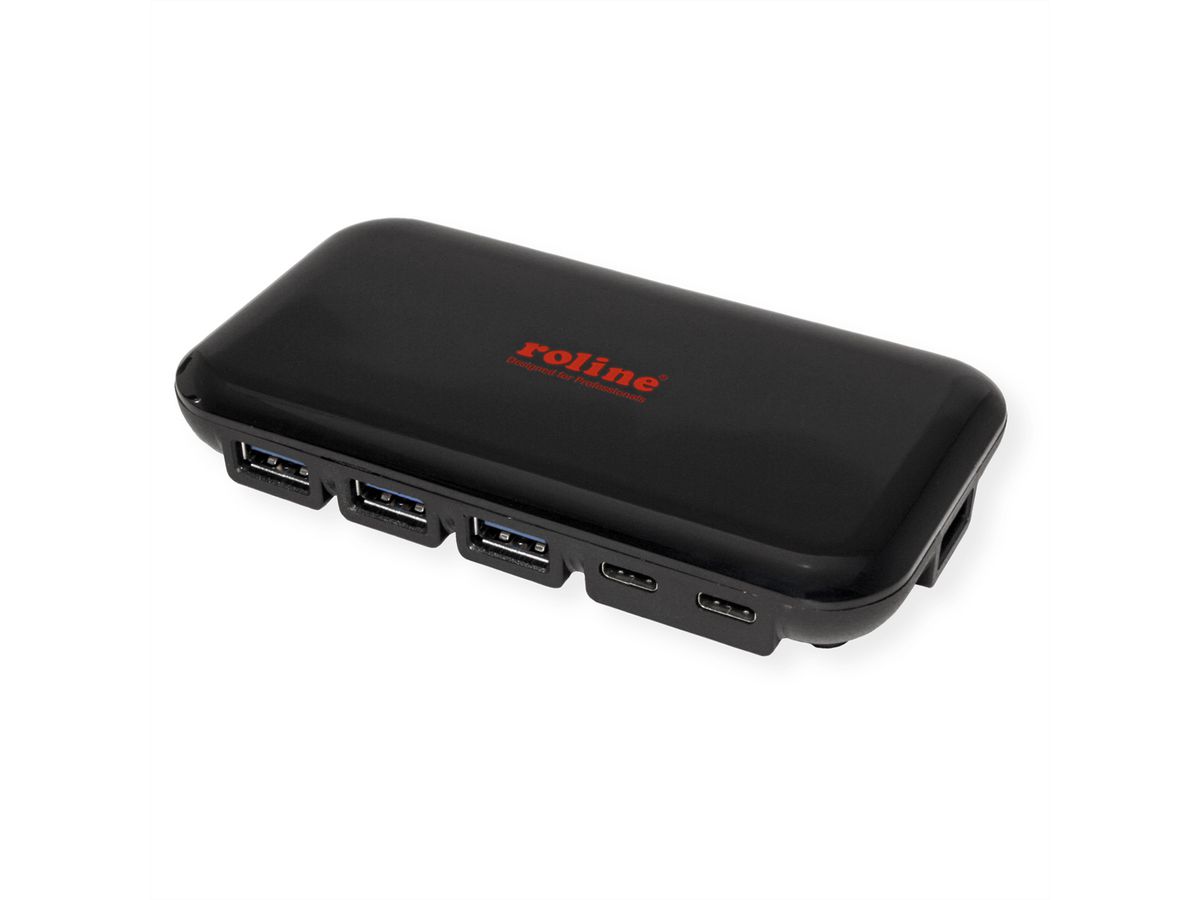

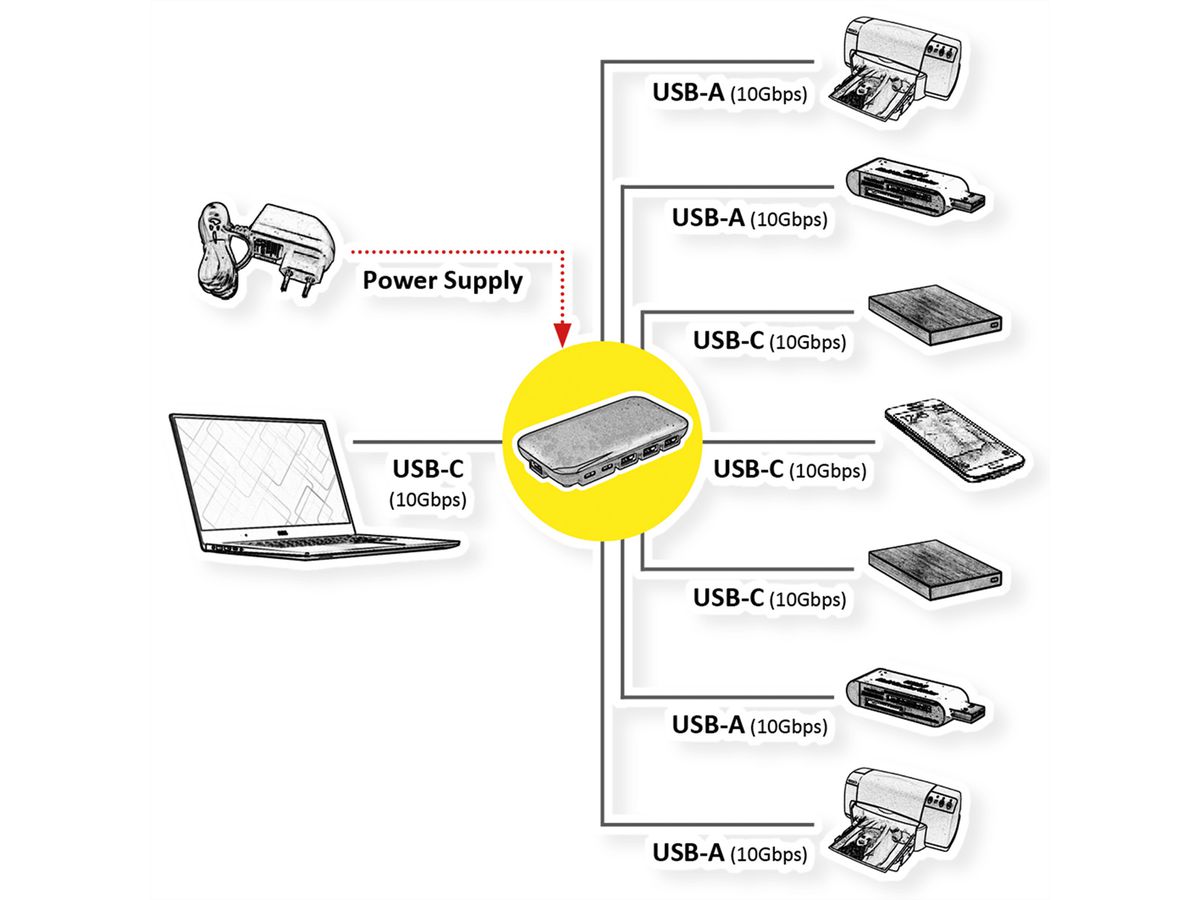

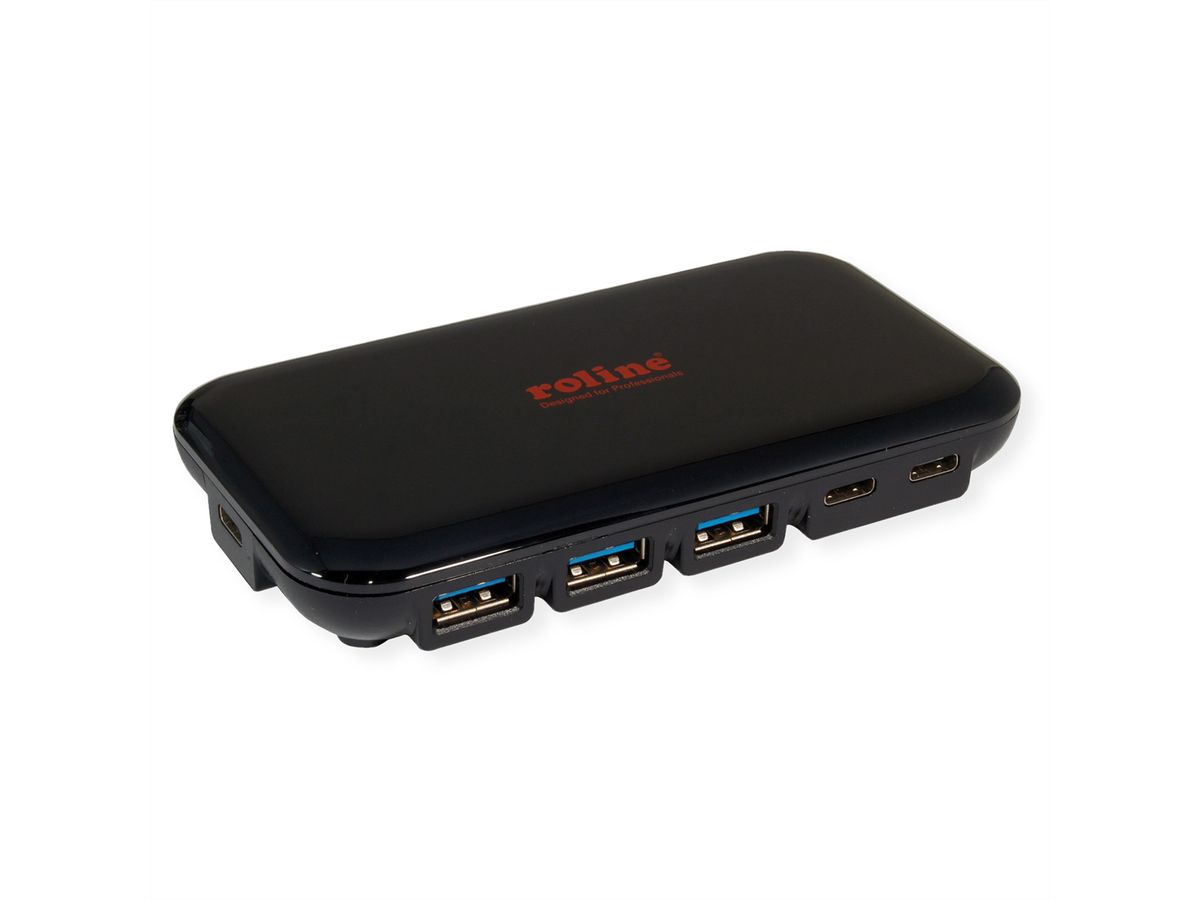

With this hub up to seven USB 3.1 / USB 3.2 Gen 2 peripheral devices can be connected to the USB Type C port of a PC.

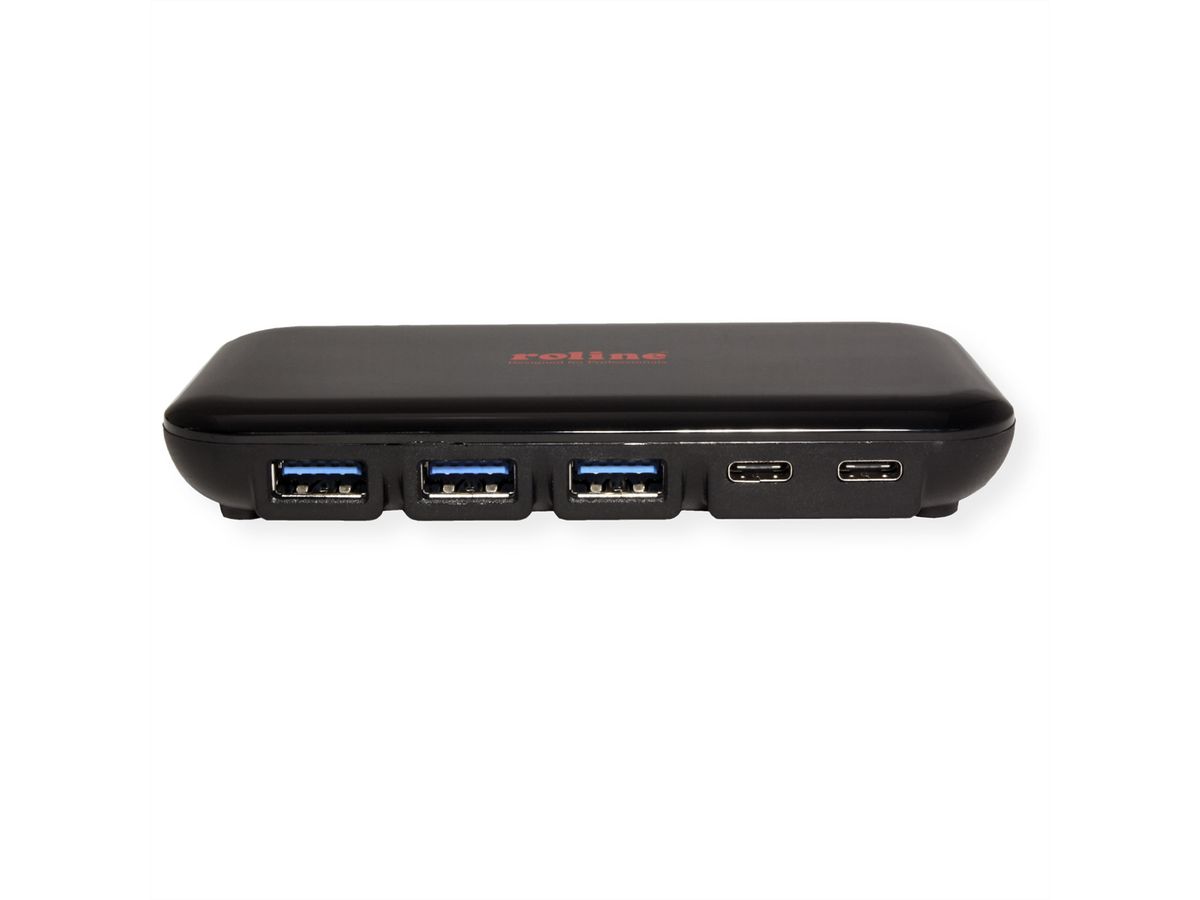

• Four USB Type A ports for connecting peripheral devices
• Three USB Type C ports for connecting peripheral devices
• Data transfer rates of up to 10 Gbps (USB 3.1 / USB 3.2 Gen 2)
• Power supply (5V/4A)
• USB cable with type C connector for host connection
• Automatic determination of the optimal transmission rate
• Contents: Hub, USB C connection cable, power supply (5V/4A)

Note: According to the current specifications of USB.org we have adapted the technical data of our USB 3 products. The new designation for the already known USB specifications has been changed to USB 3.2 Gen 1 (formerly USB 3.0 / USB 3.1 Gen 1) and USB 3.2 Gen 2 (formerly USB 3.1 / USB 3.1 Gen 2).

Specifications

Manufacturer	ROLINE
Product group	Hubs
Product type	USB Hub
Colour	black
Scope of delivery	Hub, USB C connection cable, power supply
PC connection	1x USB Type C
Device connection	4x USB Type A, 3x USB Type C
Transfer quality	USB 3.2 Gen 2 SuperSpeed 10 Gbit/s (USB 3.1 Gen 2, USB 3.1)
Side 1 Connector Type	USB Type C (USB-C)
Side 1 Connector Gender	Female
Side 2 Connector Type	USB 3 Type A USB Type C (USB-C)
Side 2 Connector Gender	Female
Quantity of ports	7
Area of application	External
Dimensions (HxWxD)	18 x 121 x 65 mm
Power supply unit required	yes
Power supply output	5V/4A
Height	18 mm
Width	121 mm
Depth	65 mm
Weight	69.1 g
Height of packaging (single piece)	60 mm
Width of packaging (single piece)	90 mm
Depth of packaging (single piece)	240 mm
Package weight (single piece)	0.44 kg
