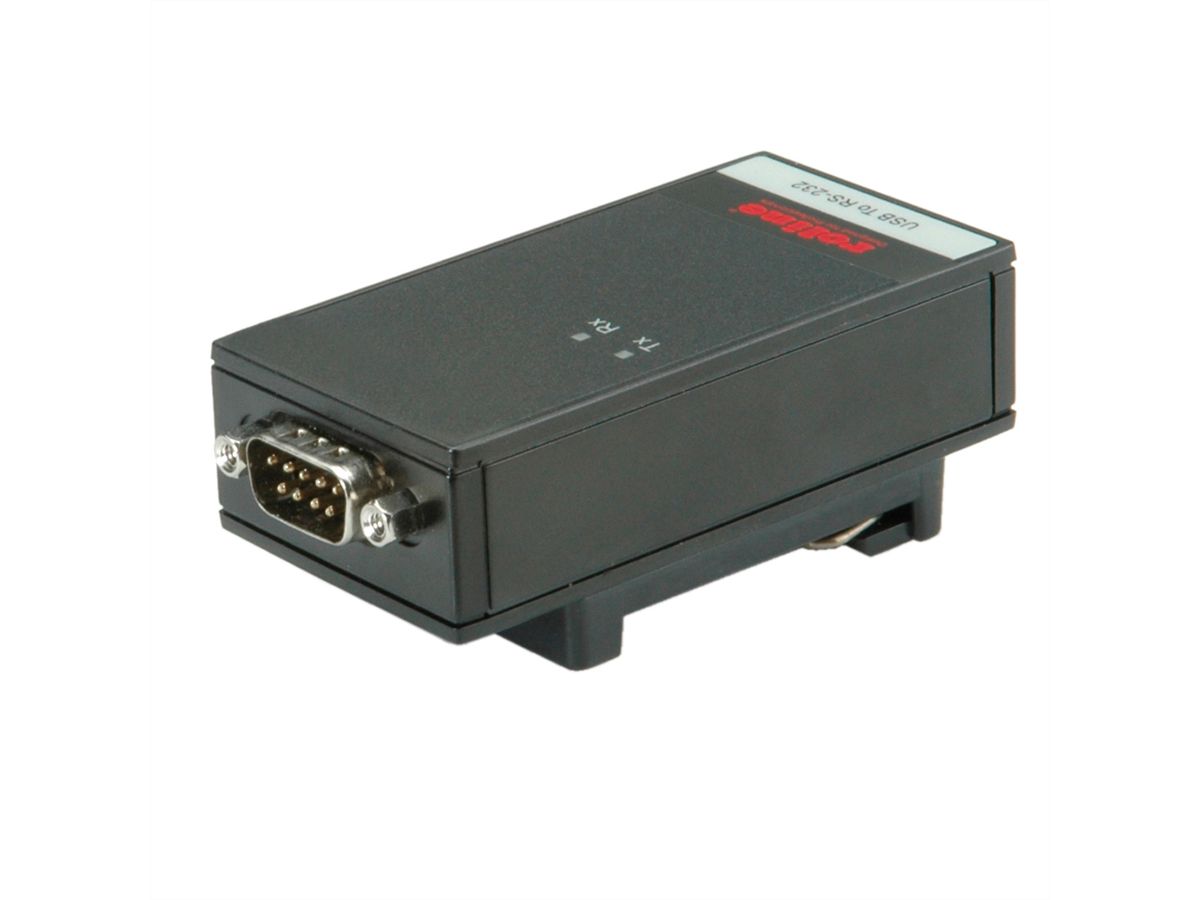

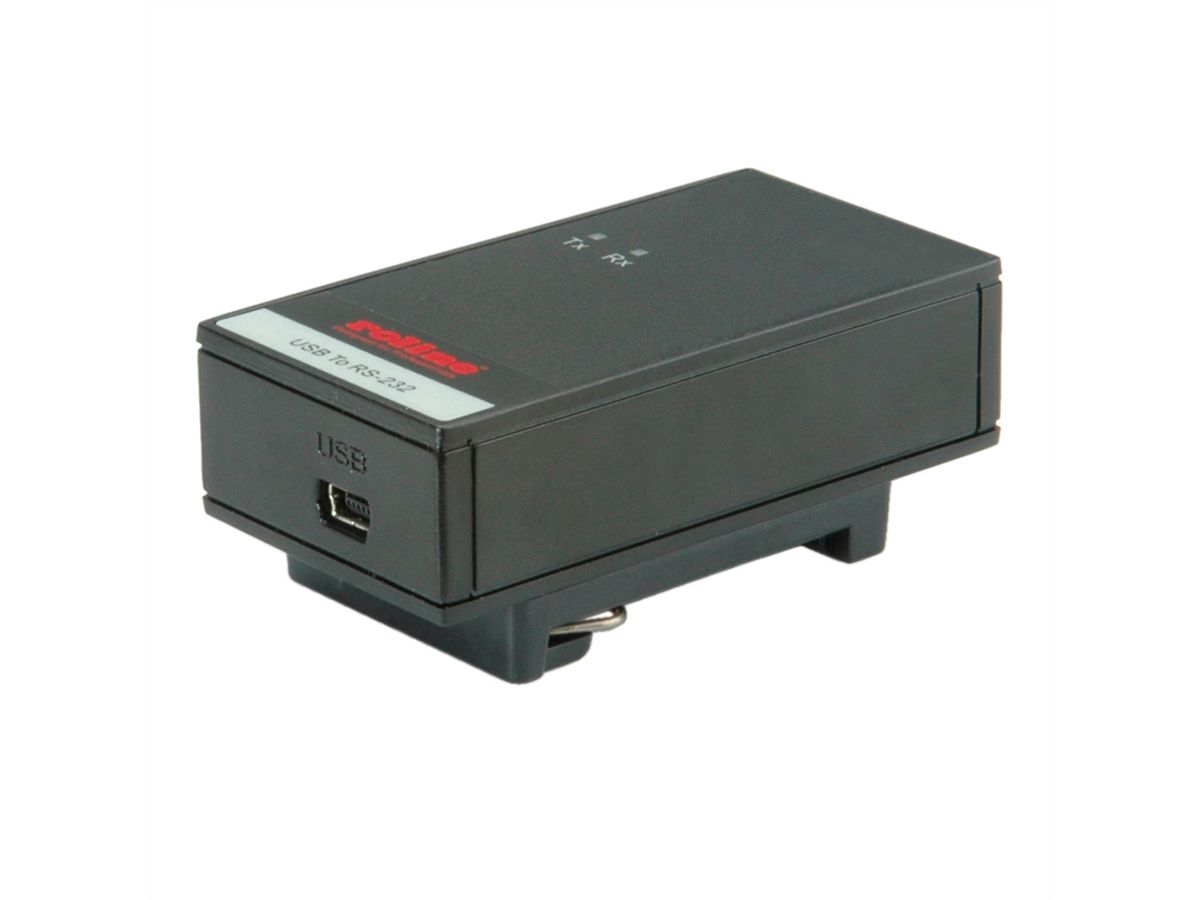

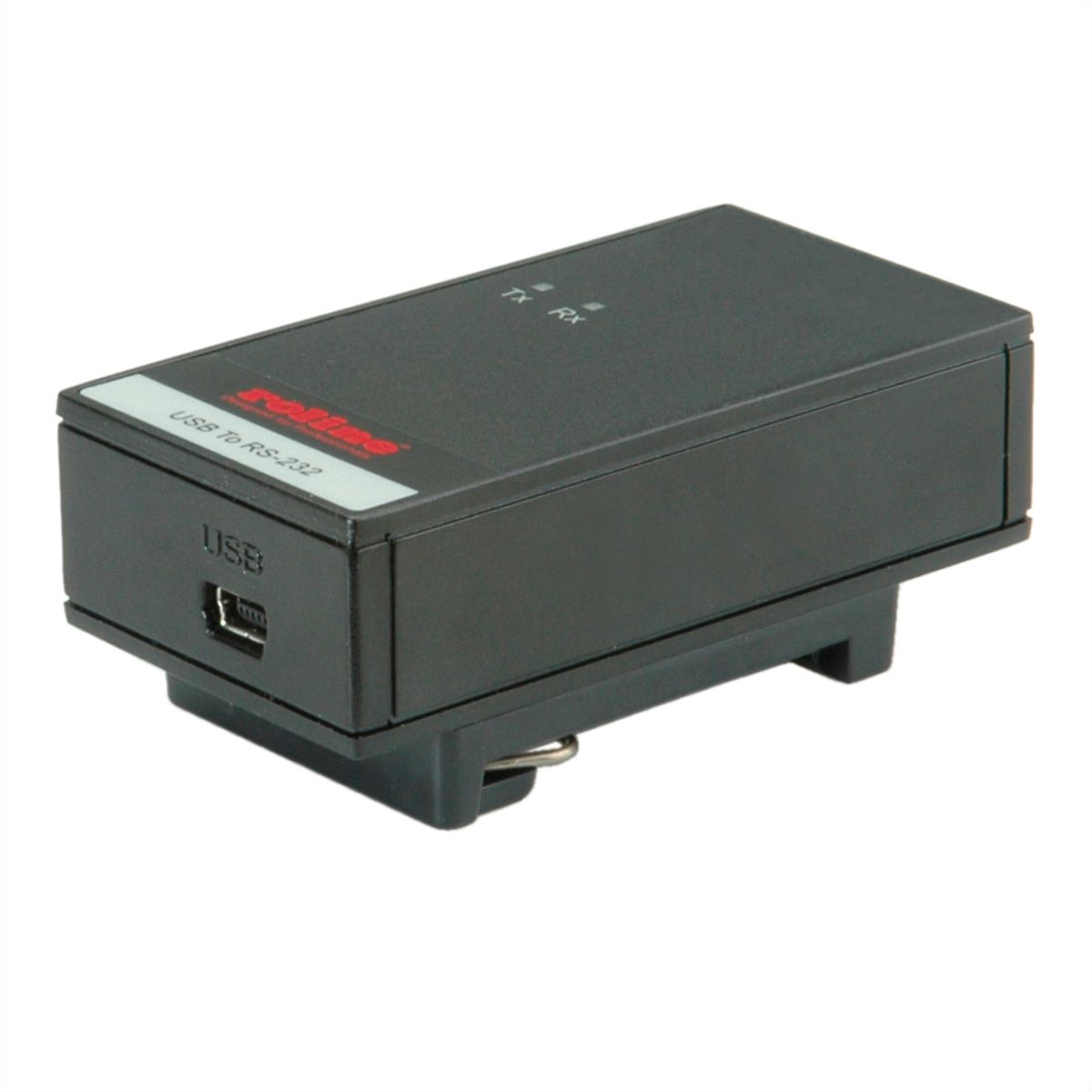

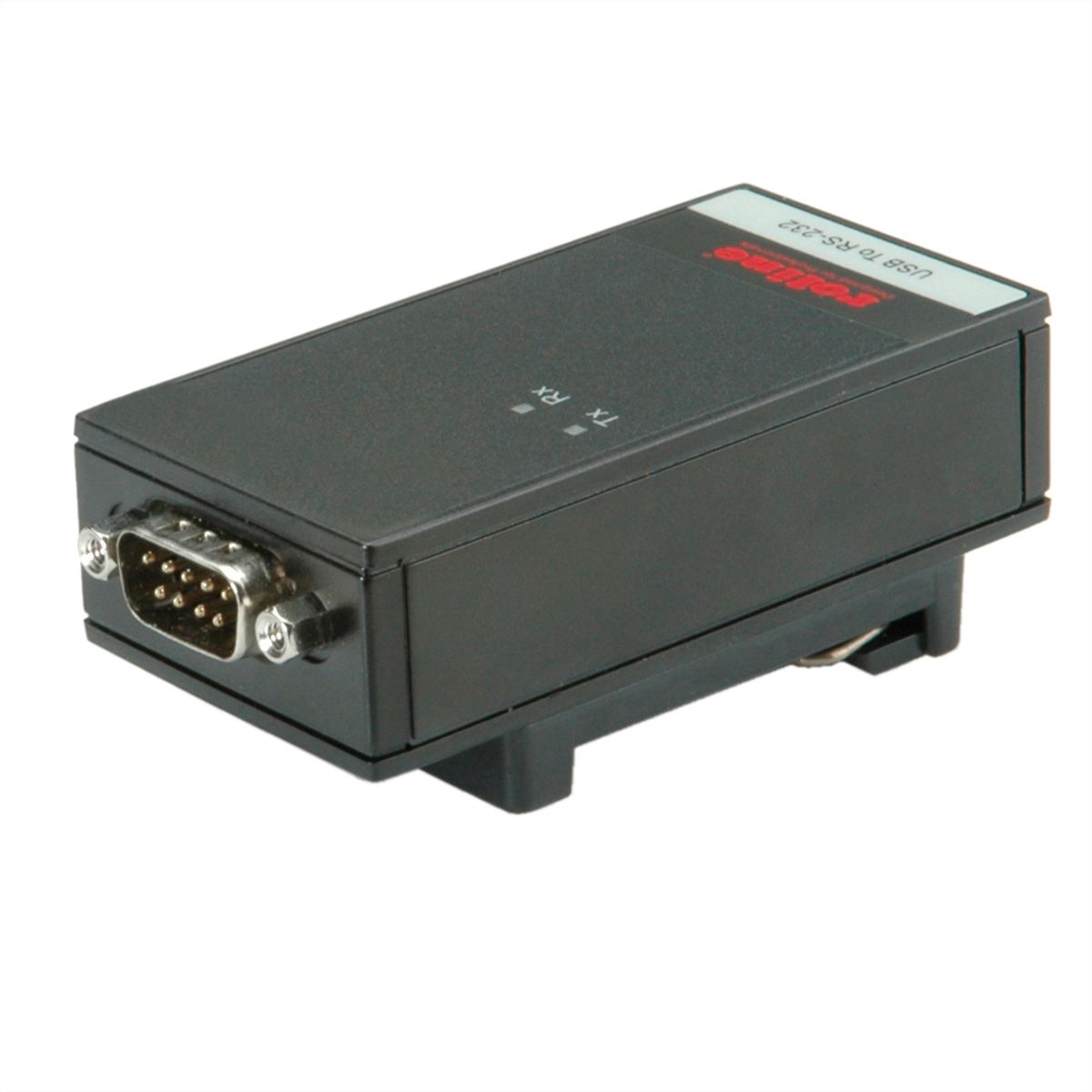

ROLINE USB 2.0 to RS232 Adapter, for DIN Rail, 1 Port

ROLINE USB 2.0 to RS232 Adapter, for DIN Rail, 1 Port

Please log in to be able to use the shopping cart and then complete orders.

Log in
Available
Ordered until 3 pm - usually dispatched on the same day
Item no. 12.02.1001-4
Brand / Manufacturer ROLINE
Manuf. no. 12.02.1001
EAN 7611990994816
Package weight 0.18 kg

Description

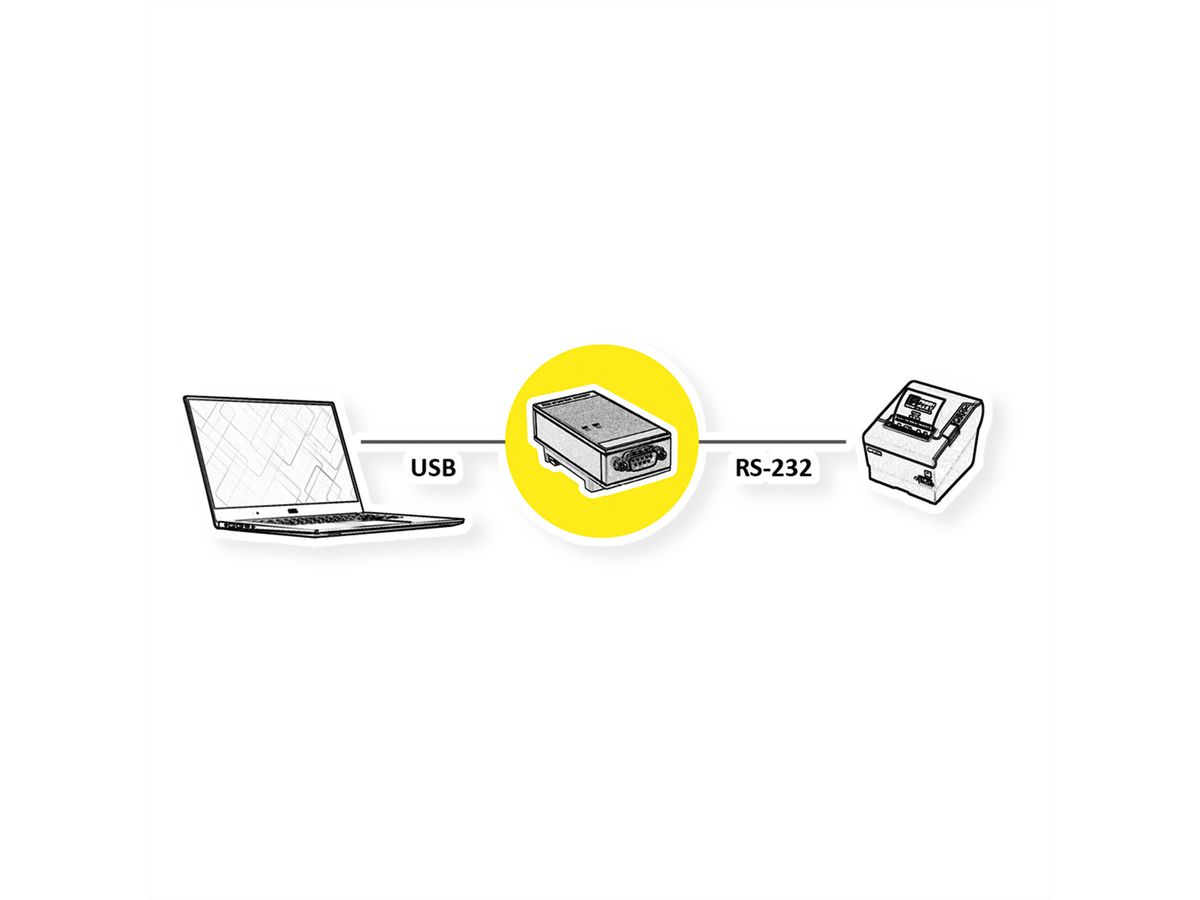

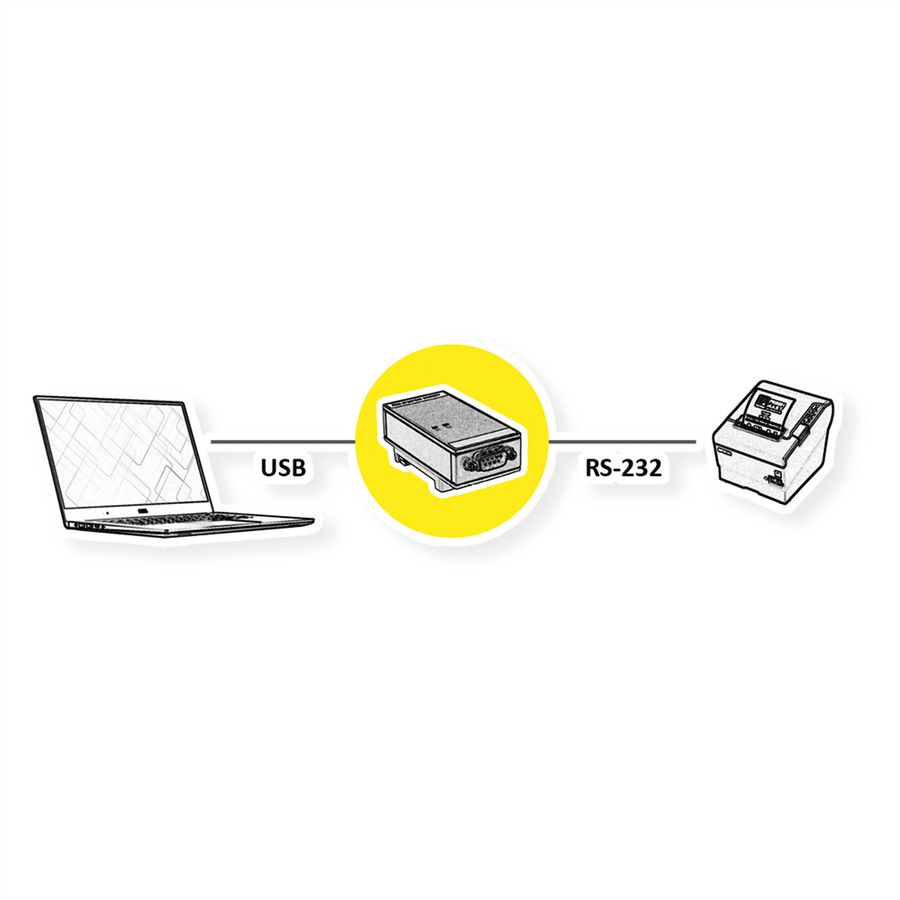

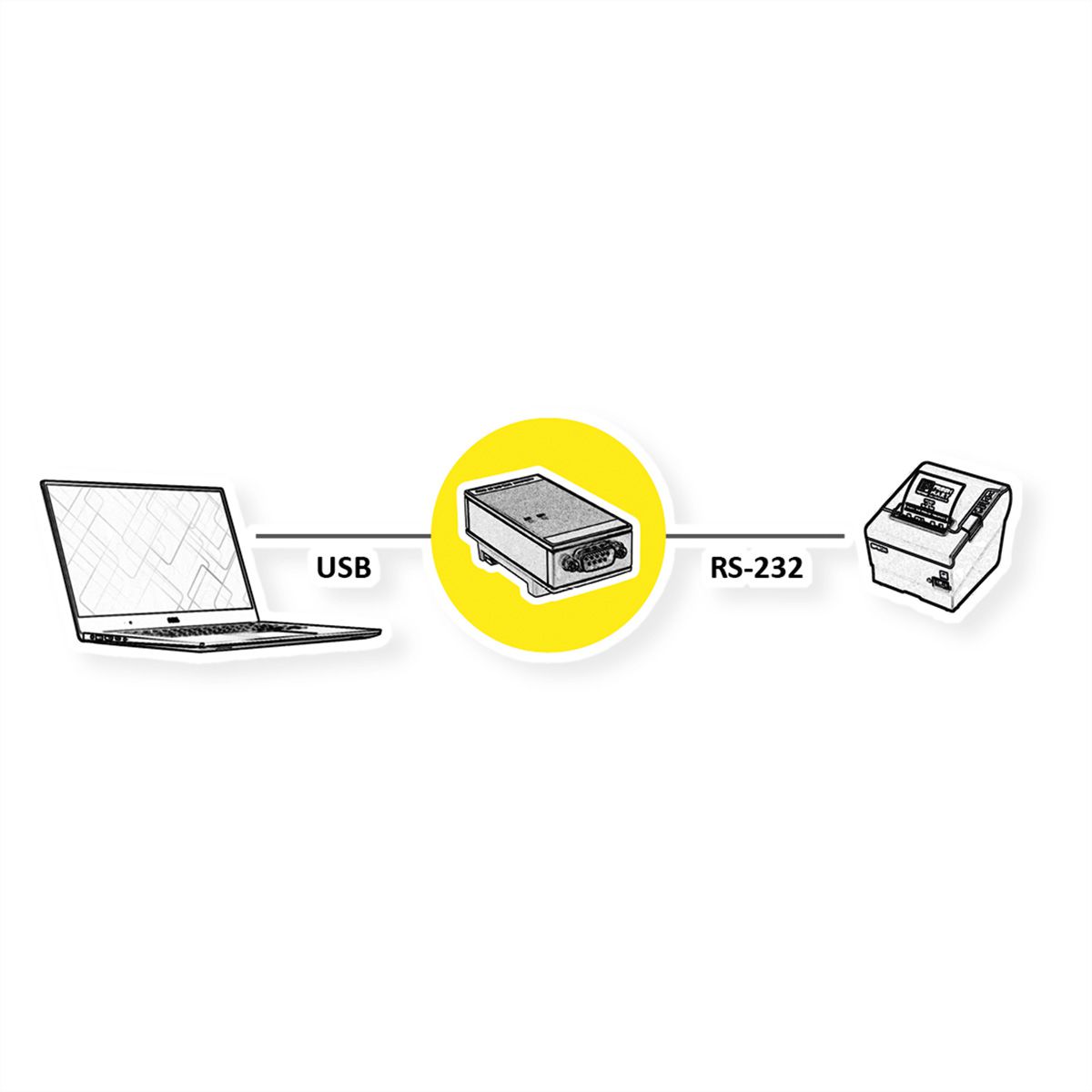

Converter to connect serial devices to a USB port on your PC
  • Compatible with USB 2.0, USB 1.1, USB 1.0
  • Data transfer rate of up to 115 Kbit/s
  • 15 KV ESD protection for all RS232 ports
  • Connectors: 1x DB9 Male, 1x Mini USB type B

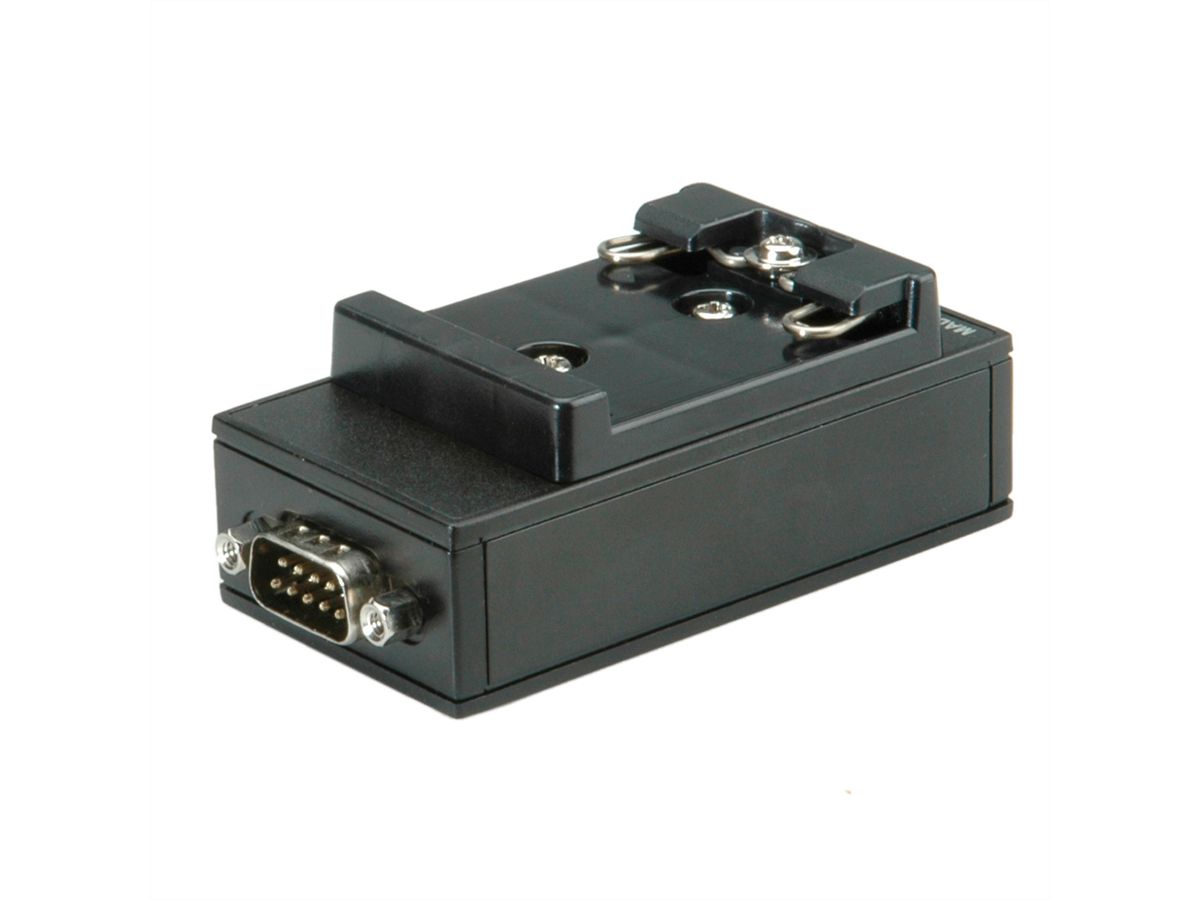

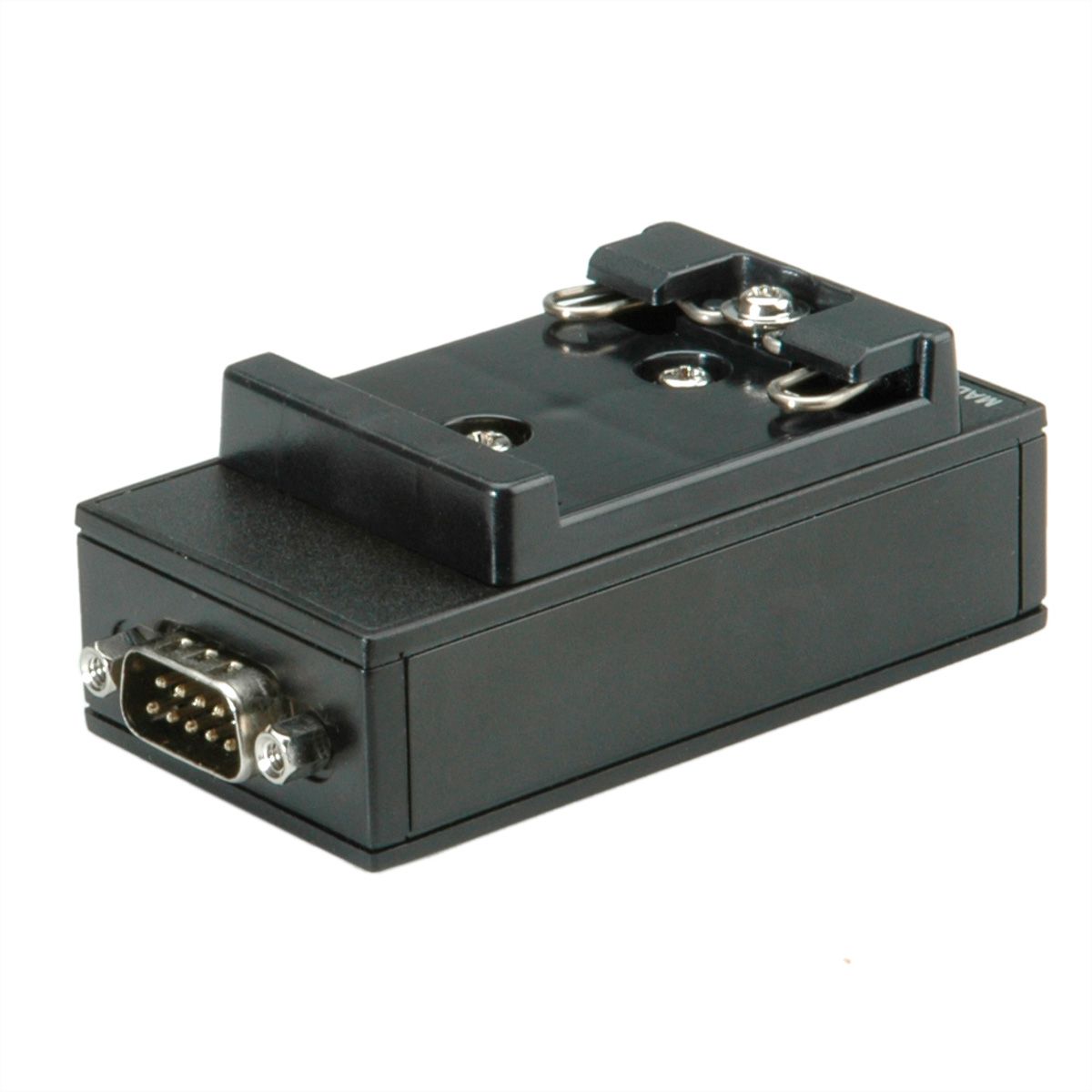

  • For DIN Rail mounting
  • Windows 98SE/ME/2000/Server 2003/XP/Server 2008/XP/Vista/7
  • Power supply over Mini USB type B connector (40mA)

Specifications

Manufacturer ROLINE
Product group Adapters, Terminators, Converters
Product type USB - Serial Converter
Colour black
Scope of delivery converter, driver CD, manual
Side 1 connection (PC) Mini USB
Side 2 connection (Peripherals) 1 x DB9 Male
Side 1 Connector Type USB 2.0 Type A
Side 1 Connector Gender Male
Side 2 Connector Type D-Sub 9-pin (DE-9)
Side 2 Connector Gender Male
Conversion direction serial - USB
Area of application External
Dimensions (HxWxD) 22,5 x 42,5 x 85 mm
Technical particularity for DIN Rail
Height 22.5 mm
Width 42.5 mm
Depth 85 mm
Weight 44.8 g
Height of packaging (single piece) 45 mm
Width of packaging (single piece) 140 mm
Depth of packaging (single piece) 190 mm
Package weight (single piece) 0.18 kg

Downloads

Product data sheet - English (41.8 KB)

Download

Manufacturer data sheet - English (521.7 KB)

Download

User manual - Français (267.7 KB)

Download

User manual - Deutsch (269.2 KB)

Download

User manual - English (266.7 KB)

Download

The products of our own brand ROLINE are designed for professional continuous operation.

With a 2-year functional guarantee, we stand by our performance promise.

ROLINE – Quality makes the difference.
