The products of our own brand ROLINE are designed for professional continuous operation.
With a 2-year functional guarantee, we stand by our performance promise.
ROLINE – Quality makes the difference.
:strip_icc():strip_exif()/bilder/s21/21151851_2020_m_0_hi.jpg "ROLINE S/FTP Patch Cord Cat.8 (Class I), solid, LSOH, yellow, 1 m")
:strip_icc():strip_exif()/graphic/patchkabel_webgrafik_en.png "ROLINE S/FTP Patch Cord Cat.8 (Class I), solid, LSOH, yellow, 1 m")
:strip_icc():strip_exif()/bilder/s21/21151851_2020_p_1_hi.jpg "ROLINE S/FTP Patch Cord Cat.8 (Class I), solid, LSOH, yellow, 1 m")
:strip_icc():strip_exif()/bilder/s21/21151851_2020_p_0_hi.jpg "ROLINE S/FTP Patch Cord Cat.8 (Class I), solid, LSOH, yellow, 1 m")

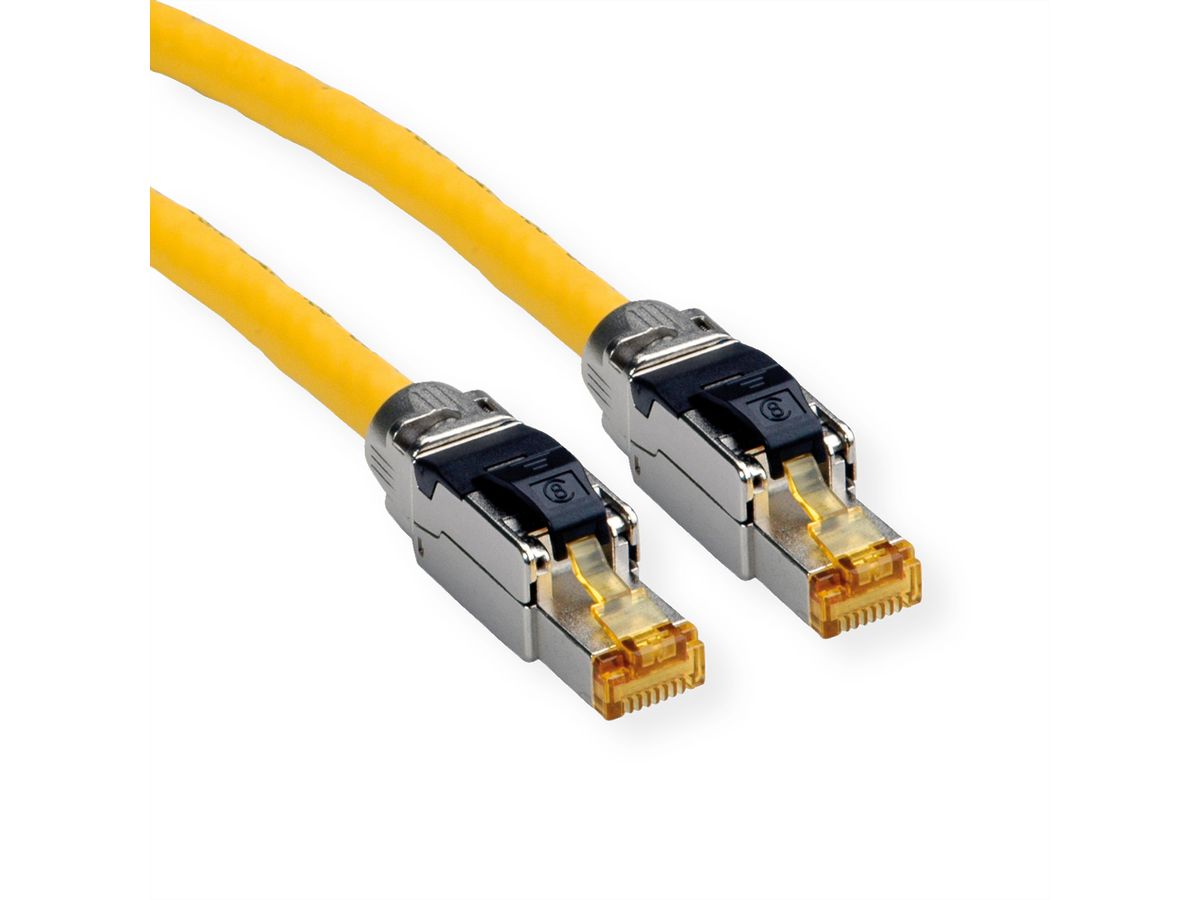

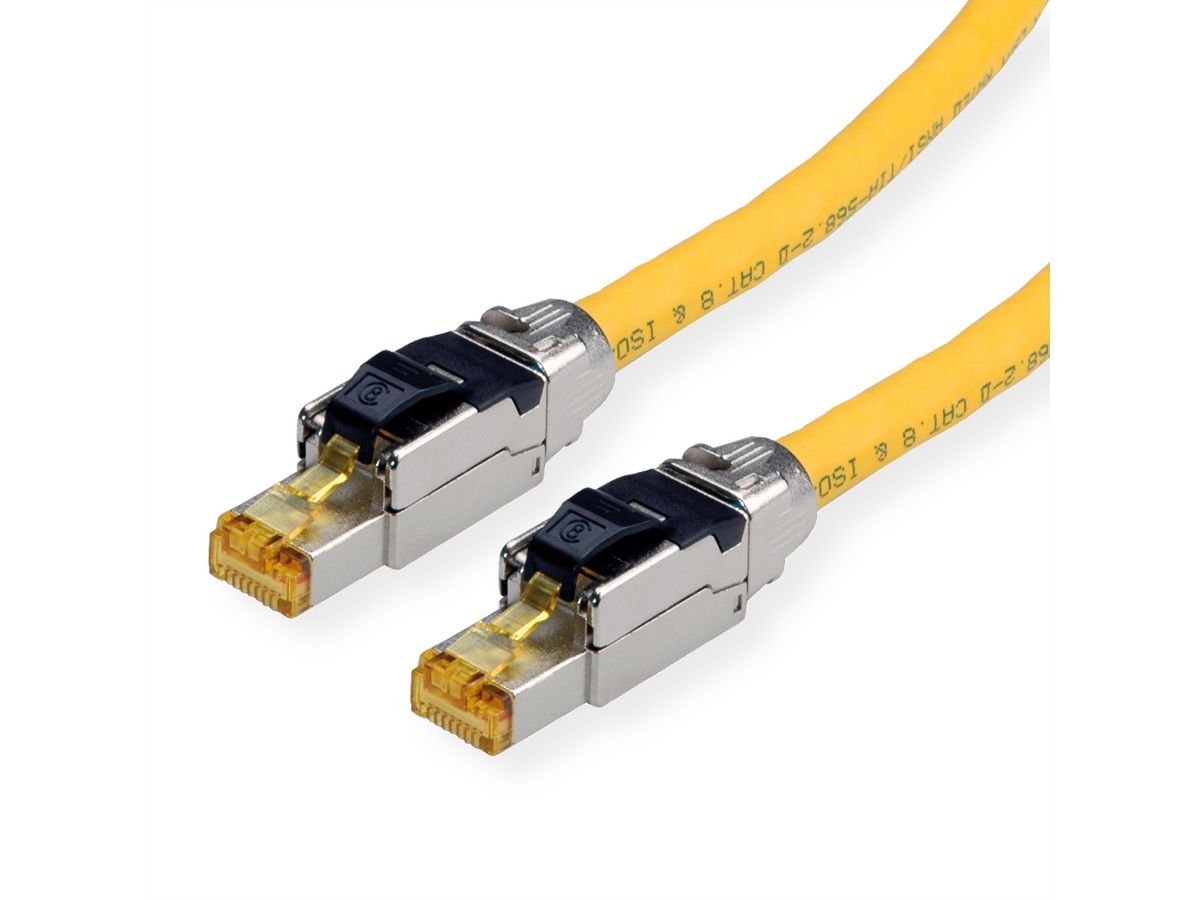

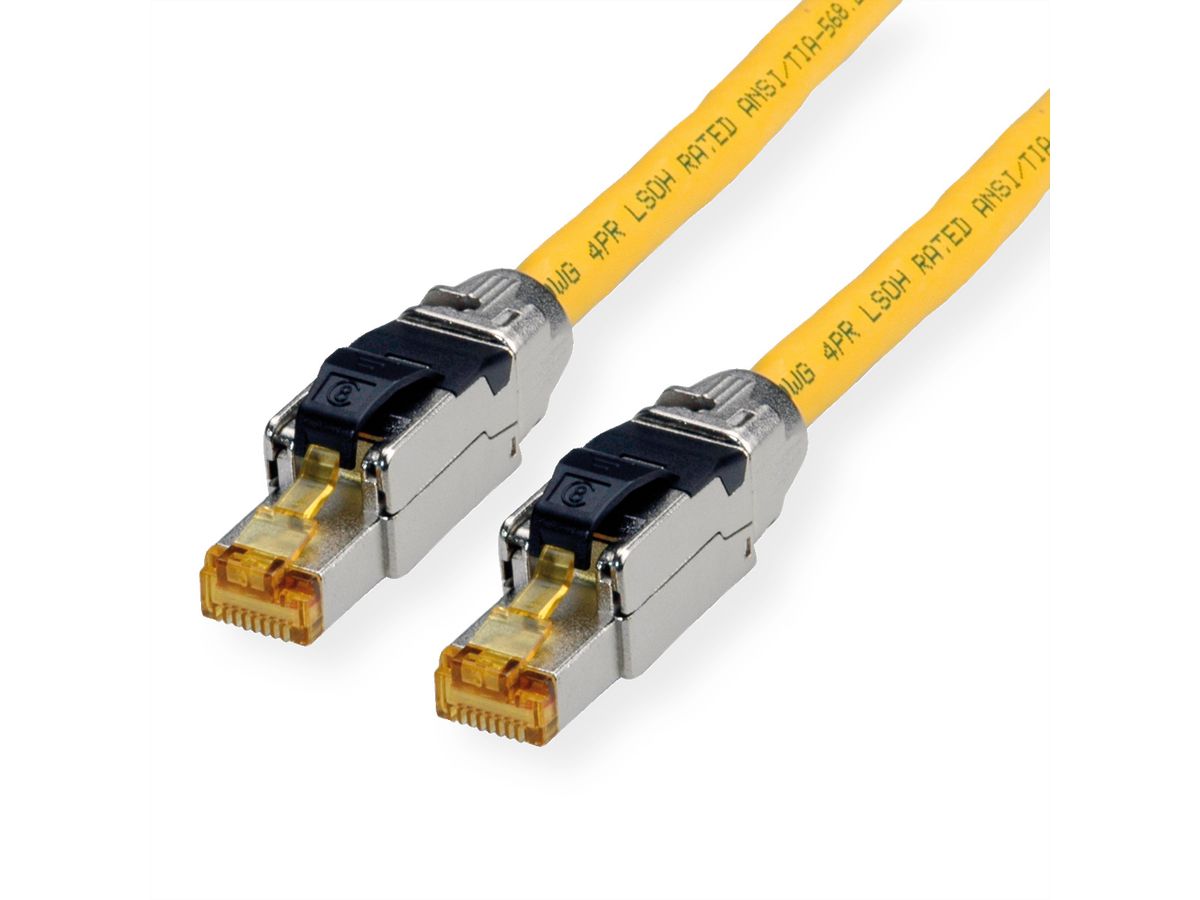

ROLINE S/FTP Patch Cord Cat.8 (Class I), solid, LSOH, yellow, 1 m
Please log in to be able to use the shopping cart and then complete orders.
Log in| Item no. | 21.15.1851-100 |
|---|---|
| Brand / Manufacturer | ROLINE |
| Manuf. no. | 21.15.1851 |
| EAN | 7630049691025 |
| Package weight | 0.13 kg |
:strip_icc():strip_exif()/bilder/icons/icon_rj45_cat8.png){kind=icon}
:strip_icc():strip_exif()/bilder/icons/icon_rj45_sftp.png){kind=icon}
:strip_icc():strip_exif()/bilder/icons/icon_lsoh.png){kind=icon}
|
|
| Colour | |
| Length | |
:strip_icc():strip_exif()/logos/roline.png "ROLINE")
Description
Category 8, the standard for next-generation twisted-pair cabling, enables up to four times faster data transfer on the same cabling type and supports 25GBASE-T and 40GBASE-T short distance applications. Our Cat. 8 cables are not only halogen-free and flame-retardant (LSOH), but also GHMT certified for quality and performance.
- Prepared double shielded Twisted Pair cable with screened field-assembled RJ45 connector on both ends
- Zinc die-cast housing (RJ45 connector)
- Suitable for 10 GBit to IEEE 802.3an and for Power over Ethernet
- Suitable for 25/40 GBit to IEEE 802.3bq applications (4-pair balanced twisted-pair cabling with 2 connectors over distances up to 30m)
- High quality plugs with gold plated contacts
- Contact settings 1:1, in accordance with the EIA/TIA 568 standard
- Construction: 4-pair solid copper wire, complete braid shielding, pairs shielded with aluminium clad polyester foil
For a structured cabling system we recommend to use the following components: 21.15.0005 ROLINE S/FTP Cable Cat.8, Solid Wire, LSOH, 24 m; 21.15.1853 ROLINE S/FTP Patch Cord Cat.8, solid, LSOH, yellow, 3 m; 21.15.1863 ROLINE S/FTP Patch Cord Cat.8, stranded, LSOH, yellow, 3 m; 26.11.0381 ROLINE C8 Shield RJ45 Keystone, toolless. The accredited German laboratory GHMT has tested and certified this product combination, in a 2 Connector Channel (30m), Copper, Class I up to 2 GHz; certificate no. c7794a-23.
Specifications
| Manufacturer | ROLINE |
|---|---|
| Product group | Twisted Pair Cable |
| Product type | S/FTP Patchcord |
| Colour | yellow |
| Length | 1 m |
| Shield type | PiMF |
| Transfer quality | Cat8.1 / Class I |
| Impedance | 100 Ohm |
| Quantity of wires | 8 |
| Conductor cross section (AWG) | AWG 24 |
| Conductor type | Solid wire |
| Crossed | no |
| Cable LSOH | yes |
| Side 1 Connector Type | RJ-45 |
| Side 1 Connector Gender | Male |
| Side 2 Connector Type | RJ-45 |
| Side 2 Connector Gender | Male |
| Connector Type RJ45 | Standard |
| Weight | 121.2 g |
| Height of packaging (single piece) | 0 mm |
| Width of packaging (single piece) | 0 mm |
| Depth of packaging (single piece) | 0 mm |
| Package weight (single piece) | 0.13 kg |
