Description

Cable often used for UPS from 3000 VA and for connecting Blade servers.

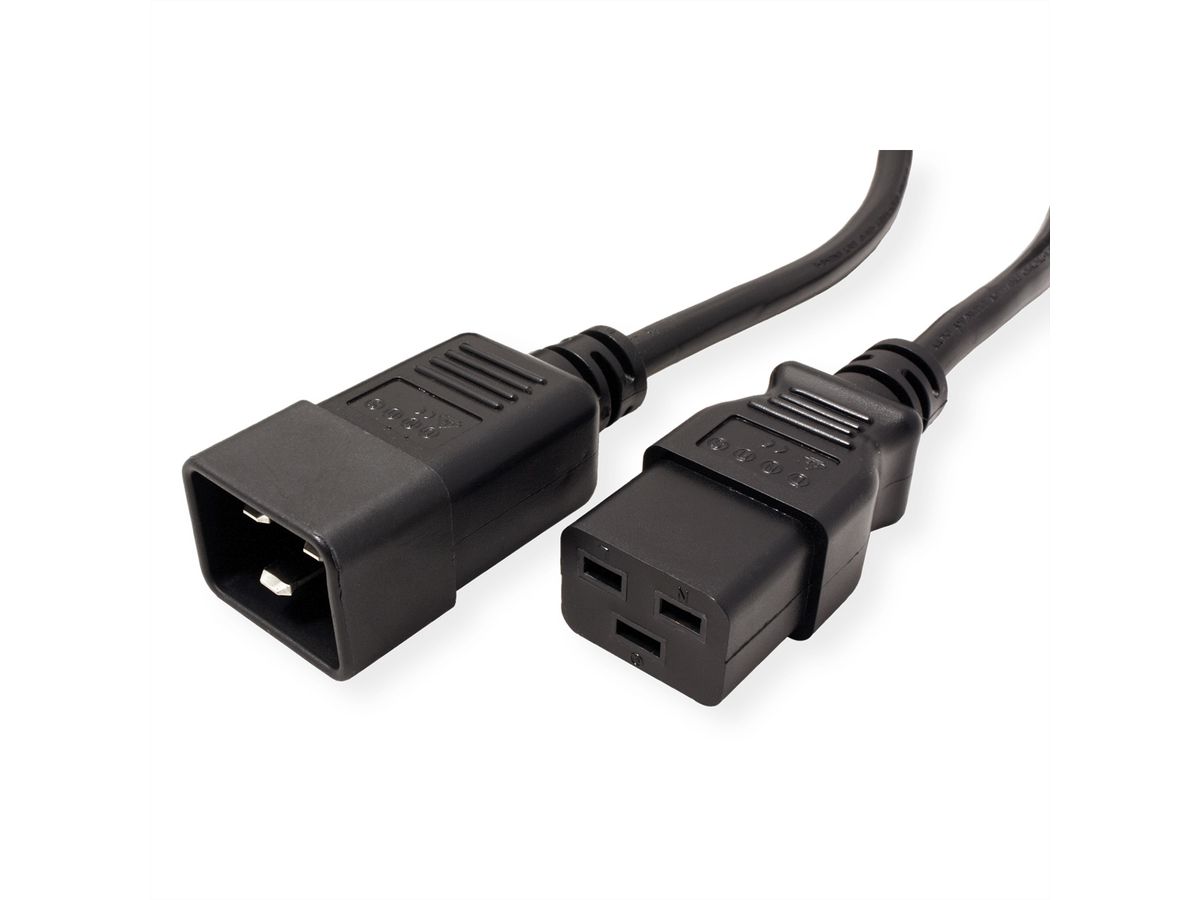

• Extension cable 16 A with IEC320 C19 Female and C20 Male
• Cable: H05VV-F 3G1.5 3x 1.5mm²
• Nominal data: 250 VAC/16 A
• Colour: black

Specifications

Manufacturer	ROLINE
Product group	Power Cables
Product type	Connection cable
Colour	black
Length	2 m
Connection ports	IEC320 C20, 16A Male / IEC320 C19, 16A Female
Max. current	16 A
Max. voltage	250V
Max. power	3600W
Cable material	H05VV-F
Conductor cross section (mm²)	1,5mm²
Quantity of wires	3
Side 1 Connection type	IEC320 C20
Side 1 connector external diameter (mm)	20 x 28 mm
Side 2 Connection type	IEC320 C19
Side 2 connector external diameter (mm)	23 x 30 mm
Side 1 Connector Type	IEC320 C20, 16A
Side 1 Connector Gender	Male
Side 2 Connector Type	IEC320 C19, 16A
Side 2 Connector Gender	Female
Regional use	Without restriction
Weight	321.6 g
Height of packaging (single piece)	30 mm
Width of packaging (single piece)	170 mm
Depth of packaging (single piece)	300 mm
Package weight (single piece)	0.328 kg

Downloads

Product data sheet - English (37.2 KB)

Download

Manufacturer data sheet - English (96.2 KB)

Download
