ROLINE PoE Gigabit Injector, 4 Ports

ROLINE PoE Gigabit Injector, 4 Ports

Please log in to be able to use the shopping cart and then complete orders.

Log in
Available
Ordered until 3 pm - usually dispatched on the same day
Item no. 21.13.1198-2
Brand / Manufacturer ROLINE
Manuf. no. 21.13.1198
EAN 7611990918874
Package weight 0.789 kg

Description

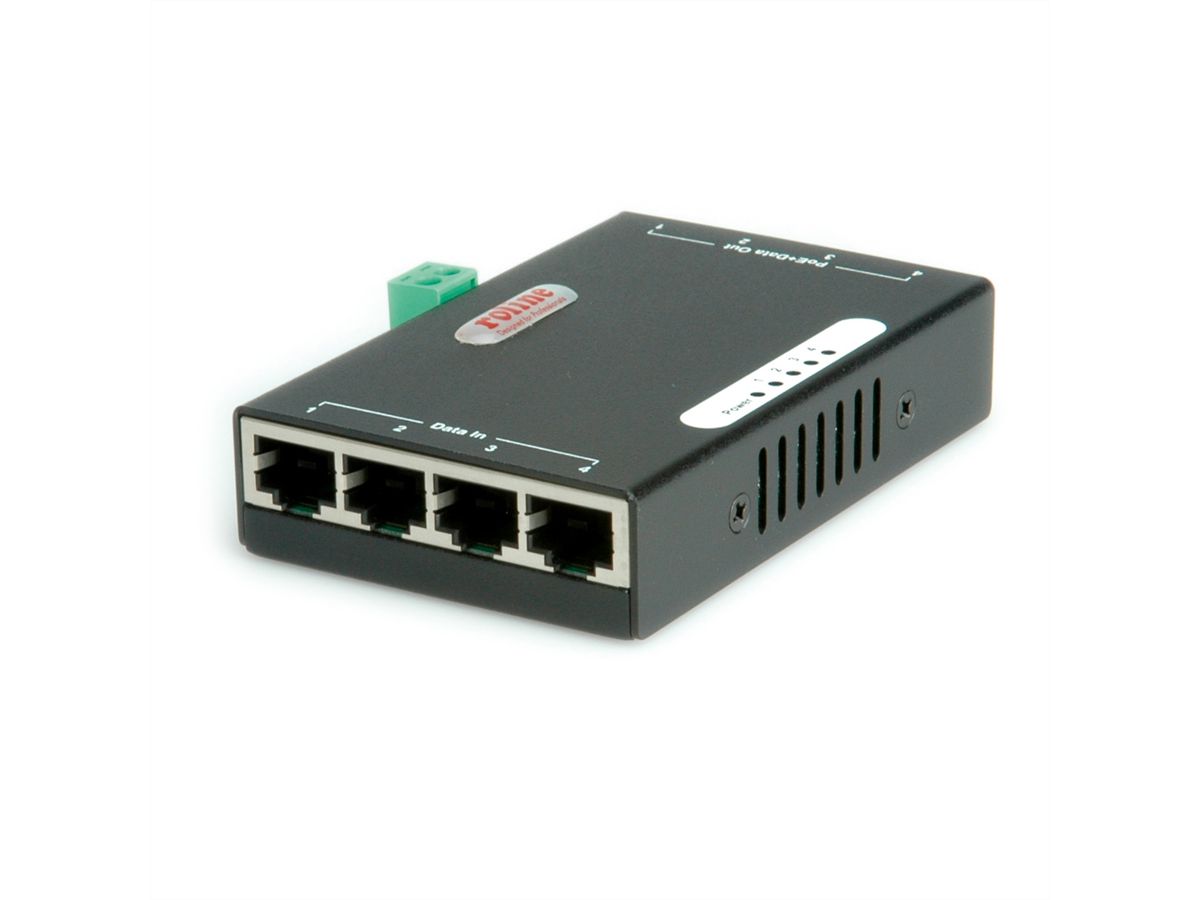

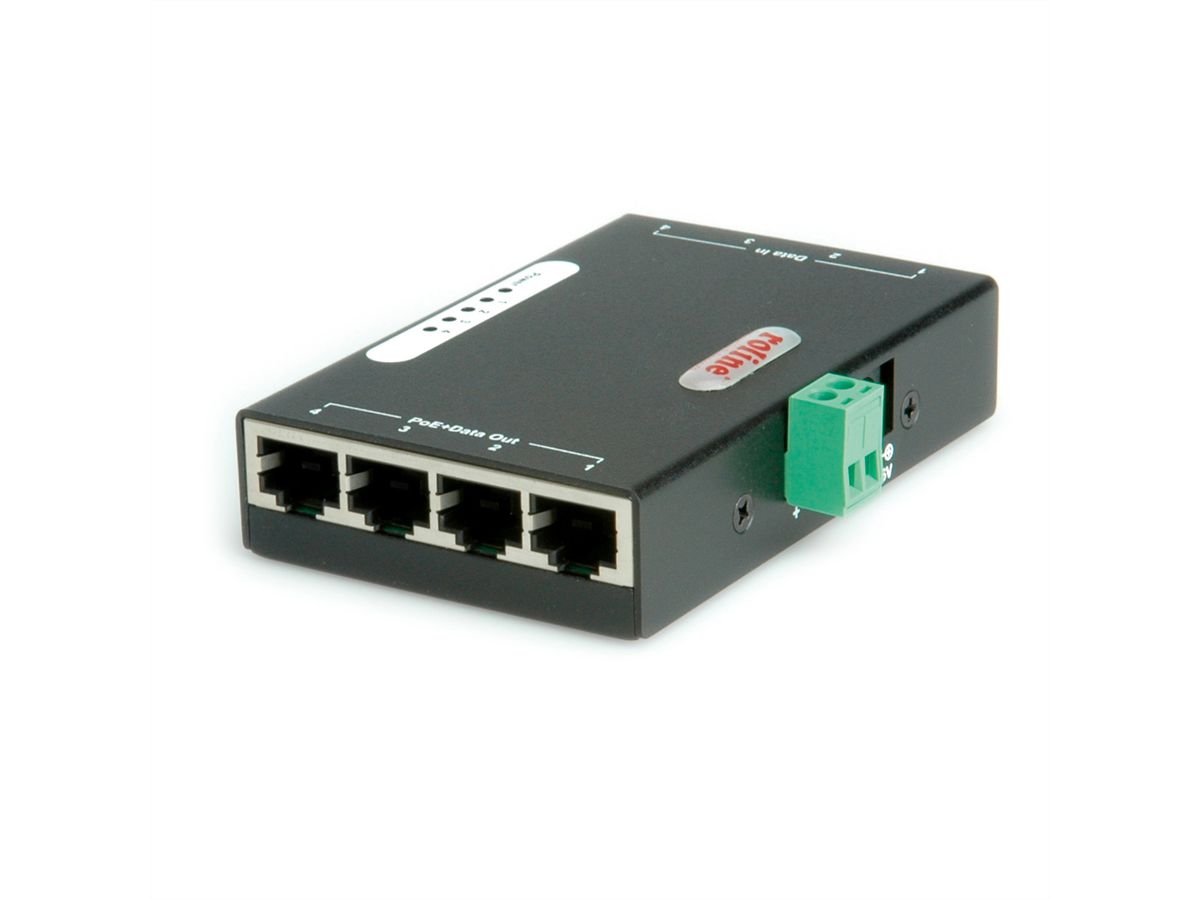

With this ROLINE Gigabit Ethernet PoE injector you can supply with power simultaneously 4 PoE-capable workgroup switches, network cameras, access points, IP phones, etc. via TP connecting cable
  • Inputs: 4x 10/100/1000 ports for data
  • Outputs: 4x 10/100/1000 ports for data and power
  • Supports PoE IEEE 802.3af / at: Up to 30 W per port can be fed into the TP cable
  • Power supply via terminal block or external DC power supply (48V to) 56V DC Port
  • Weight: 190 g
  • Dimensions (L x W x H): 94 × 62 × 20 mm
  • Metal housing

Specifications

Manufacturer ROLINE
Product group PoE adapter
Product type Gigabit PoE-Injector
Colour black
Quantity of ports 8
Gigabit Ethernet Ports RJ-45 4
Power over Ethernet (PoE) PoE
Quantity of PoE ports 4
Max. PoE output power per port 30 W
Max. PoE output power (total) 120 W
Mains connection Appliance Europlug, Type-C
Height 20 mm
Width 62 mm
Depth 94 mm
Weight 189.1 g
Height of packaging (single piece) 50 mm
Width of packaging (single piece) 140 mm
Depth of packaging (single piece) 210 mm
Package weight (single piece) 0.789 kg
