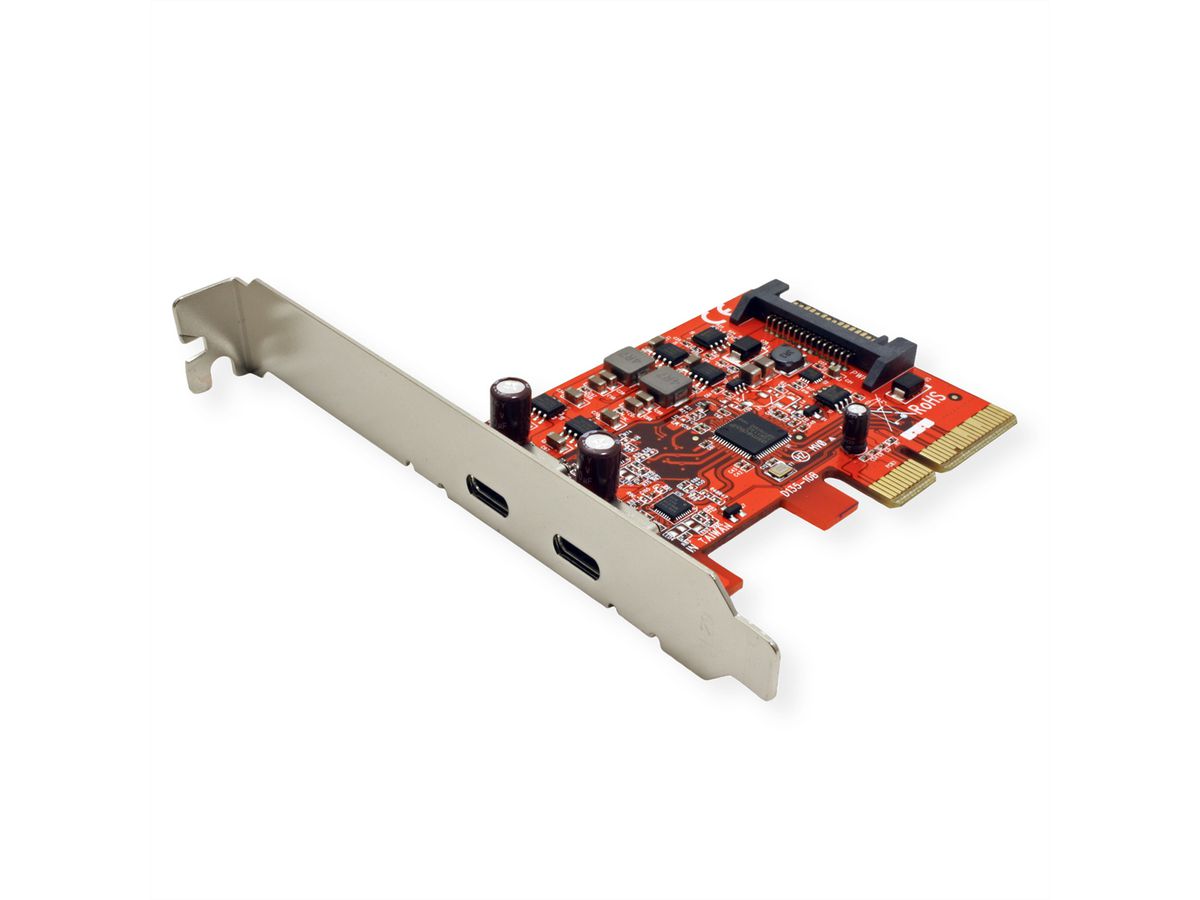

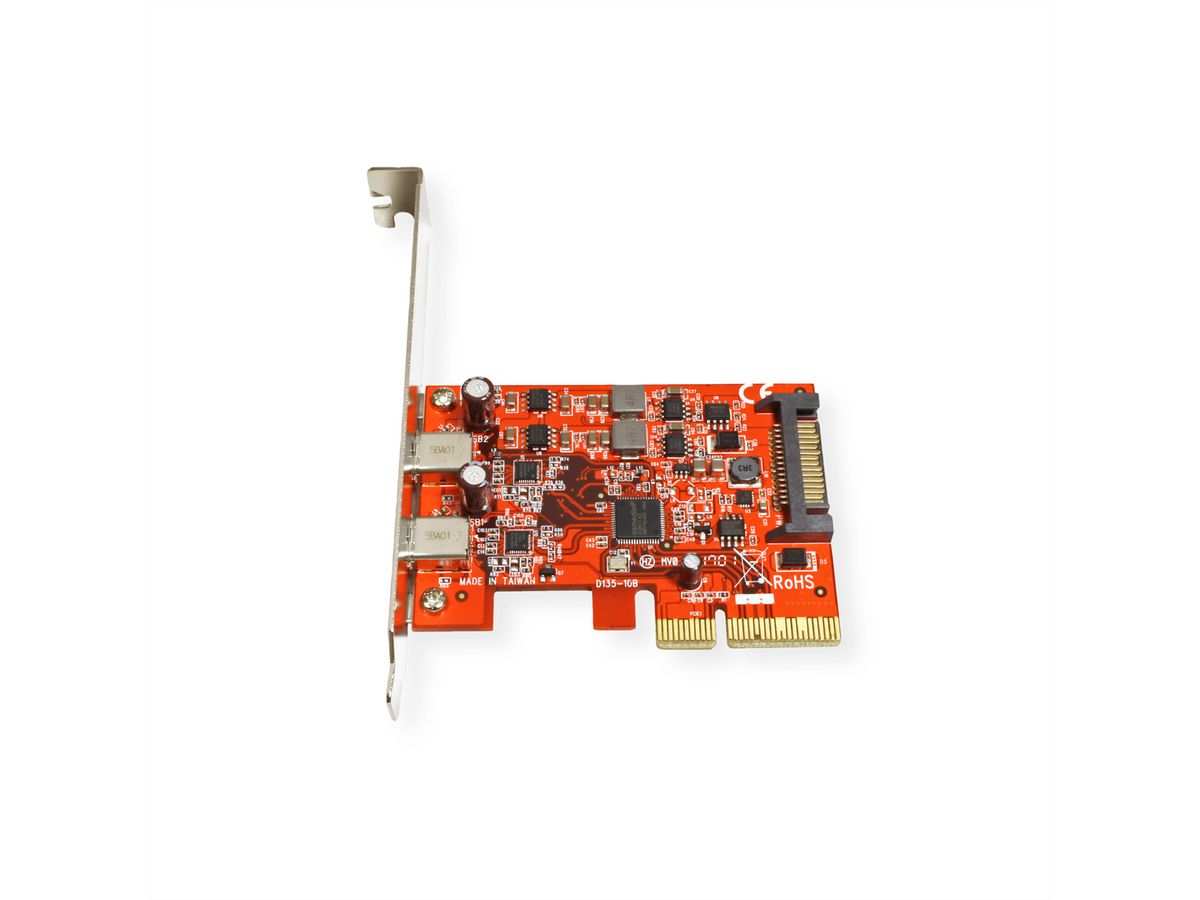

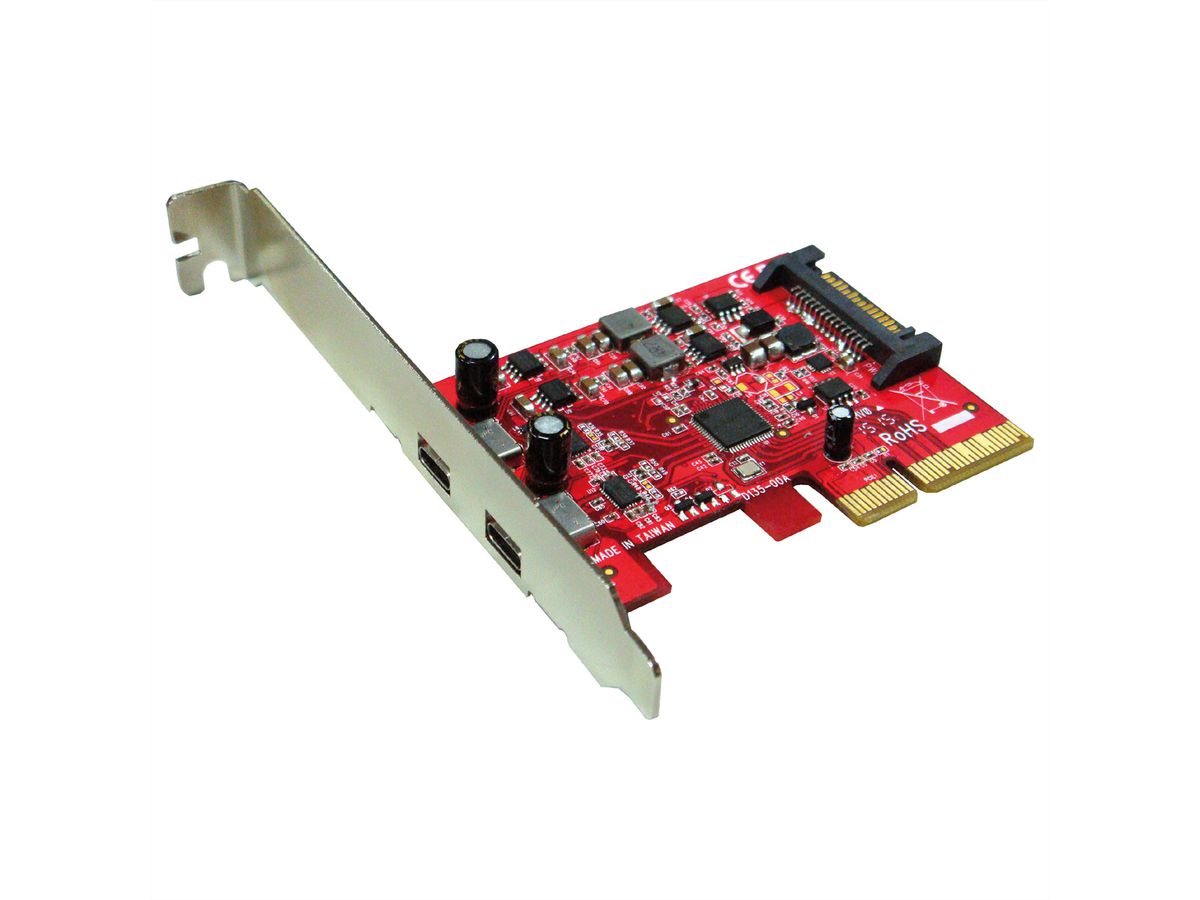

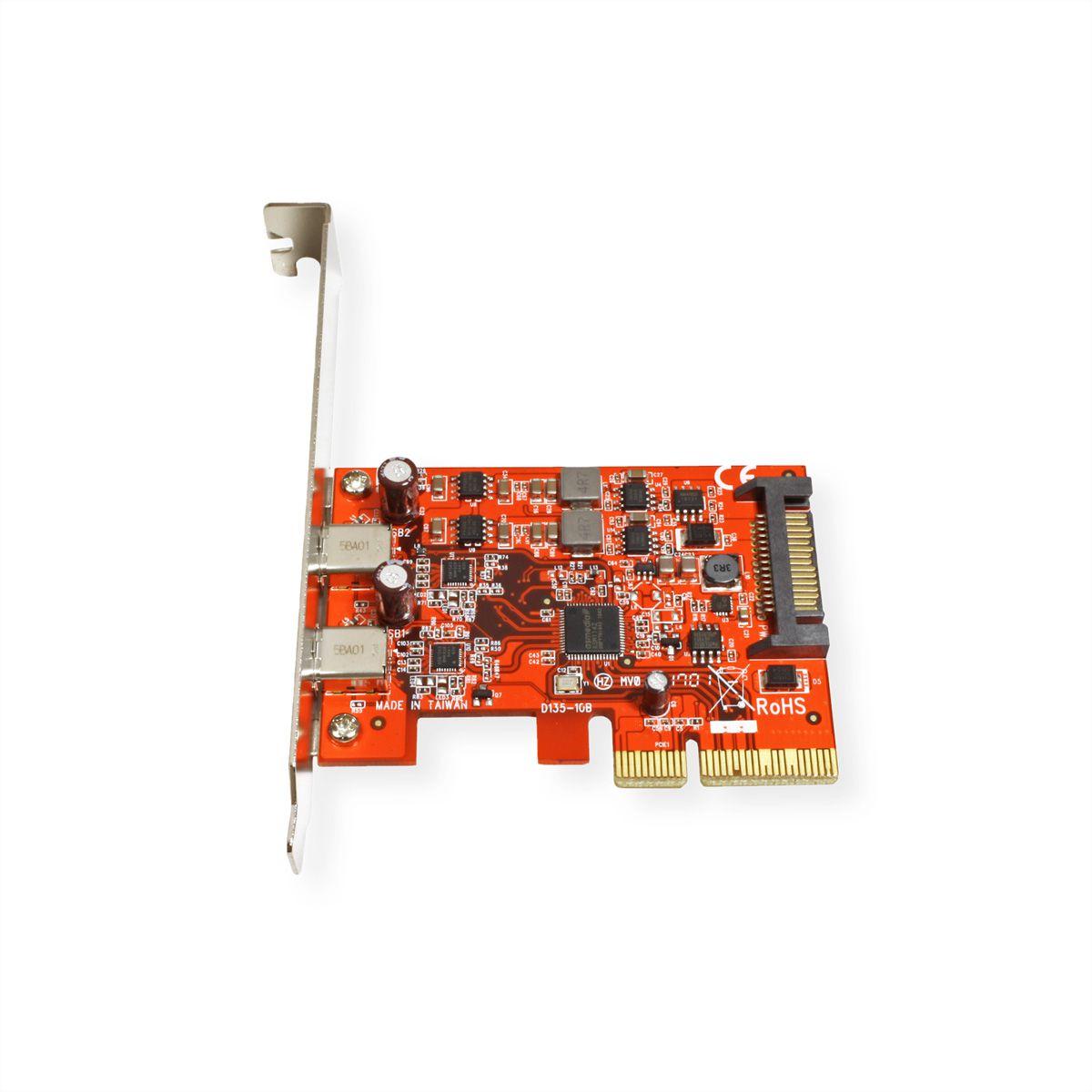

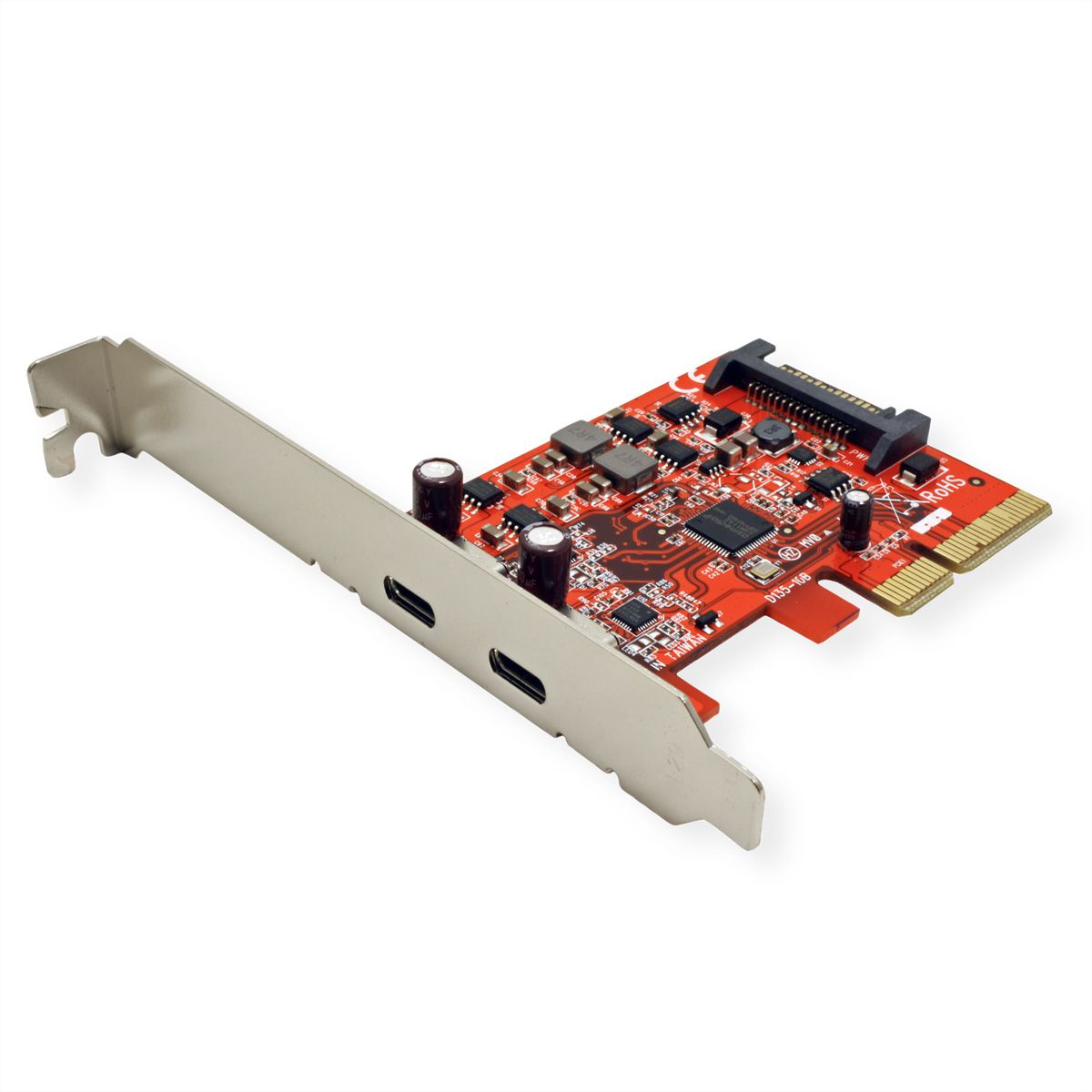

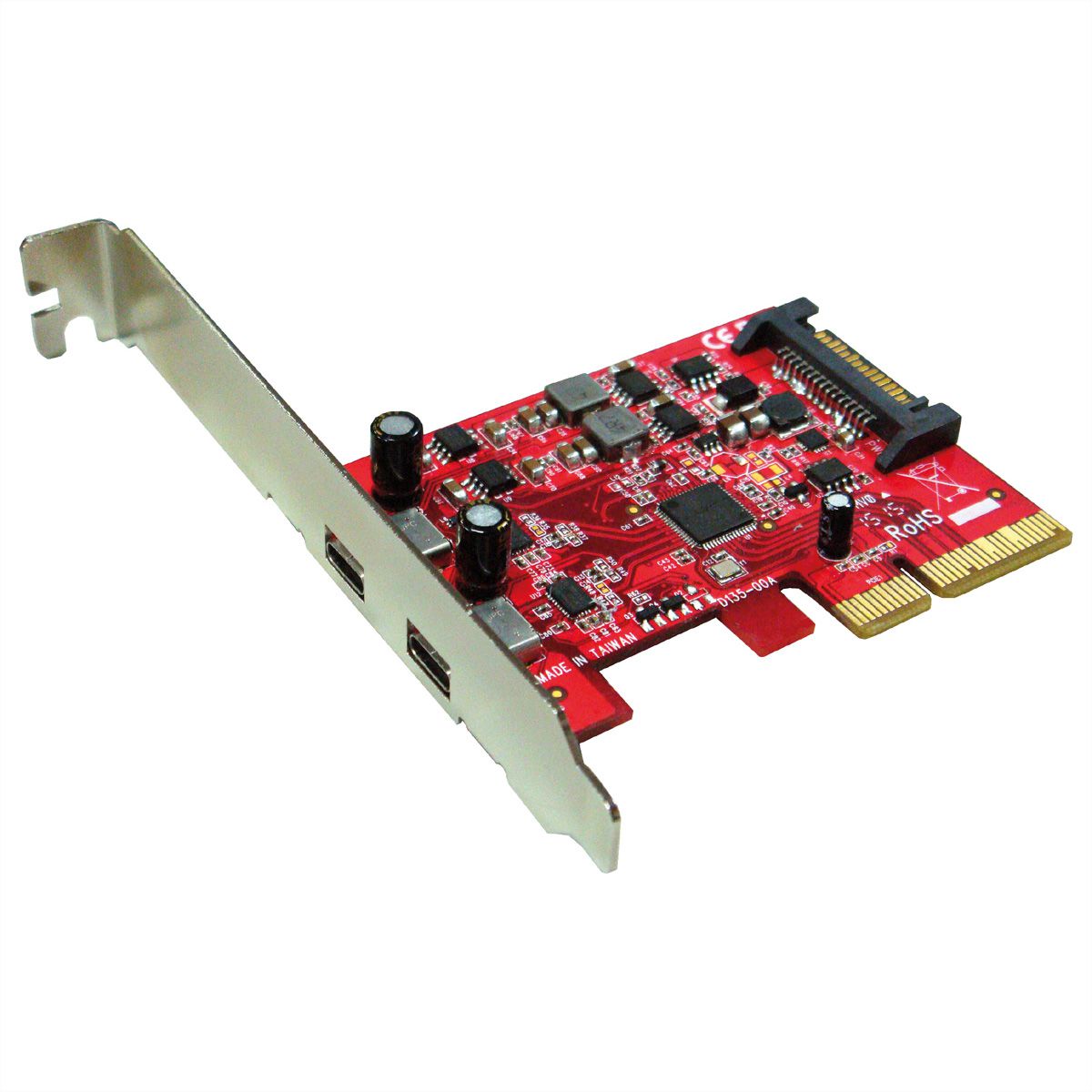

ROLINE PCI-Express x4 Adapter, 2x Ports Type C USB 3.2 Gen 2
Please log in to be able to use the shopping cart and then complete orders.
Log in| Item no. | 15.06.2143-10 |
|---|---|
| Brand / Manufacturer | ROLINE |
| Manuf. no. | 15.06.2143 |
| EAN | 7611990930968 |
| Package weight | 0.16 kg |
:strip_icc():strip_exif()/logos/roline.png "ROLINE")
Description
Expand your PC with two SuperSpeed+ USB 3.1 ports.- USB3.1 PCIe x4 Lane Host Adapter
- USB 3.1 offers Super Speed+ data transfer rates of up to 10 Gbit/s
- Connectors: 2x USB 3.1 Type C downstream connectors on board
- Compliant with Universal Serial Bus 3.1 Specification Revision 1.0
- Compliant with Intel eXtensible Host Controller Interface (xHCI) Specification 1.0
- Compliant with USB Attached SCSI Protocol Specification 1.0
- Compliant with PCI Express Specification 3.0
- Supports 5V3A USB bus power each USB 3.1 Type C port
- Supports PCIe 1.0 and PCIe 2.0 and PCIe 3.0 motherboard
- Support USB3.1, USB3.0, USB2.0 and USB1.1 devices
- Low Profile PCIe Form Factor
- Low profile PCI form factor (additional low profile PCI bracket included)
- Built-in 15-pin SATA power connector for the power supply of the USB ports
- Require an empty PCIe 2.0 or PCIe 3.0 x4 or x8 or x16 slot in computer for USB3.1 full
Note: According to the current specifications of USB.org we have adapted the technical data of our USB 3 products. The new designation for the already known USB specifications has been changed to USB 3.2 Gen 1 (formerly USB 3.0 / USB 3.1 Gen 1) and USB 3.2 Gen 2 (formerly USB 3.1 / USB 3.1 Gen 2).
Specifications
| Manufacturer | ROLINE |
|---|---|
| Product group | I/O Card |
| Product type | PCI-Express Adapter |
| Colour | red |
| Scope of delivery | Adapter, low profile bracket, driver CD, manual |
| BUS system | PCI Express |
| Interface | USB 3.1 |
| USB 2.0 Interface | yes |
| USB 3.0 Interface | yes |
| USB 3.1 Interface | yes |
| Data transfer rate | 10 Gbit/s |
| Operating System | Windows 10 / 8.1/ 8 / 7 / Vista / 2012 |
| Connection ports | 2x USB 3.1 Type C, external |
| Mounting height | Full profile |
| Installation Guide / Manual | yes |
| Weight | 43.2 g |
| Height of packaging (single piece) | 50 mm |
| Width of packaging (single piece) | 160 mm |
| Depth of packaging (single piece) | 220 mm |
| Package weight (single piece) | 0.16 kg |
