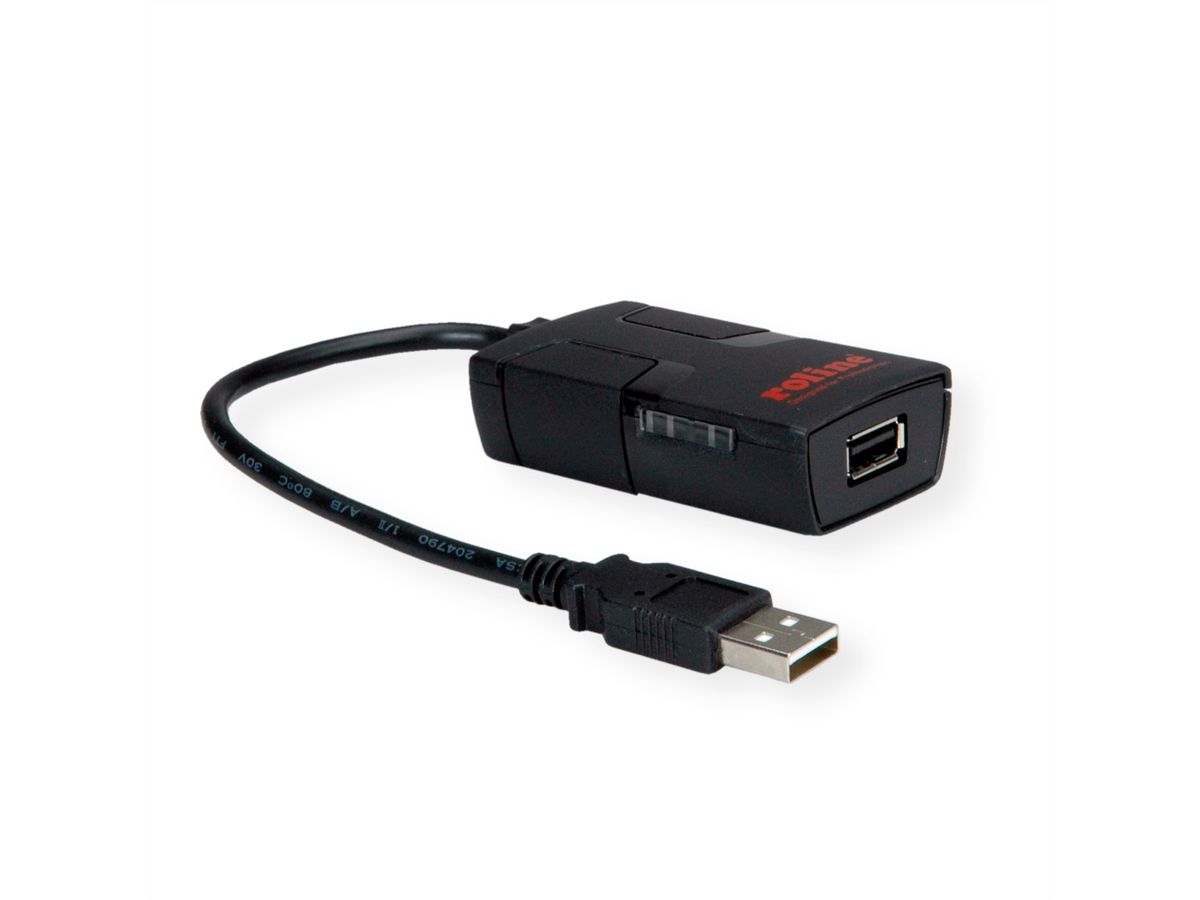

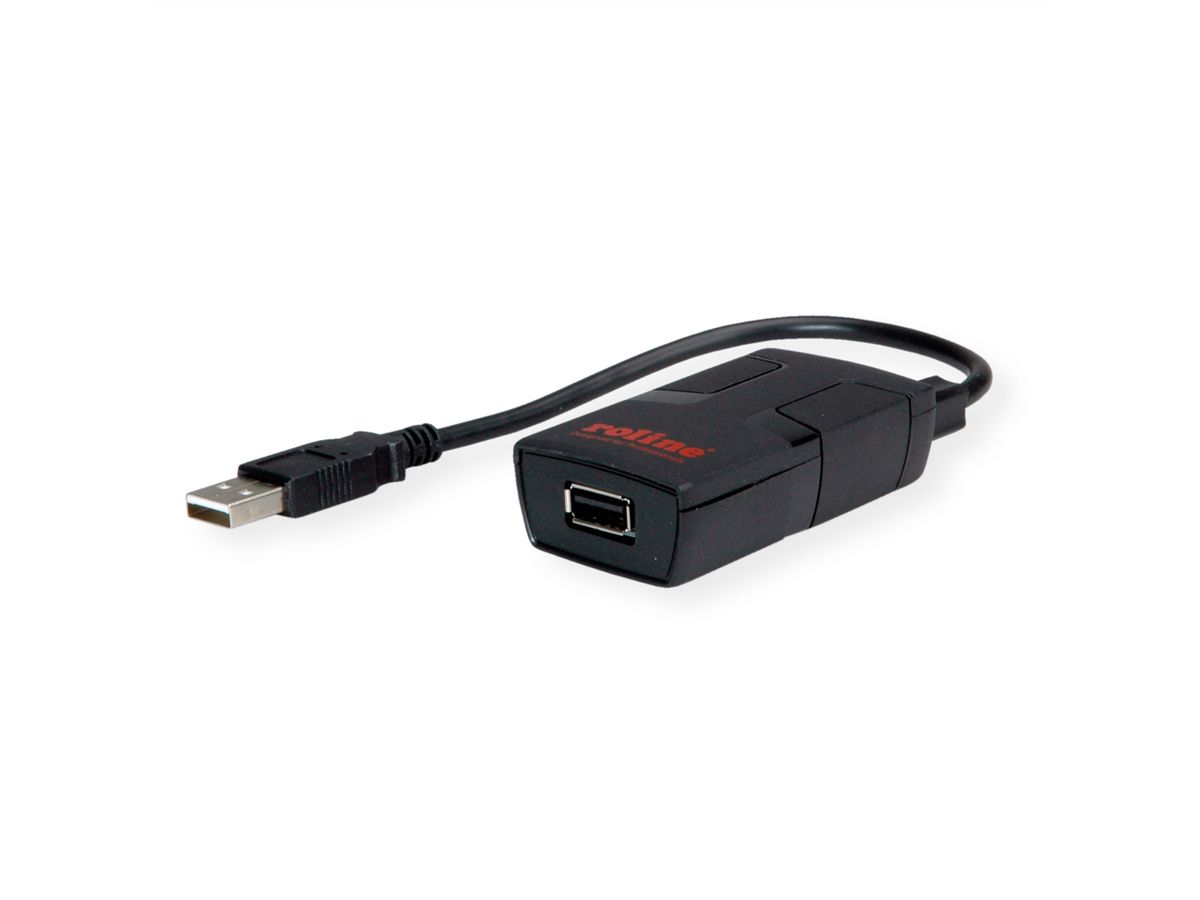

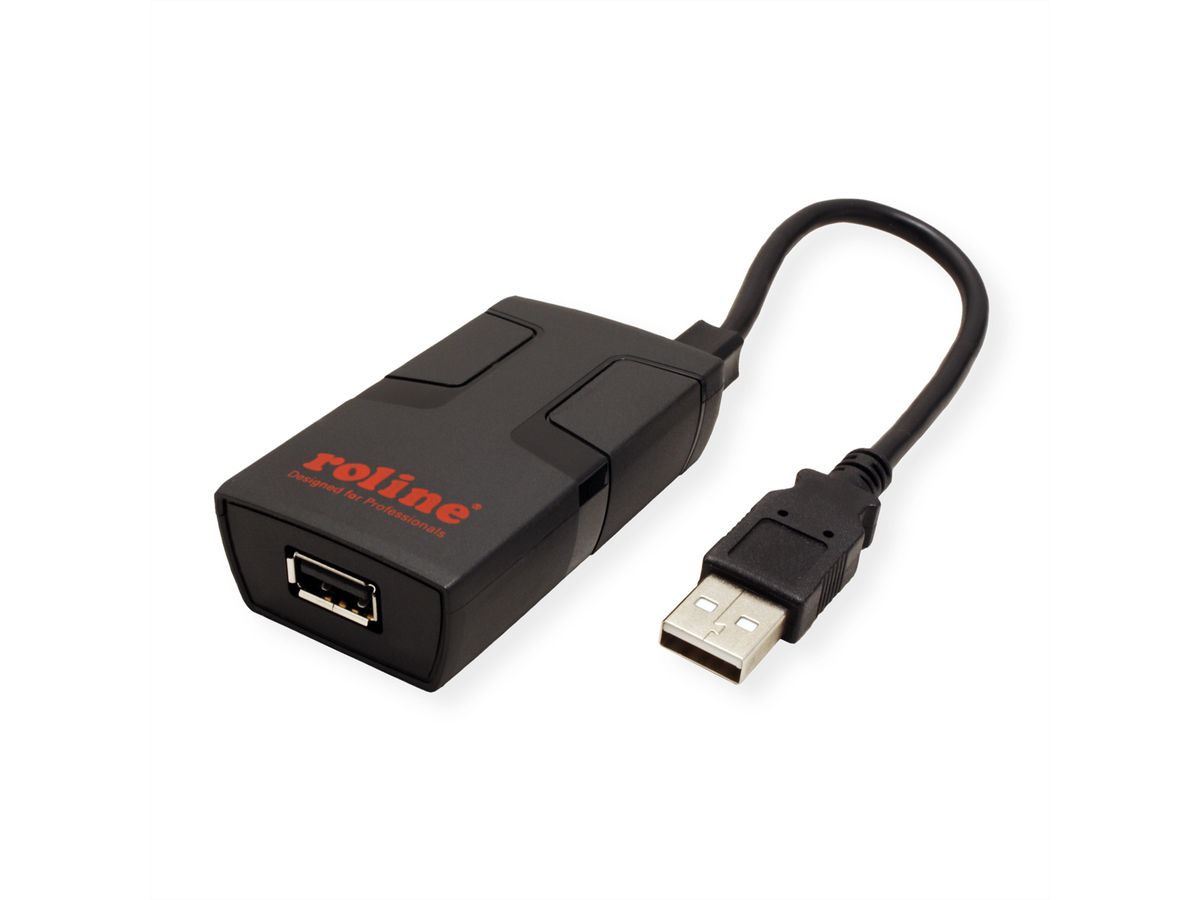

ROLINE Opto Bridge USB-USB
Please log in to be able to use the shopping cart and then complete orders.
Log in| Item no. | 12.02.1091-30 |
|---|---|
| Brand / Manufacturer | ROLINE |
| Manuf. no. | 12.02.1091 |
| EAN | 7630049692930 |
| Package weight | 0.07 kg |
:strip_icc():strip_exif()/logos/roline.png "ROLINE")
Description
This small, industrial - grade isolator is very easy to use and provides a high-voltage barrier protection against surges, noise and ground loop errors. Suitable for use in sensitive applications like automotive measurements.
- Effective protection of the USB interface through galvanic isolation (opto-coupler)

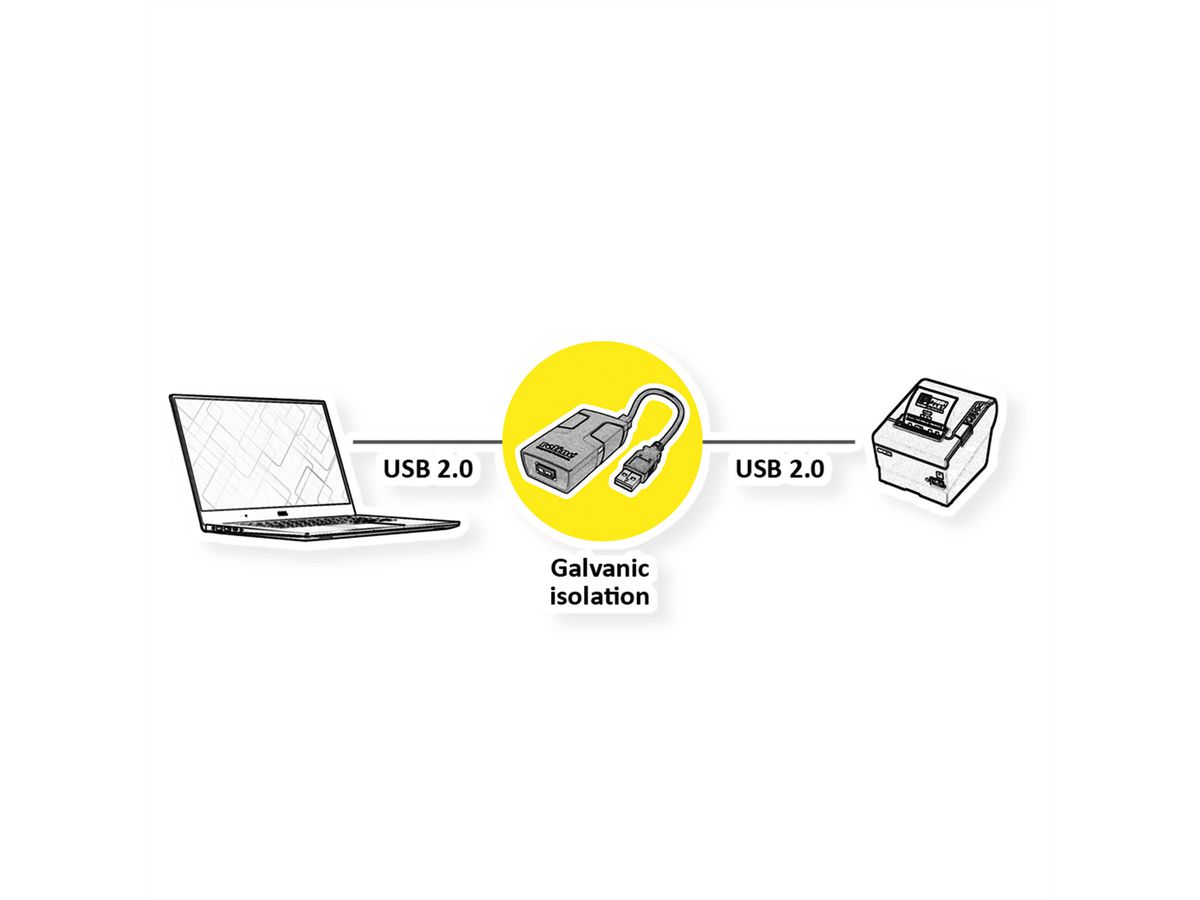

- Isolates a USB device galvanically from the USB host
- Insulation voltage max. 5000V eff.

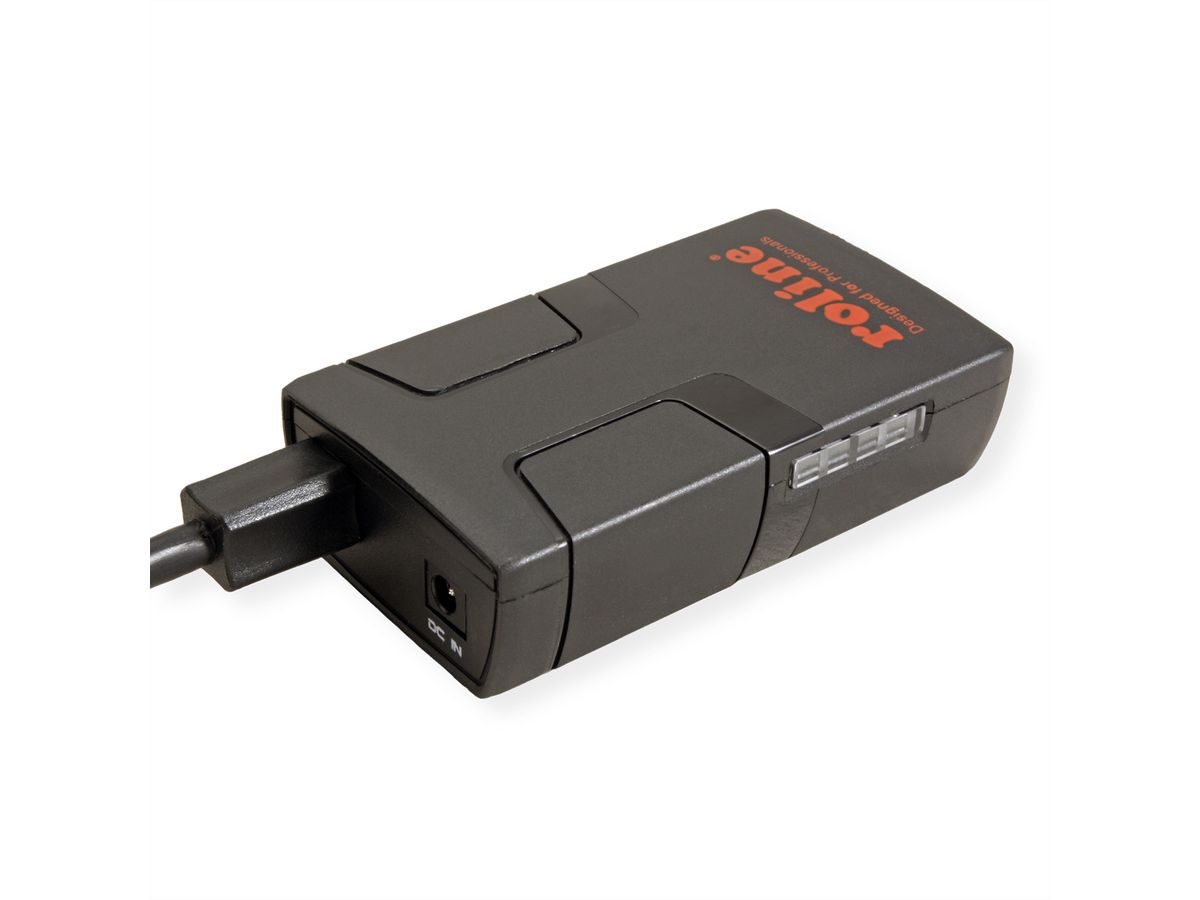

- LED indicators
- Data transfer rate: max. 12MBit/s, USB 2.0 compatible
- Connections: USB A connector and USB A plug cable

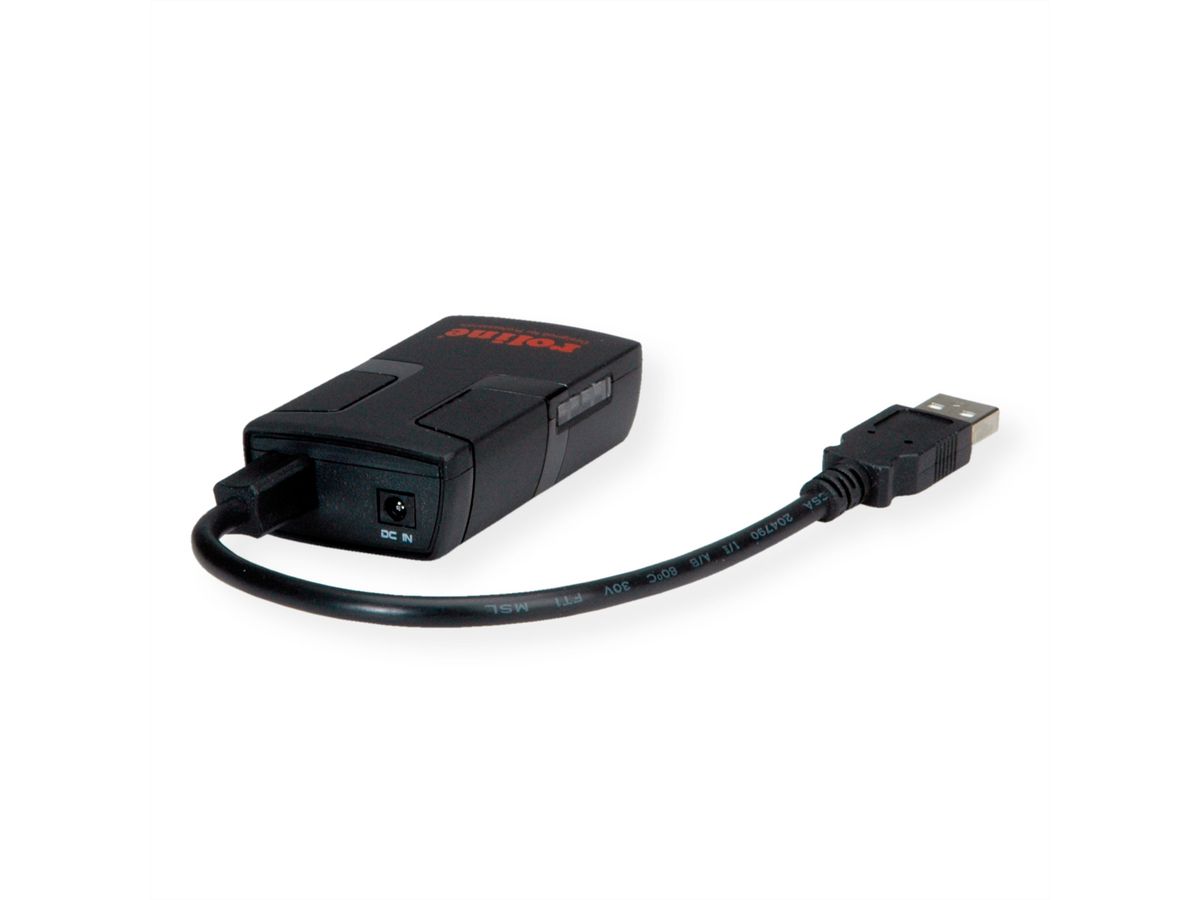

- Optional: External power supply 19.11.1097 (500mA), e.g. for powering larger hard disks (3.5" HDDs)
Specifications
| Manufacturer | ROLINE |
|---|---|
| Product group | Adapters, Terminators, Converters |
| Product type | Galvanic isolation interface |
| Colour | black |
| Side 1 connection (PC) | USB Stecker |
| Side 2 connection (Peripherals) | USB Buchse |
| Side 1 Connector Type | USB 2.0 Type A |
| Side 1 Connector Gender | Male |
| Side 2 Connector Type | USB 2.0 Type A |
| Side 2 Connector Gender | Female |
| Area of application | External |
| Dimensions (HxWxD) | 20x39x66mm |
| Technical particularity | Isolation voltage 5000V |
| Height | 20 mm |
| Width | 39 mm |
| Depth | 66 mm |
| Weight | 48.7 g |
| Height of packaging (single piece) | 20 mm |
| Width of packaging (single piece) | 50 mm |
| Depth of packaging (single piece) | 50 mm |
| Package weight (single piece) | 0.07 kg |
