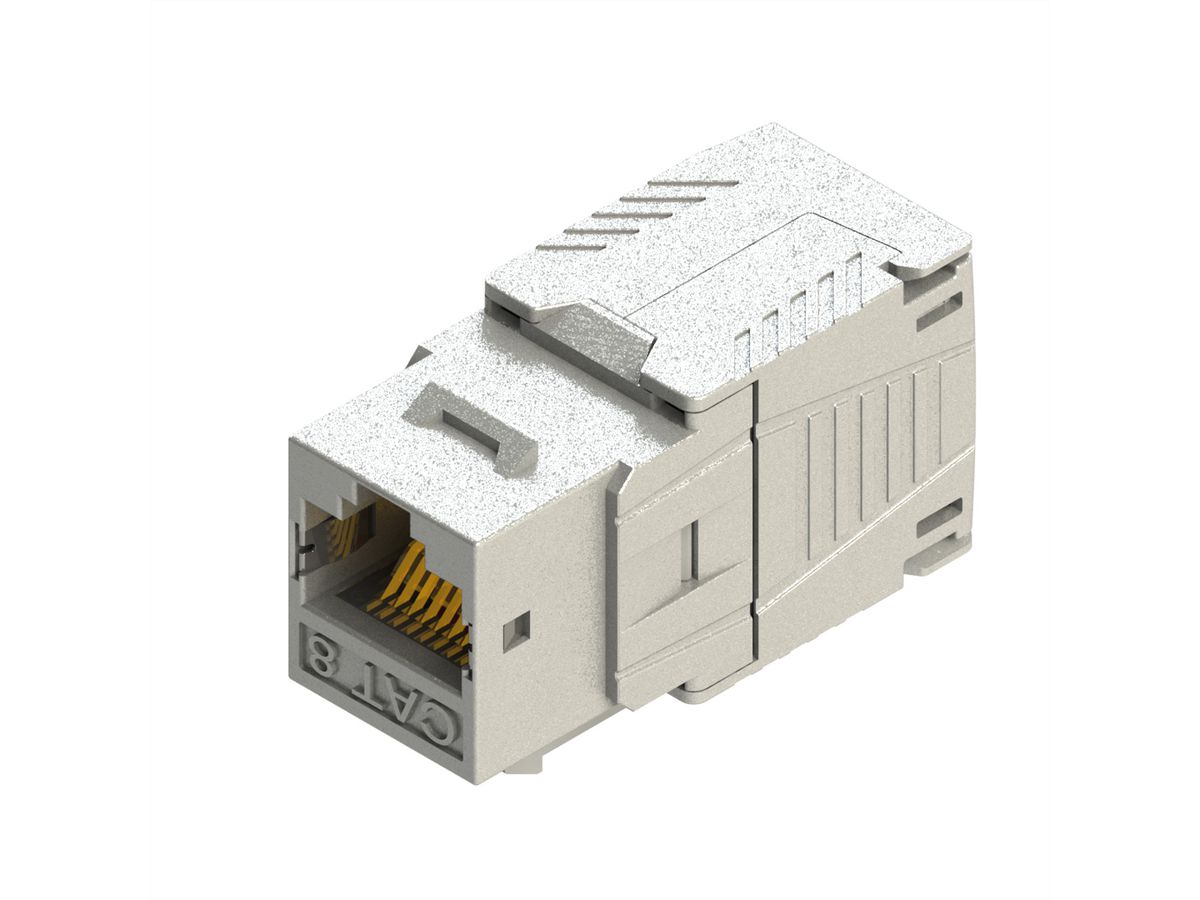

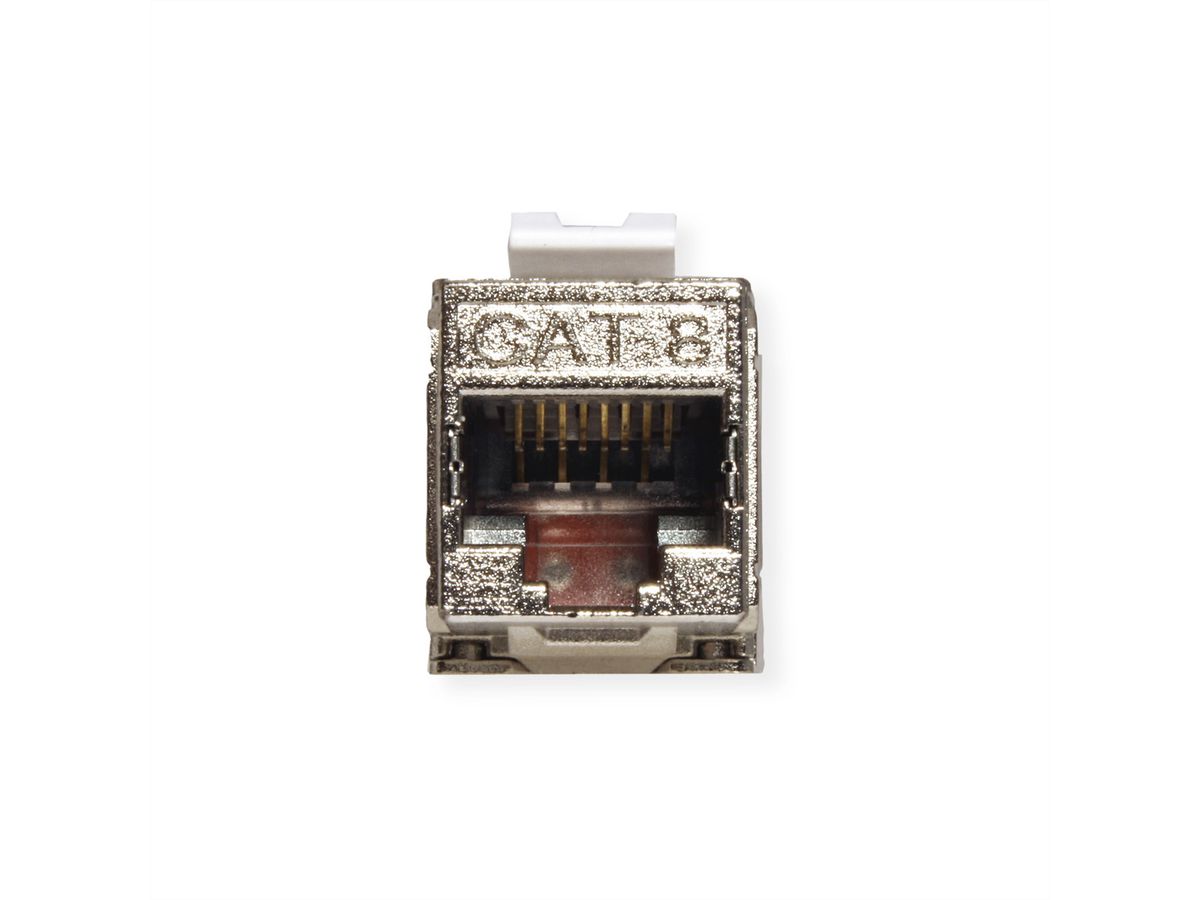

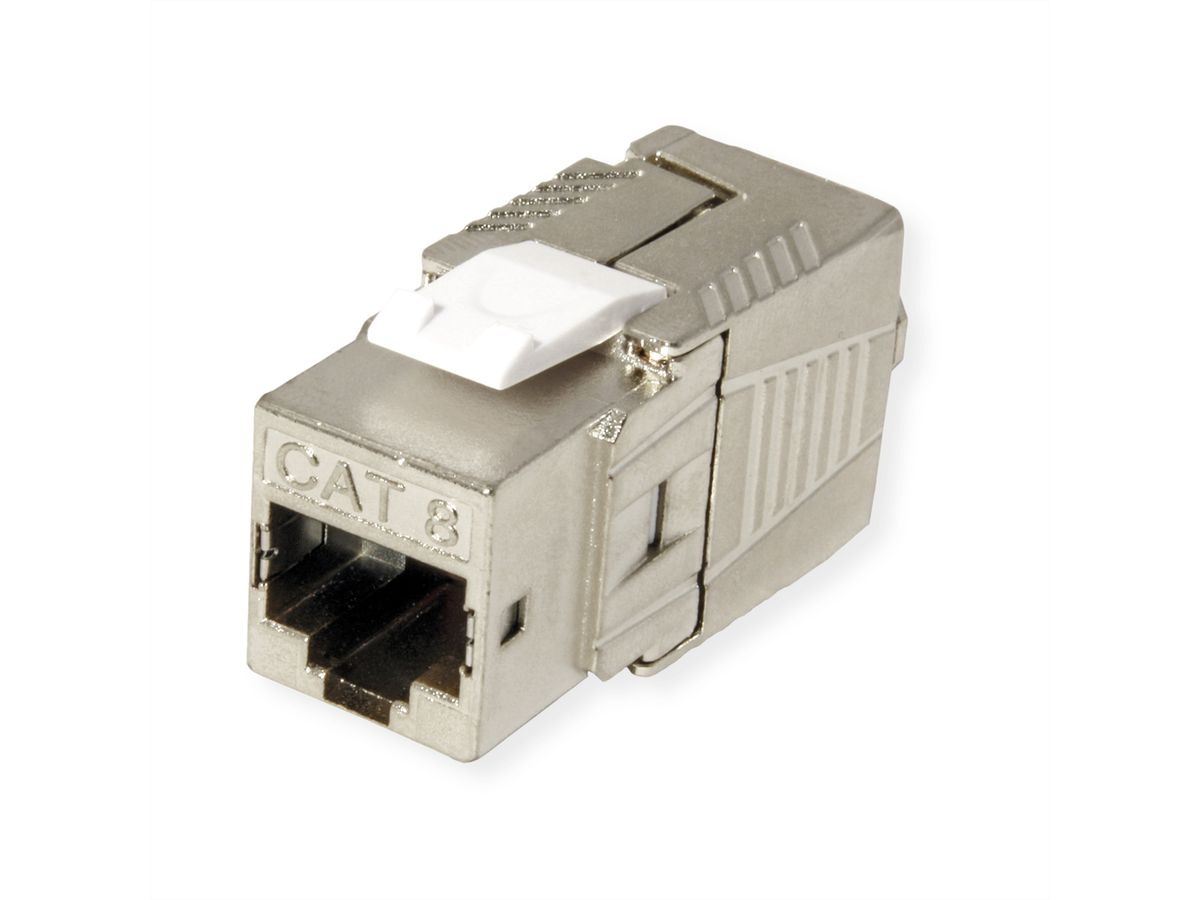

ROLINE Keystone Jack, Cat.8 (Class I), RJ-45, STP, tool-free, silver, silver
Please log in to be able to use the shopping cart and then complete orders.
Log in| Item no. | 26.11.0381-50 |
|---|---|
| Brand / Manufacturer | ROLINE |
| Manuf. no. | 26.11.0381 |
| EAN | 7630049691018 |
| Package weight | 0.025 kg |
:strip_icc():strip_exif()/logos/roline.png "ROLINE")
Description
Cat.8 Keystones are ideal for use in 10 Gigabit Ethernet networks
Keystone in proven ROLINE quality!- The ROLINE Cat.8 Keystones are ideal for use in Gigabit Ethernet networks
- Support data transfer rates up to 10/25/40 Gbit/s with a bandwidth of 2000 MHz

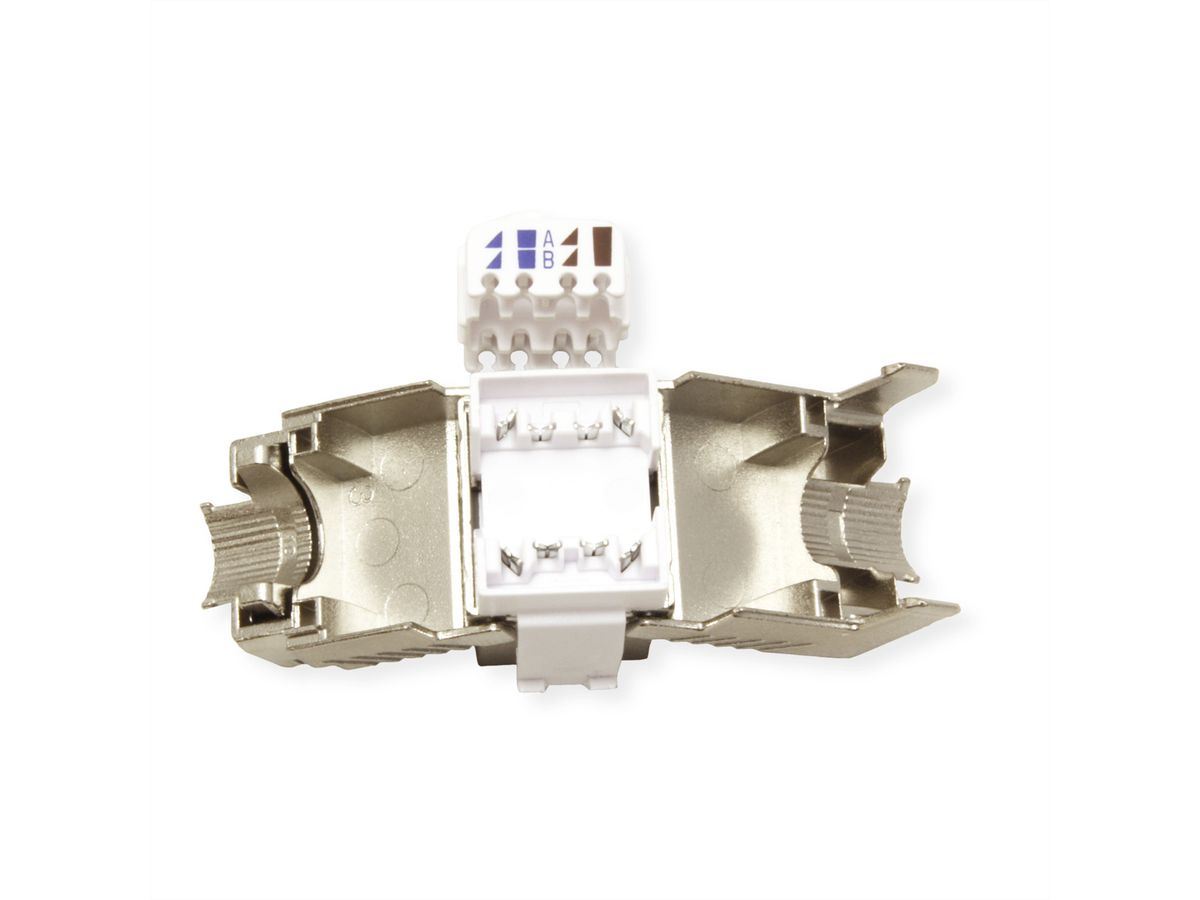

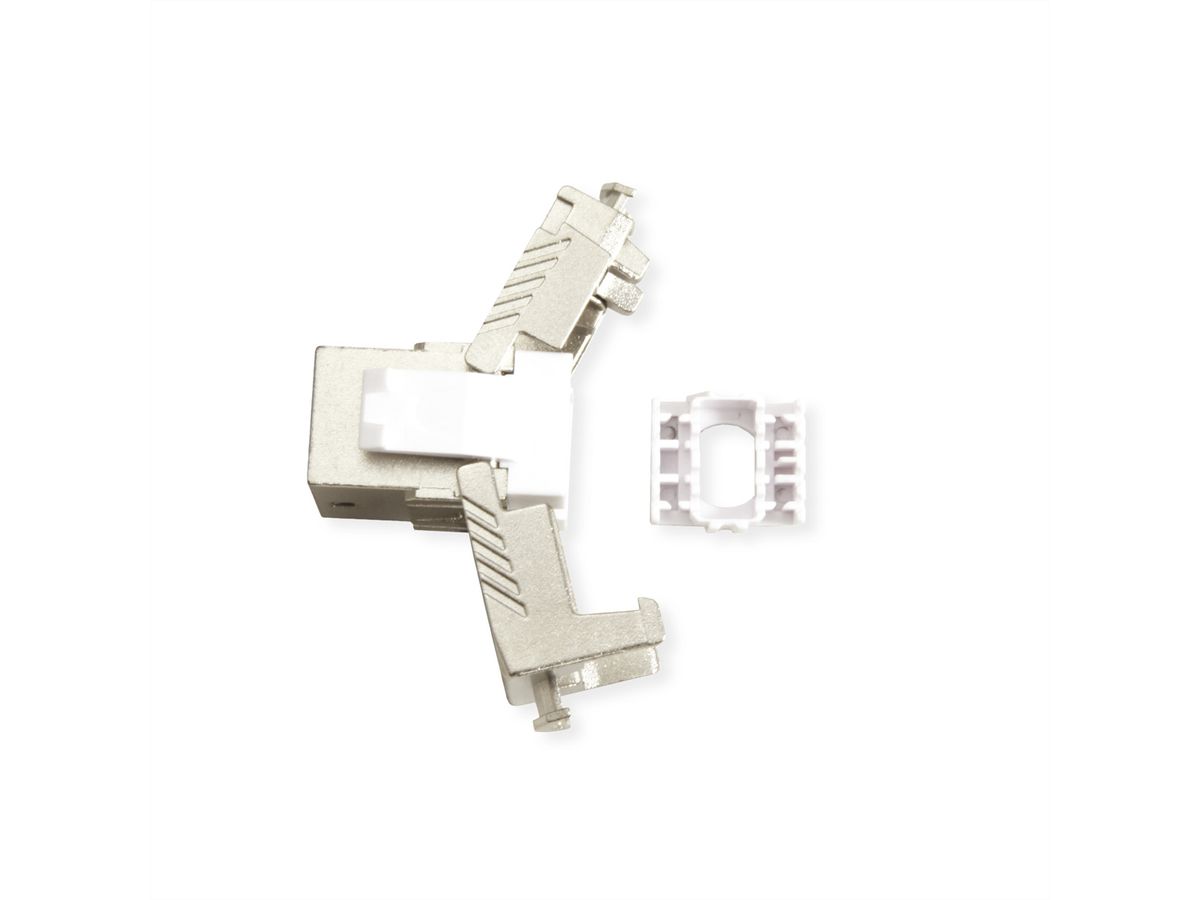

- Connect the cable to the Keystones via LSA connections without special tools - place the cable ends simply into the guides (with color coding), close and compress the module - the connection is ready for use
- The Keystone modules can be "latched" into a 19'' module support rack, which is optionally available in black (26.11.00360) or light gray (26.11.0359).
- Cable entrance diameter range: 5.5mm - 9.0mm
- Insulation diameter range: 0.95mm - 1.62mm
- Solid and Stranded conductor: 22AWG - 24AWG for Cat.8 type
- Wire coded scheme: EIA/TIA 568
For a structured cabling system we recommend to use the following components: 21.15.0005 ROLINE S/FTP Cable Cat.8, Solid Wire, LSOH, 24 m; 21.15.1853 ROLINE S/FTP Patch Cord Cat.8, solid, LSOH, yellow, 3 m; 21.15.1863 ROLINE S/FTP Patch Cord Cat.8, stranded, LSOH, yellow, 3 m; 26.11.0381 ROLINE C8 Shield RJ45 Keystone, toolless. The accredited German laboratory GHMT has tested and certified this product combination, in a 2 Connector Channel (30m), Copper, Class I up to 2 GHz; certificate no. c7794a-23.
Specifications
| Manufacturer | ROLINE |
|---|---|
| Product group | Connection technology TP |
| Product type | RJ45 Keystone Jack |
| Colour | silver |
| Shield type | Screened |
| Transfer quality | Cat8.1 / Class I |
| Assignment | EIA/TIA 568A & 568B |
| Connection direction | Straight |
| Height | 21 mm |
| Width | 12 mm |
| Depth | 38 mm |
| Weight | 29.4 g |
| Height of packaging (single piece) | 20 mm |
| Width of packaging (single piece) | 20 mm |
| Depth of packaging (single piece) | 60 mm |
| Package weight (single piece) | 0.025 kg |
