The products of our own brand ROLINE are designed for professional continuous operation.
With a 2-year functional guarantee, we stand by our performance promise.
ROLINE – Quality makes the difference.
:strip_icc():strip_exif()/bilder/s21/21173066_092.jpg "ROLINE Junction Box Cat.6 (Class E), UTP")

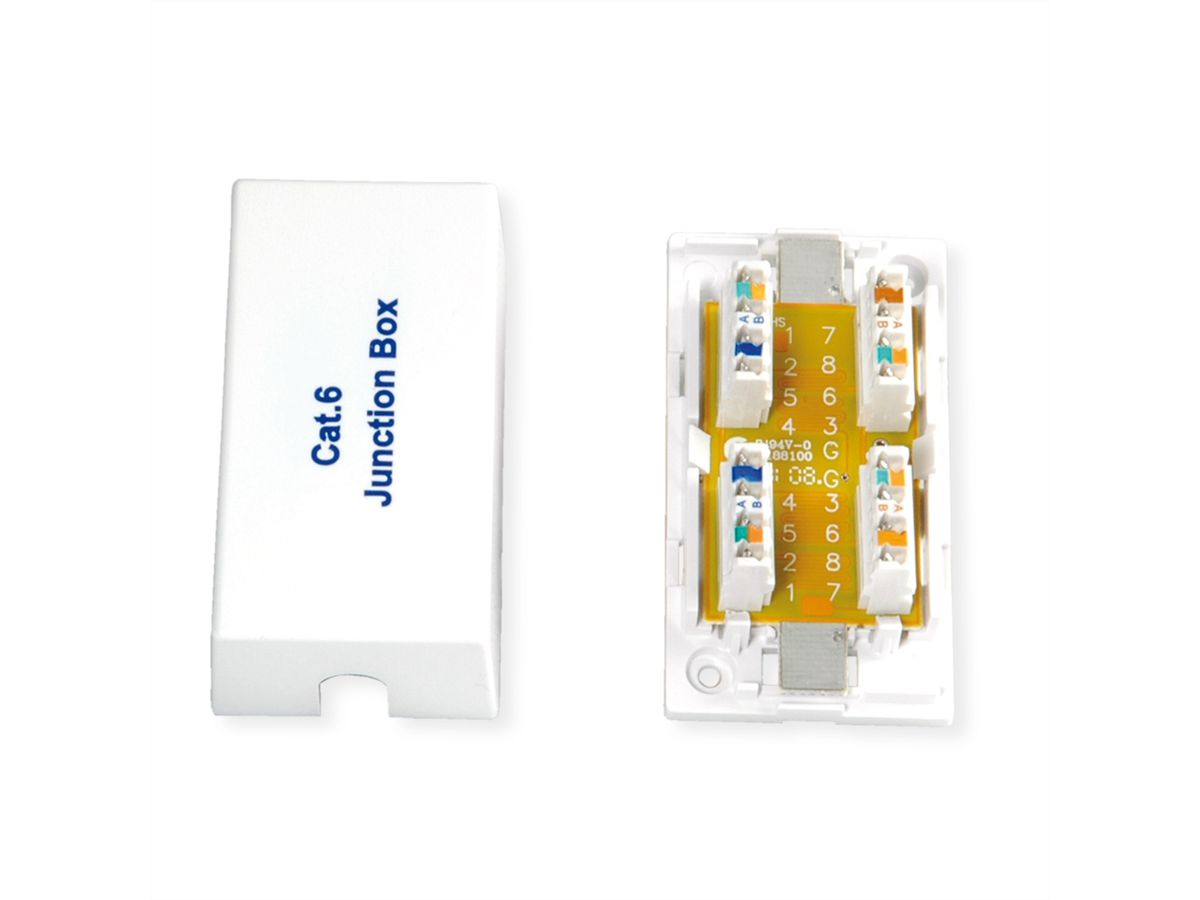

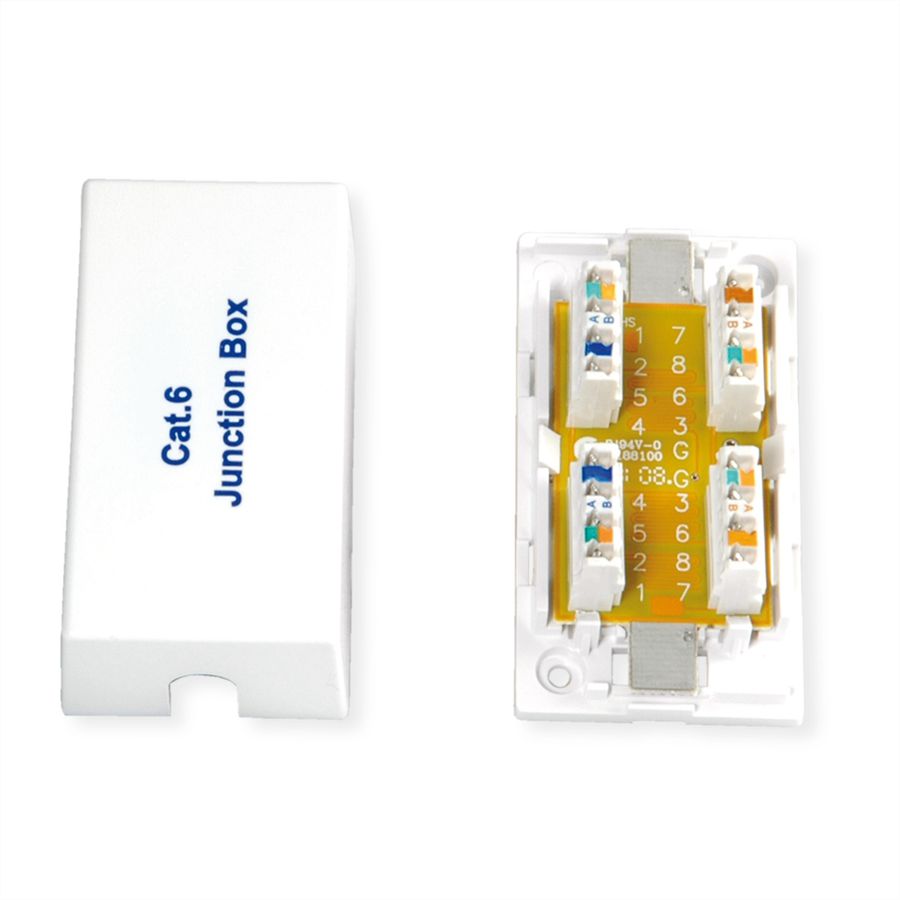

ROLINE Junction Box Cat.6 (Class E), UTP
Please log in to be able to use the shopping cart and then complete orders.
Log in| Item no. | 21.17.3066-20 |
|---|---|
| Brand / Manufacturer | ROLINE |
| Manuf. no. | 21.17.3066 |
| EAN | 7611990986668 |
| Package weight | 0.036 kg |
:strip_icc():strip_exif()/logos/roline.png "ROLINE")
Description
- The ROLINE Junction box is used to repair or extend unshielded Cat.6 cables
- With this box all 4 or 8 wired installation cables with AWG24 and with an outside diameter from 4mm can be installed
- Equipped with the modern LSA connection technology, all cables in accordance with EIA/TIA 568A or 568B can be easily installed
Specifications
| Manufacturer | ROLINE |
|---|---|
| Product group | Connection technology TP |
| Product type | Network junction box |
| Colour | white |
| Shield type | Not screened |
| Transfer quality | Cat6 / Class E |
| Assembly cable connection | Krone LSAplus |
| Assignment | EIA/TIA 568B |
| Shield contacts | No |
| separate strain relief | no |
| Connection direction | Straight |
| Dimensions (HxWxD) | 26 x 32 x 60 mm |
| Height | 26 mm |
| Width | 32 mm |
| Depth | 60 mm |
| Weight | 30.5 g |
| Height of packaging (single piece) | 20 mm |
| Width of packaging (single piece) | 30 mm |
| Depth of packaging (single piece) | 110 mm |
| Package weight (single piece) | 0.036 kg |
