Description

The narrow high quality cable design simplifies cable, routing and installation and improves the internal air flow.

• Connect your high-speed Serial ATA device (e. g. HDD) to a Serial ATA Controller
• Support data transfer rates of up to 3.0 Gbit/s (SATA II)
• Compatible with SATA 1.5 Gbit/s (SATA I)
• 4-pin cable with ground wires
• Connectors: 2x internal 7-pin SATA

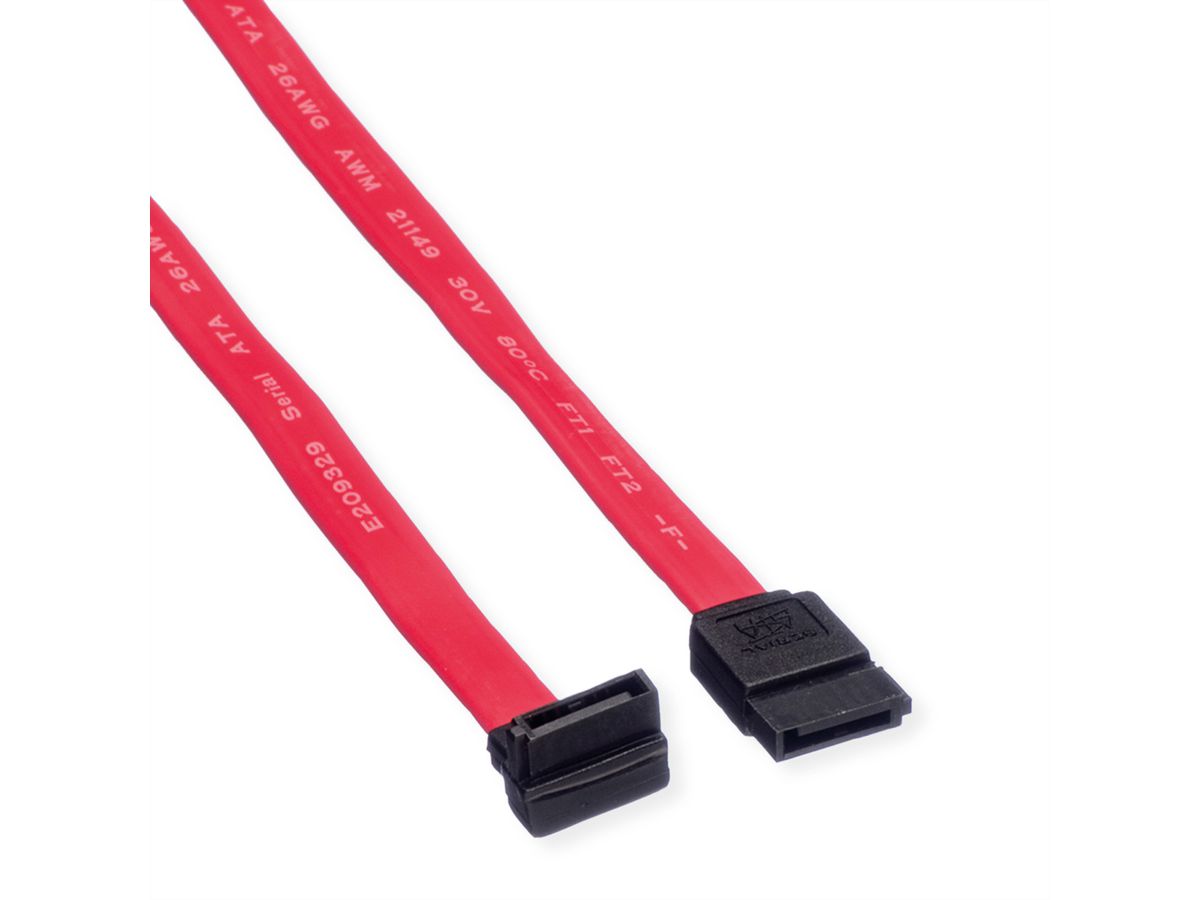

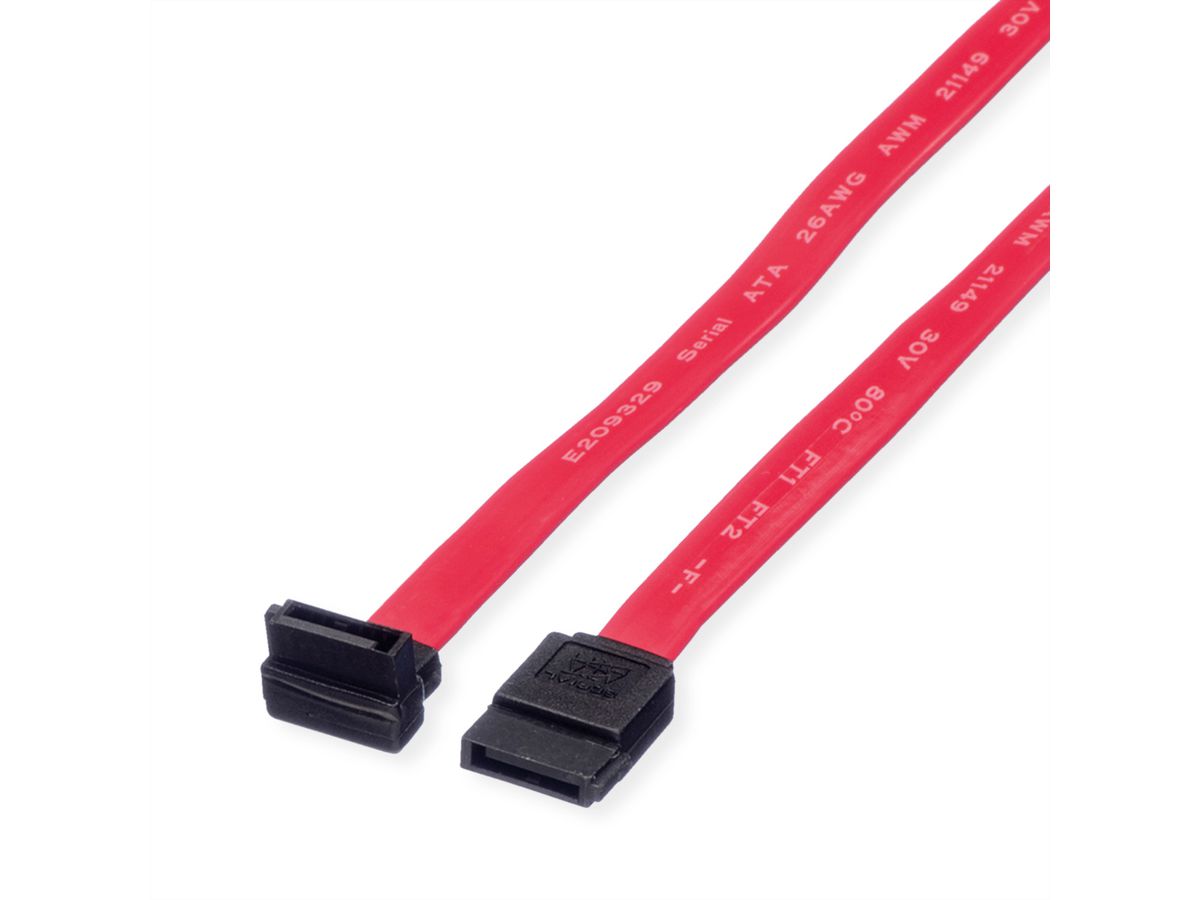

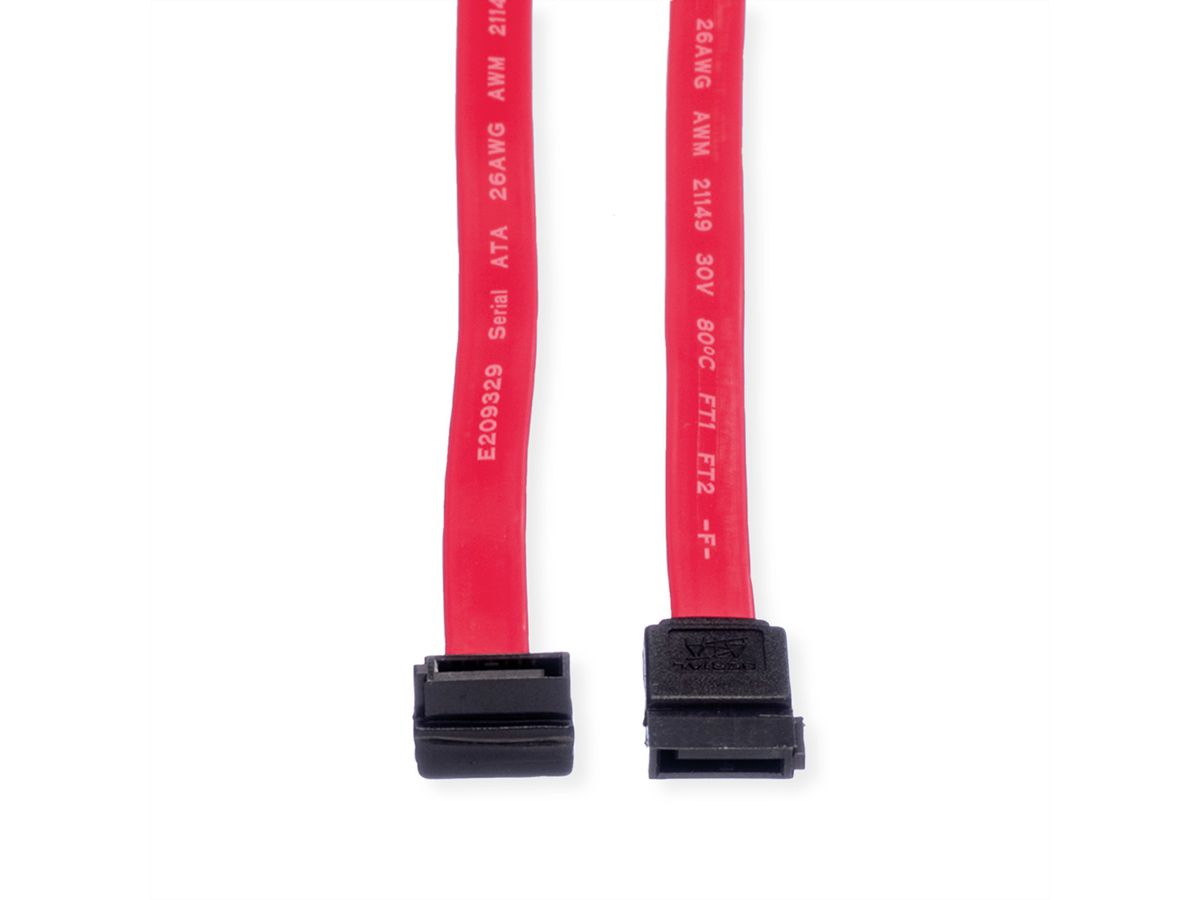

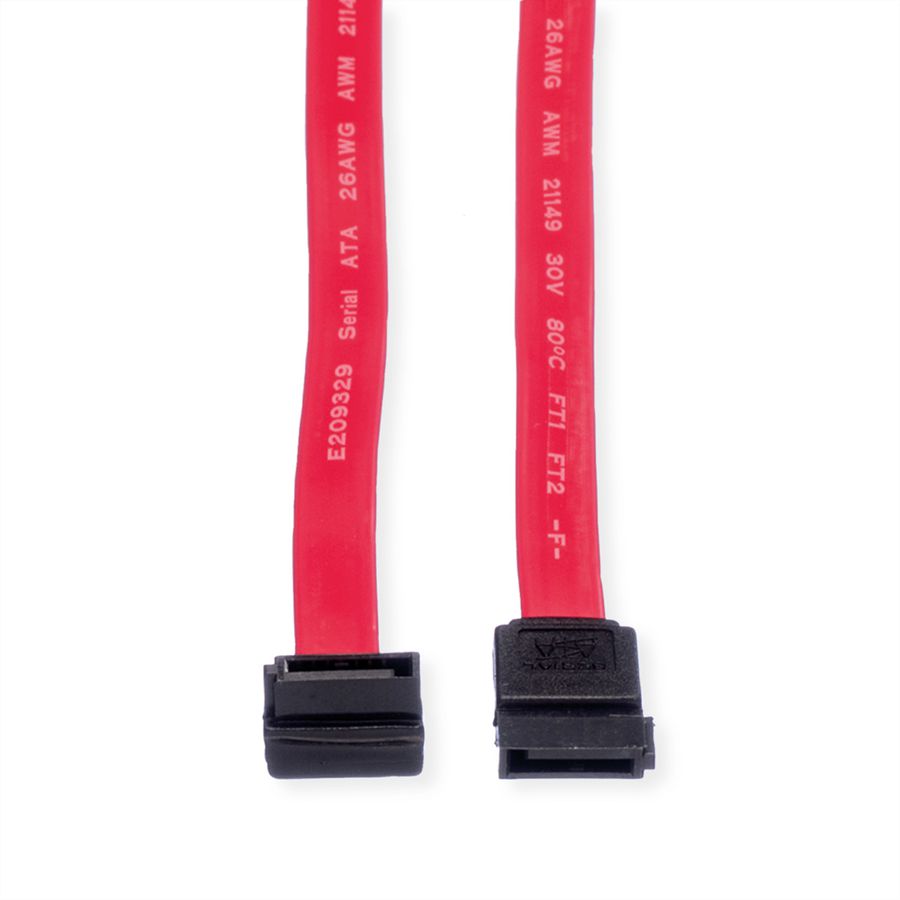

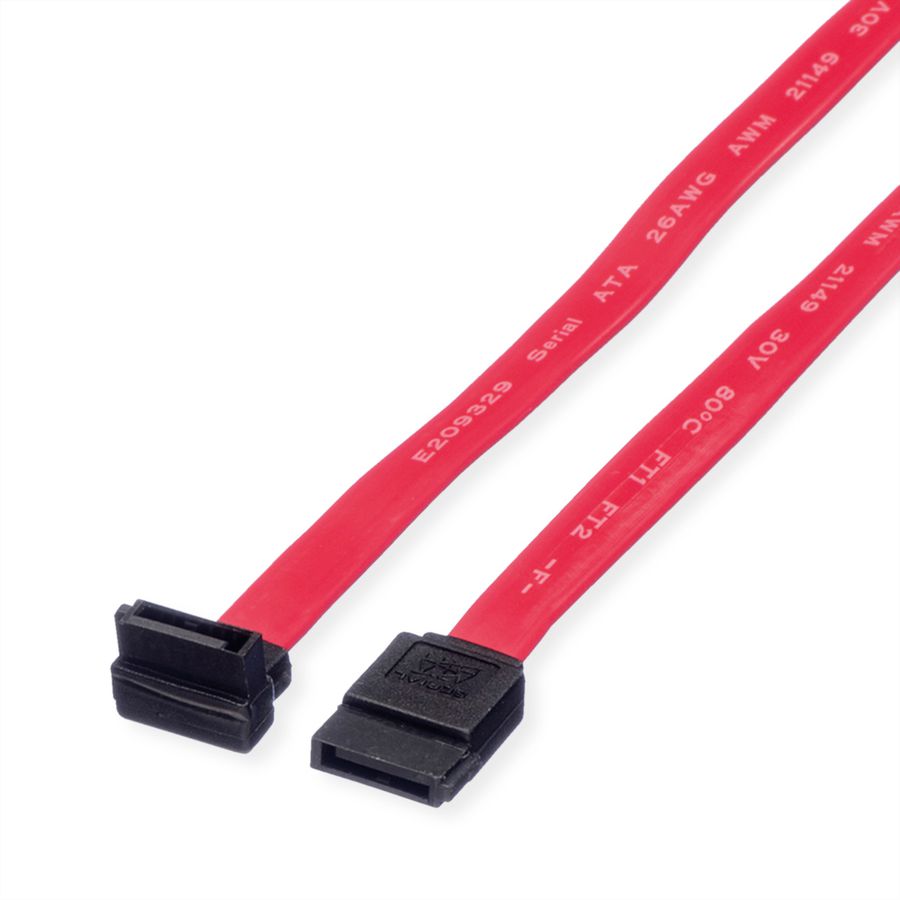

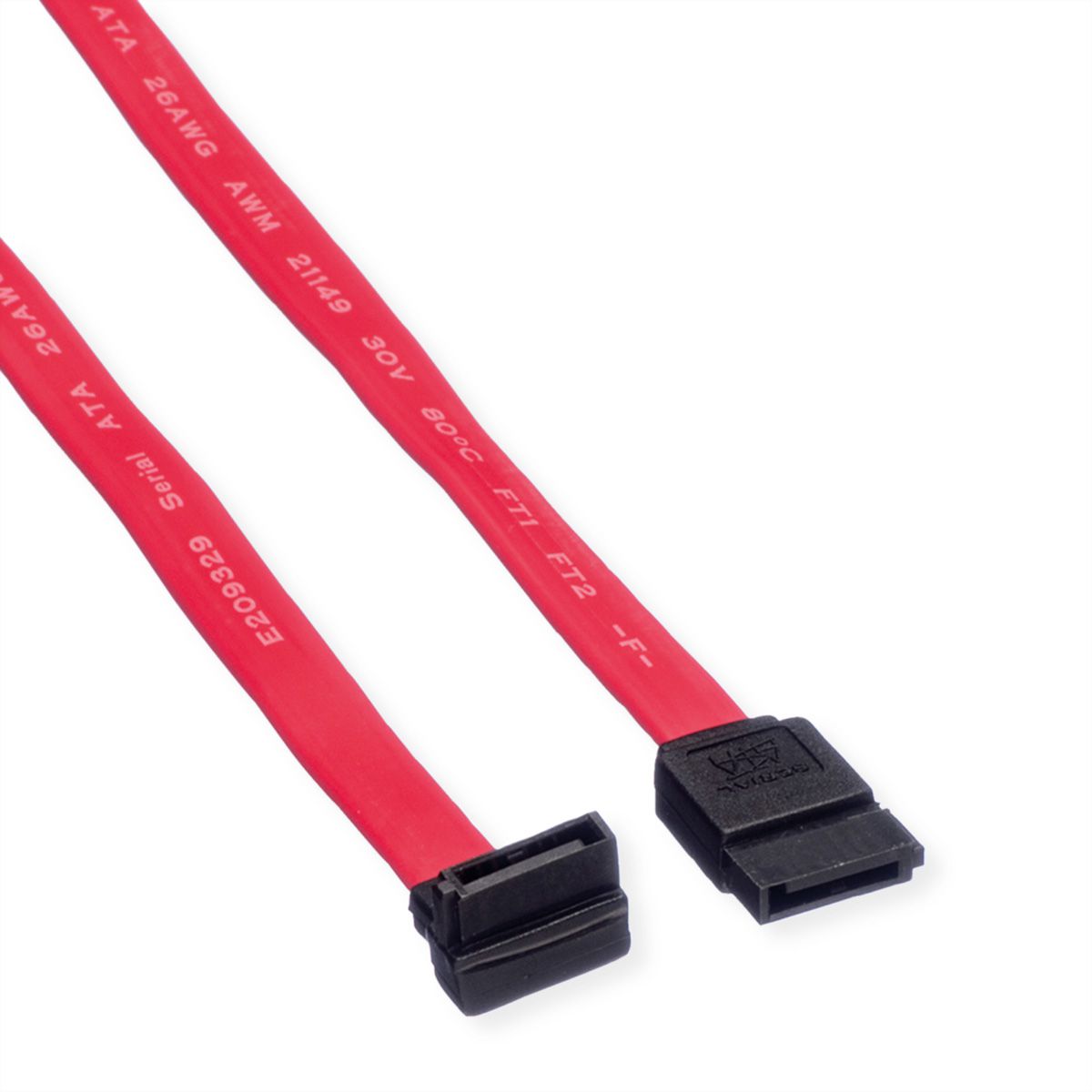

• Cable with angled to one side SATA connector, e. g. for the use inside narrow housings or mini PCs

Specifications

Manufacturer	ROLINE
Product group	Cable
Product type	SATA Cables
Colour	red
Length	0.5 m
Connection ports	SATA 7-pin (Data) Male / SATA 7-pin (Data) Male
side 1 connector	SATA Male 7-pin, angled
side 2 connector	SATA Male 7-pin
Side 1 Connector Type	SATA 7-pin (Data)
Side 1 Connector Gender	Male
Side 2 Connector Type	SATA 7-pin (Data)
Side 2 Connector Gender	Male
Ribbon cable	yes
Area of application	Internal
Cable shielding	Not screened
Cable composition	SATA
Weight	16.4 g
Height of packaging (single piece)	10 mm
Width of packaging (single piece)	80 mm
Depth of packaging (single piece)	120 mm
Package weight (single piece)	0.027 kg

Downloads

Product data sheet - English (43.2 KB)

Download

Manufacturer data sheet - English (92.6 KB)

Download
