Description

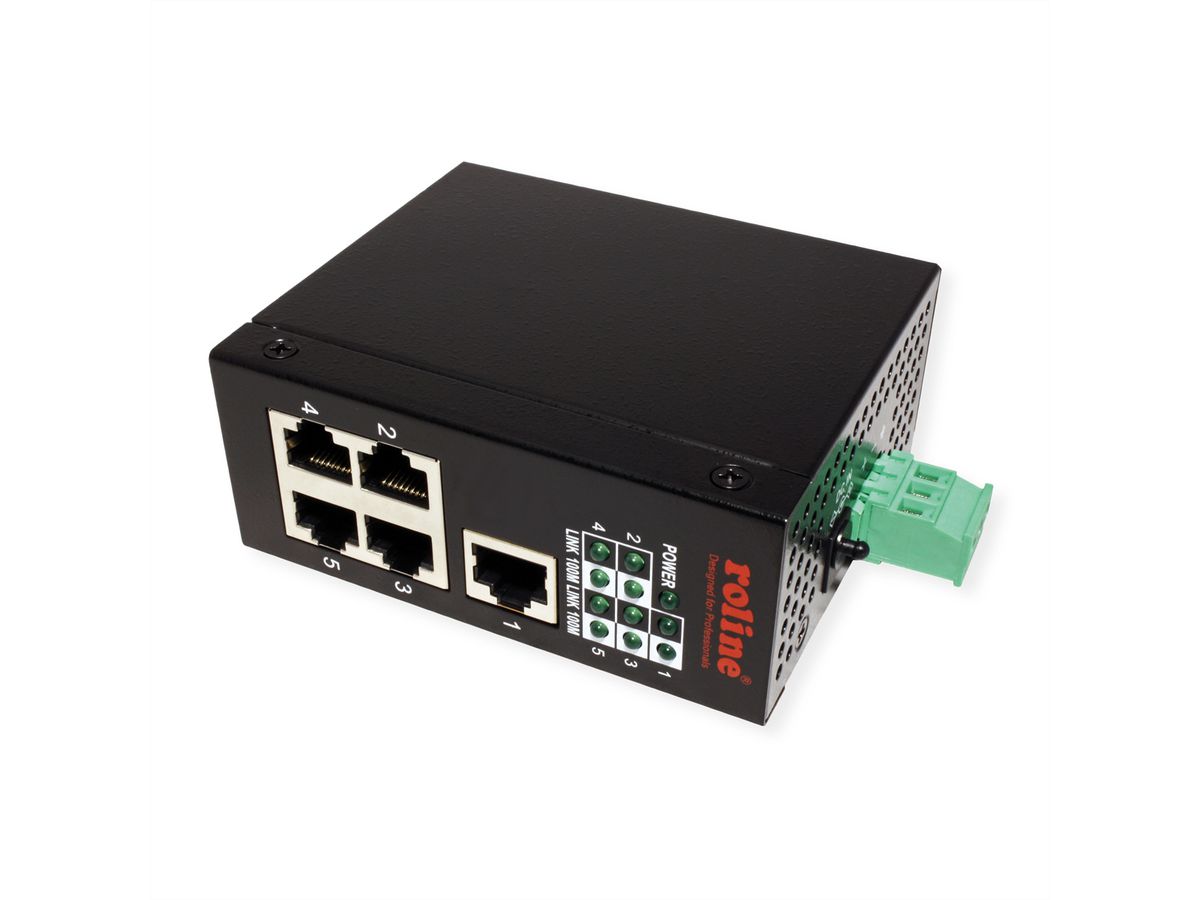

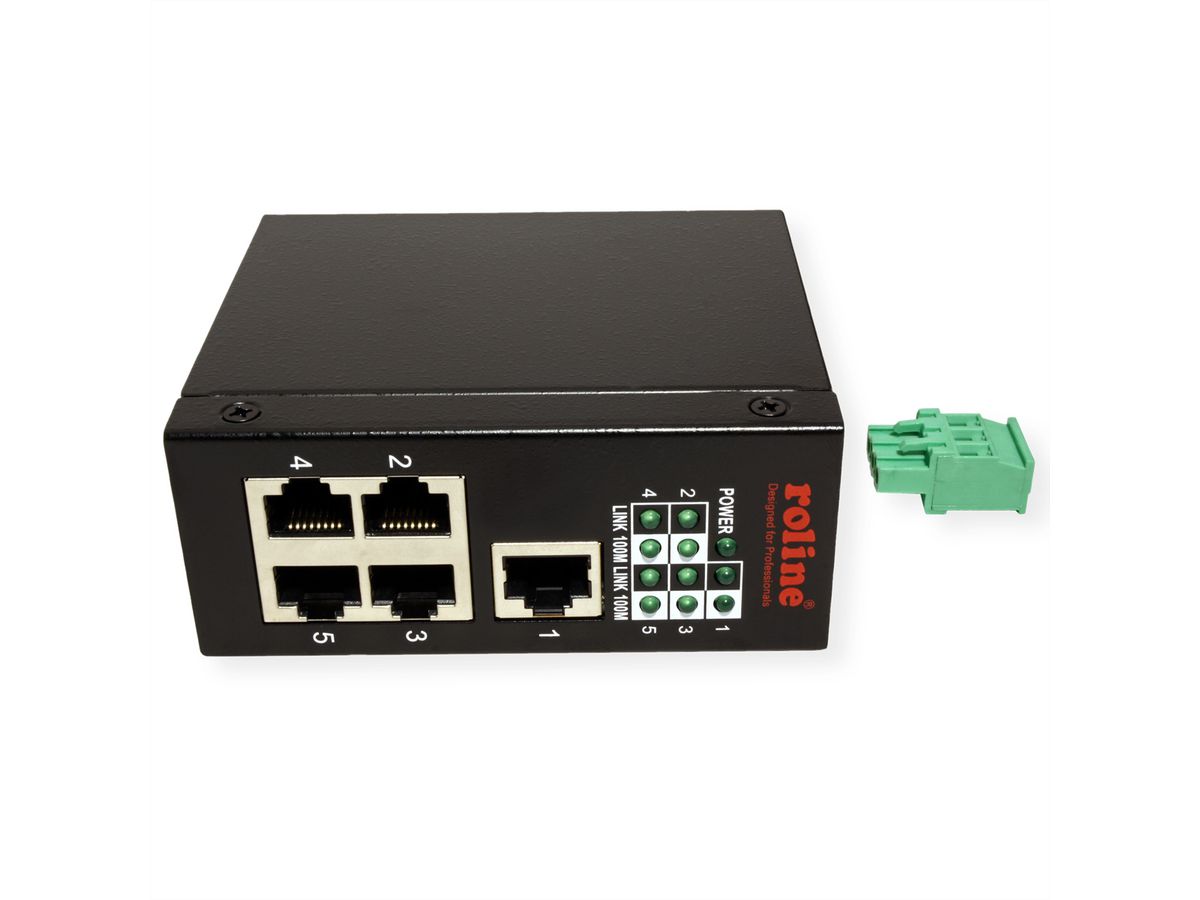

• Fast Ethernet switch with 5 shielded 10/100 Base-T copper ports
• Wide operating temperature range for temperature critical environment
• Auto MDI/MDI-X crossover function
• Supports IEEE 802.3x flow control for full-duplex operation
• Supports Back-pressure flow control for half-duplex operation

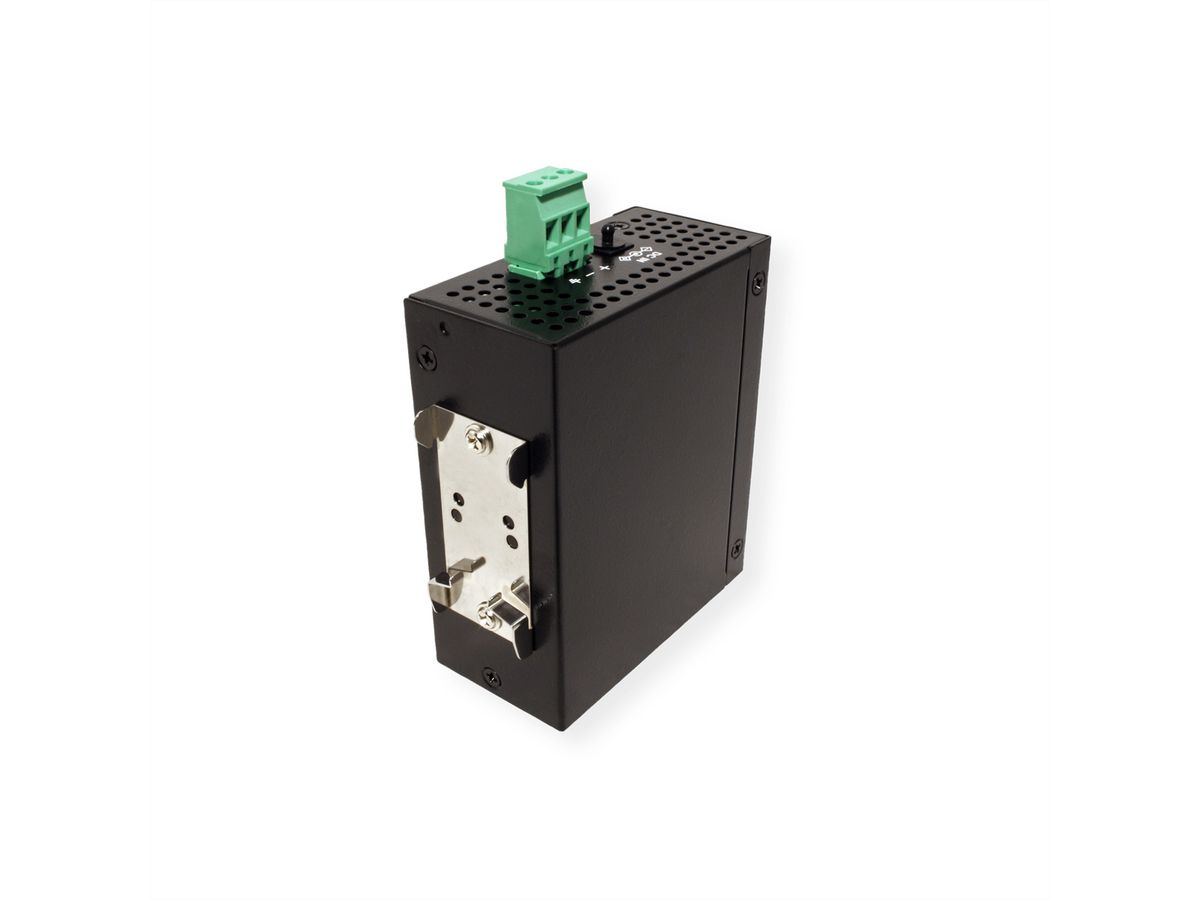

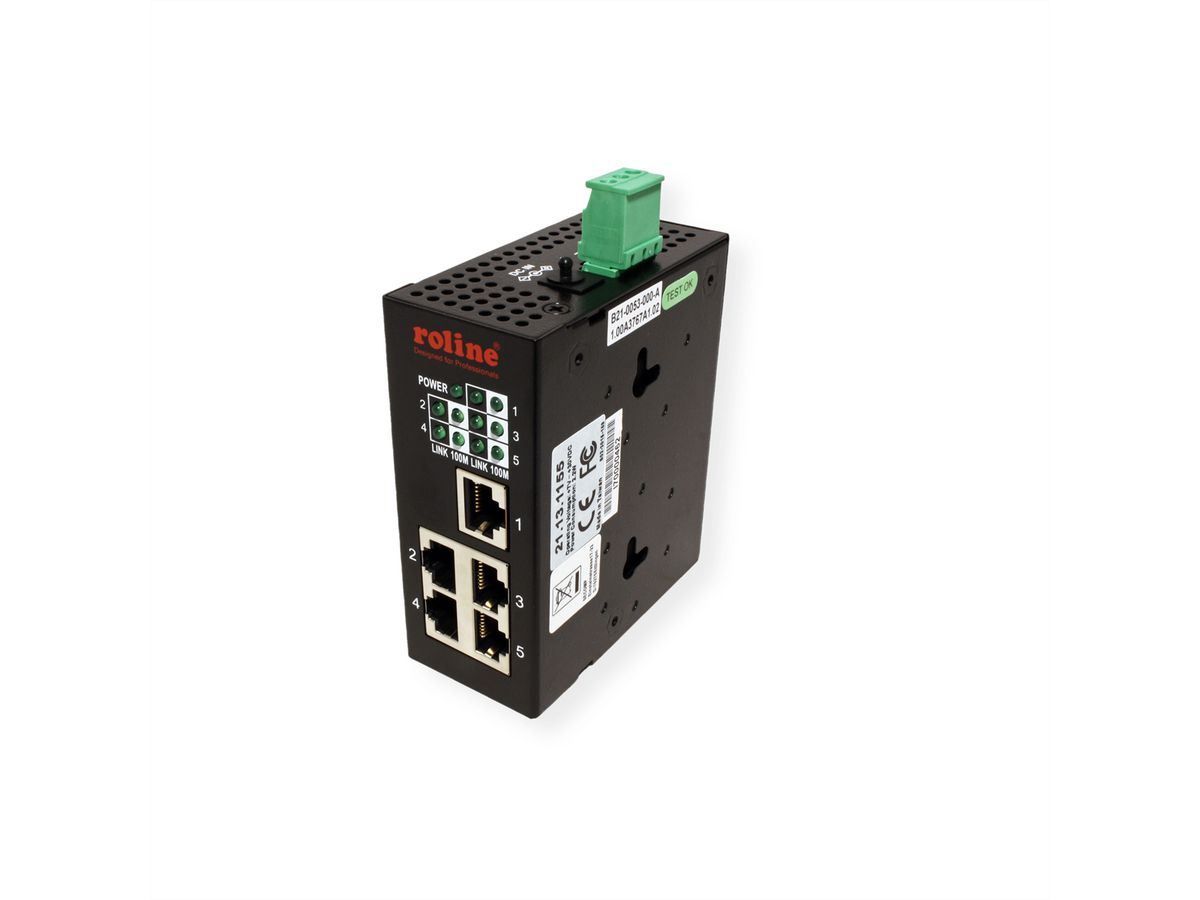

• Supports DIN-rail mounting
• Power: Input: 5 - 30V DC, Consumption: 2.2W (max.)
• Operating Temperature: - 10 °C - +70 °C

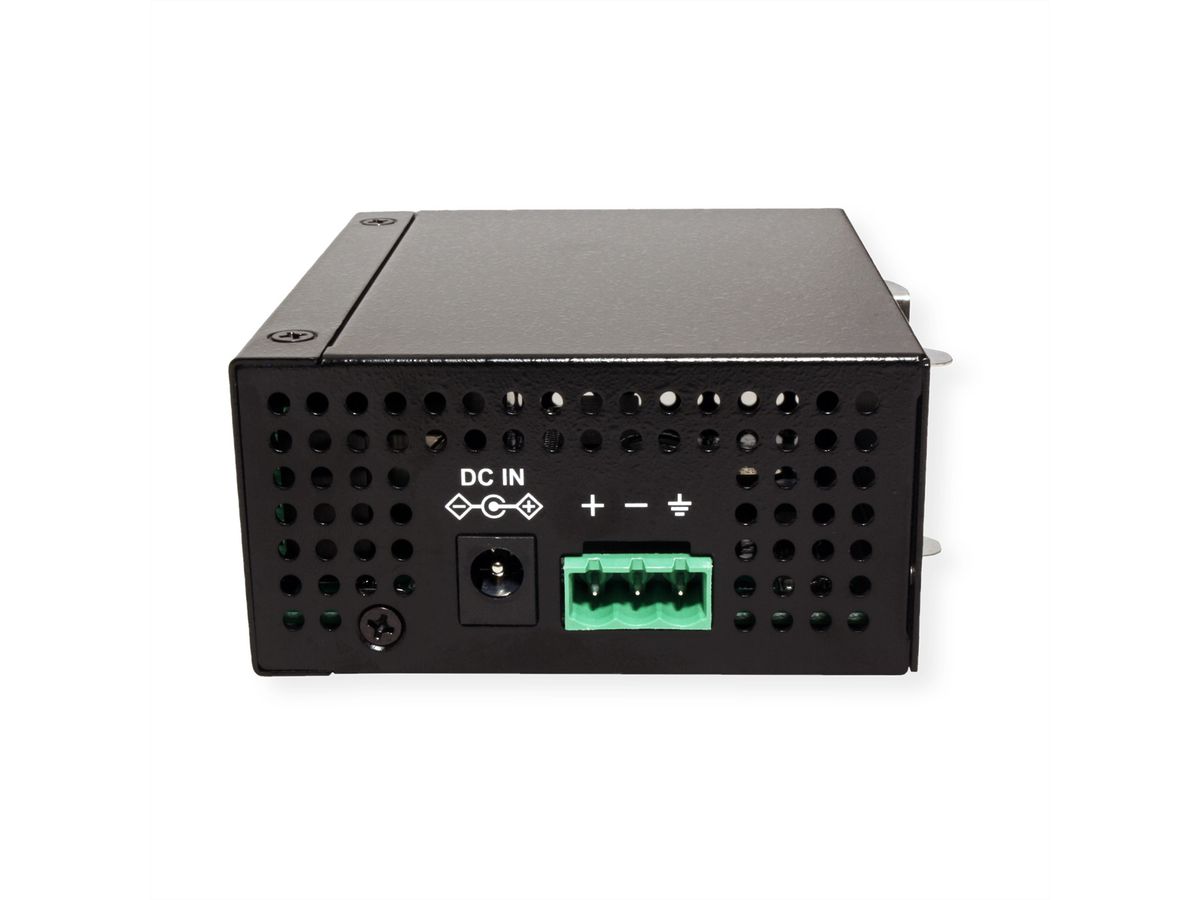

• DC Input via terminal block or DC power jack ( 6.3mm / 2.0mm)
• Dimensions: 40 x 80 x 95 mm (WxDxH)
• As according power supply we recommend 21.13.1226

Specifications

Manufacturer	ROLINE
Product group	Network Switches
Product type	Fast Ethernet Switch
Colour	black
Scope of delivery	Switch
Network standard	Fast Ethernet
LAN (Mbps)	10/100
Quantity of ports	5
Fast Ethernet Ports RJ-45	5
Mounting form	DIN Rail
Management	no
Stackable	no
Dimensions (HxWxD)	95 x 40 x 80 mm
Power supply unit (internal/external)	External
Mains connection	Loose cable / screw terminals
Operating temperature min.	-10 °C
Operating temperature max.	70 °C
Height	95 mm
Width	40 mm
Depth	80 mm
Weight	281.09 g
Height of packaging (single piece)	70 mm
Width of packaging (single piece)	140 mm
Depth of packaging (single piece)	160 mm
Package weight (single piece)	0.274 kg

Downloads

Product data sheet - English (46.8 KB)

Download

Manufacturer data sheet - English (353.0 KB)

Download
