Description

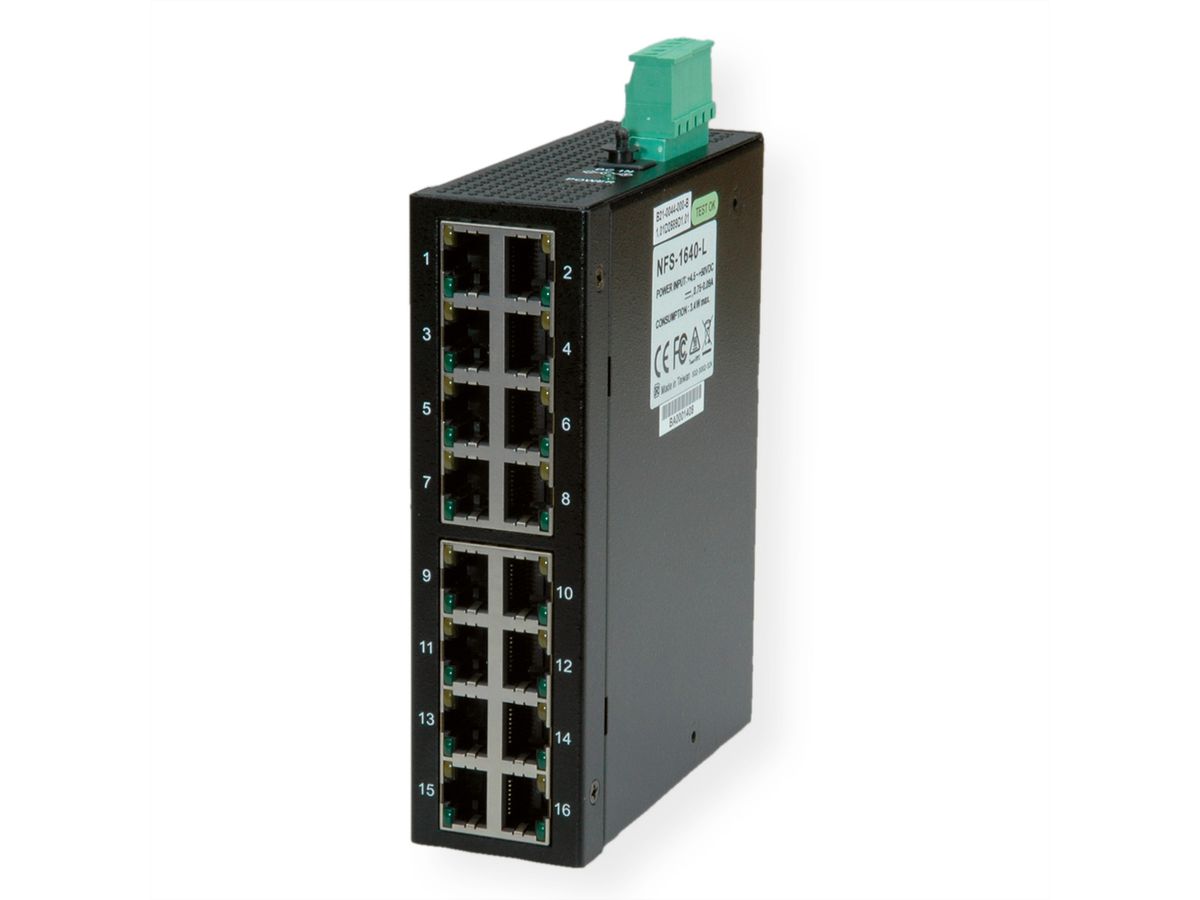

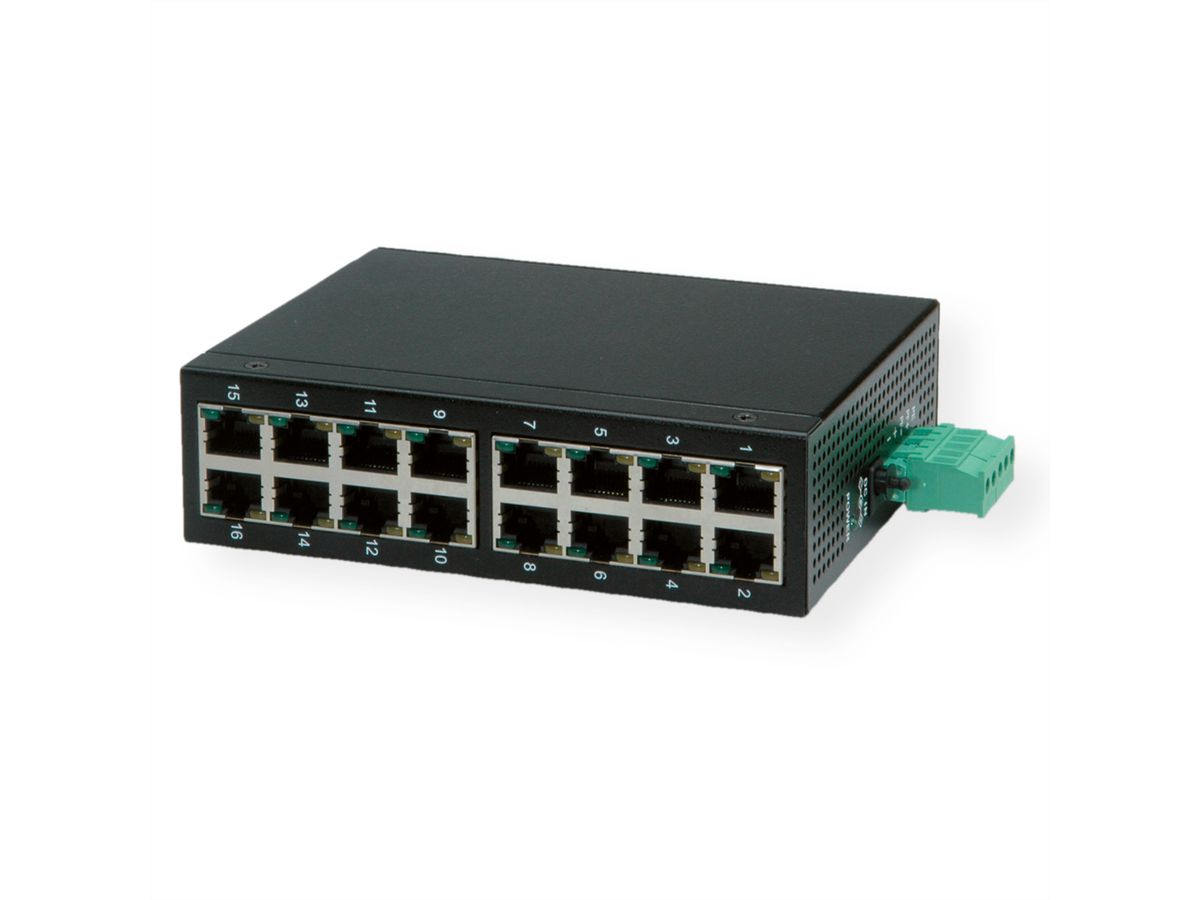

• Fast Ethernet switch with 16 shielded 10/100 Base-T copper ports
• Wide operating temperature range for temperature critical environment
• Auto MDI/MDI-X crossover function
• Supports IEEE 802.3x flow control for full-duplex operation
• Supports Back-pressure flow control for half-duplex operation

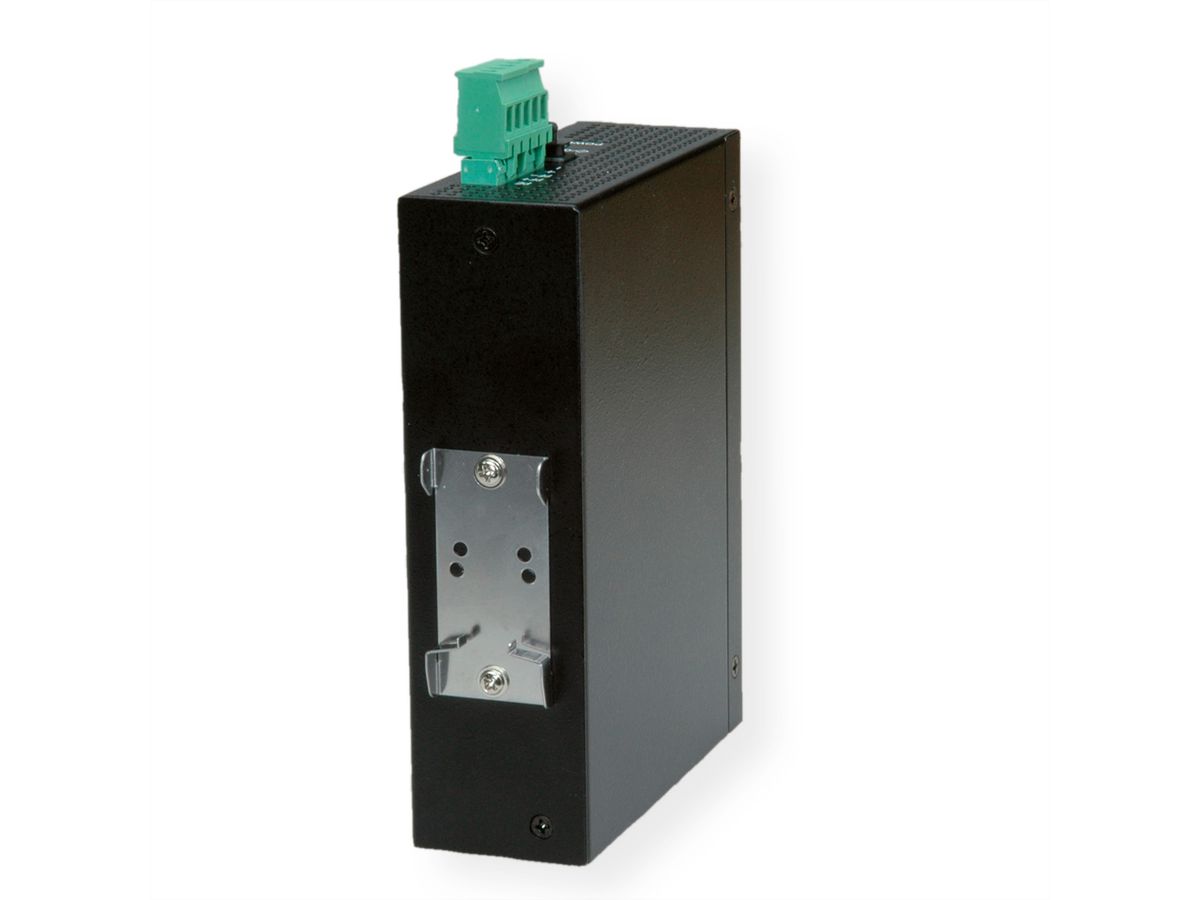

• Supports DIN-rail mounting and panel mounting
• Power: Input: 4.5 - 50V DC, Consumption: 3.4W (max.)
• Operating Temperature: - 20 °C - +70 °C
• DC Input via terminal block or DC power jack (6.3mm / 2.0mm)
• Dimensions: 140 x 106 x 40 mm (WxDxH)
• As according power supply we recommend 21.13.1226
• Contents: Switch

Specifications

Manufacturer	ROLINE
Product group	Network Switches
Product type	Fast Ethernet Switch
Colour	black
Network standard	Fast Ethernet
LAN (Mbps)	10/100
Quantity of ports	16
Fast Ethernet Ports RJ-45	16
Mounting form	DIN Rail
Management	no
Stackable	no
Technical particularity	- 20 ºC - +70 ºC
Dimensions (HxWxD)	140 x 40 x 106 mm
Power supply unit (internal/external)	External
Mains connection	Loose cable / screw terminals
Operating temperature min.	-20 °C
Operating temperature max.	70 °C
Height	140 mm
Width	40 mm
Depth	106 mm
Weight	531.5 g
Height of packaging (single piece)	80 mm
Width of packaging (single piece)	150 mm
Depth of packaging (single piece)	210 mm
Package weight (single piece)	0.62 kg
