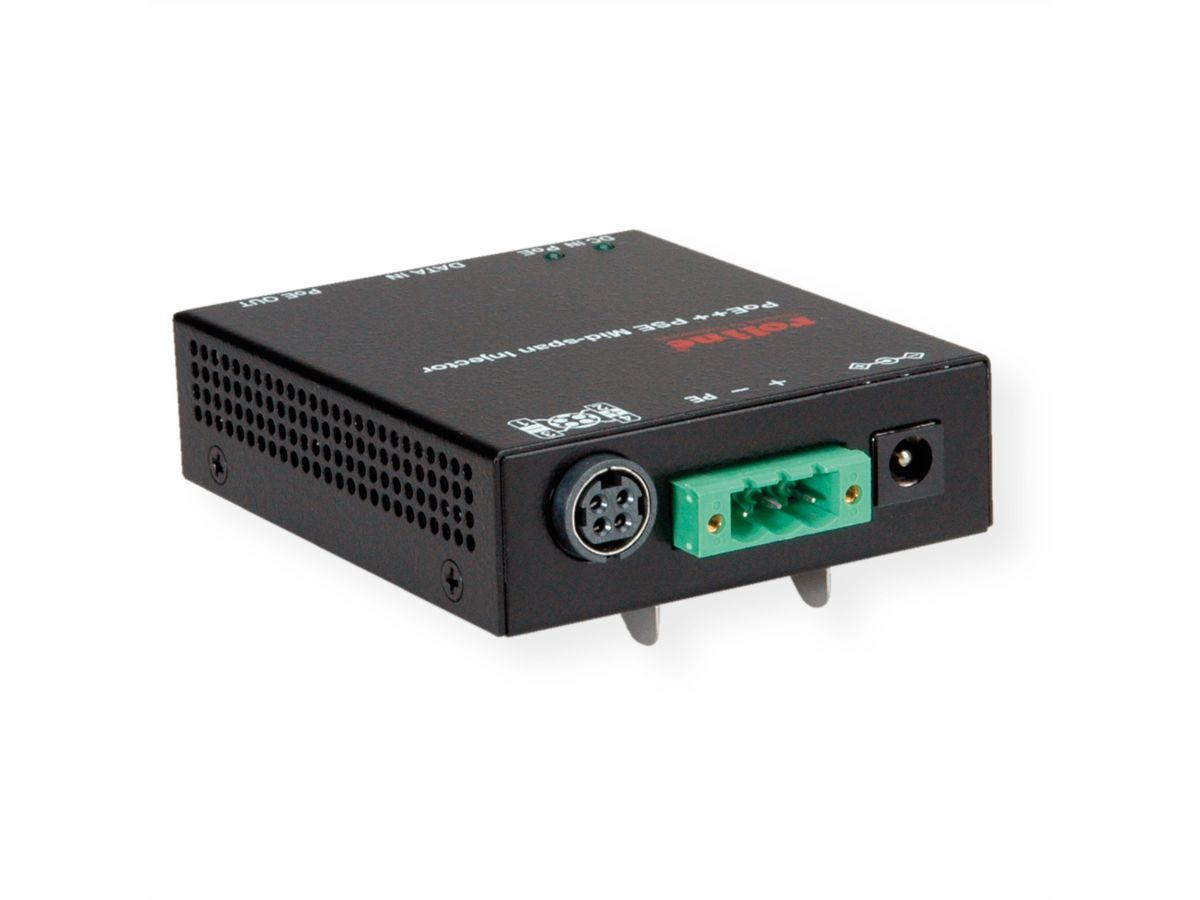

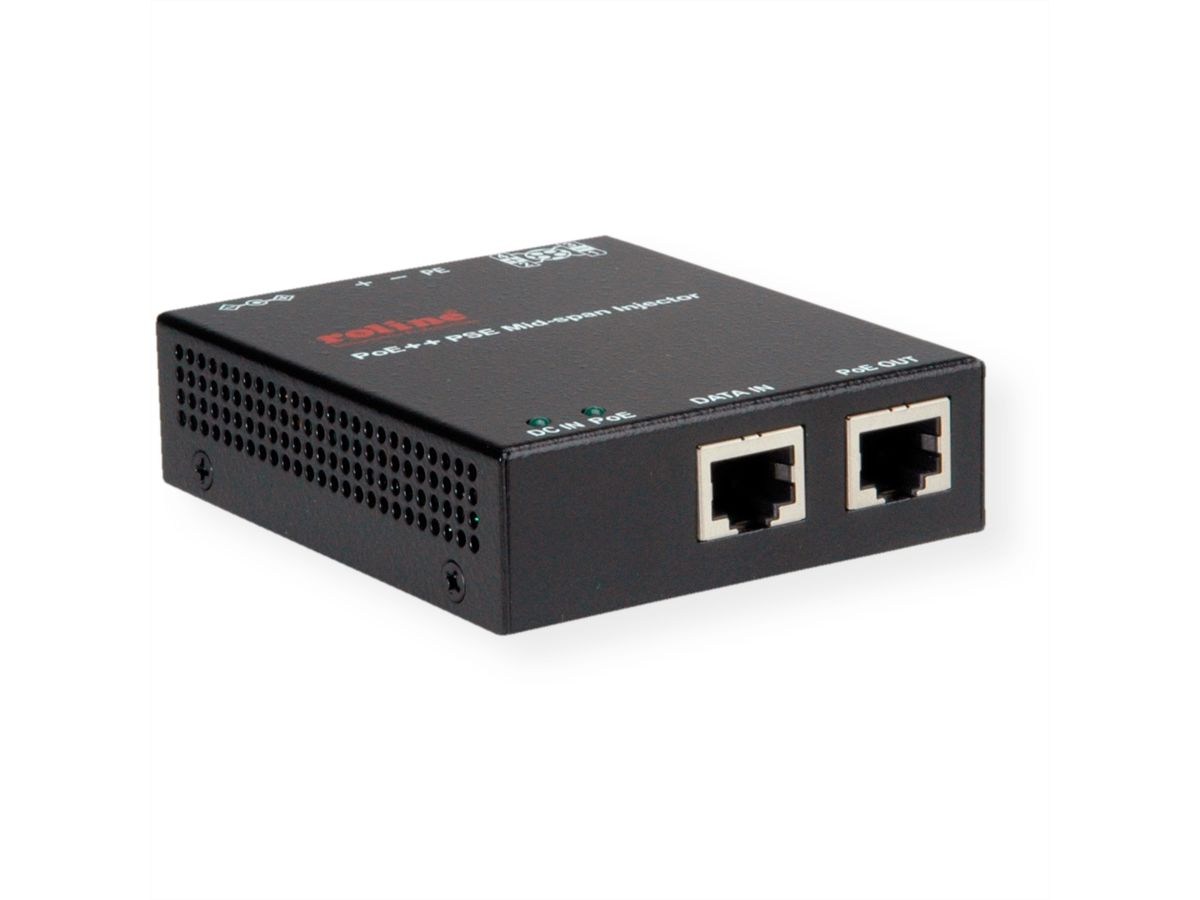

ROLINE Industrial Gigabit PoE++ Mid-Span Injector, 90W
Please log in to be able to use the shopping cart and then complete orders.
Log inDescription
The ROLINE Gigabit PoE Injector is a so-called PSE, a unit to supply power for e.g. surveillance cameras, and LAN devices such as access points, bridges and routers over Ethernet cable.
A PSE supplies the current together with the data in the network cable. It doesn't need no longer an additional own power supply of the device.- Supply of data and power into the network cables
- Connectors: 1x RJ-45 port (Data In, Data input), 1x power socket (Power In, input power supply), 1x RJ-45 port (Data & Power Out, output data and power)
- Compatible with 802.3af and 802.3at
- Power via PoE++: up to 90W
- LED indicators for Power, Link / Act. and PoE
- Output voltage: 802.3af standard (45V-57V DC)
- Contents: Injector, manual
Specifications
Manufacturer | ROLINE |
---|---|
Product group | PoE adapter |
Product type | Gigabit PoE-Injector |
Colour | black |
Power over Ethernet (PoE) | PoE++ |
Quantity of PoE ports | 1 |
Max. PoE output power per port | 90 W |
Max. PoE output power (total) | 90 W |
Dimensions (HxWxD) | 85 x 73 x 24 mm |
Mains connection | Loose cable / screw terminals |
Height | 85 mm |
Width | 73 mm |
Depth | 24 mm |
Weight | 184 g |
Height of packaging (single piece) | 70 mm |
Width of packaging (single piece) | 130 mm |
Depth of packaging (single piece) | 150 mm |
Package weight (single piece) | 0.278 kg |
