Description

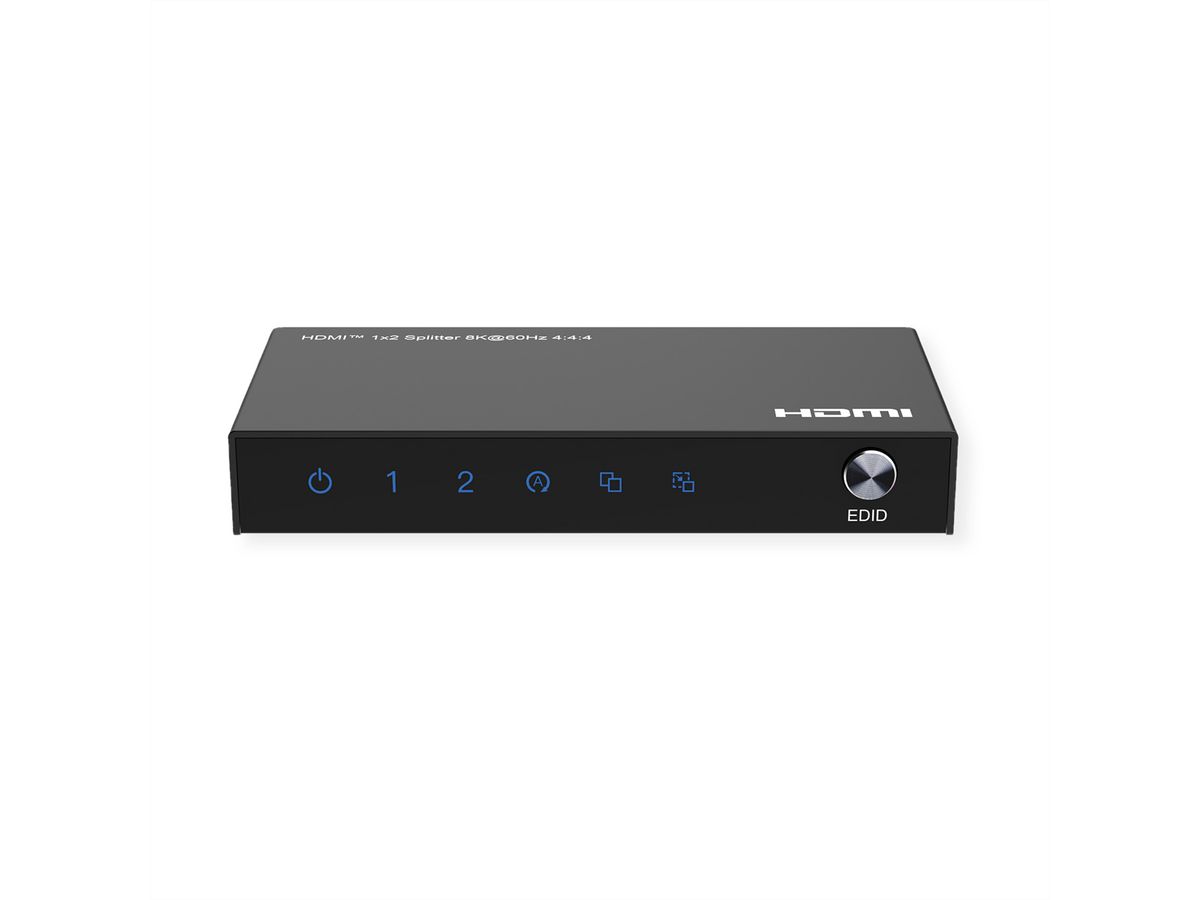

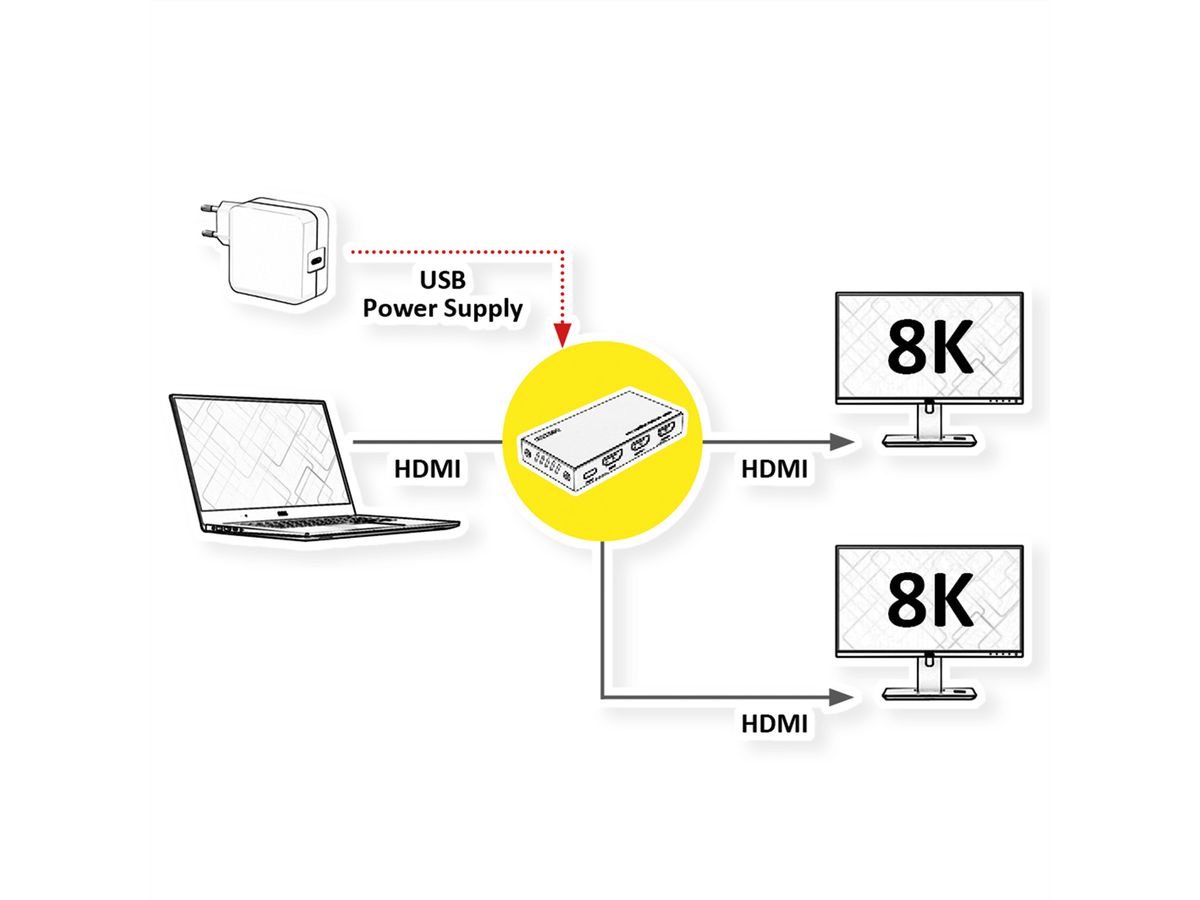

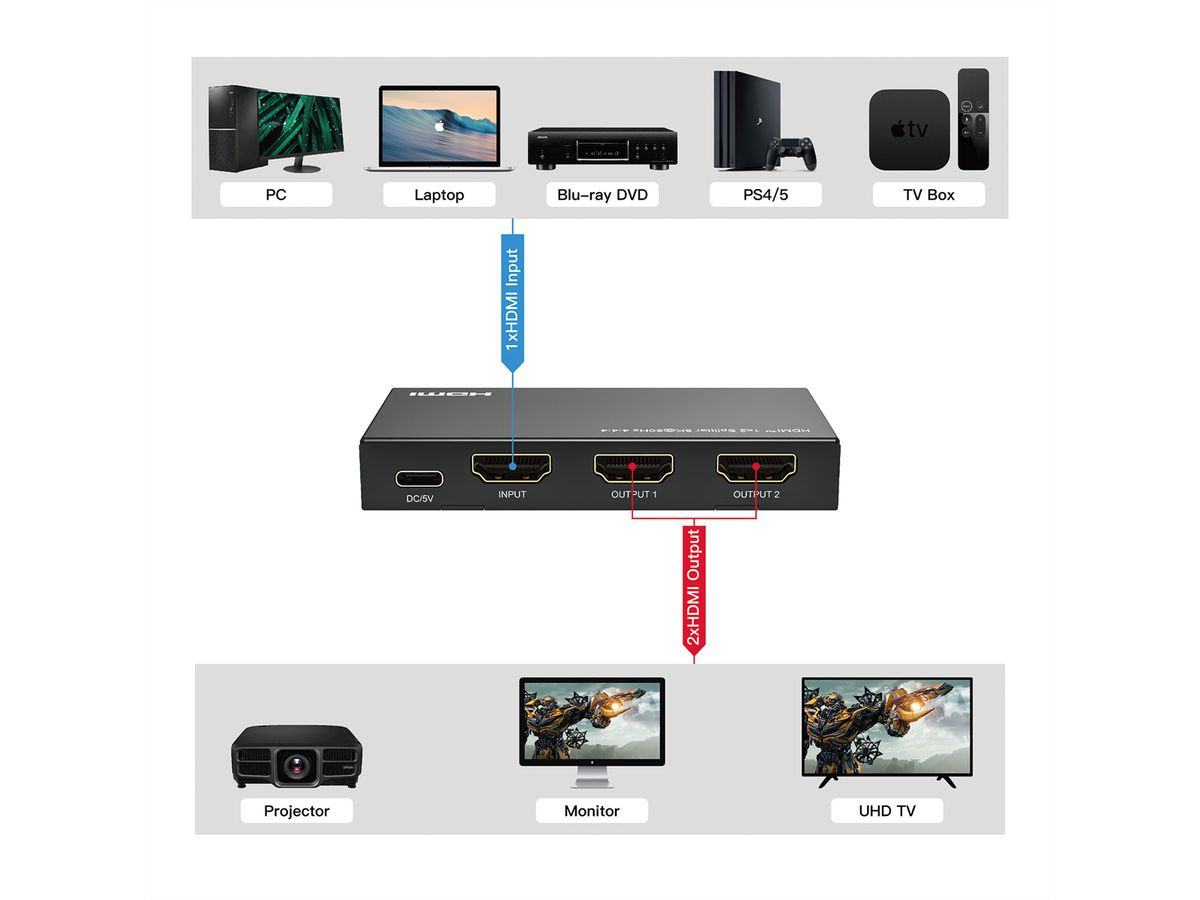

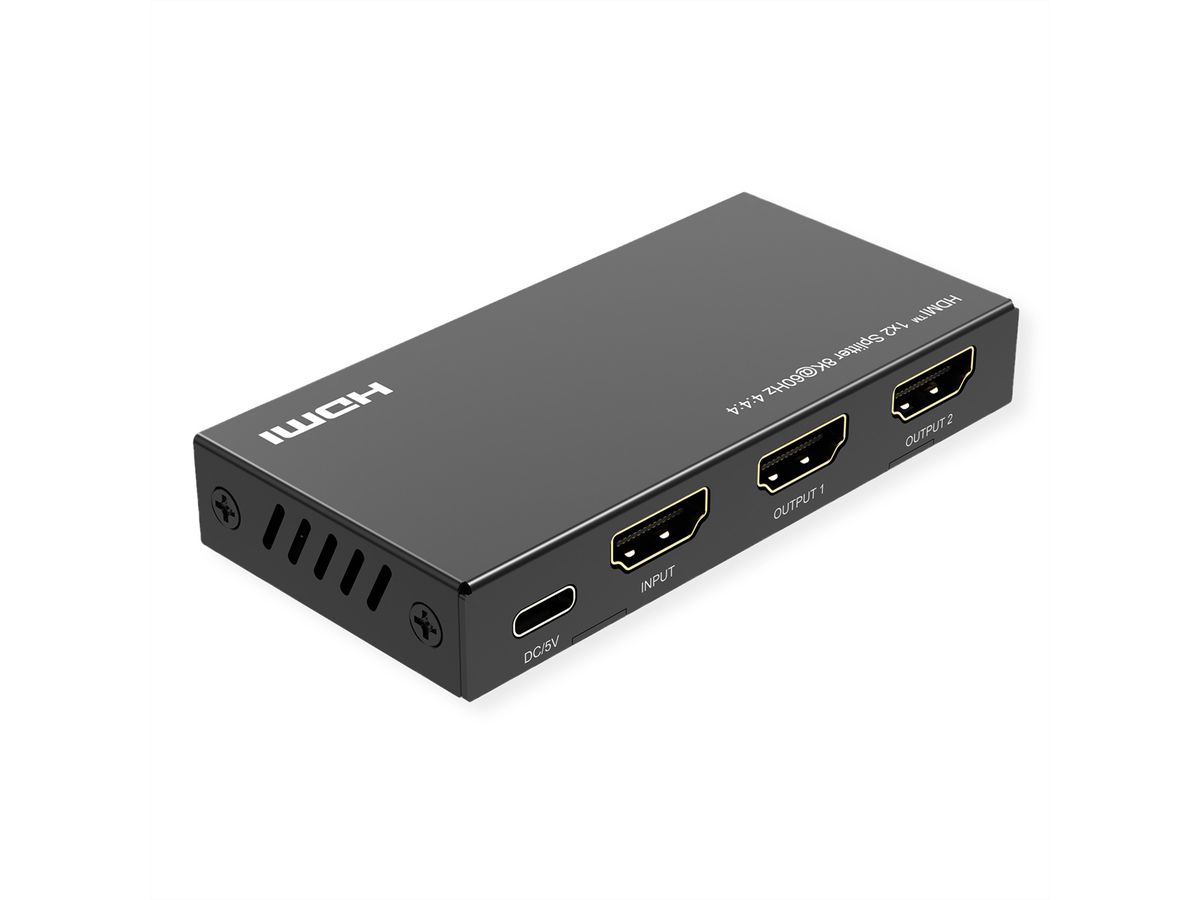

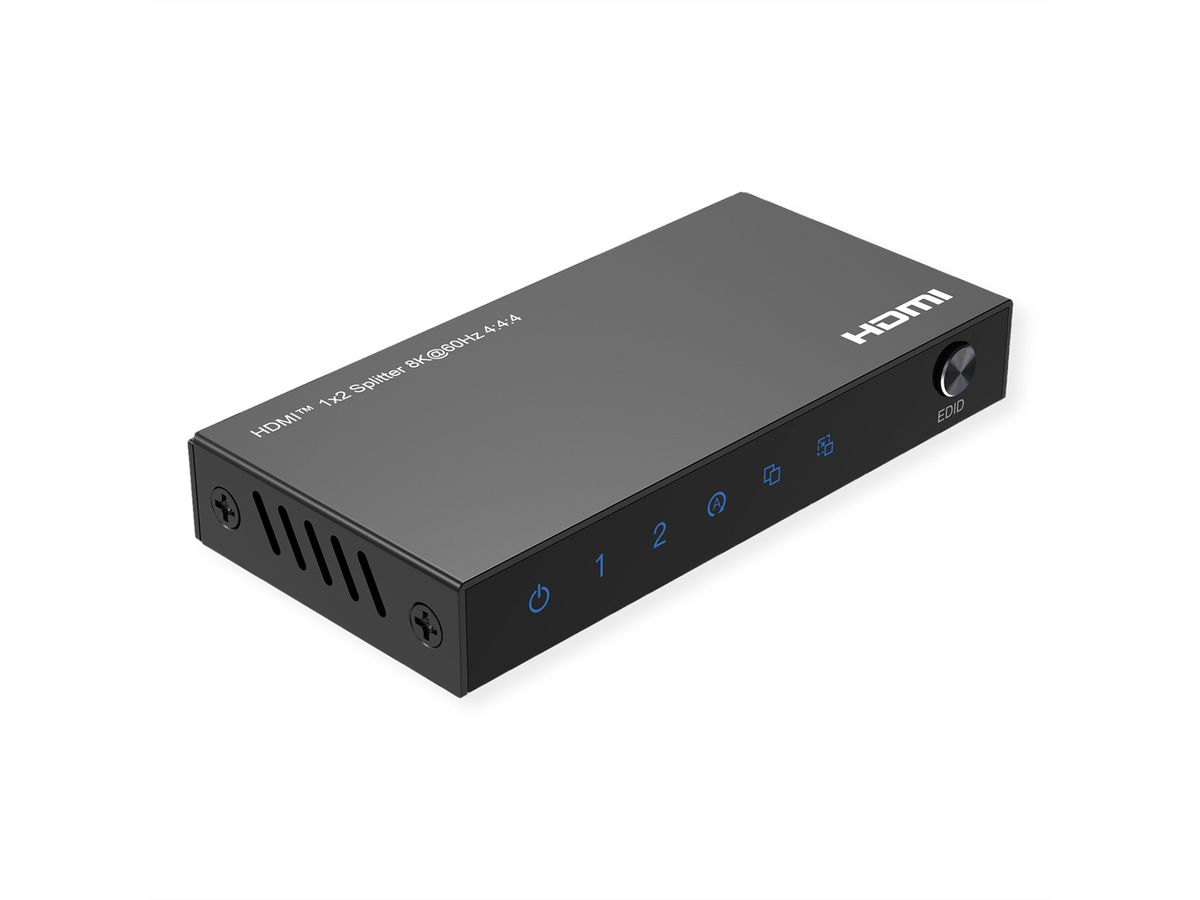

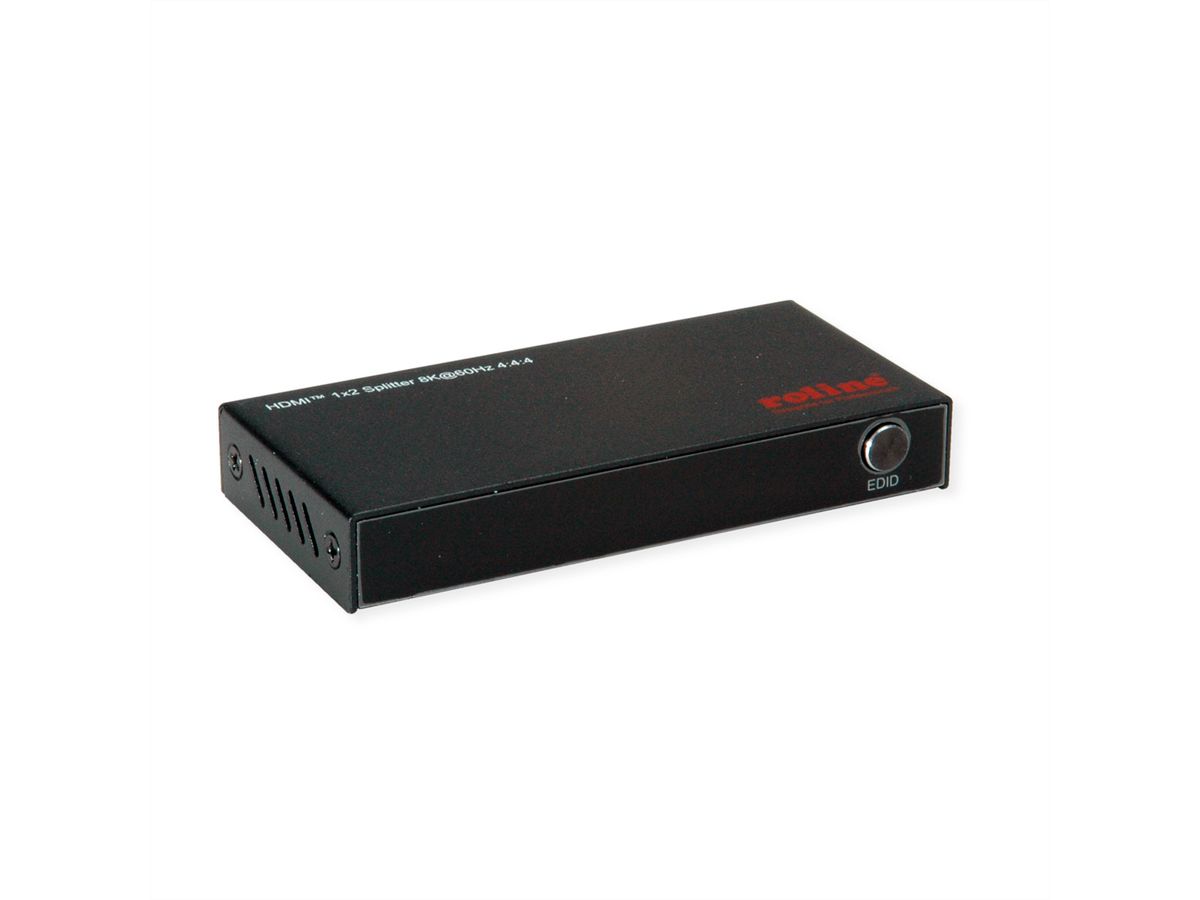

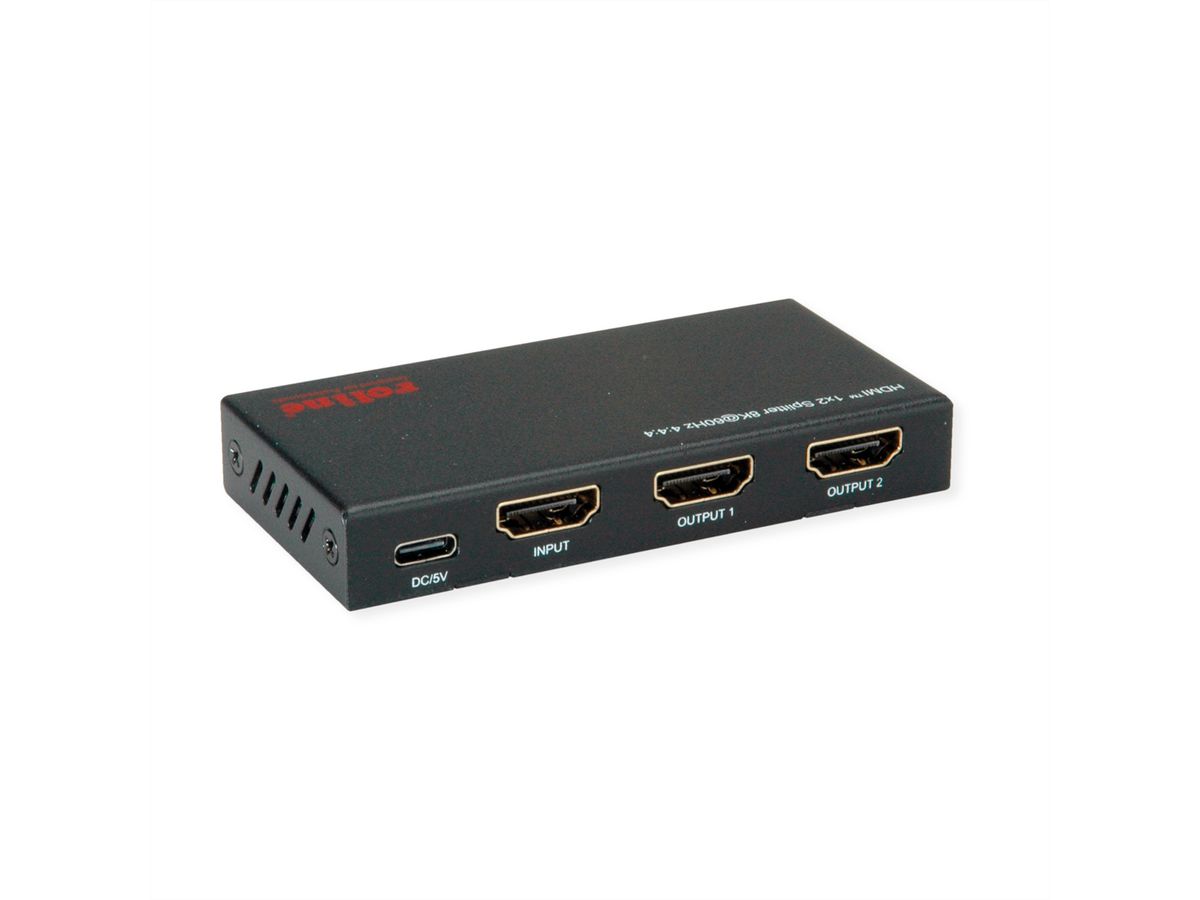

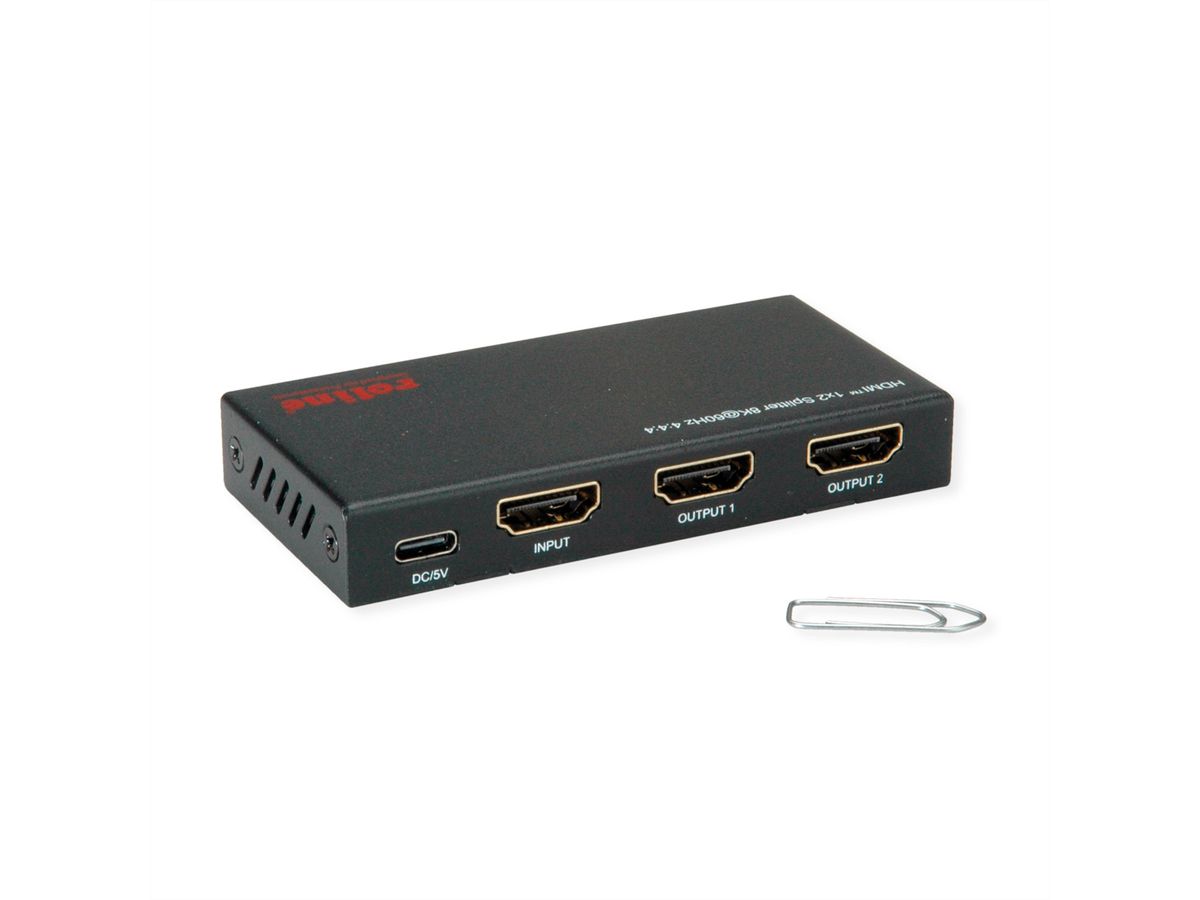

ROLINE HDMI Splitter for connecting up to two HDMI capable end devices (monitor, projector, etc) with 8K resolution at 60 Hz.

• For use in presentations or for training purposes
• Maximum resolution: 7680 x 4320 @60Hz
• Full 3D video format
• High definition resolution 8K@60Hz 4:4:4, 4K@120Hz and 1080P@240Hz
• HDCP 2.3, and backwards compatible with HDCP 2.2 and HDCP 1.4

• Uncompressed audio such as LPCM
• Compressed audio such as DTS, Dolby Digital (including DTS-HD Master Audio™ and Dolby TrueHD)
• High Dynamic Range (HDR) video pass-through, such as HDR10/HDR10+/Dolby vision etc.
• Power supply via USB cable Type A-C (included)

Specifications

Manufacturer	ROLINE
Product group	Splitters and selectors
Product type	HDMI-Video-Splitter
Colour	black
Scope of delivery	HDMI Splitter, USB Power Cable Type A - C, User Manual
Interface	HDMI
Inputs	1
Outputs	2

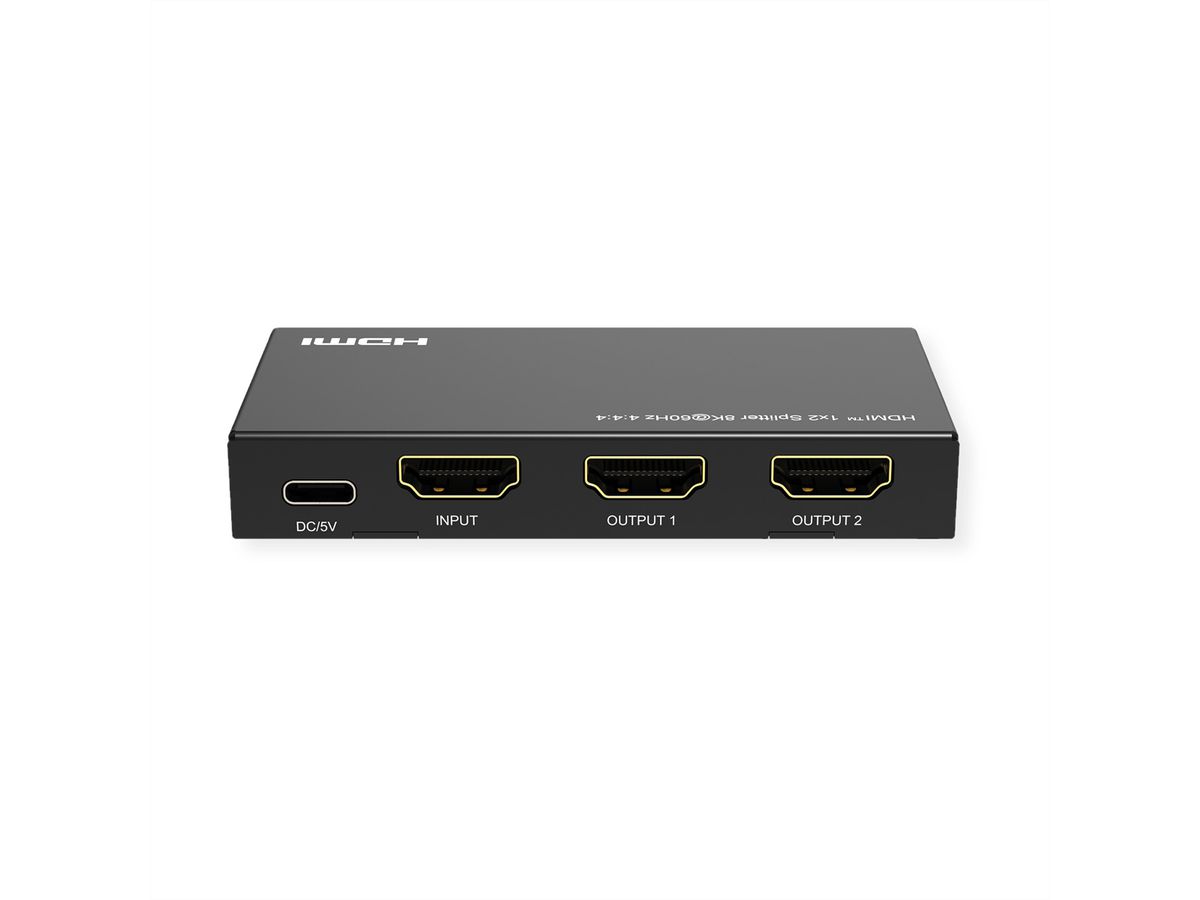

Video input	1x HDMI Female
Video output	2x HDMI Female
Max. resolution	7680 x 4320 @60Hz (8K, UHD-2)
Dimensions (HxWxD)	14 x 90 x 44 mm
Operating temperature min.	0 °C
Operating temperature max.	70 °C
Height	14 mm
Width	90 mm
Depth	44 mm
Weight	87 g
Height of packaging (single piece)	0 mm
Width of packaging (single piece)	0 mm
Depth of packaging (single piece)	0 mm
Package weight (single piece)	0 kg
