Description

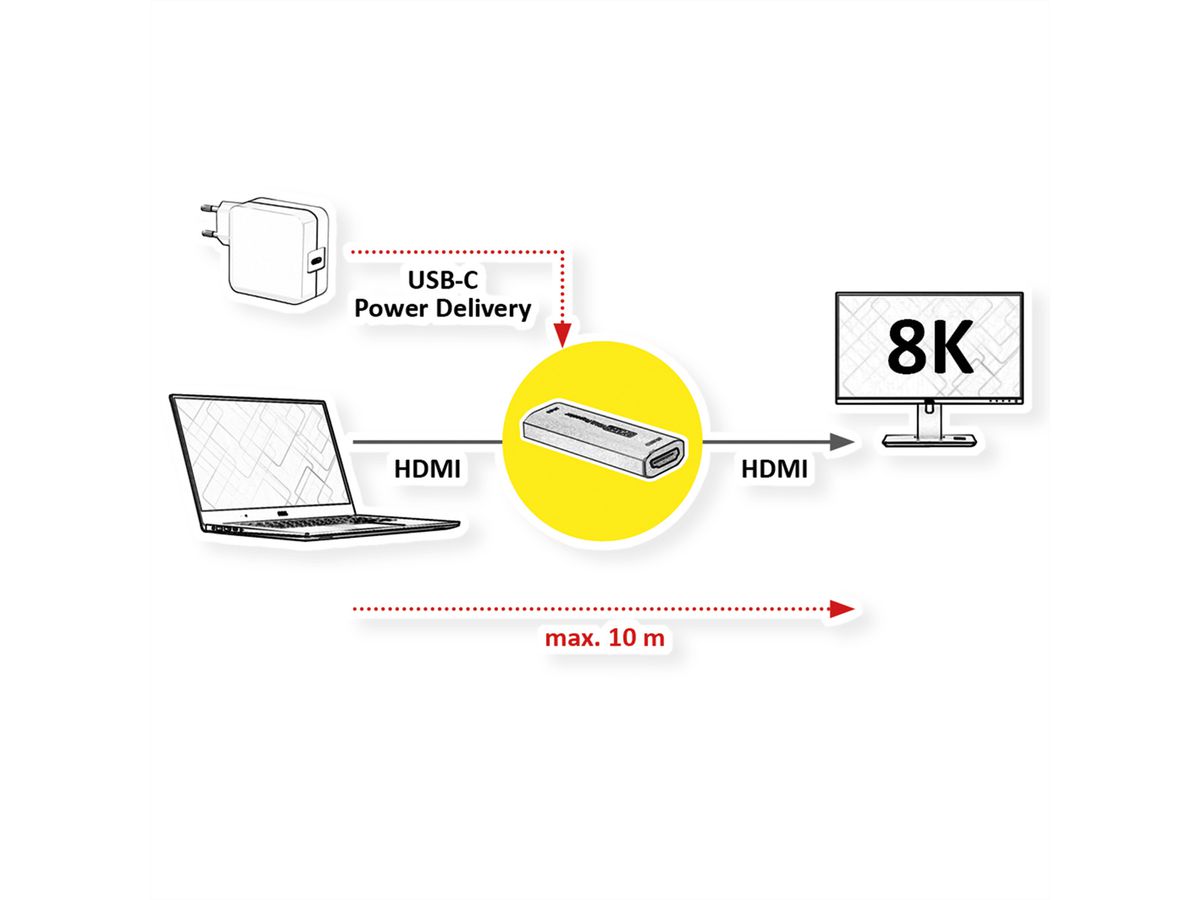

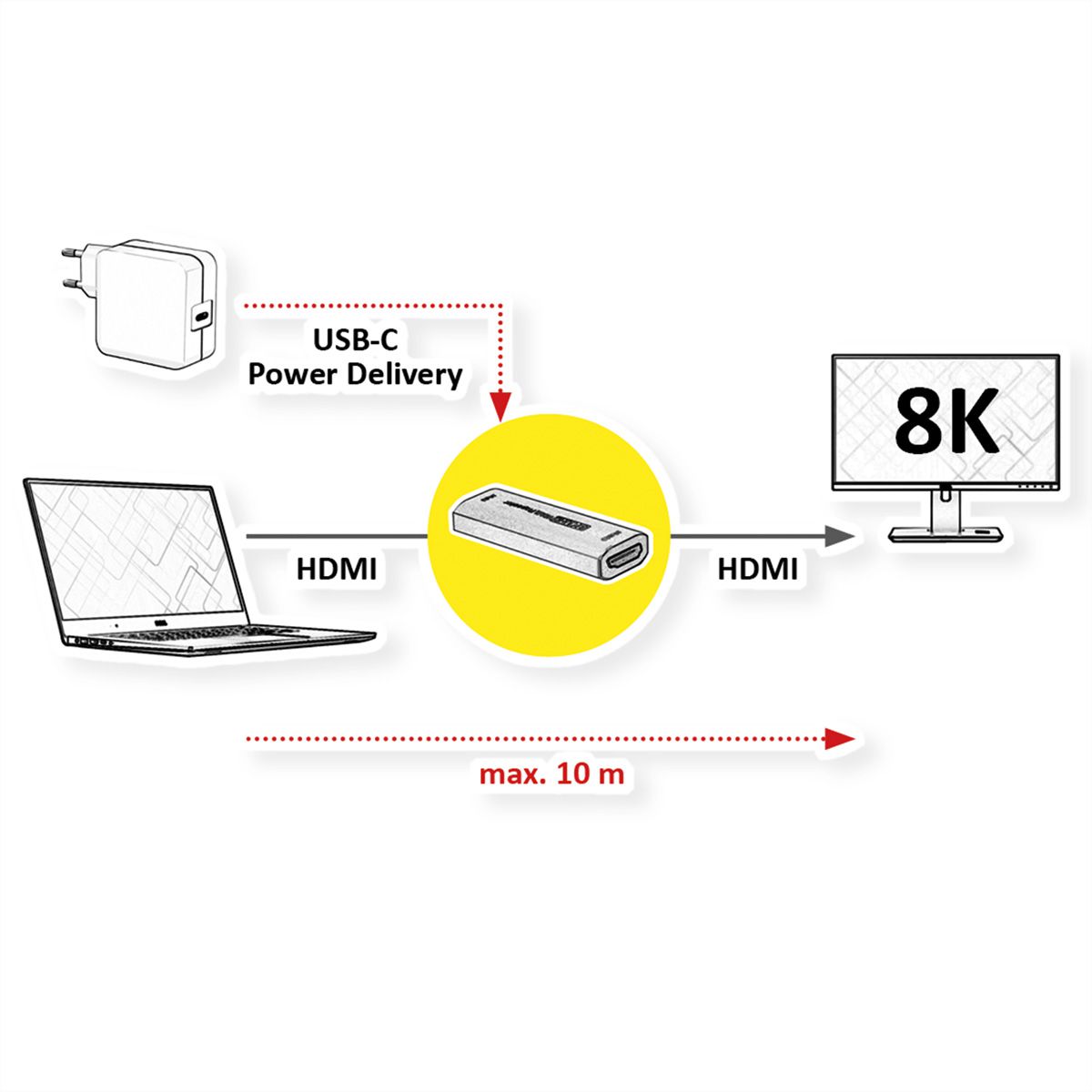

HDMI Repeater to create a point-to-point connection to reduce costs for applications that require a single HDMI Port input and output device over long distances - with up to 7680x4320 @60Hz resolution!

• Ideal for display applications in conference rooms, classrooms & training facilities etc.
• Extend the HDMI Port signal up to 10/20 meters (depending on the resolution)
• Supports HDMI resolutions up to 8K @60Hz
• Compliant with HDCP 2.2 & DPCP
• Supports 8K 60Hz (max. length: 5m in; 5m out), 4K 60Hz (max. length: 10m in; 10m out);
• HDTV compatible
• Supports DTS-HD / Dolby truehd / DTS / dolby-ac3 / DSD Audio formats
• Plug & Play
• Power: via USB C cable (5 VDC, 2A) - not included.

REMARK: Graphics card and display must support display stream compression (DSC) to use HDR 8K@30/60Hz、
4K@120Hz and 2K@240Hz

Specifications

Manufacturer	ROLINE
Product group	Splitters and selectors
Product type	HDMI Extender
Colour	grey
Scope of delivery	HDMI Repeater, Quick Installation Guide
Interface	HDMI
Max. distance	10 m
Video input	HDMI
Video output	HDMI
Max. resolution	7680 x 4320 @60Hz (8K, UHD-2)
Power supply output	DC 5V; 2A
Operating temperature min.	-15 °C
Operating temperature max.	45 °C
Height	10 mm
Width	23 mm
Depth	60 mm
Weight	17 g
Height of packaging (single piece)	20 mm
Width of packaging (single piece)	20 mm
Depth of packaging (single piece)	70 mm
Package weight (single piece)	0.02 kg

Downloads

Product data sheet - English (54.1 KB)

Download

The products of our own brand ROLINE are designed for professional continuous operation.

With a 2-year functional guarantee, we stand by our performance promise.

ROLINE – Quality makes the difference.
