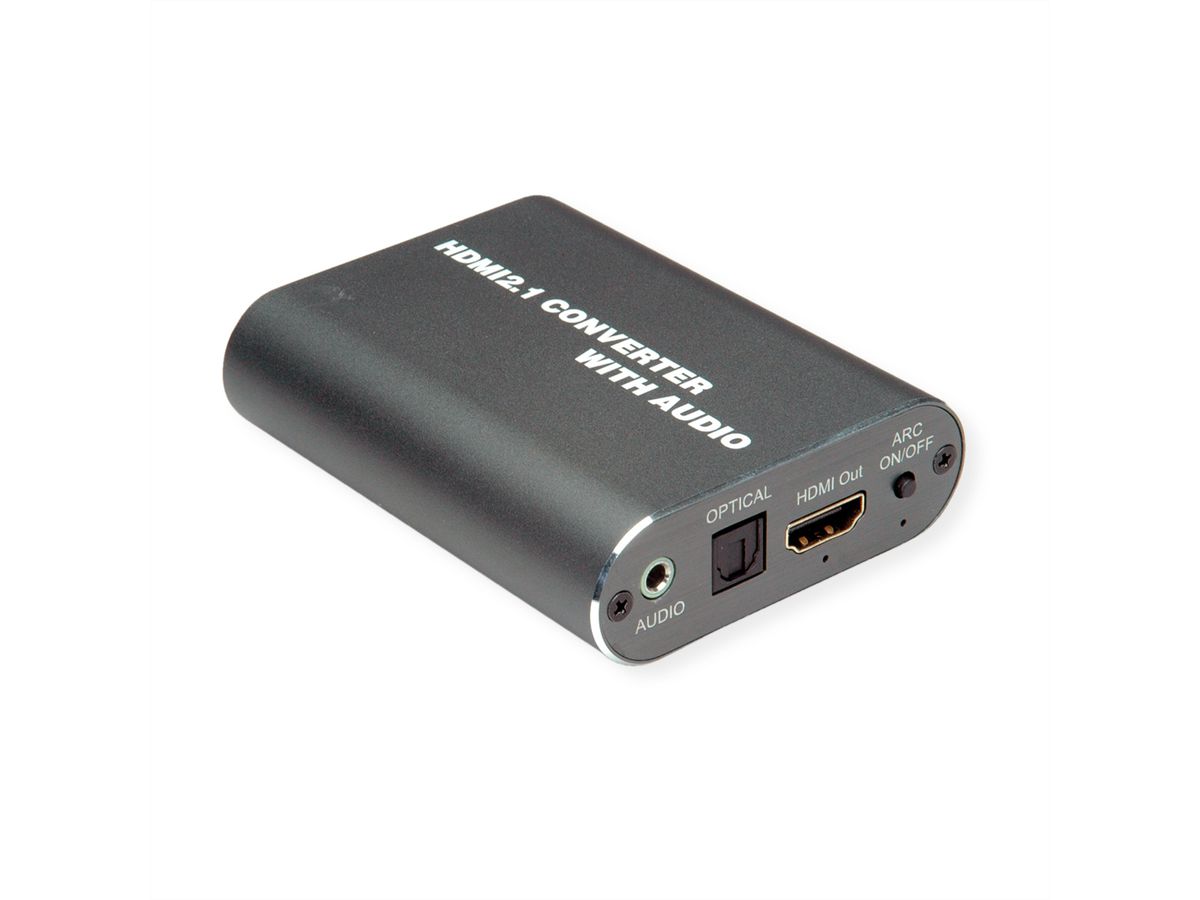

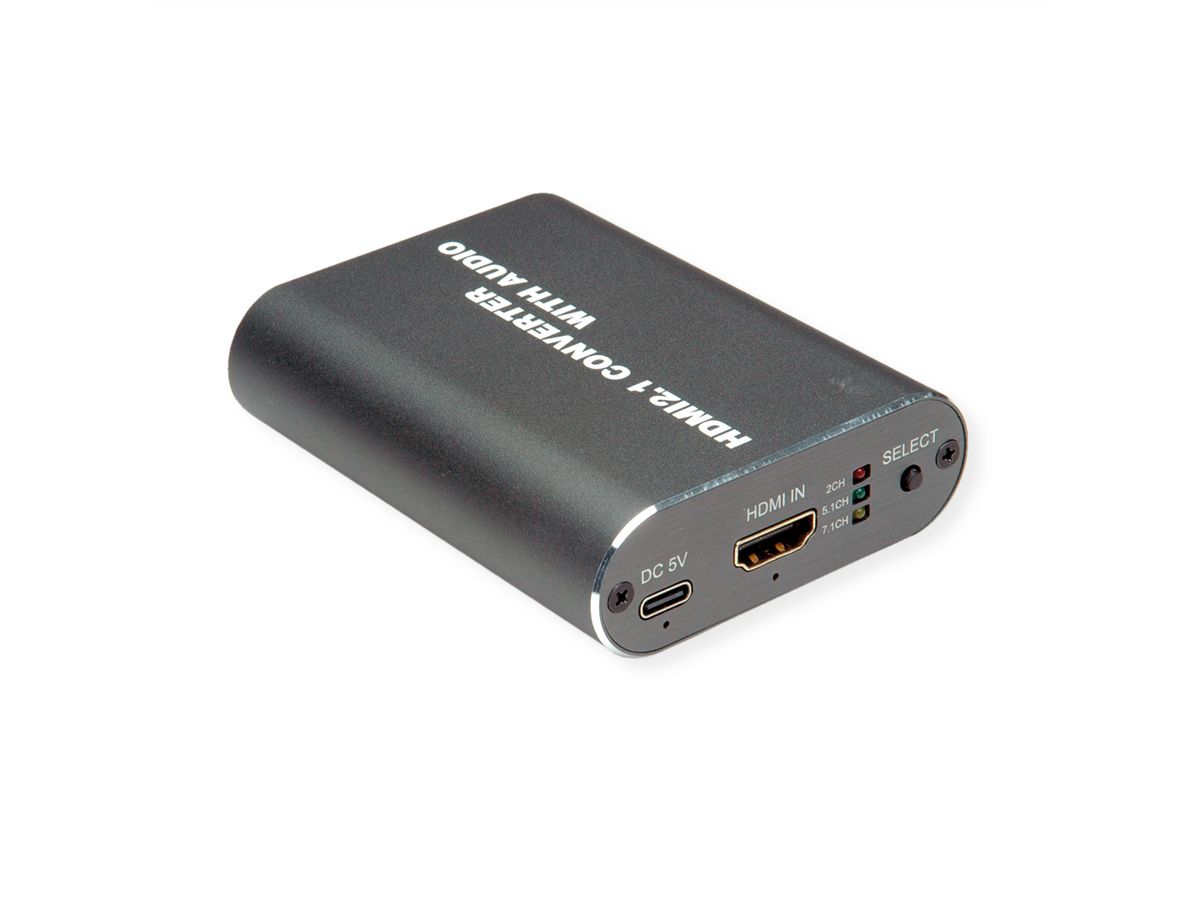

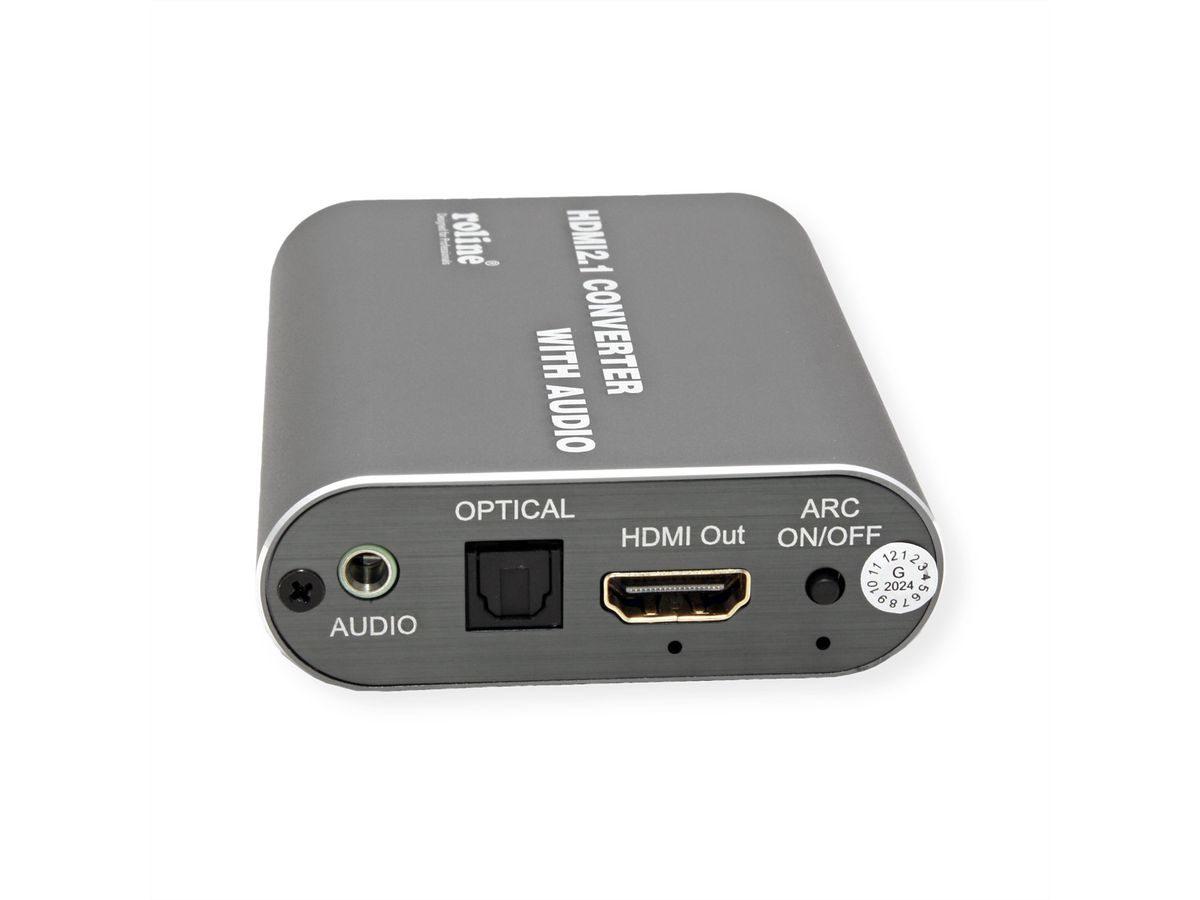

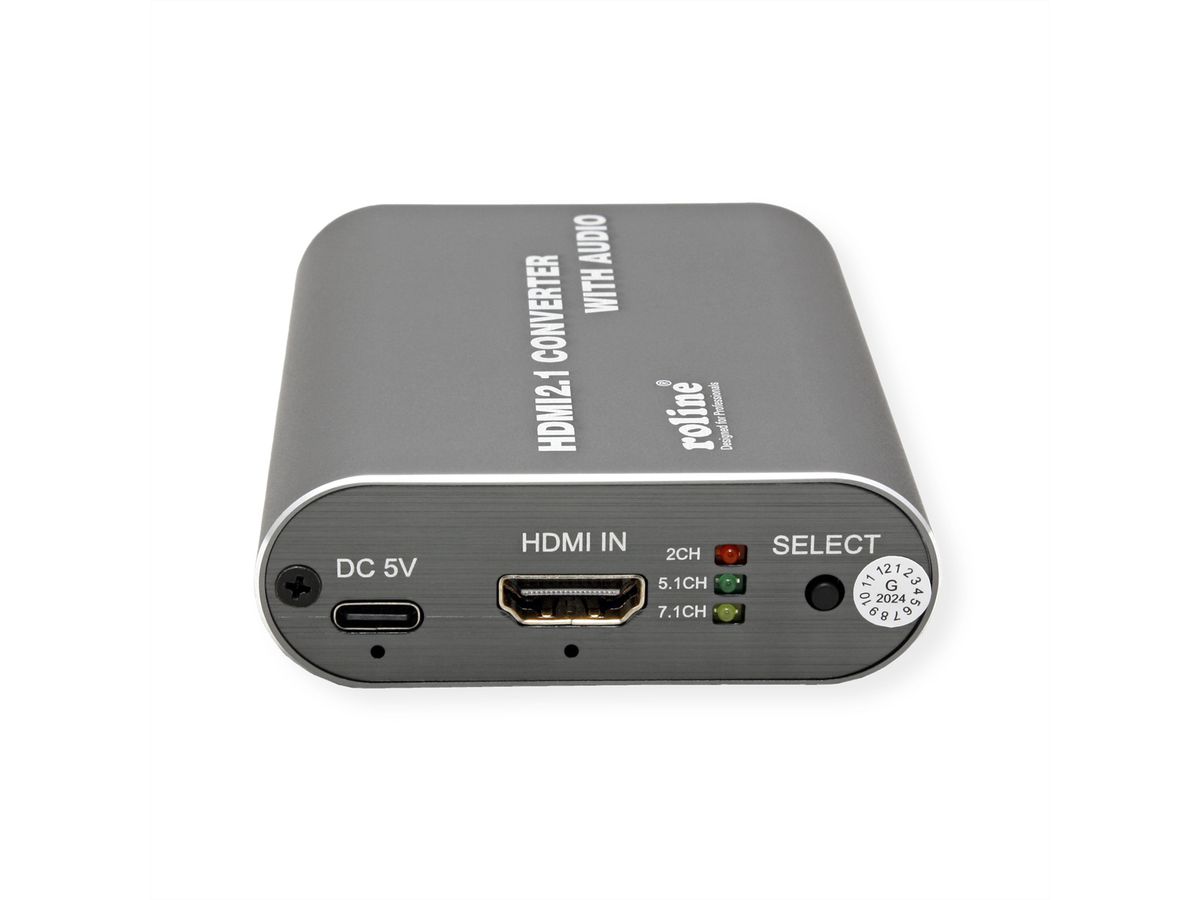

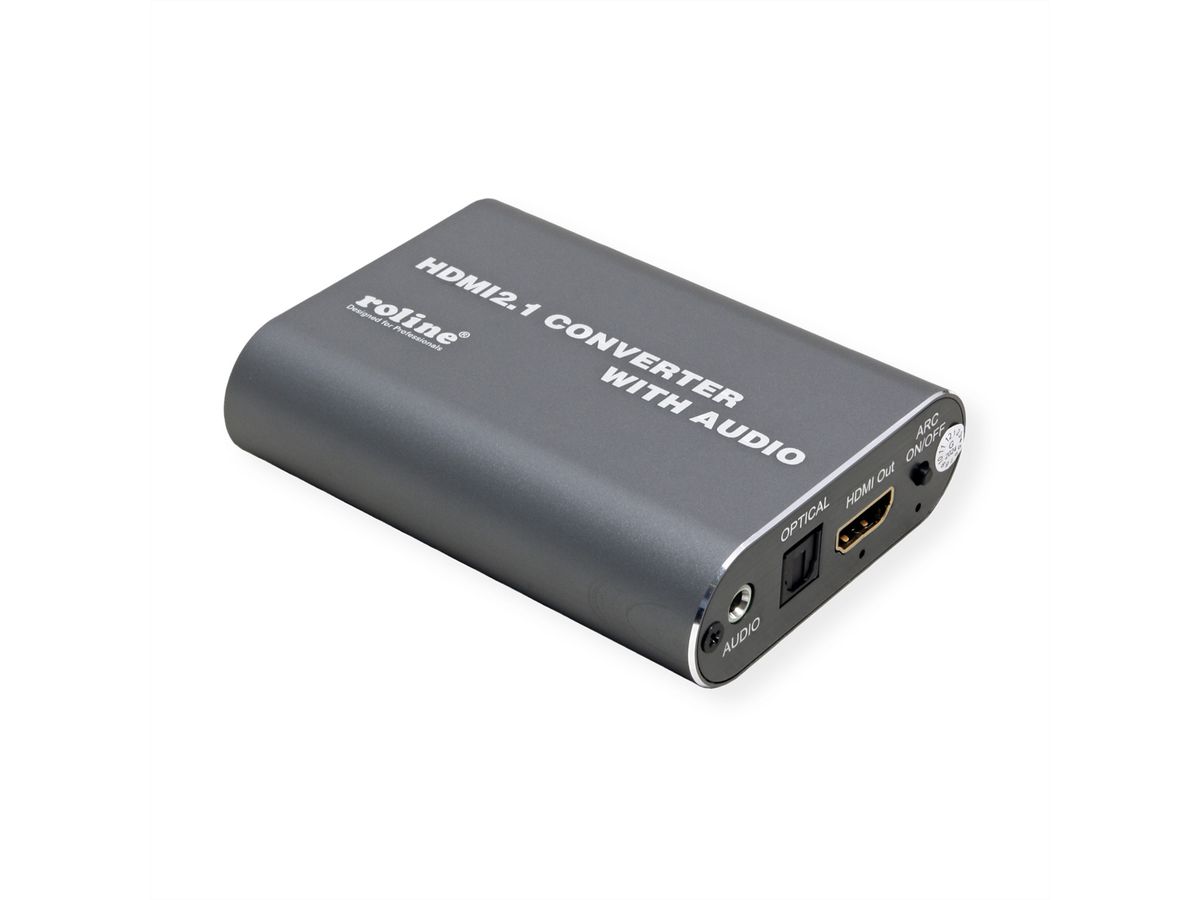

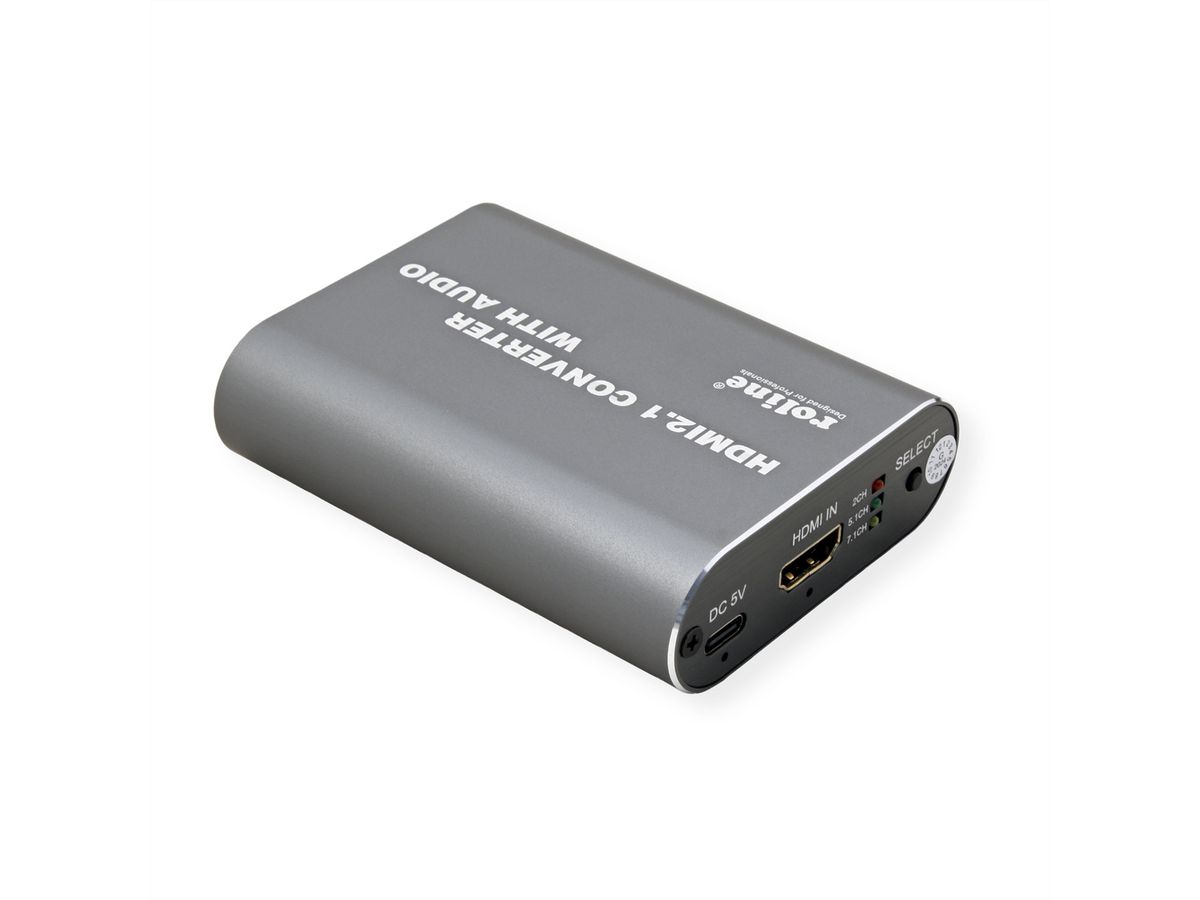

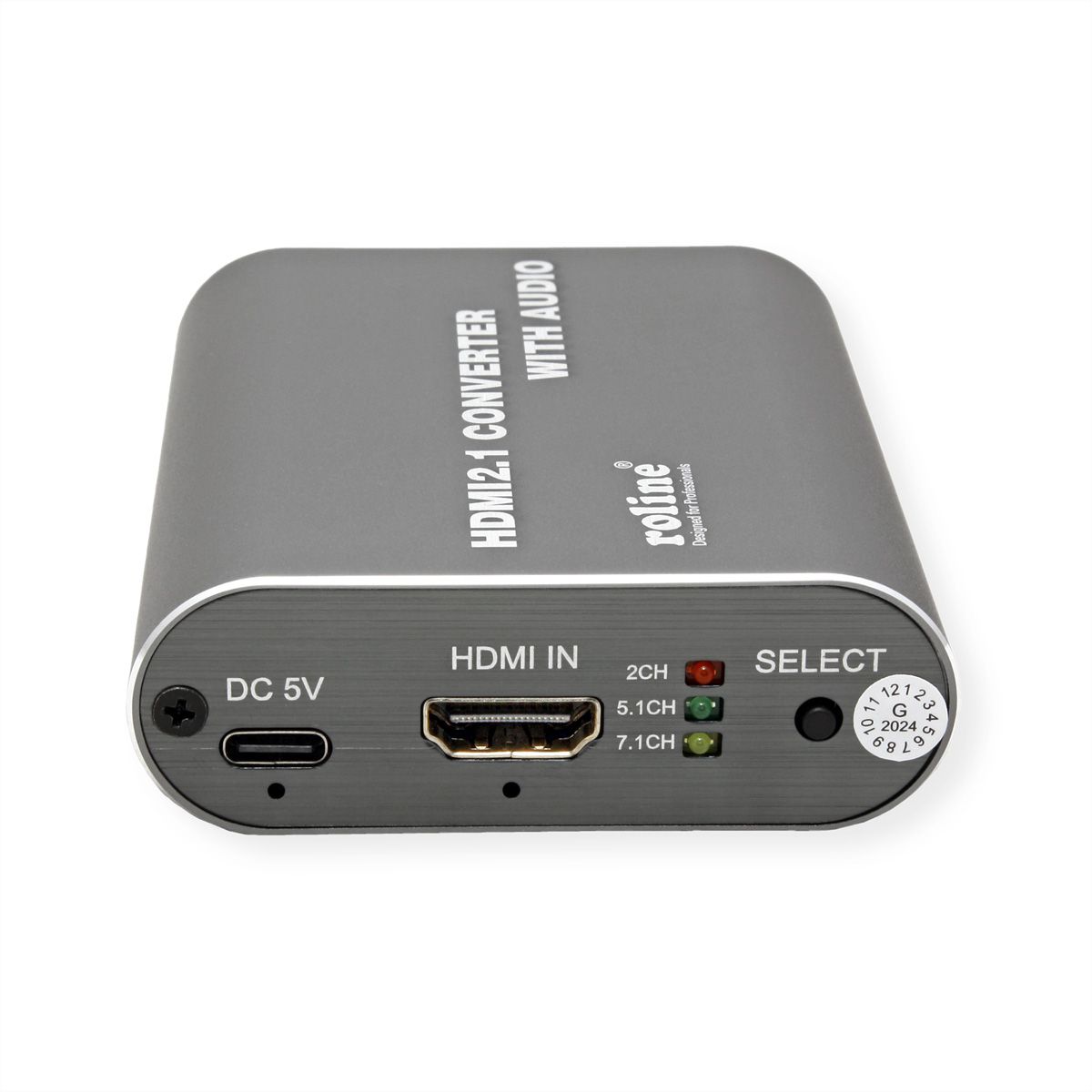

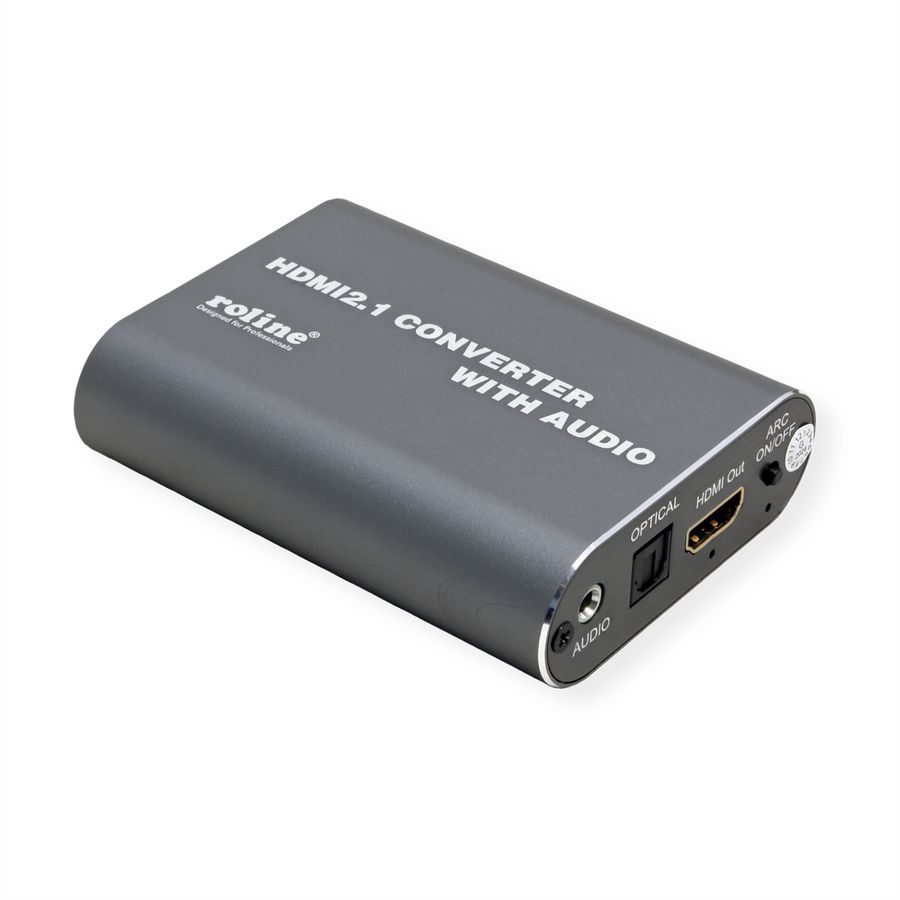

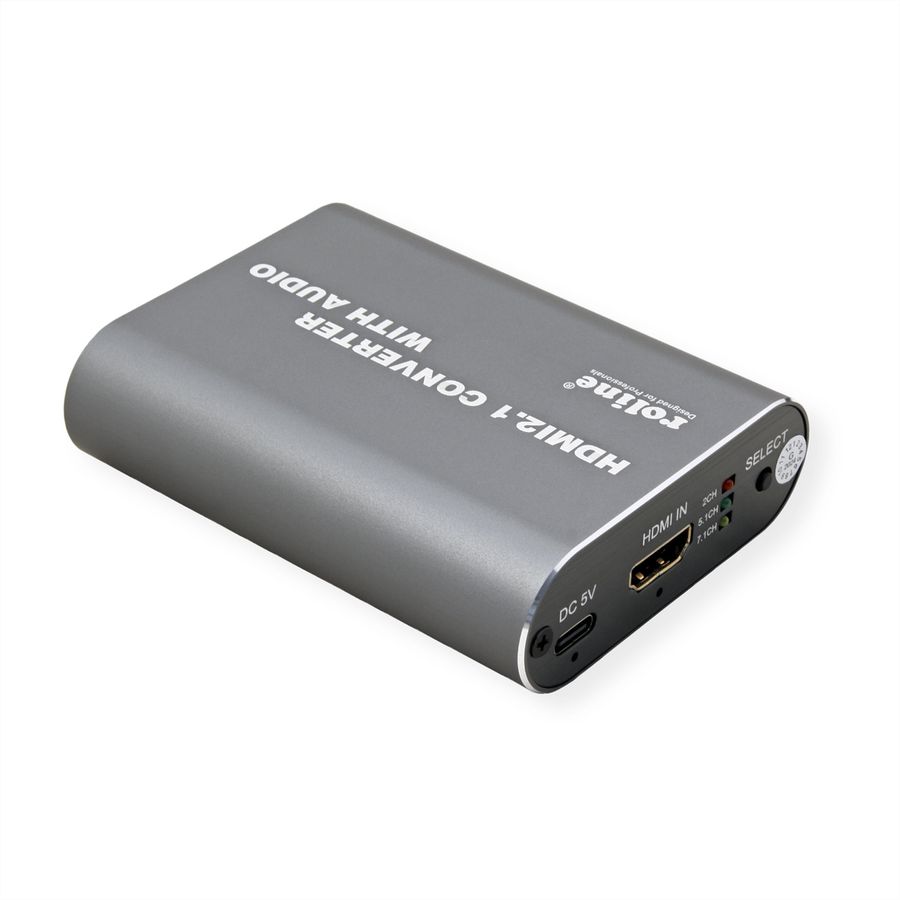

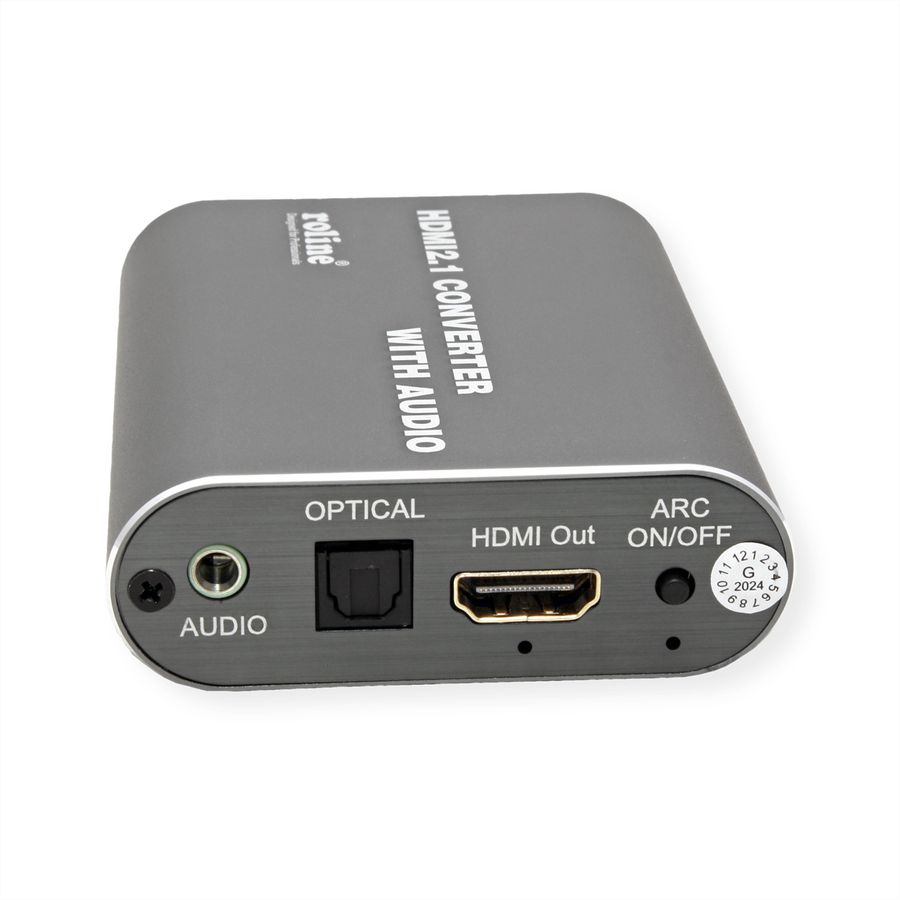

ROLINE HDMI 8K Audio Extractor, LPCM 7.1
Please log in to be able to use the shopping cart and then complete orders.
Log in| Item no. | 14.01.3444-10 |
|---|---|
| Brand / Manufacturer | ROLINE |
| Manuf. no. | 14.01.3444 |
| EAN | 7630049672659 |
| Package weight | 0.15 kg |
:strip_icc():strip_exif()/bilder/icons/icon_hdmi_4320p_uhd2.png){kind=icon}
:strip_icc():strip_exif()/bilder/icons/icon_resolution_8k.png){kind=icon}
|
|
:strip_icc():strip_exif()/logos/roline.png "ROLINE")
Description

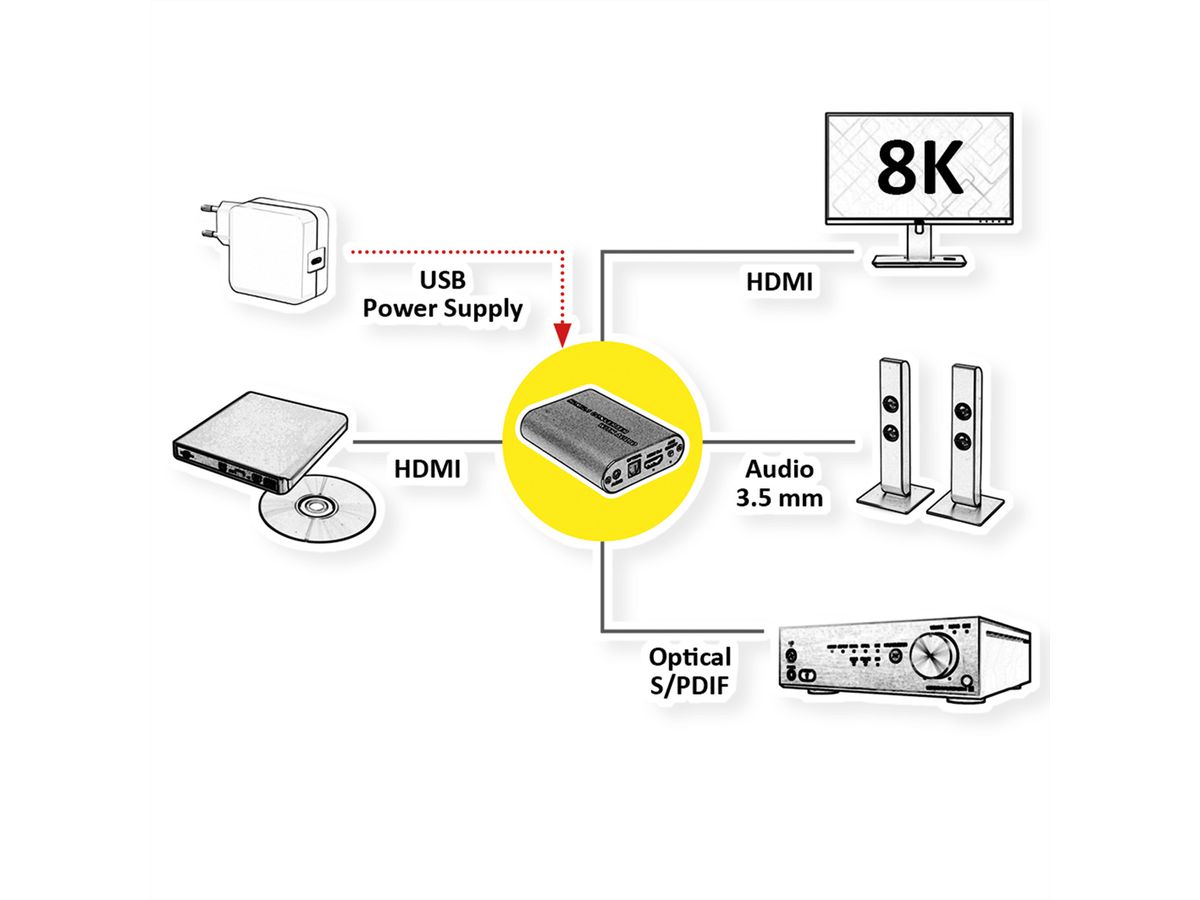

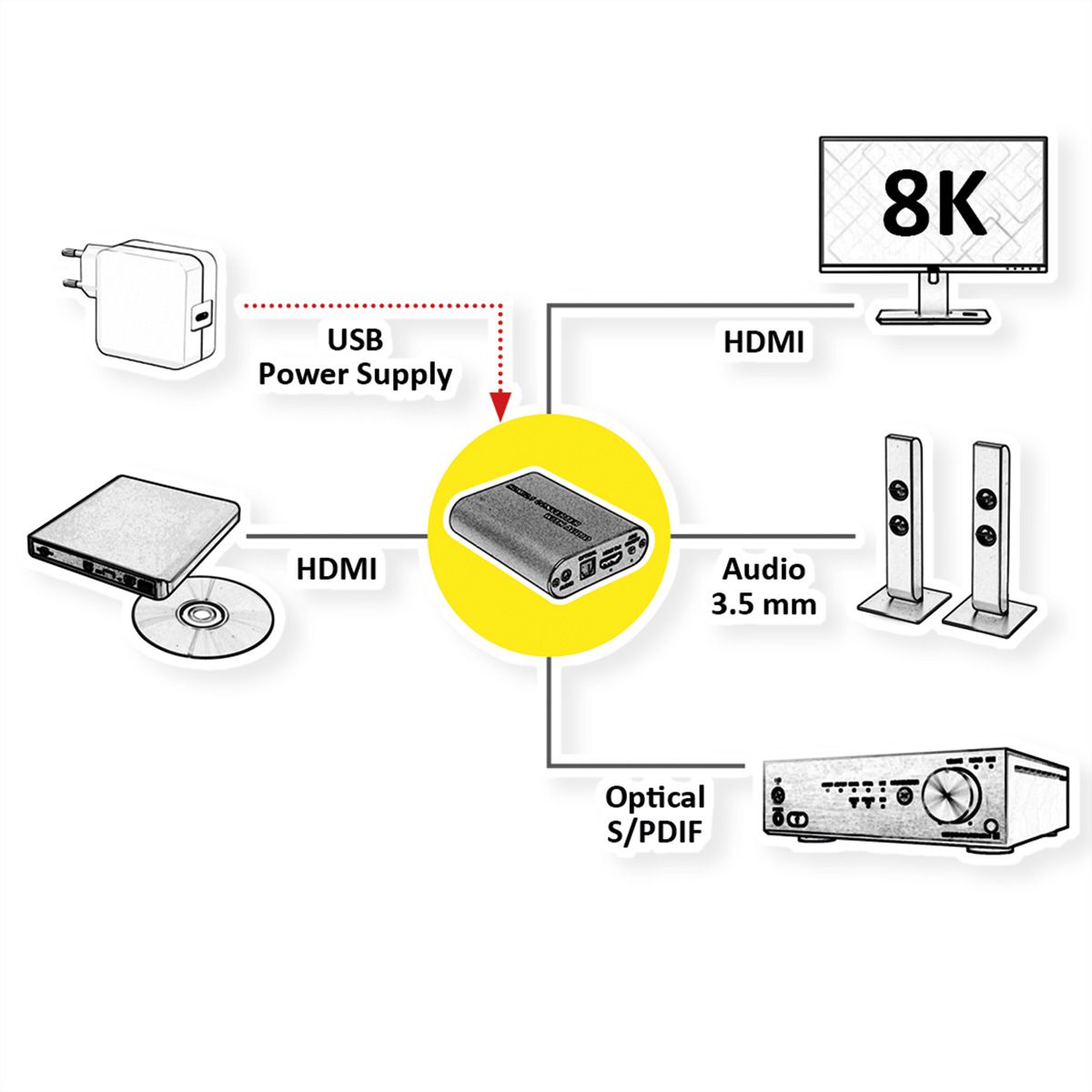

This ROLINE HDMI 8K@60Hz Audio Extractor allows you to uncouple the audio signal from the HDMI signal. Not all monitors have good speakers. With this extractor you can redirect the audio signal via S/PDIF (optical) or analog via the 3.5mm port to a speaker system and the pure image signal goes to the screen.
This ROLINE HDMI 8K@60Hz Audio Extractor allows you to uncouple the audio signal from the HDMI signal.- Maximum resolution: 8K@60Hz
- Maximum bandwidth: 40Gbps
- Supports HDMI 2.1
- Supports HDCP 2.3
- Audio output supports 4 EDID selection modes (2CH/5.1CH/7.1CH/TV)
- HDMl frequency support: LPCM up to 7.1 192 KHz 24Bit
- S/PDIF TOSLINK output: LPCM up to 5.1 96KHz 24 Bit
- Stereo RCA output format: PCM 2.0 CH
- Contents: extractor, USB cable (A-C), user manual
Specifications
| Manufacturer | ROLINE |
|---|---|
| Product group | Adapters, Terminators, Converters |
| Product type | HDMI Audio Extractor |
| Colour | black |
| Scope of delivery | Extractor, USB cable (A-C), user manual |
| Max. resolution | 7680 x 4320 @60Hz (8K, UHD-2) |
| Side 1 connection (PC) | HDMI |
| Side 2 connection (Peripherals) | HDMI, Optical S/PDIF, 3.5mm |
| Side 1 Connector Type | HDMI Type A |
| Side 1 Connector Gender | Female |
| Side 2 Connector Type |
|
| Side 2 Connector Gender | Female |
| Area of application | External |
| Dimensions (HxWxD) | 24 x 70 x 90 mm |
| Operating temperature min. | 0 °C |
| Operating temperature max. | 40 °C |
| Storage temperature min. | -20 °C |
| Storage temperature max. | 60 °C |
| Height | 24 mm |
| Width | 70 mm |
| Depth | 90 mm |
| Weight | 106 g |
| Height of packaging (single piece) | 30 mm |
| Width of packaging (single piece) | 190 mm |
| Depth of packaging (single piece) | 150 mm |
| Package weight (single piece) | 0.15 kg |
